Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 2 illustrations

Illustrations

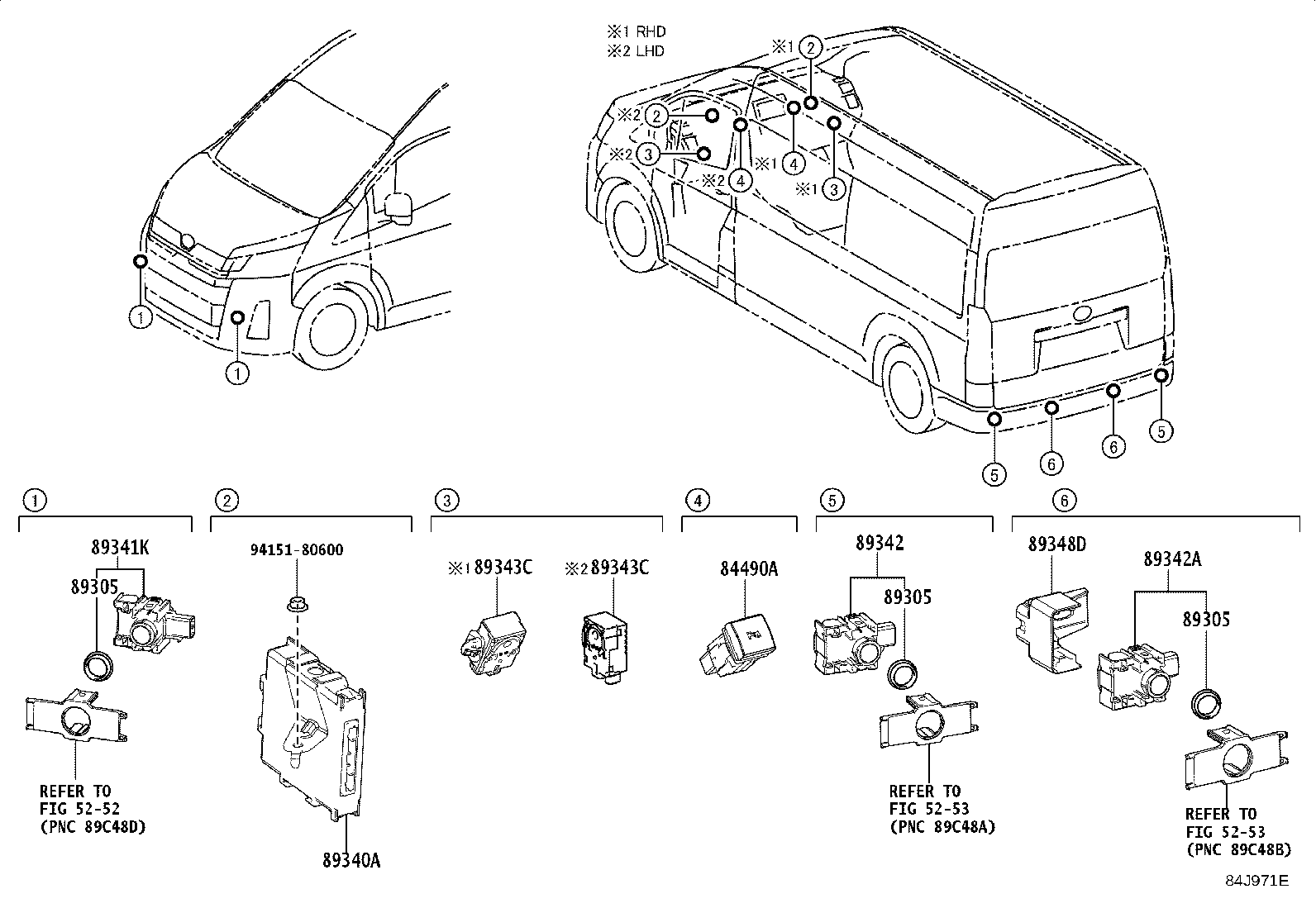

Figure 84J972E 84J972E 2019-02 → — Figure 84J971E 84J971E 2019-02 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89305 Cushion Set, Ultrasonic Sensor
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
