Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

15 part groups · 3 illustrations

Illustrations

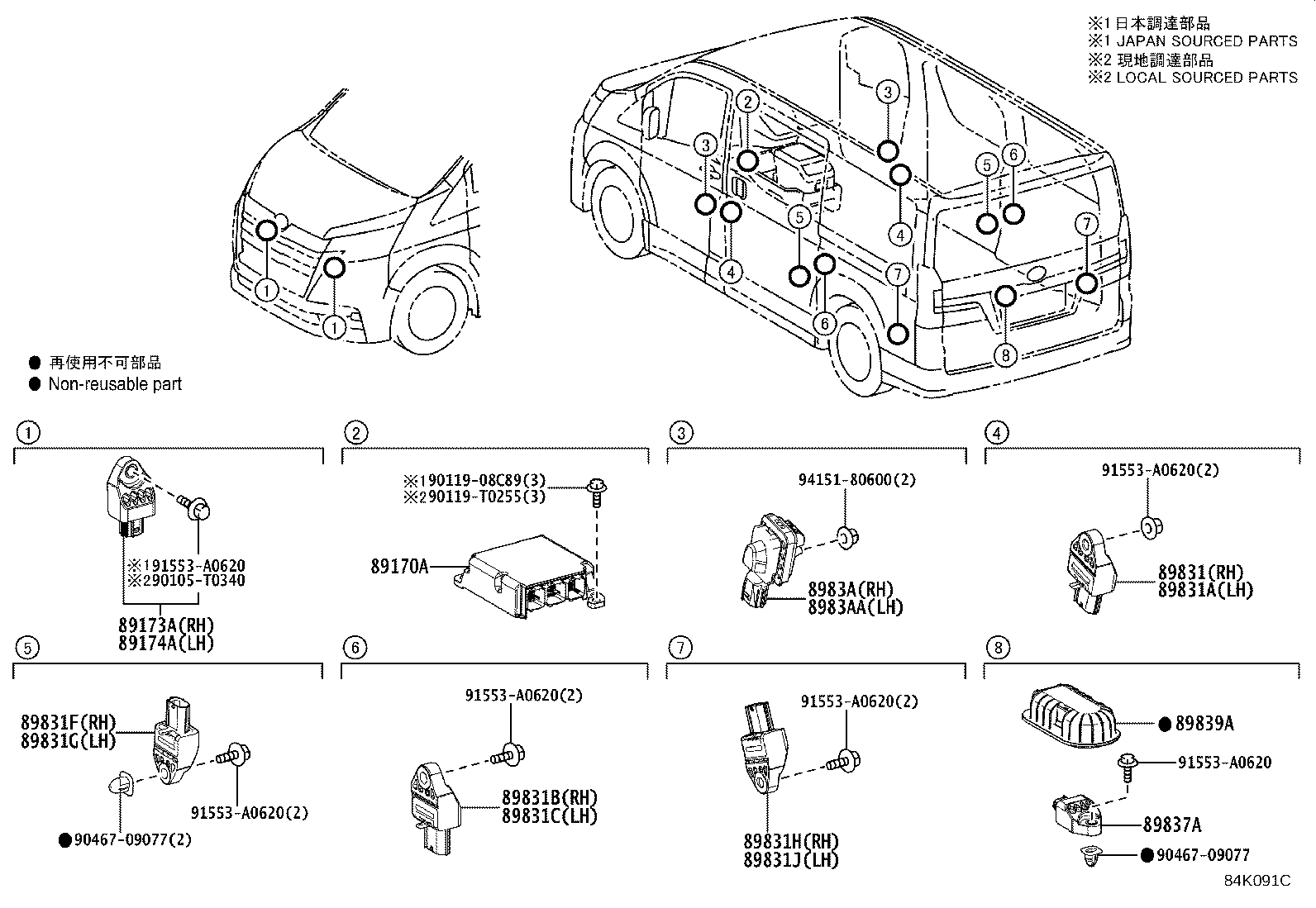

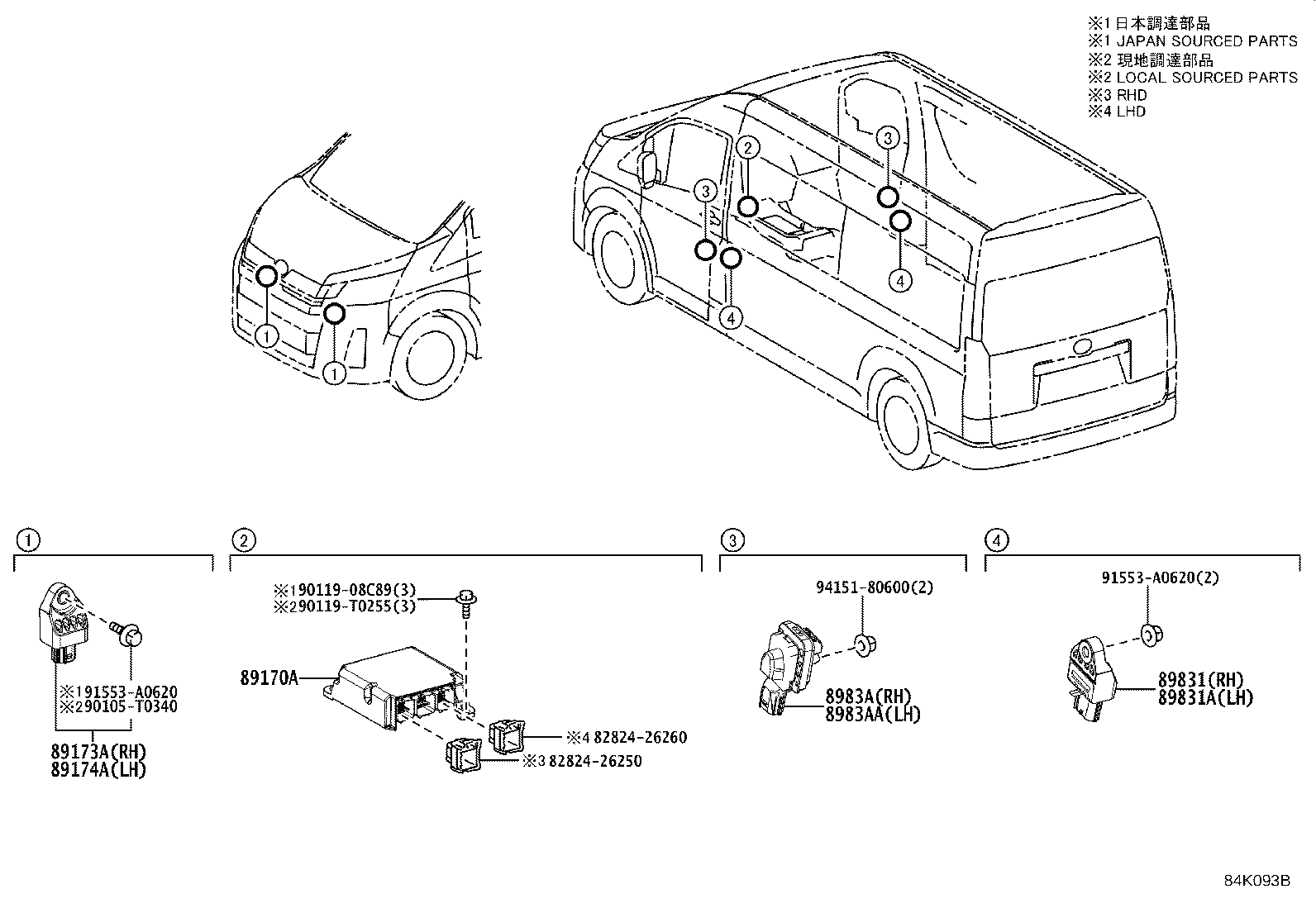

Figure 84K092C 84K092C 2019-02 → — Figure 84K093B 84K093B 2019-02 → — Figure 84K091C 84K091C 2019-07 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89831 Sensor, Side Airbag, RH, NO.1
89831A Sensor, Side Airbag, LH, NO.1
89831B Sensor, Side Airbag, RH, NO.2
89831C Sensor, Side Airbag, LH, NO.2
89831F Sensor, Side Airbag, RH, NO.3
89831G Sensor, Side Airbag, LH, NO.3
89831H Sensor, Side Airbag, RH, NO.4
89831J Sensor, Side Airbag, LH, NO.4
89837A Sensor, Rear Floor Side Airbag
89839A Cover, Rear Floor Side Airbag Sensor
8983A Sensor, Side Airbag Pressure, RH
8983AA Sensor, Side Airbag Pressure, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
