Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

24 part groups · 9 illustrations

Illustrations

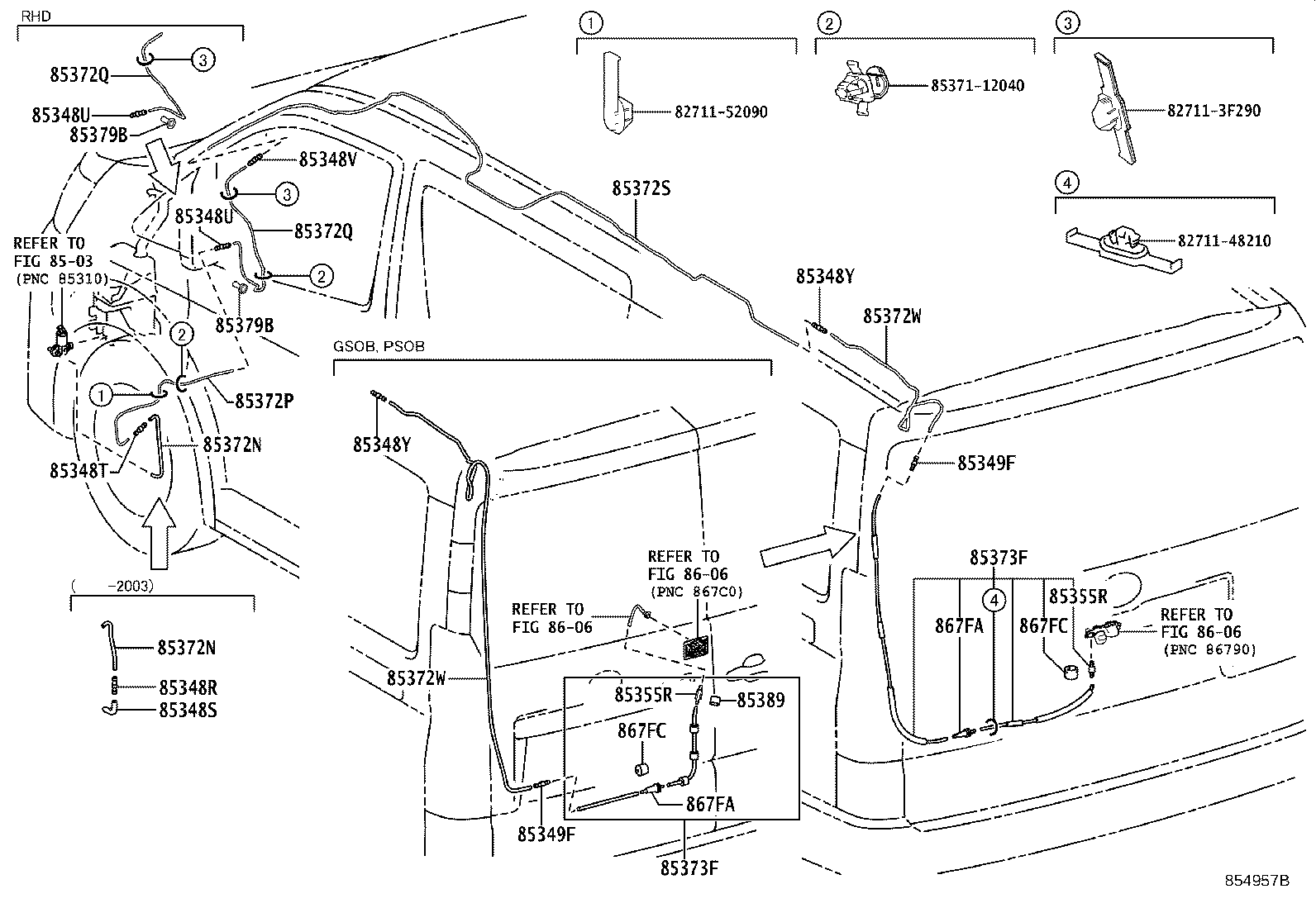

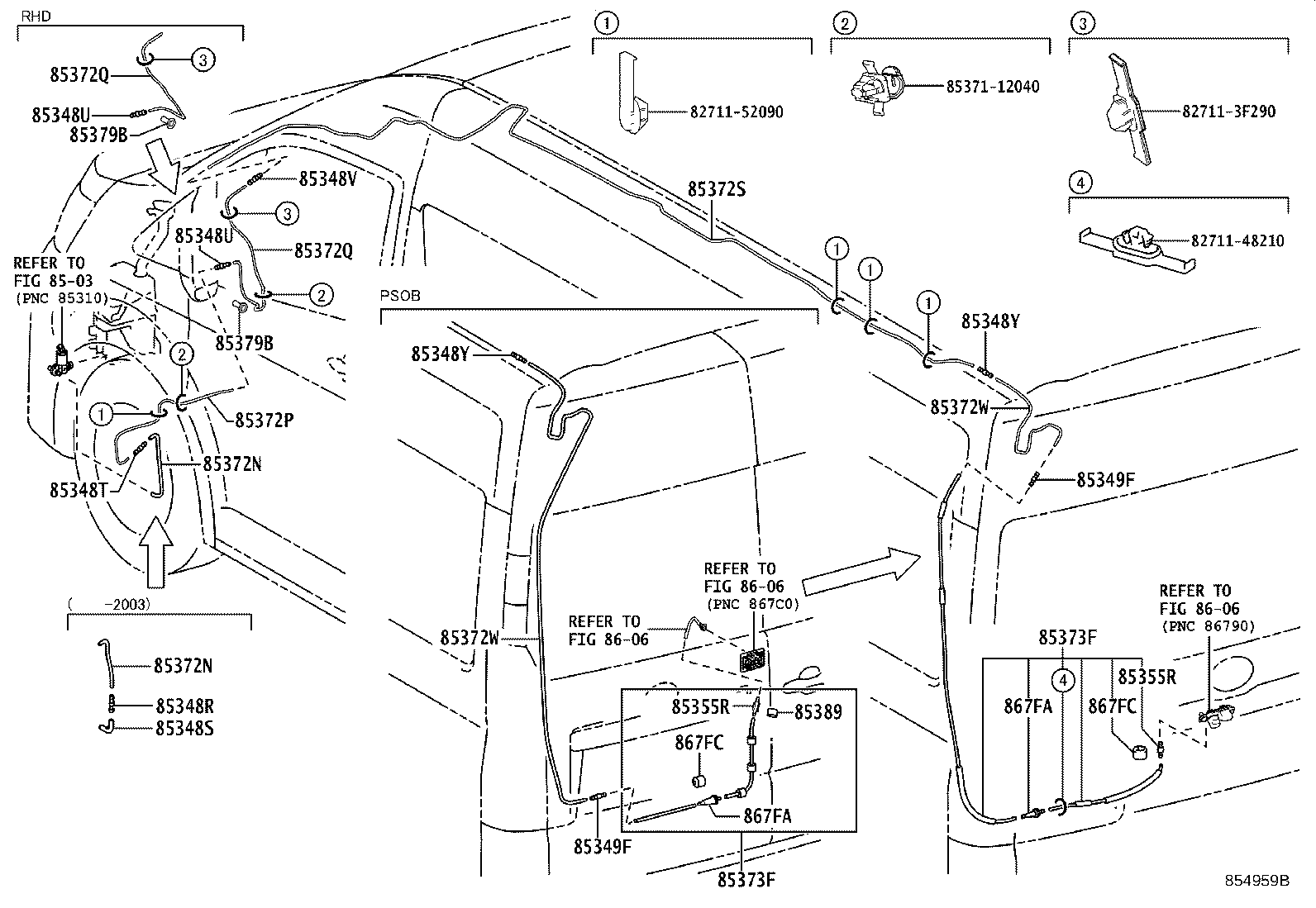

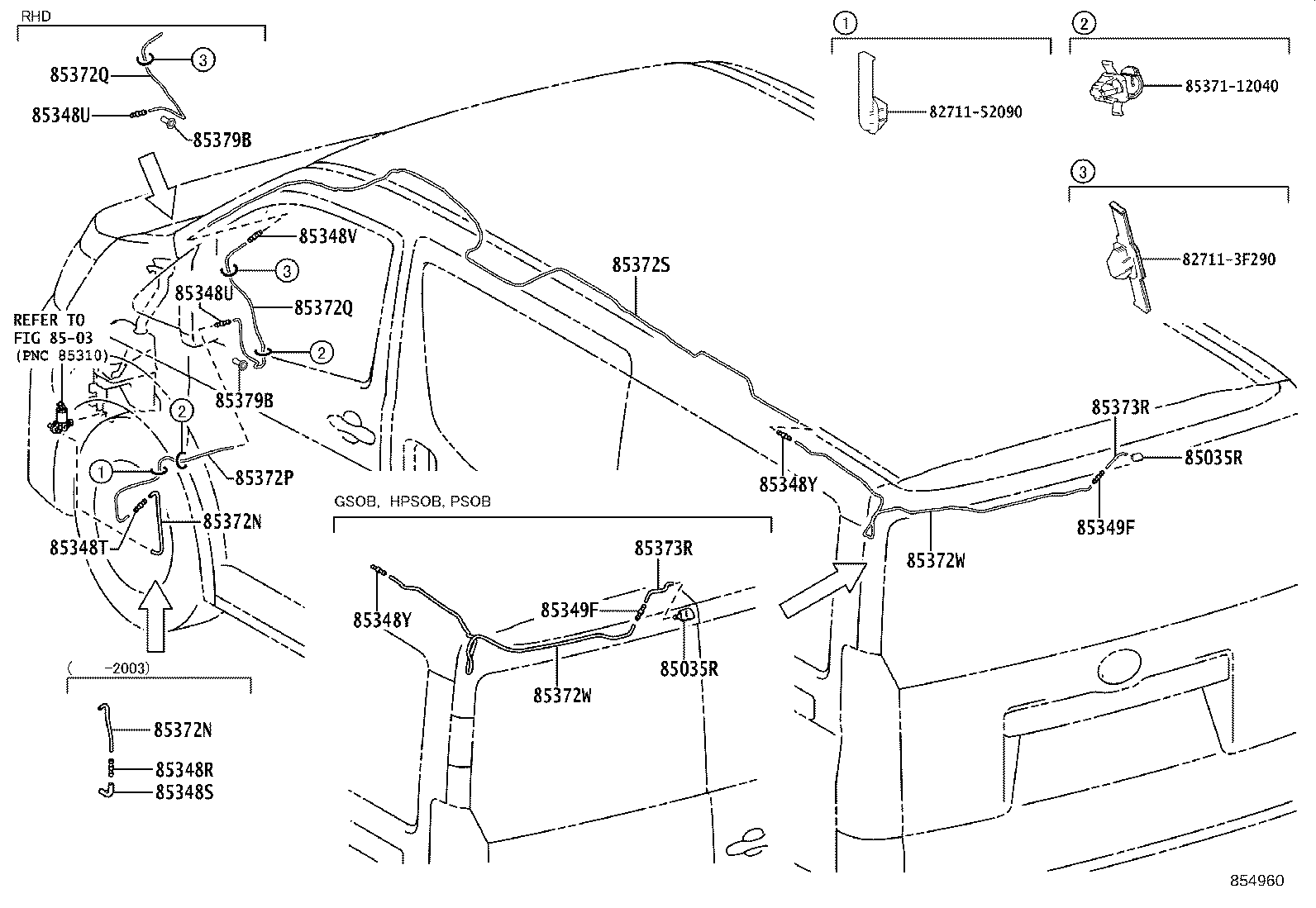

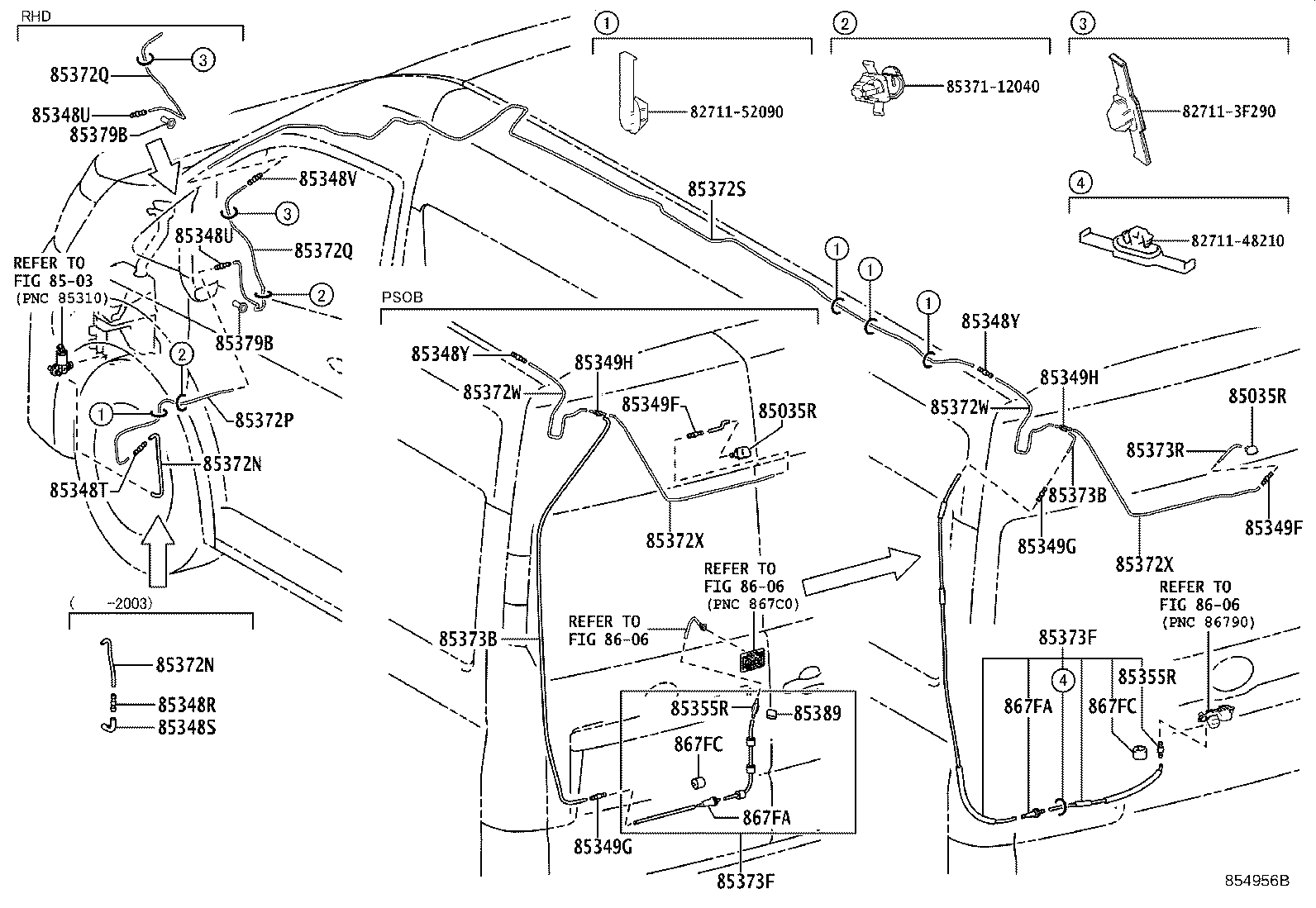

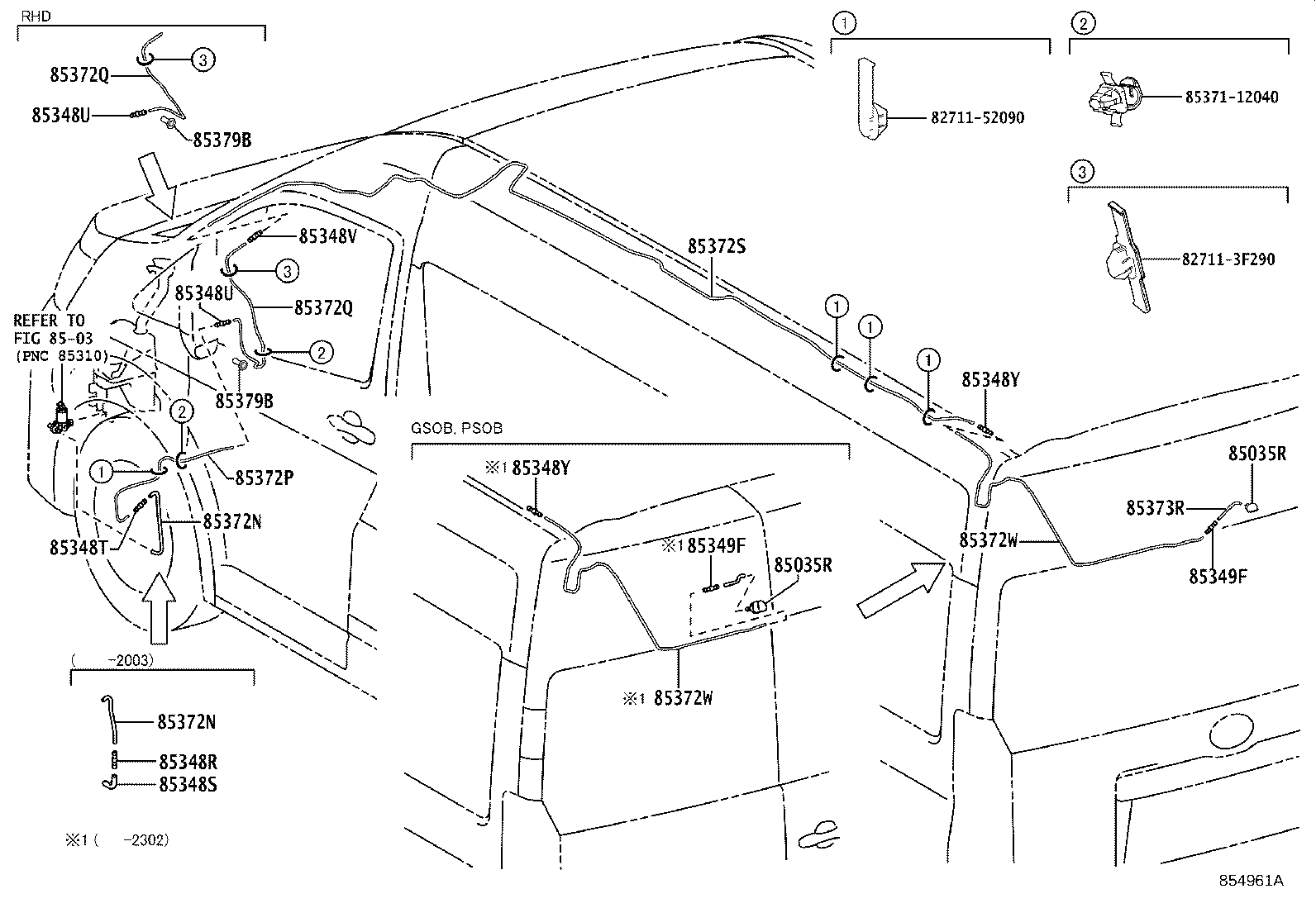

Figure 854958B 854958B 2019-02 → — Figure 854956B 854956B 2019-02 → — Figure 854956B 854956B 2019-02 → — Figure 854957B 854957B 2019-02 → — Figure 854957B 854957B 2019-02 → — Figure 854959B 854959B 2019-02 → — Figure 854959B 854959B 2019-02 → — Figure 854960 854960 2019-02 → — Figure 854961A 854961A 2019-02 → —

Part groups

PNCDescription
85035R Nozzle Sub-assy, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85348V Joint, Rear Washer Hose, NO.4
85348Y Joint, Rear Washer Hose, NO.5
85349F Joint, Rear Washer Hose, NO.1
85349G Joint, Rear Washer Hose, NO.2
85349H Joint, Rear Washer Hose, NO.3
85355R Valve, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372W Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
85372X Hose, Rear Washer (FROM JOINT TO JOINT), NO.6
85373B Hose, Rear Washer(FROM JOINT TO JOINT), NO.7
85373F Hose, Rear Washer(FROM JOINT TO JOINT), NO.8
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85379B Grommet, Washer, A
85389 Packing, Windshield Washer Hose, NO.1
867FA Filter, Cleaner Hose
867FC Cushion, Cleaner Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
