Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09
Speaker

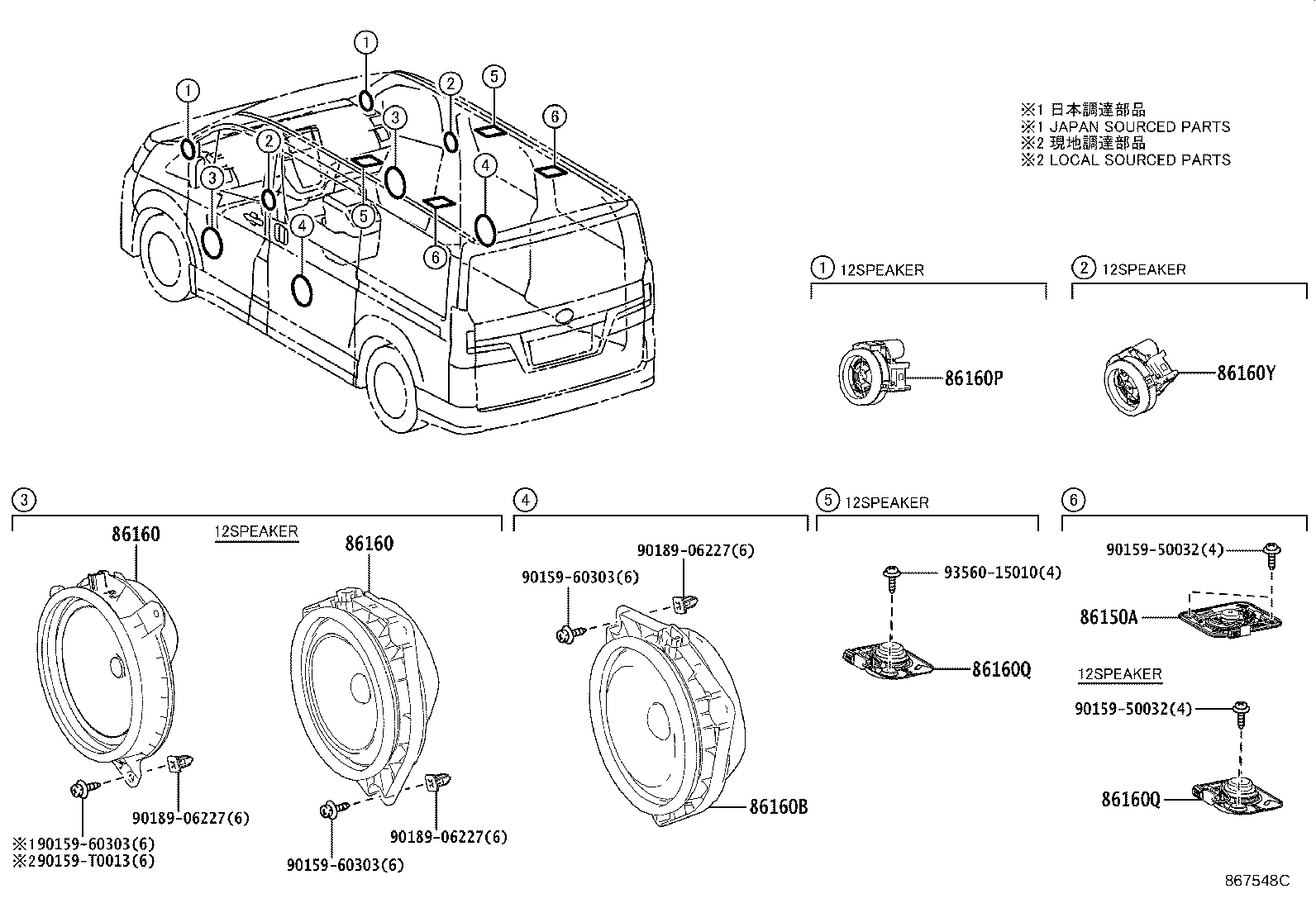

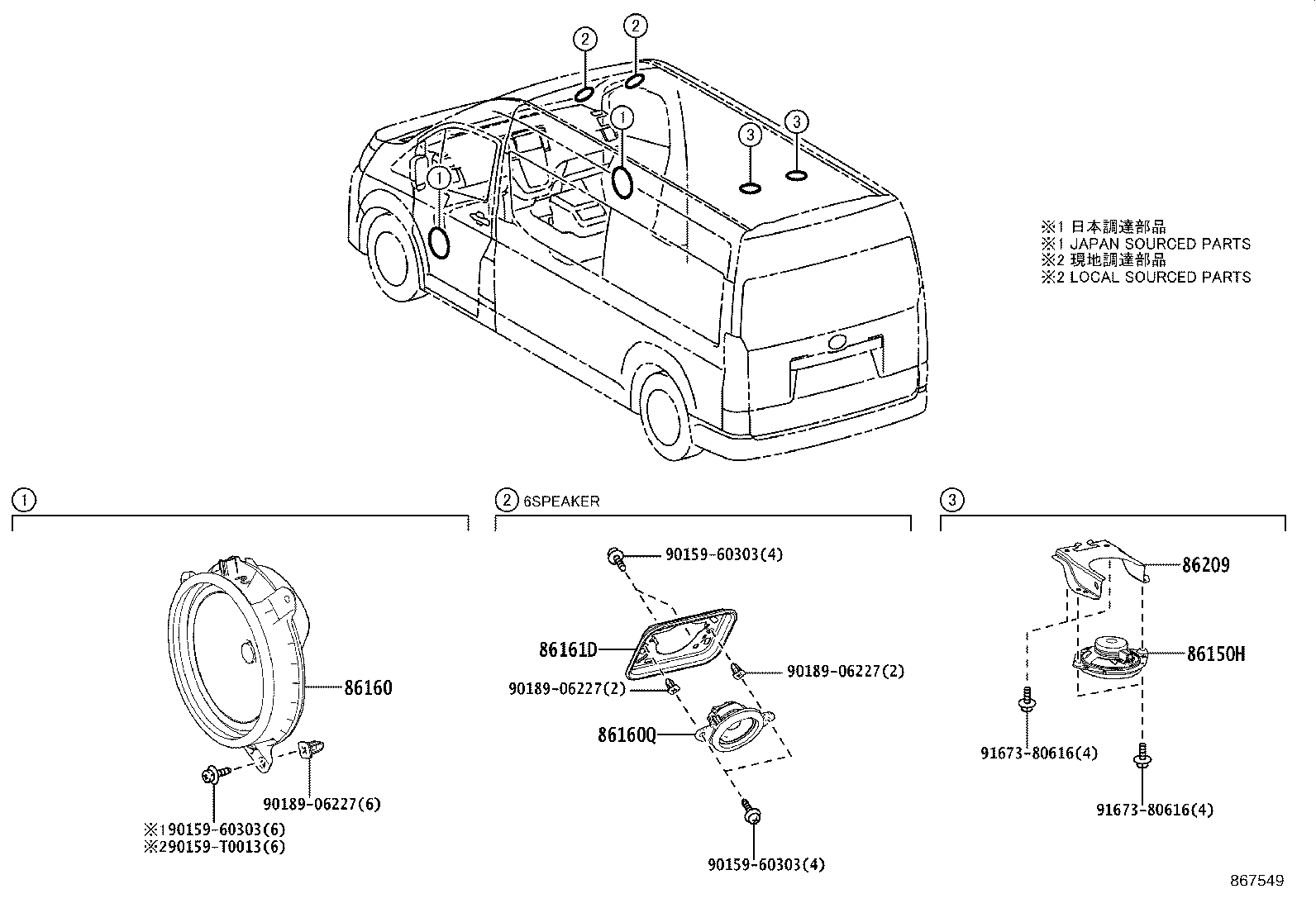

9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150A | Speaker Assy, W/Bracket, NO.2 |
| 86150H | Speaker Assy, W/Bracket |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160P | Speaker Assy, Front NO.2 |
| 86160Q | Speaker Assy, Roof |
| 86160Y | Speaker Assy, Rear NO.2 |
| 86161D | Bracket, Speaker Mounting, NO.1 |
| 86209 | Bracket Sub-assy, Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
