Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 3 illustrations

Illustrations

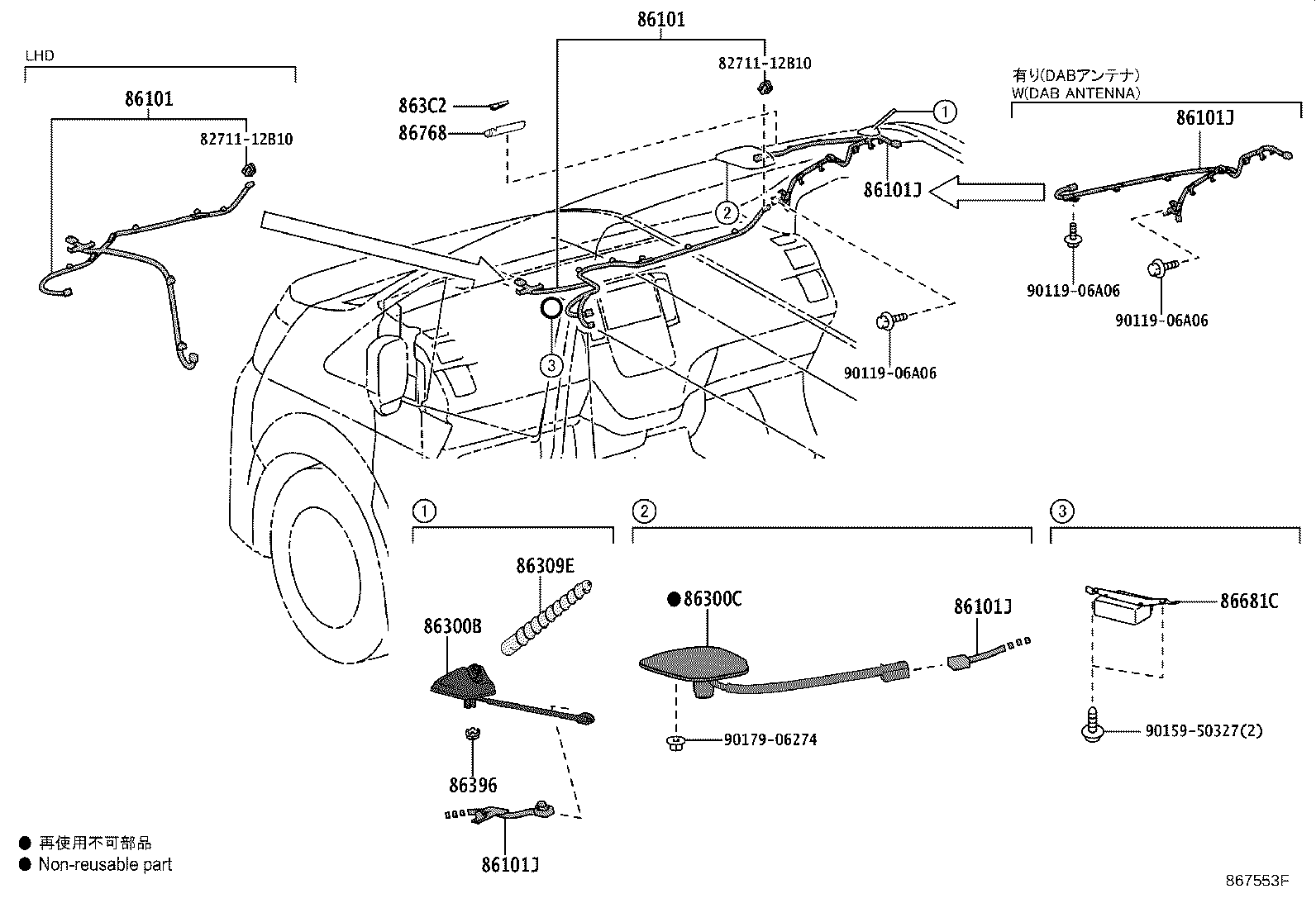

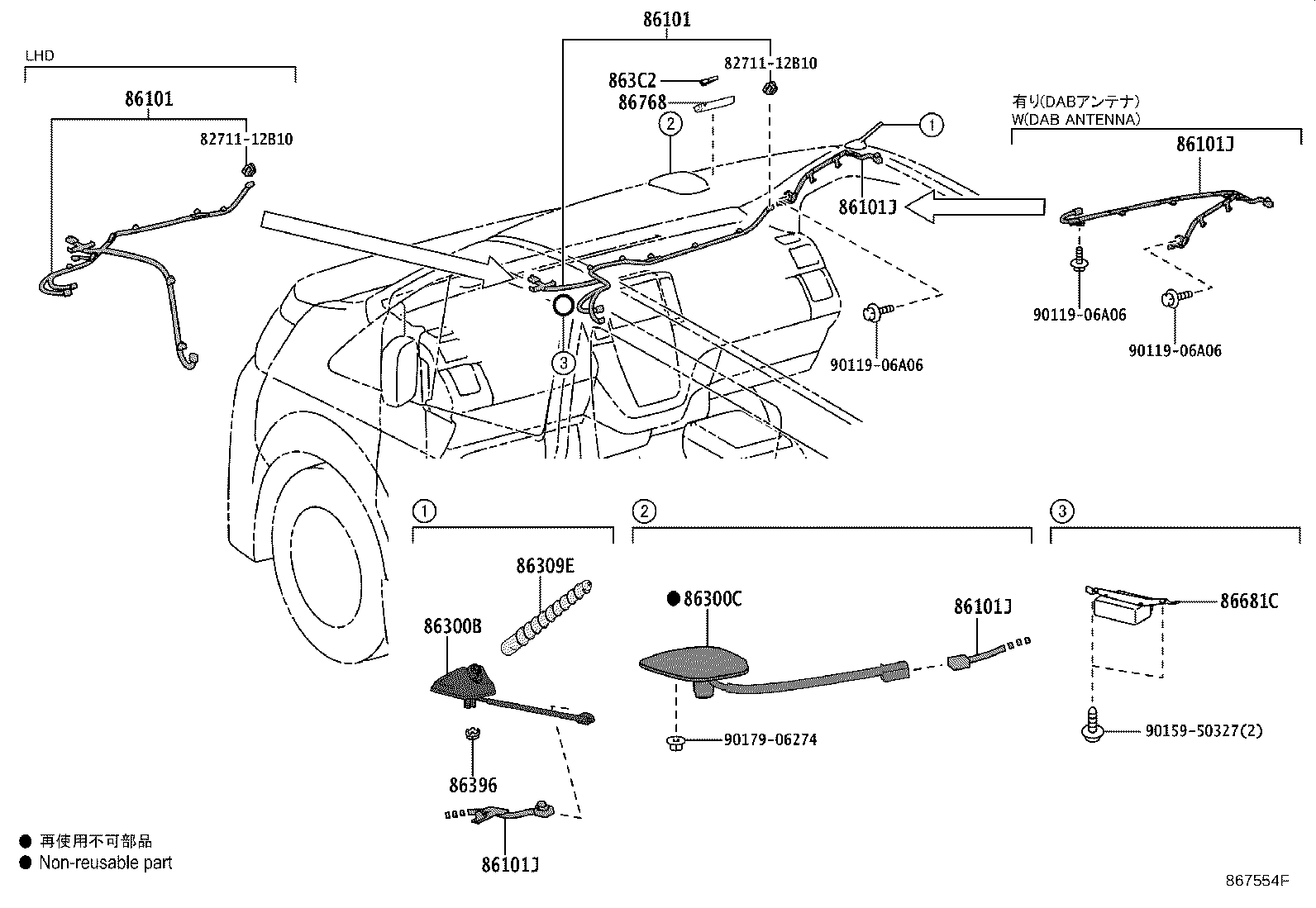

Figure 867552G 867552G 2019-02 → — Figure 867553F 867553F 2019-02 → — Figure 867554F 867554F 2019-07 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
863C2 Base, Digital Audio Broadcasting Antenna
86681C Divider, Antenna
86768 Cover, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
