Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

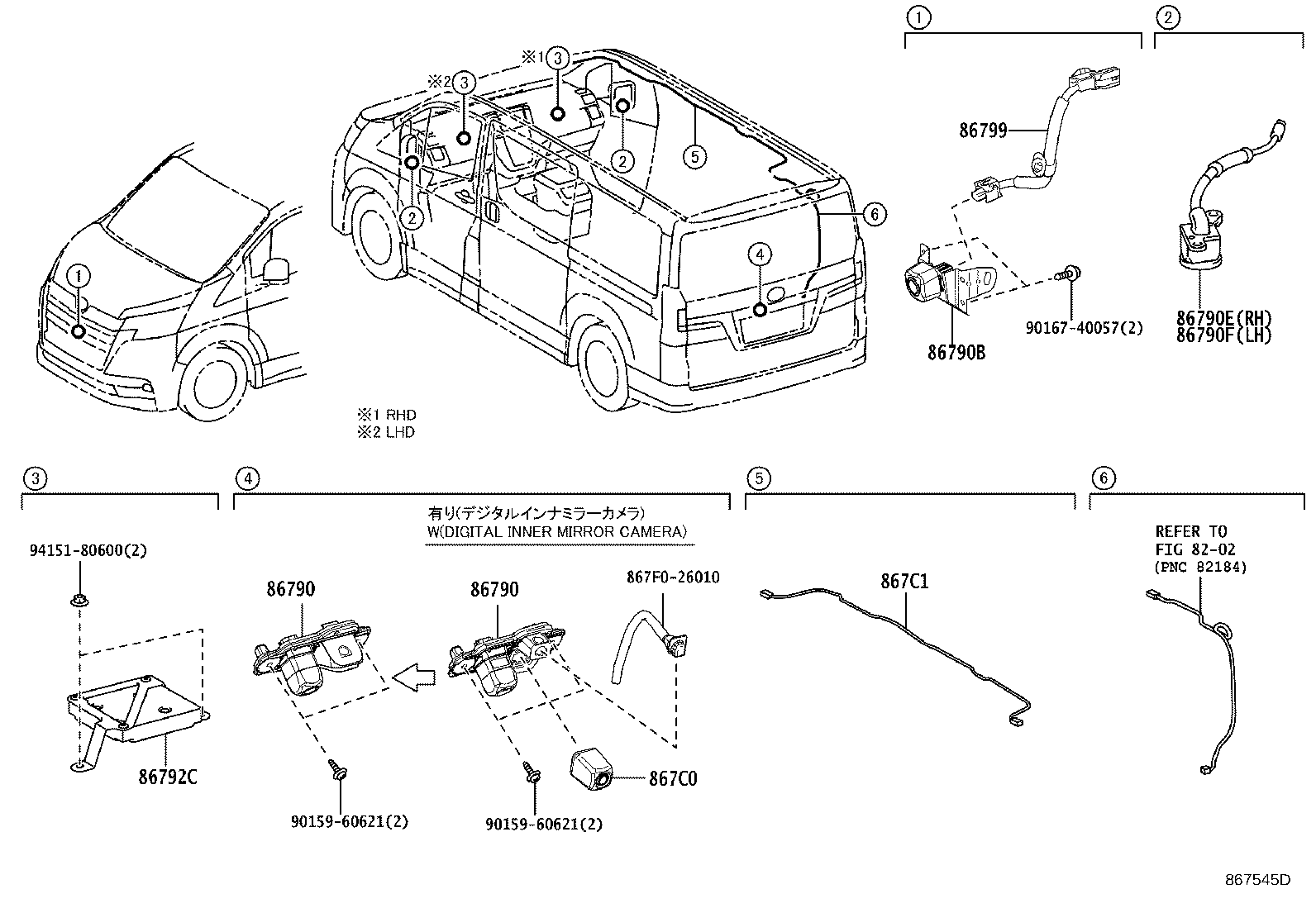

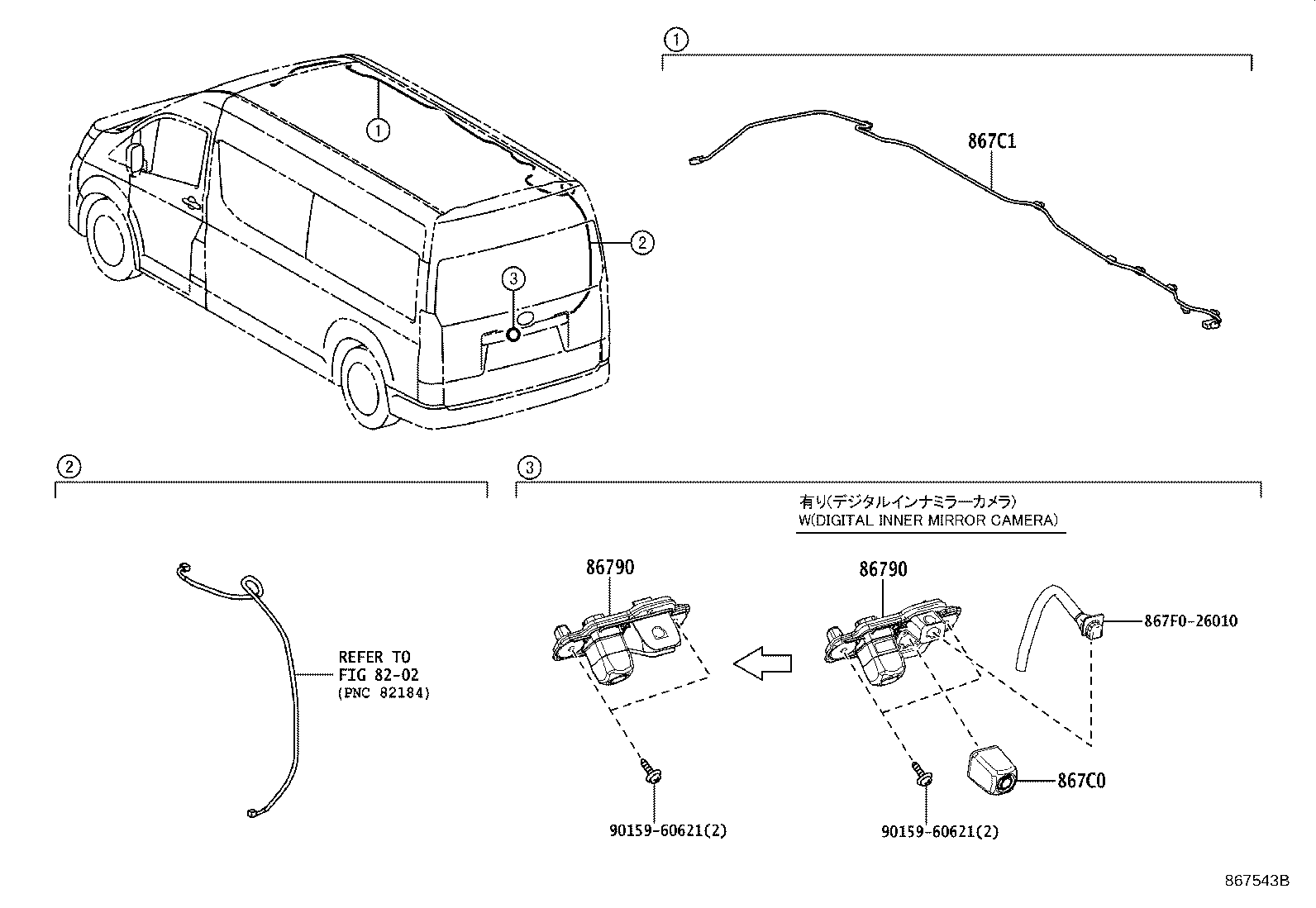

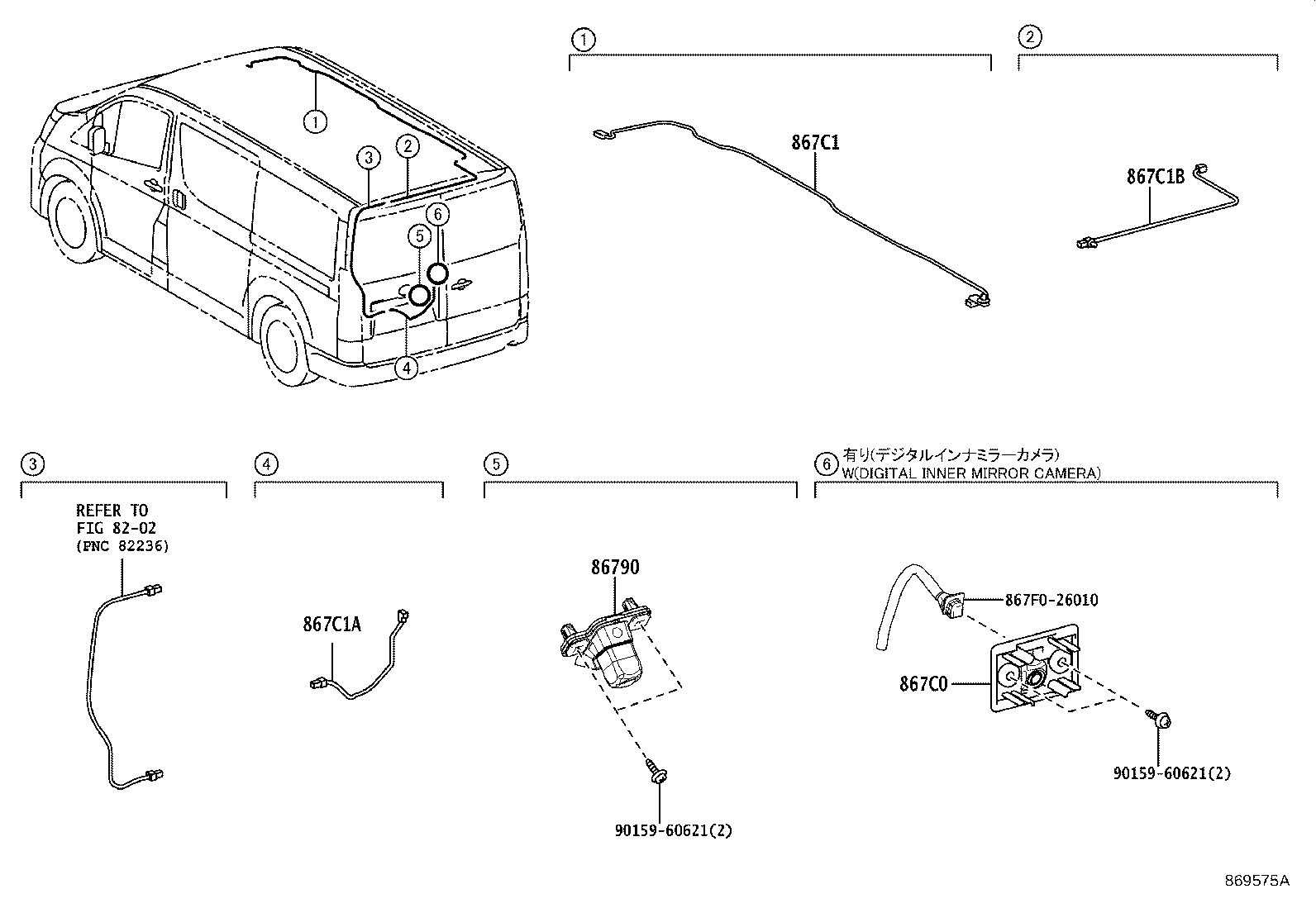

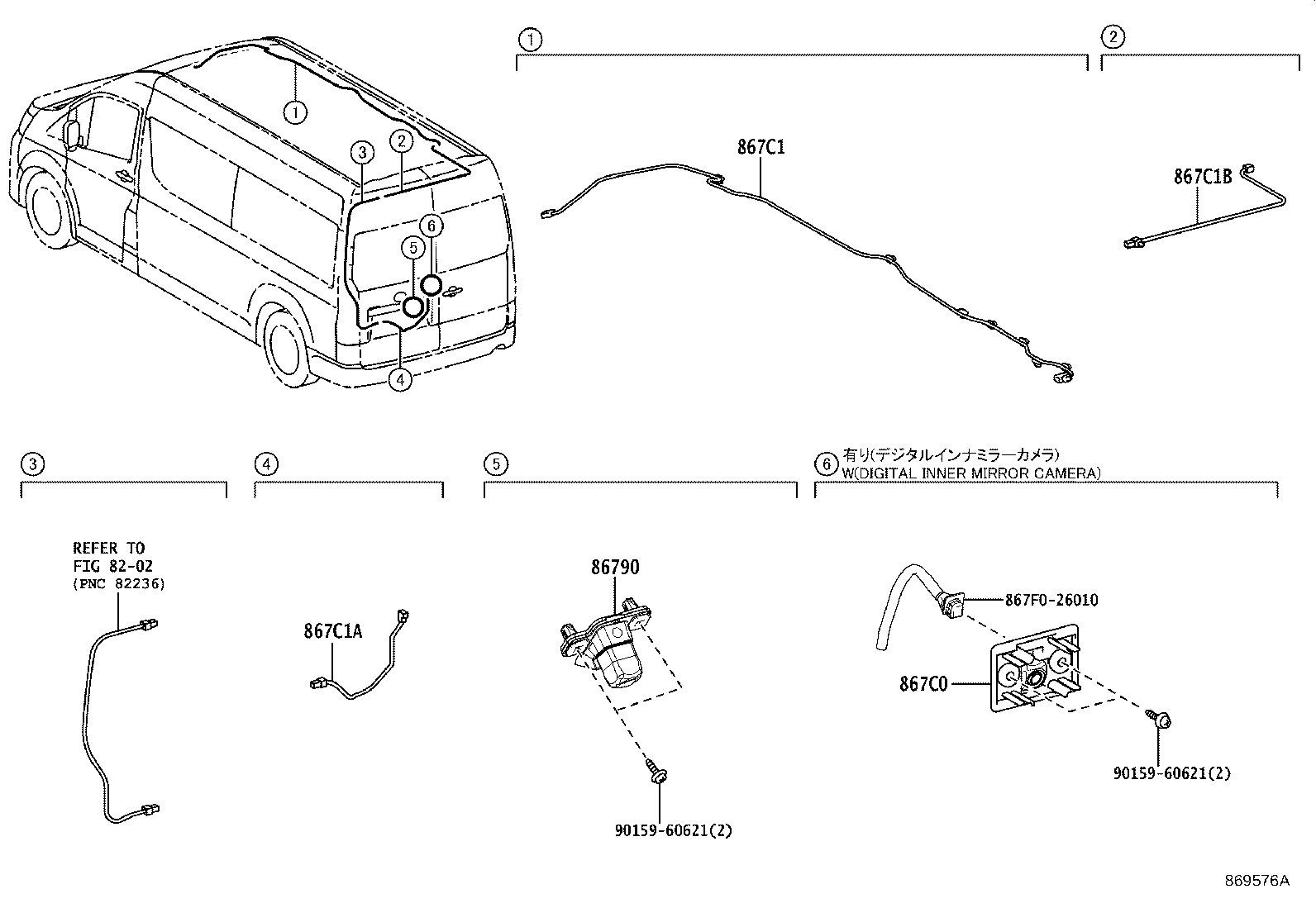

Camera & Rear Monitor Display
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86790 | Camera Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86792C | Computer, Parking Assist |
| 86799 | Wire, Television Camera |
| 867C0 | Camera Assy, Inner Mirror |
| 867C1 | Wire, Mirror Camera |
| 867C1A | Wire, Mirror Camera, NO.2 |
| 867C1B | Wire, Mirror Camera, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
