Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pre-collision System

4 part groups · 3 illustrations

Illustrations

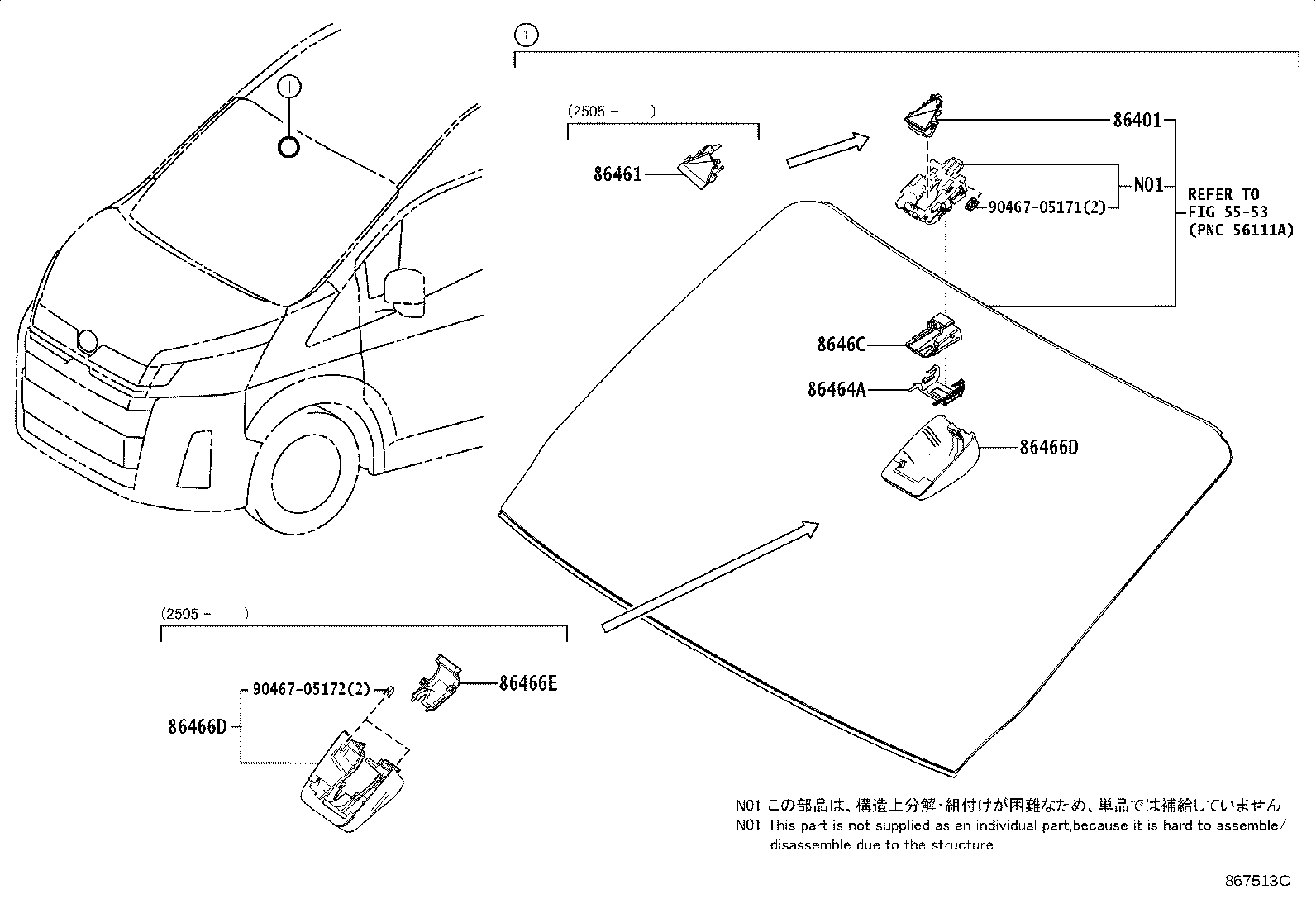

Figure 867514C 867514C 2019-02 → — Figure 867514C 867514C 2019-02 → — Figure 867513C 867513C 2019-02 → —

Part groups

PNCDescription
86401 Hood Sub-assy, Forward Recognition W/Heater
86464A Latch, Forward Recognition
86466D Cover, Forward Recognition, NO.1
8646C Camera, Forward Recognition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
