Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States
Supported model
Data version 2024-09

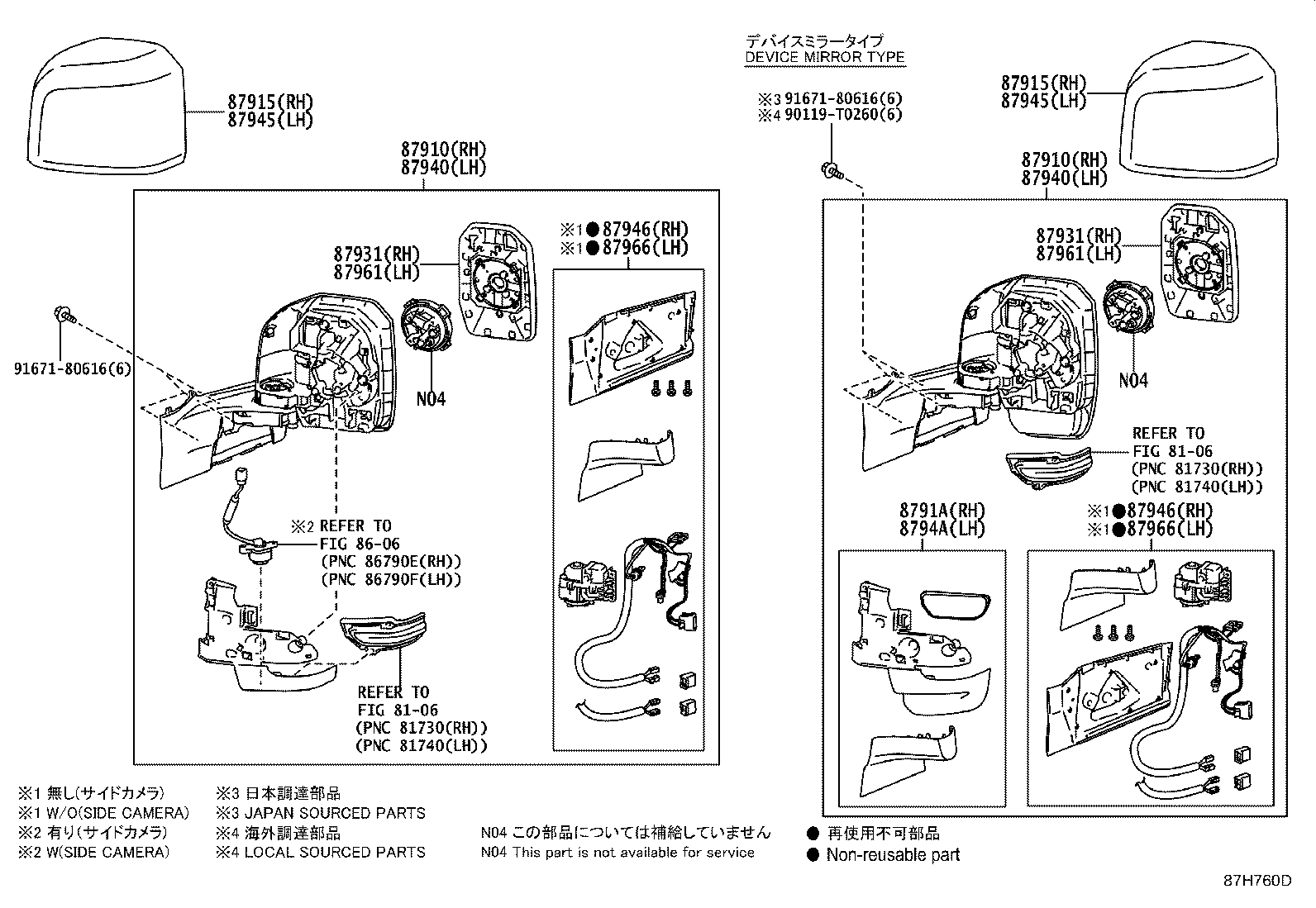

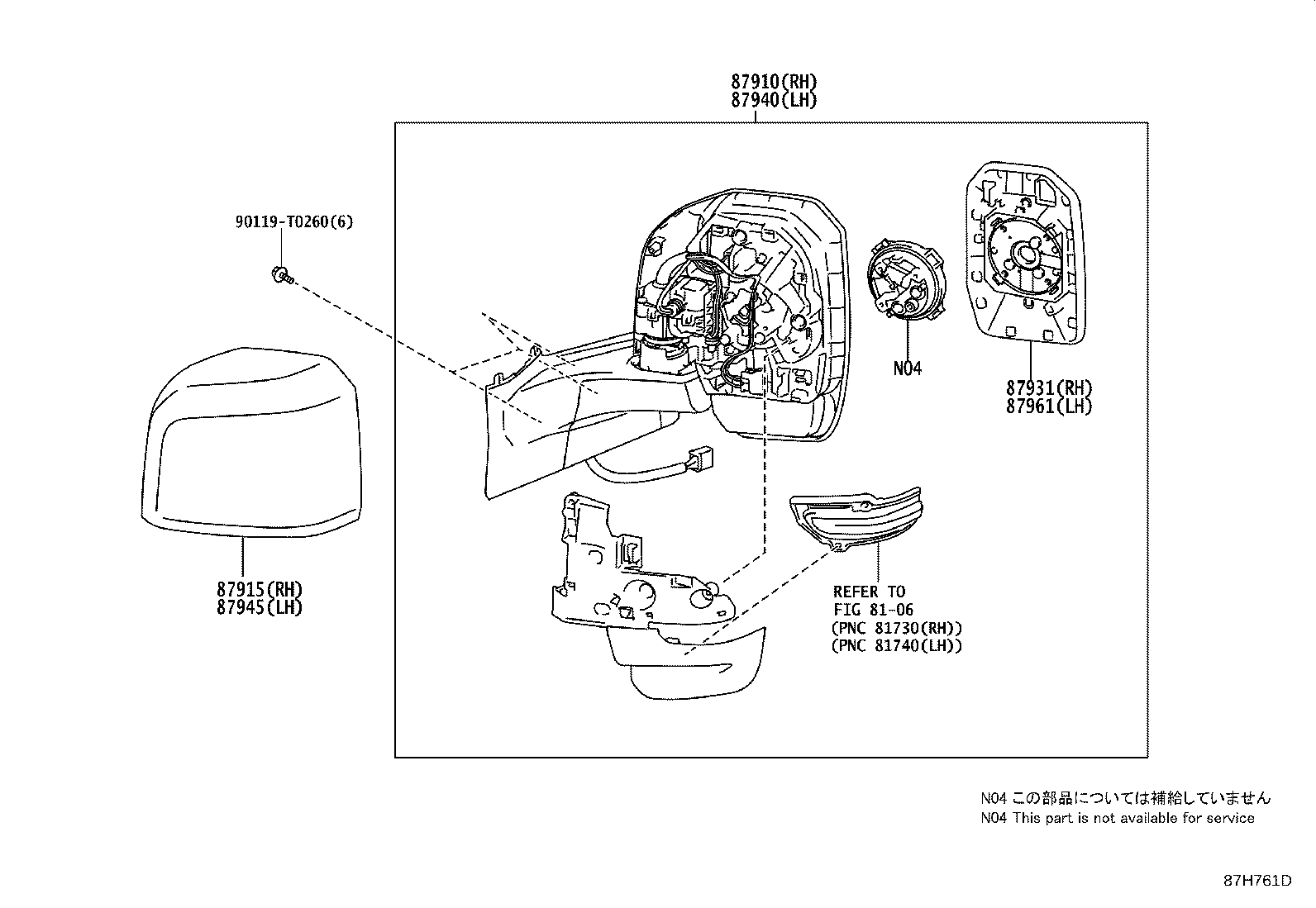

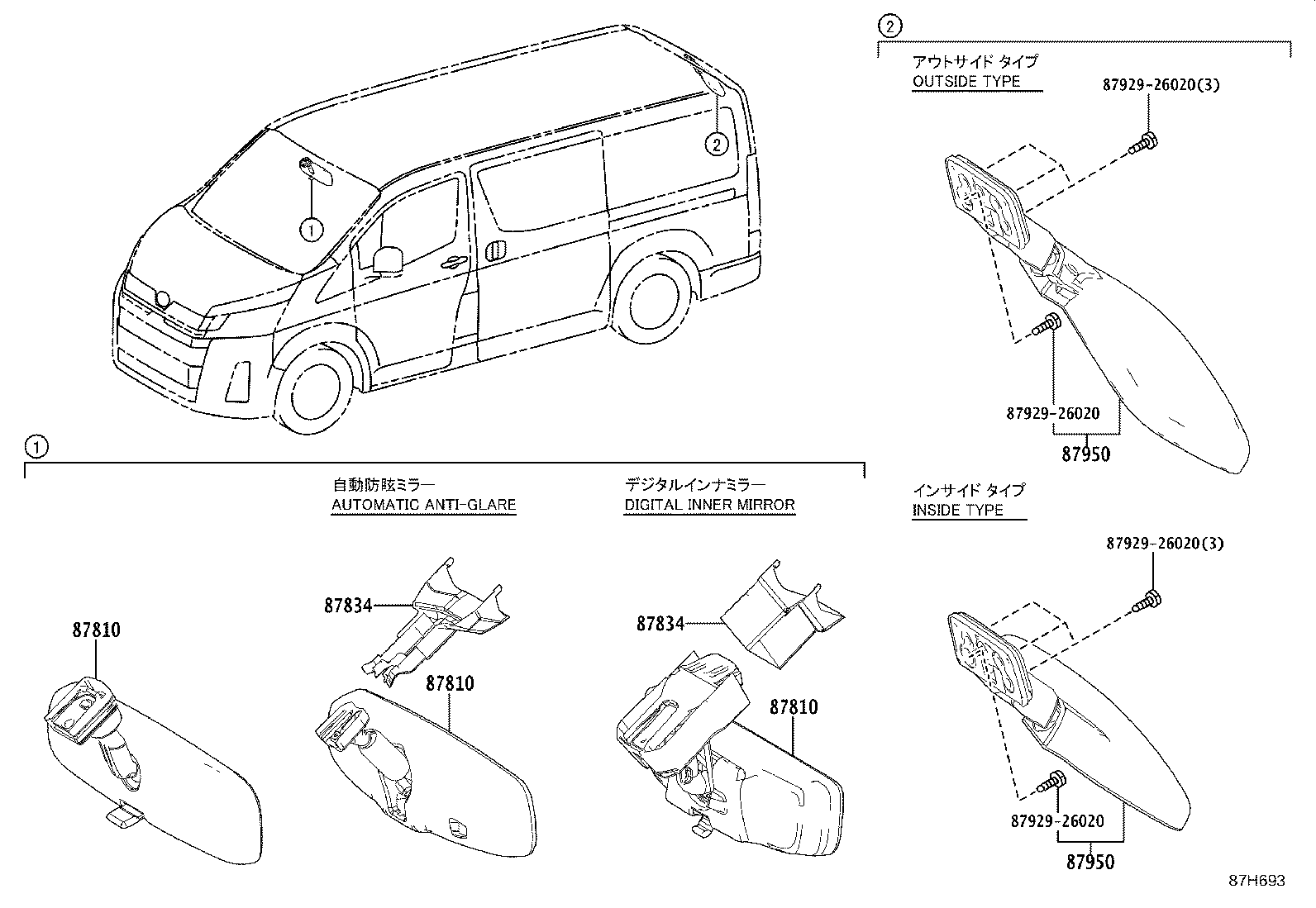

Mirror
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
