Heating & Air Conditioning - Cooler Unit

56 part groups · 17 illustrations

Illustrations

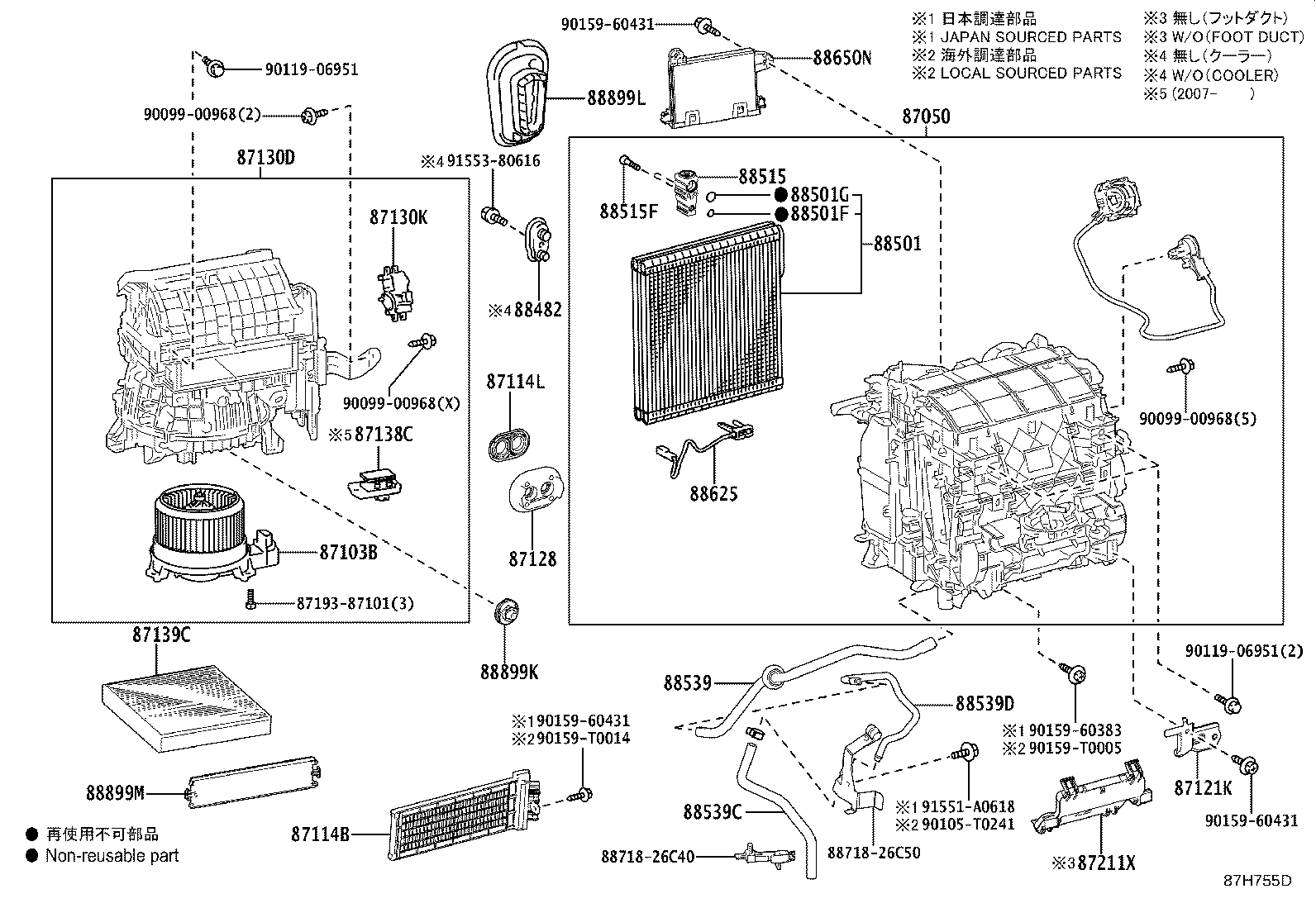

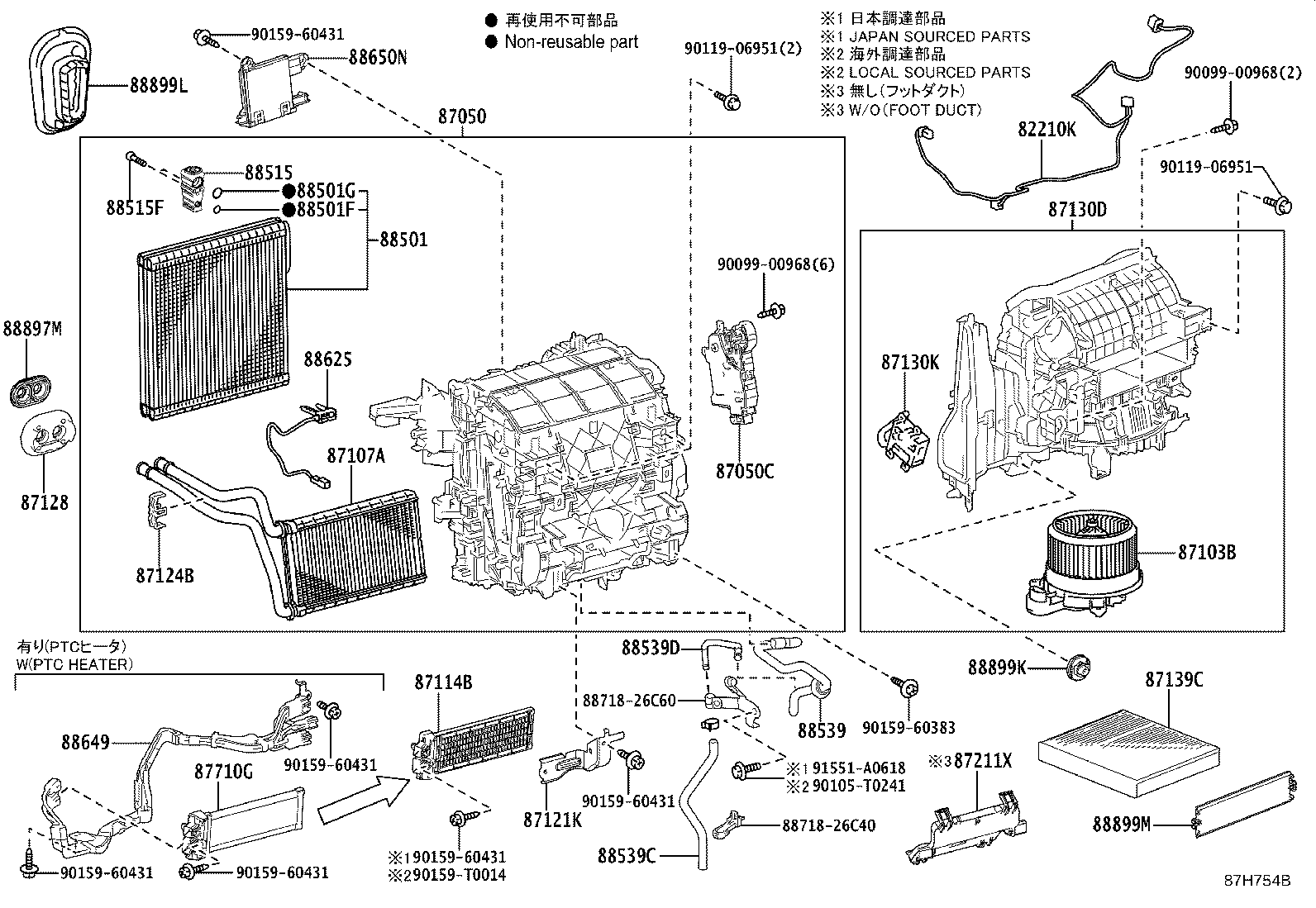

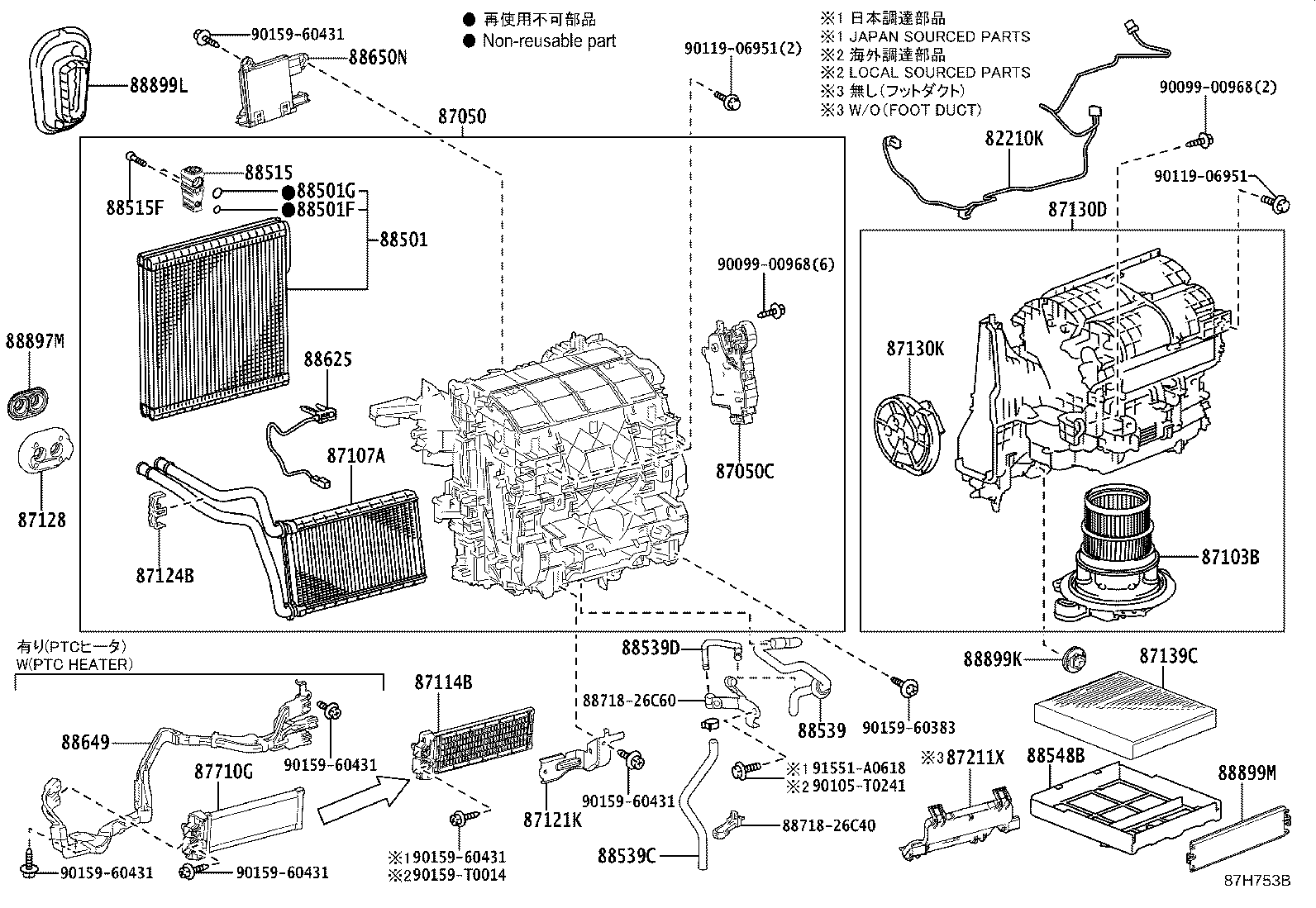

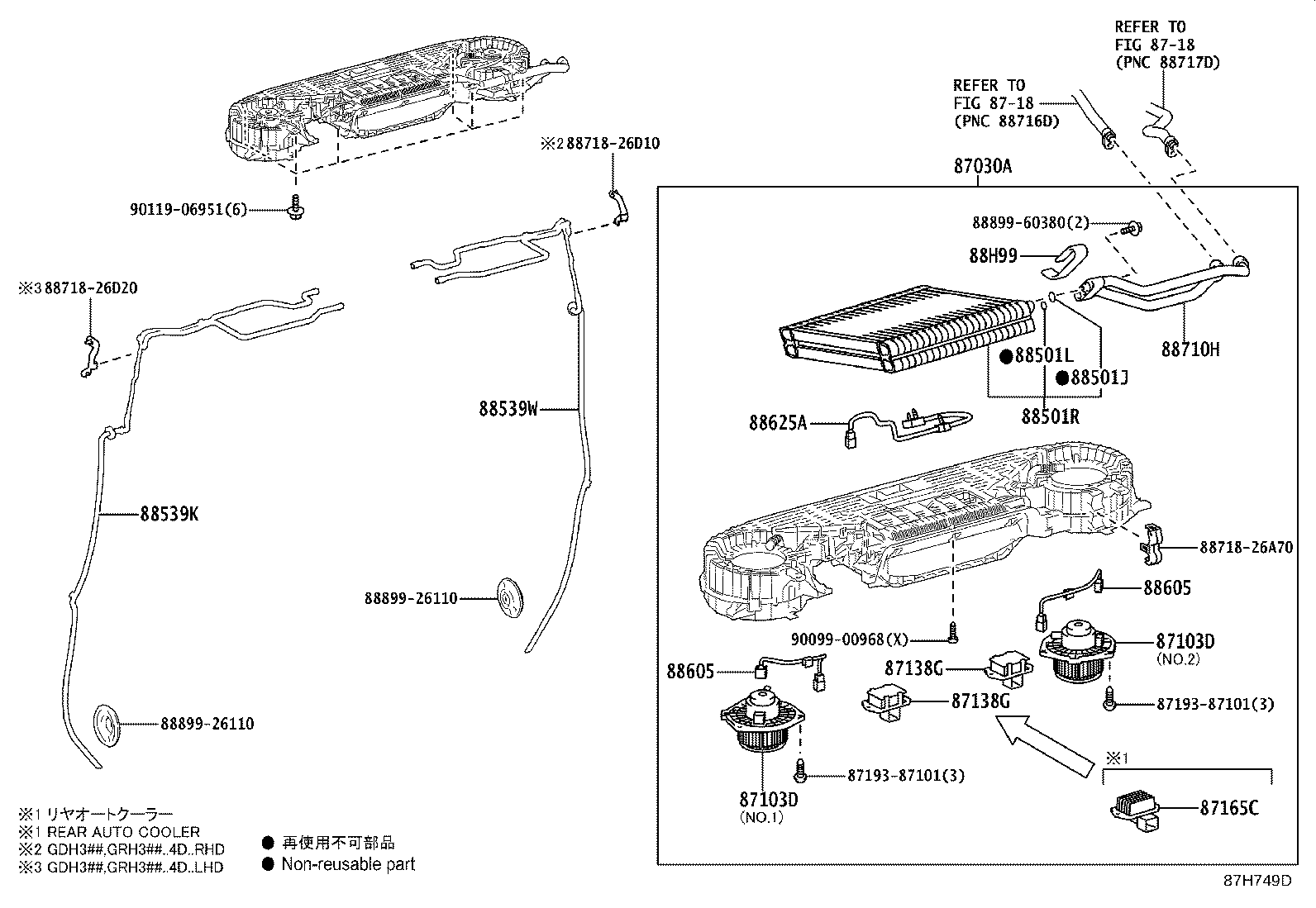

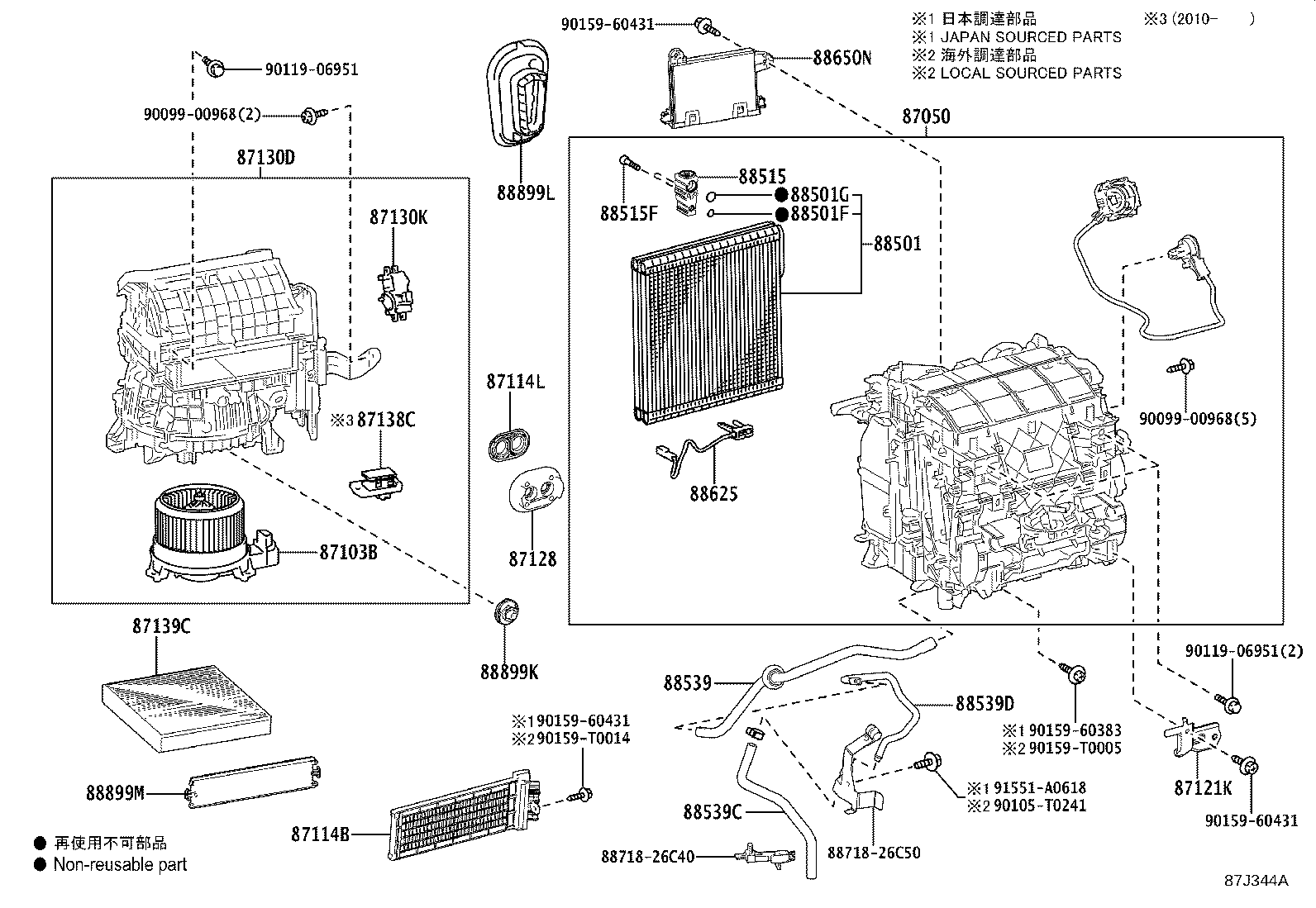

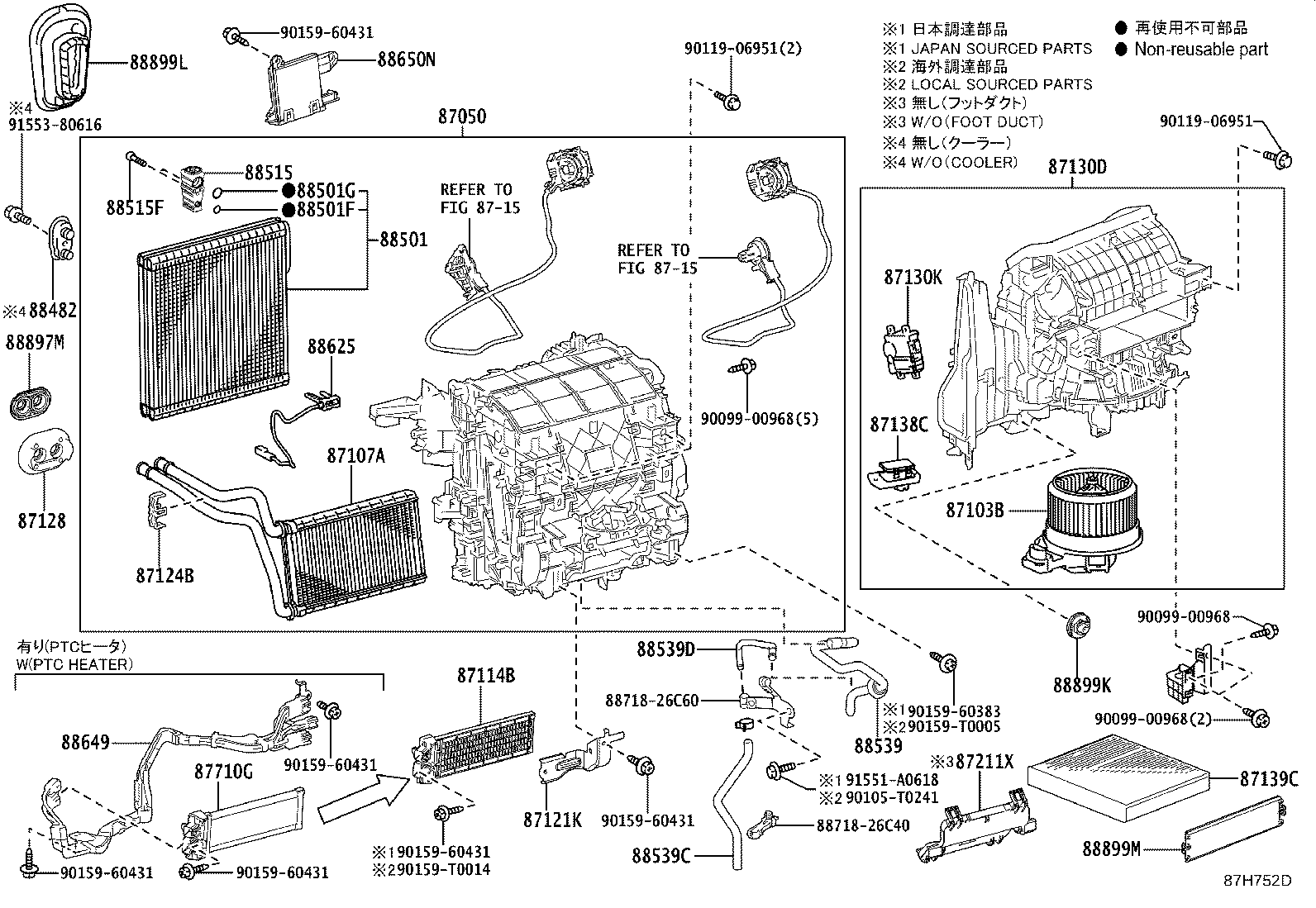

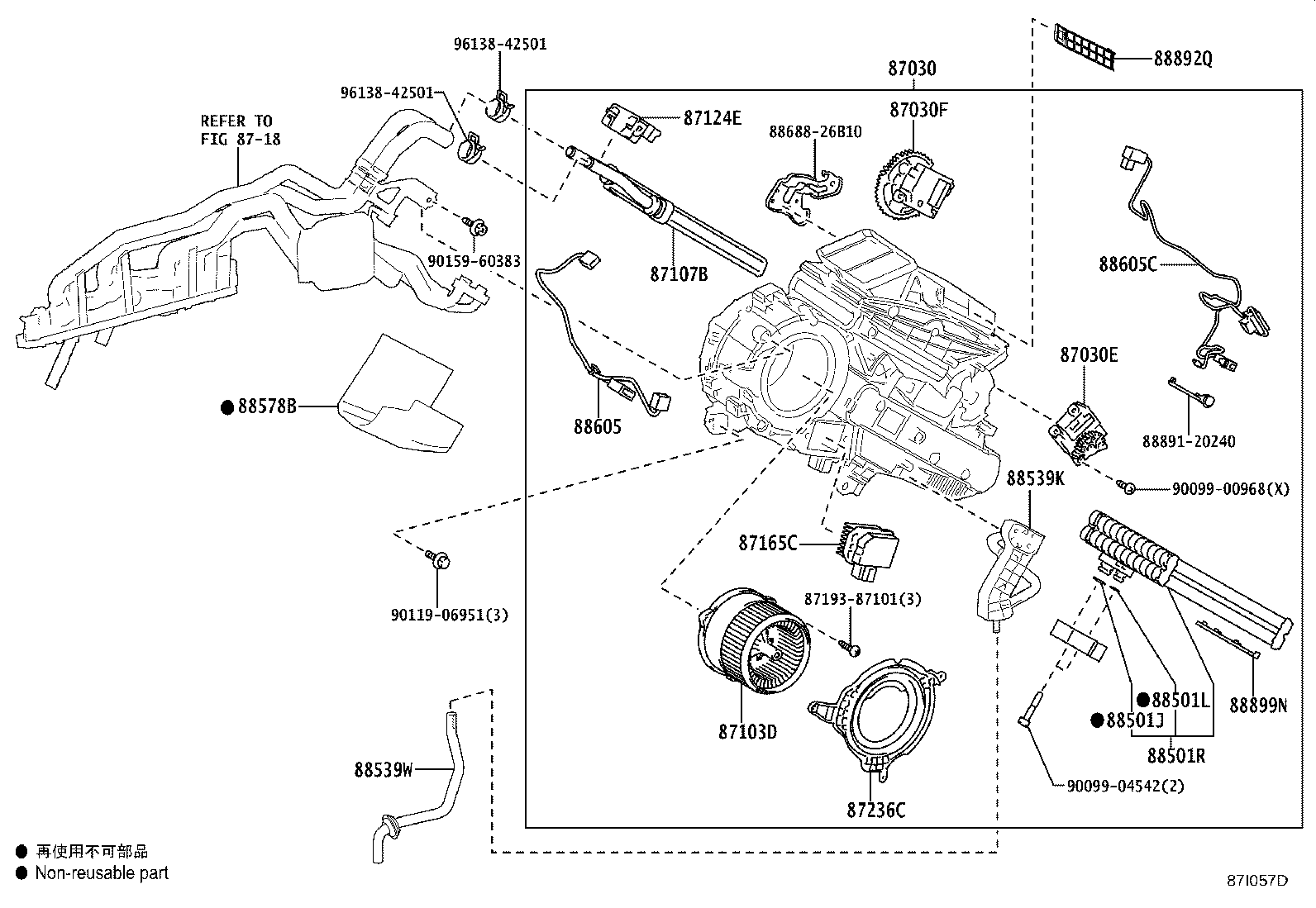

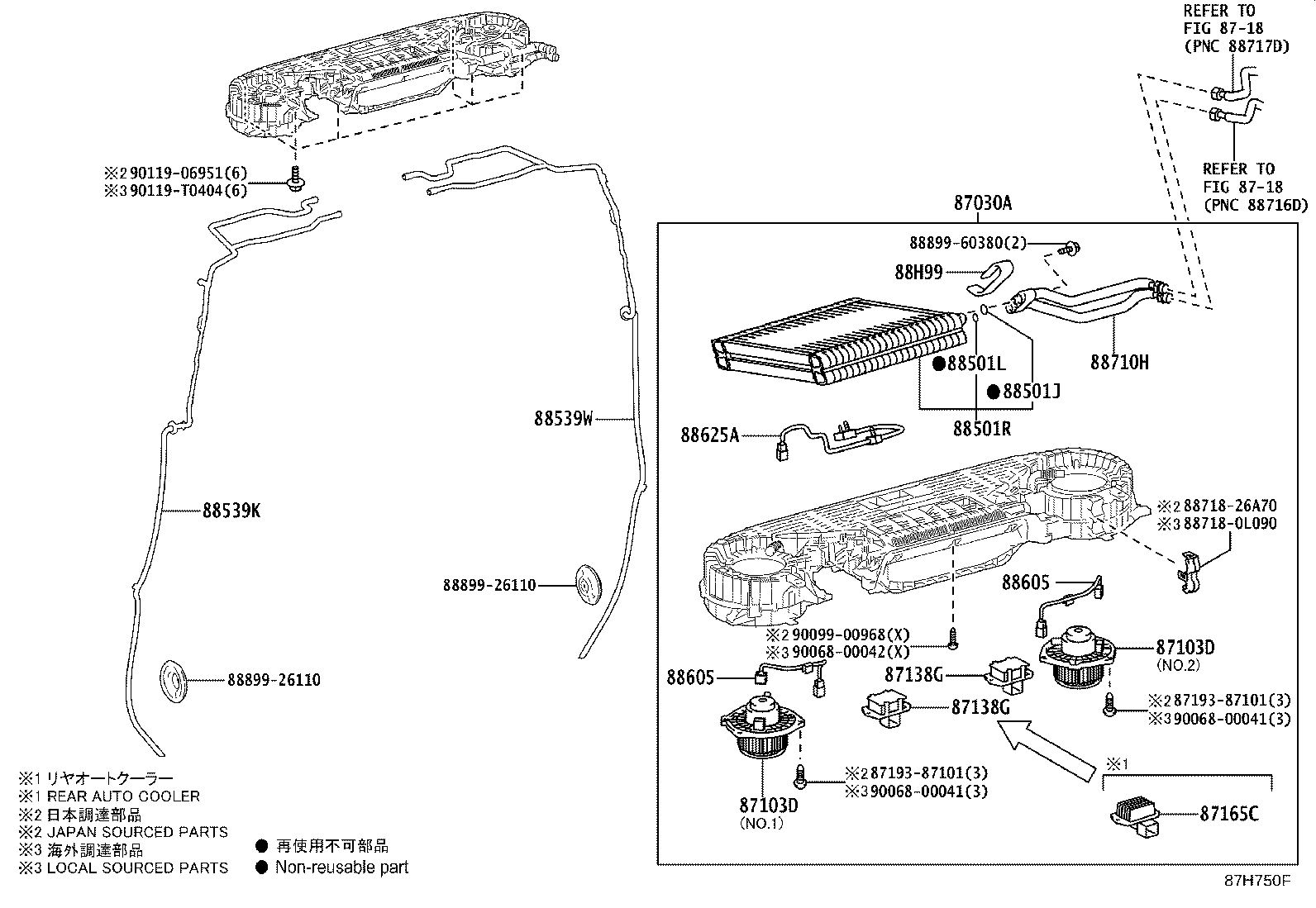

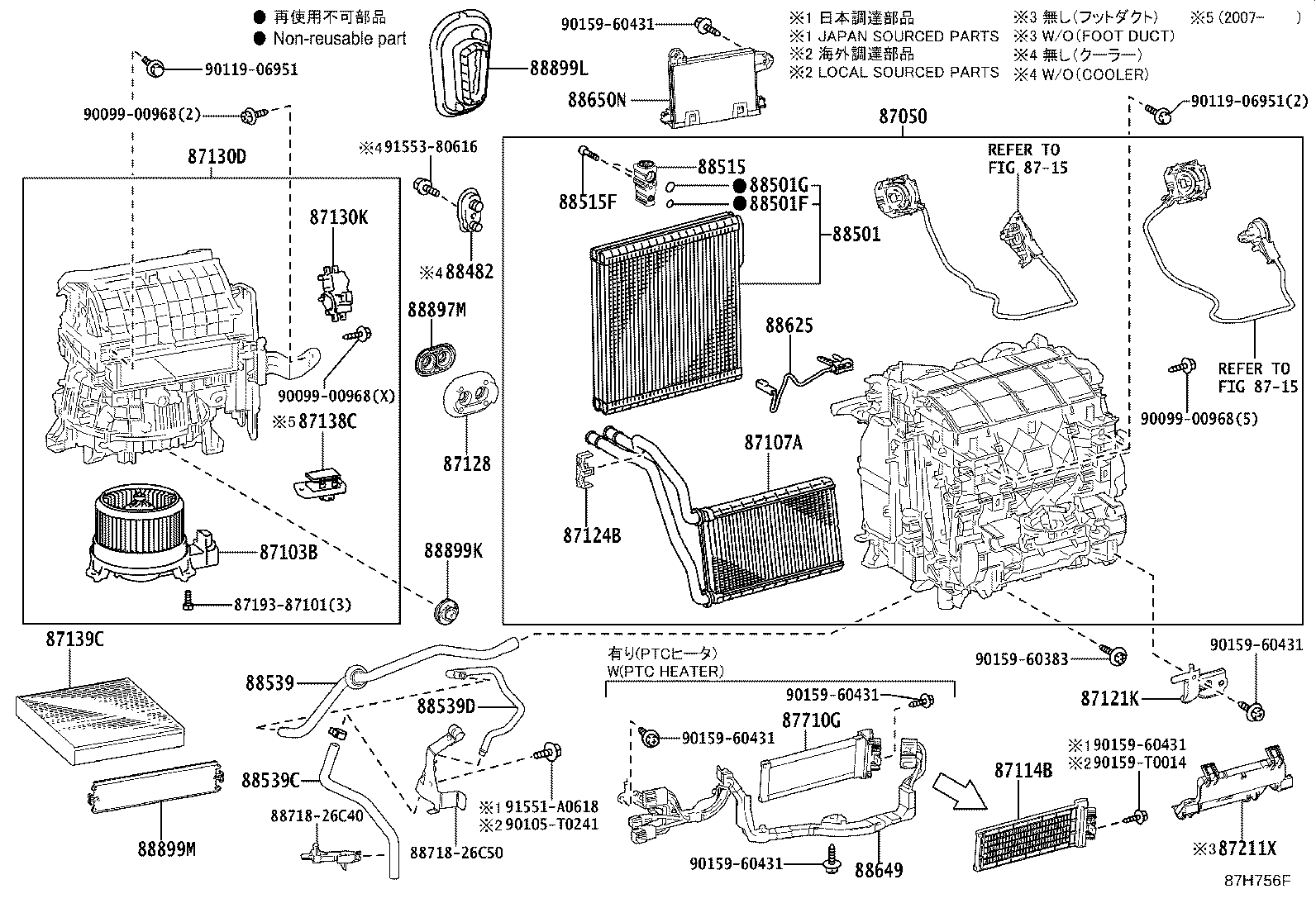

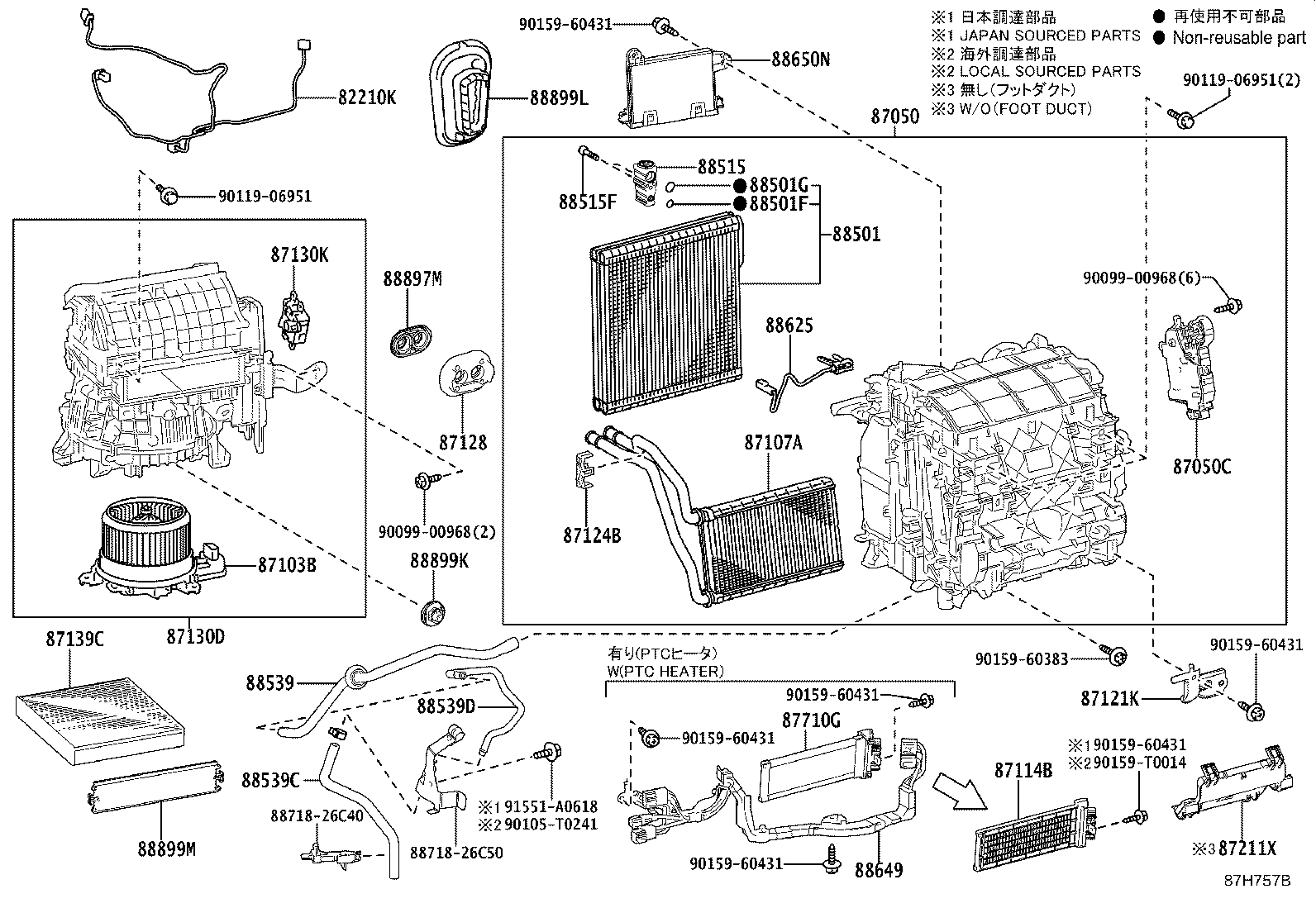

Figure 87H751C 87H751C 2019-02 → — Figure 87H751C 87H751C 2019-02 → — Figure 87H751C 87H751C 2019-02 → — Figure 87H752D 87H752D 2019-02 → — Figure 87H752D 87H752D 2019-02 → — Figure 87H752D 87H752D 2019-02 → — Figure 87H753B 87H753B 2019-03 → — Figure 87H753B 87H753B 2019-03 → — Figure 87H754B 87H754B 2019-07 → — Figure 87H755D 87H755D 2019-02 → — Figure 87J344A 87J344A 2019-06 → — Figure 87H756F 87H756F 2019-02 → — Figure 87H757B 87H757B 2019-07 → — Figure 87H749D 87H749D 2019-02 → — Figure 87H749D 87H749D 2019-02 → — Figure 87H750F 87H750F 2019-02 → — Figure 87I057D 87I057D 2019-07 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87030 Blower Assy, Air Conditioner
87030A Unit Assy, Cooling, Rear
87030E Damper Servo Sub-assy, Rear Cooling Unit, NO.1
87030F Damper Servo Sub-assy, Rear Cooling Unit, NO.2
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87114L Cover, Heater, NO.2
87121K Bracket, Heater
87124B Clamp, Heater
87124E Clamp, Heater
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87138G Resistor, Rear Cooler Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
87211X Blower Cover
87236C Cover, Heater Blower
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501F O-ring, Cooler Evaporator NO.1(DISCHARGE)
88501G O-ring, Cooler Evaporator NO.1(SUCTION)
88501J O-ring, Cooler Evaporator NO.2(SUCTION)
88501L O-ring, Cooler Evaporator NO.2(LIQUID)
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539D Pipe, Cooler Unit Drain
88539K Hose, Drain Cooler
88539W Hose, Drain Cooler, NO.2
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88649 Wiring, Cooler, NO.2
88650N Amplifier Assy, Air Conditioner
88710H Tube & Accessory Assy, Air Conditioner
88892Q Plate, Cooler
88897M Grommet (FOR HEATER PIPE)
88899K Plate, Cover
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
88899N Plate, Cover
88H99 Parts, Cooling Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
