Heating & Air Conditioning - Control & Air Duct

44 part groups · 14 illustrations

Illustrations

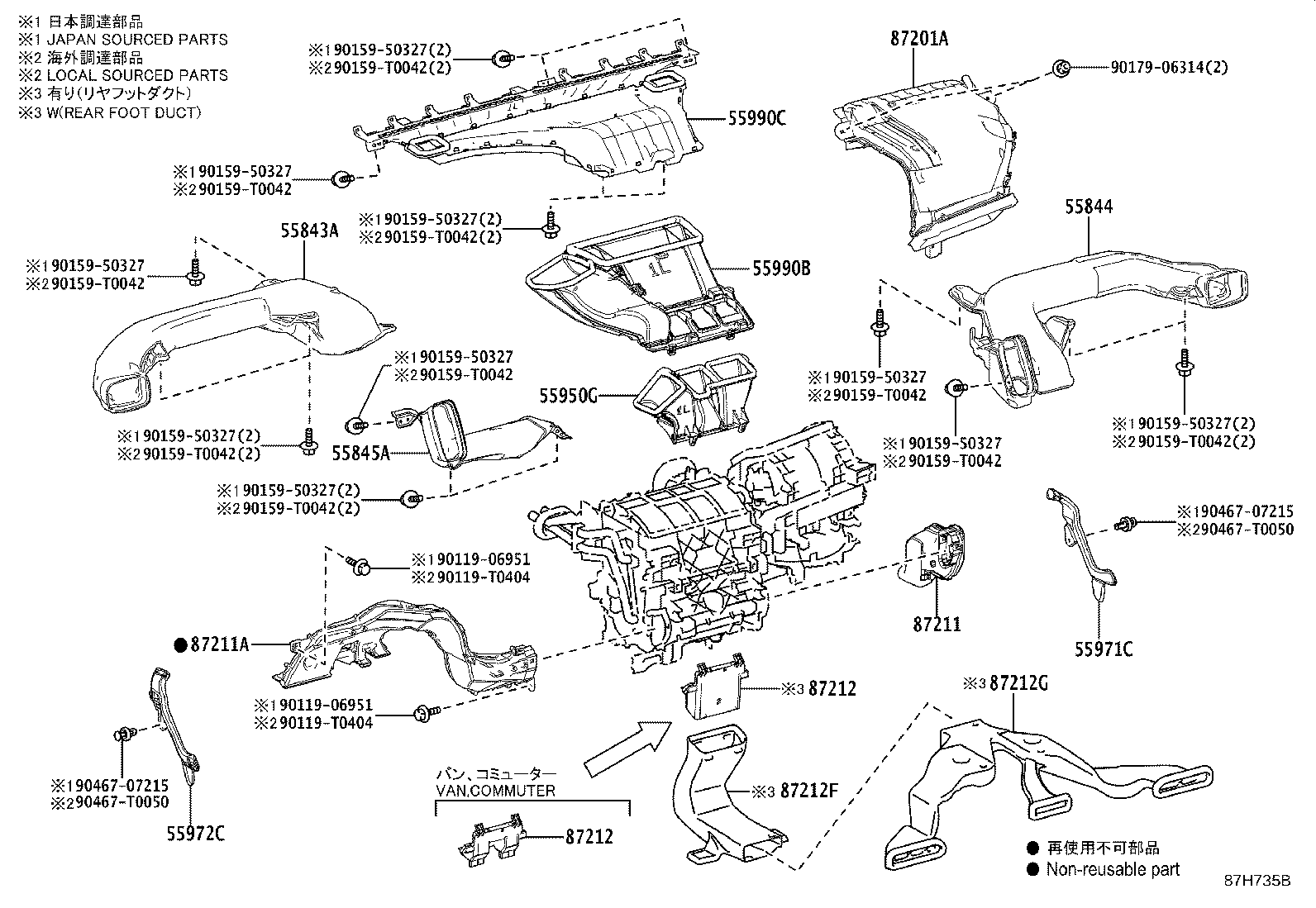

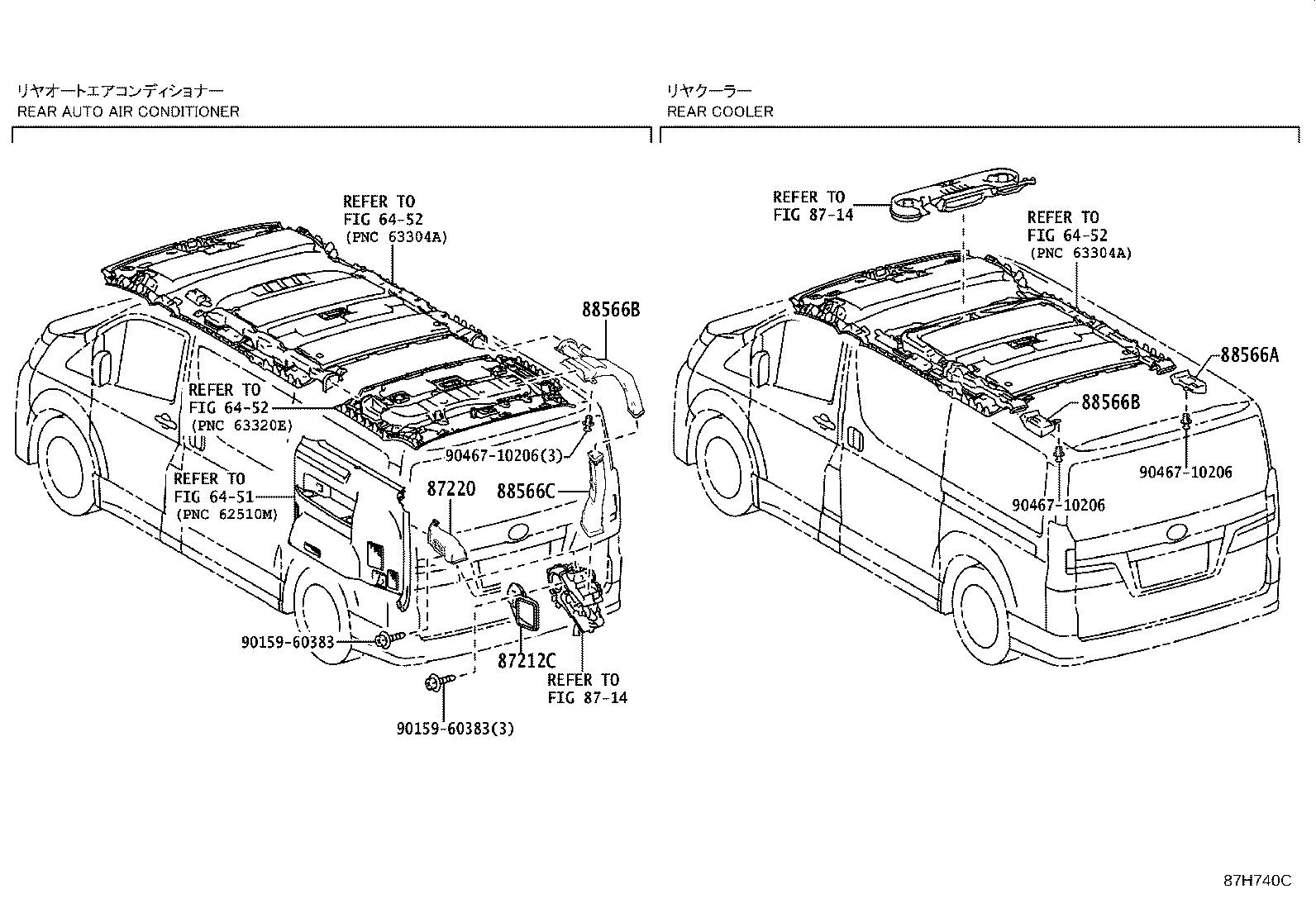

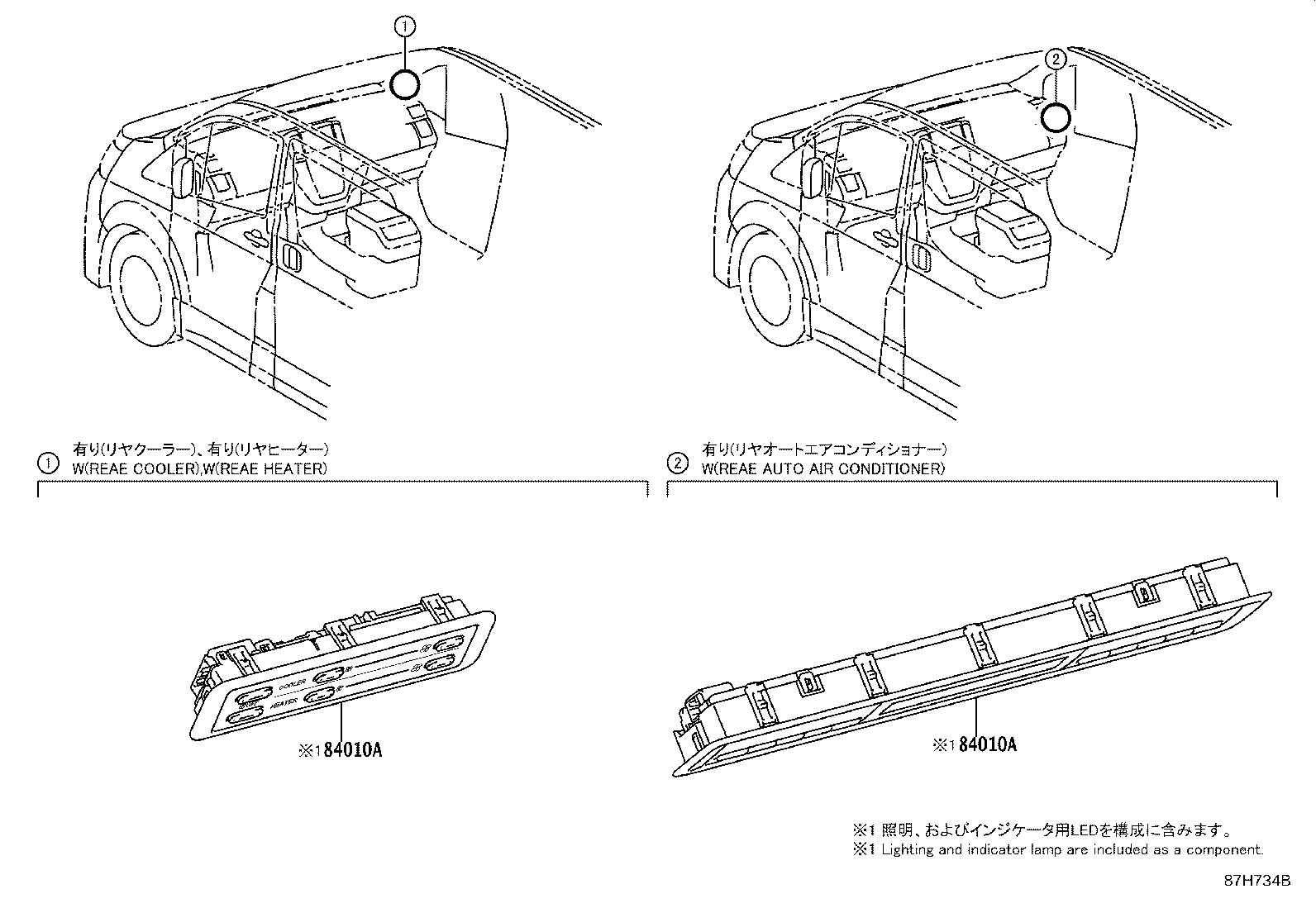

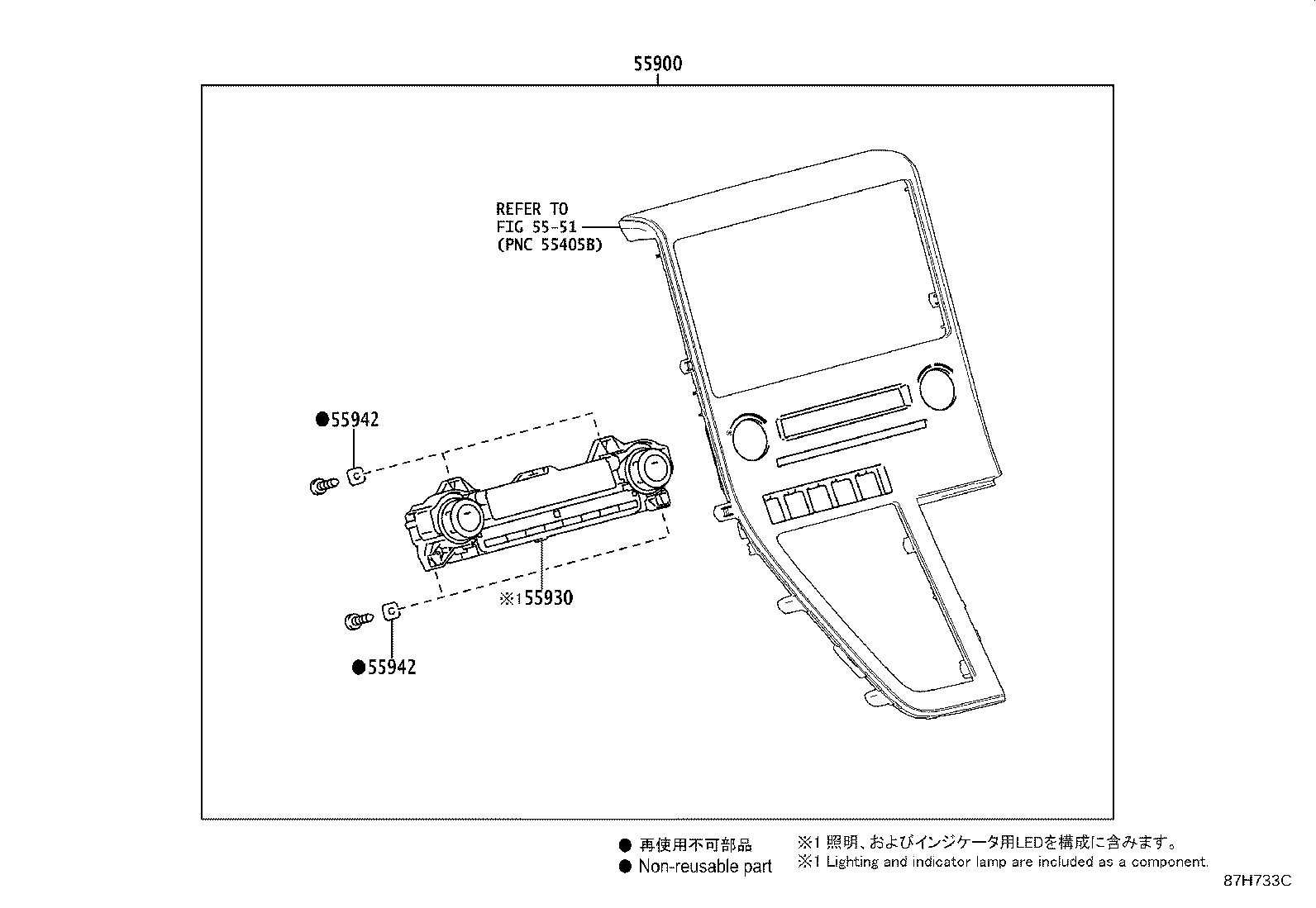

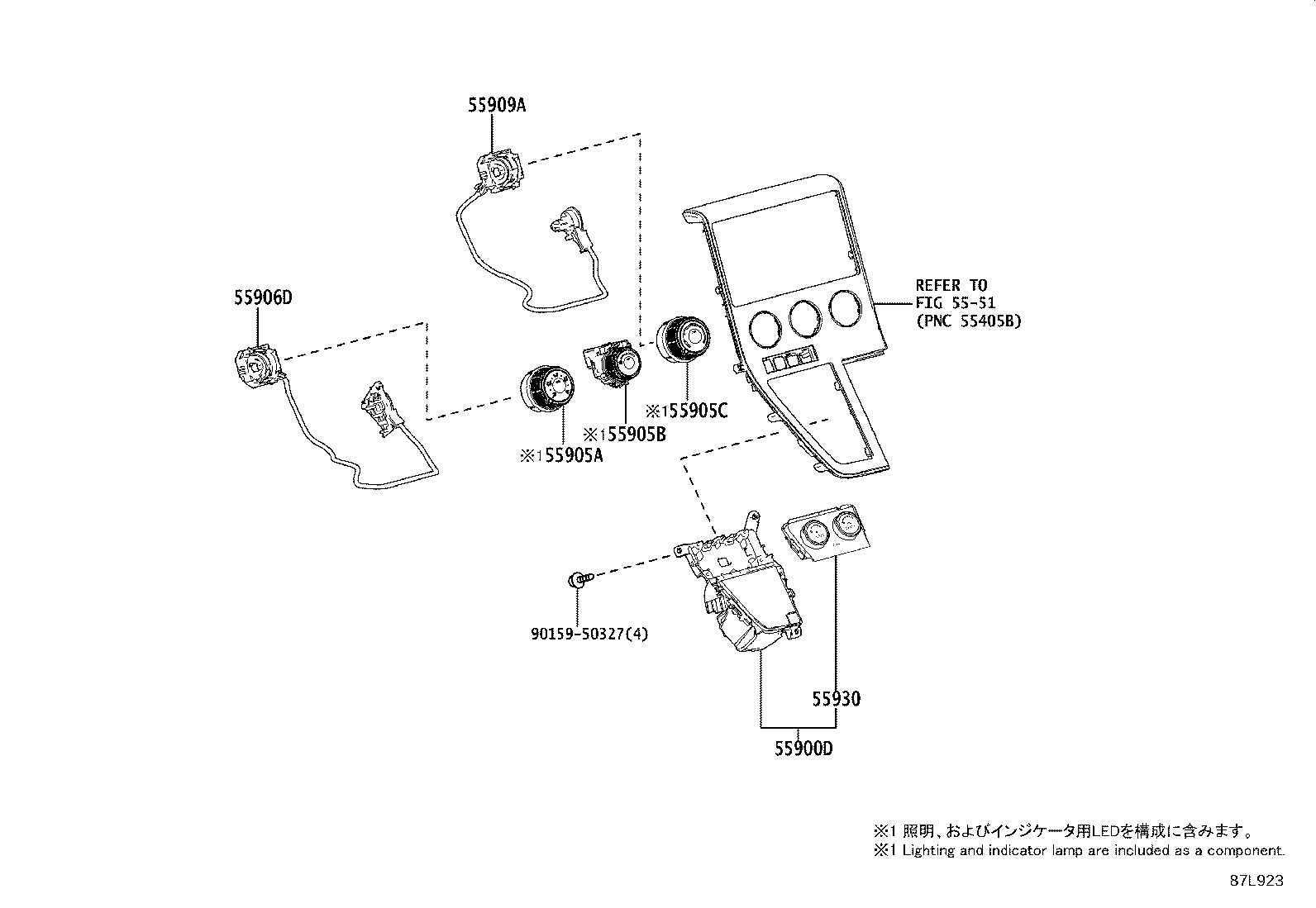

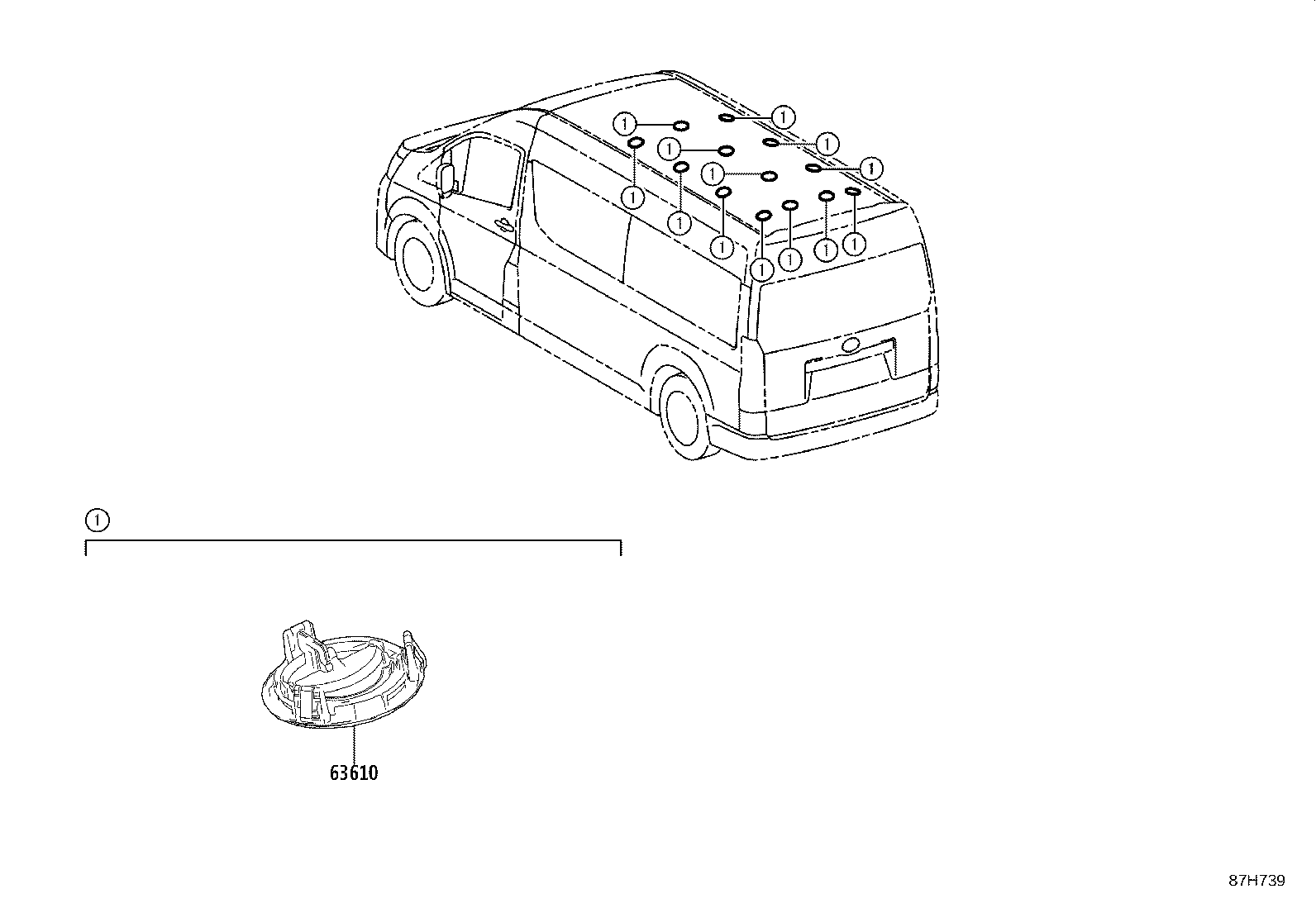

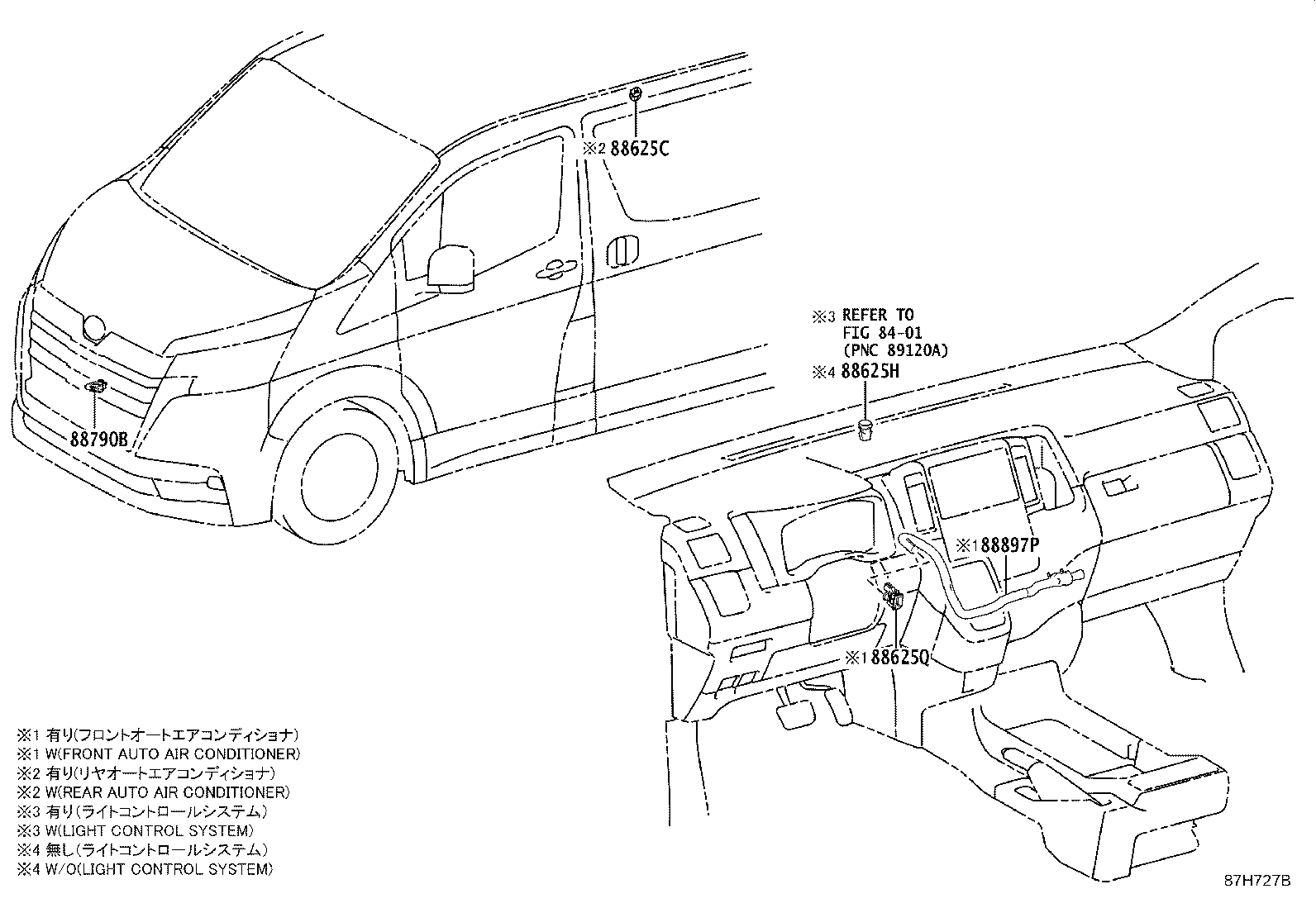

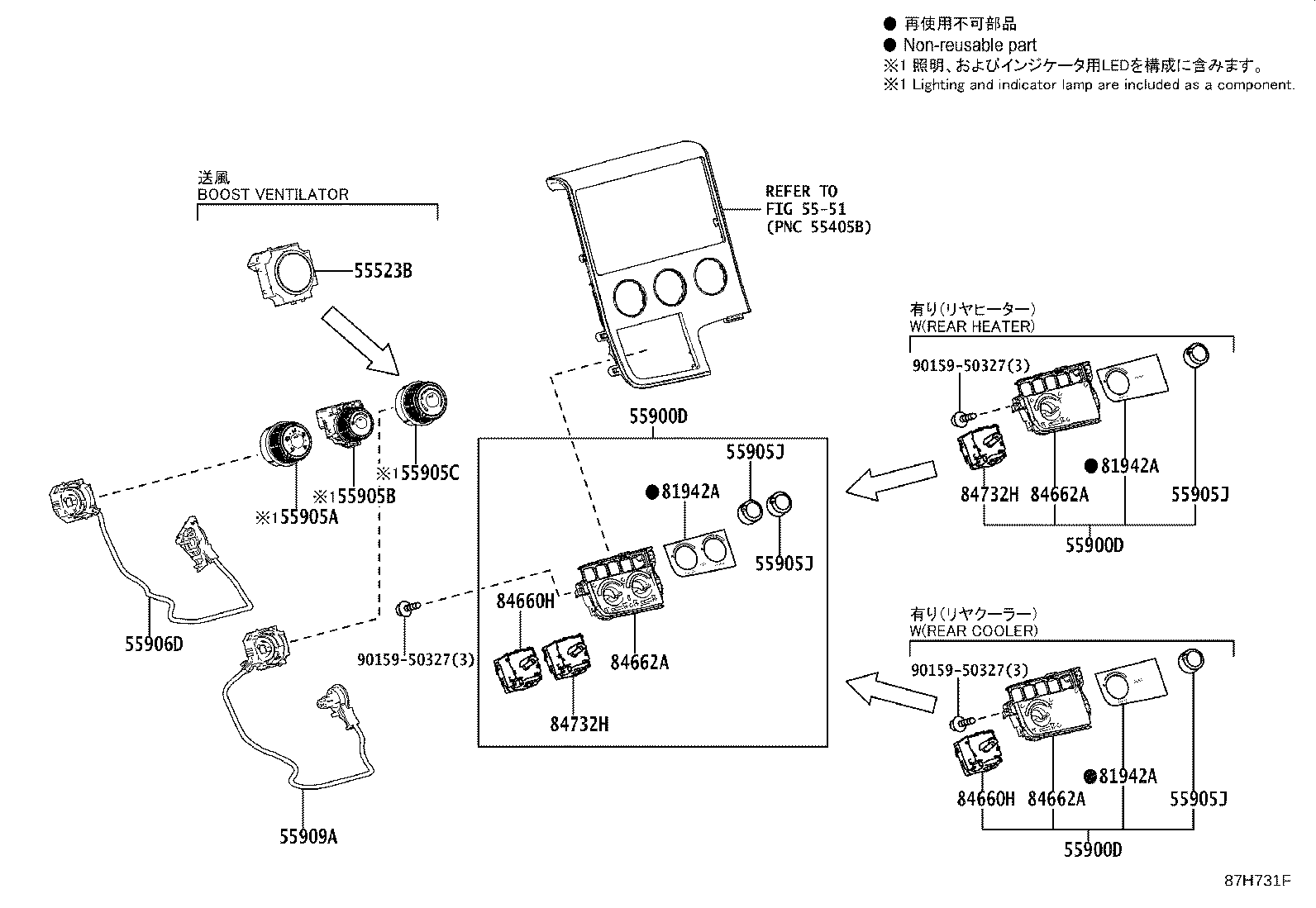

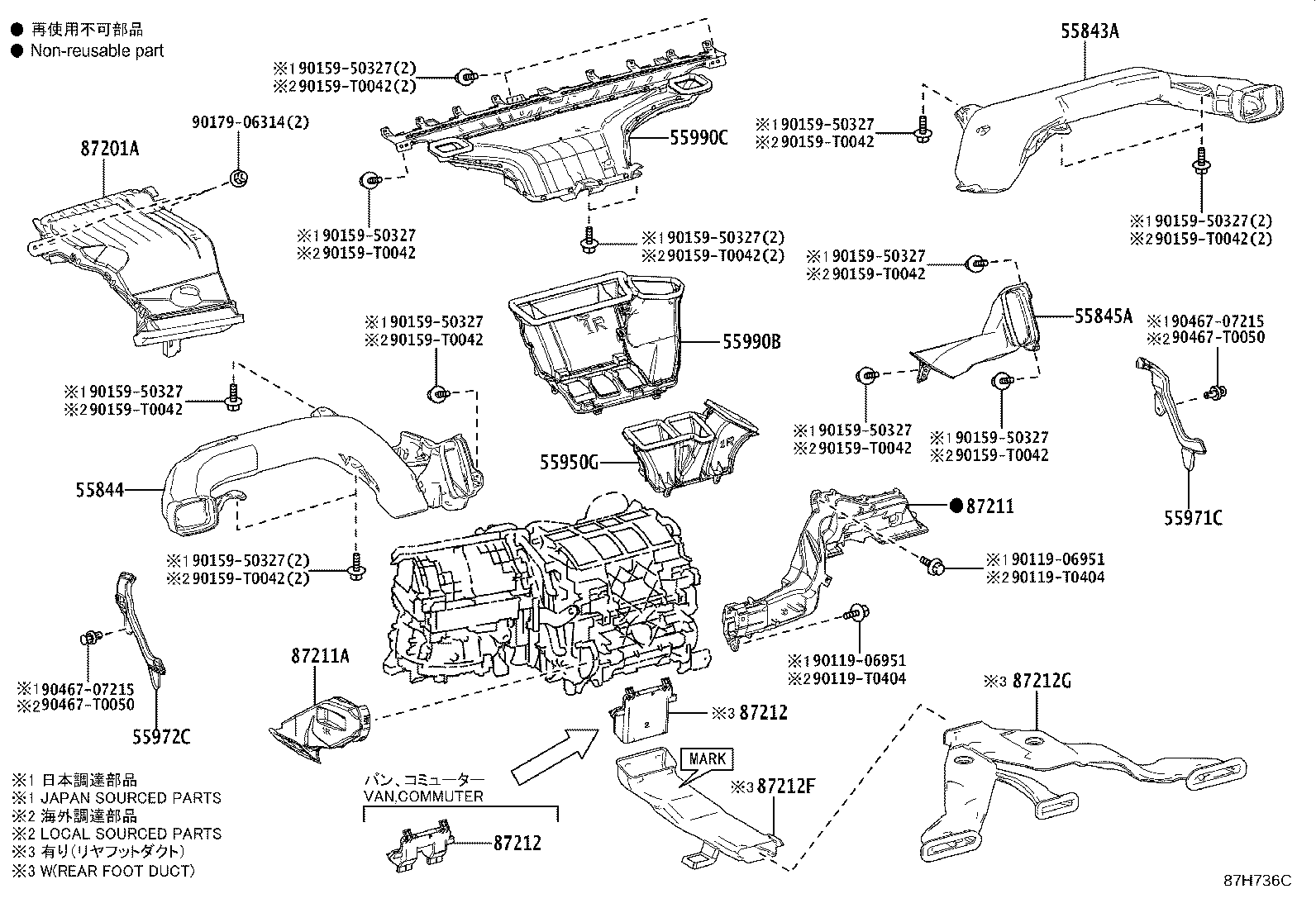

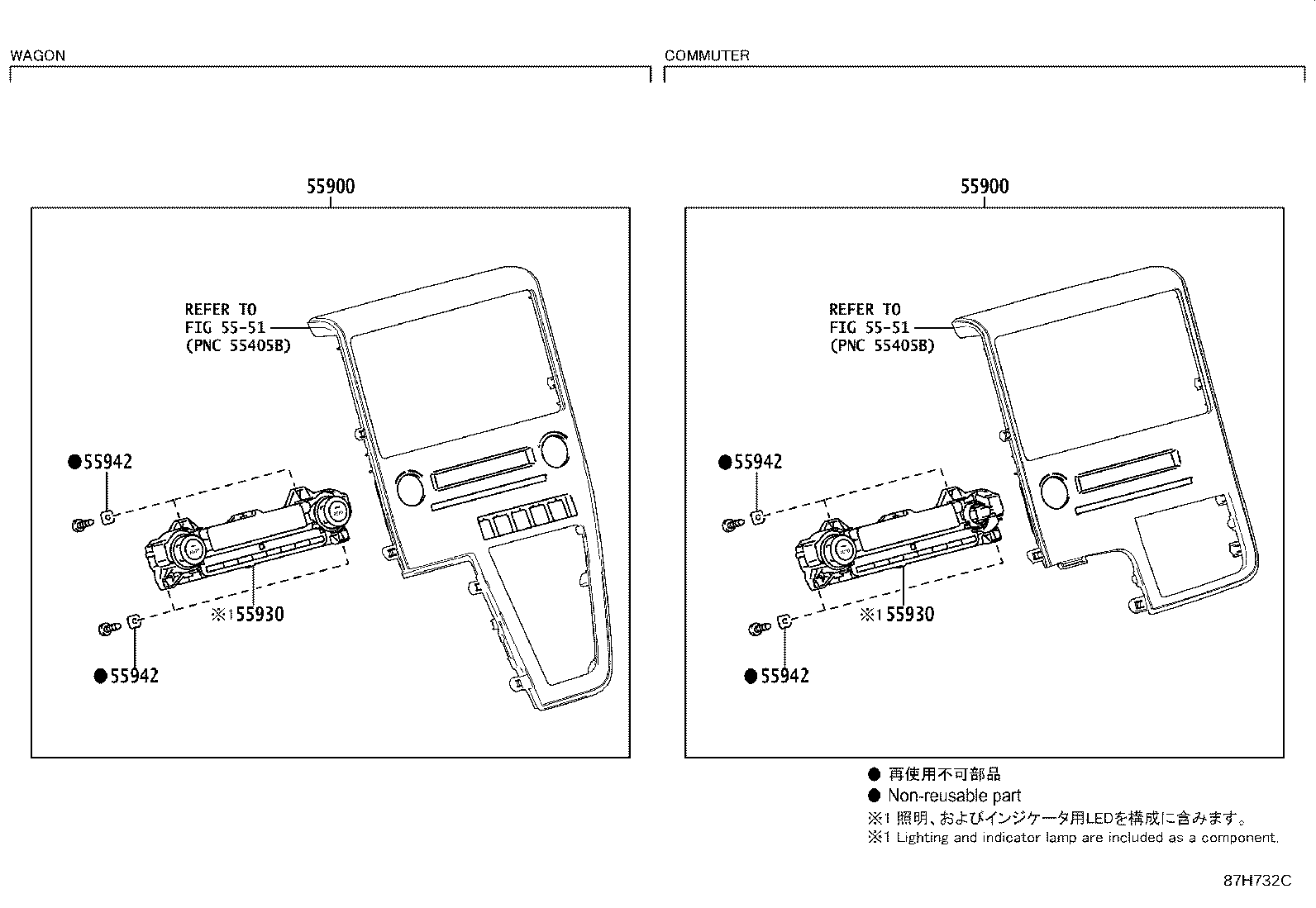

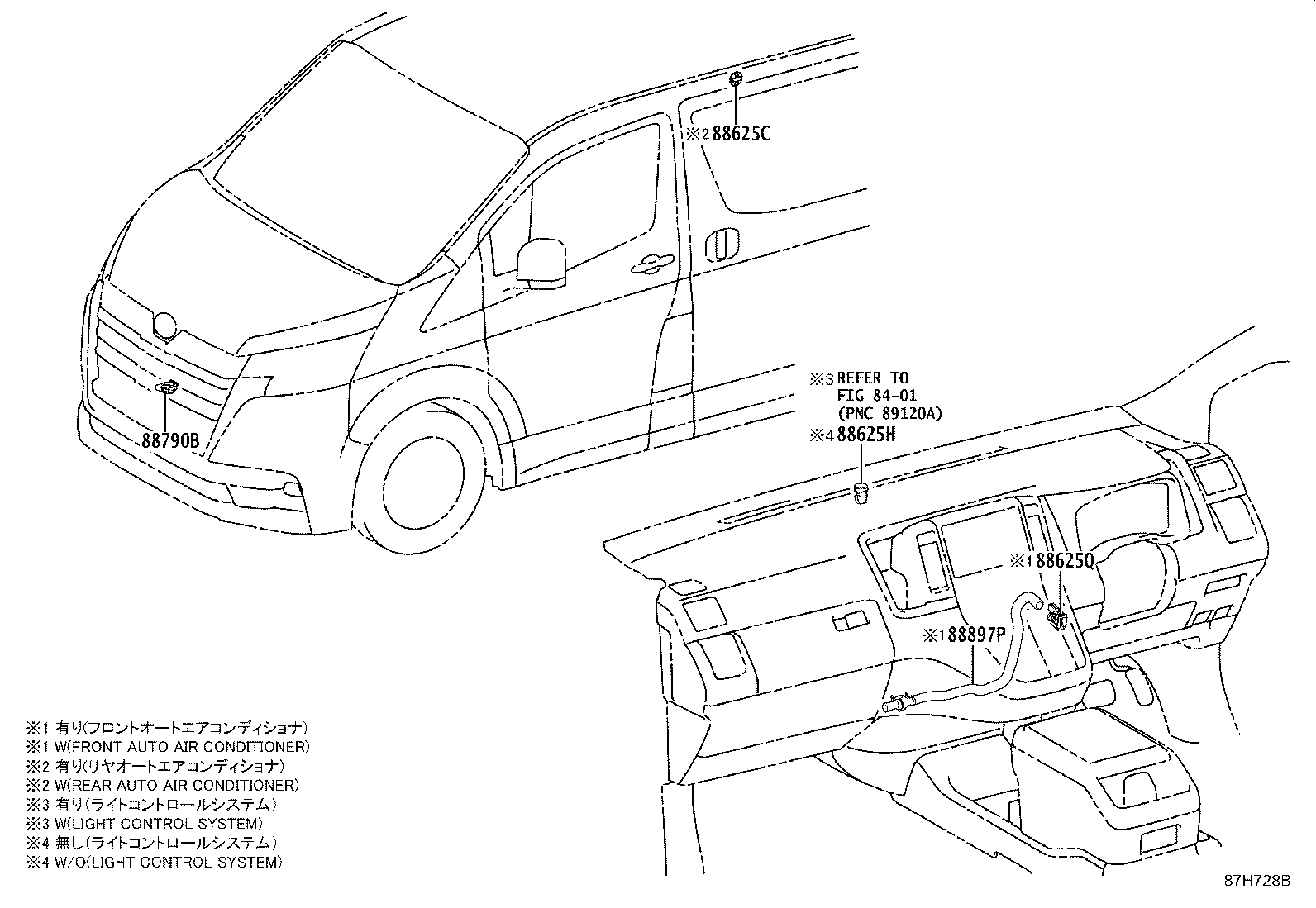

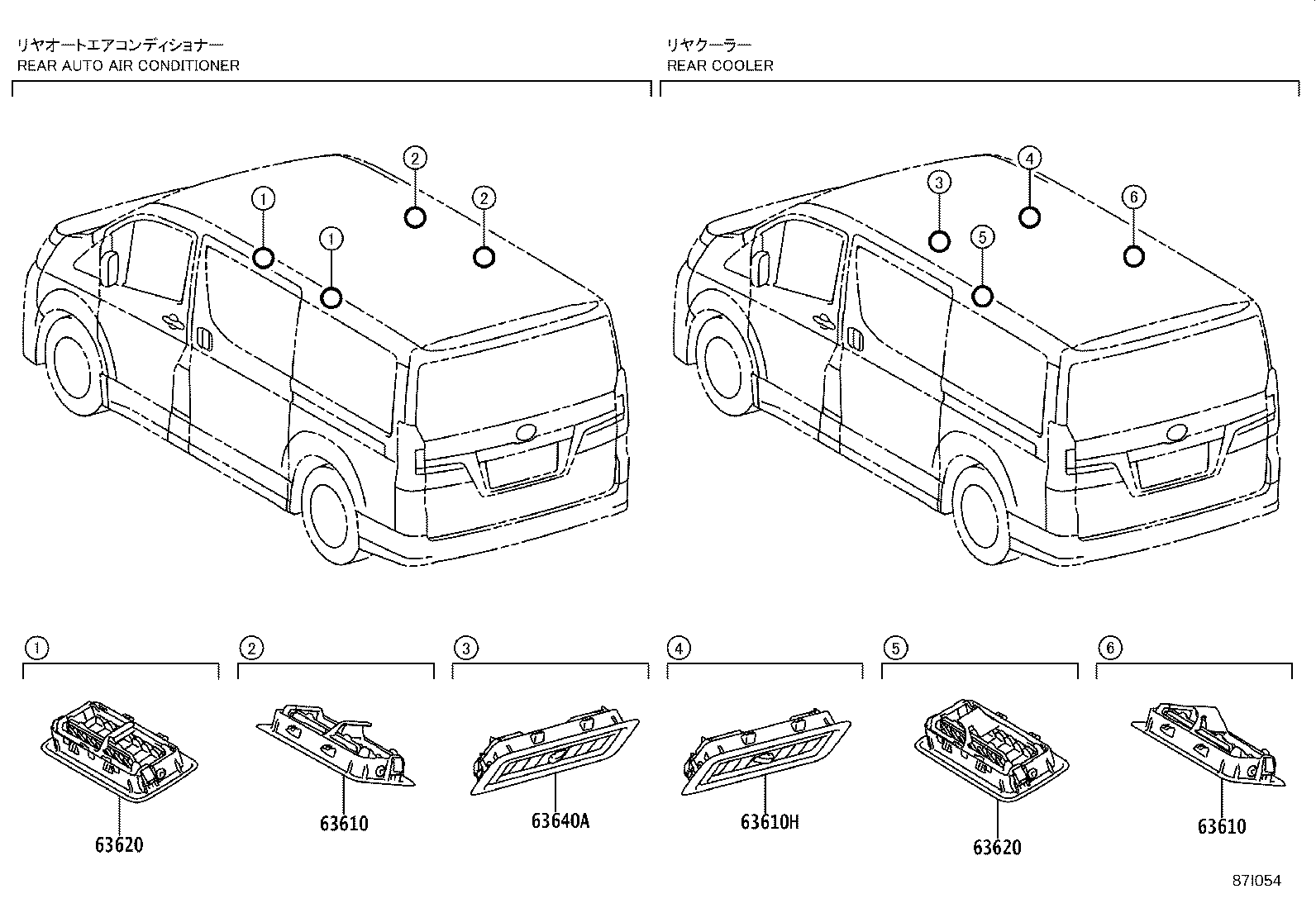

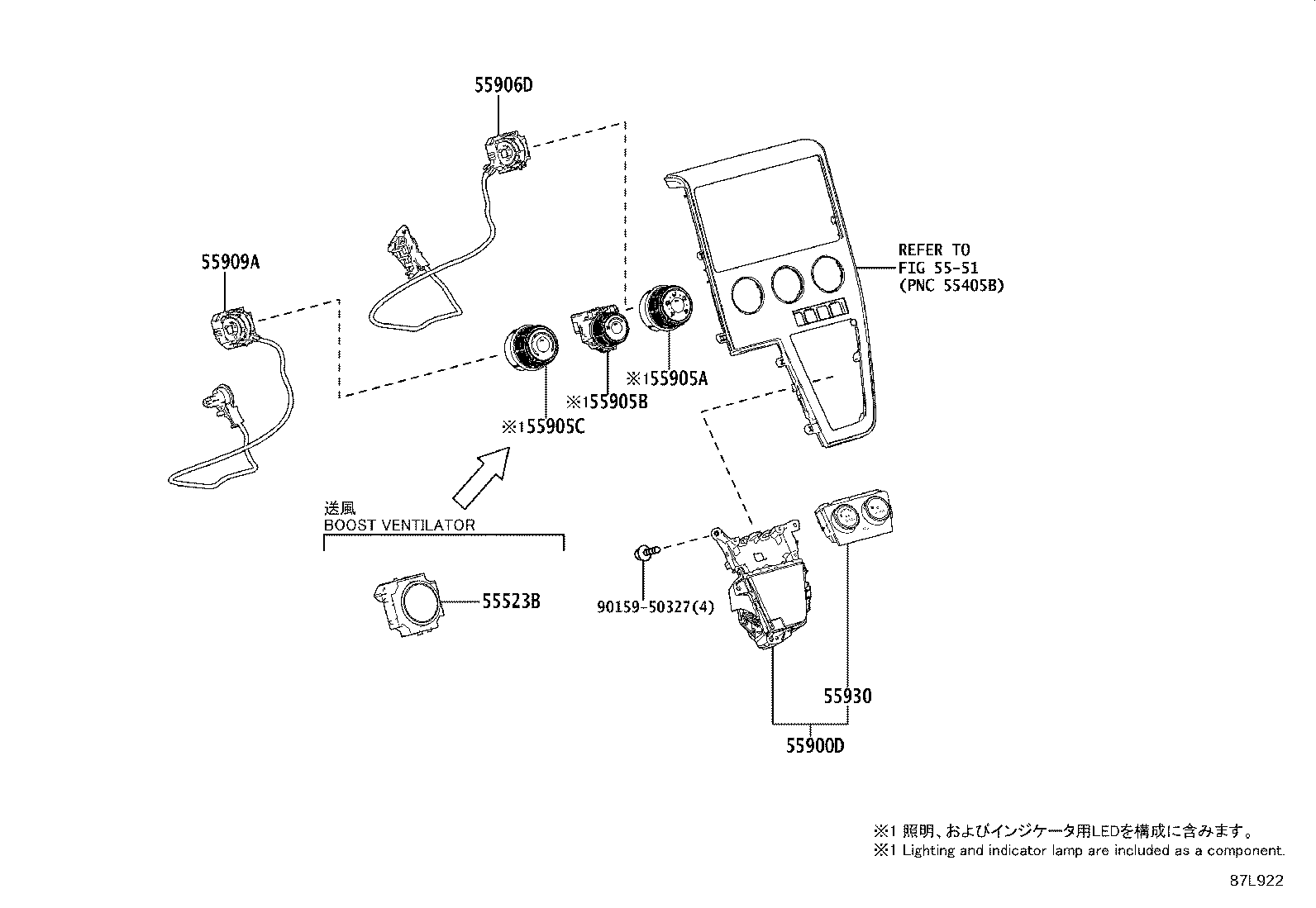

Figure 87H730F 87H730F 2019-02 → — Figure 87L922 87L922 2019-02 → — Figure 87H731F 87H731F 2019-02 → — Figure 87L923 87L923 2019-02 → — Figure 87H732C 87H732C 2019-02 → — Figure 87H733C 87H733C 2019-02 → — Figure 87H734B 87H734B 2019-02 → — Figure 87H735B 87H735B 2019-02 → — Figure 87H736C 87H736C 2019-02 → — Figure 87H739 87H739 2019-03 → — Figure 87I054 87I054 2019-07 → — Figure 87H740C 87H740C 2019-07 → — Figure 87H727B 87H727B 2019-02 → — Figure 87H728B 87H728B 2019-02 → —

Part groups

PNCDescription
55523B Cover, Heater Control Opening
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900D Control Assy, Air Conditioner, NO.2
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905J Knob Sub-assy, Control
55906D Cable Sub-assy, Heater Control, NO.2
55909A Cable Sub-assy, Airmix Damper Control
55930 Control Assy, Center Cluster Module
55942 Guard, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
55990C Nozzle Assy, Center Defroster
63610 Register Assy, Air Outlet, NO.1
63610H Register Assy, Air Outlet, NO.3
63620 Register Assy, Air Outlet, NO.2
63640A Register Assy, Air Outlet, NO.4
81942A Sheet, Heater Control Name, NO.1
84010A Control & Panel Assy, Integration
84660H Switch Assy, Cooler Control
84662A Panel, Cooler Control Switch
84732H Switch, Heater Blower
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212C Duct, Air, RR
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87220 Duct Assy, Air
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
