Heating & Air Conditioning - Water Piping

26 part groups · 17 illustrations

Illustrations

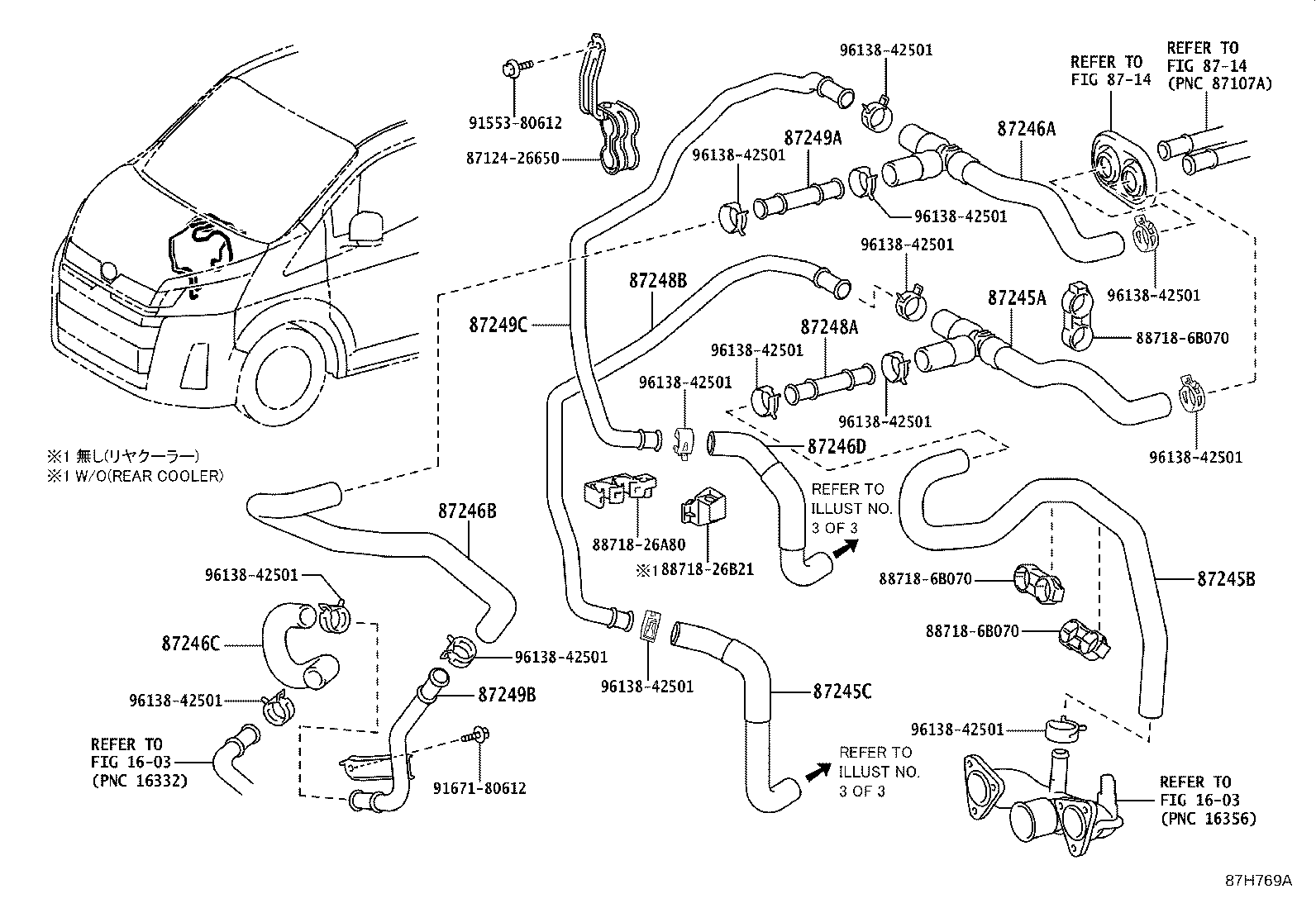

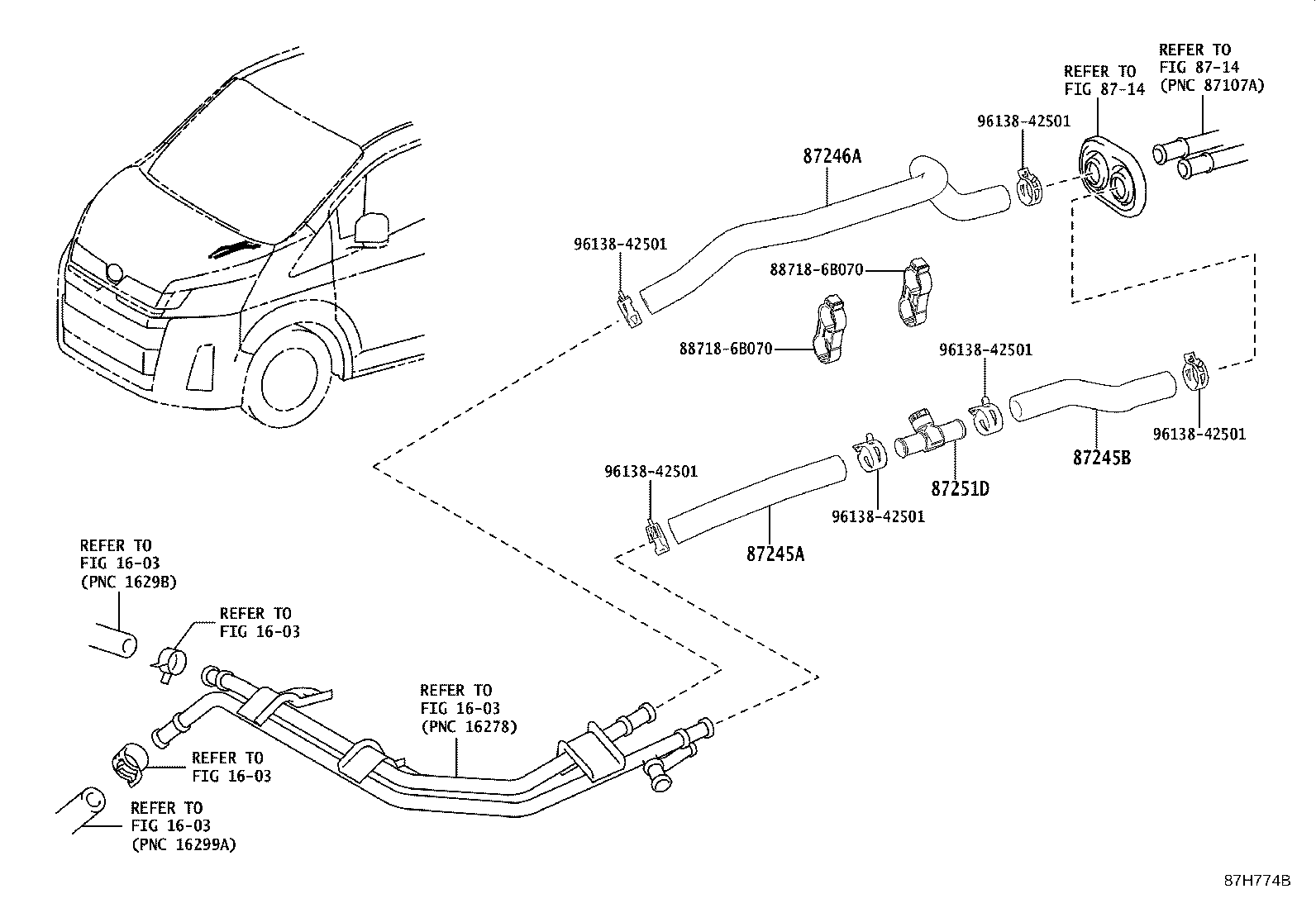

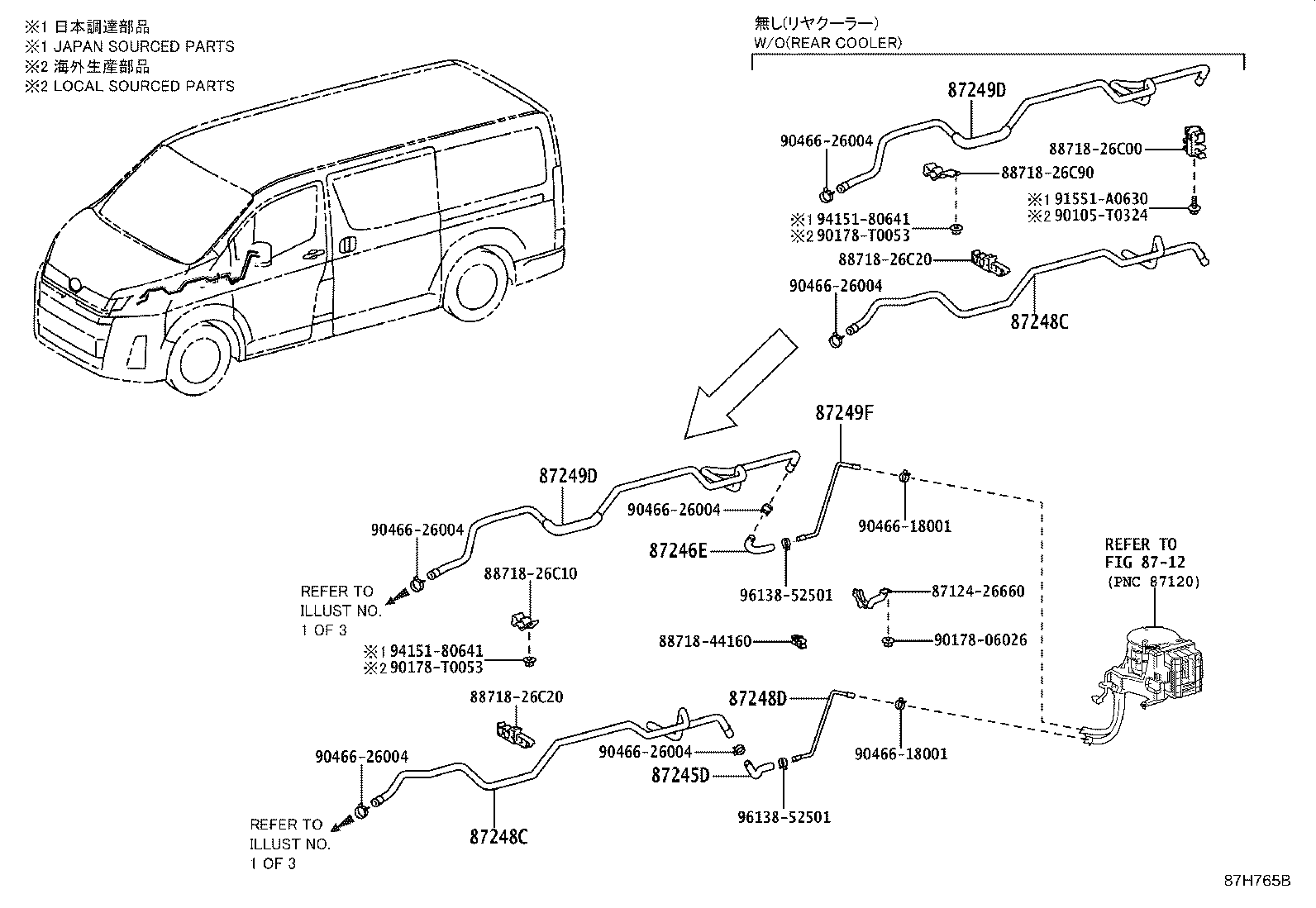

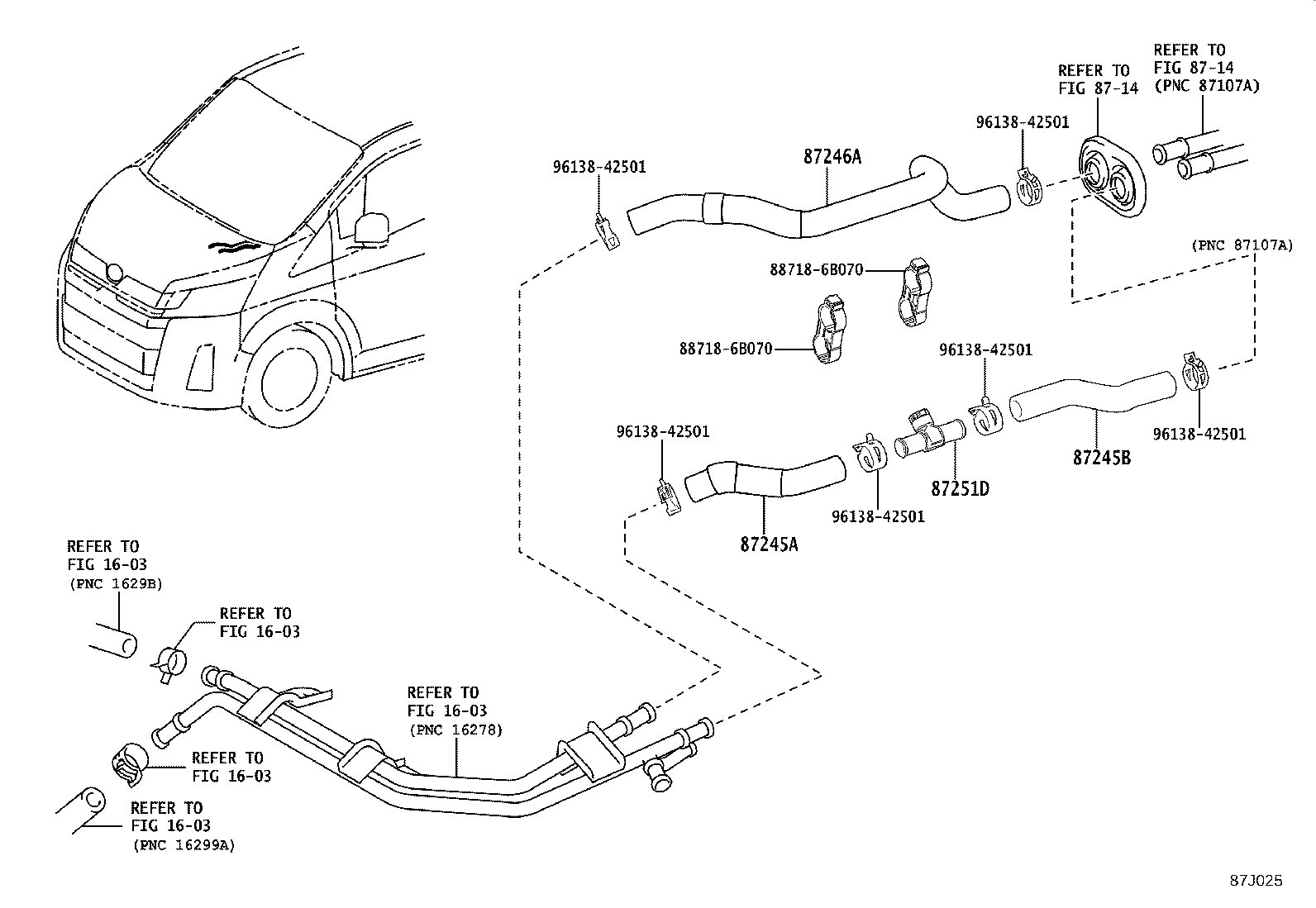

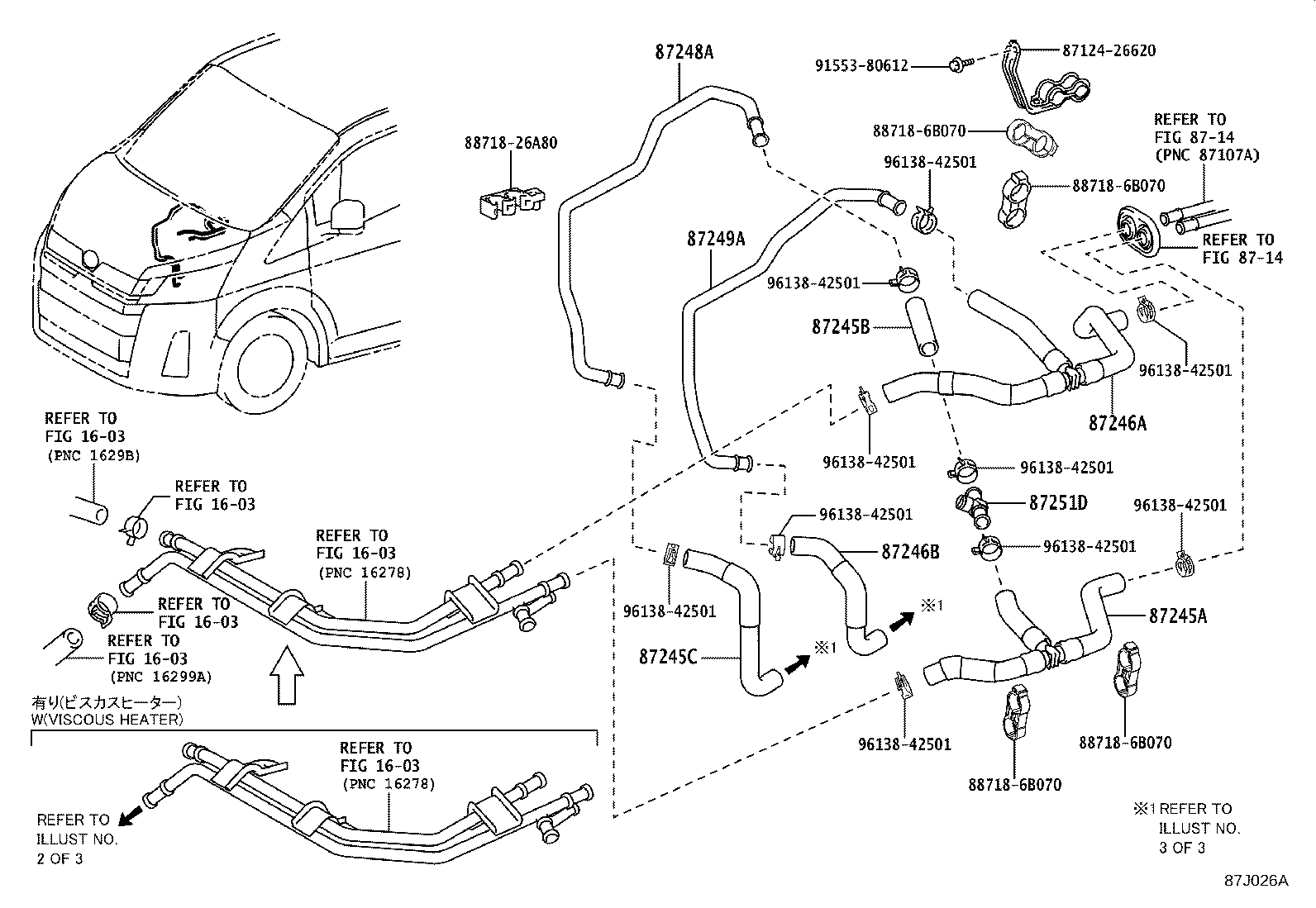

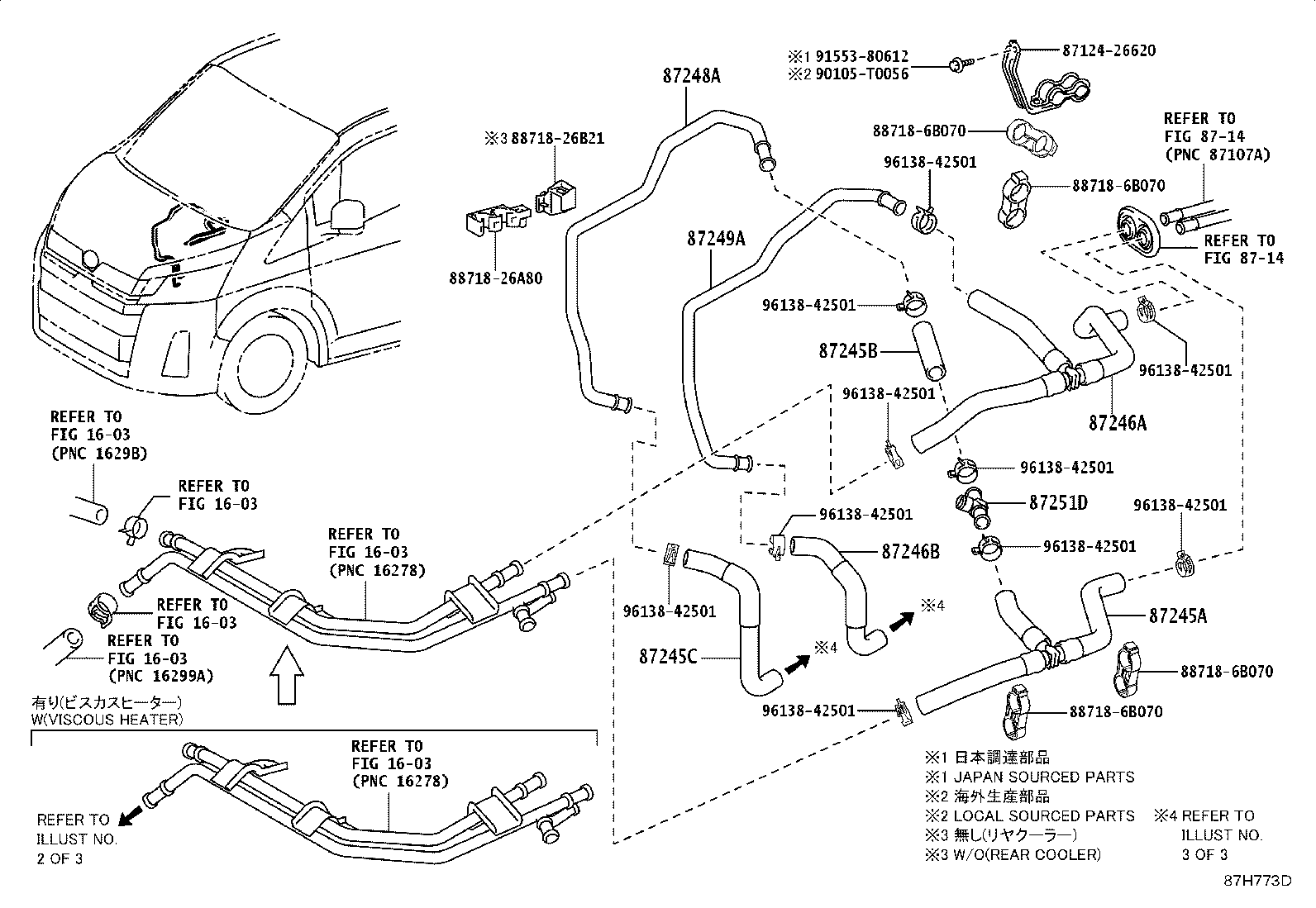

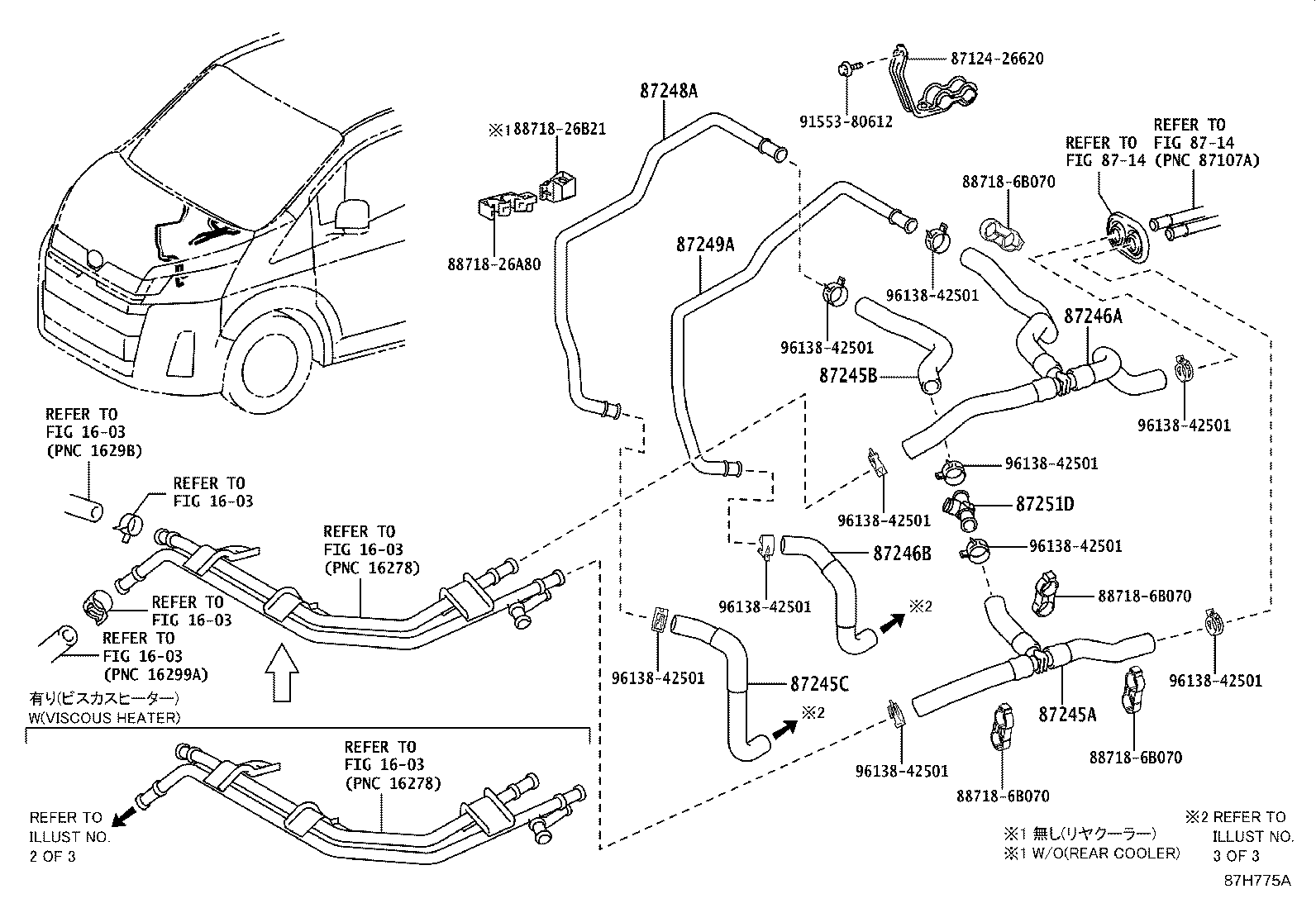

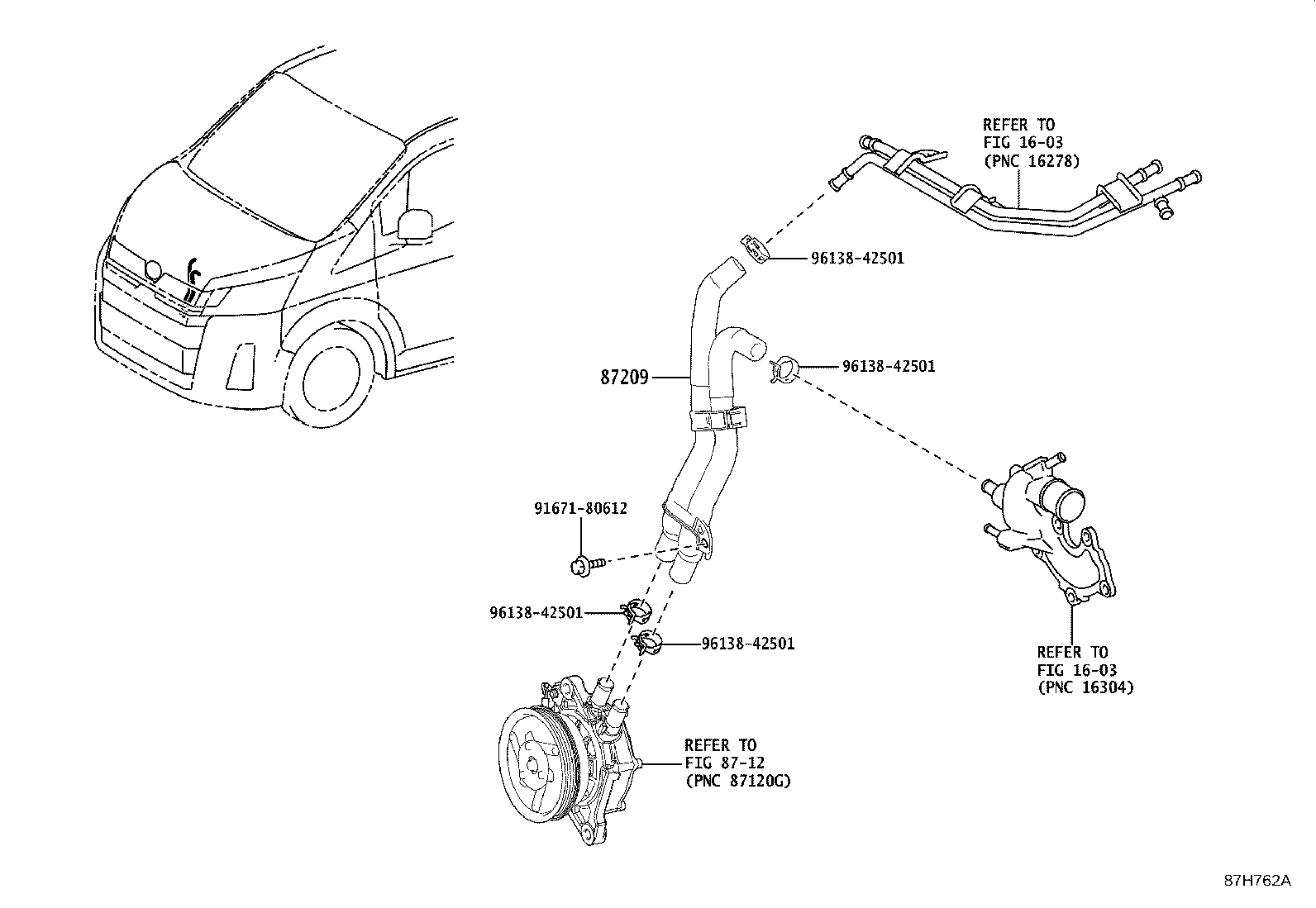

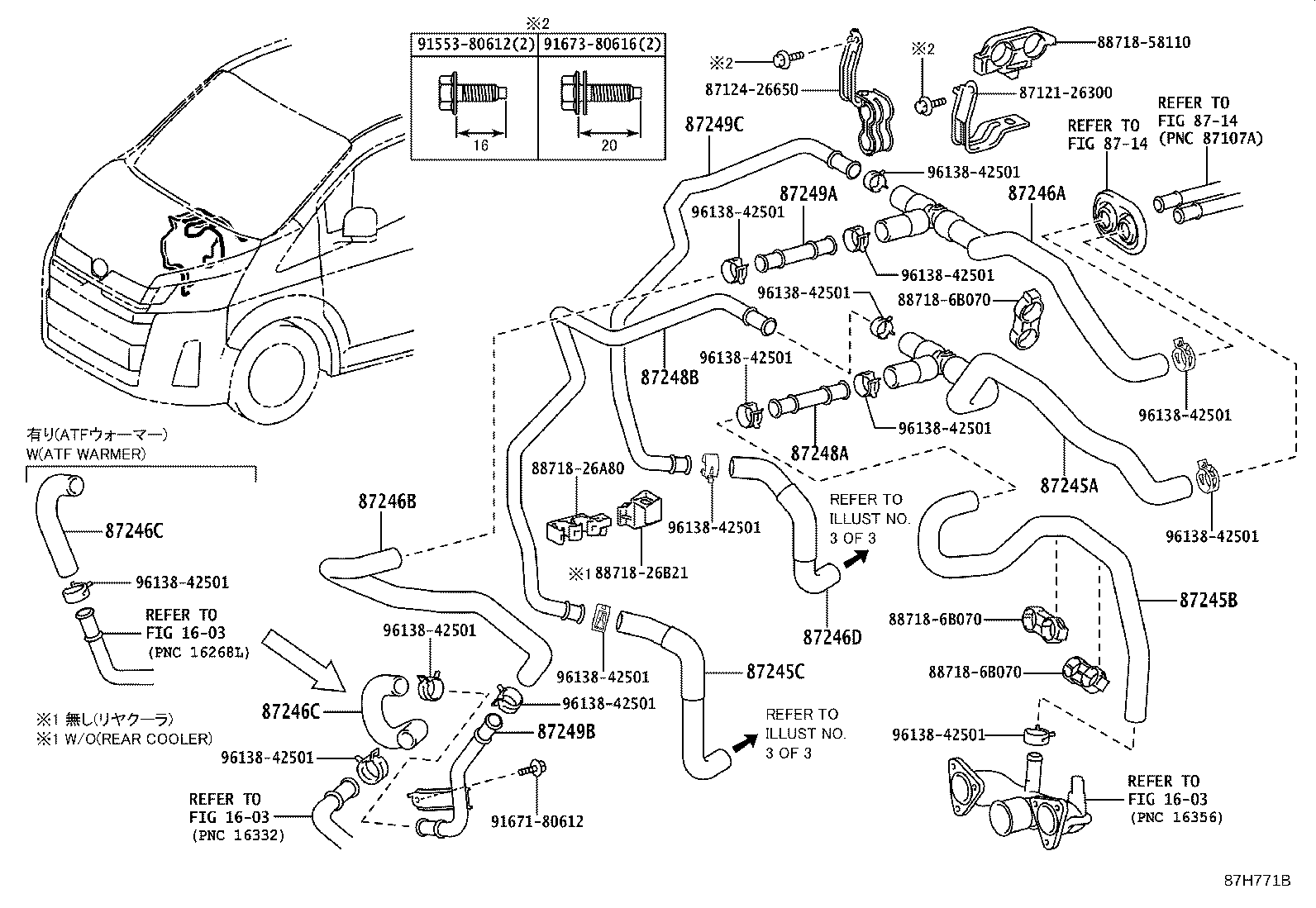

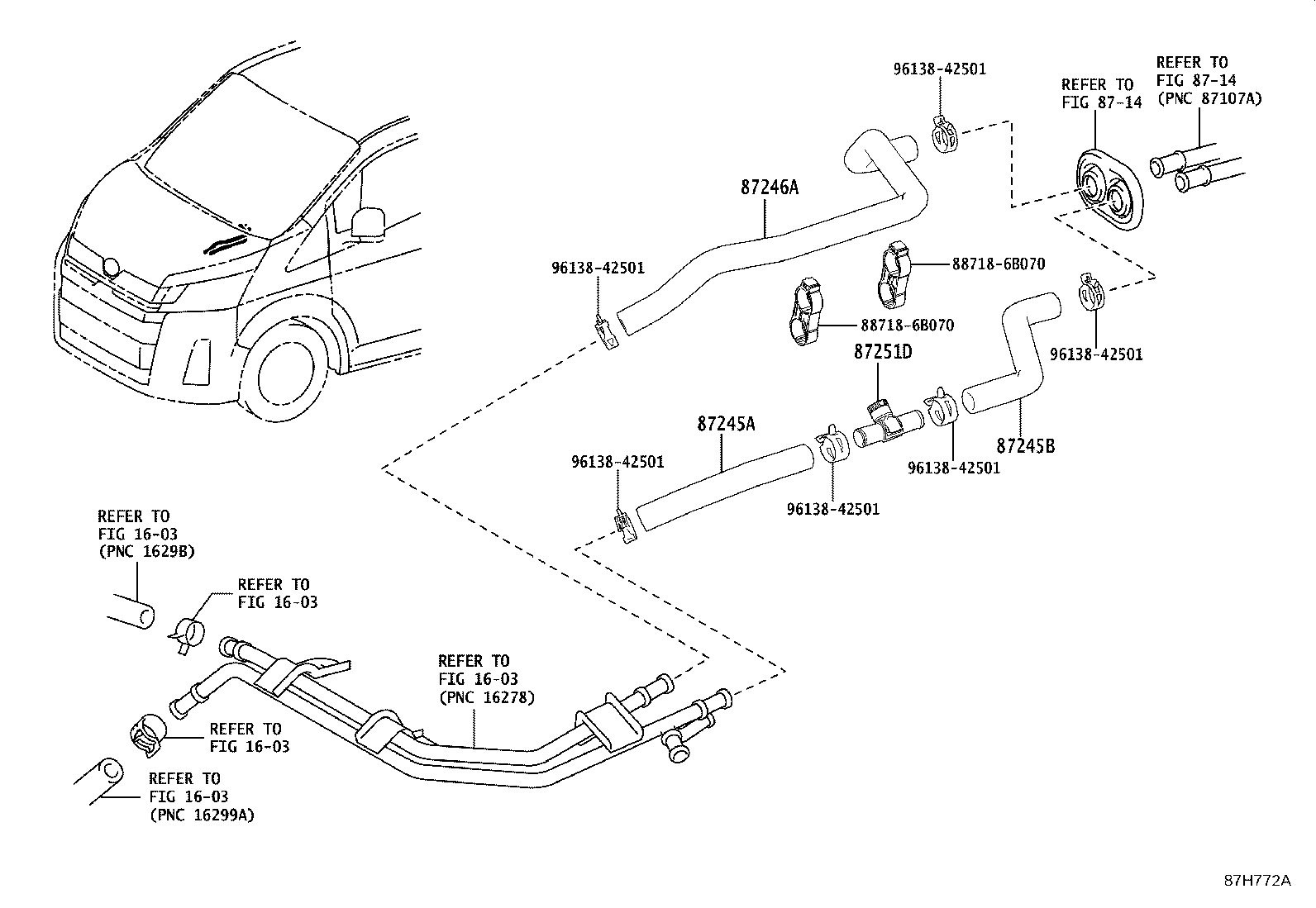

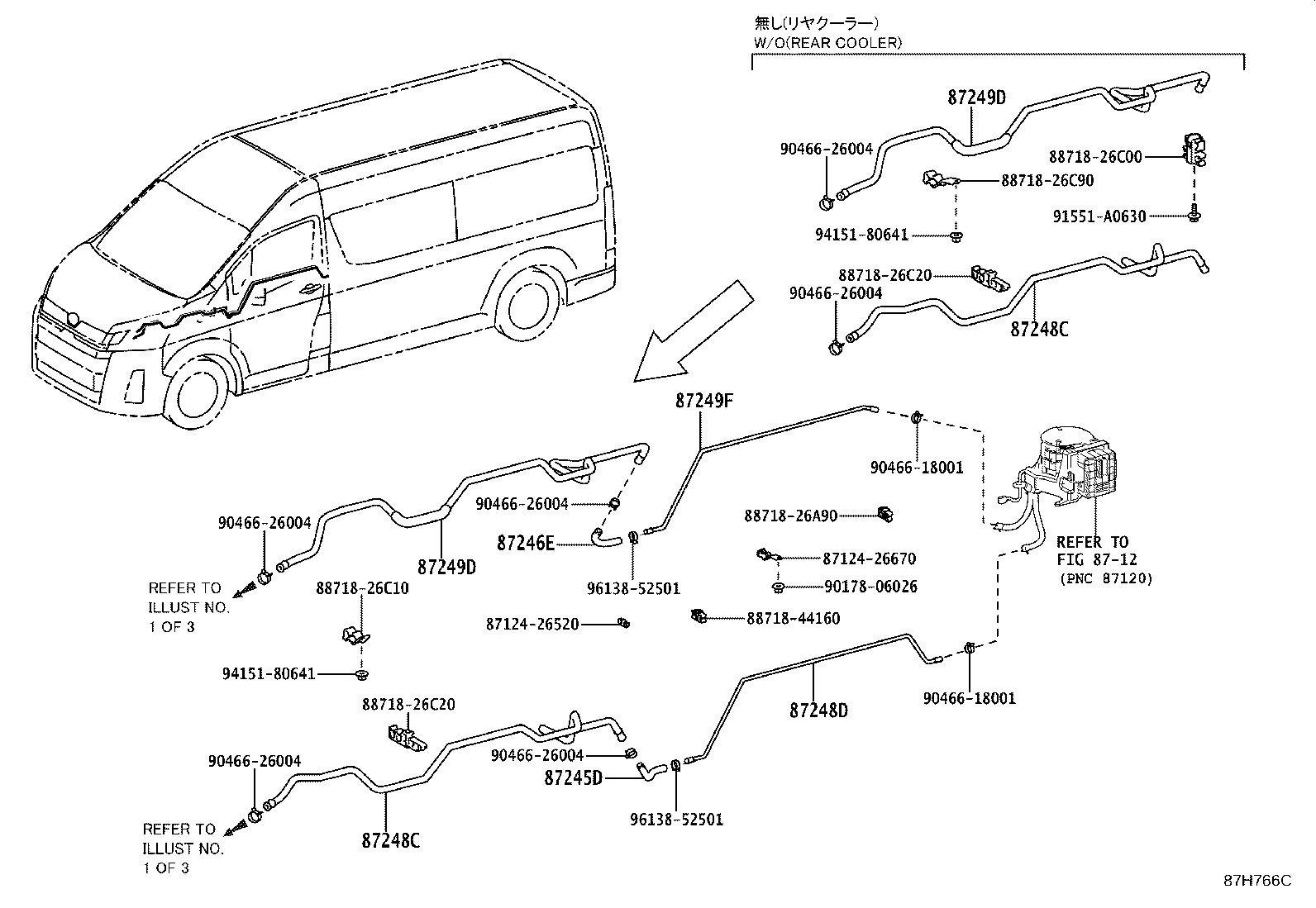

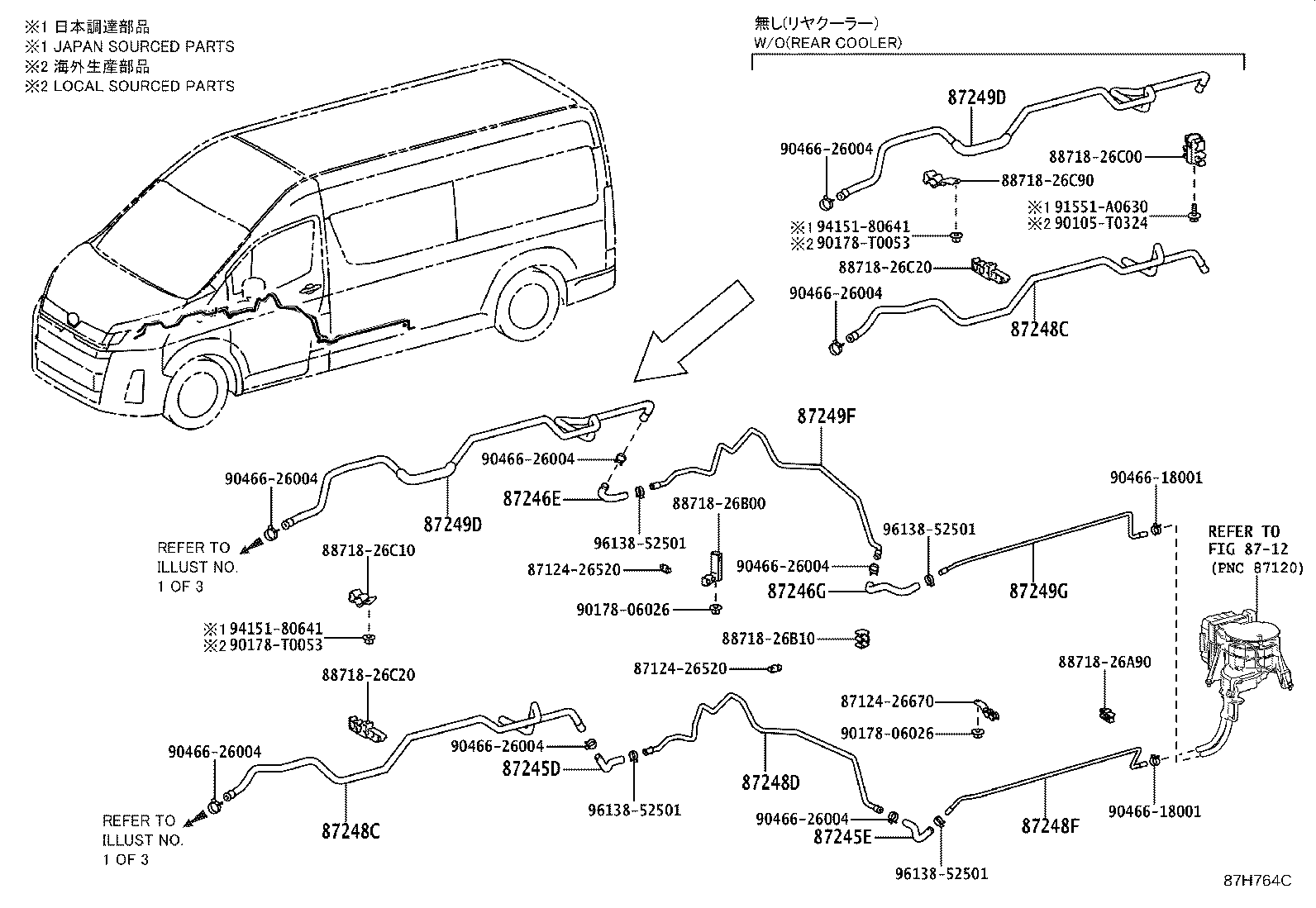

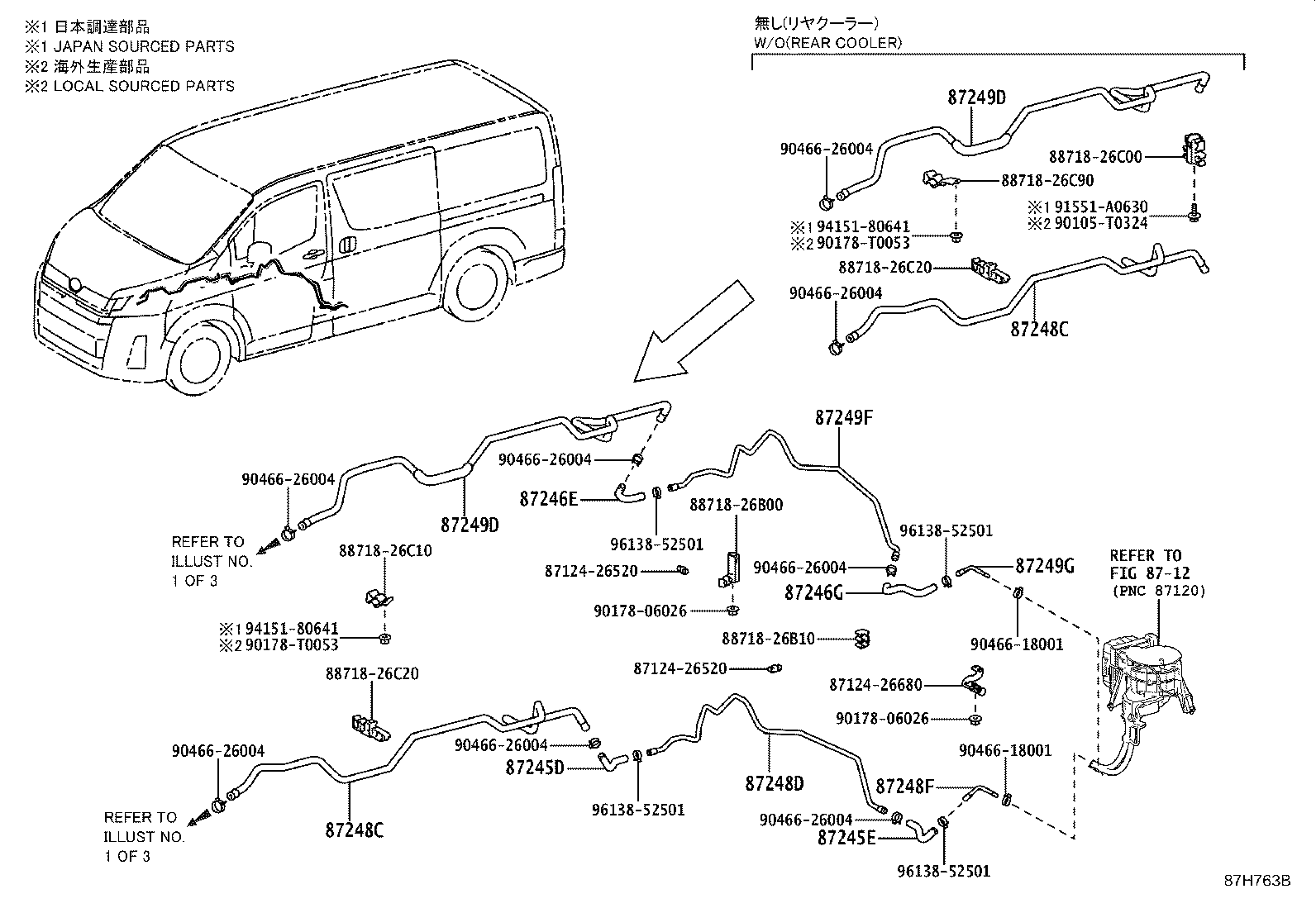

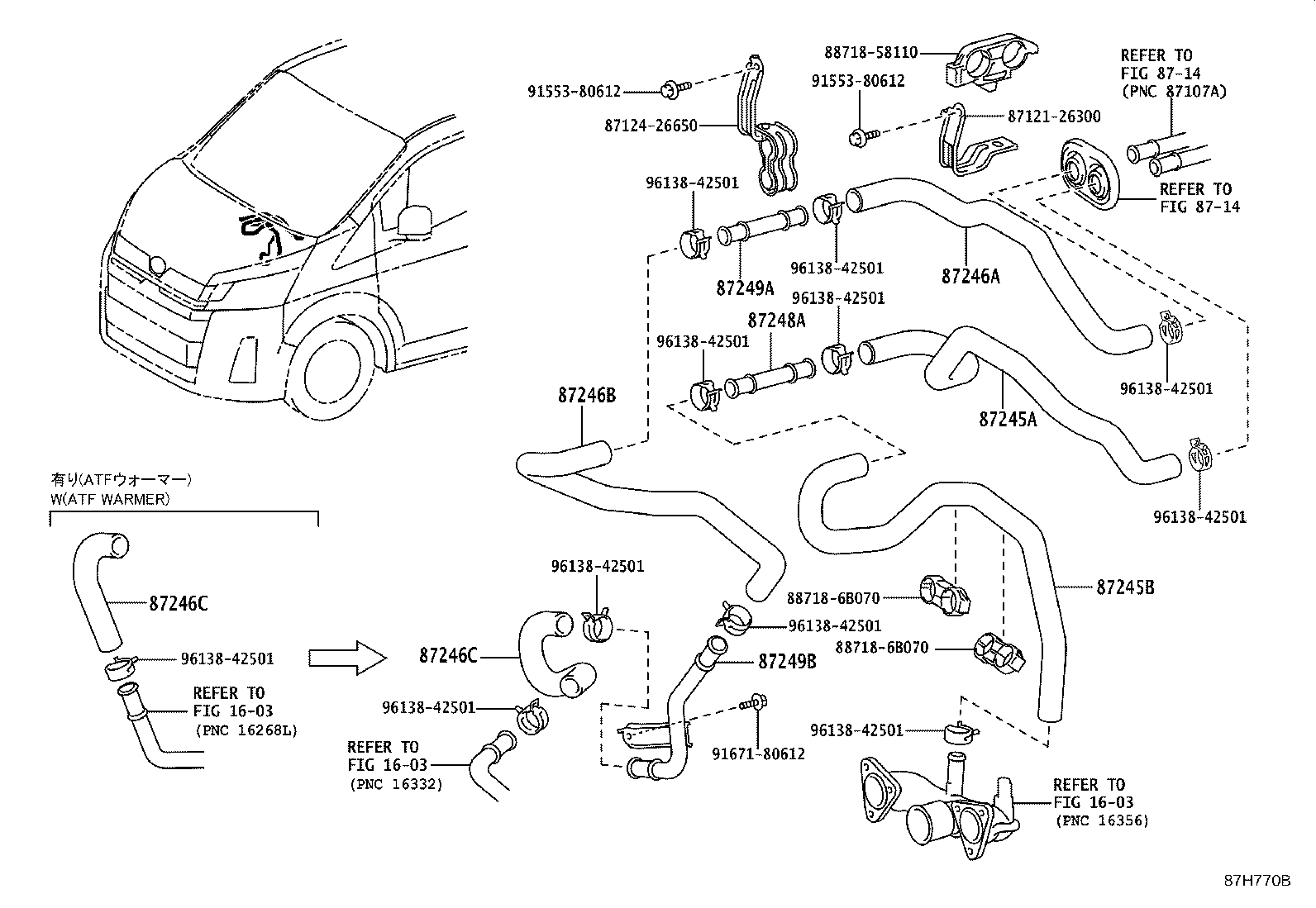

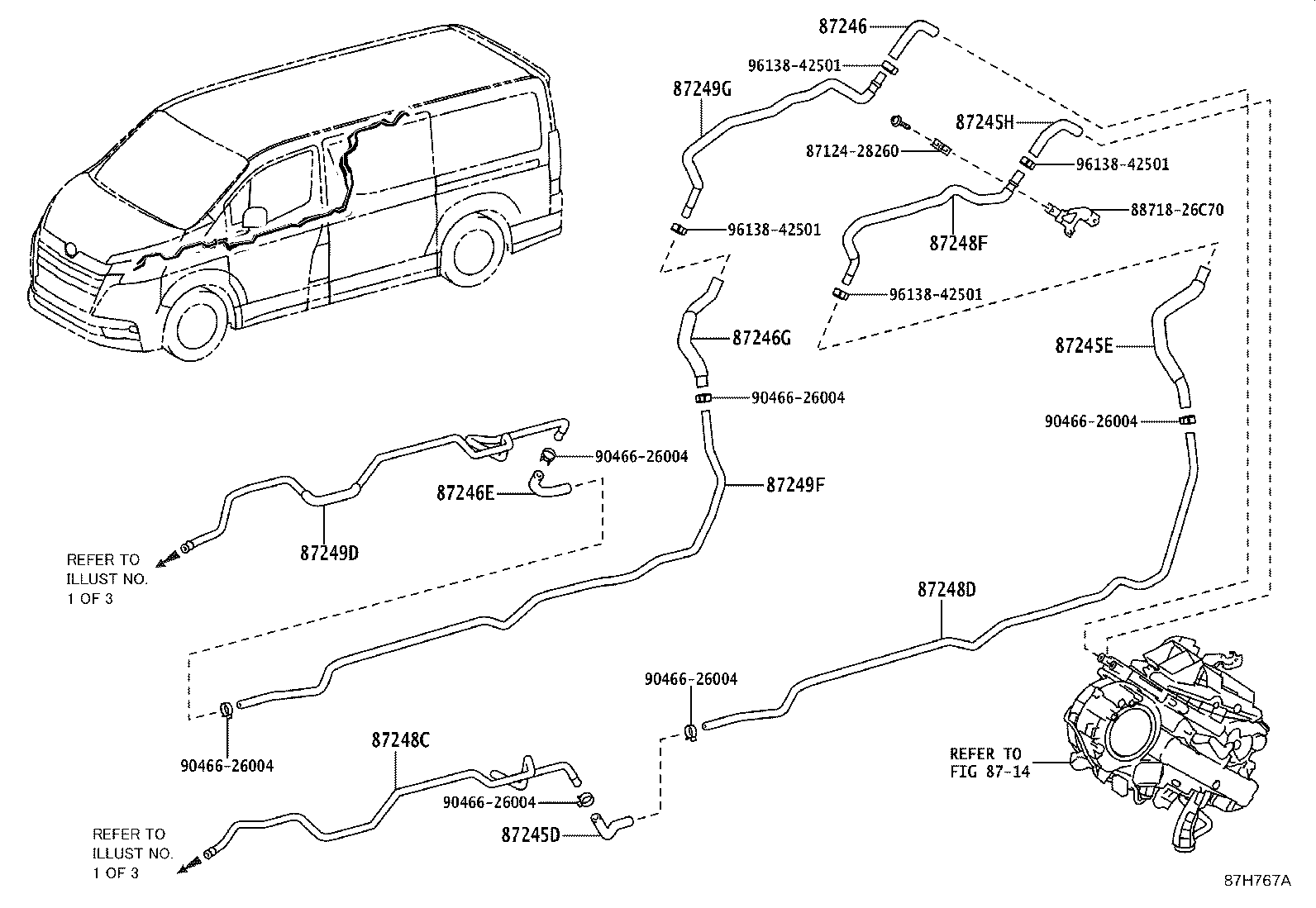

Figure 87H768A 87H768A 2019-02 → — Figure 87H769A 87H769A 2019-02 → — Figure 87H770B 87H770B 2019-02 → — Figure 87H771B 87H771B 2019-02 → — Figure 87H772A 87H772A 2019-02 → — Figure 87H773D 87H773D 2019-02 → — Figure 87J026A 87J026A 2020-06 → — Figure 87H774A 87H774A 2019-02 → — Figure 87J025A 87J025A 2020-06 → — Figure 87H775A 87H775A 2019-02 → — Figure 87H762A 87H762A 2019-03 → — Figure 87H762A 87H762A 2019-07 → — Figure 87H763B 87H763B 2019-02 → — Figure 87H764C 87H764C 2019-02 → — Figure 87H765B 87H765B 2019-02 → — Figure 87H766C 87H766C 2019-02 → — Figure 87H767A 87H767A 2019-07 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87251D Joint, Water, NO.1
