Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

60 part groups · 20 illustrations

Illustrations

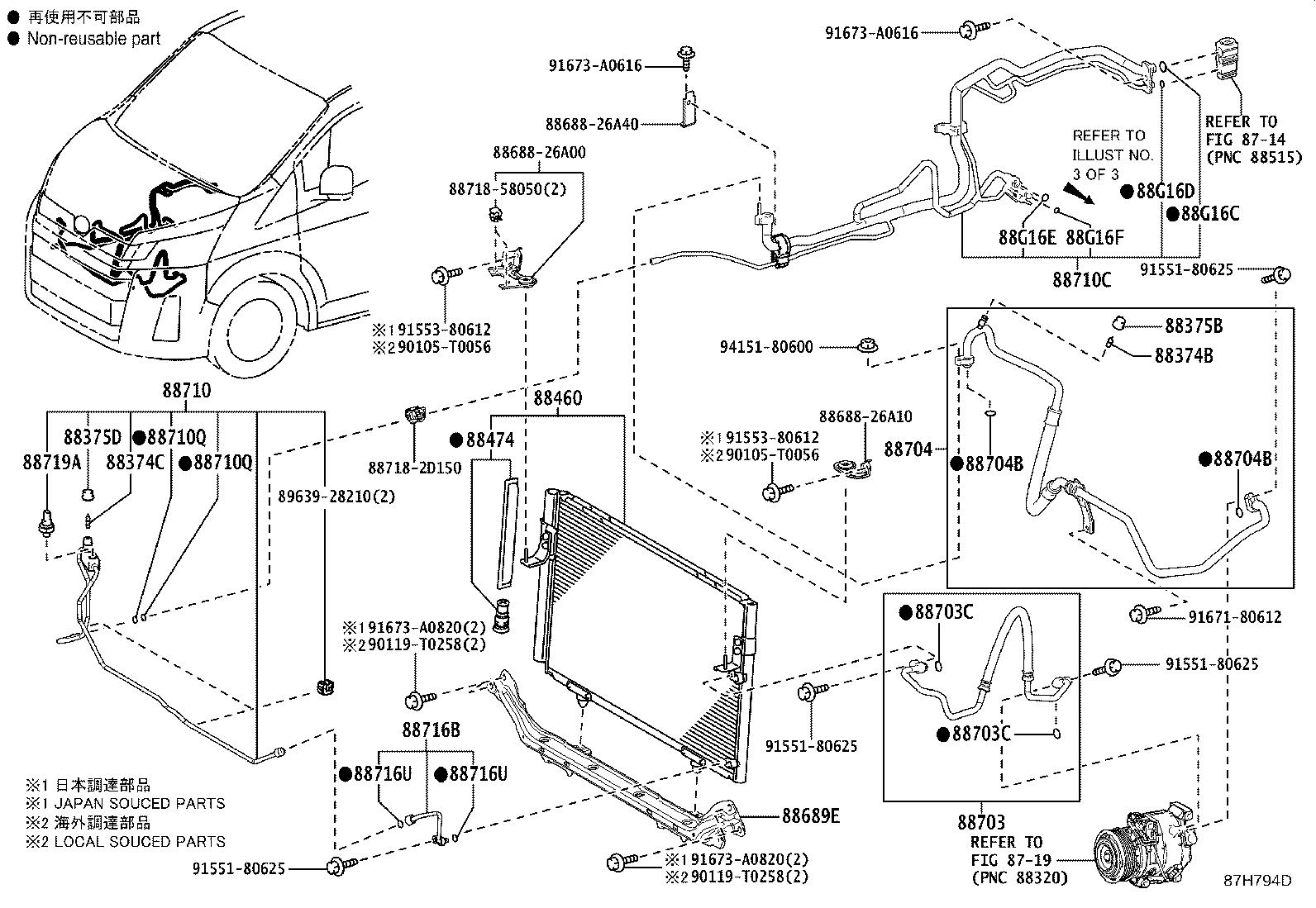

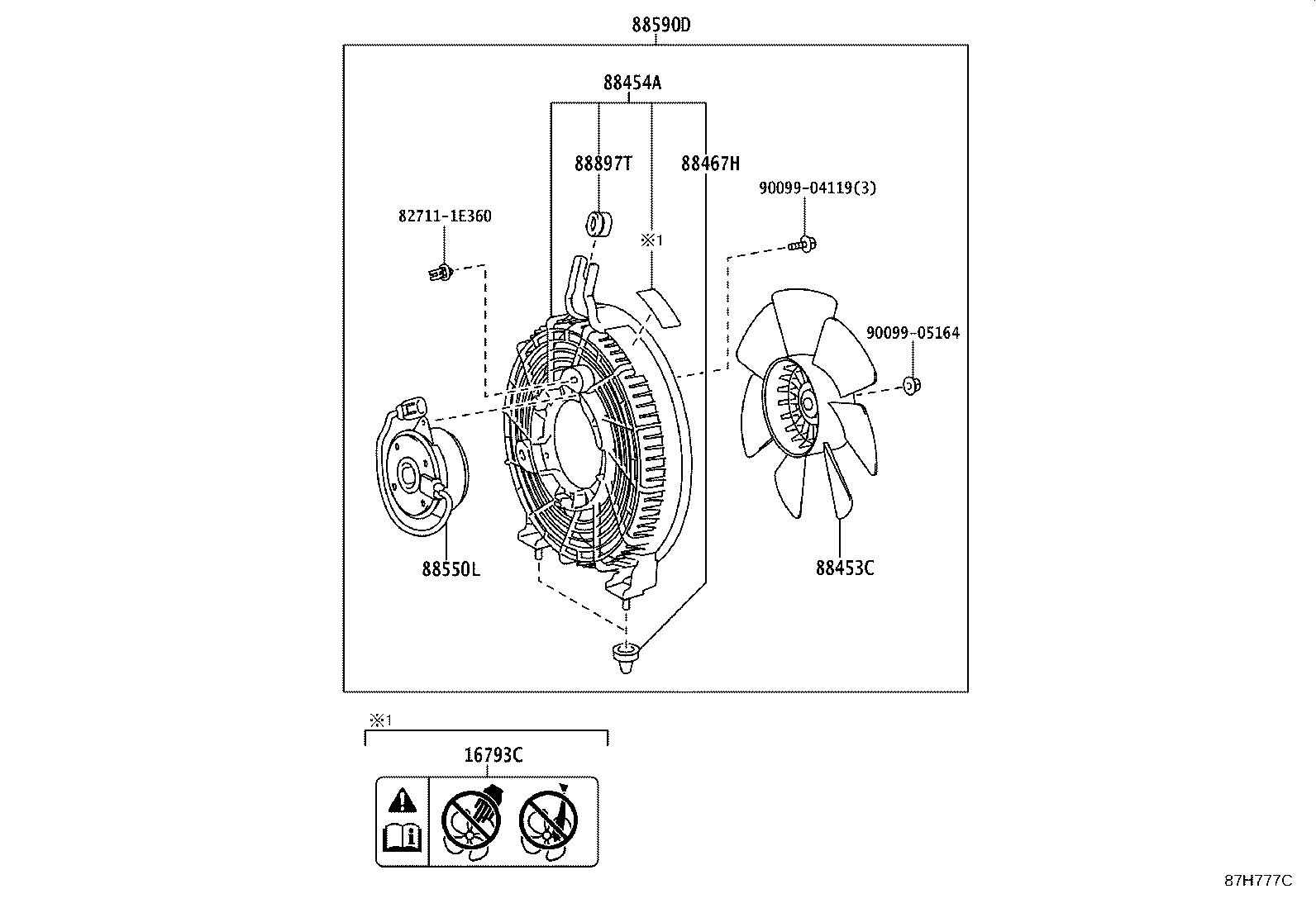

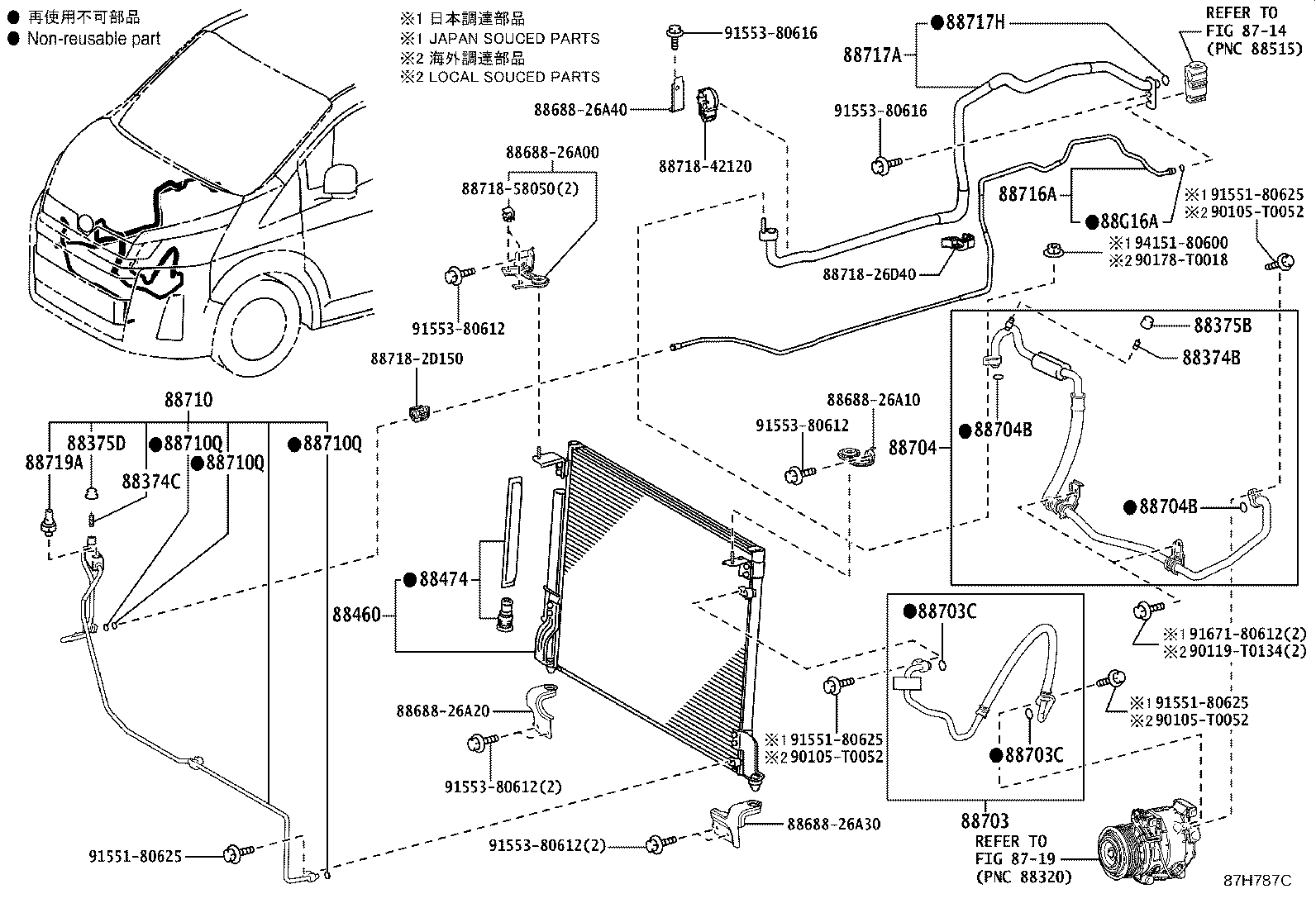

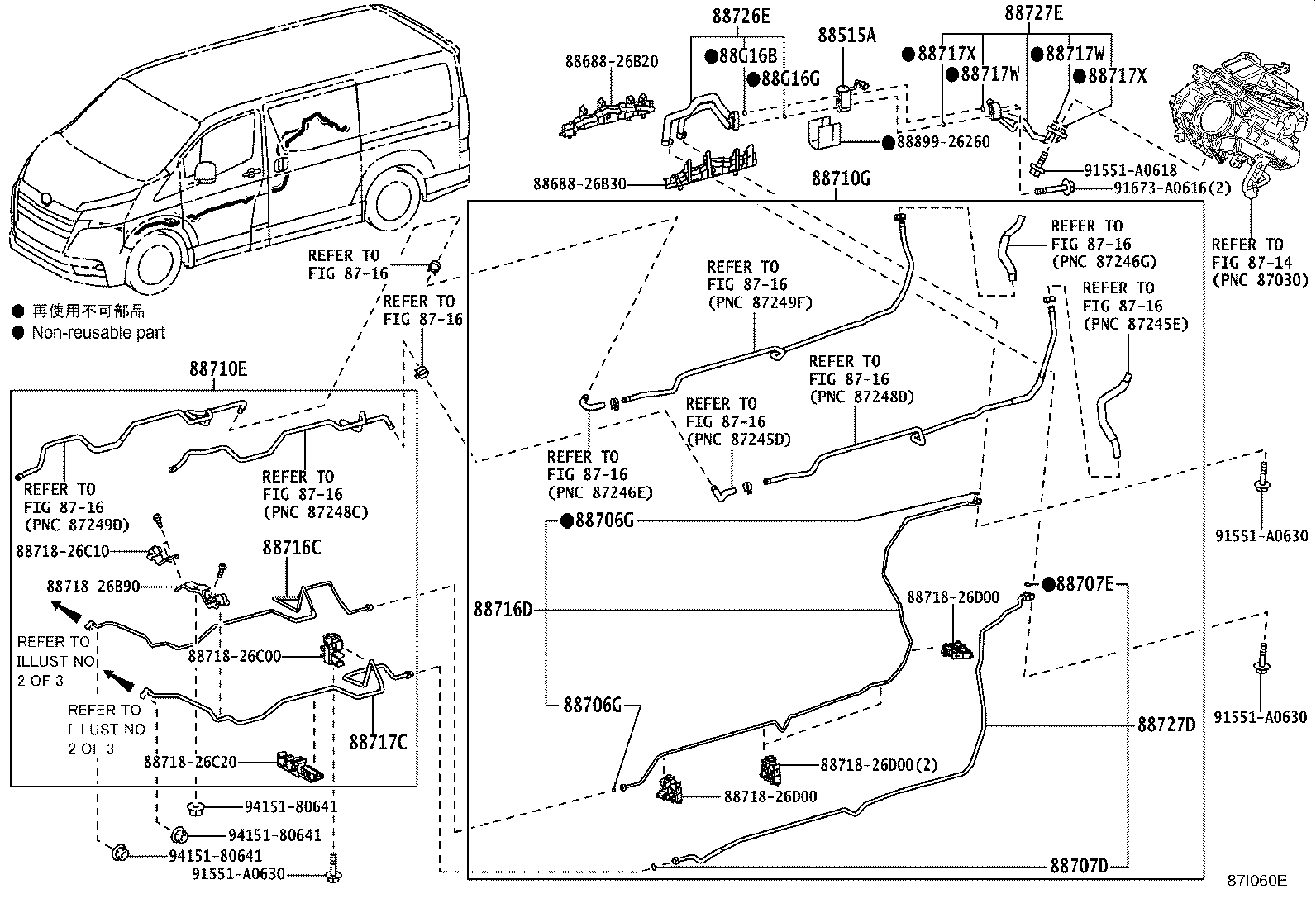

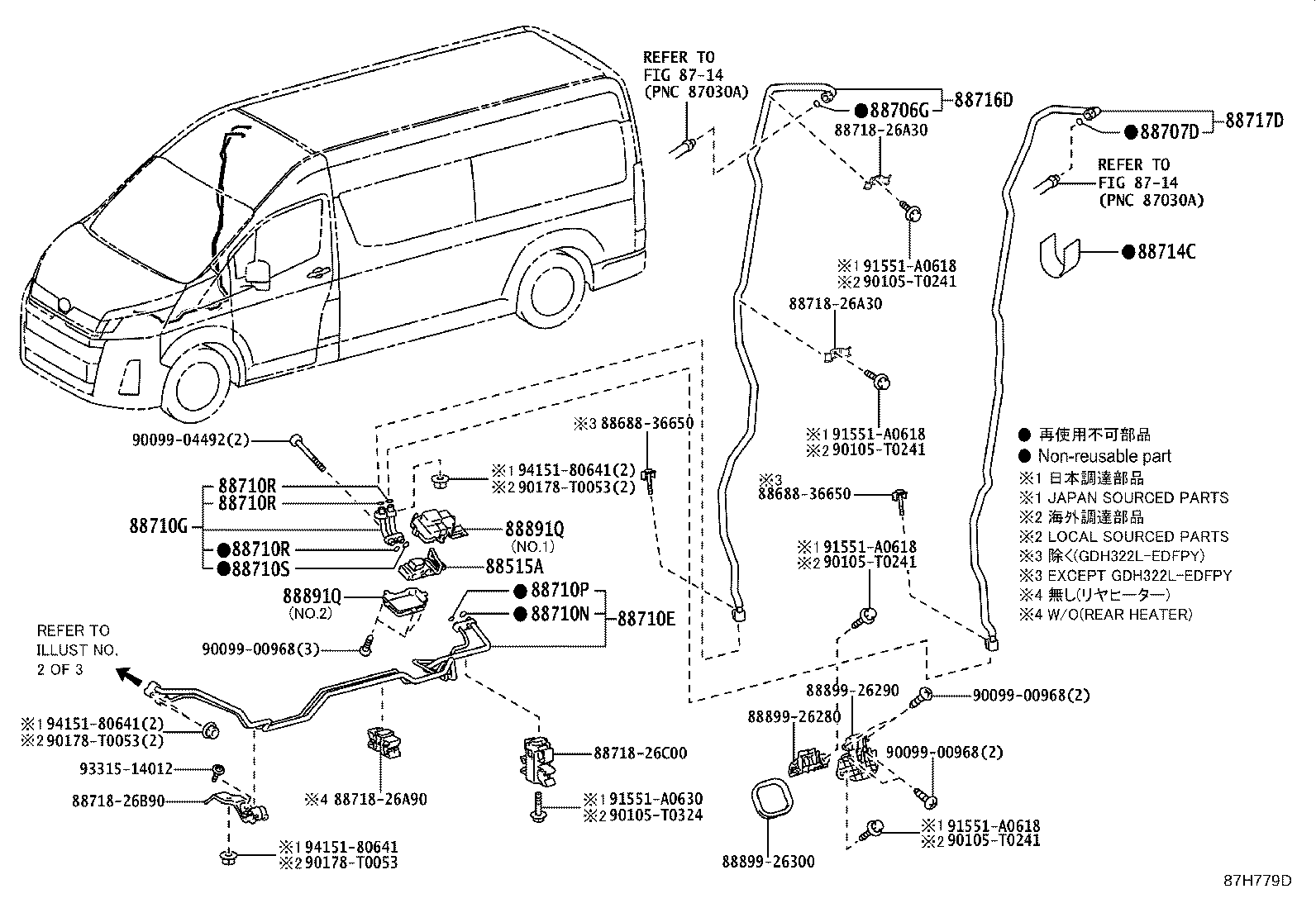

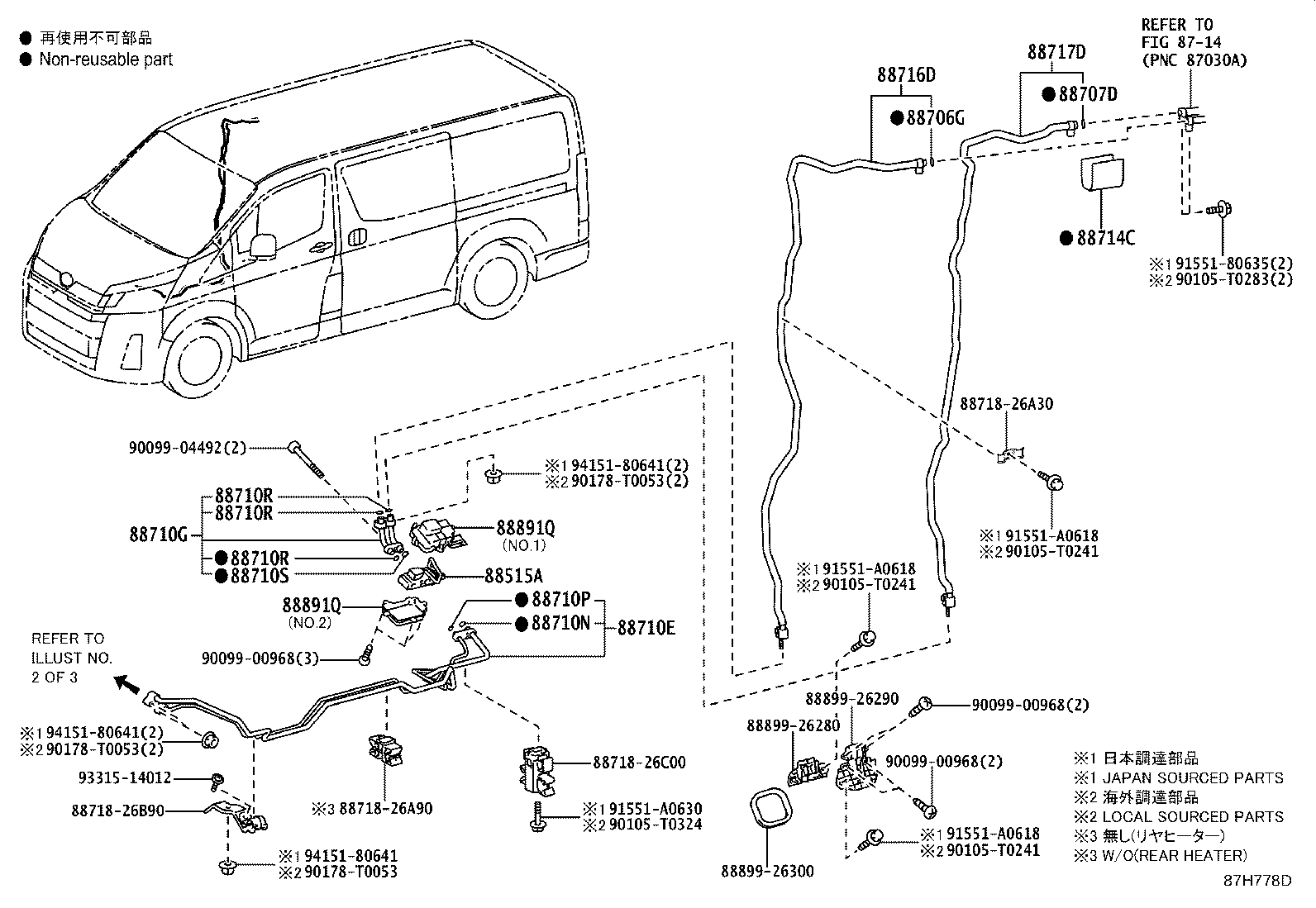

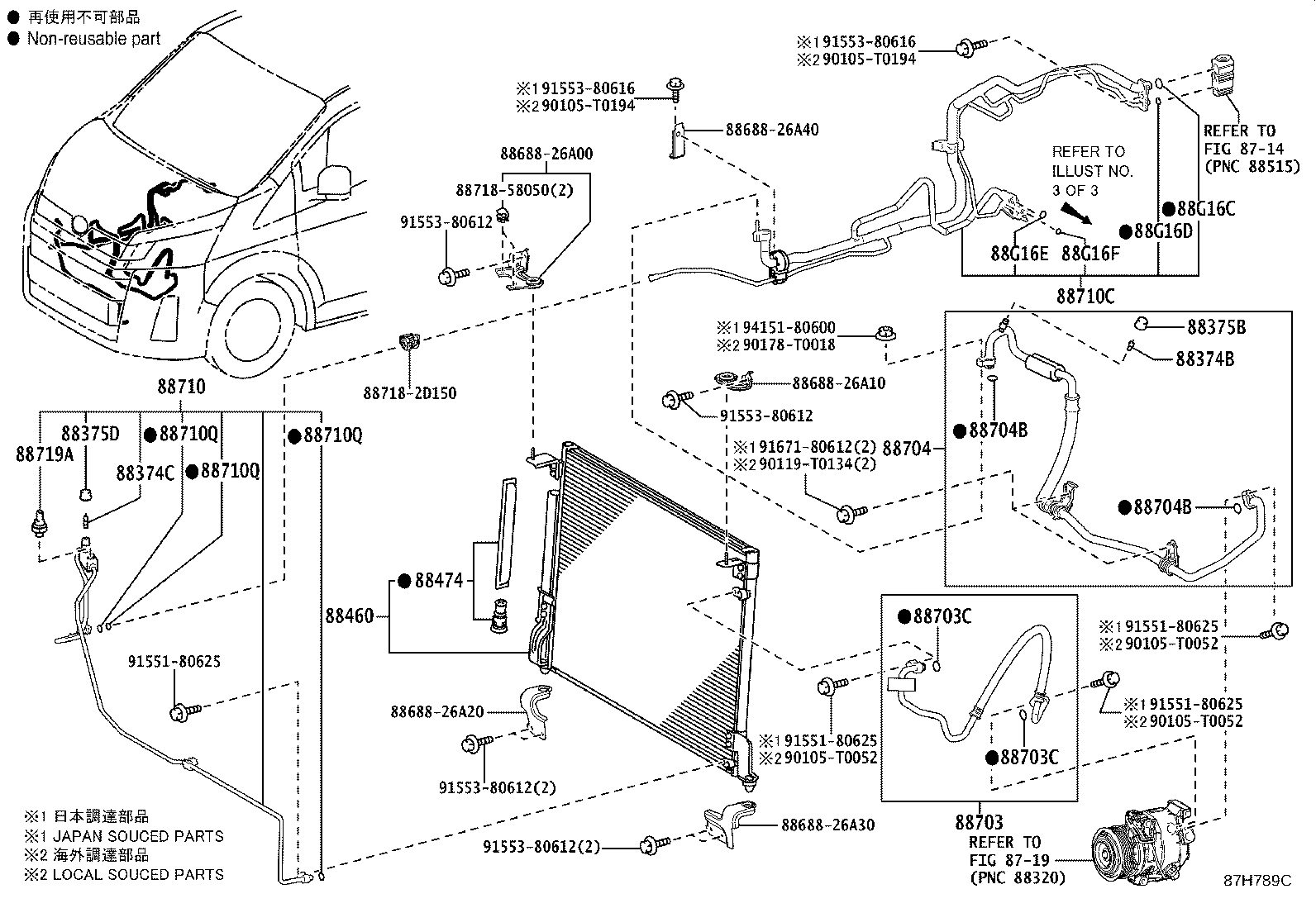

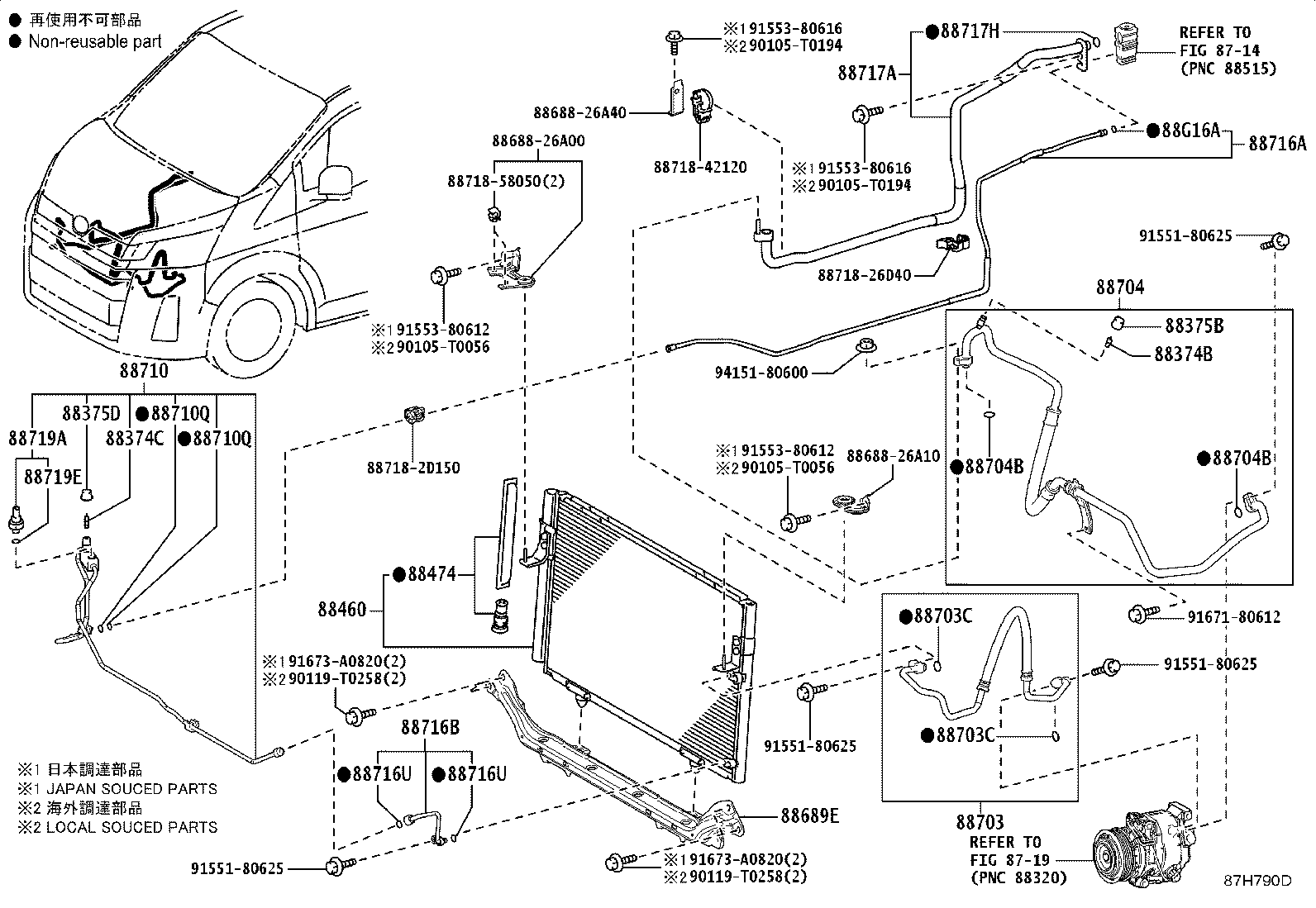

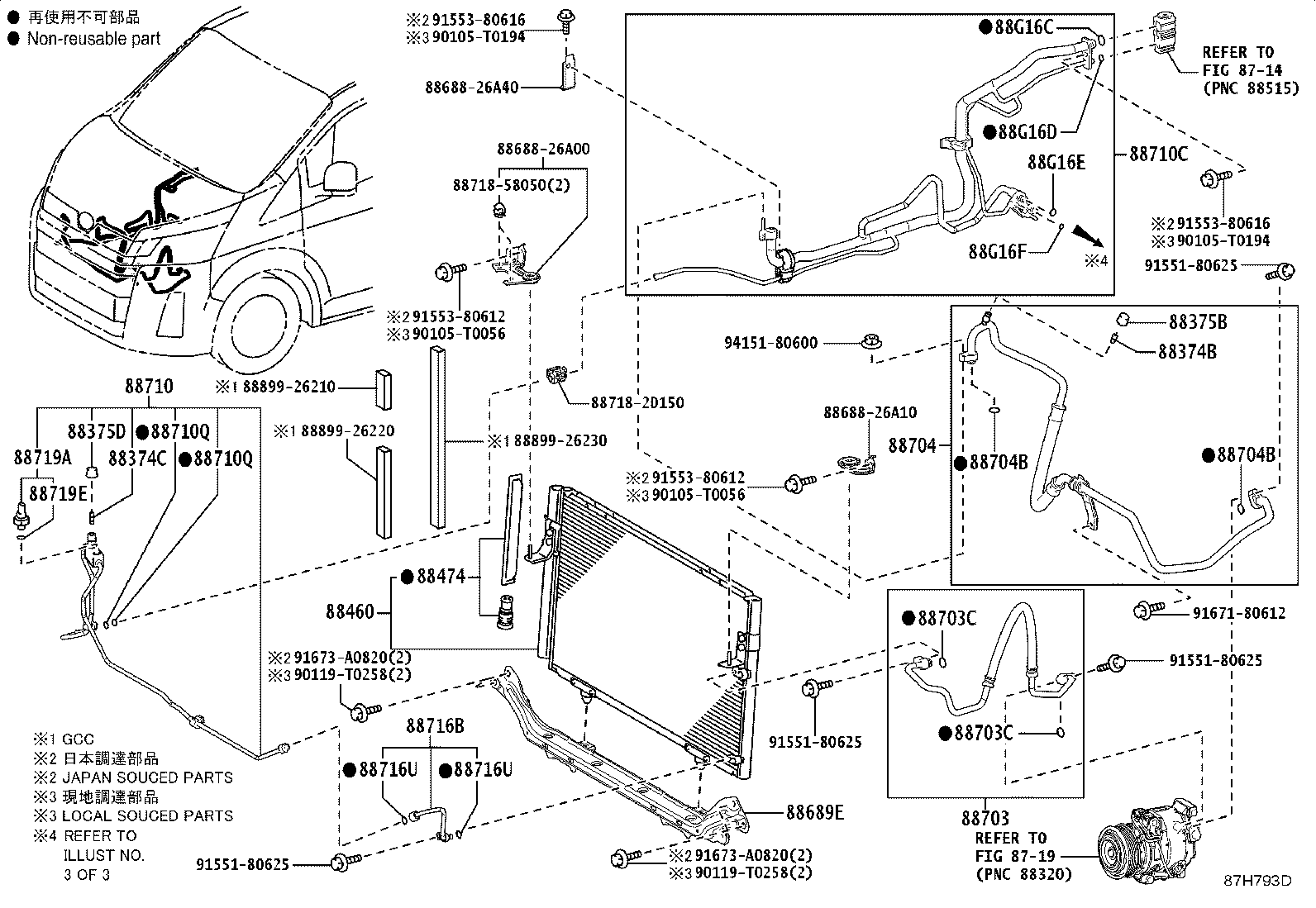

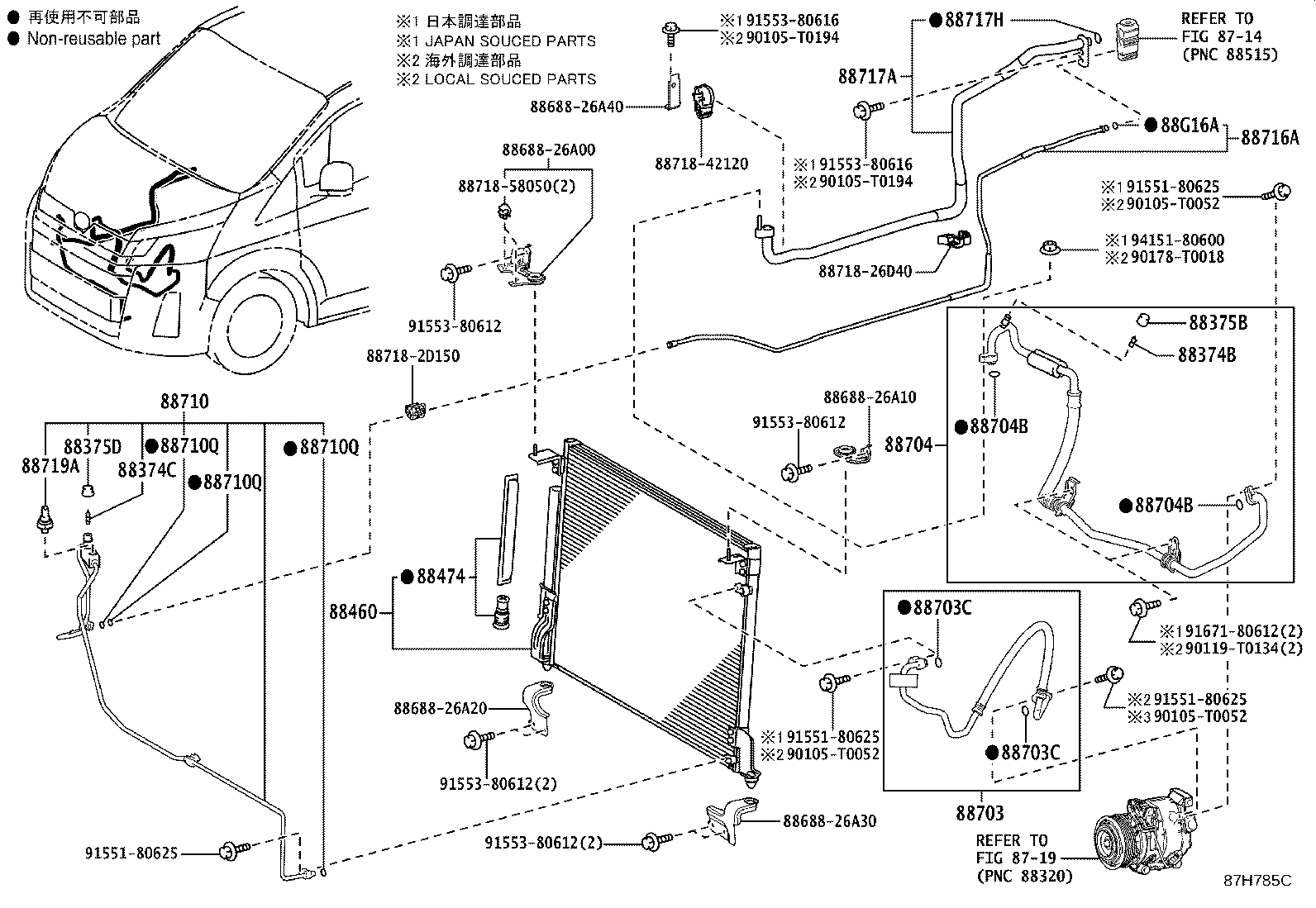

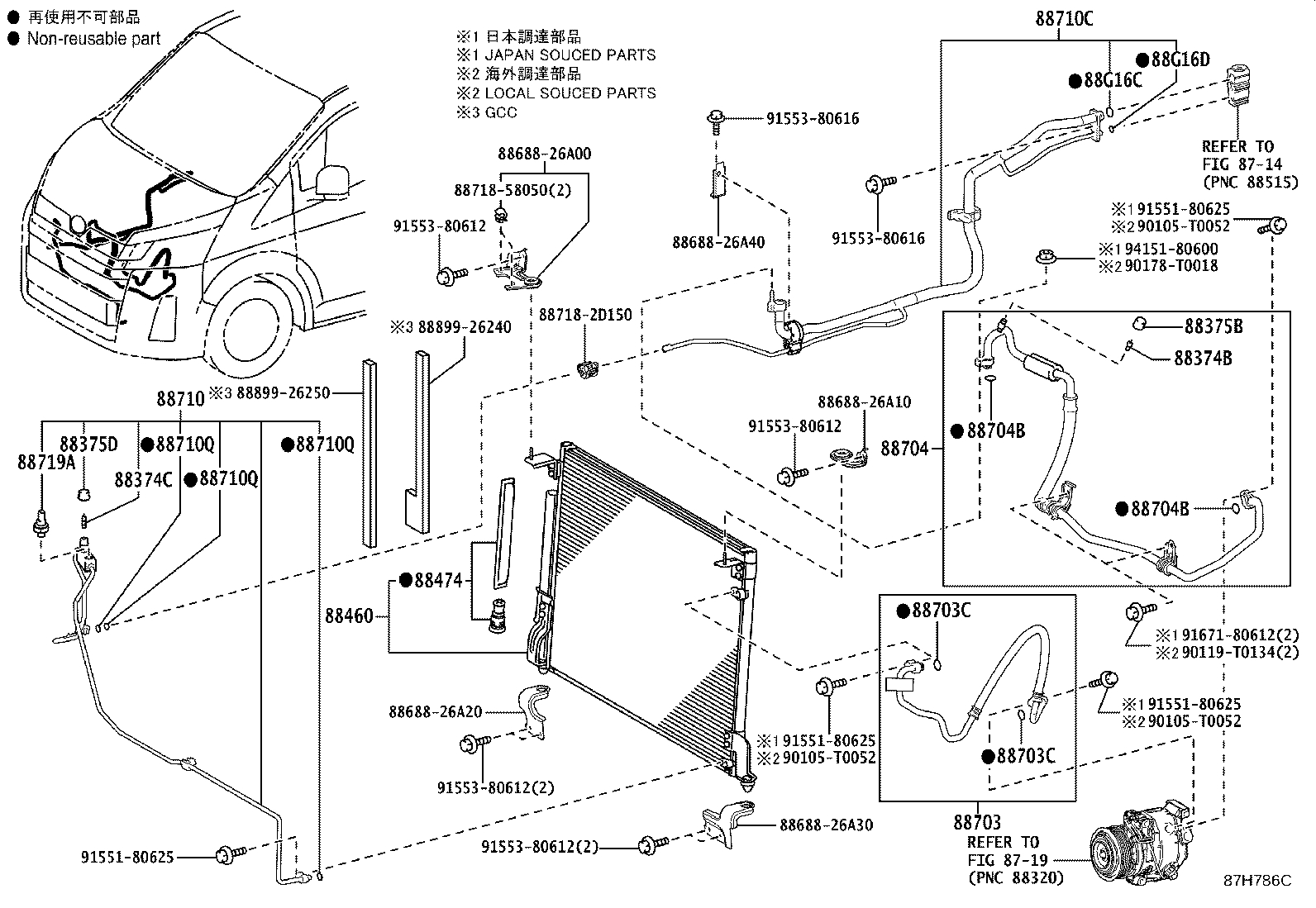

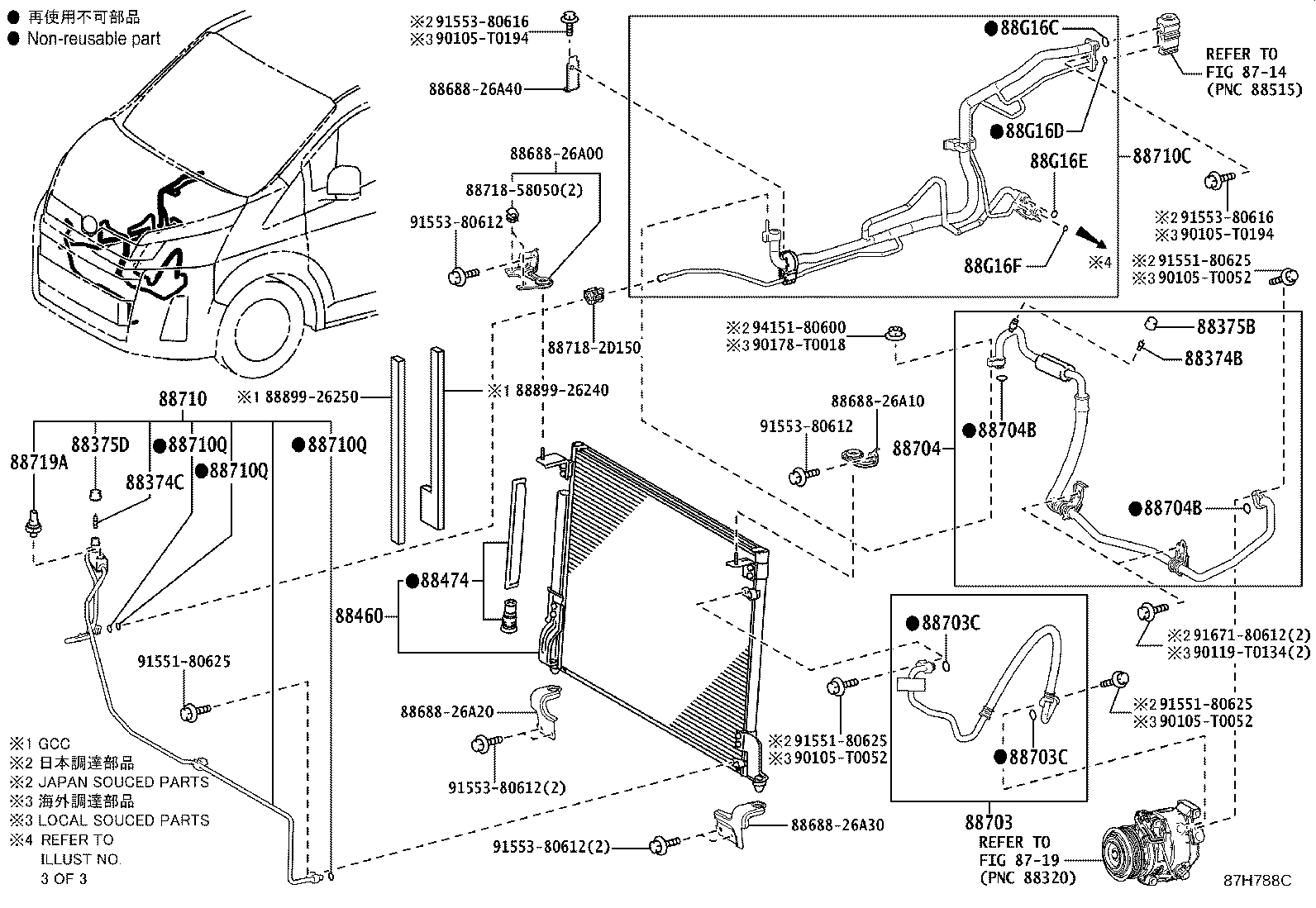

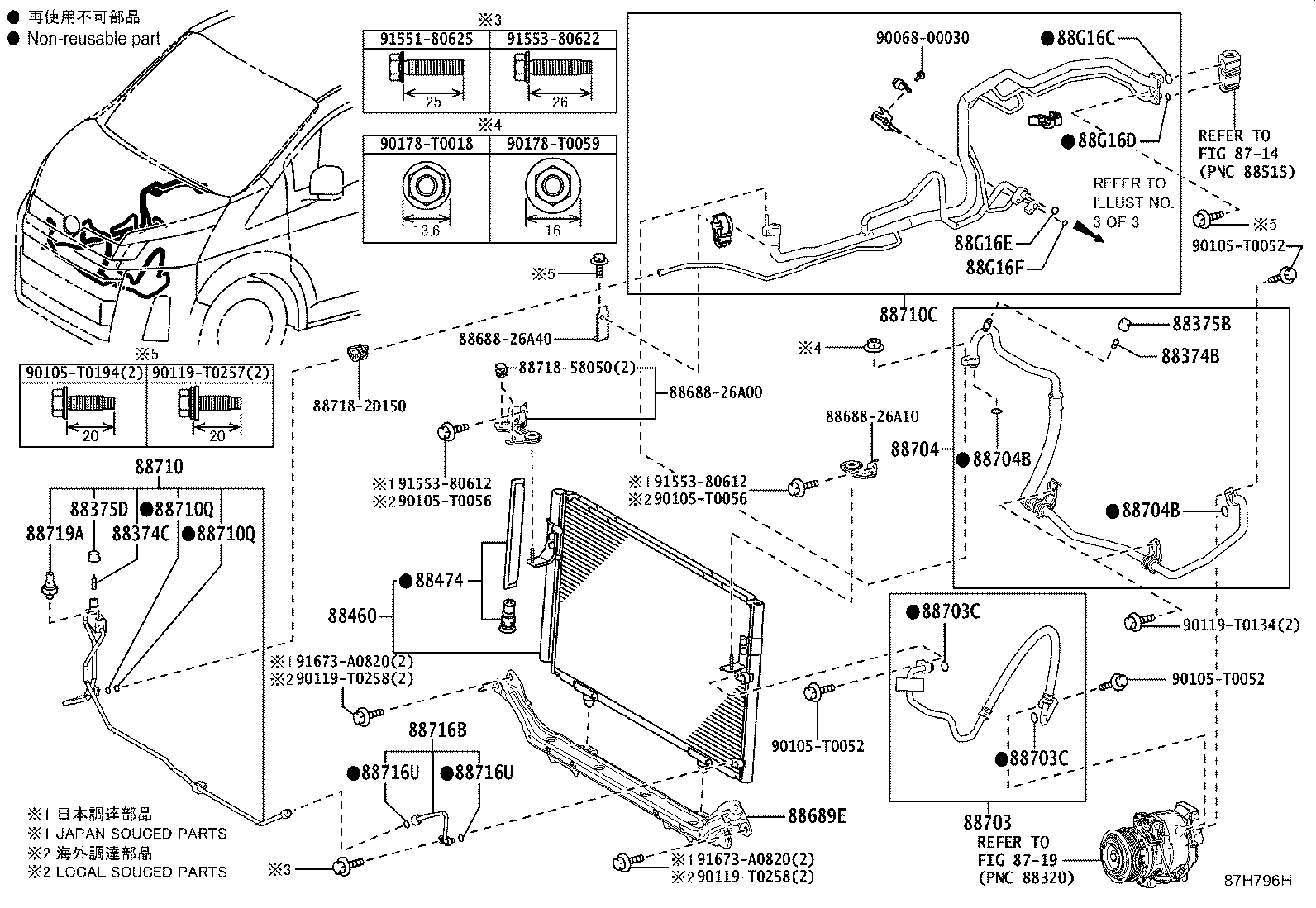

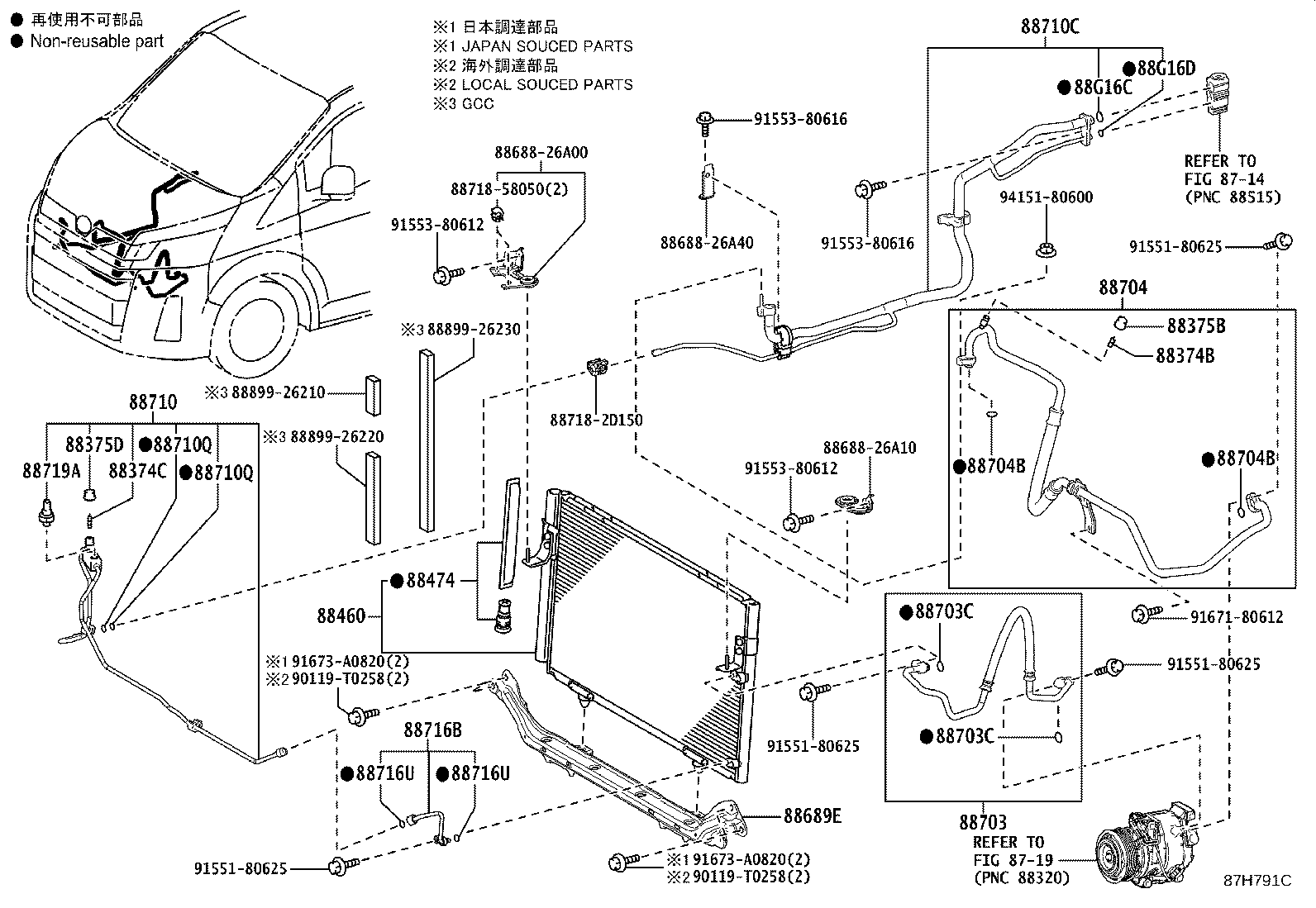

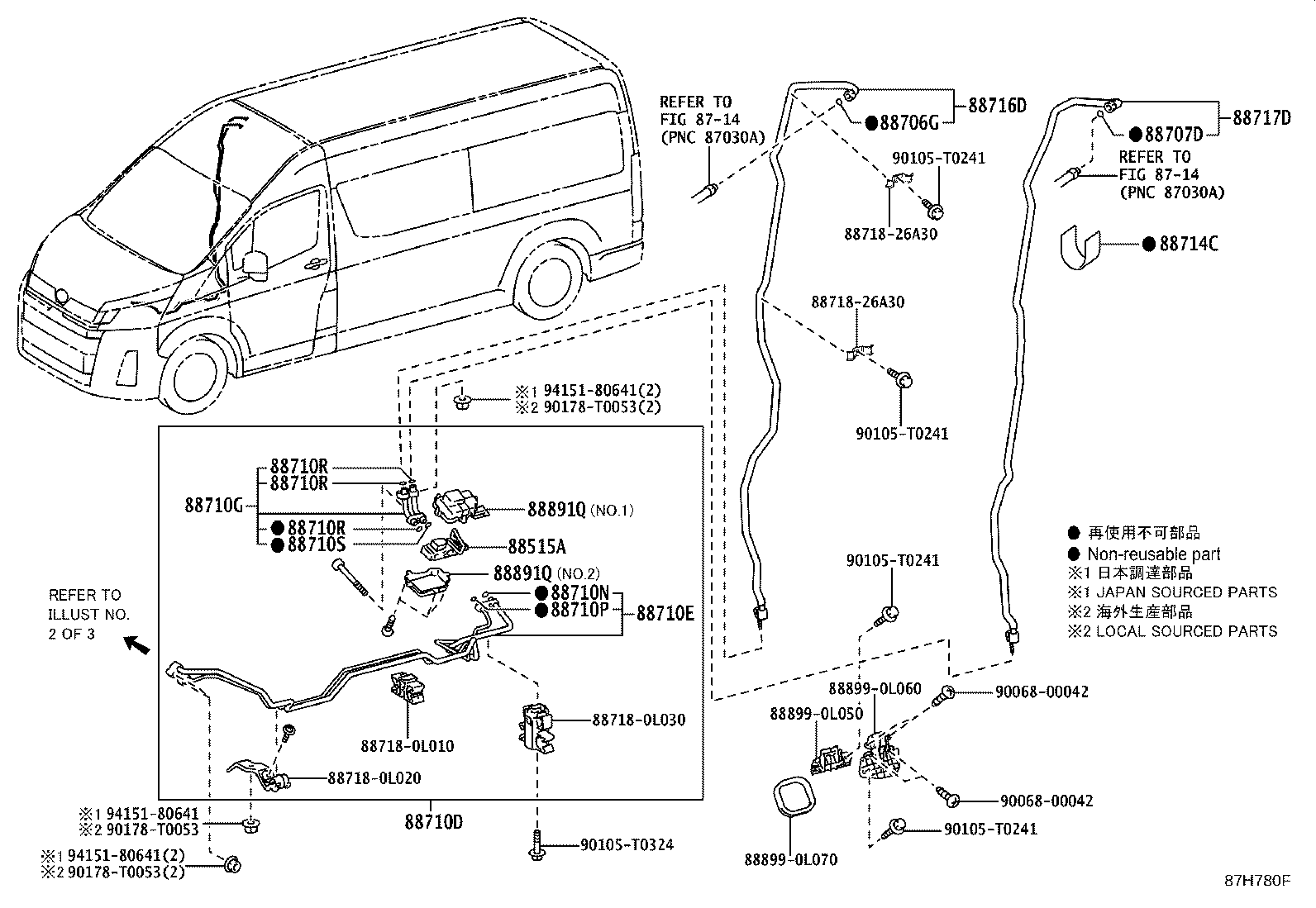

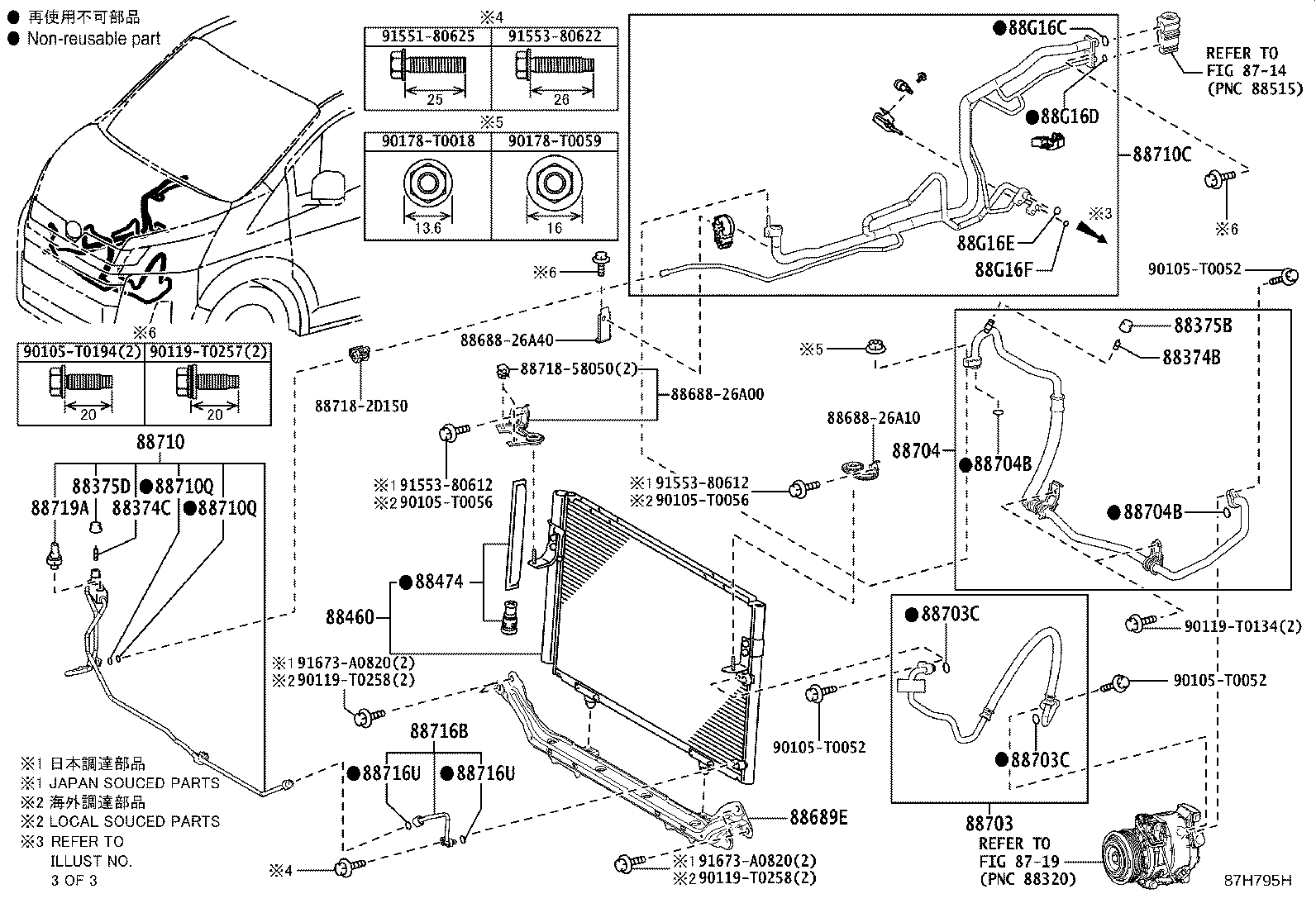

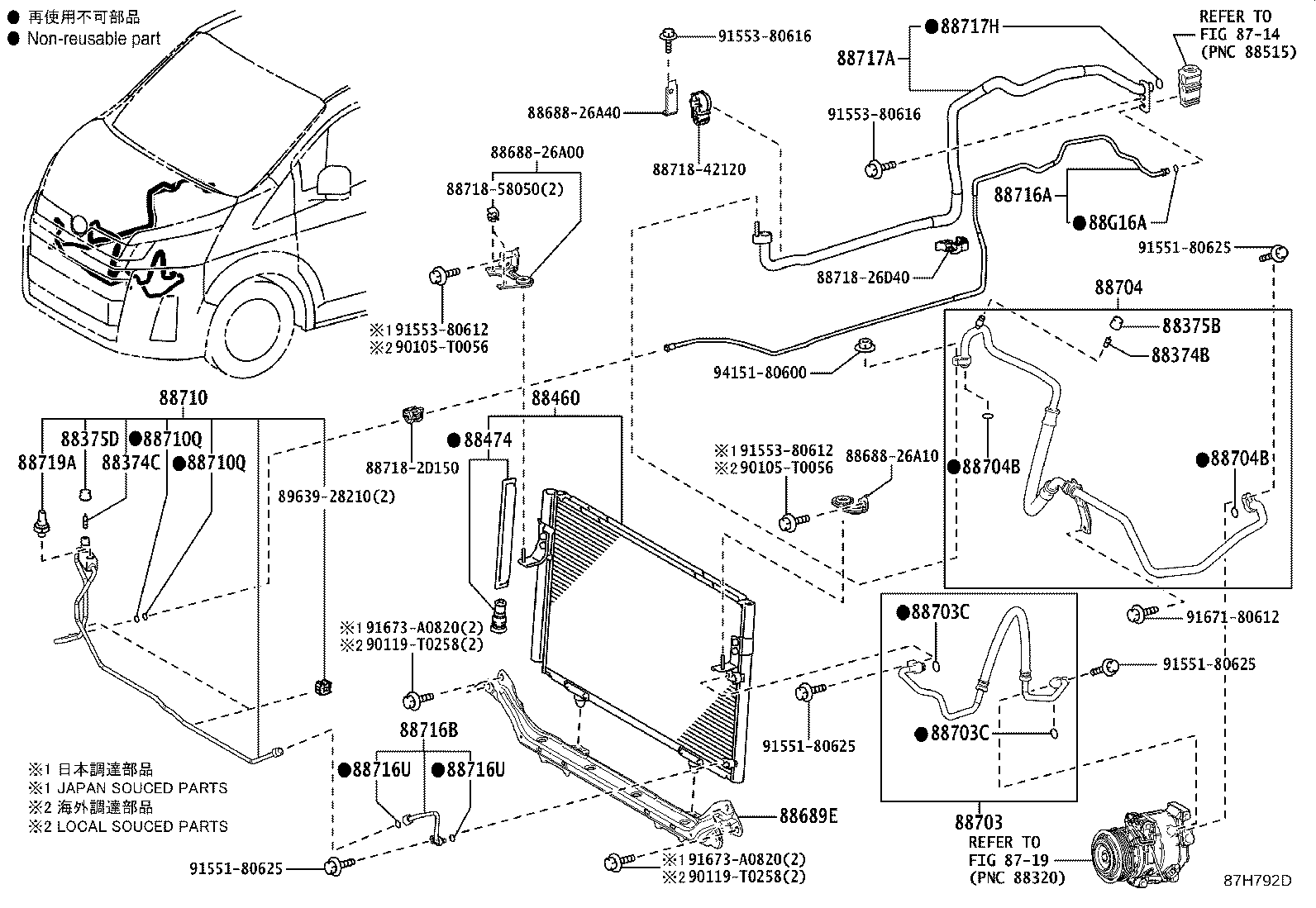

Figure 87H776C 87H776C 2019-02 → — Figure 87H777C 87H777C 2019-07 → — Figure 87H777C 87H777C 2019-07 → — Figure 87H785C 87H785C 2019-02 → — Figure 87H786C 87H786C 2019-02 → — Figure 87H787C 87H787C 2019-02 → — Figure 87H788C 87H788C 2019-02 → — Figure 87H789C 87H789C 2019-02 → — Figure 87H790D 87H790D 2019-02 → — Figure 87H790D 87H790D 2019-02 → — Figure 87H791C 87H791C 2019-02 → — Figure 87H792D 87H792D 2019-02 → — Figure 87H793D 87H793D 2019-02 → — Figure 87H794D 87H794D 2019-02 → — Figure 87H795H 87H795H 2019-06 → — Figure 87H796H 87H796H 2019-06 → — Figure 87H778D 87H778D 2019-02 → — Figure 87H779D 87H779D 2019-03 → — Figure 87H780F 87H780F 2019-06 → — Figure 87I060E 87I060E 2019-07 → —

Part groups

PNCDescription
16793C Label, Cooling Fan Caution
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453C Fan, Cooling, NO.1
88453D Fan, Cooling, NO.2
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467H Cushion, Condenser Bracket, NO.1
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88550L Motor Assy, Cooling Fan, NO.1
88550M Motor Assy, Cooling Fan, NO.2
88590D Blower Assy, W/Shroud, NO.1
88590E Blower Assy, W/Shroud, NO.2
88689E Bracket, Cooler, NO.1
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706G Ring, O(FOR LIQUID TUBE)
88707D Ring, O(FOR SUCTION TUBE)
88707E Ring, O, NO.2(FOR SUCTION TUBE)
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710Q Ring, O(FOR TUBE ASSY, AIR CONDITIONER)
88710R Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710S Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88714C Insulator, Cooler Refrigerant Hose, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717A Pipe, Cooler Refrigerant Suction, A
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717W Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2
88717X Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3
88719A Sensor, Air Conditioner Pressure
88719E Ring, O, NO.2 (FOR AIR CONDITIONER PRESSURE SENSOR)
88726E Pipe, Cooler Refrigerant Liquid, E
88727D Pipe, Cooler Refrigerant Suction, D
88727E Pipe, Cooler Refrigerant Suction, E
88891Q Cover, Cooler, NO.2
88897T Grommet, Cooler
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16C Ring, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER)
88G16D Ring, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER)
88G16E Ring, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER)
88G16F Ring, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER)
88G16G Ring, O, NO.3(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
