Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

53 part groups · 9 illustrations

Illustrations

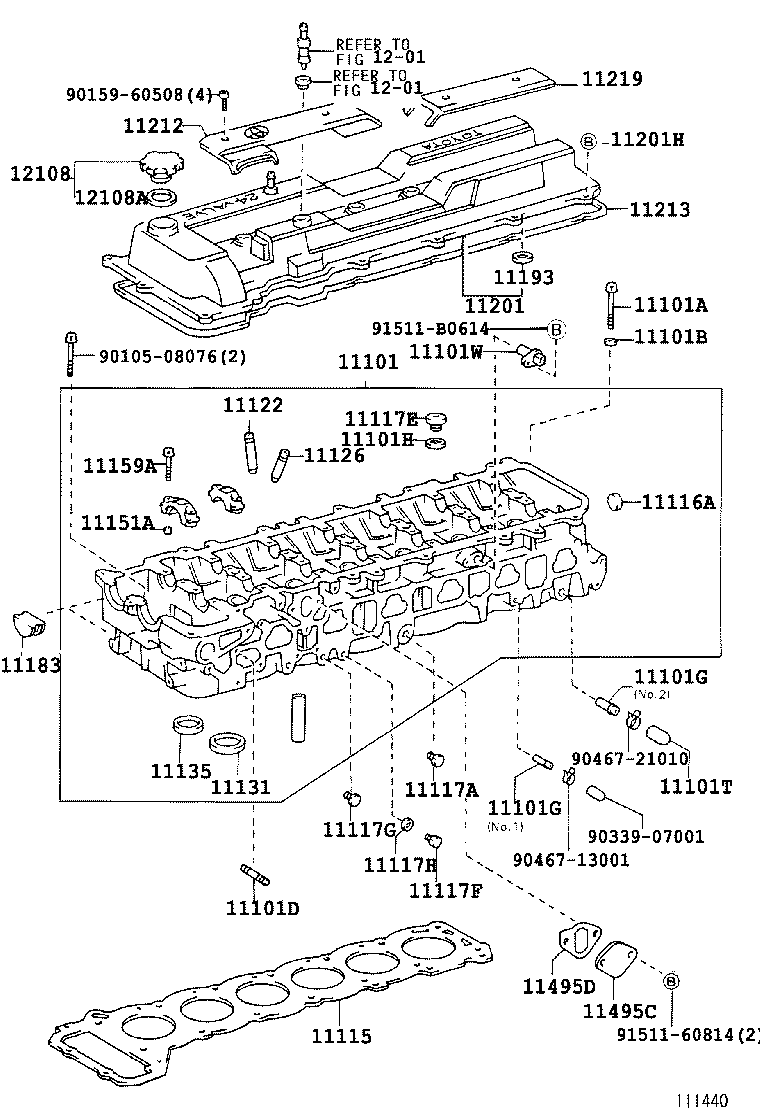

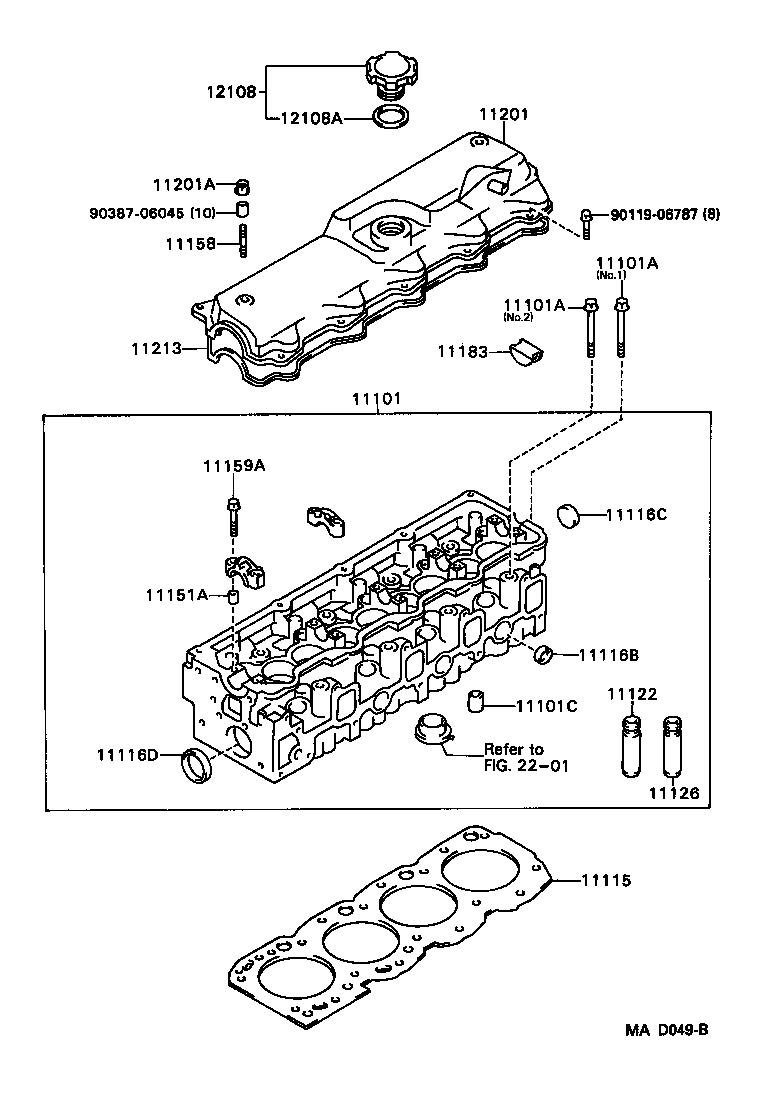

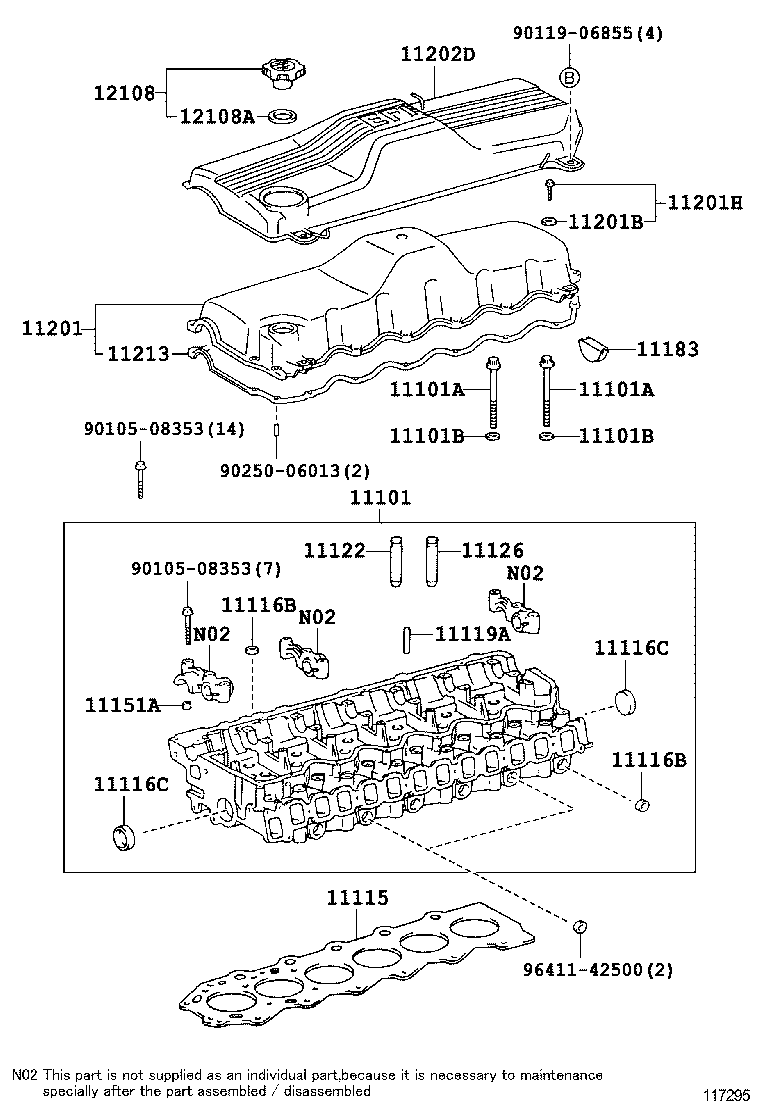

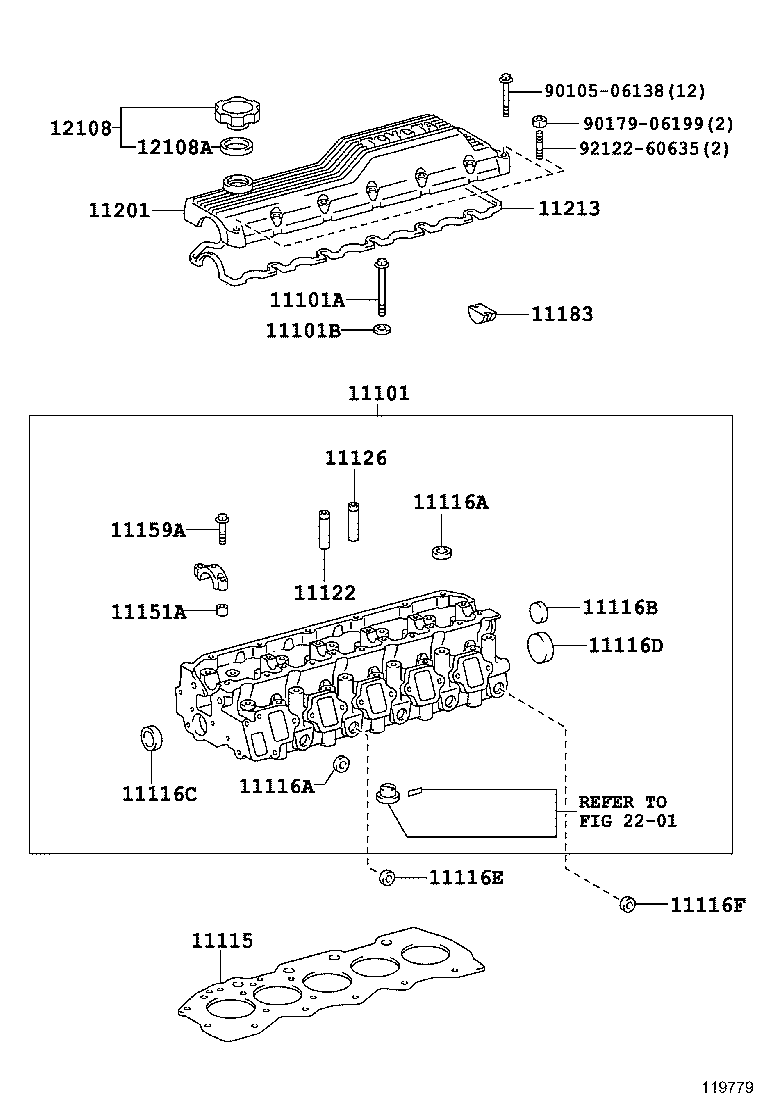

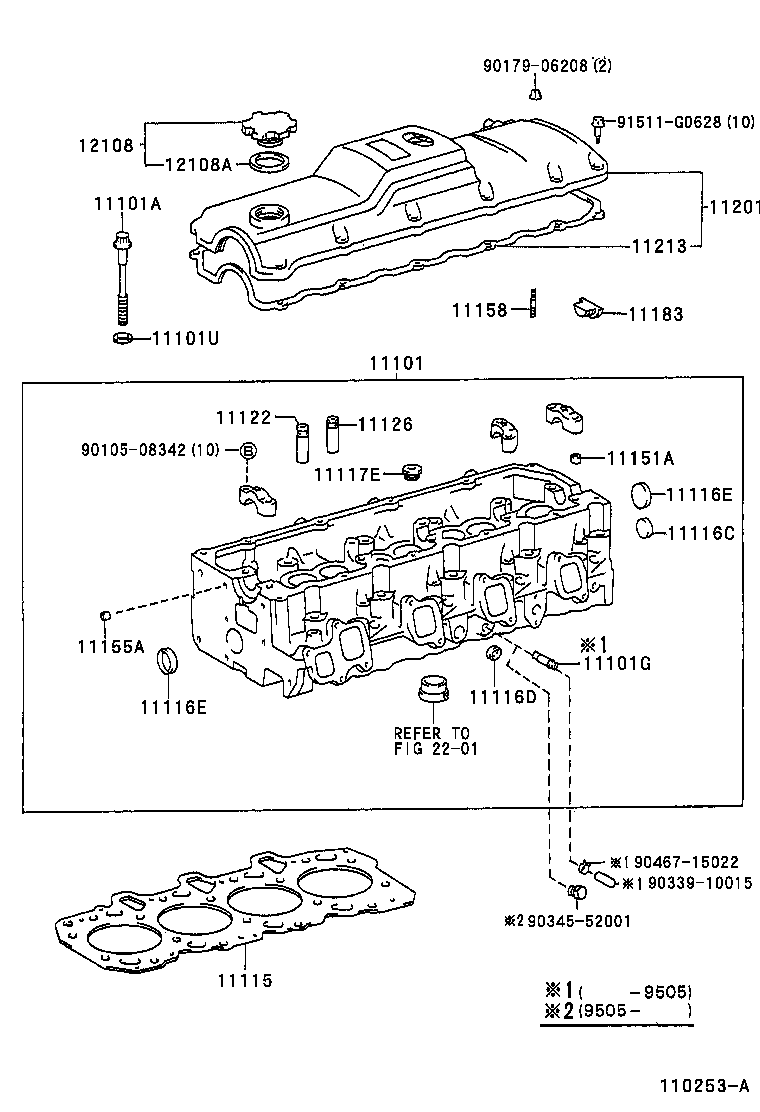

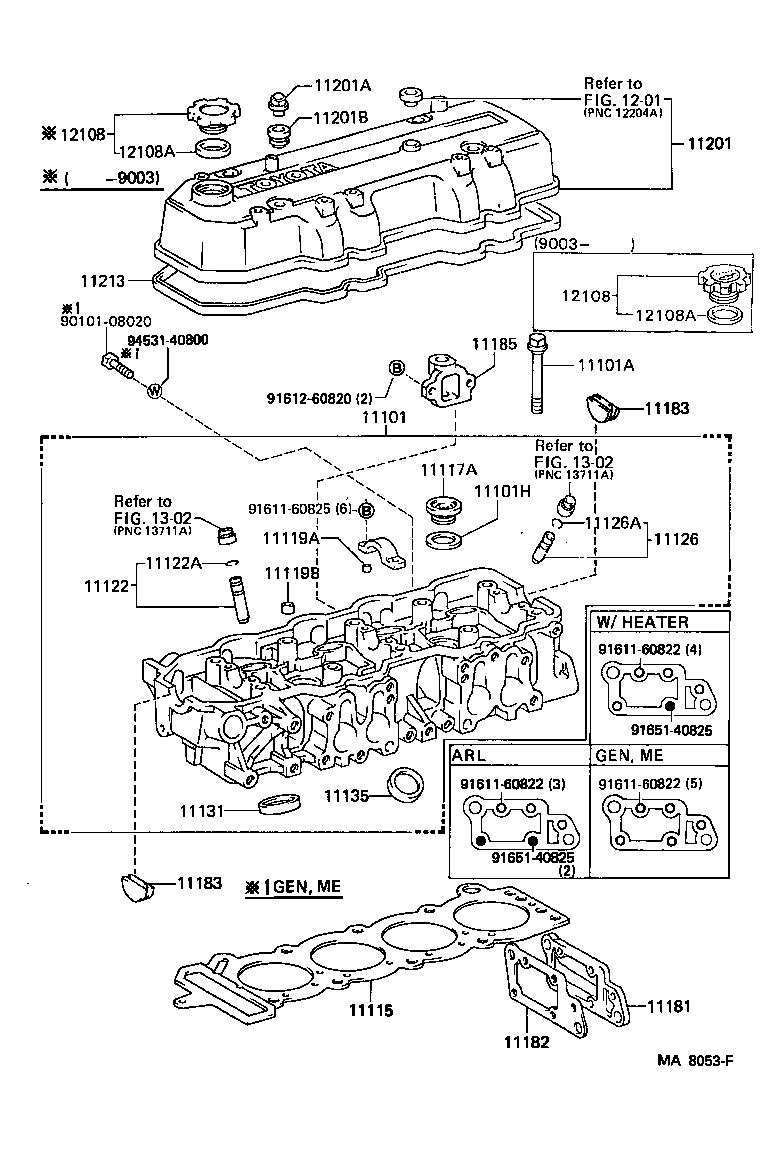

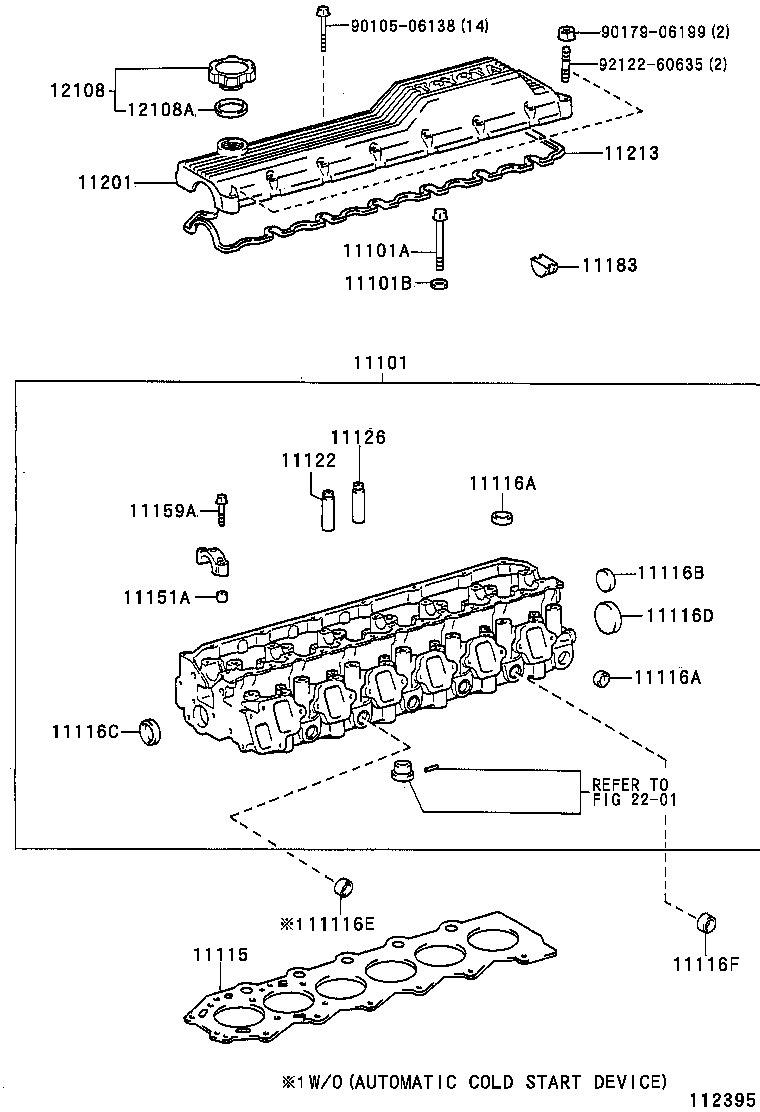

Figure MA7980B MA7980B 1990-01 → 1992-08 Figure 111440C 111440C 1992-01 → — Figure 112395 112395 1990-01 → — Figure 117295 117295 2001-08 → — Figure 110253A 110253A 1993-05 → 1996-04 Figure MAD049B MAD049B 1990-01 → 1993-05 Figure MAD049B MAD049B 1990-04 → 1996-04 Figure 119779 119779 1990-01 → 1995-01 Figure MA8053F MA8053F 1990-01 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101D Bolt, Stud(FOR WATER OUTLET)
11101G Union(FOR CYLINDER HEAD)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11101T Plug, Heater Water
11101U Spacer(FOR CYLINDER HEAD SET BOLT)
11101W Sensor, Crank Position, NO.1
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11116E Plug, Tight, NO.5
11116F Plug, Tight, NO.6
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11119A Pin, Straight, NO.1
11119B Pin, Straight, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11185 Cover, Cylinder Head Side
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11202D Cover Sub-assy, Cylinder Head, NO.2
11212 Cover, Cylinder Head, NO.2
11213 Gasket, Cylinder Head Cover
11219 Cover, Cylinder Head, NO.3
11495C Plug, Plate(FOR CYLINDER HEAD)
11495D Gasket(FOR CYLINDER HEAD)
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
