Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

55 part groups · 11 illustrations

Illustrations

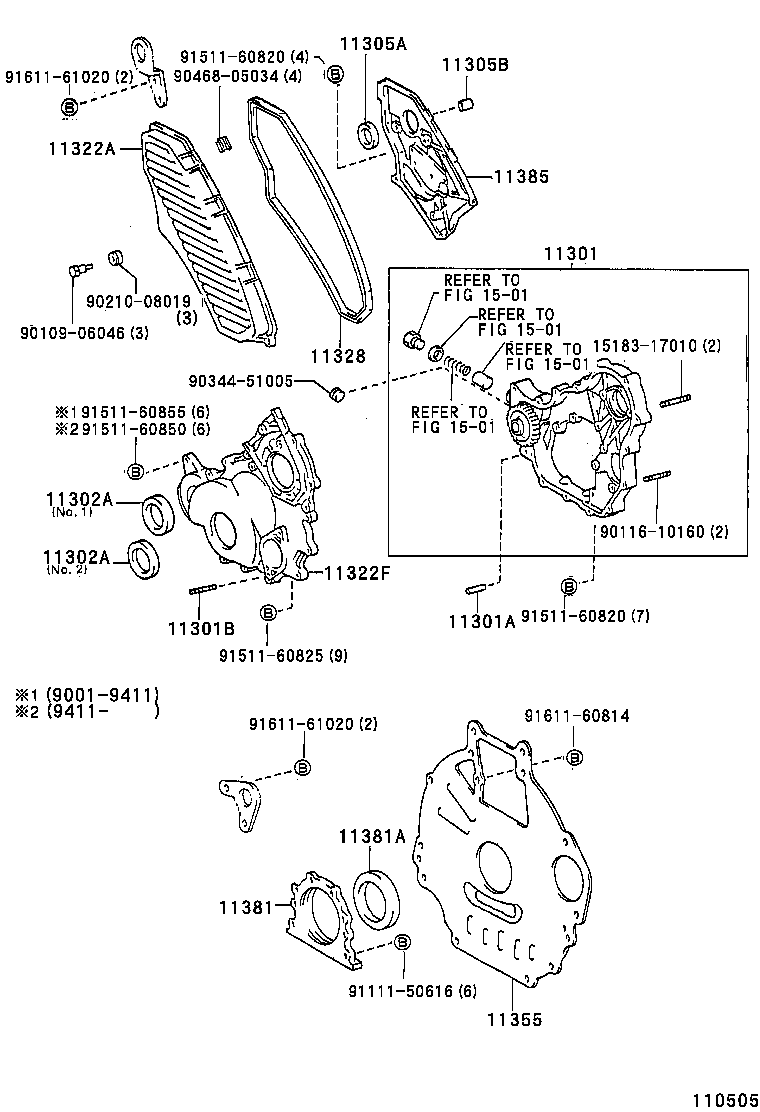

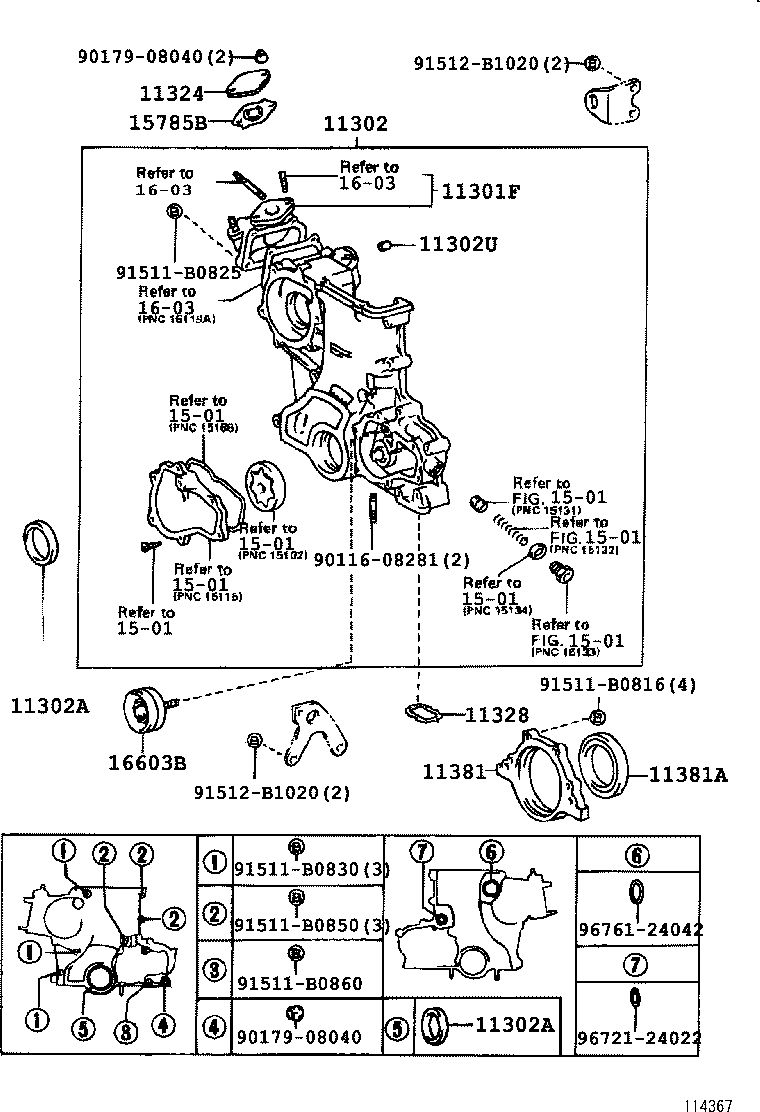

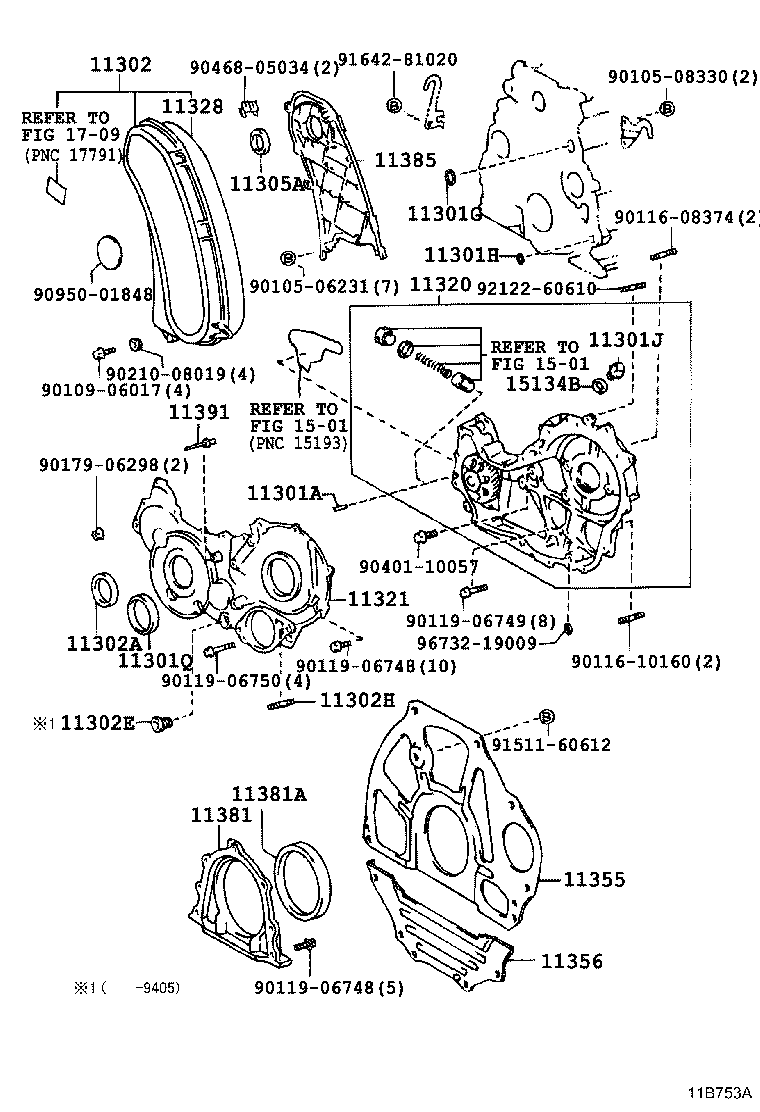

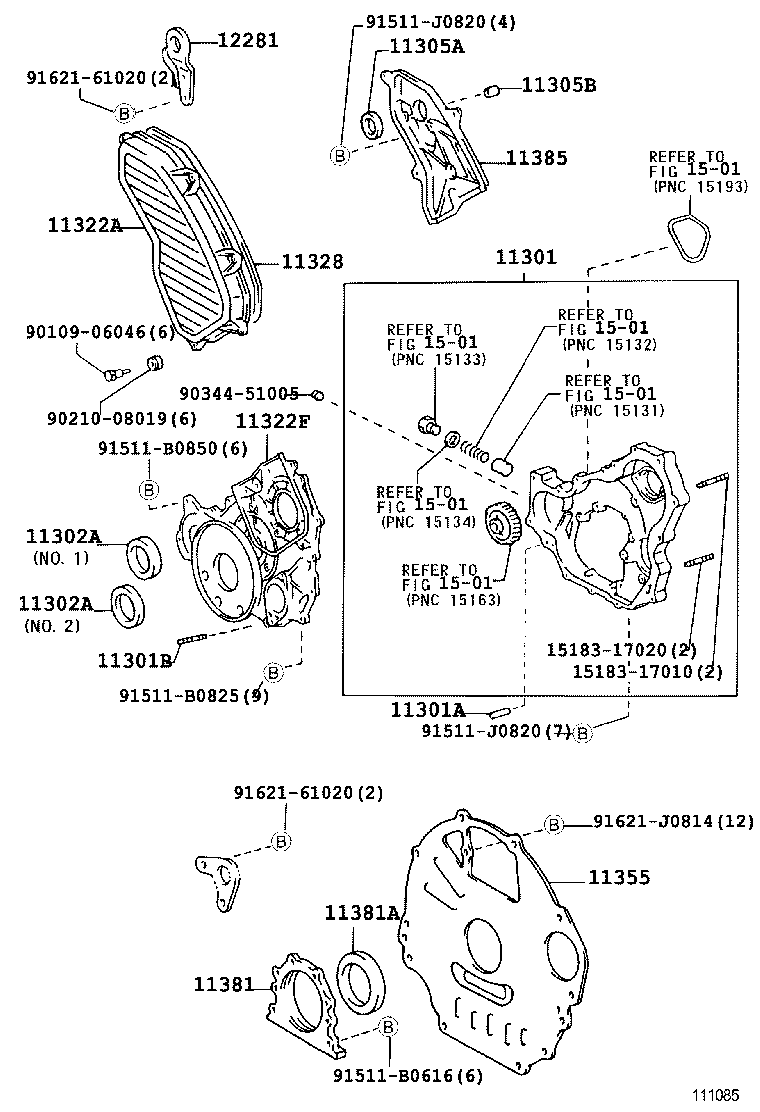

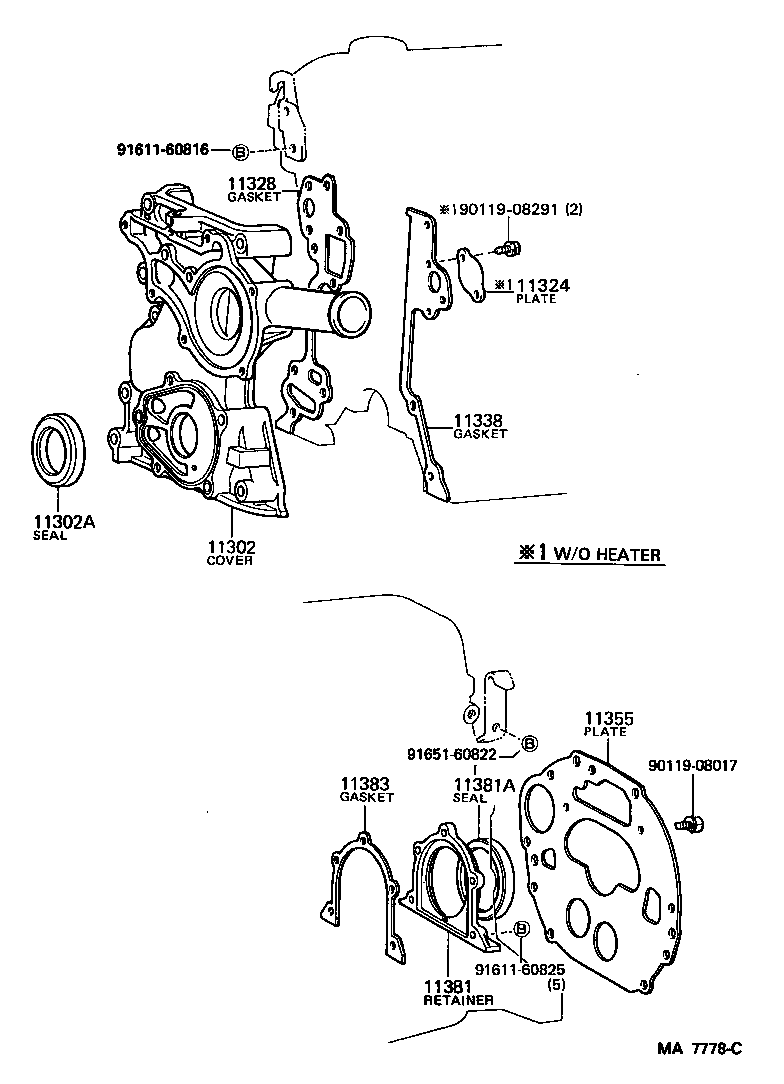

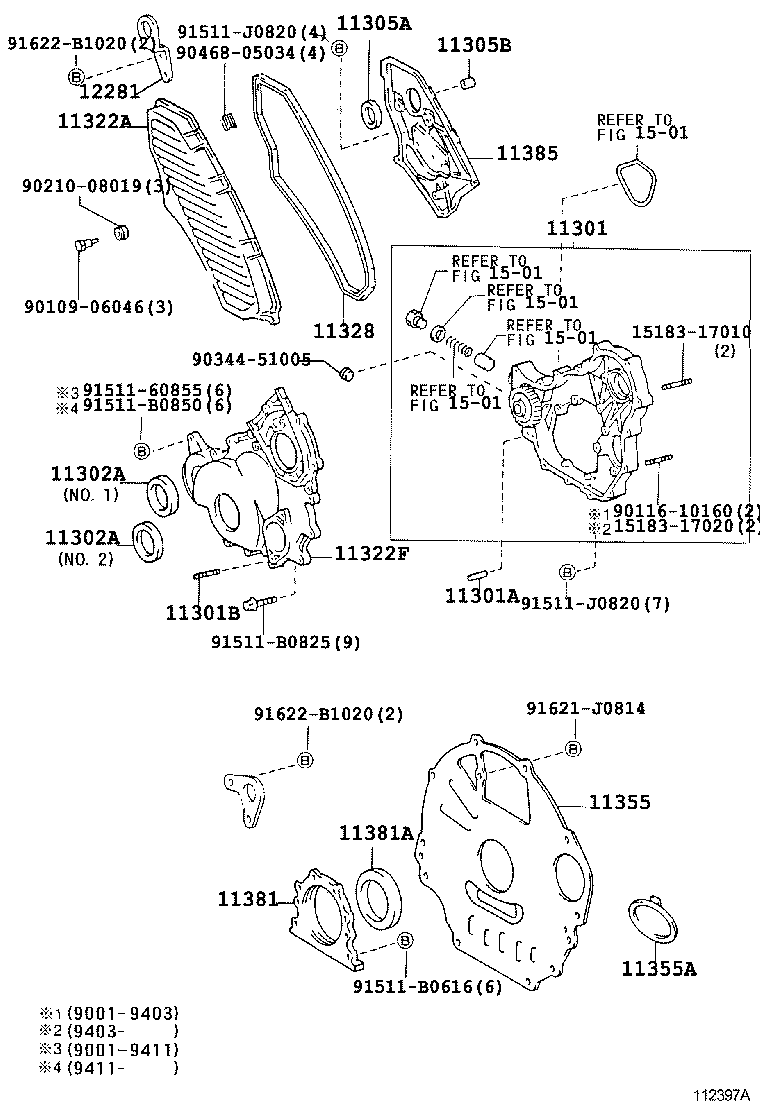

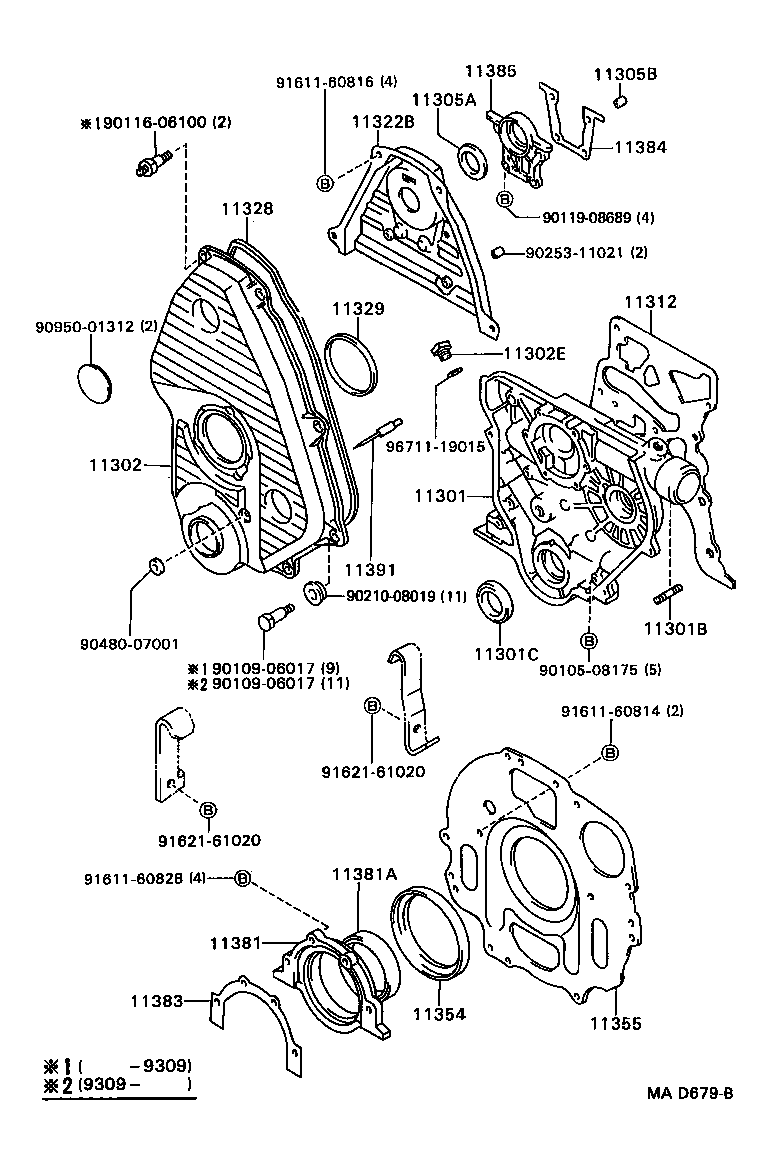

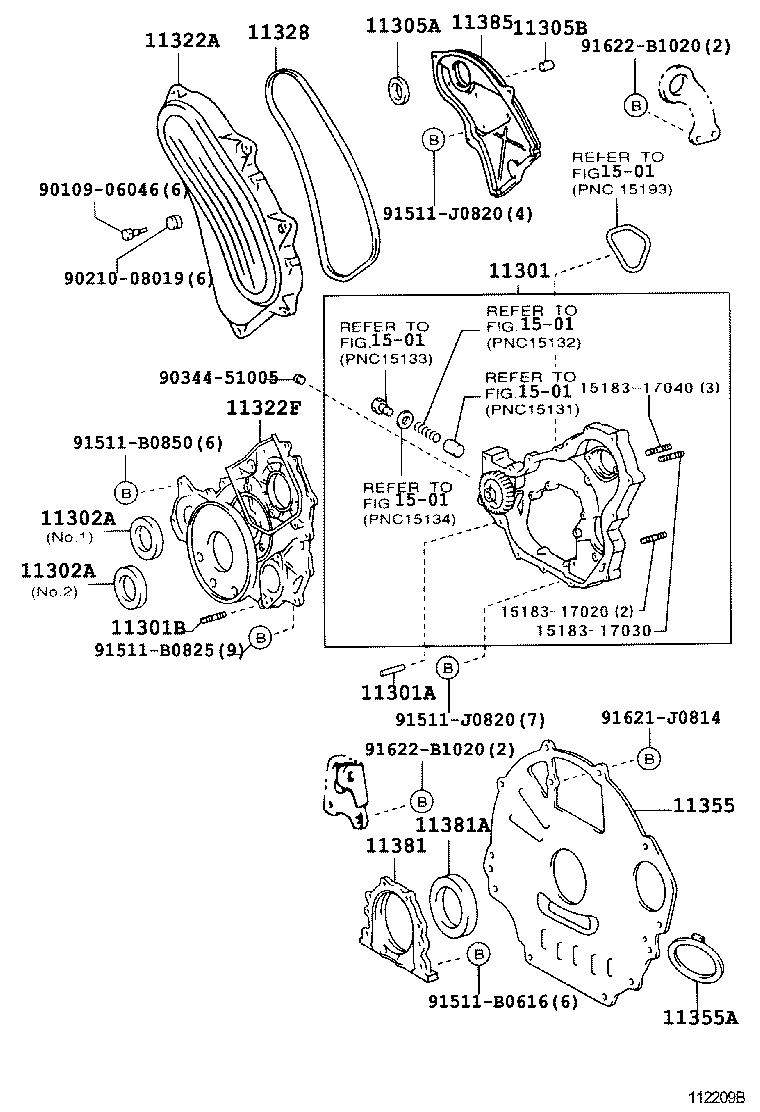

Figure MAD751 MAD751 1990-01 → 1992-08 Figure 114367 114367 1992-01 → — Figure 112397A 112397A 1990-01 → 1998-05 Figure 111085D 111085D 1998-05 → — Figure 112209B 112209B 2001-08 → — Figure 11B753A 11B753A 1993-05 → 1996-04 Figure MAD679B MAD679B 1990-01 → 1993-05 Figure MAD679B MAD679B 1990-04 → 1996-04 Figure 110505 110505 1990-01 → 1995-01 Figure MA7778C MA7778C 1990-01 → — Figure 110485 110485 1990-01 → —

Part groups

PNCDescription
04317 Gasket Kit, Clutch Under Cover
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301F Plate, Water Pump Thermostat Guide
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301Q Seal, Type T Oil(FOR INJECTION PUMP)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11302U Pin, Ring
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11311 Plate, Front End
11312 Gasket, Front End Plate
11320 Case Assy, Timing Gear
11321 Case, Timing Gear
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11356 Plate, Rear End, NO.2
11369 Cover, Flywheel Housing Front
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
12281 Hanger, Engine, NO.1
15134B Gasket, Oil Pump Relief Valve
15785B Gasket, Oil Cooler
16603B Pulley Sub-assy, Idler
31104 Cover Sub-assy, Clutch Housing Under
31104A Plug, Hole(FOR CLUTCH HOUSING UNDER COVER)
31111D Housing, Clutch
31131A Gasket, Clutch Housing Under Cover, NO.1
31132 Gasket, Clutch Housing Under Cover, NO.2
31133 Gasket, Clutch Housing Under Cover, NO.3
31134A Gasket, Clutch Housing Under Cover, NO.4
31134B Gasket, Clutch Housing Under Cover, NO.4
31135A Gasket, Clutch Housing Under Cover, NO.5
31135B Gasket, Clutch Housing Under Cover, NO.5
31136 Gasket, Clutch Housing Under Cover, NO.6
31137 Gasket, Clutch Housing Under Cover, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
