Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 9 illustrations

Illustrations

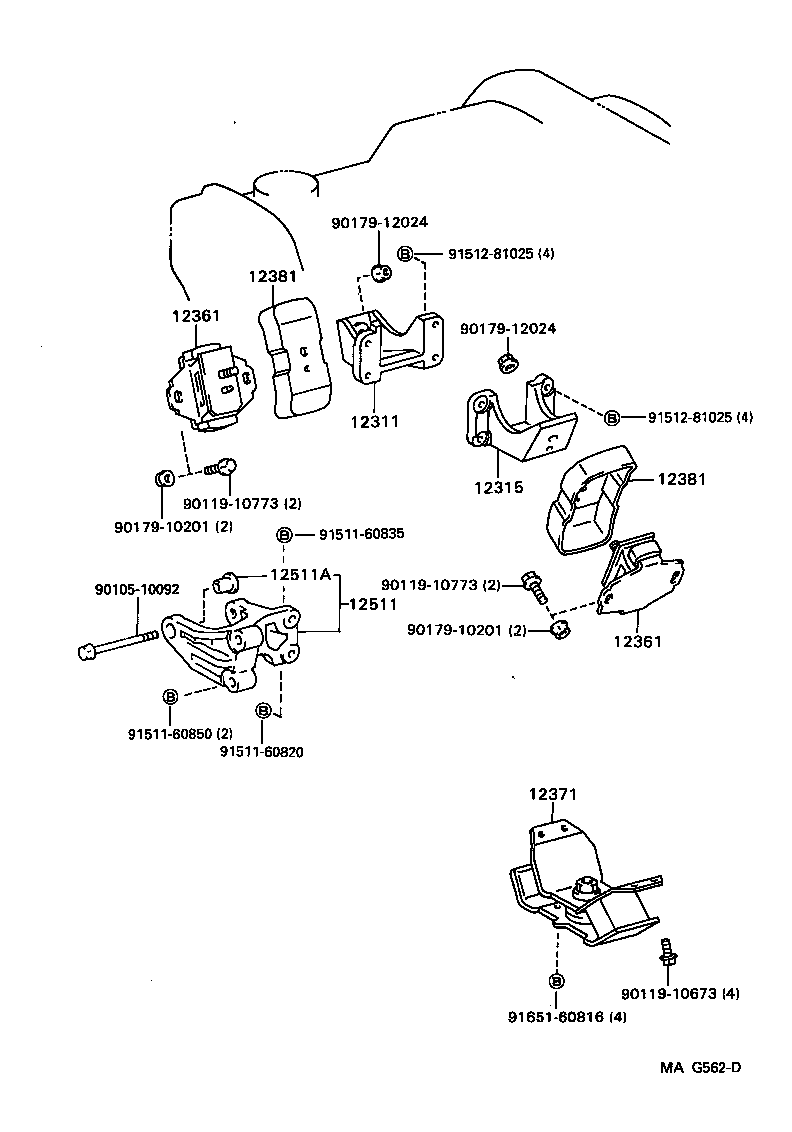

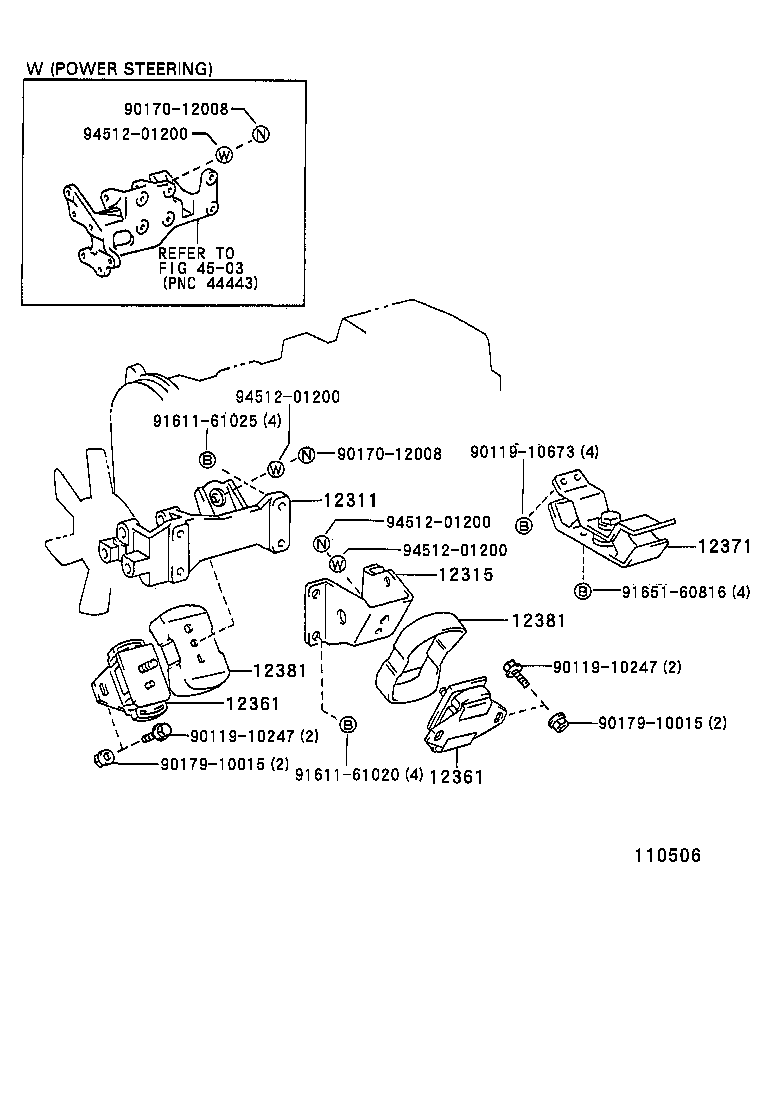

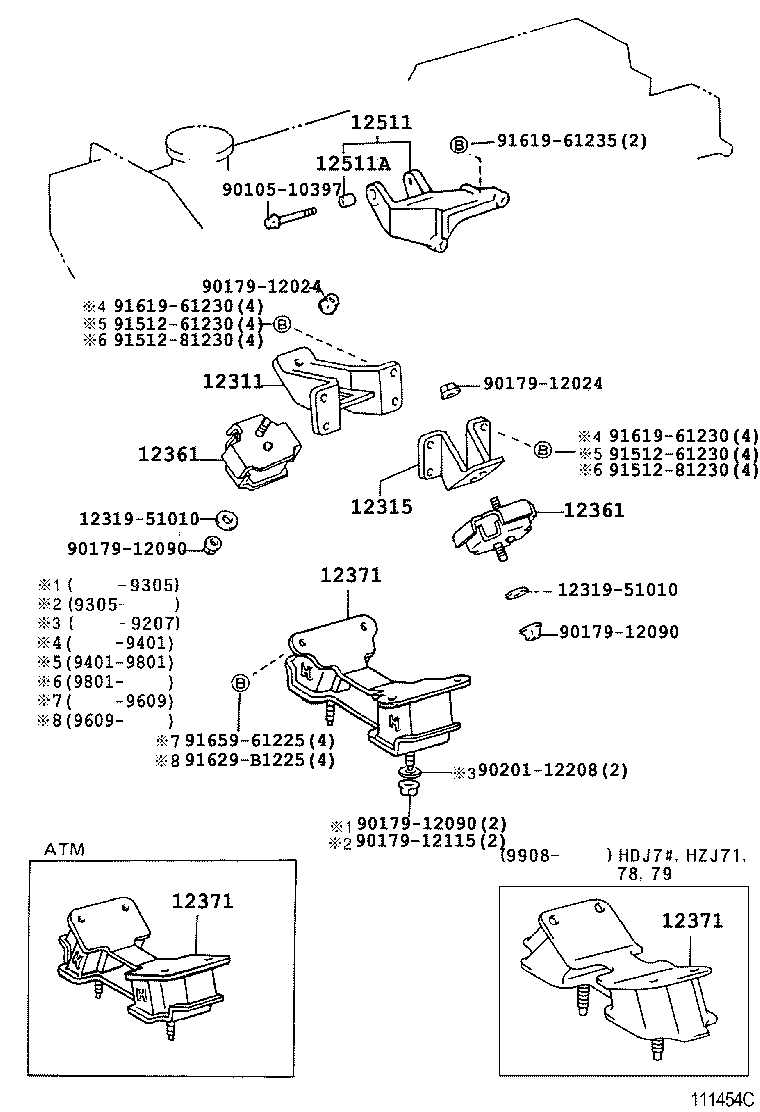

Figure 113471A 113471A 1990-01 → — Figure 110528C 110528C 1992-01 → — Figure 114887 114887 1990-01 → 1991-08 Figure 111454C 111454C 1990-01 → — Figure MAG562D MAG562D 1993-05 → 1996-04 Figure 110506 110506 1990-01 → 1993-05 Figure 110506 110506 1990-04 → 1996-04 Figure 119782 119782 1990-01 → 1995-01 Figure 110489 110489 1990-01 → 1996-04

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12364 Insulator, Engine Mounting, Front LH
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
