Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

20 part groups · 7 illustrations

Illustrations

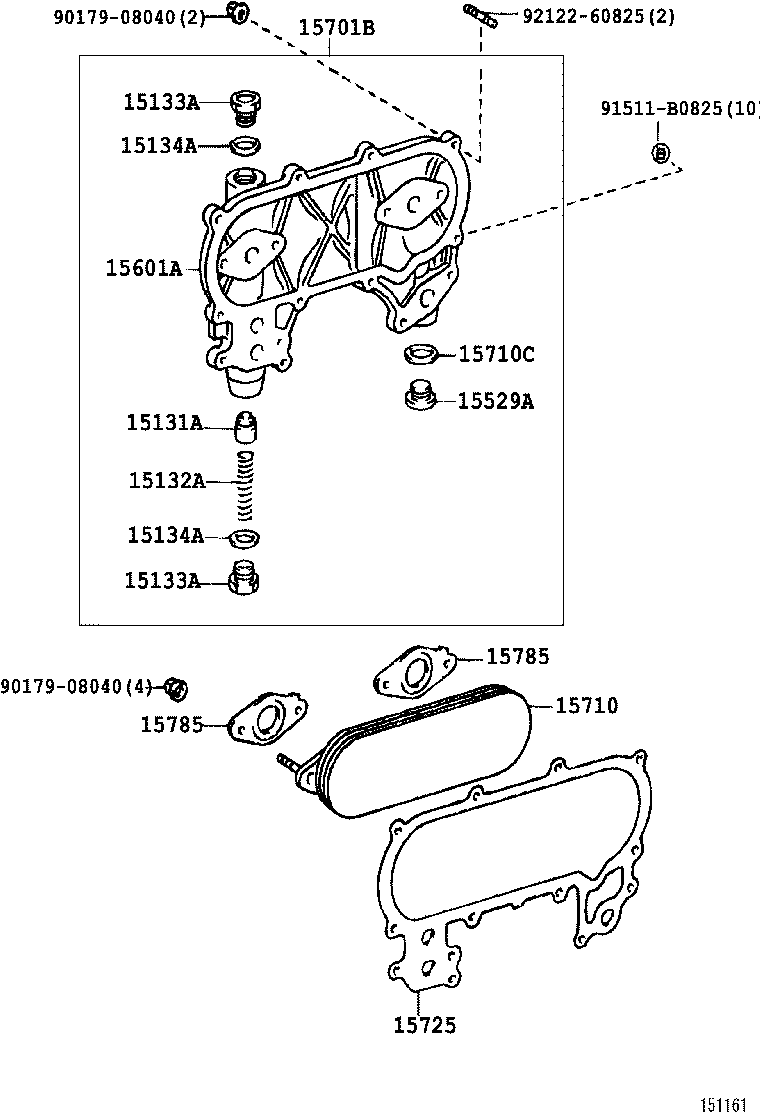

Figure 150134 150134 1990-01 → 1992-08 Figure 151161 151161 1992-01 → — Figure 150246 150246 1990-01 → — Figure MAG458 MAG458 1993-05 → 1996-04 Figure MA7112D MA7112D 1990-01 → 1993-05 Figure MA7112D MA7112D 1990-04 → 1996-04 Figure MAD466B MAD466B 1990-01 → 1995-01

Part groups

PNCDescription
15131A Valve, Oil Cooler Relief
15132A Spring, Oil Cooler Relief Valve
15133A Plug, Oil Cooler Relief Valve
15134A Gasket, Oil Cooler Relief Valve
15529A Plug
15601A Cover, Oil Cooler
15690 Valve Assy, Oil Cooler Relief
15701B Cover Sub-assy, Oil Cooler
15710 Cooler Assy, Oil
15710A Bolt, Union(FOR OIL COOLER)
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15725 Gasket, Oil Cooler Cover
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777G Clamp OR Crip, Hose
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
