Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

15 part groups · 10 illustrations

Illustrations

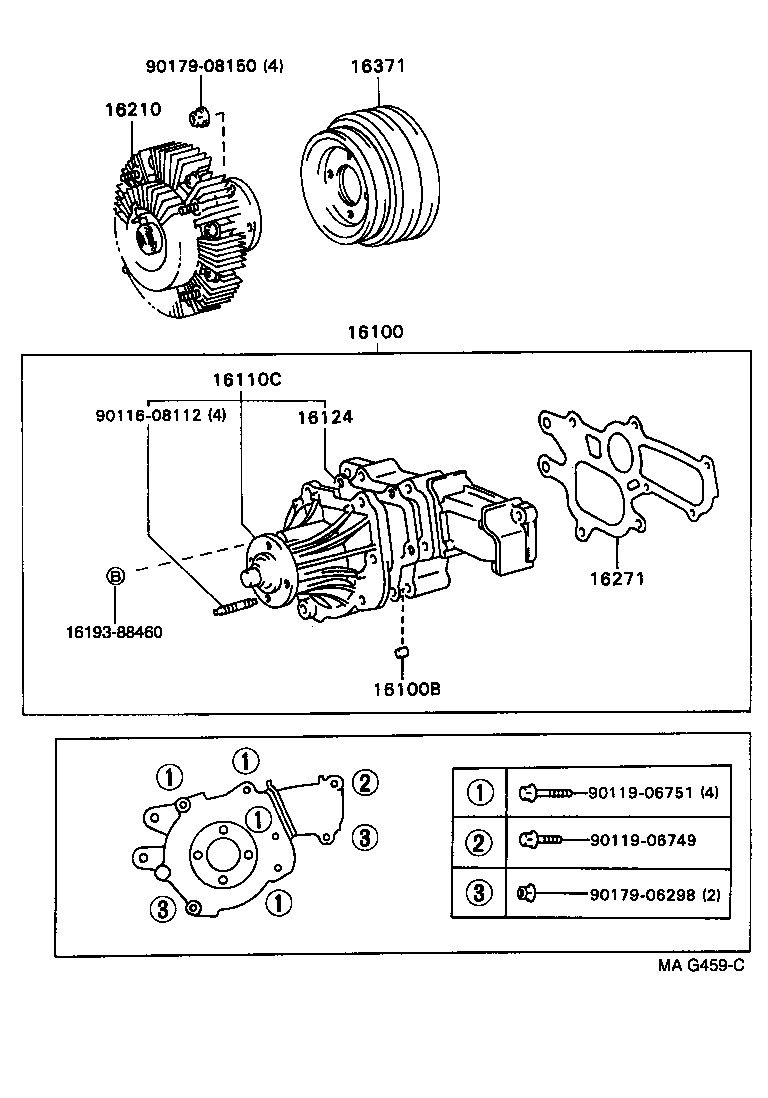

Figure 160345 160345 1990-01 → 1992-08 Figure 161495 161495 1990-01 → 1992-08 Figure 160822A 160822A 1992-01 → — Figure 165792 165792 1990-01 → 1991-08 Figure 160617D 160617D 1990-01 → — Figure MAG459C MAG459C 1993-05 → 1996-04 Figure MAD680A MAD680A 1990-01 → 1993-05 Figure MAD680A MAD680A 1990-04 → 1996-04 Figure MAD522D MAD522D 1990-01 → 1995-01 Figure MA7723E MA7723E 1990-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16100G Bolt, Stud(FOR WATER PUMP SET)
16104 Seal Set, Water Pump
16110C Pump Assy, Water, W/O Cover
16117 Plate, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16141 Wire, Water Pump Bearing Retaining
16171 Seat, Water Pump Pulley
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
