Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

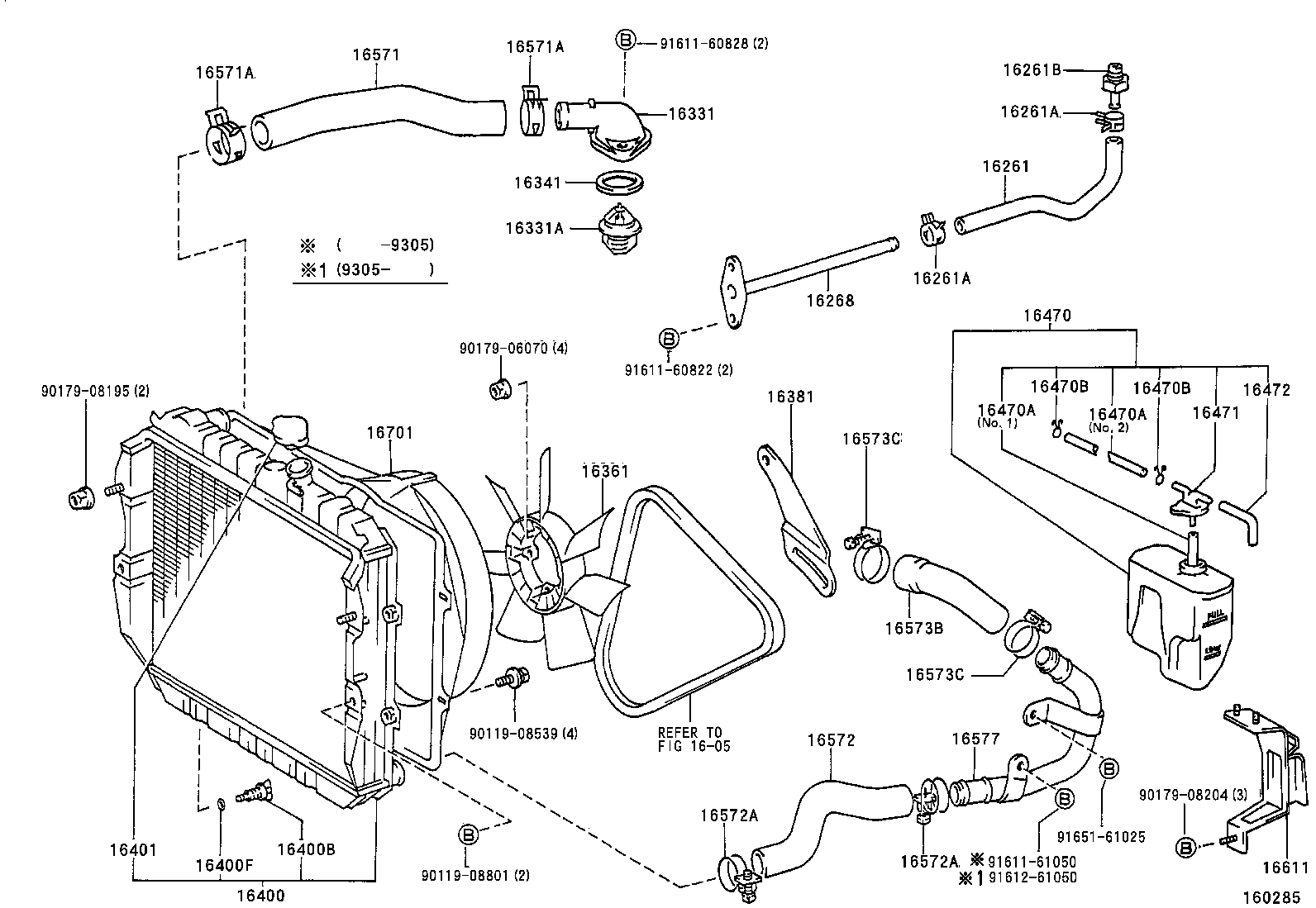

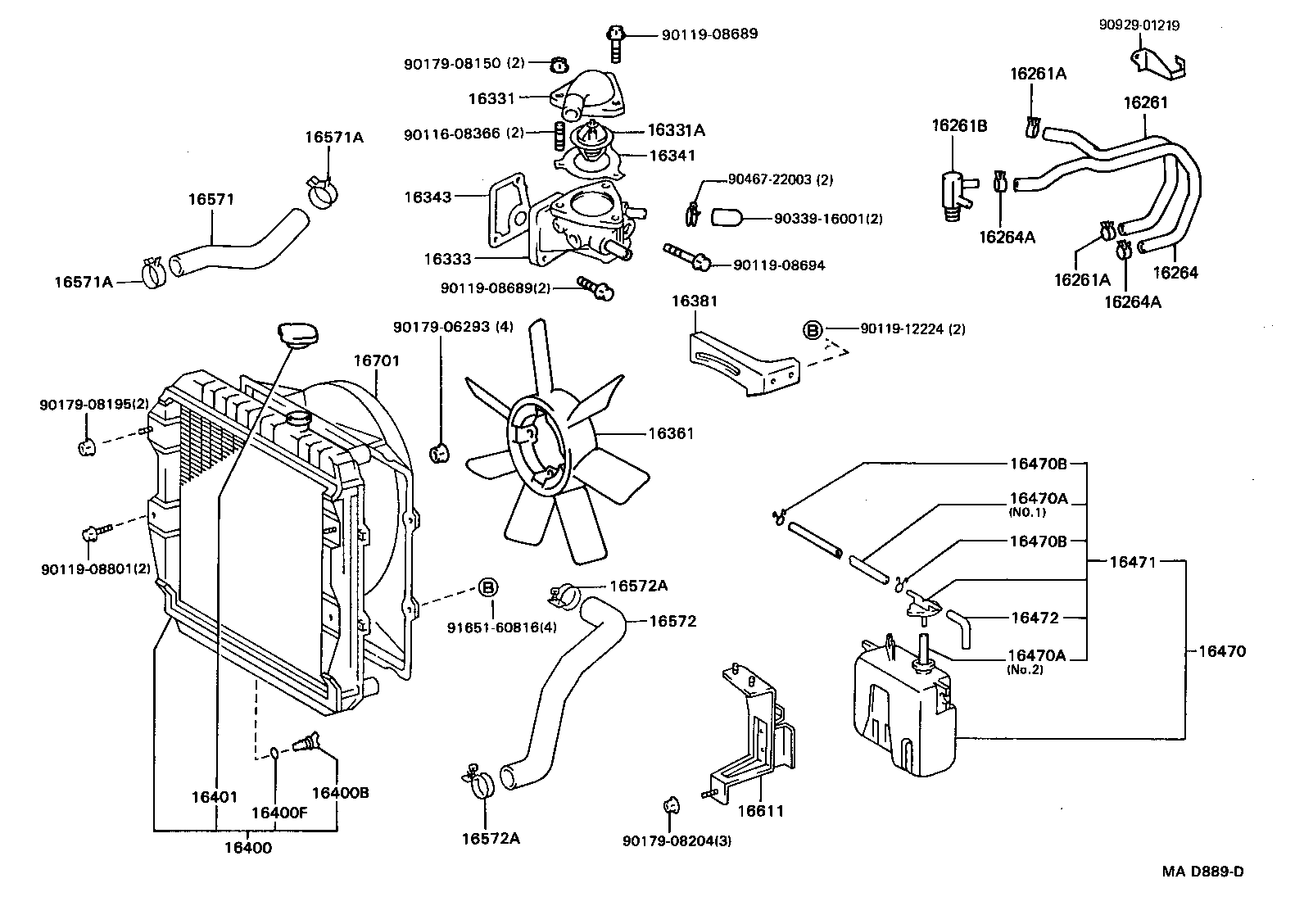

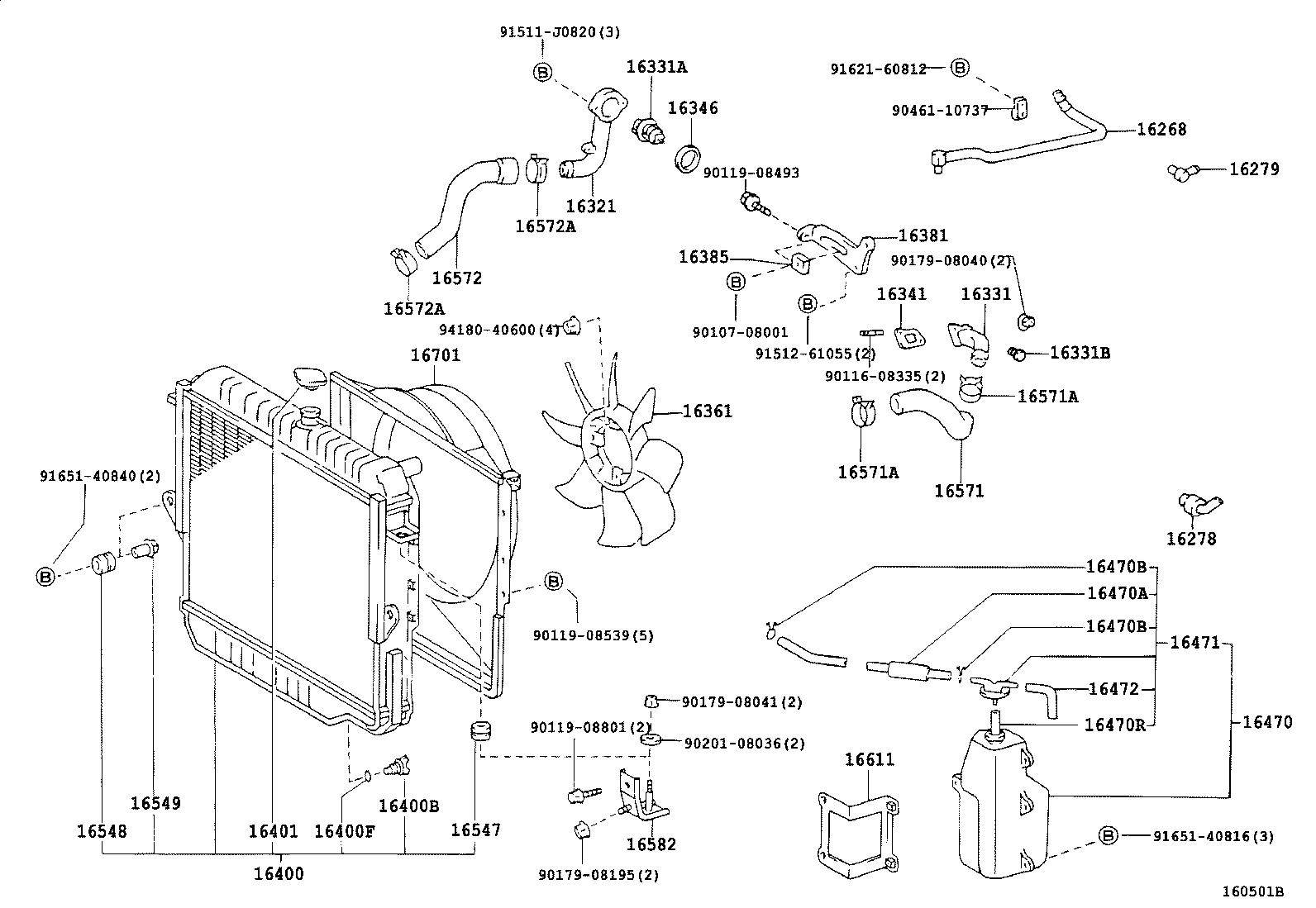

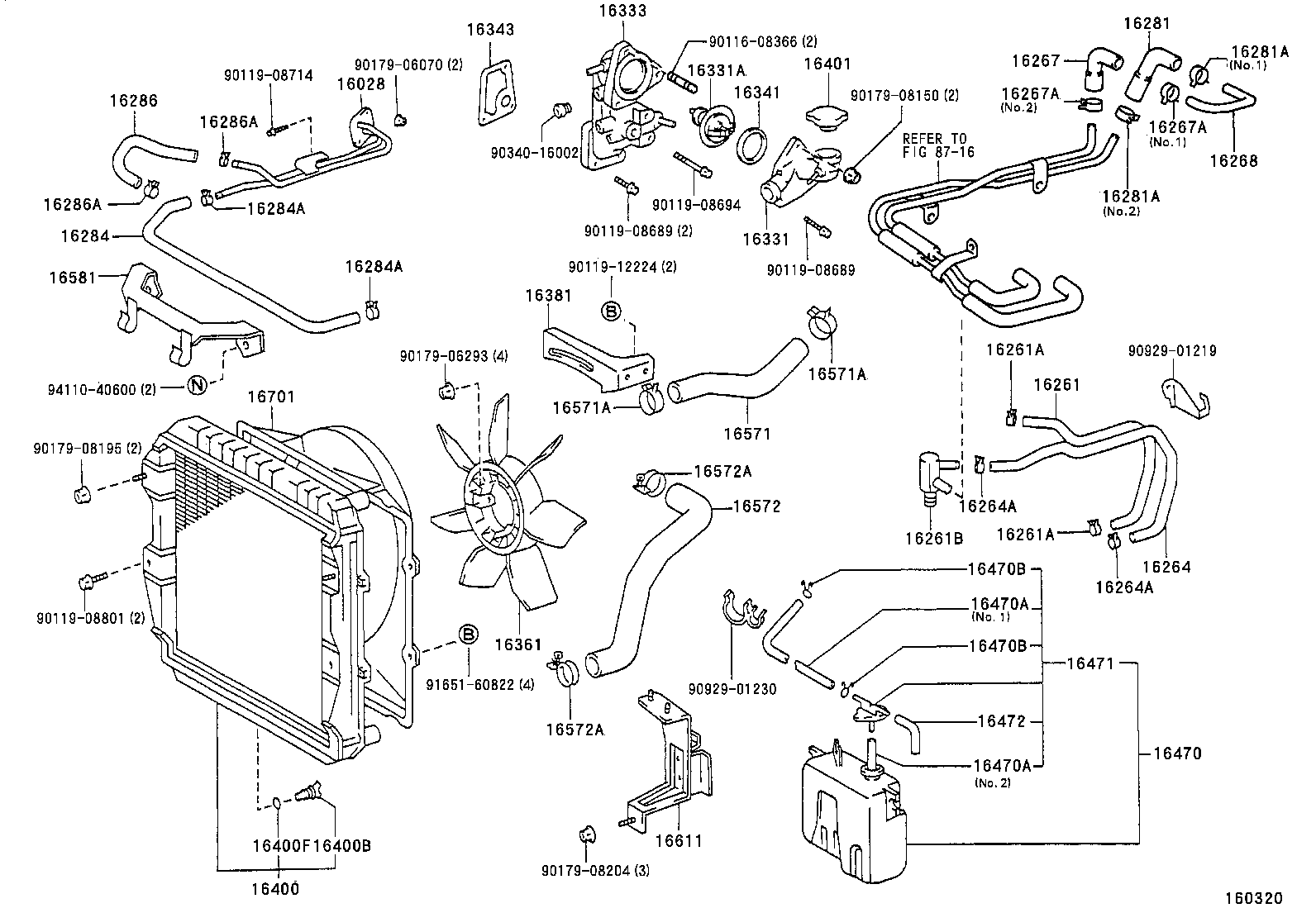

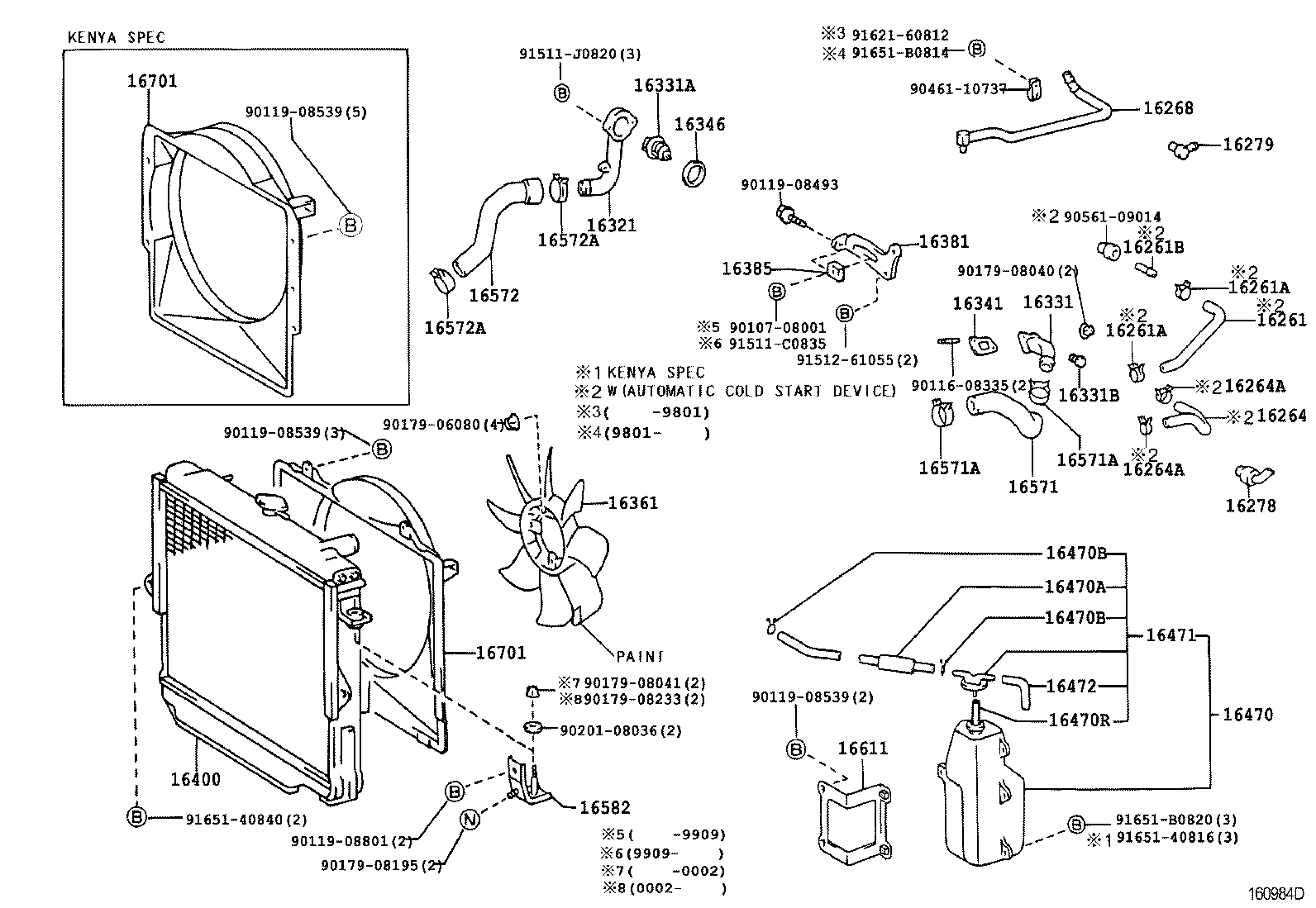

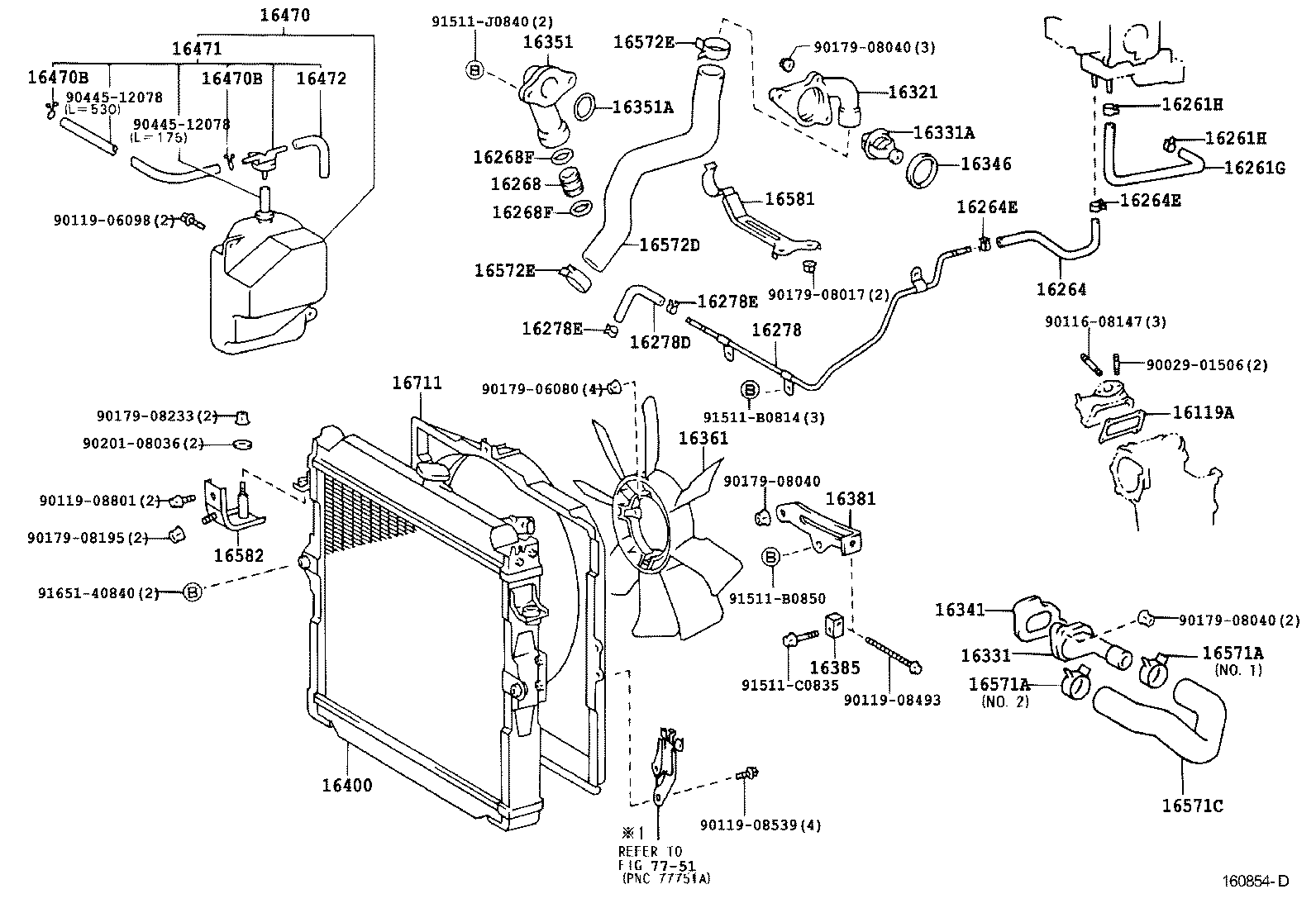

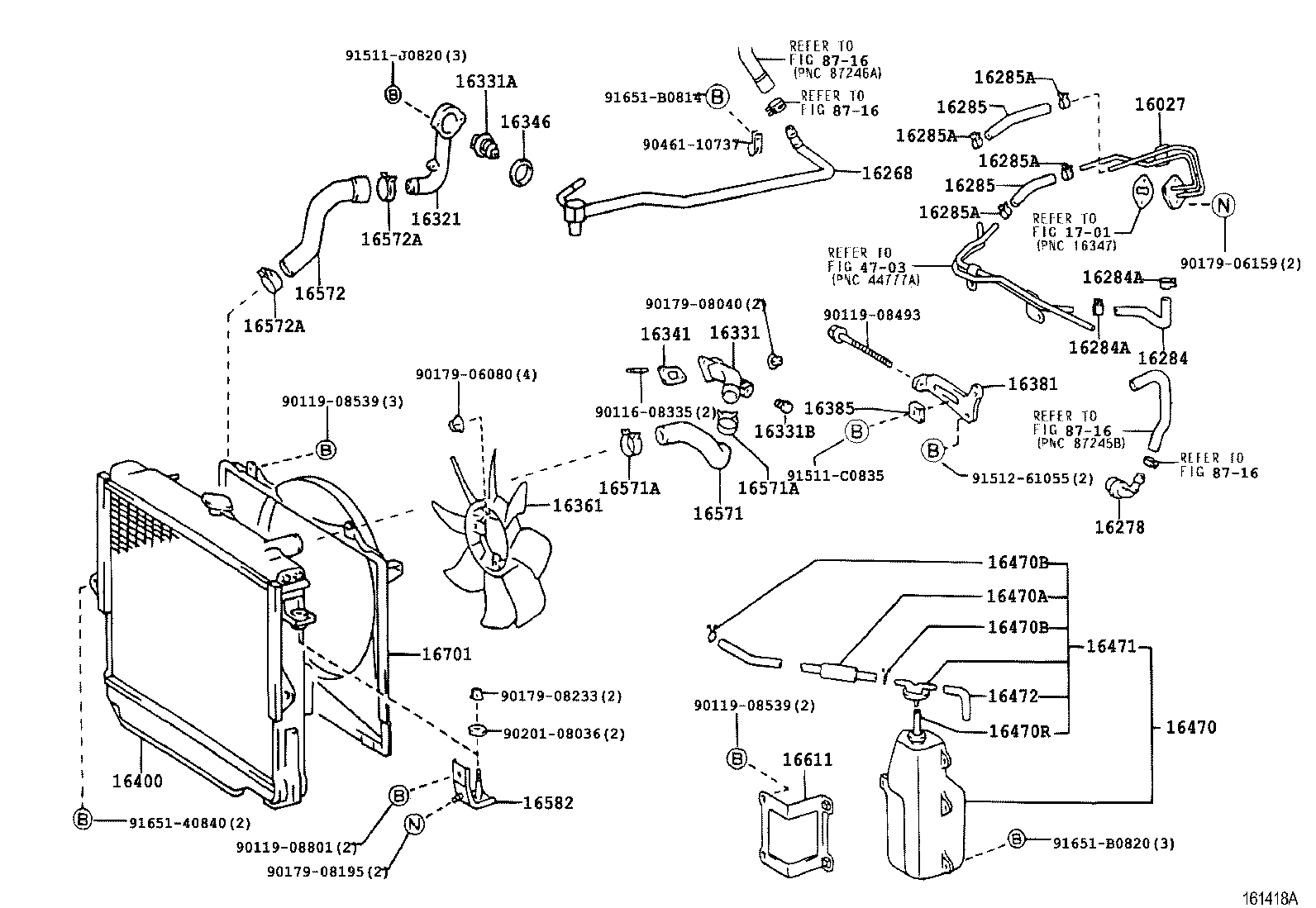

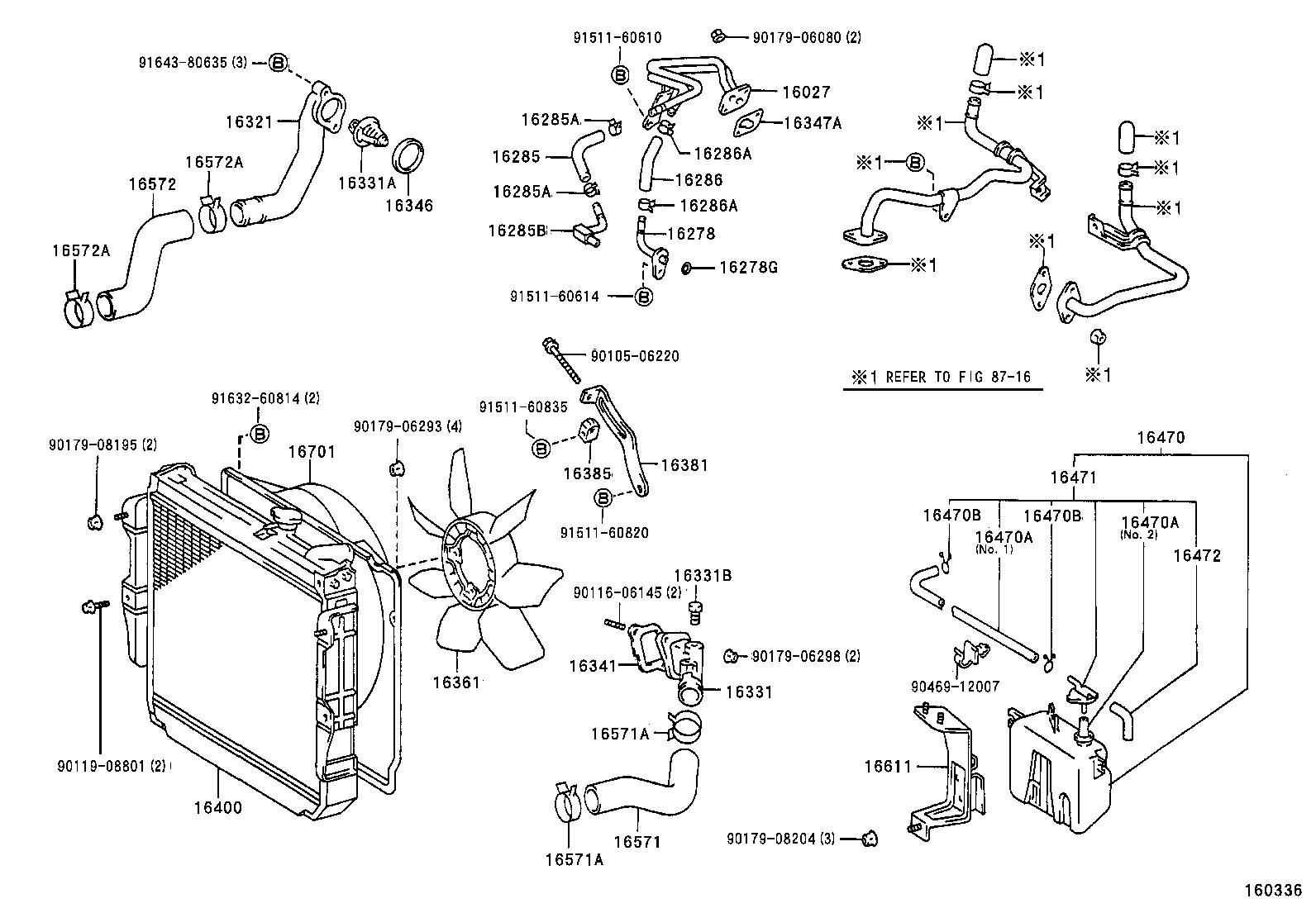

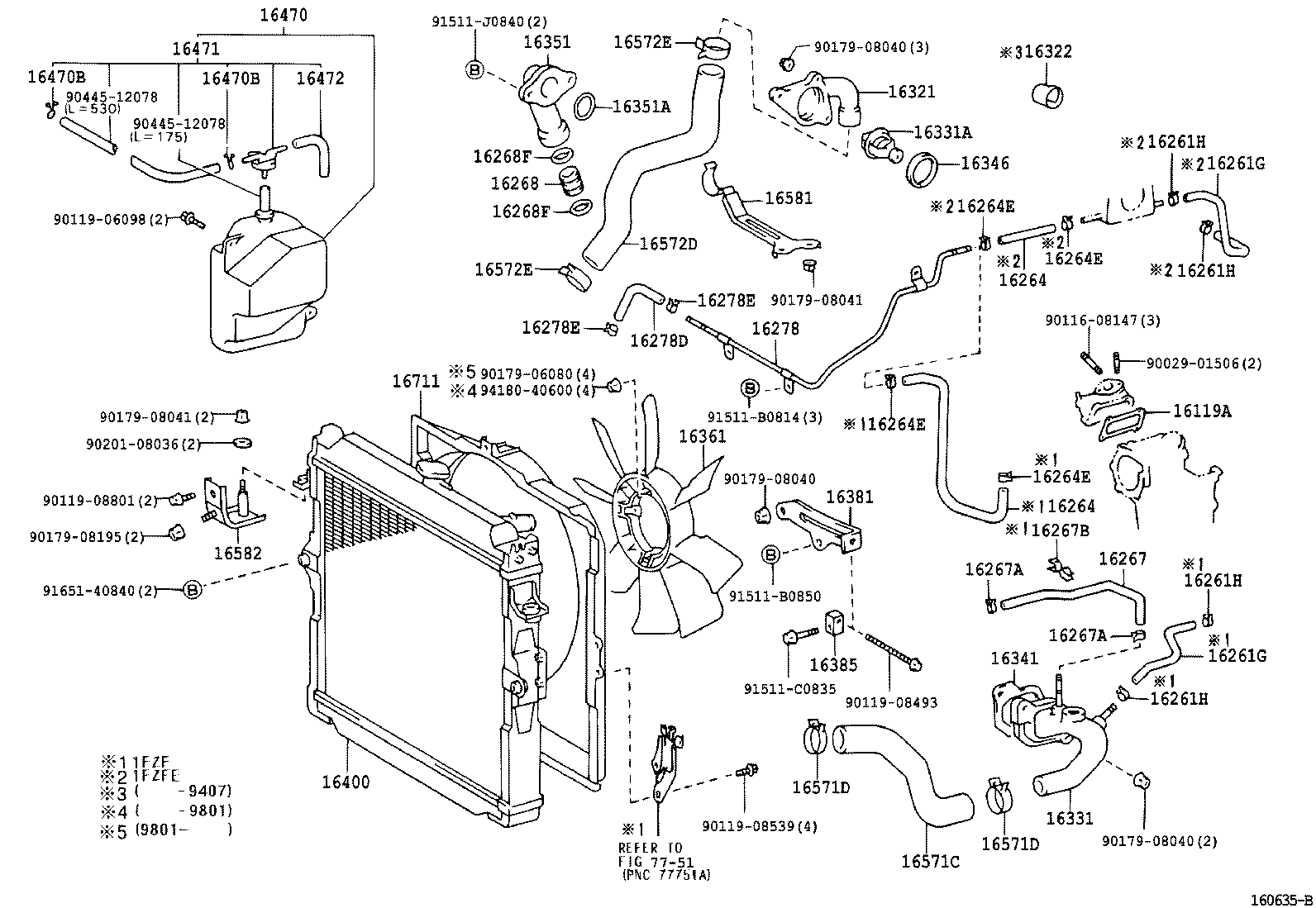

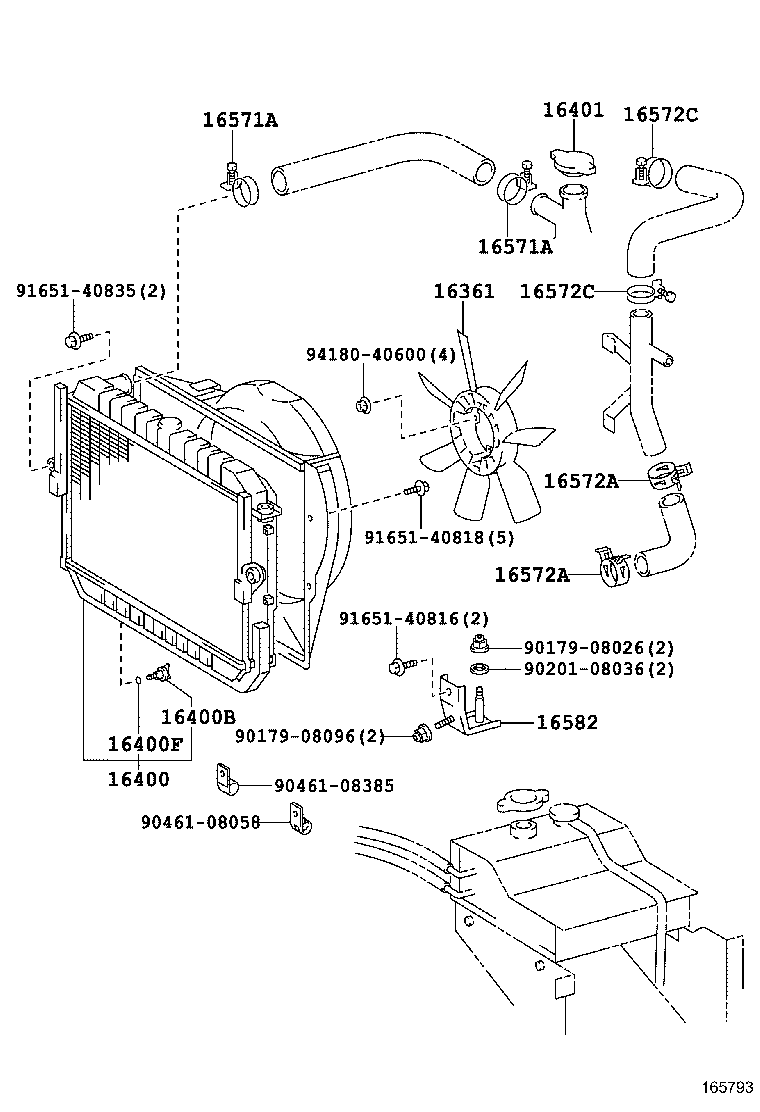

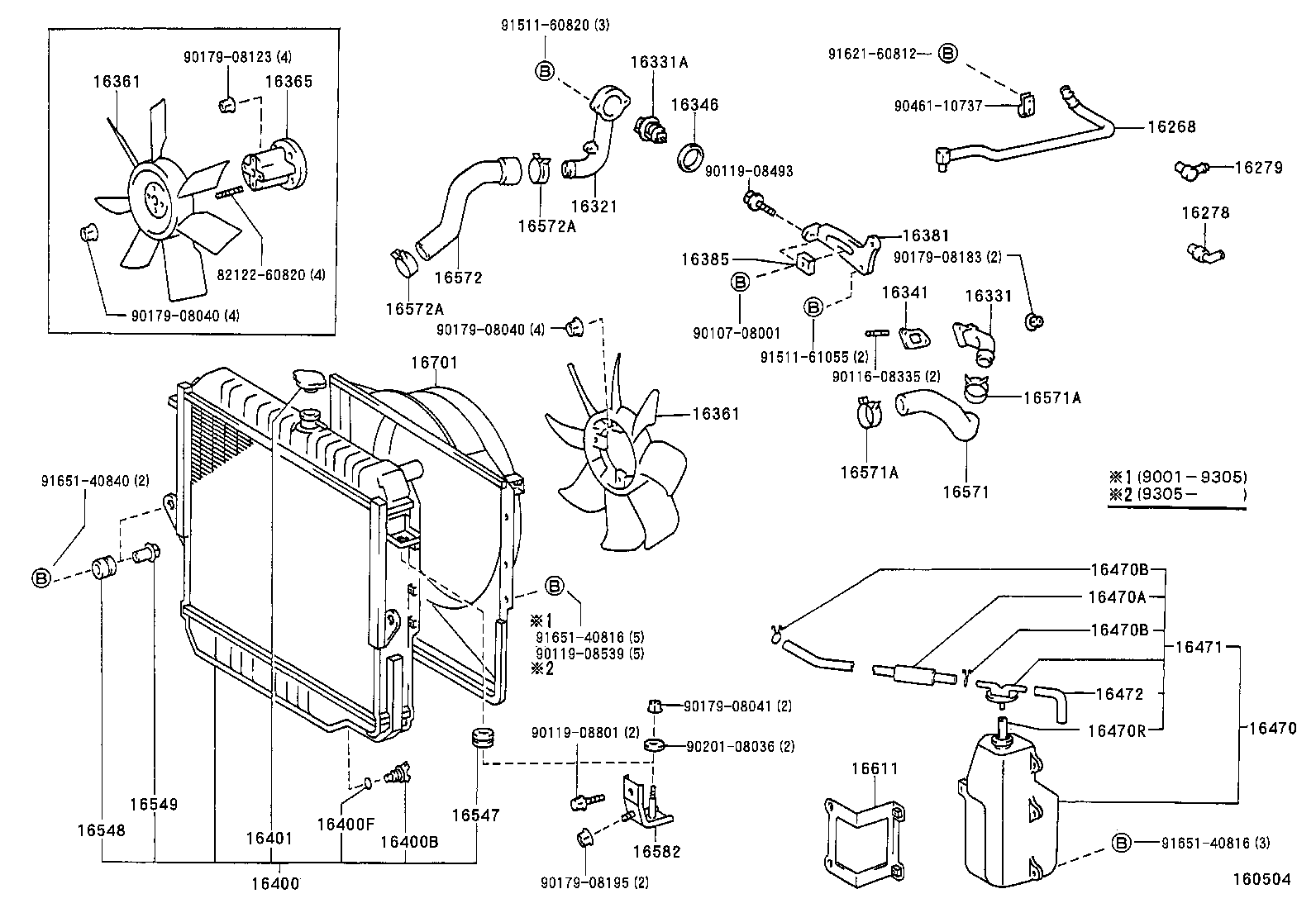

Radiator & Water Outlet
82 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16119A | Gasket, Thermostat Guide |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278D | Hose, Water By-pass |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16278G | Ring, O(FOR WATER BY-PASS NO.2 PIPE) |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16285B | Union(FOR TURBO WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331B | Plug(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16333C | Plug, W/Head Taper Screw |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16346 | Gasket, Thermostat |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16351 | Outlet, Water By-pass |
| 16351A | Ring, O(FOR WATER BY-PASS OUTLET) |
| 16361 | Fan |
| 16365 | Spacer, Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |

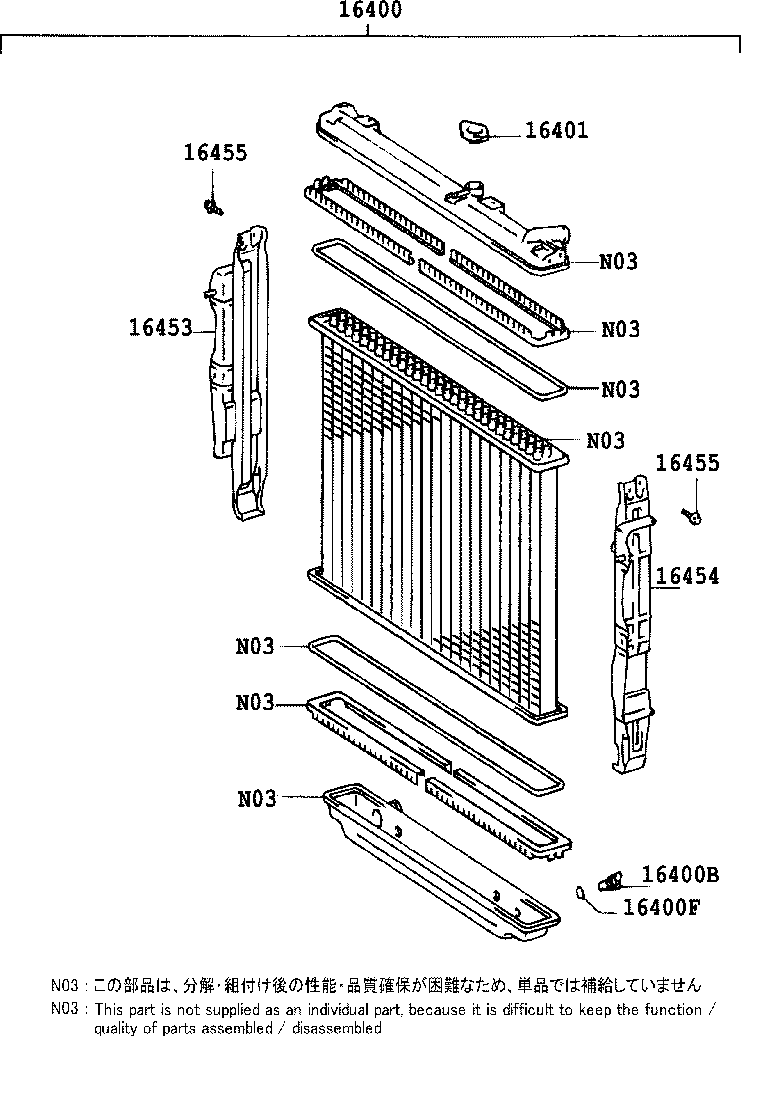

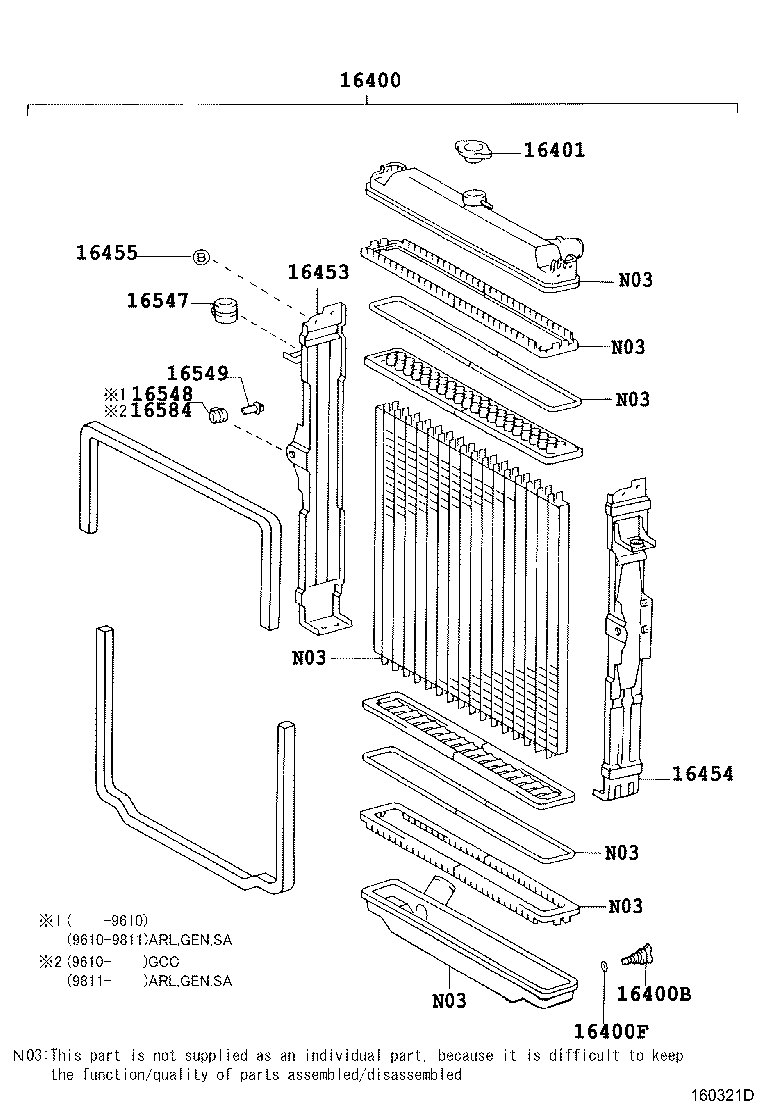

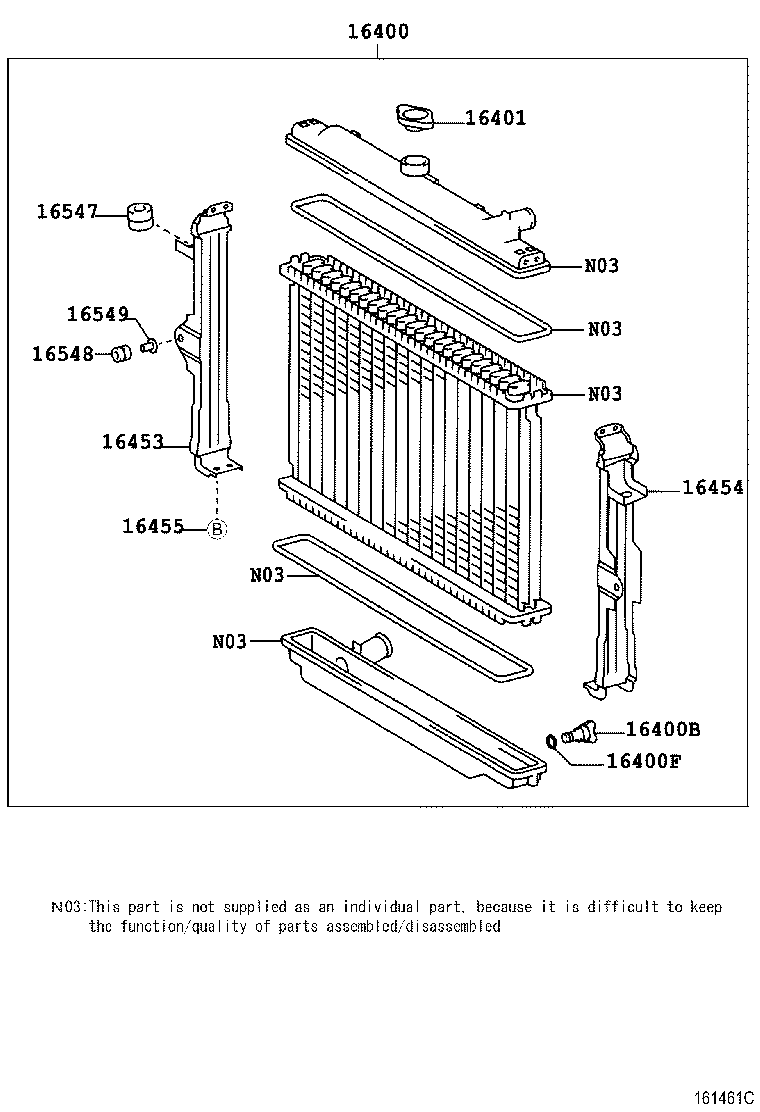

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16547 | Bush, Radiator Support, NO.1 |
| 16548 | Bush, Radiator Support, NO.2 |
| 16549 | Collar, Radiator Support, NO.2 |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16577 | Pipe, Radiator, NO.7 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16582 | Bracket, Radiator, NO.1 |
| 16584 | Insulator, Radiator Mounting |
| 16611 | Bracket, Radiator Reserve Tank |
| 16701 | Shroud Sub-assy, Fan |
| 16711 | Shroud, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
