Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05
Manifold

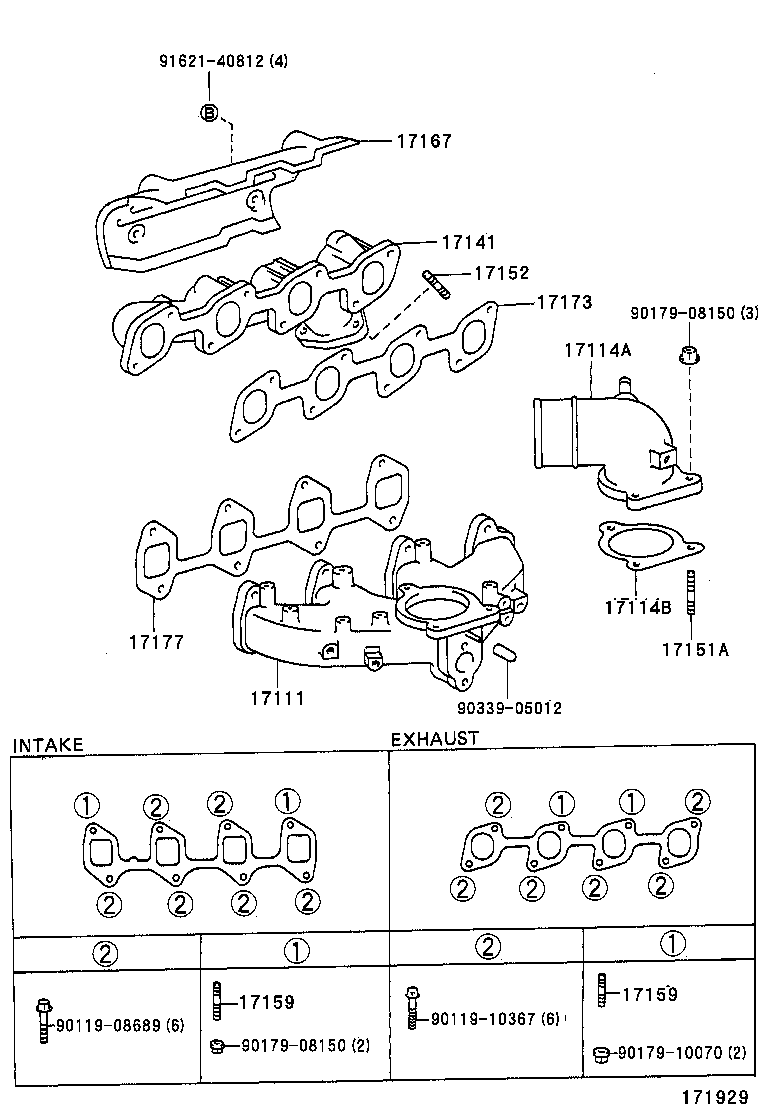

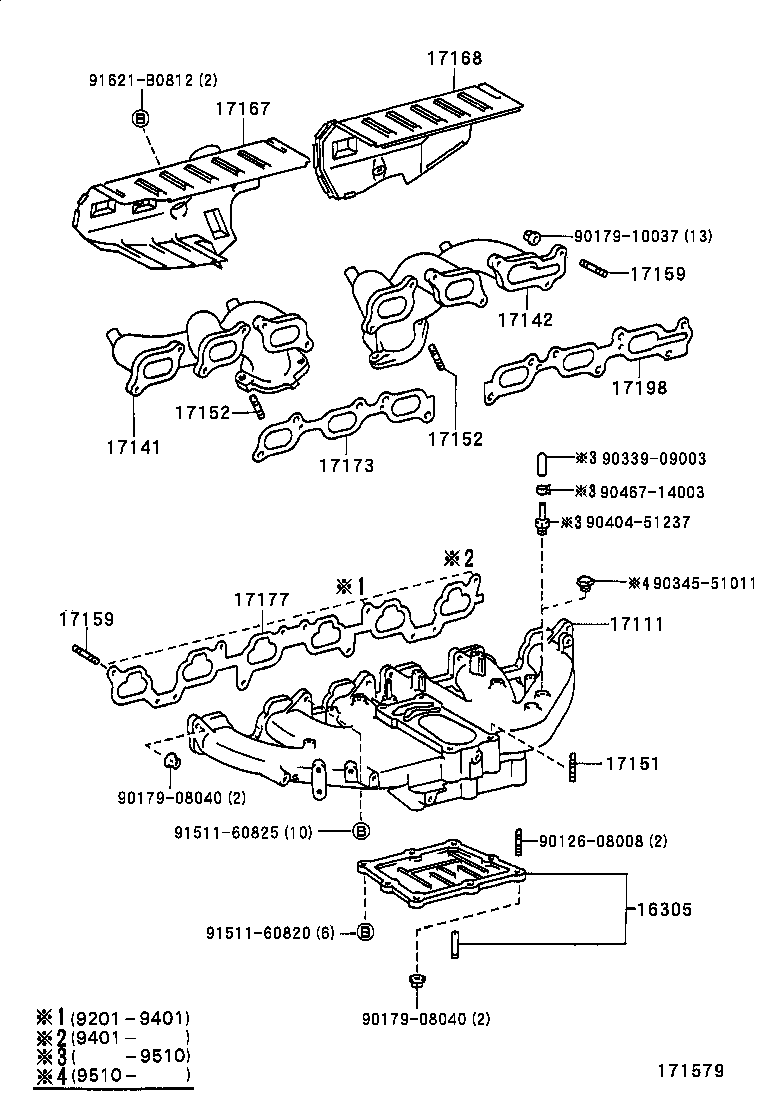

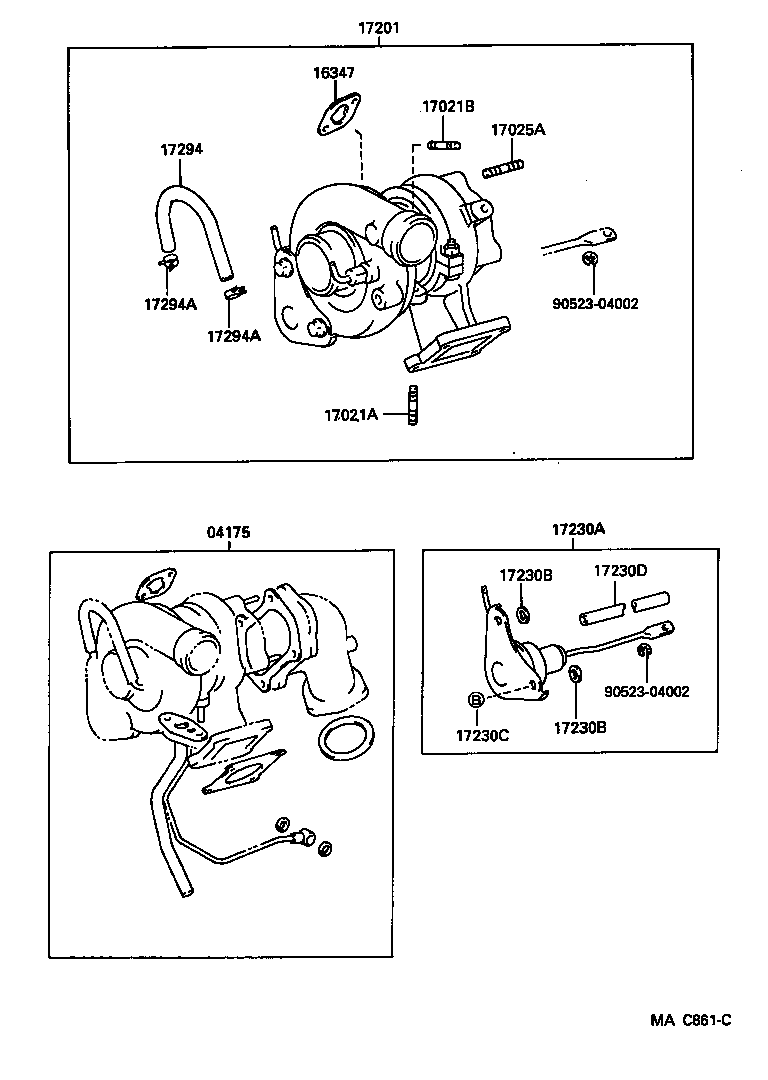

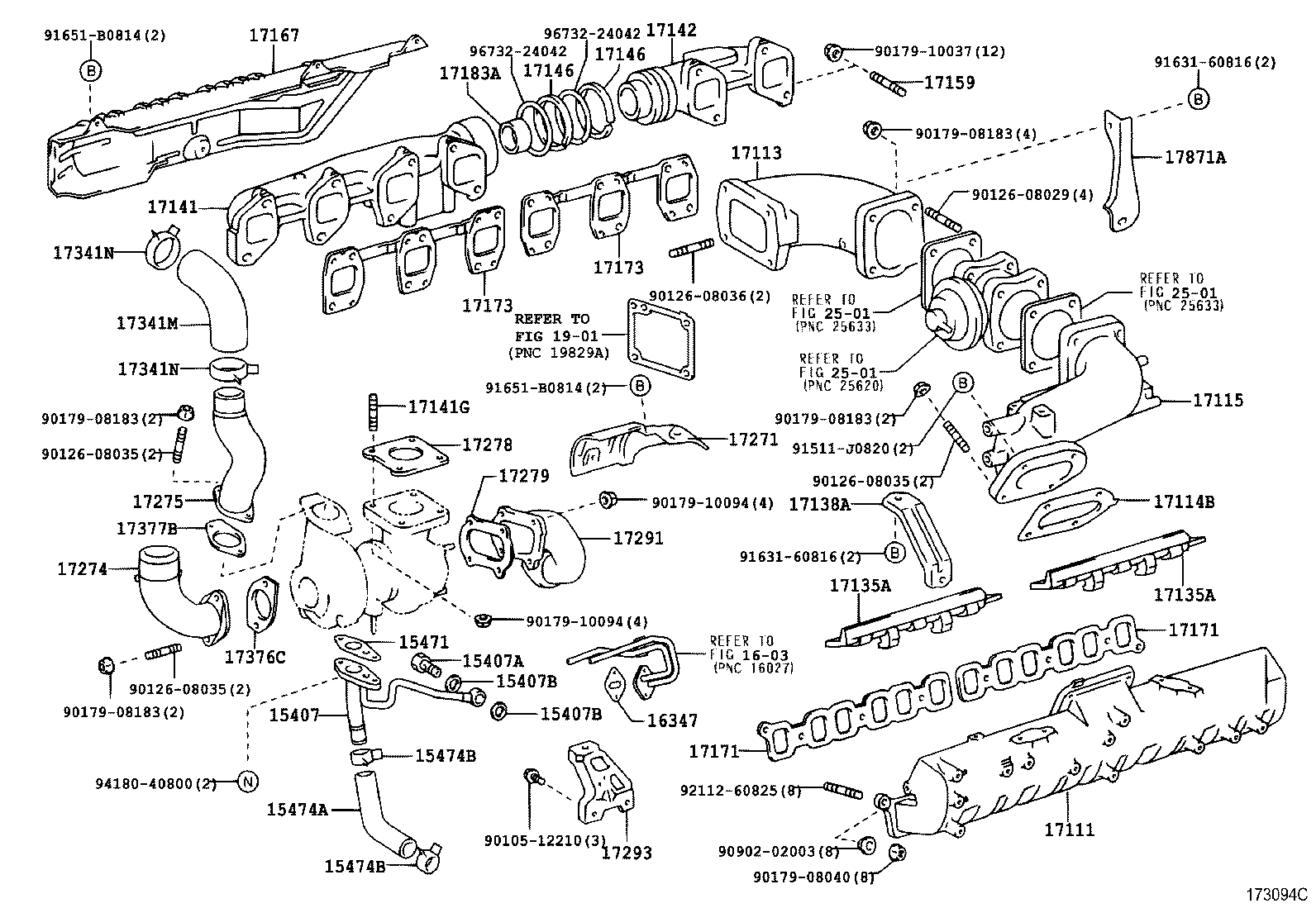

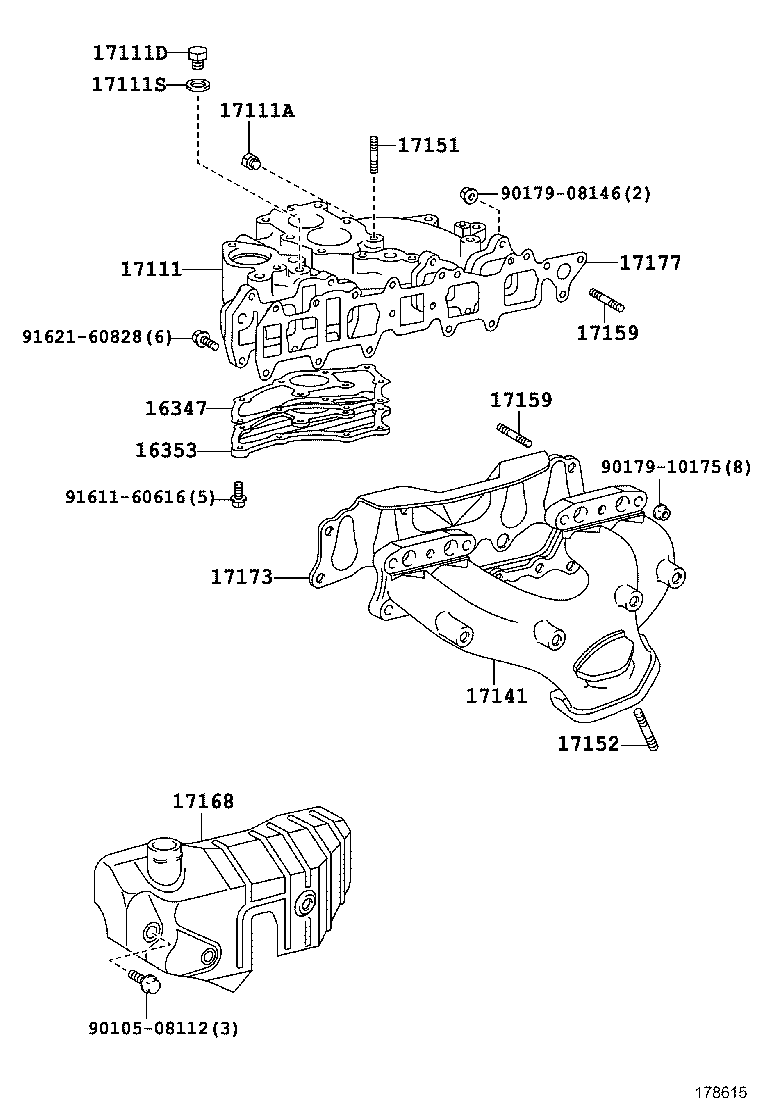

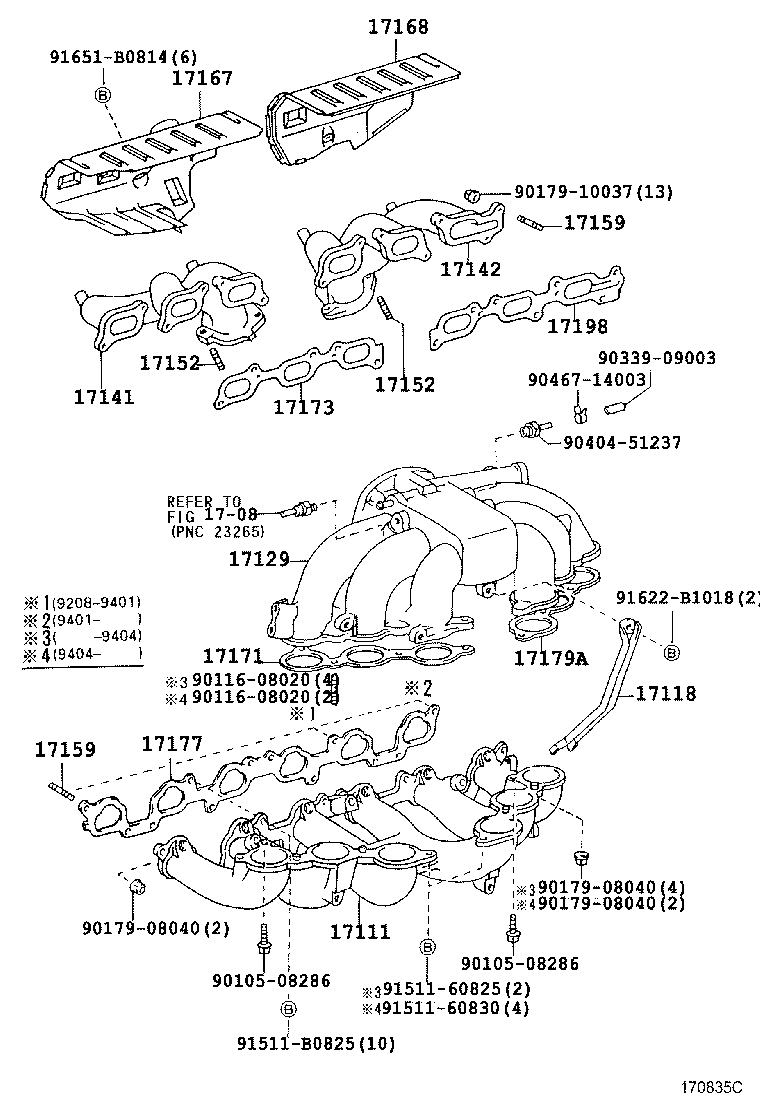

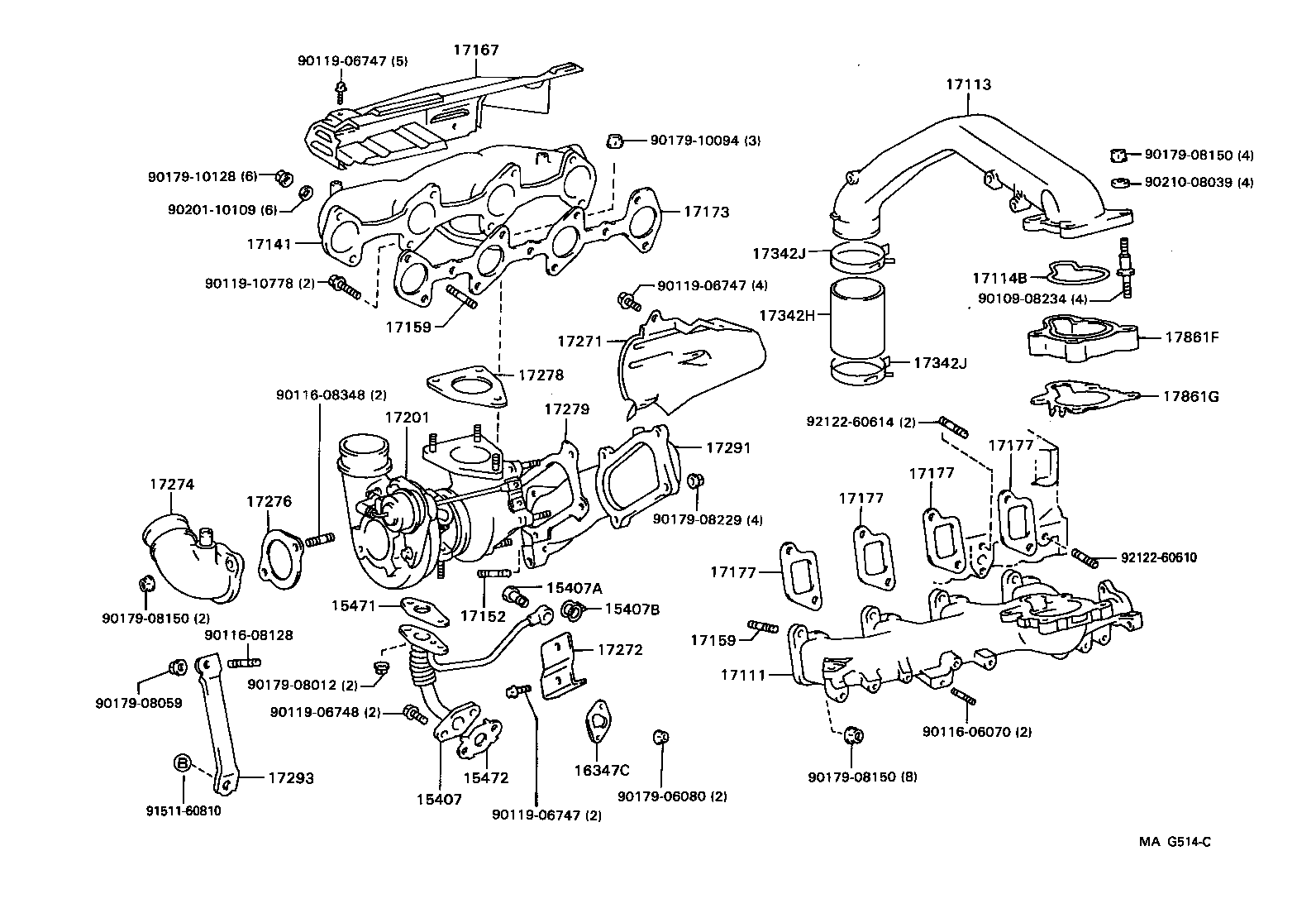

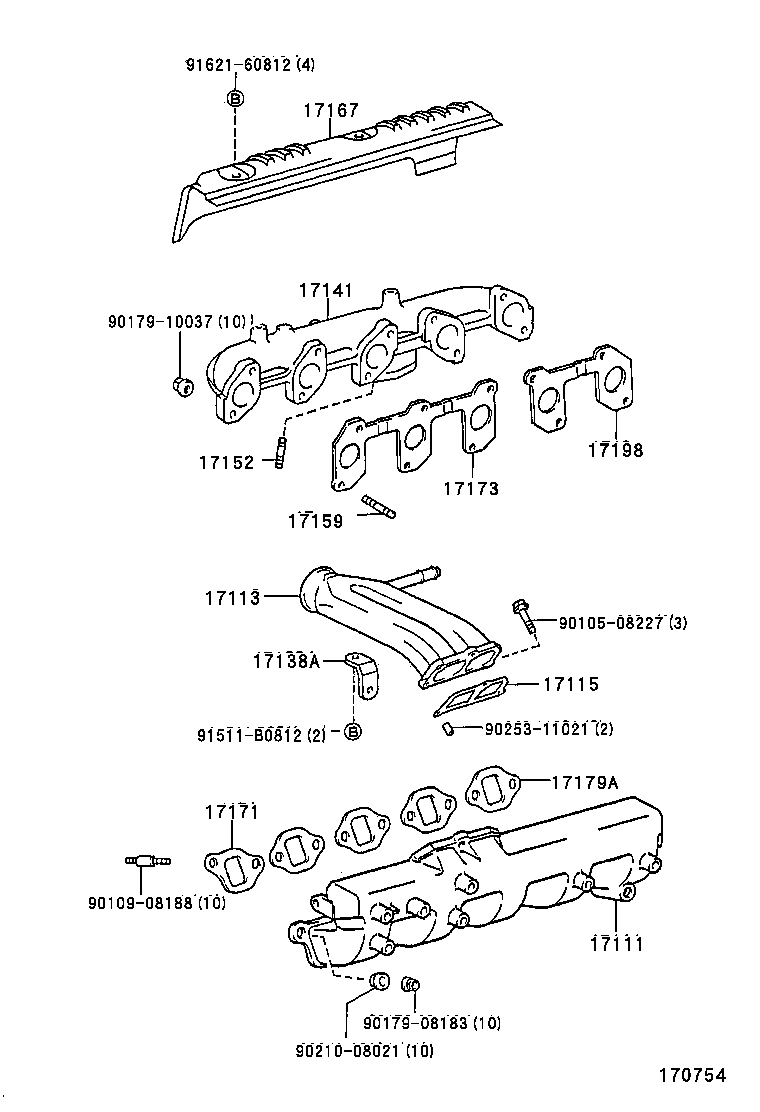

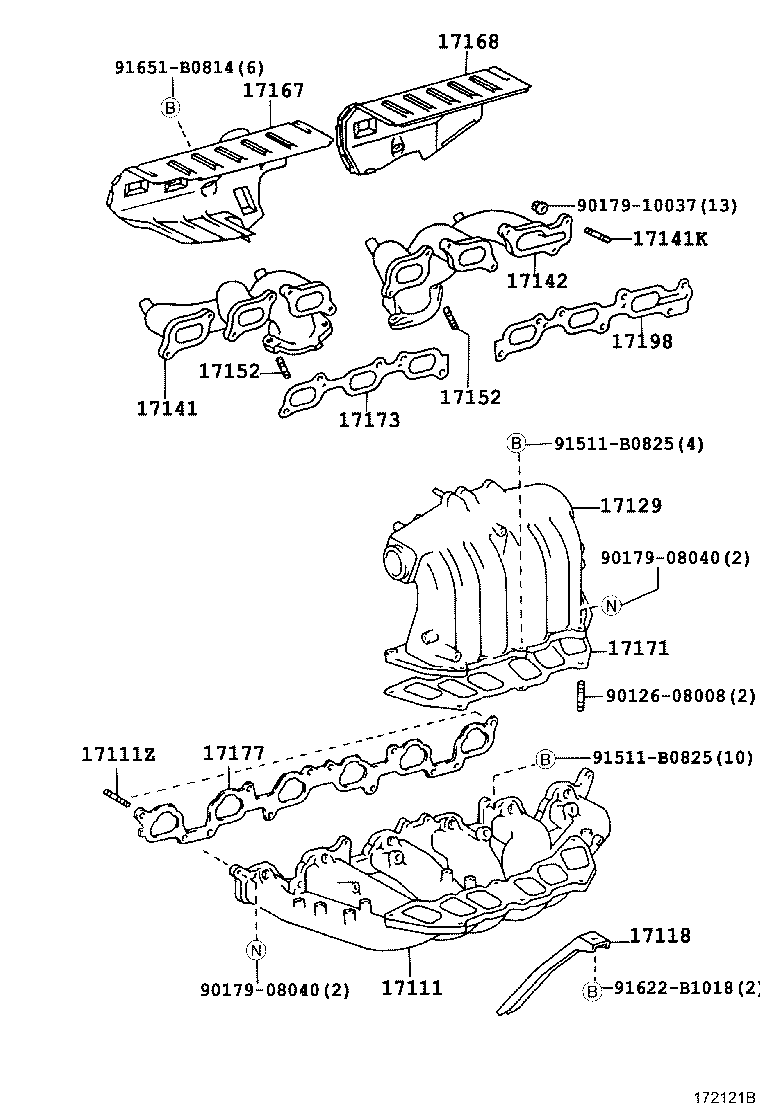

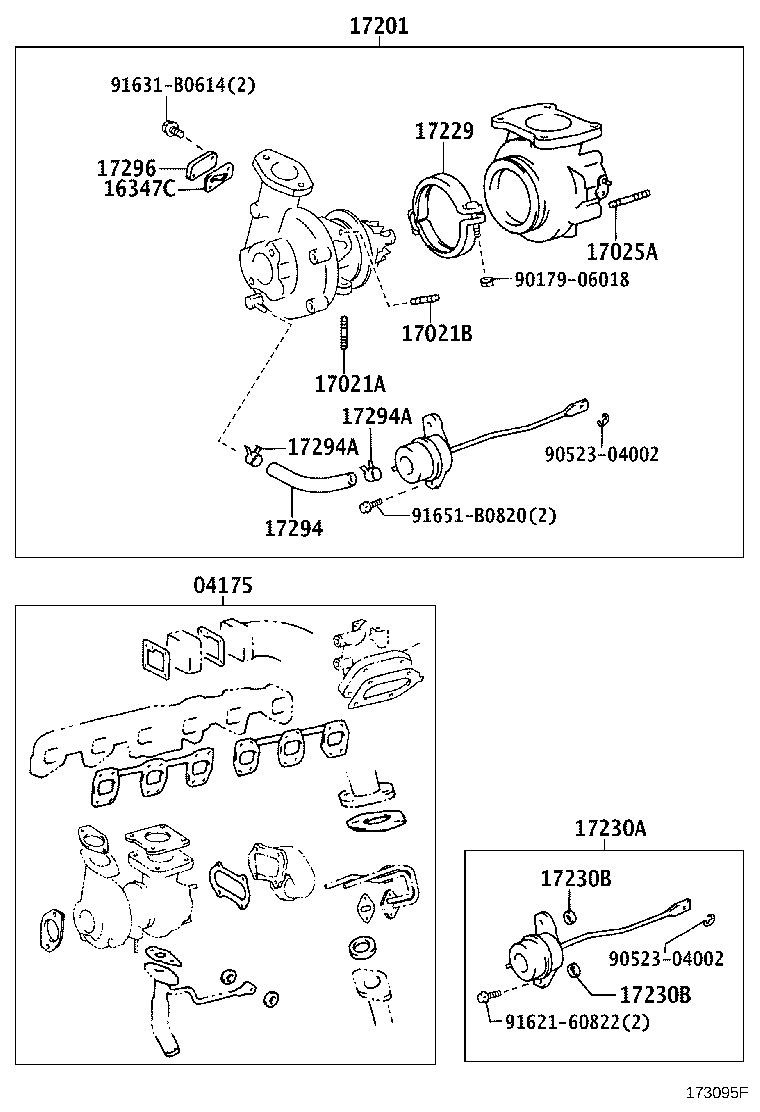

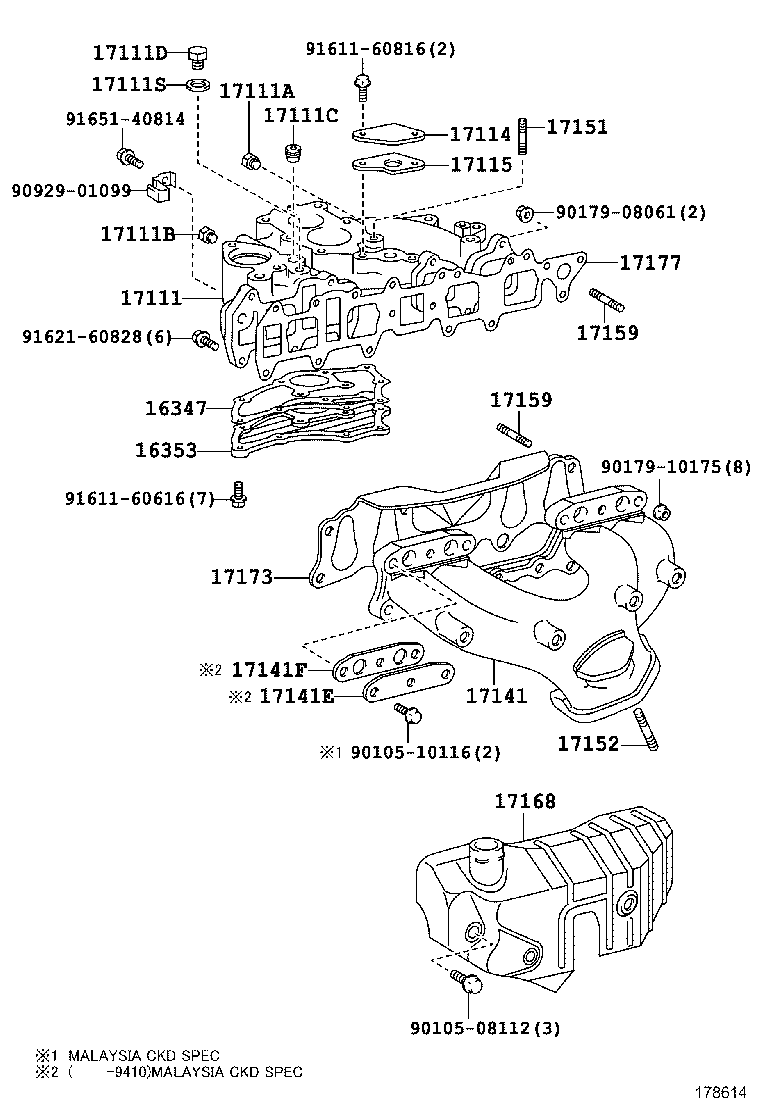

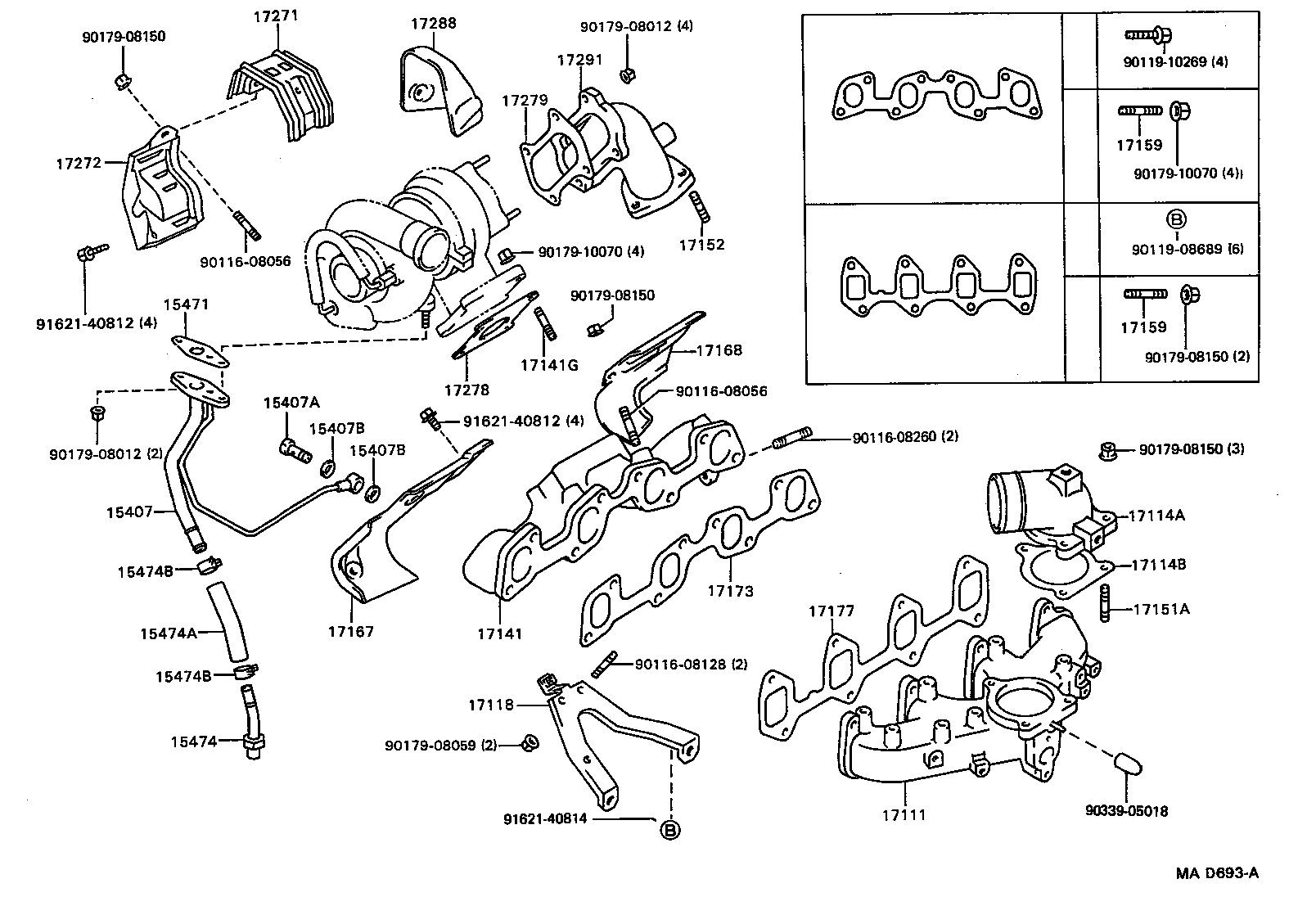

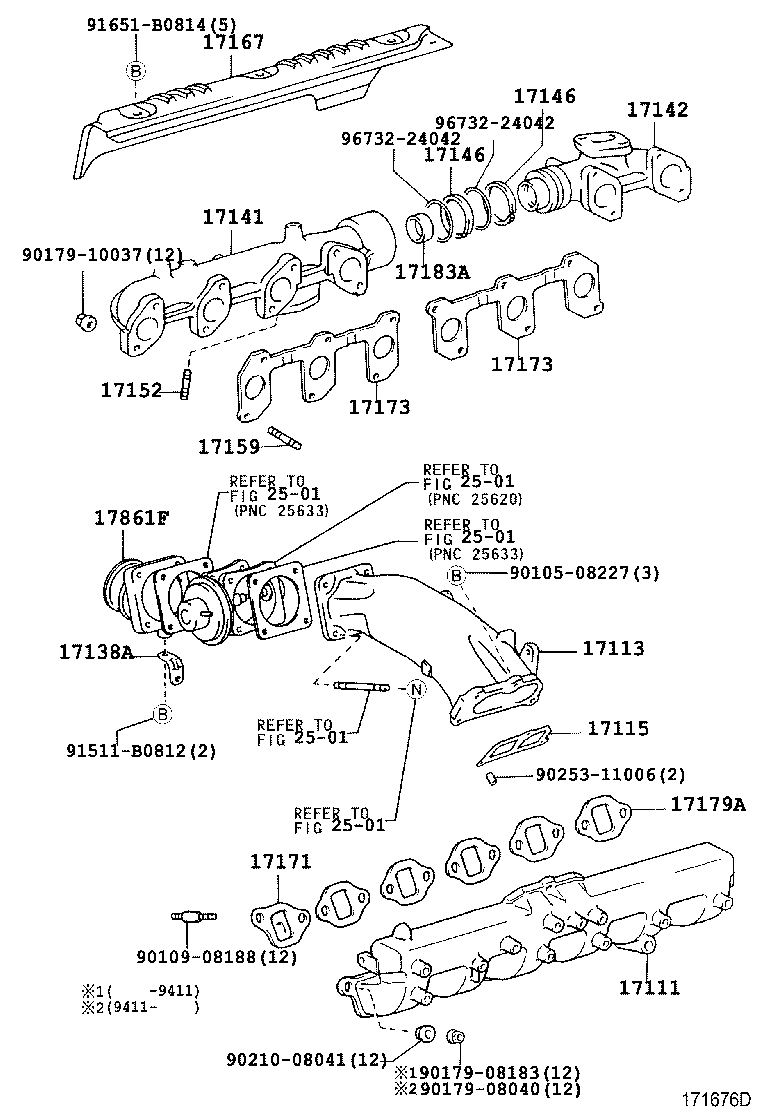

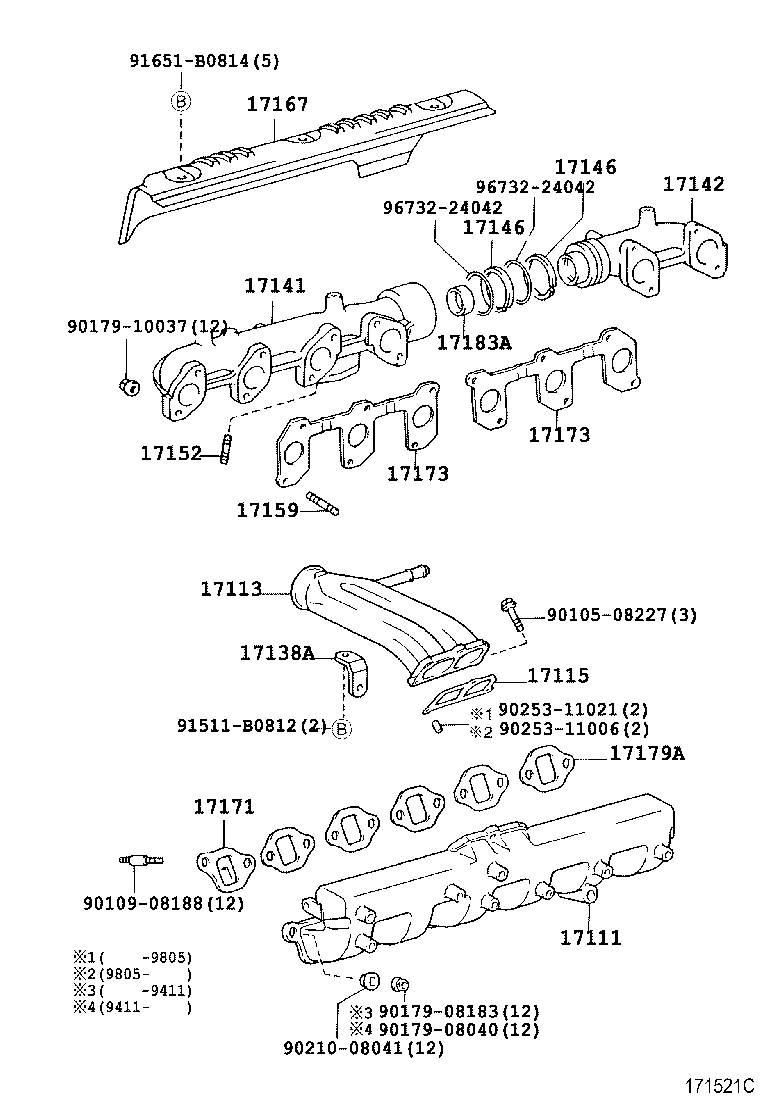

82 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 16347 | Gasket, Water By-pass |
| 16347C | Gasket(FOR TURBO WATER PIPE) |
| 16353 | Flange, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17110 | Manifold Assy |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111C | Plug, NO.3 |
| 17111D | Plug, NO.4 |
| 17111S | Gasket(FOR MANIFOLD PLUG) |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17113 | Pipe, Intake |
| 17114 | Plate, Intake Manifold Hole Cover |
| 17114A | Flange, Intake |
| 17114B | Gasket, Intake Flange |
| 17115 | Gasket, Intake Manifold Hole Cover |
| 17118 | Stay, Manifold |
| 17129 | Tank, Intake Air Surge |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17138A | Stay, Intake Pipe |
| 17141 | Manifold, Exhaust |
| 17141E | Plate, Exhaust Manifold |
| 17141F | Gasket(FOR EXHAUST MANIFOLD PLATE) |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17142 | Case, Exhaust Manifold, NO.2 |
| 17146 | Ring, Exhaust Manifold |
| 17147 | Spring, Exhaust Manifold |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17151A | Bolt, Stud(FOR MANIFOLD TO VENTURI) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17183A | Collar, Manifold |
| 17198 | Gasket, Exhaust Manifold, NO.2 |
| 17201 | Turbocharger Sub-assy |
| 17229 | Band, V |
| 17230A | Repair Actuaor Assy, W/Bracket |
| 17230B | Washer, Plate(FOR REPAIR ACTUATOR SET) |
| 17230C | Bolt, W/Washer(FOR REPAIR ACTUATOR SET) |
| 17230D | Hose(FOR REPAIR ACTUATOR SET) |
| 17271 | Insulator, Turbo, NO.1 |
| 17272 | Insulator, Turbo, NO.2 |
| 17274 | Elbow, Compressor Inlet |
| 17275 | Elbow, Compressor Outlet |
| 17276 | Gasket, Compressor Inlet |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17288 | Insulator, Turbo, NO.3 |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17341M | Hose, Air, NO.1 |
| 17341N | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342H | Hose, Air, NO.2(FOR TURBOCHARGER) |
| 17342J | Clip, Hose(FOR INTAKE PIPE) |
| 17376C | Gasket, Air Tube |
| 17377B | Gasket, Air Tube, NO.2 |
| 17861F | Connector, Intake Air |
| 17861G | Gasket, Intake Air Connector |
| 17871A | Stay, Air Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
