Air Cleaner

56 part groups · 24 illustrations

Illustrations

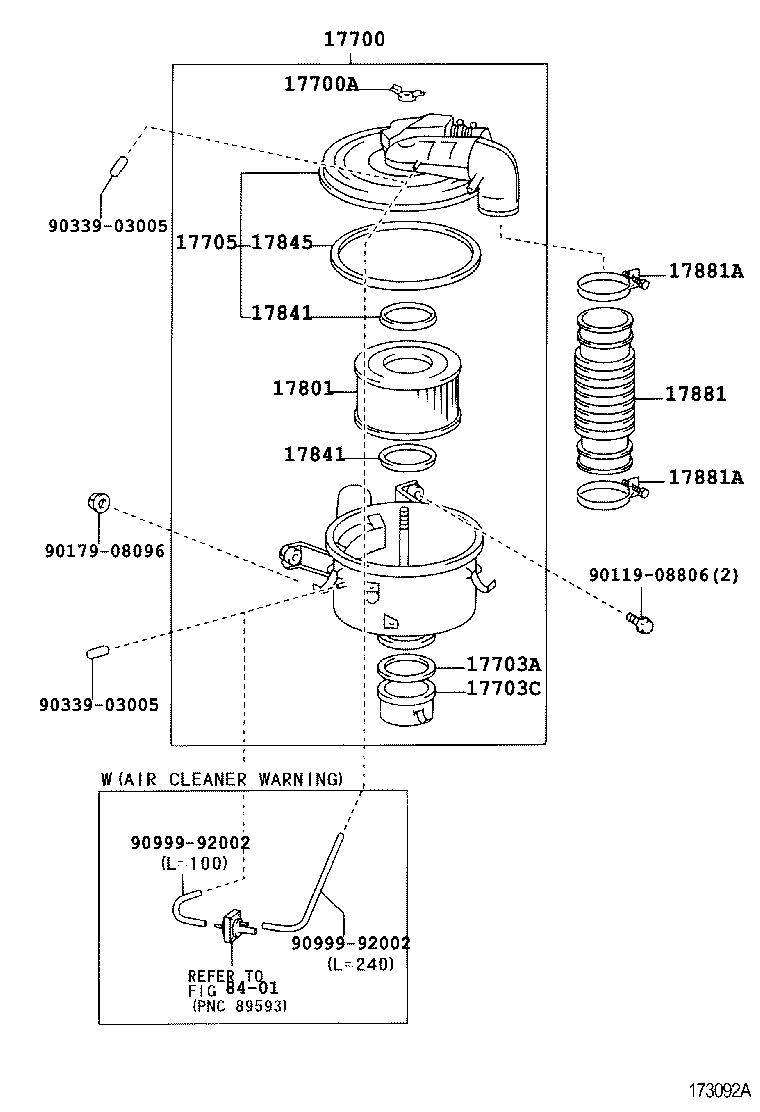

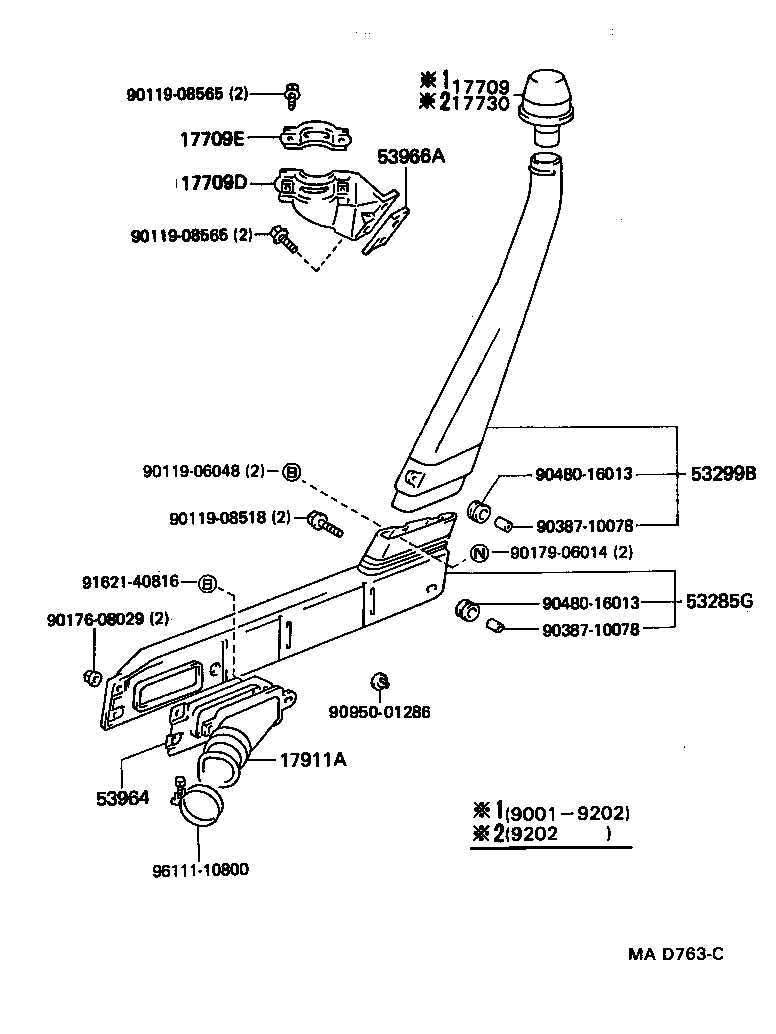

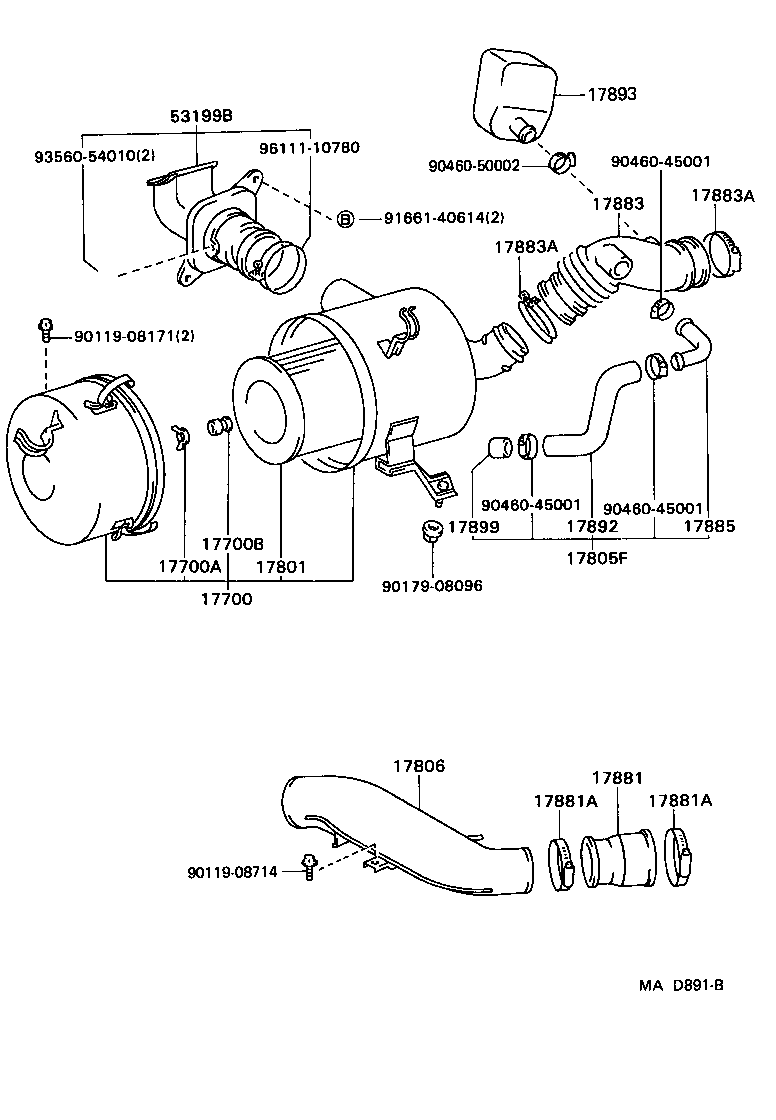

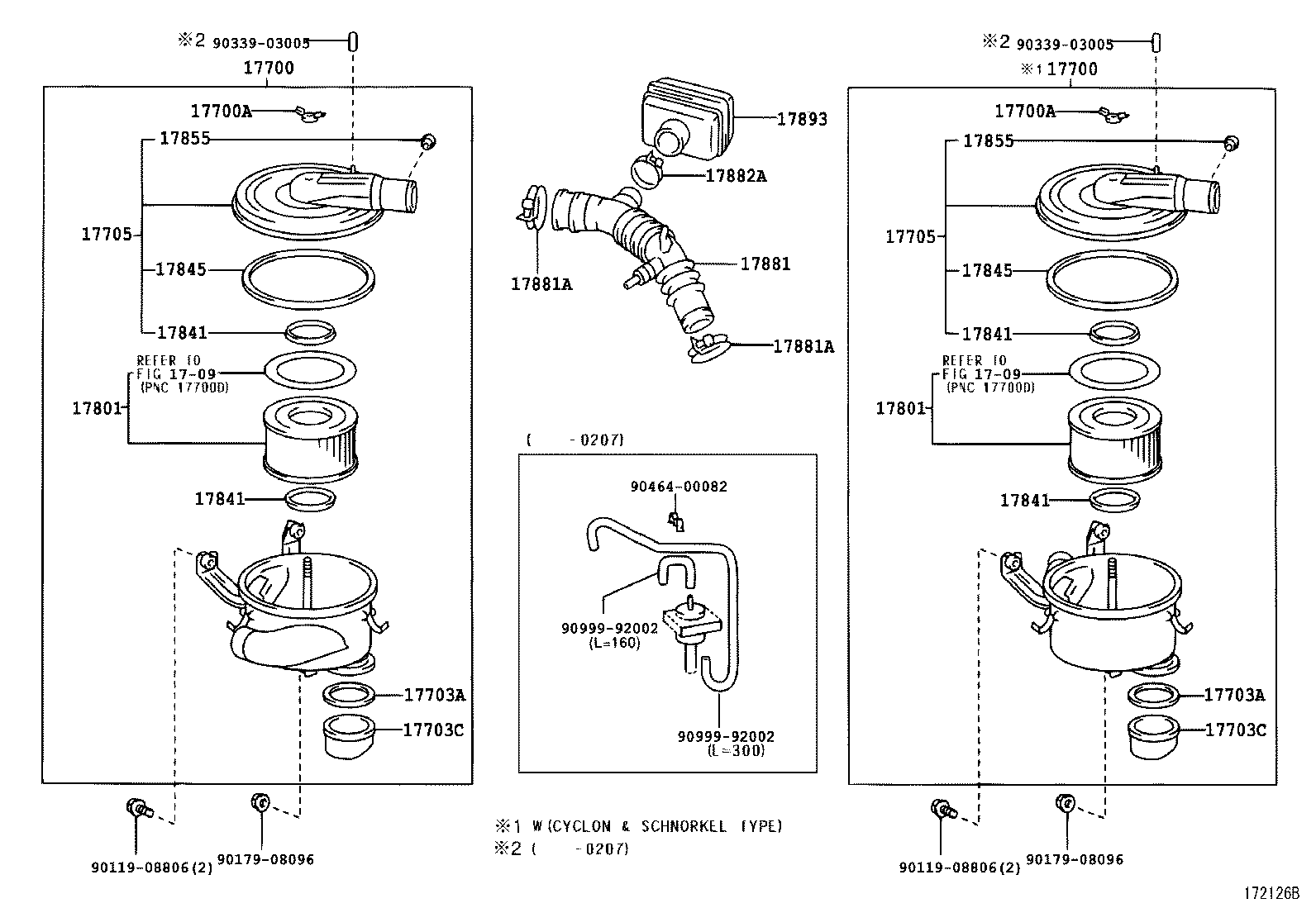

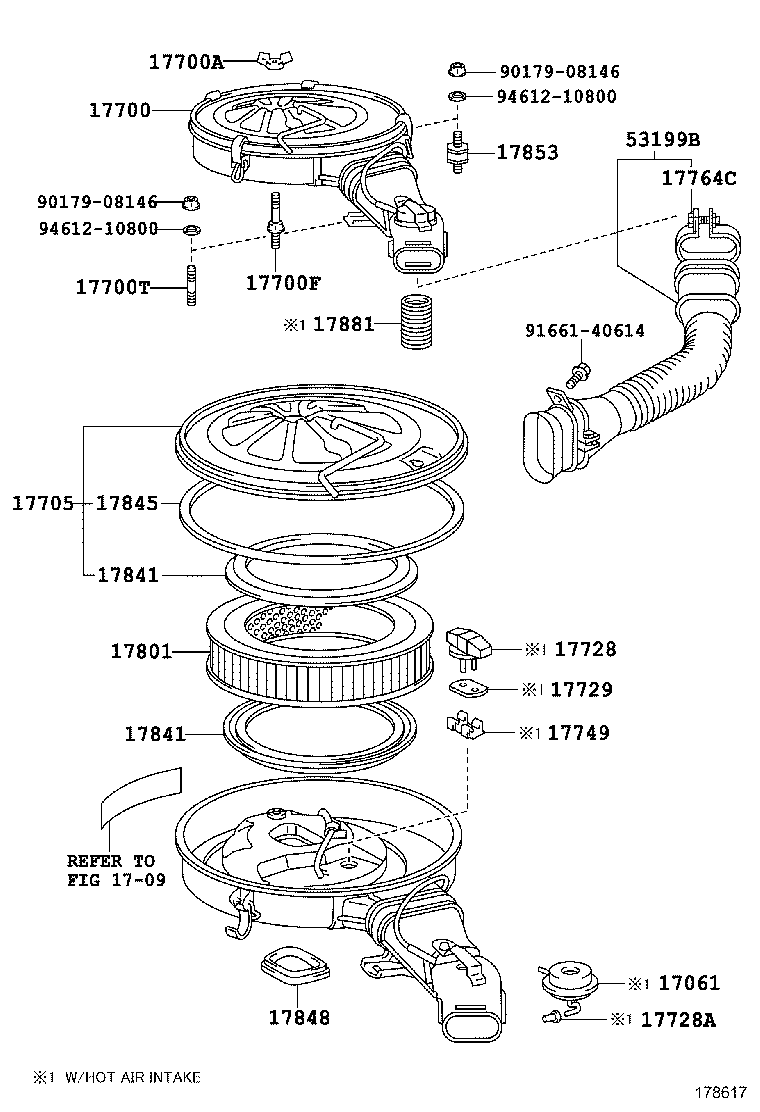

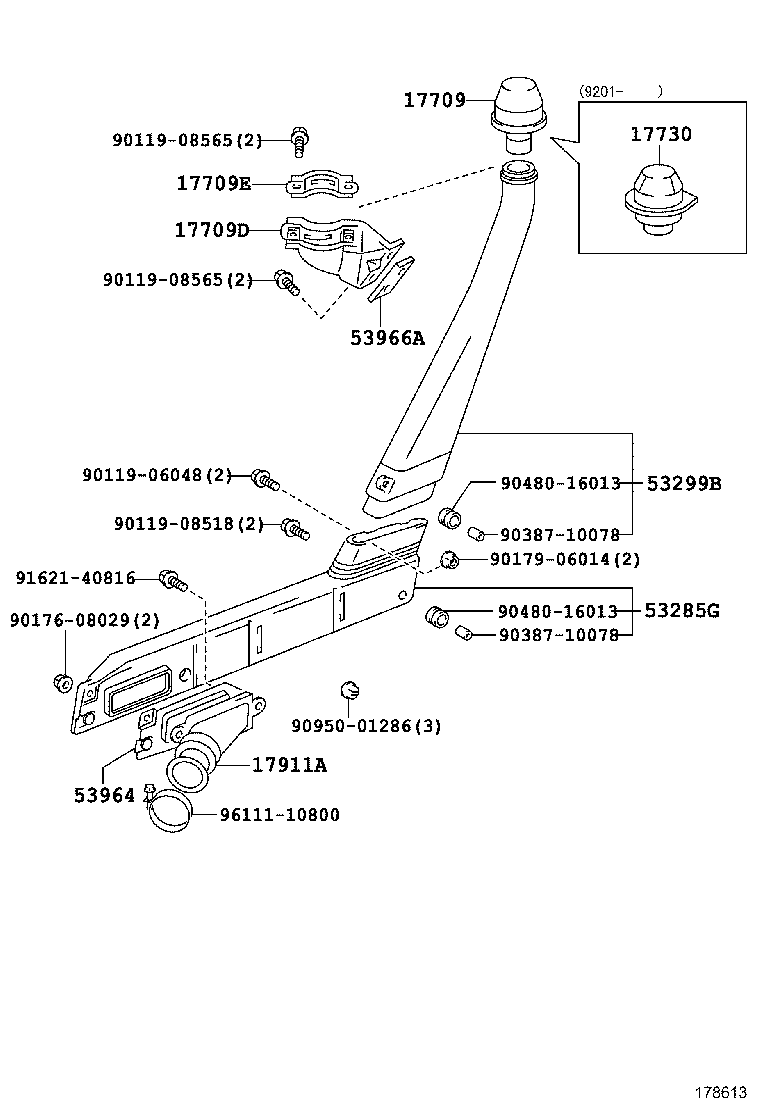

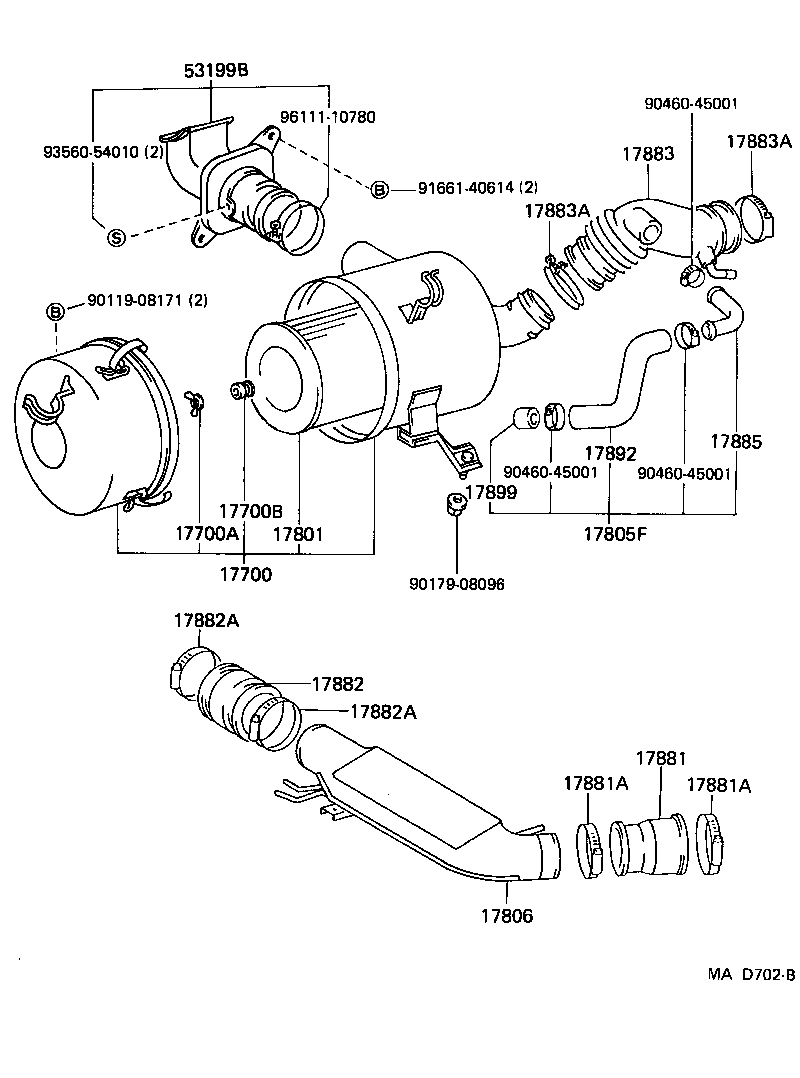

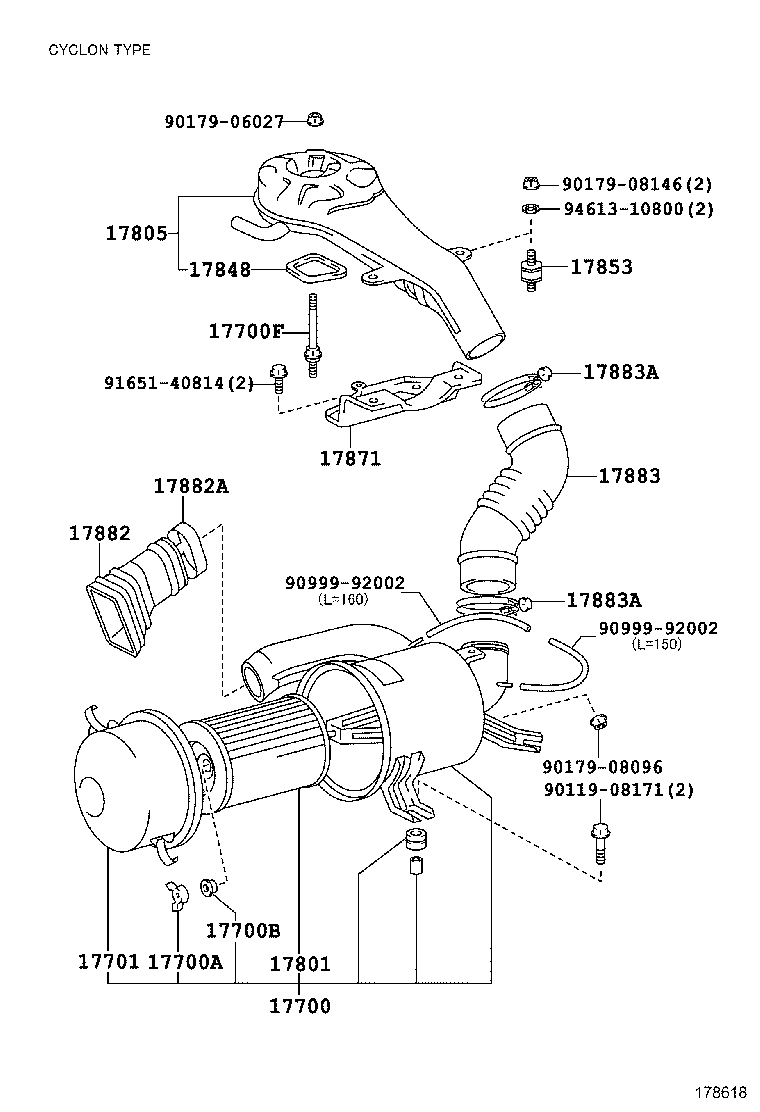

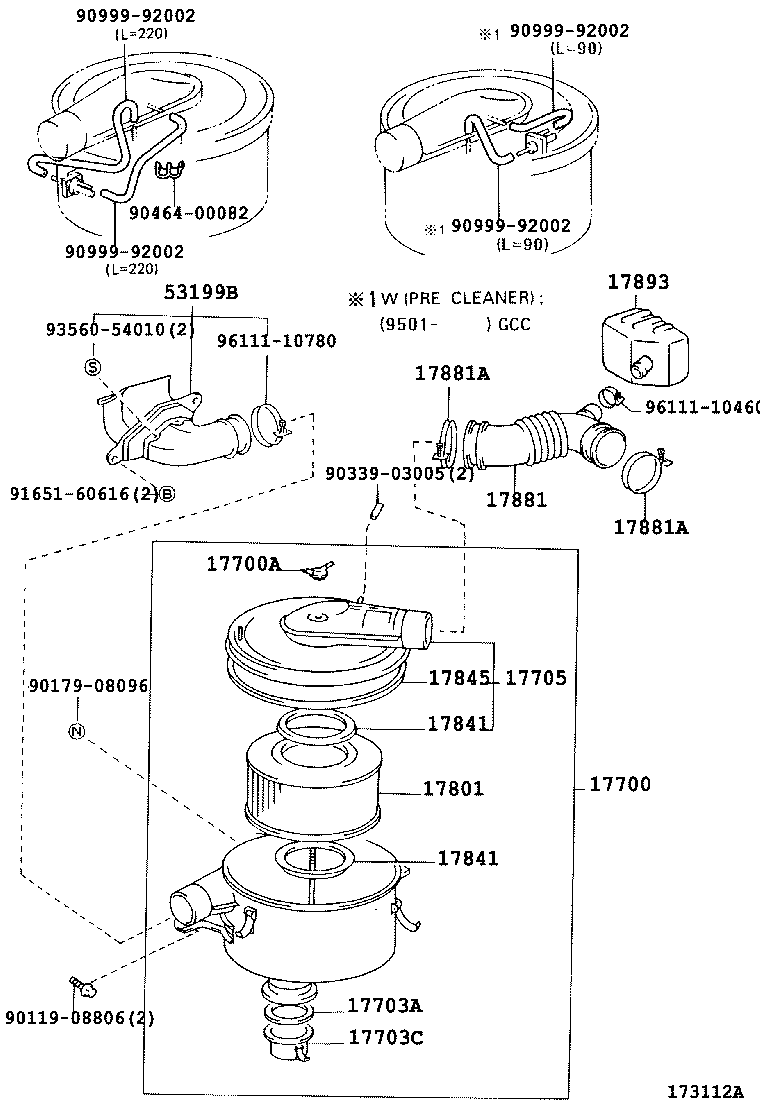

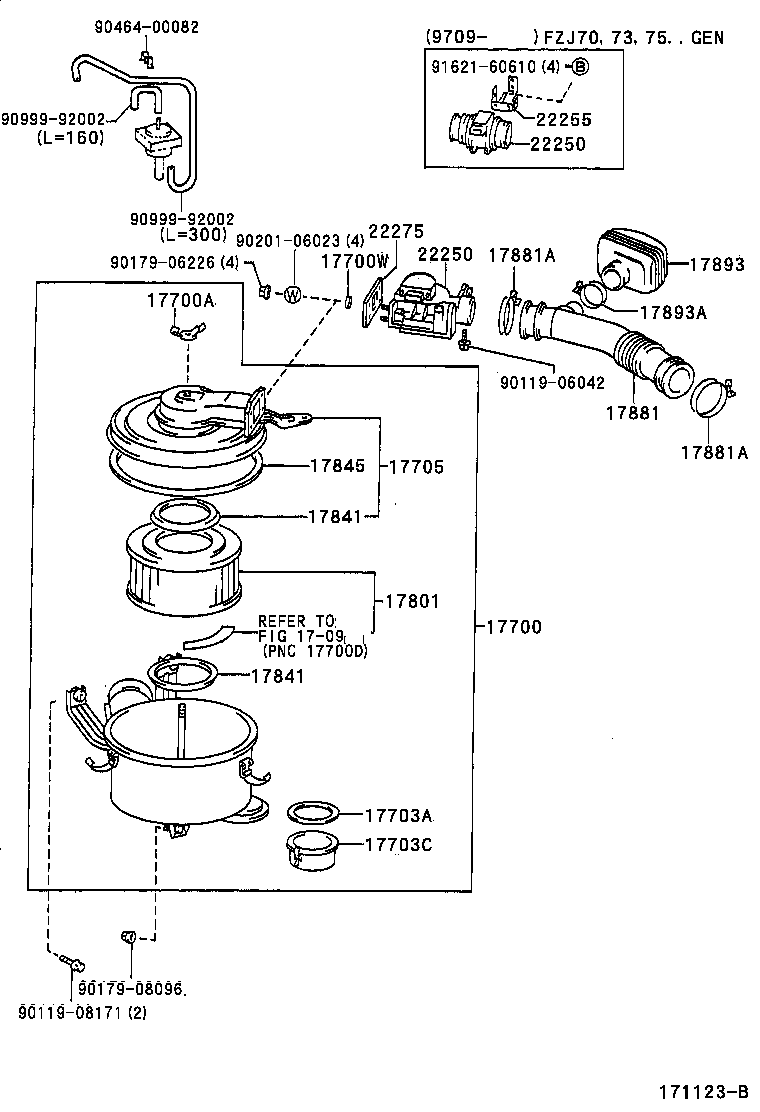

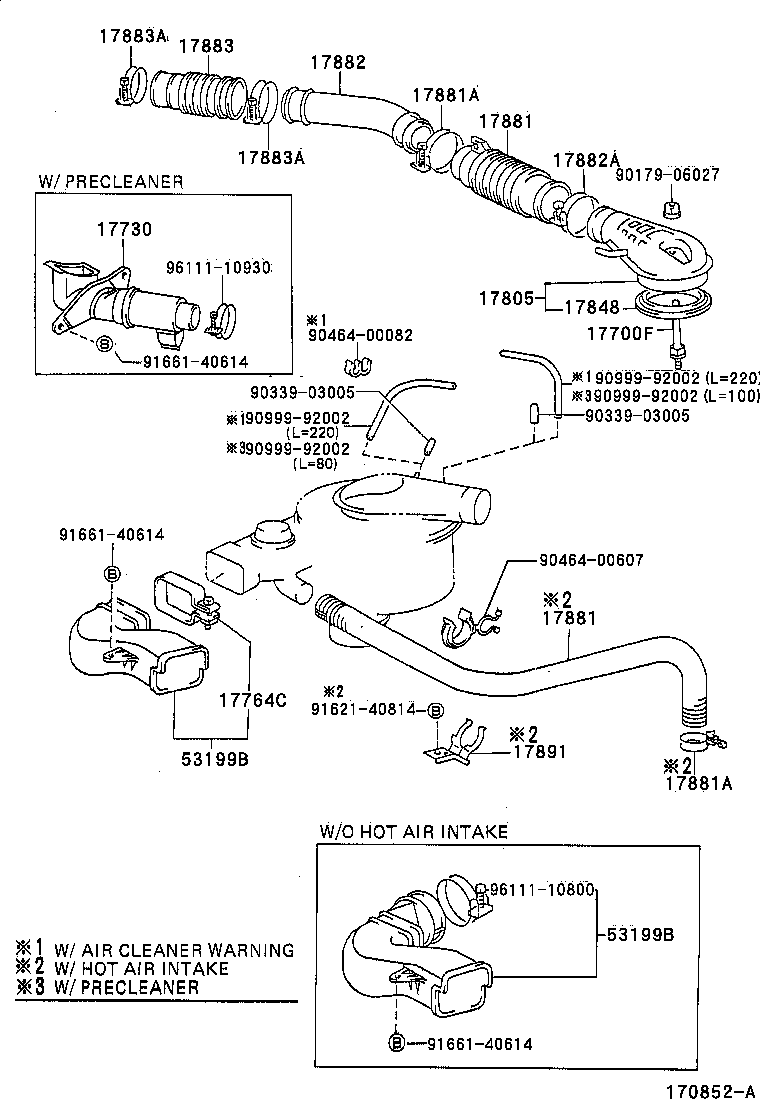

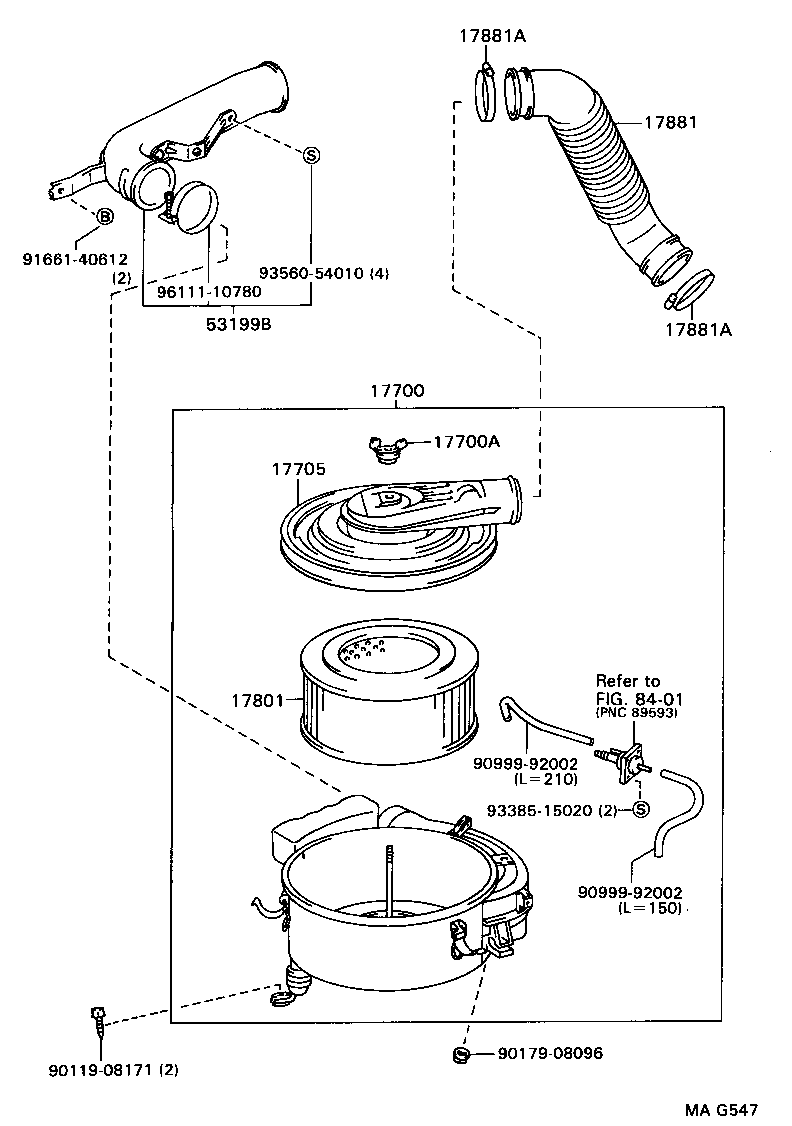

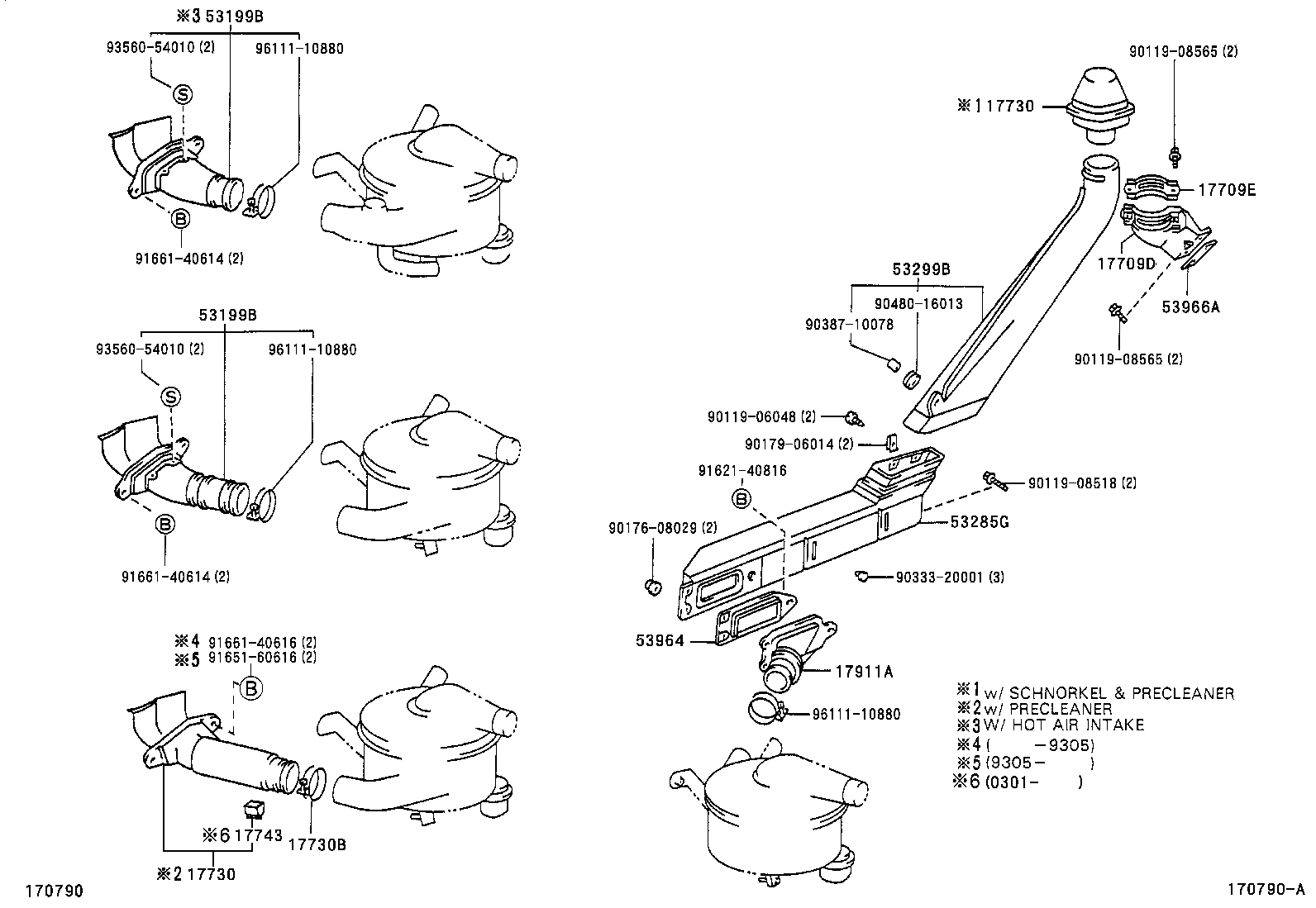

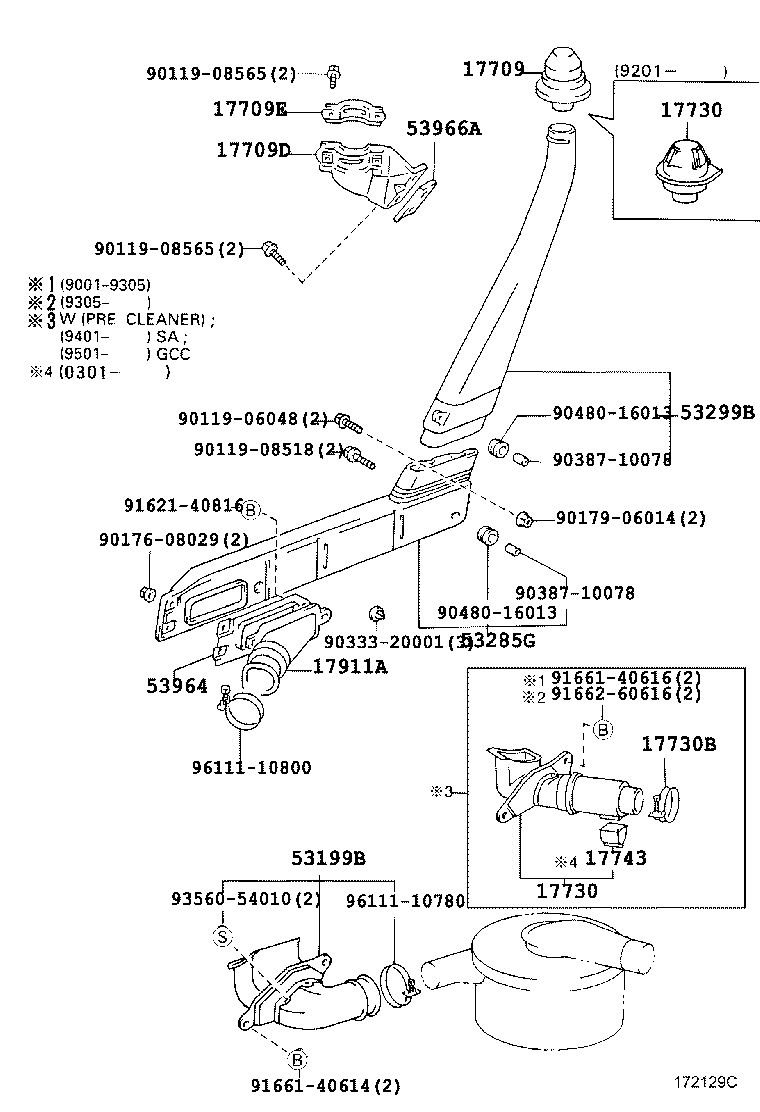

Figure 178606 178606 1990-01 → 1992-08 Figure 170852A 170852A 1990-01 → 1992-08 Figure MAD763C MAD763C 1990-01 → 1992-08 Figure 170853 170853 1992-01 → — Figure 171123B 171123B 1992-08 → — Figure 172126B 172126B 1999-08 → — Figure 170790A 170790A 1992-01 → — Figure 174459 174459 1990-01 → 2007-01 Figure 173112A 173112A 1990-01 → — Figure 173091B 173091B 2001-08 → 2007-01 Figure 173092A 173092A 2001-08 → 2007-01 Figure 178604 178604 1990-01 → 2007-01 Figure 172129C 172129C 1990-01 → — Figure 173093 173093 2001-08 → 2007-01 Figure MAG547 MAG547 1993-05 → — Figure MAD702B MAD702B 1990-01 → 1993-05 Figure MAD891B MAD891B 1990-04 → 1996-04 Figure 178610 178610 1990-01 → 1994-01 Figure 178611 178611 1990-01 → 1995-01 Figure 178612 178612 1990-01 → 1994-01 Figure 170749 170749 1994-01 → 1995-01 Figure 178613 178613 1990-01 → 1994-01 Figure 178617 178617 1990-01 → — Figure 178618 178618 1990-01 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700T Bolt, Stud(FOR AIR CLEANER)
17700V Bush(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17743 Valve, Dust Relief
17749 Support, Thermostat Valve
17764C Clamp, Hose(FOR AIR CLEANER DUCT)
17781A Clamp, Hose
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805F Resonator Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17853 Insulator, Air Cleaner Bracket
17855 Gasket, Air Inlet Duct, NO.1
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17891 Clamp(FOR HOT AIR HOSE)
17892 Hose, Intake Air Resonator
17893 Resonator, Intake Air
17893A Clamp, Hose
17899 Plug, Resonator Hose
17911A Hose, Cool Air Intake, NO.1
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
53199B Duct Sub-assy, Cool Air Intake
53285G Duct, Cool Air Intake, NO.2
53299B Duct, Cool Air Intake
53964 Plate, Air Cleaner Inlet Pipe
53966A Pad, Precleaner
