Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

33 part groups · 20 illustrations

Illustrations

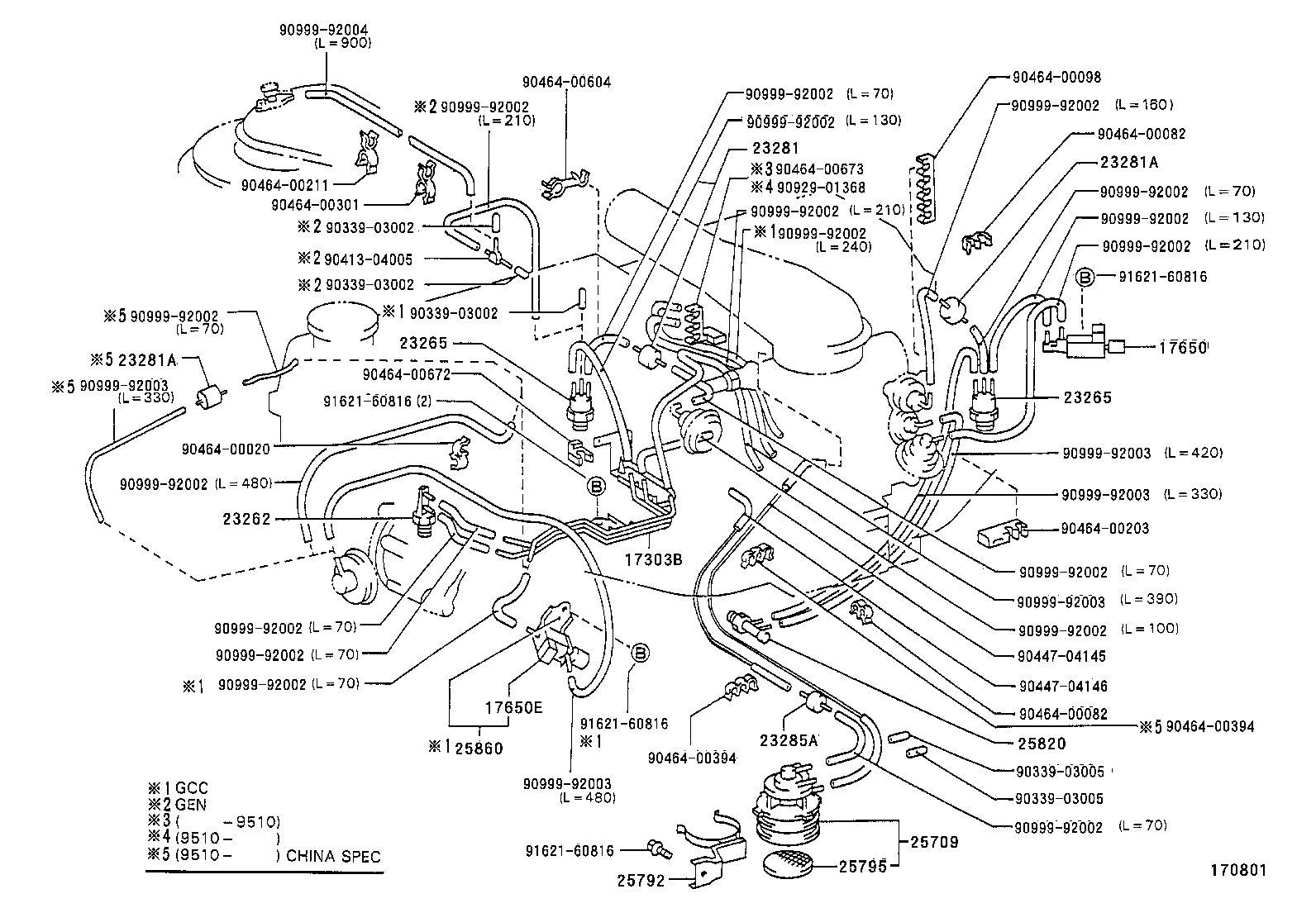

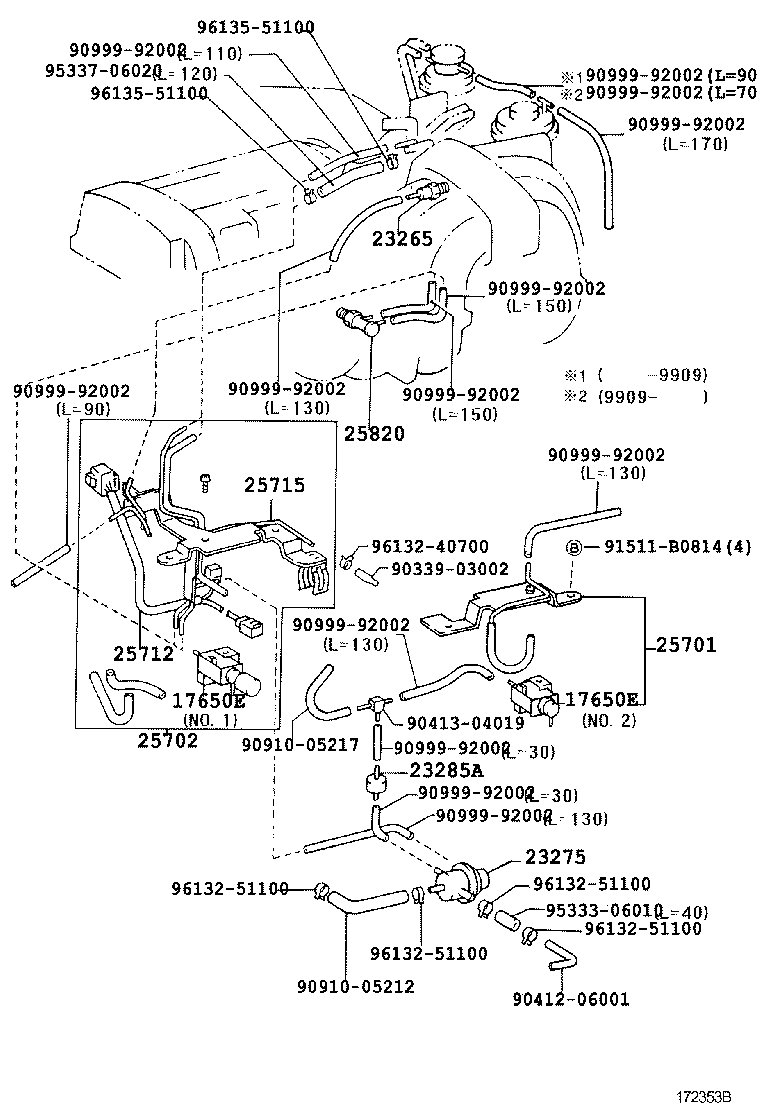

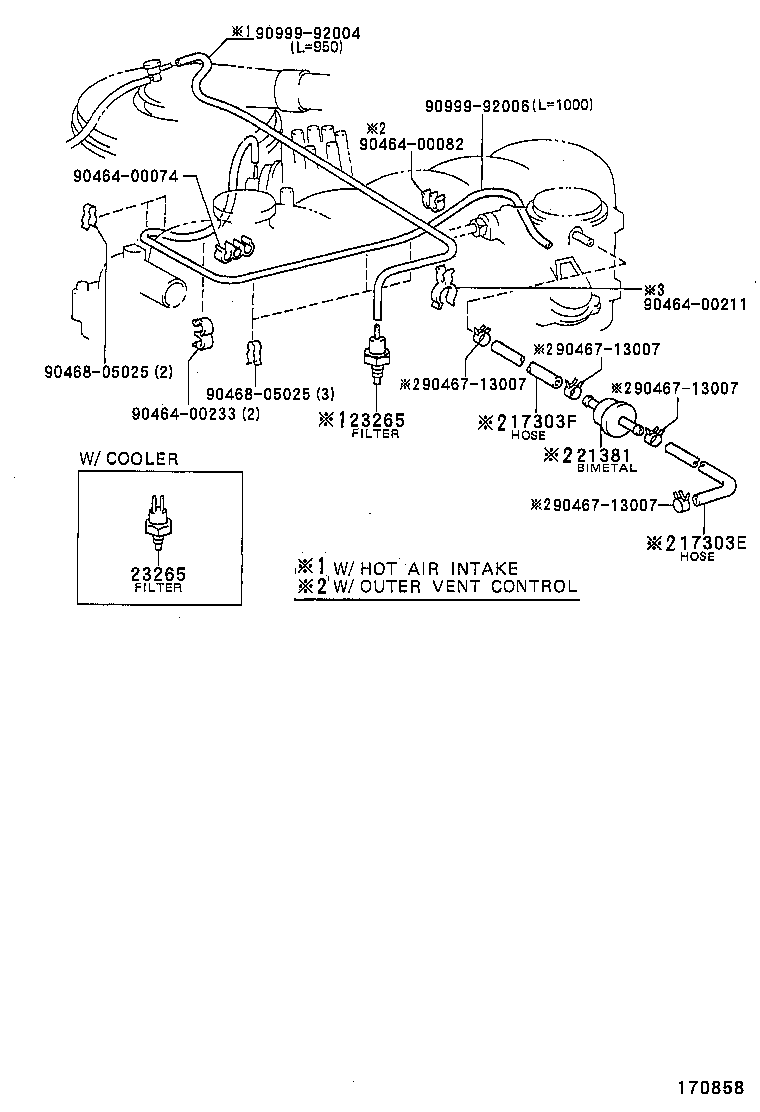

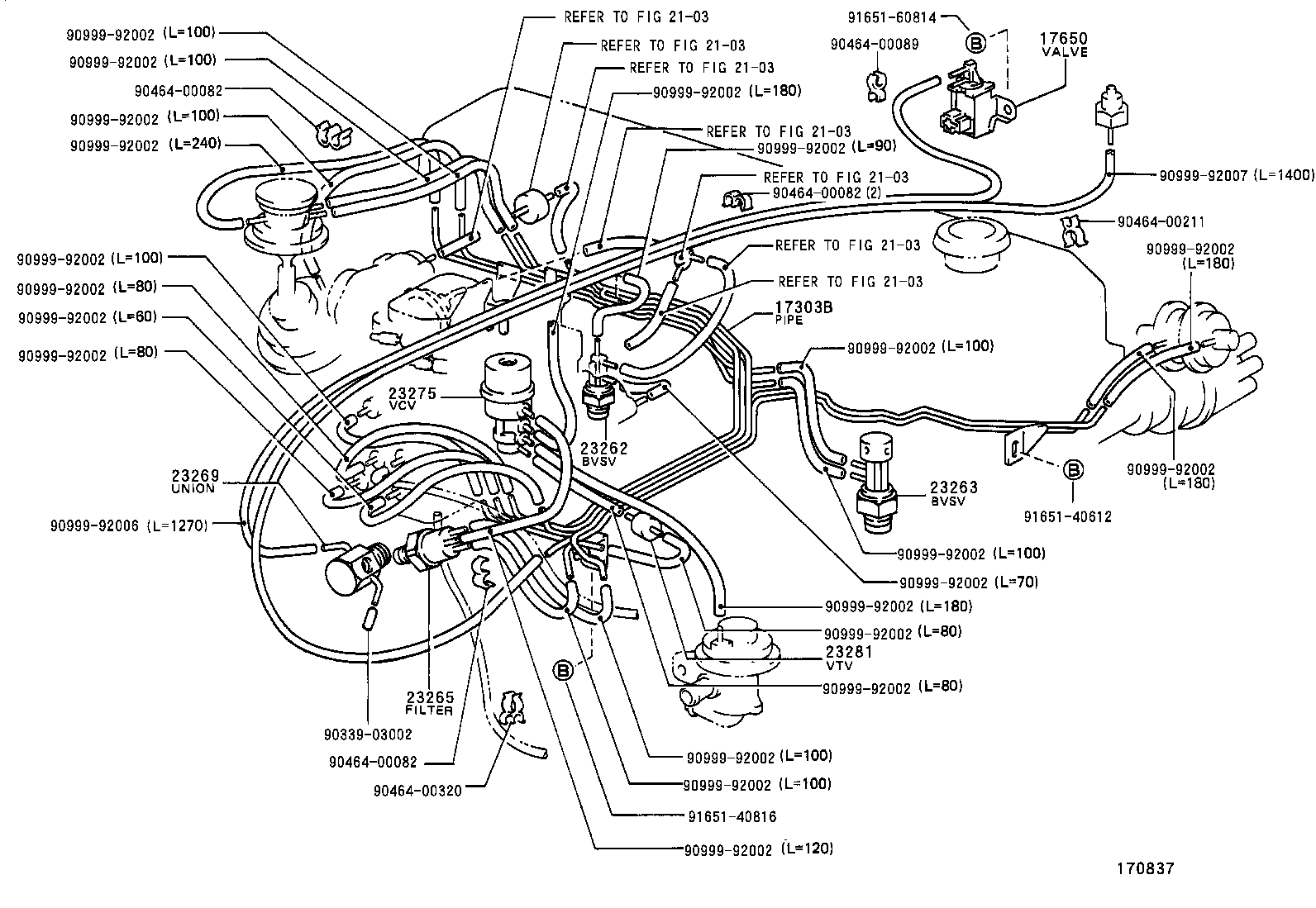

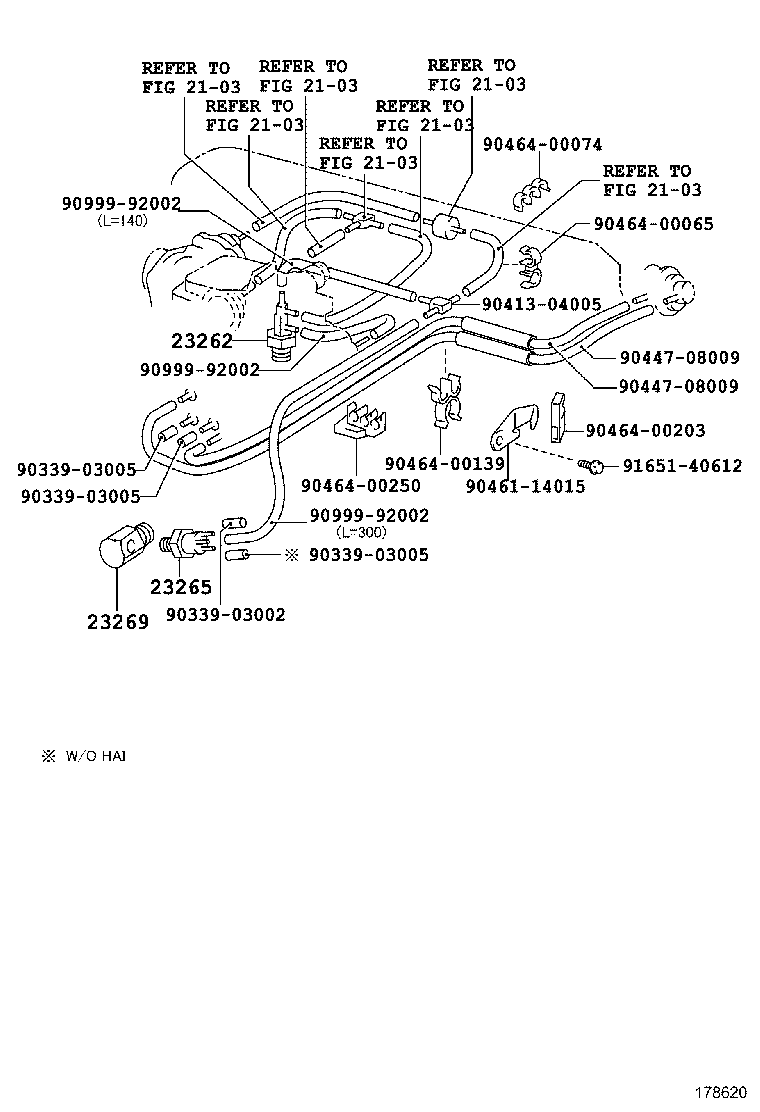

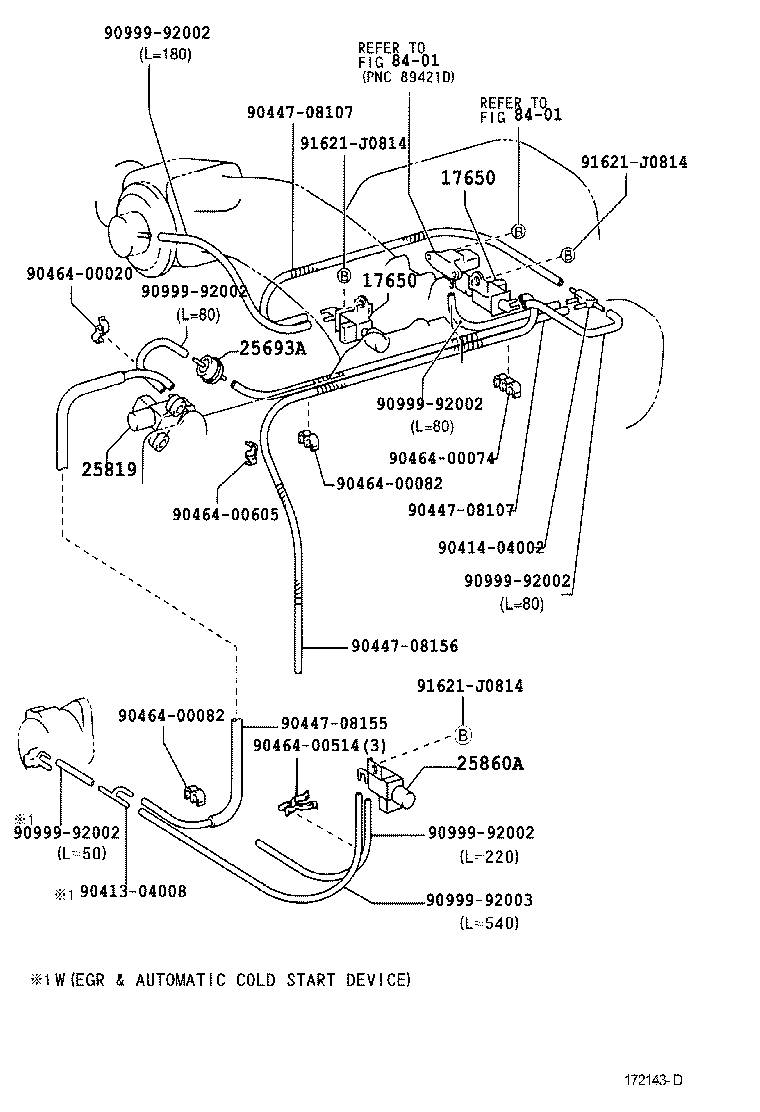

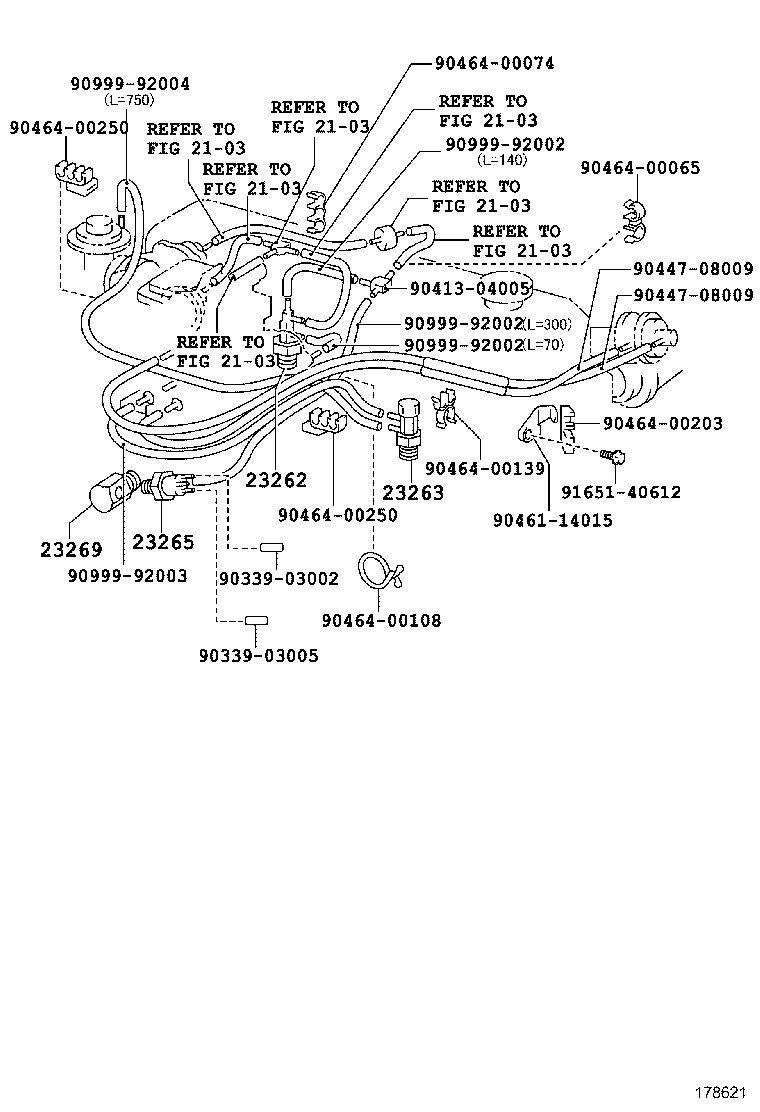

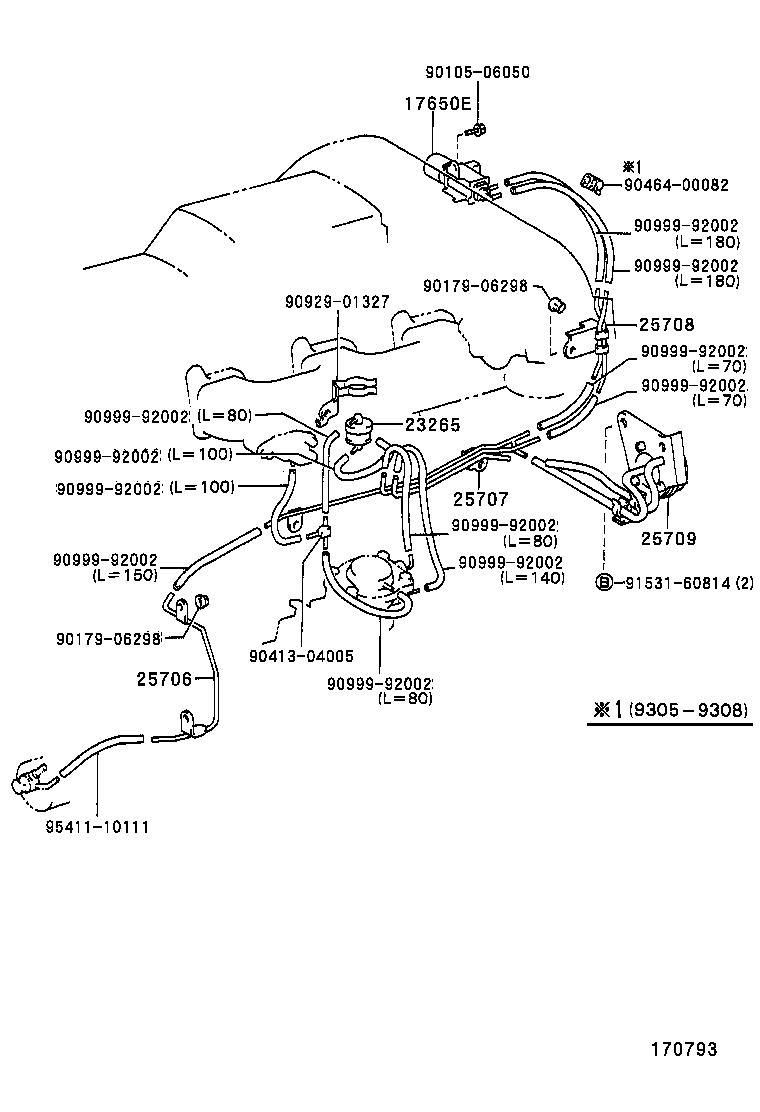

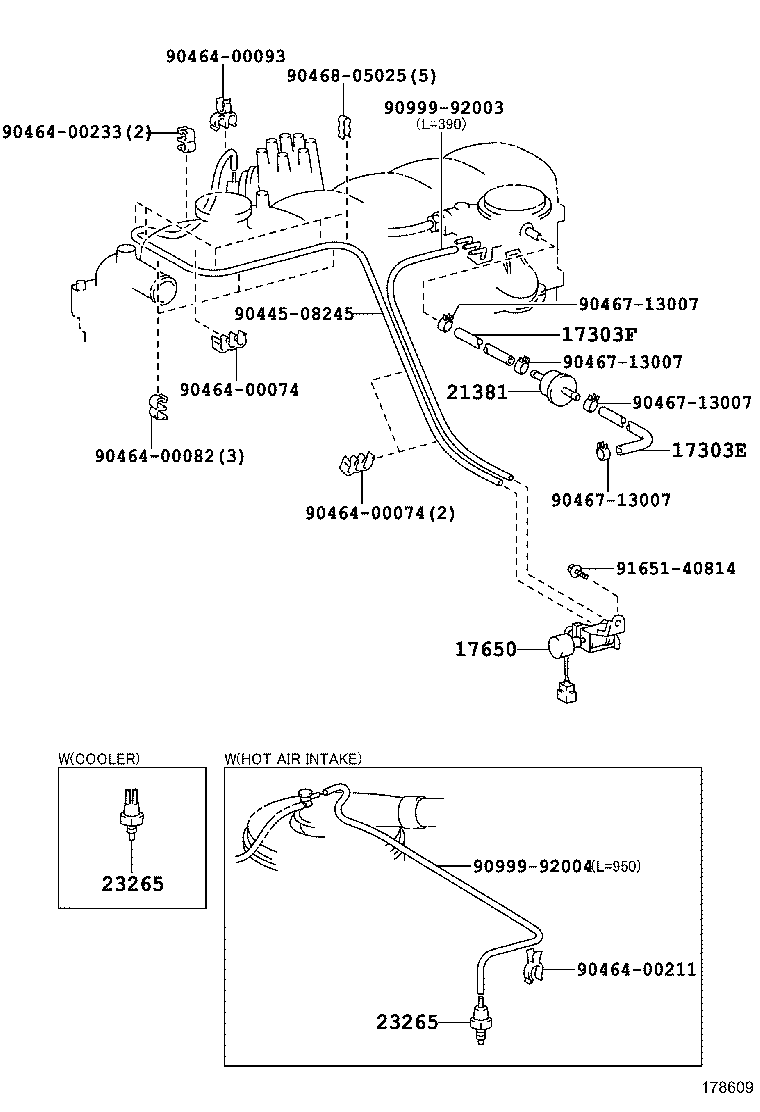

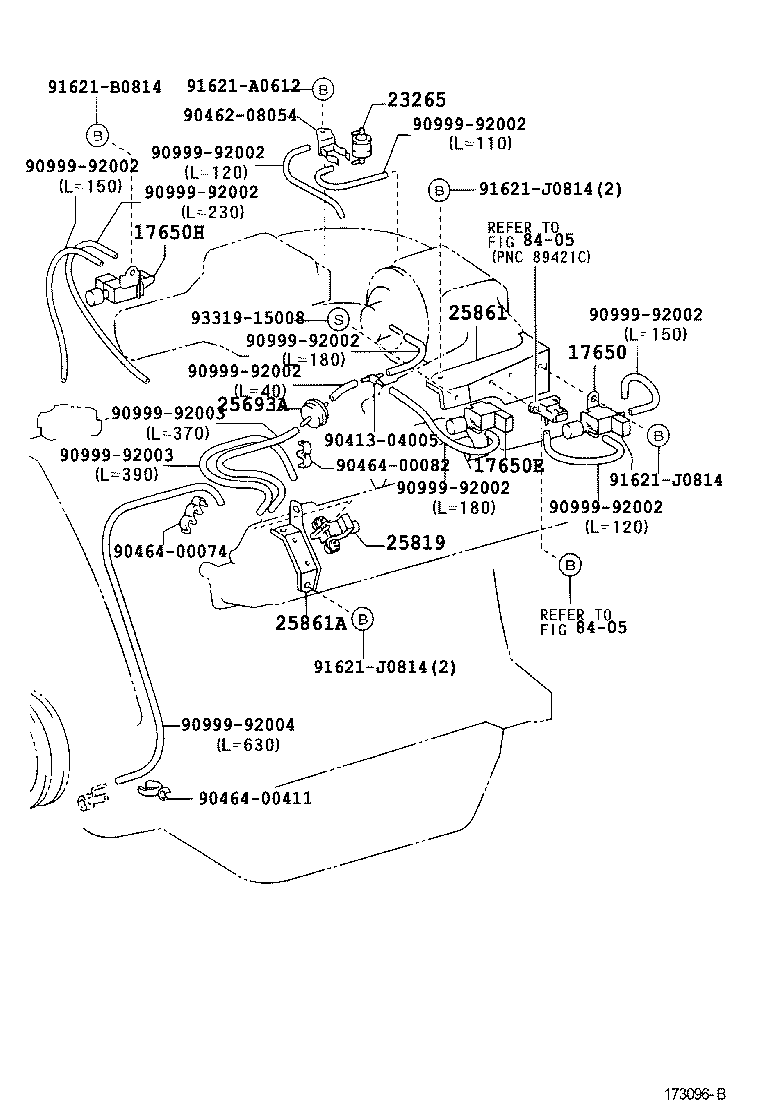

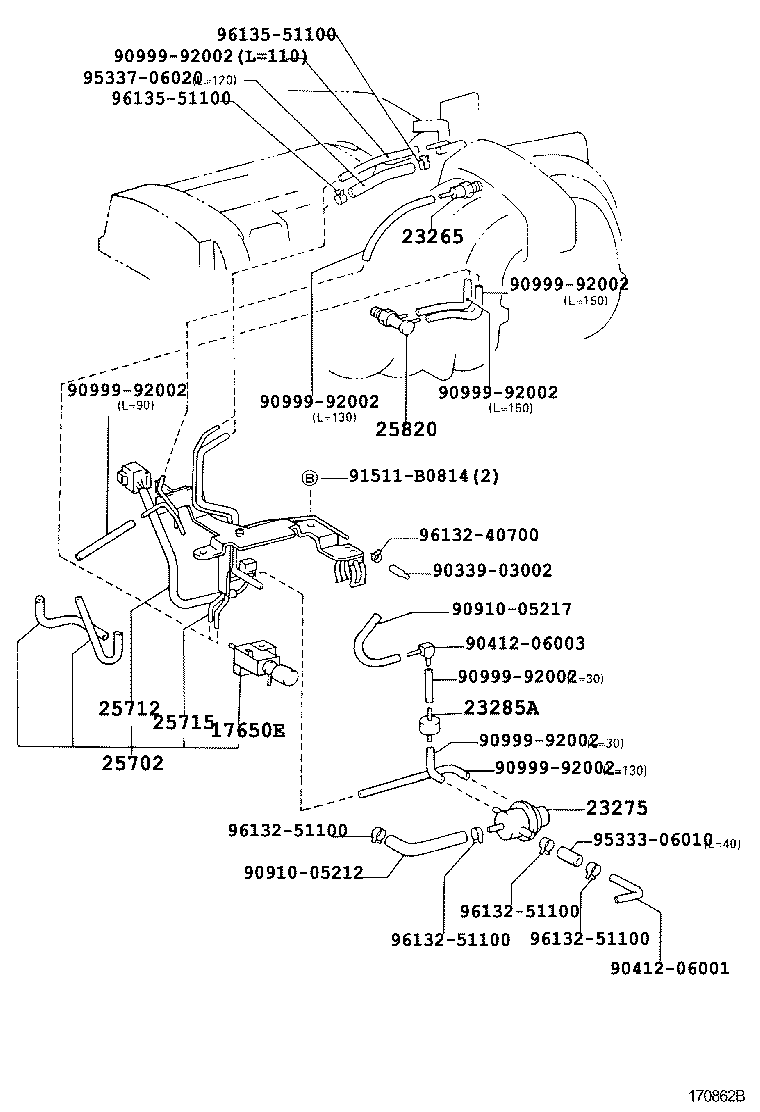

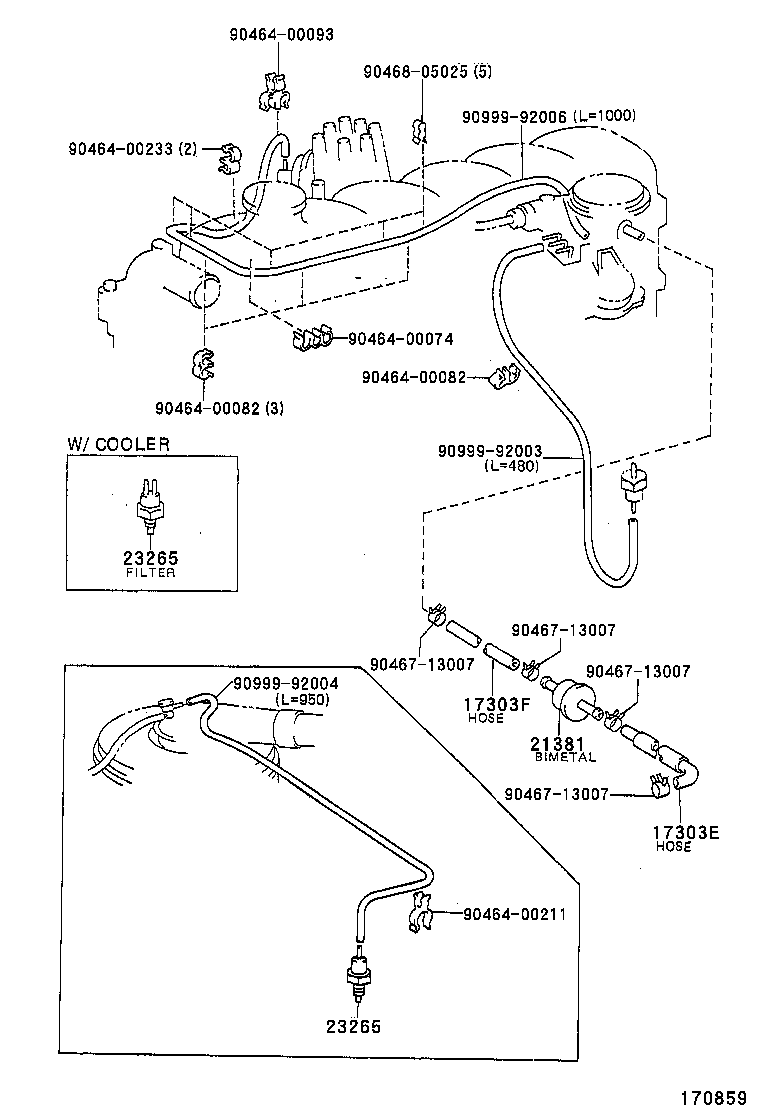

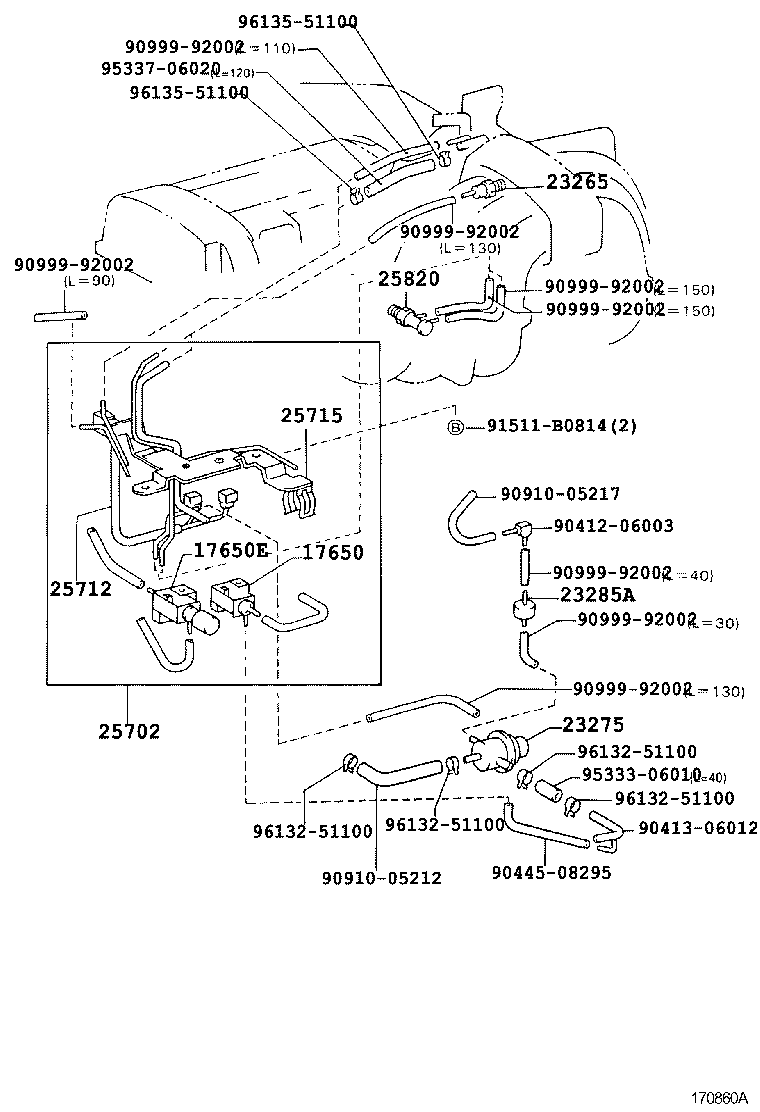

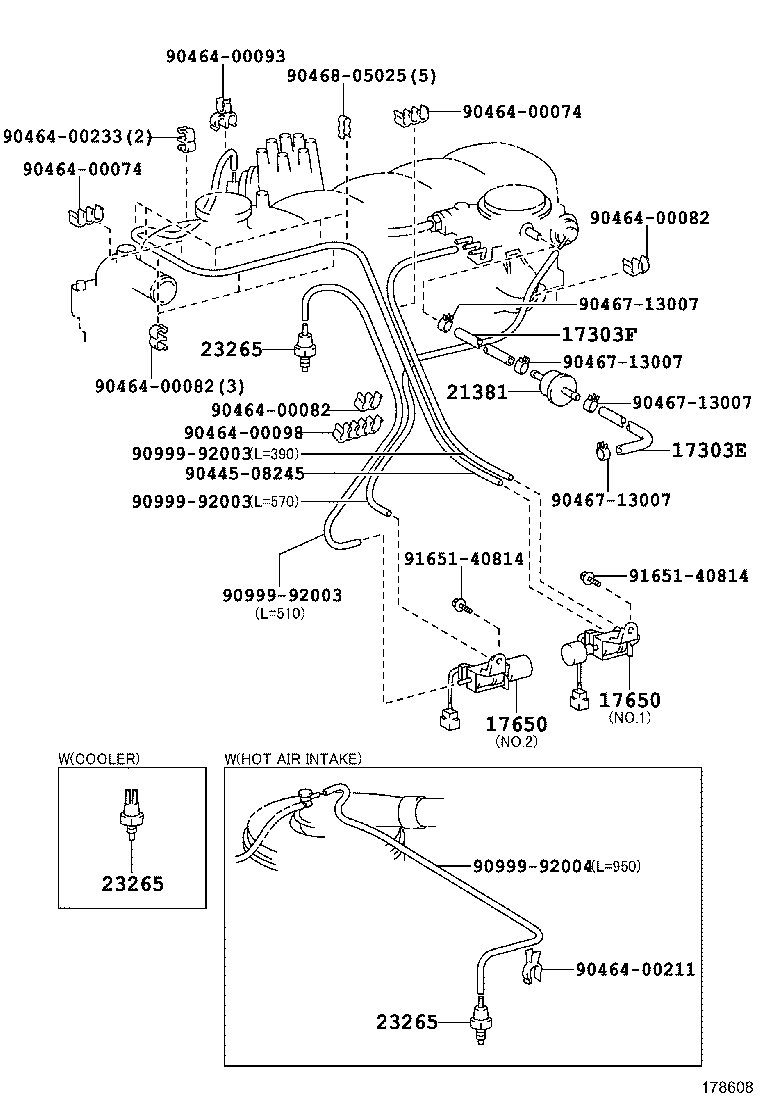

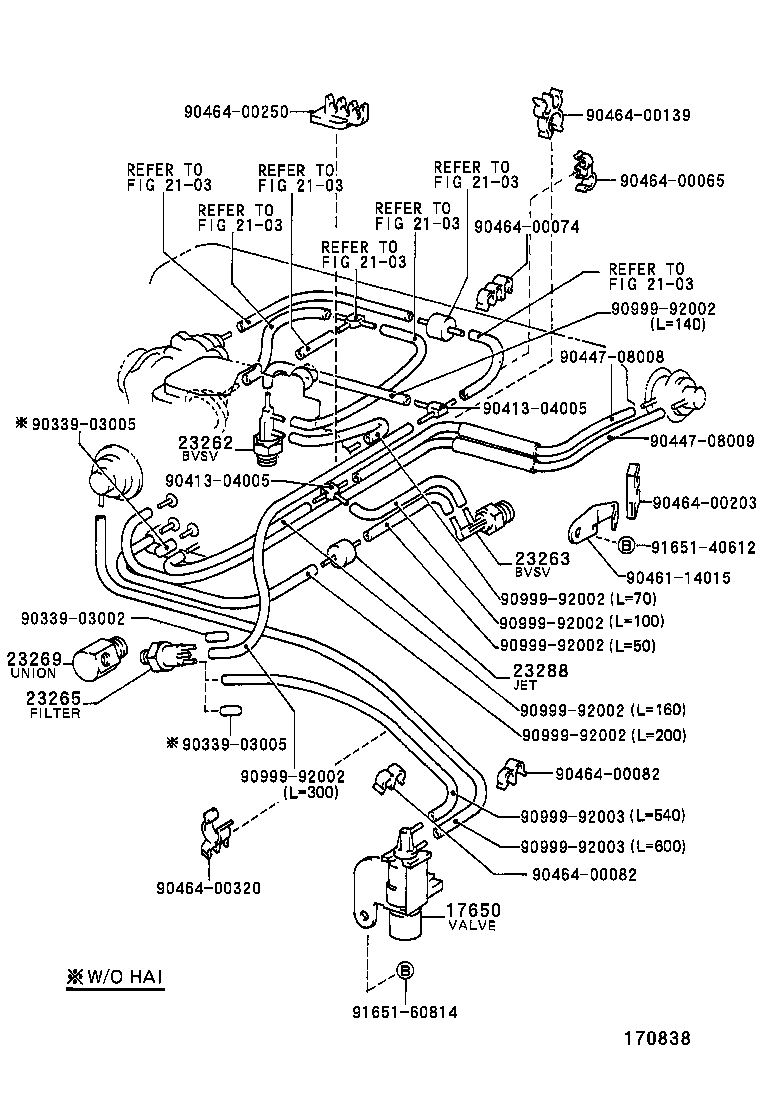

Figure 170021 170021 1990-01 → — Figure 170858 170858 1990-01 → 1992-08 Figure 170859 170859 1990-01 → 1992-08 Figure 178608 178608 1990-01 → 1992-08 Figure 178609 178609 1990-01 → 1992-08 Figure 170801 170801 1992-01 → — Figure 170860A 170860A 1992-08 → 1995-01 Figure 170862B 170862B 1995-01 → — Figure 172353B 172353B 1997-09 → — Figure 172122 172122 1999-08 → — Figure 172143D 172143D 1990-01 → 2007-01 Figure 173096B 173096B 2001-08 → 2007-01 Figure 170793 170793 1993-05 → 1996-04 Figure MAD785A MAD785A 1990-01 → 1993-05 Figure MAD892 MAD892 1990-04 → 1996-04 Figure 170750 170750 1990-01 → 1994-01 Figure 178620 178620 1990-01 → 1994-01 Figure 178621 178621 1992-08 → — Figure 170837 170837 1990-01 → 1991-08 Figure 170838 170838 1990-01 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650H Valve, Vacuum Switching
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23281A Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
25693A Damper, Egr Vacuum Modulator
25701 Valve Set, Emission Control
25702 Valve Set, Emission Control, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709 Valve Sub-assy, High Altitude Compensator
25712 Wire, Emission Control Valve
25715 Bracket, Emission Control Valve
25792 Bracket, Altitude Compensator Valve
25795 Element, Altitude Compensator Filter
25819 Valve Assy, Vacuum Regulating
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
