Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

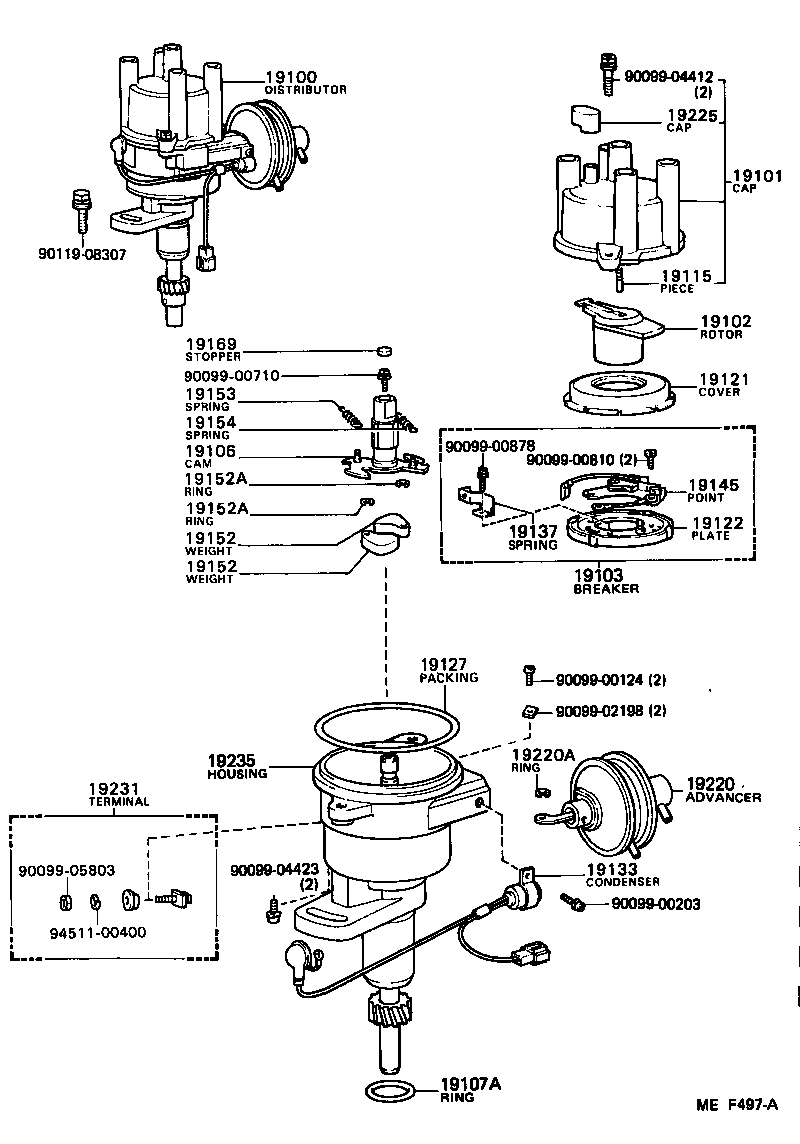

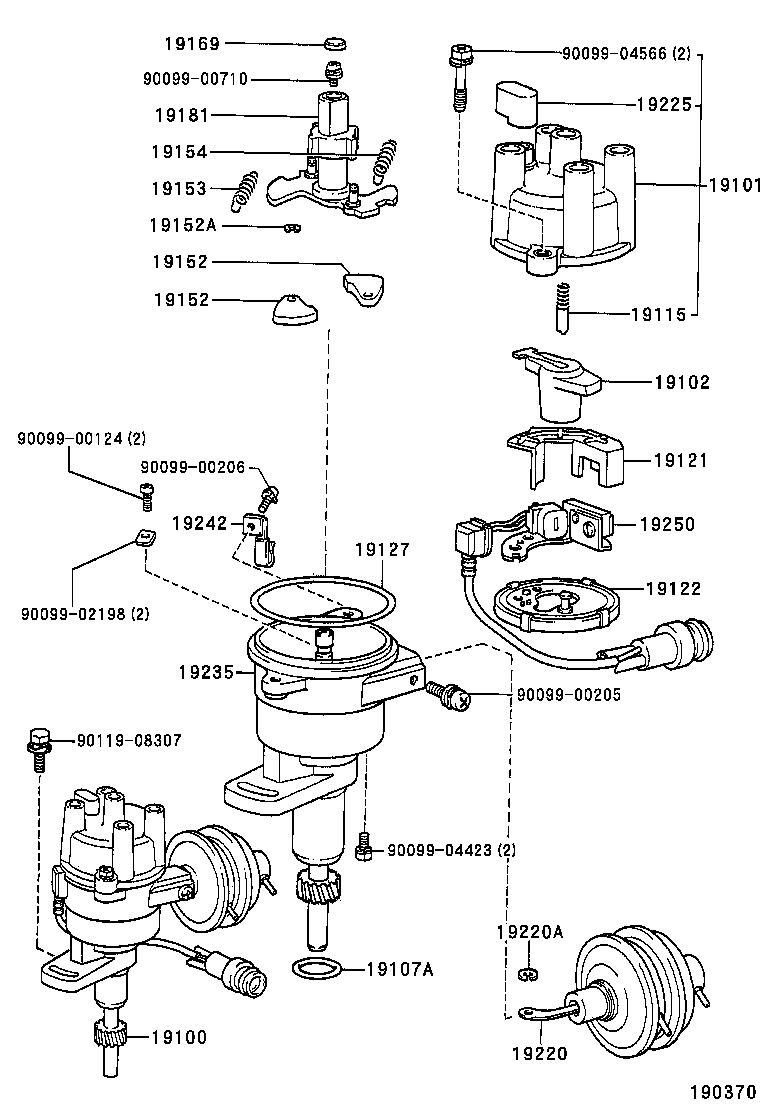

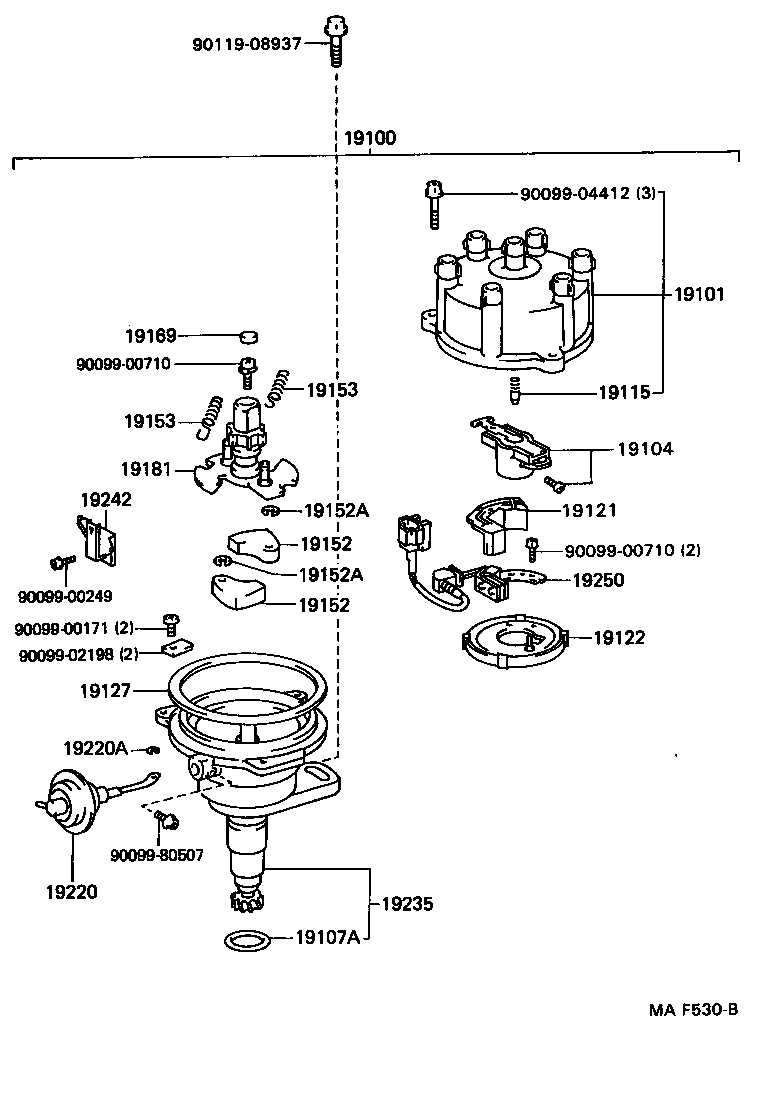

Distributor
34 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100 | Distributor Assy |
| 19101 | Cap Sub-assy, Distributor |
| 19102 | Rotor Sub-assy, Distributor |
| 19103 | Breaker Sub-assy, Distributor |
| 19104 | Rotor Kit |
| 19105 | Governor Sub-assy |
| 19106 | Cam Sub-assy, Distributor |
| 19107A | Ring, O, Distributor Housing |
| 19115 | Piece, Distributor Cap, Center |
| 19117 | Spring, Distributor Cap, A |
| 19118 | Spring, Distributor Cap, B |
| 19121 | Cover, Dust Proof |
| 19122 | Plate, Stationary, Distributor |
| 19127 | Packing, Dust Proof |
| 19133 | Condenser, Distributor |
| 19137 | Spring Sub-assy, Damper |
| 19144 | Lead, Distributor Breaker |
| 19145 | Point, Distributor |
| 19151 | Shaft, Governor |
| 19152 | Weight, Governor |
| 19152A | Ring, Snap(FOR GOVERNOR WEIGHT) |
| 19153 | Spring, Governor, A |
| 19154 | Spring, Governor, B |
| 19155 | Gear, Spiral, Distributor |
| 19169 | Stopper, Cam Grease |
| 19181 | Rotor, Distributor, Signal |
| 19220 | Advancer Assy, Vacuum, Distributor |
| 19220A | Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER) |
| 19225 | Cap, Rubber |
| 19231 | Terminal, Distributor |
| 19235 | Housing, Distributor |
| 19242 | Clamp, Cord |
| 19250 | Generator Assy, Signal |
| 19905 | Clamp Sub-assy, Distributor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
