Starter

31 part groups · 11 illustrations

Illustrations

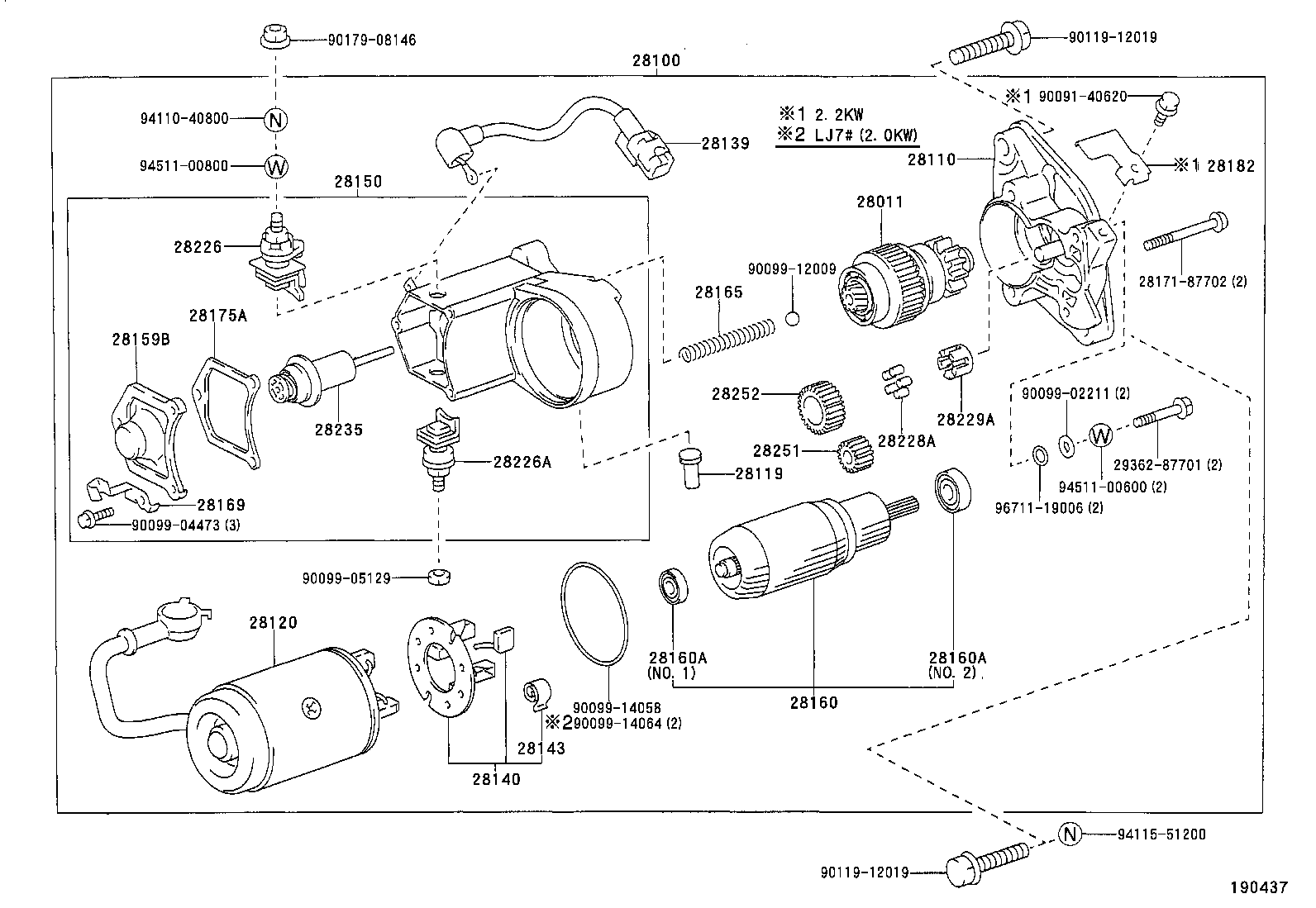

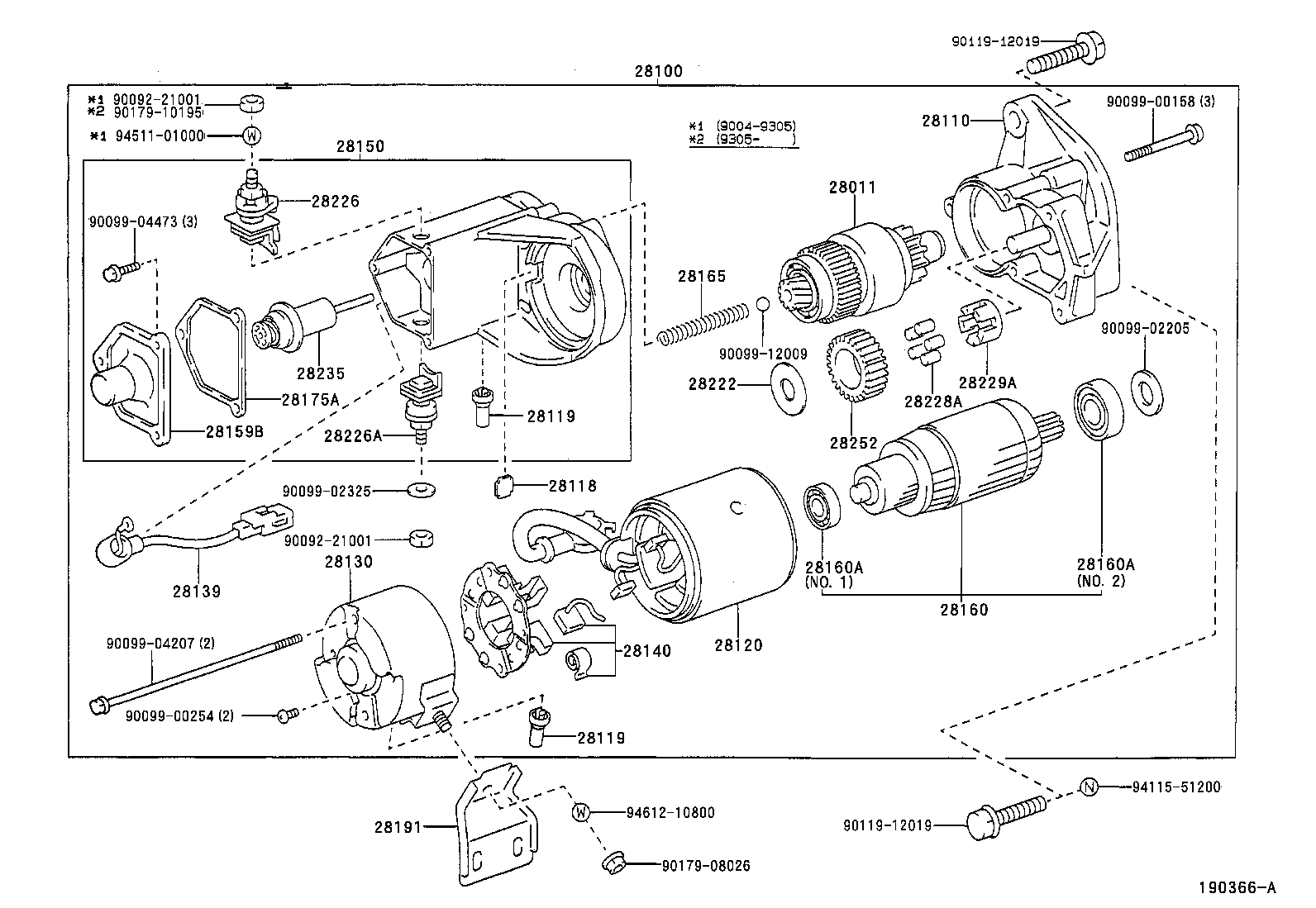

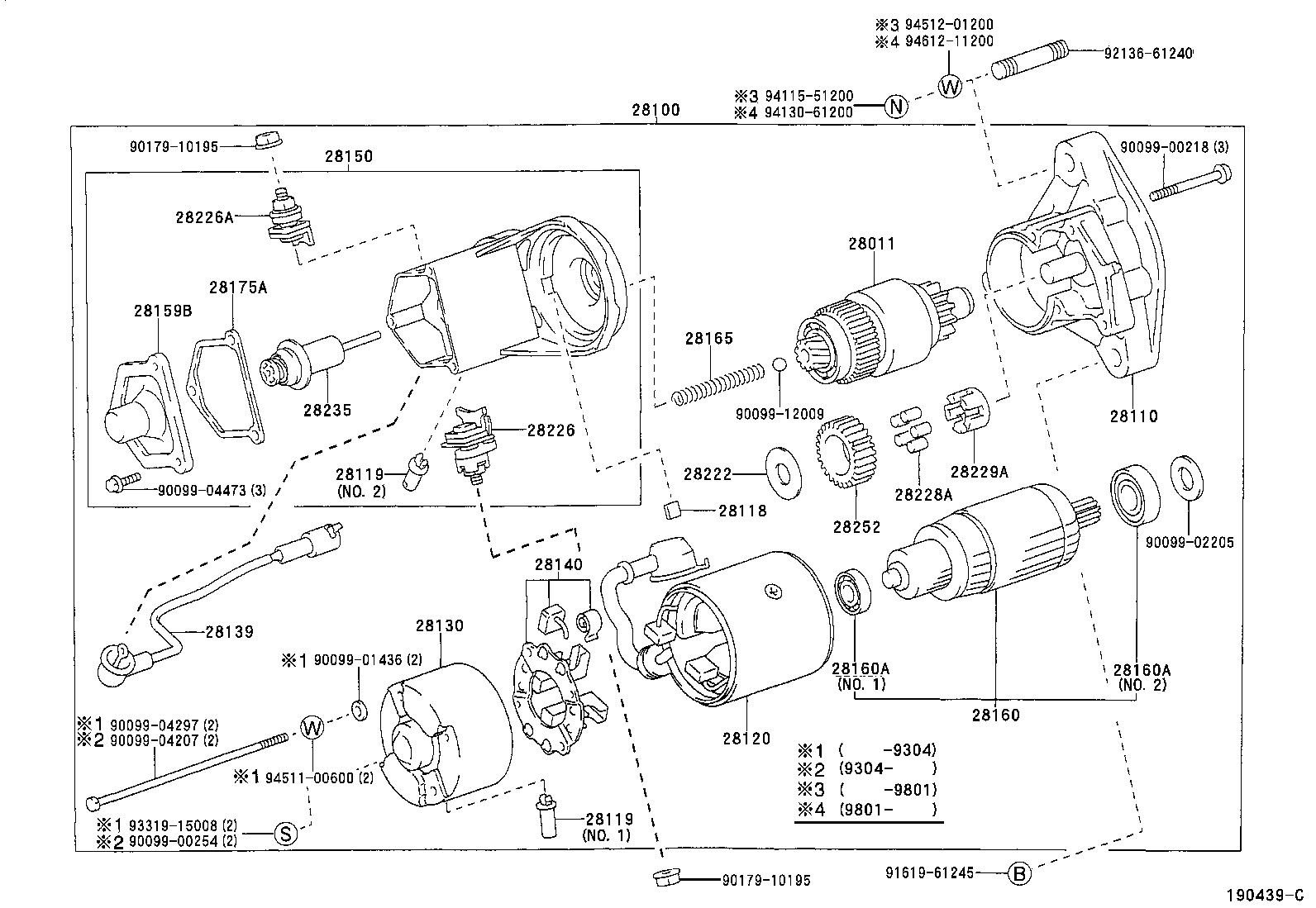

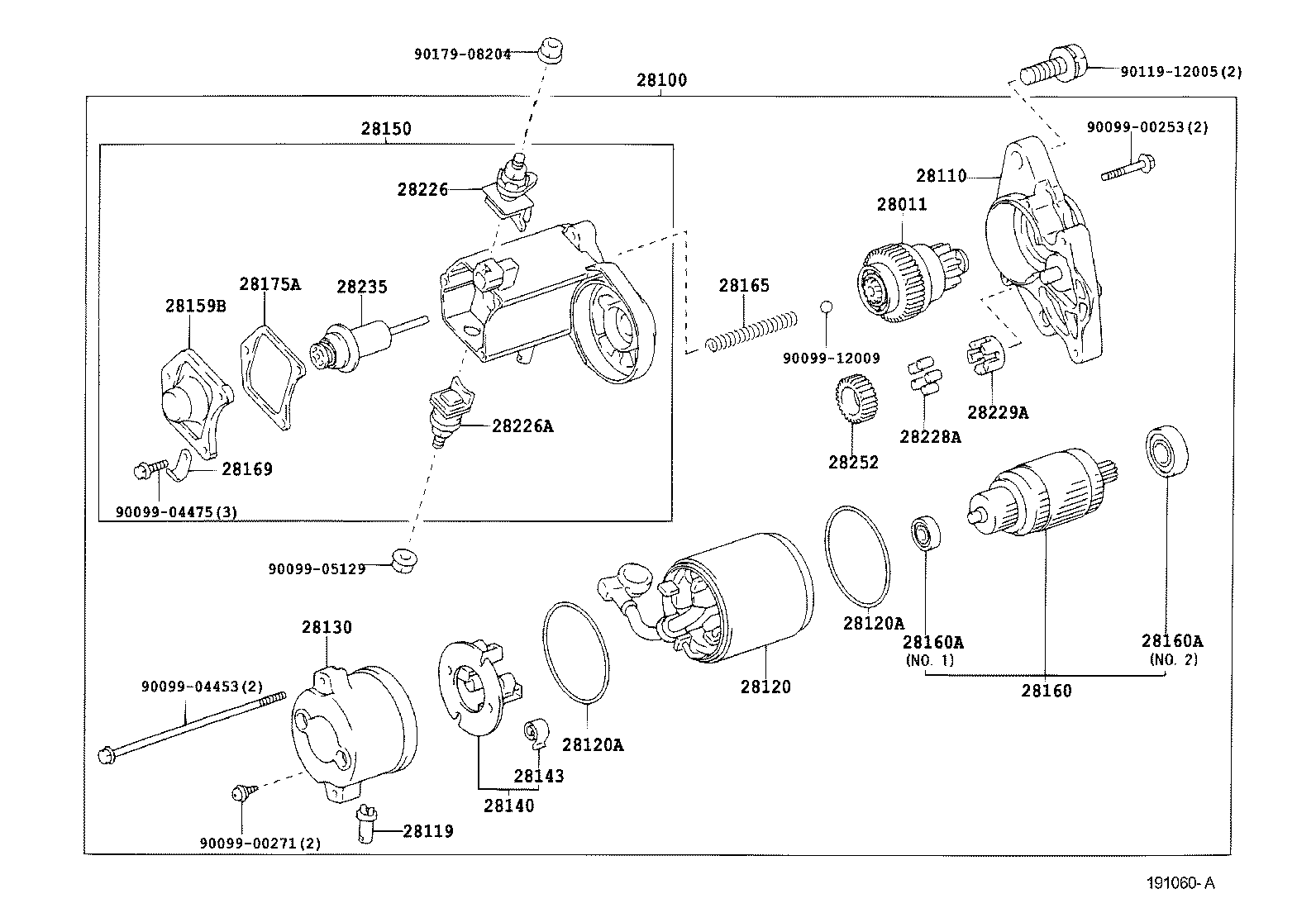

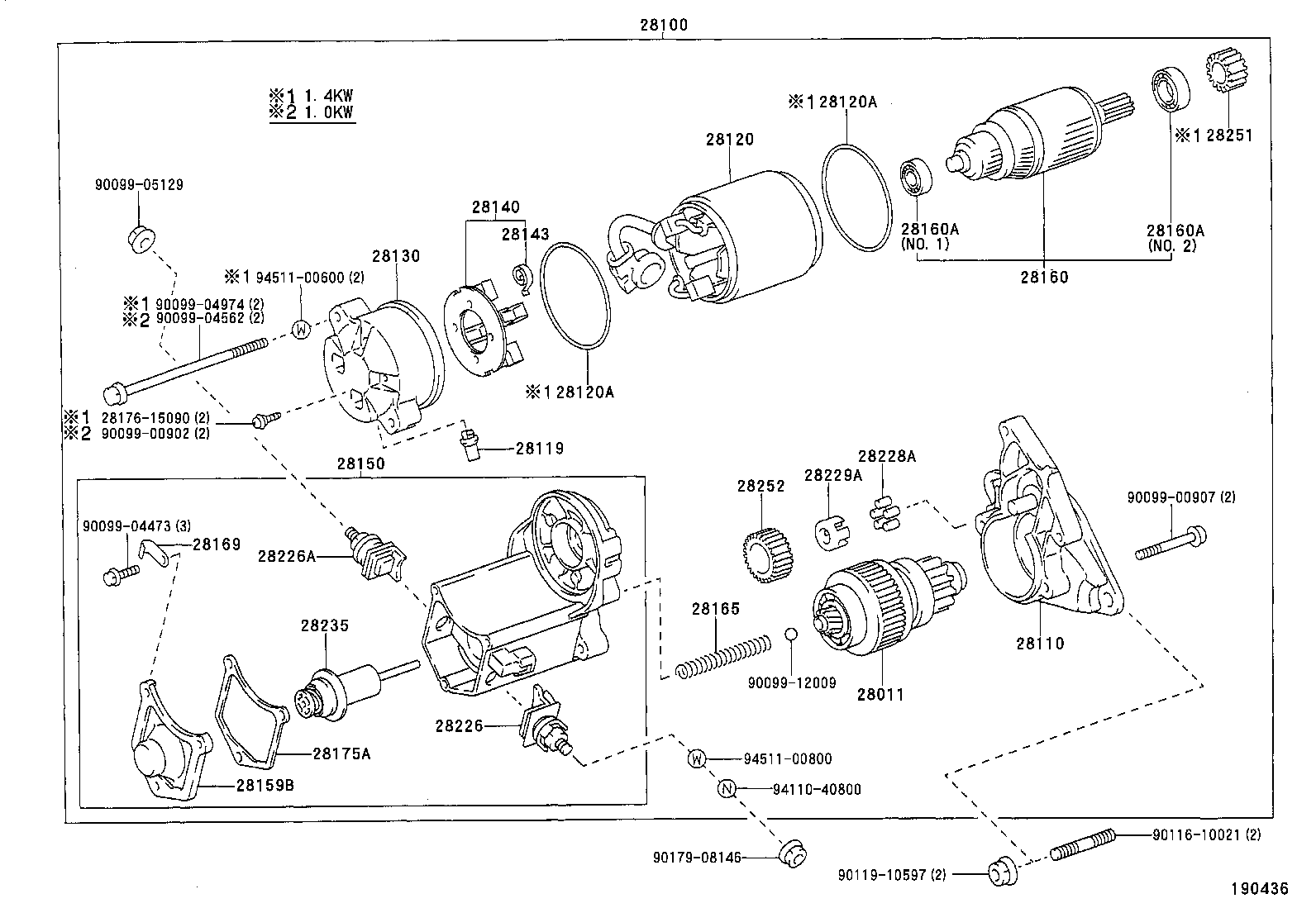

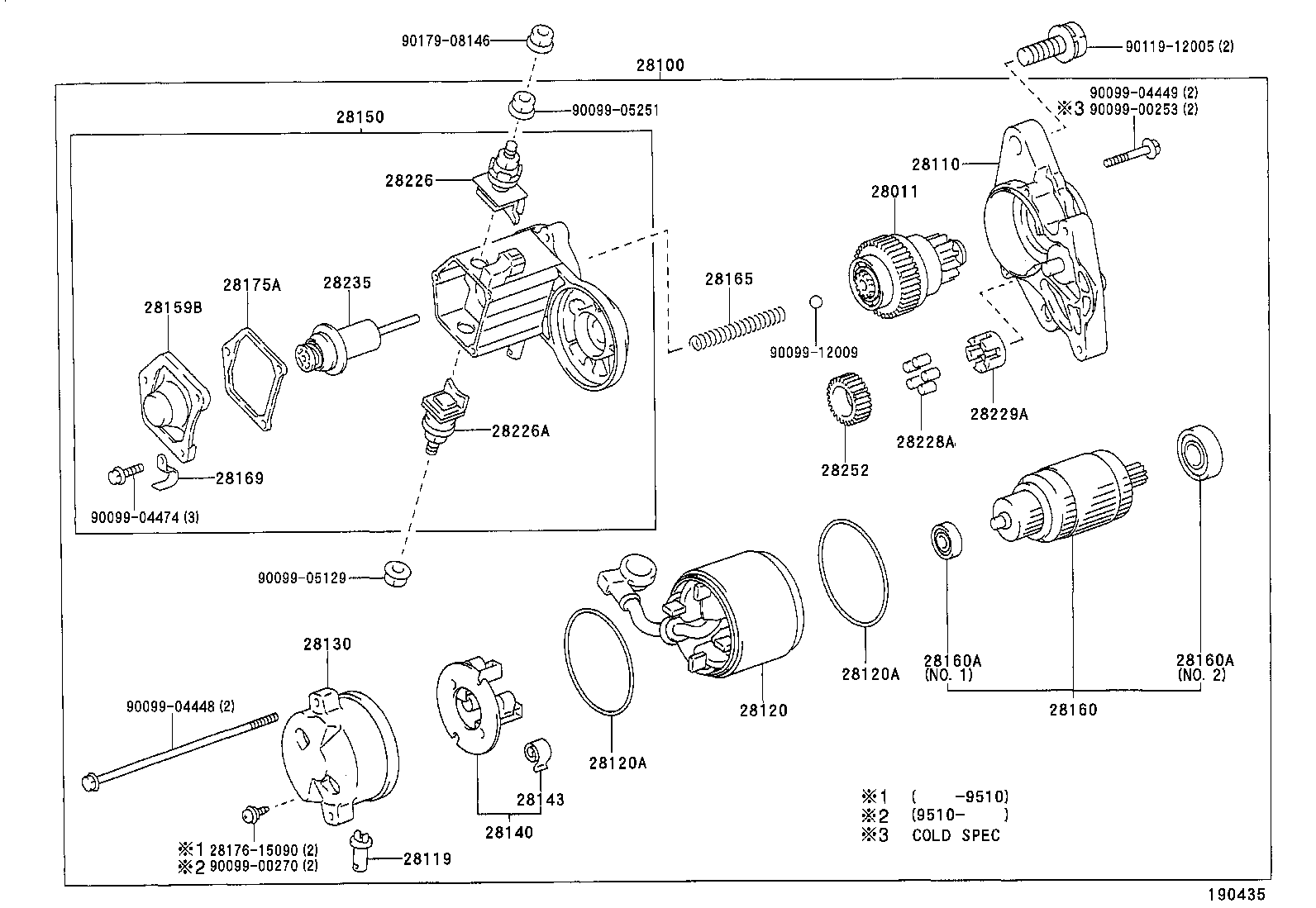

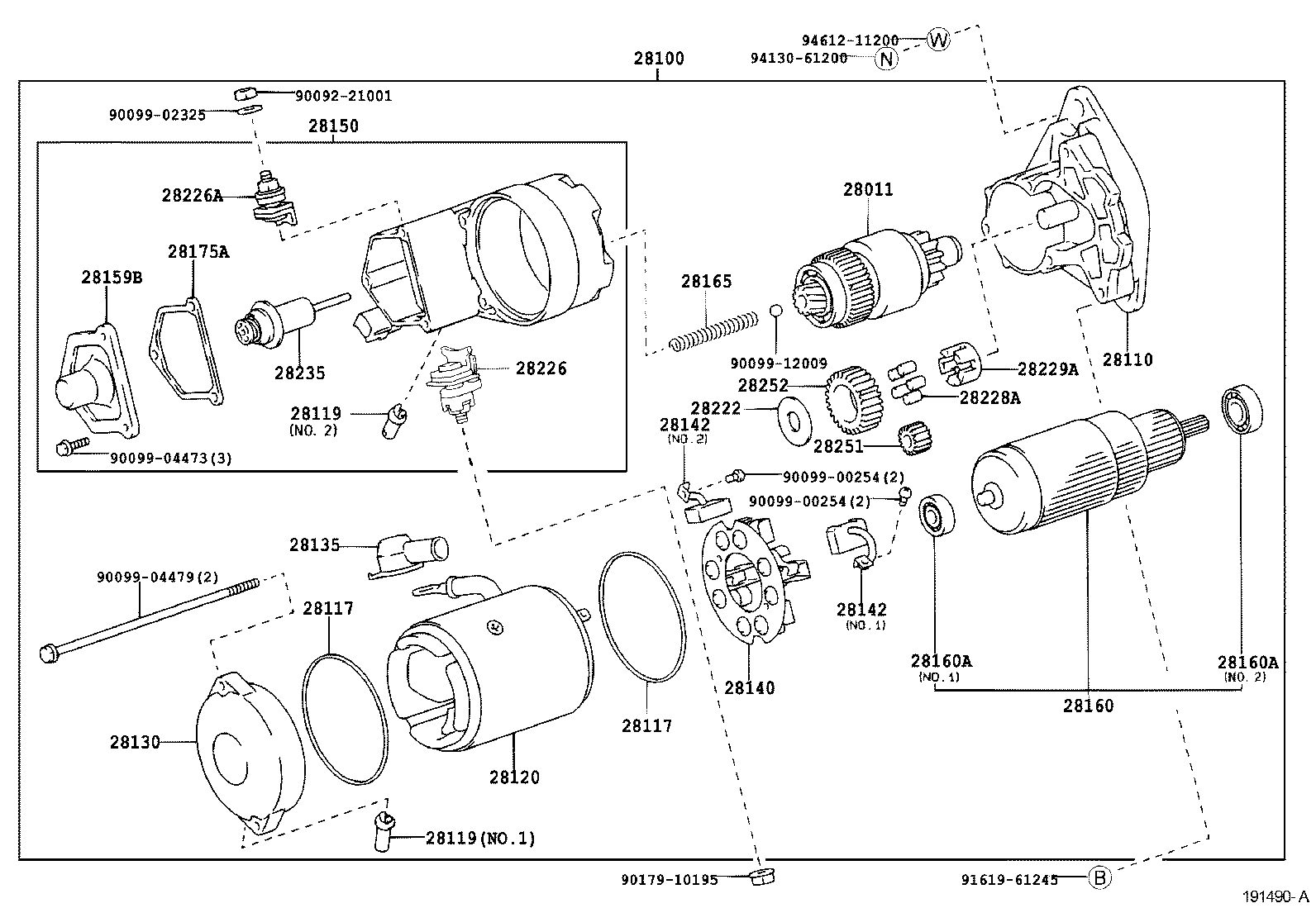

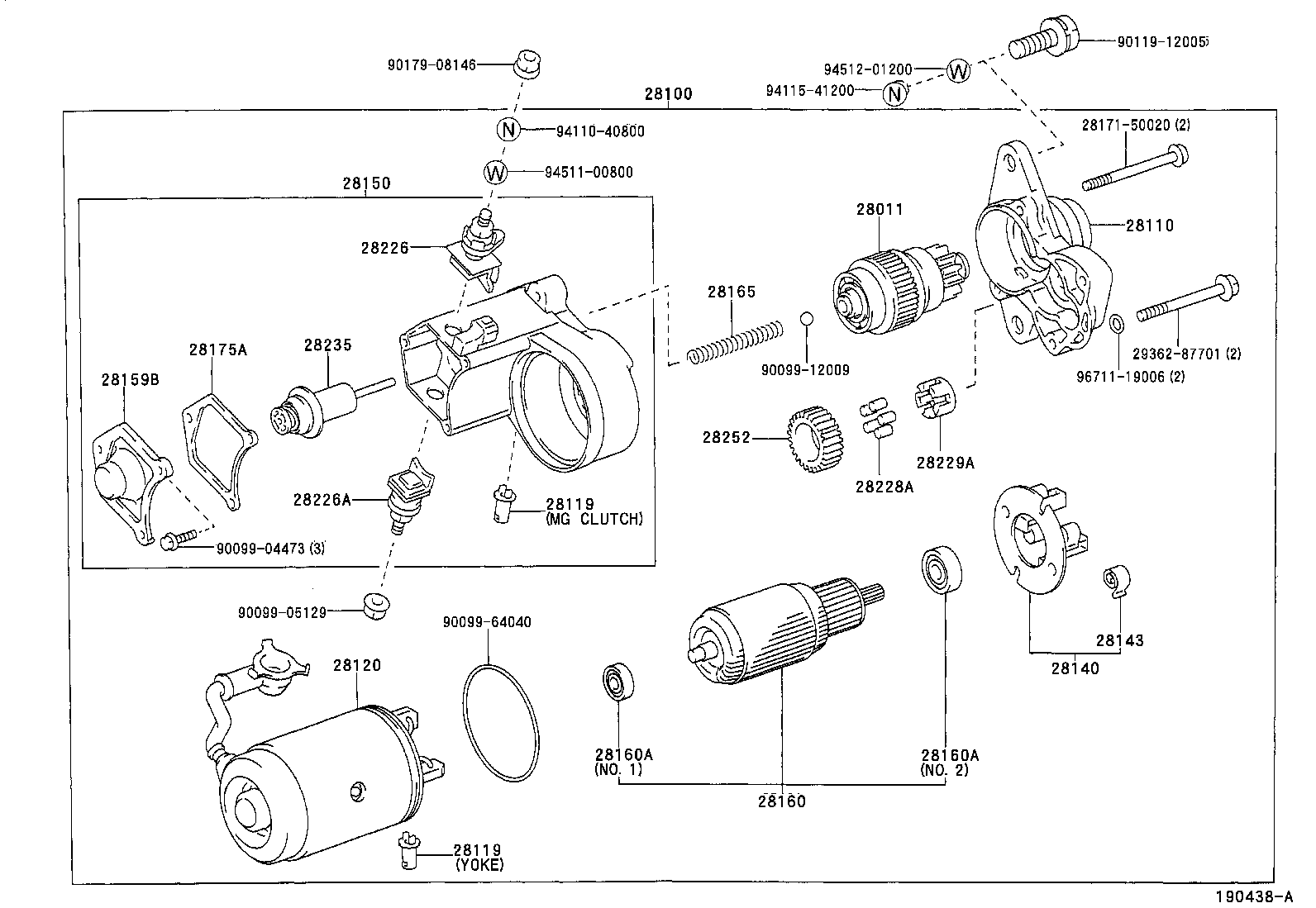

Figure 190434 190434 1990-01 → 1992-08 Figure 190436 190436 1990-01 → 1996-04 Figure 190437 190437 1990-01 → 1996-04 Figure 190439C 190439C 1990-01 → 2007-01 Figure 190366A 190366A 1991-08 → 2007-01 Figure 190435 190435 1992-01 → 1992-08 Figure 190435 190435 1992-08 → 2008-08 Figure 190438A 190438A 1993-08 → 1999-08 Figure 191060A 191060A 1999-08 → 2008-08 Figure 191490A 191490A 2001-08 → 2007-01 Figure 191490A 191490A 2001-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28117 Rubber(FOR STARTER YOKE)
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28135 Bushing, Terminal Insulating
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28182 Stay, Starter Commutator End Frame
28191 Stay, Starter
28222 Washer, Starter Idle Gear Clutch
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228A Roller, Starter Clutch
28229A Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
