Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 3 illustrations

Illustrations

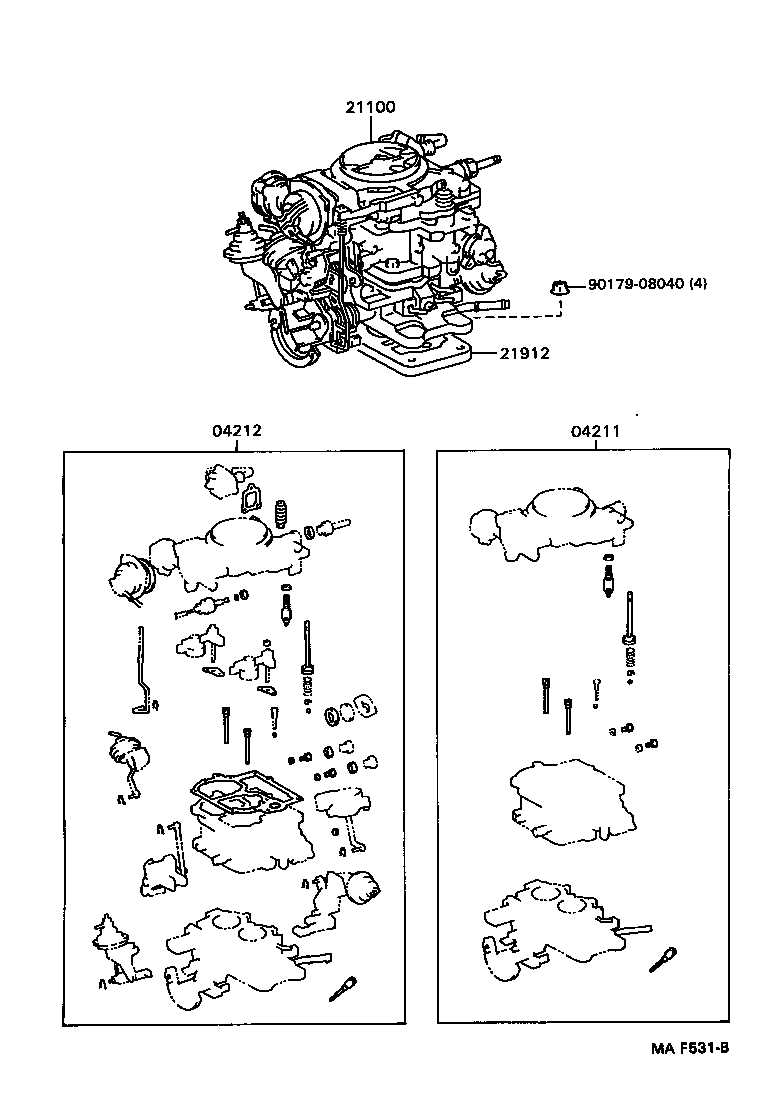

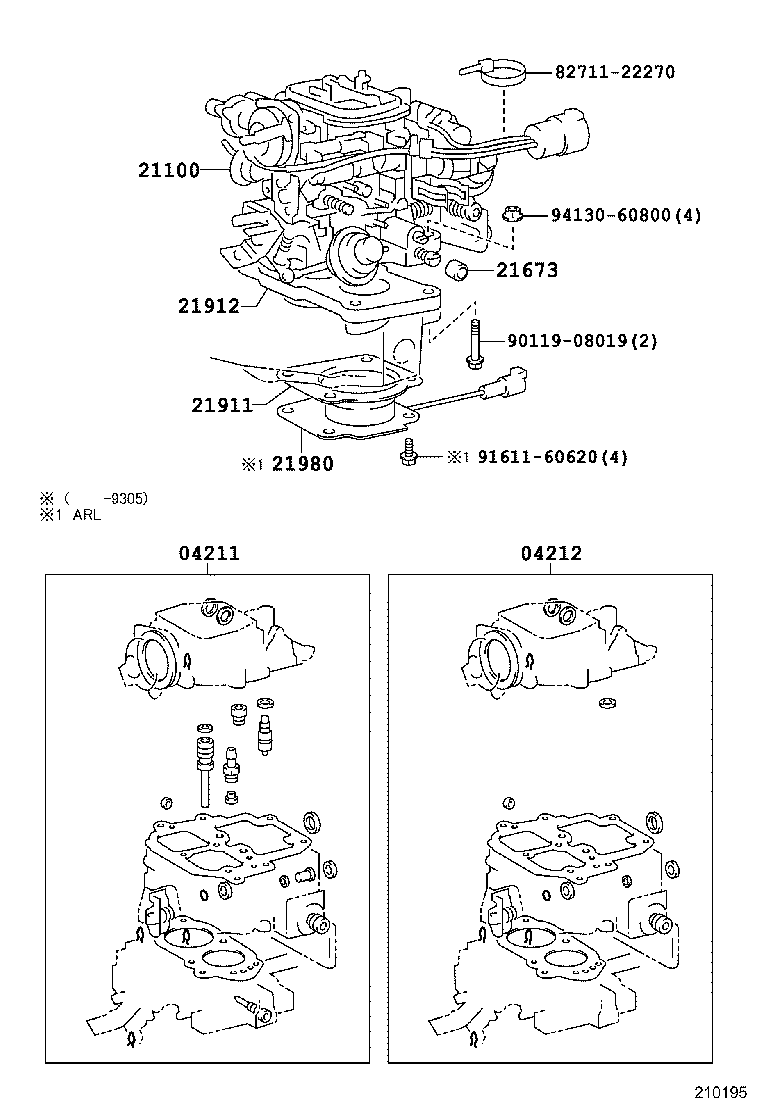

Figure 210193 210193 1990-01 → 1992-08 Figure MAF531B MAF531B 1992-01 → — Figure 210195 210195 1990-01 → 1996-04

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21100 Carburetor Assy
21673 Cap, Idle Limit
21911 Gasket, Carburetor
21912 Insulator, Carburetor Heat
21980 Heater Assy, Cold Mixture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
