Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

29 part groups · 19 illustrations

Illustrations

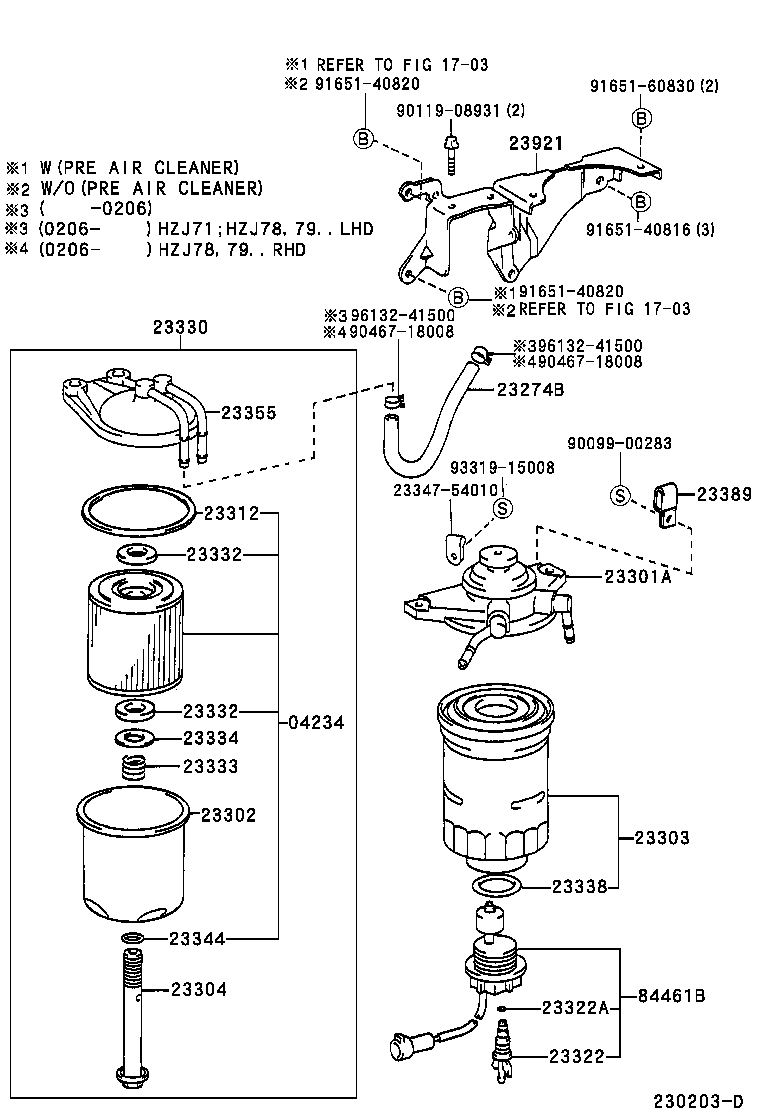

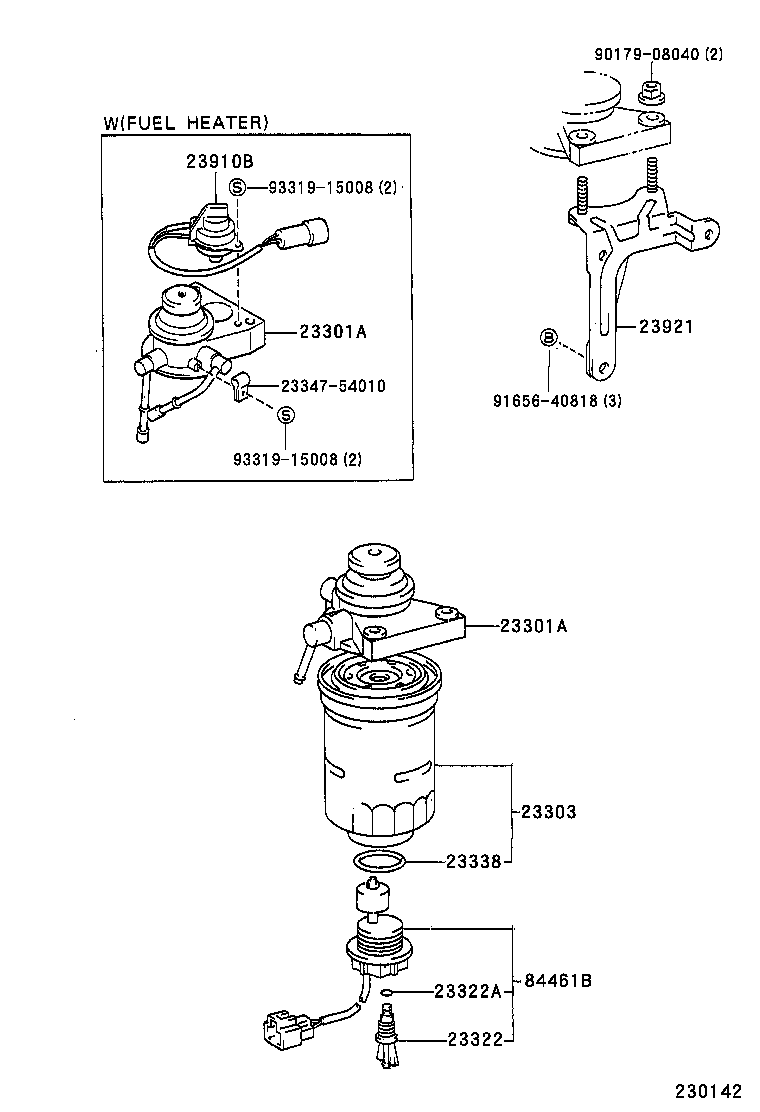

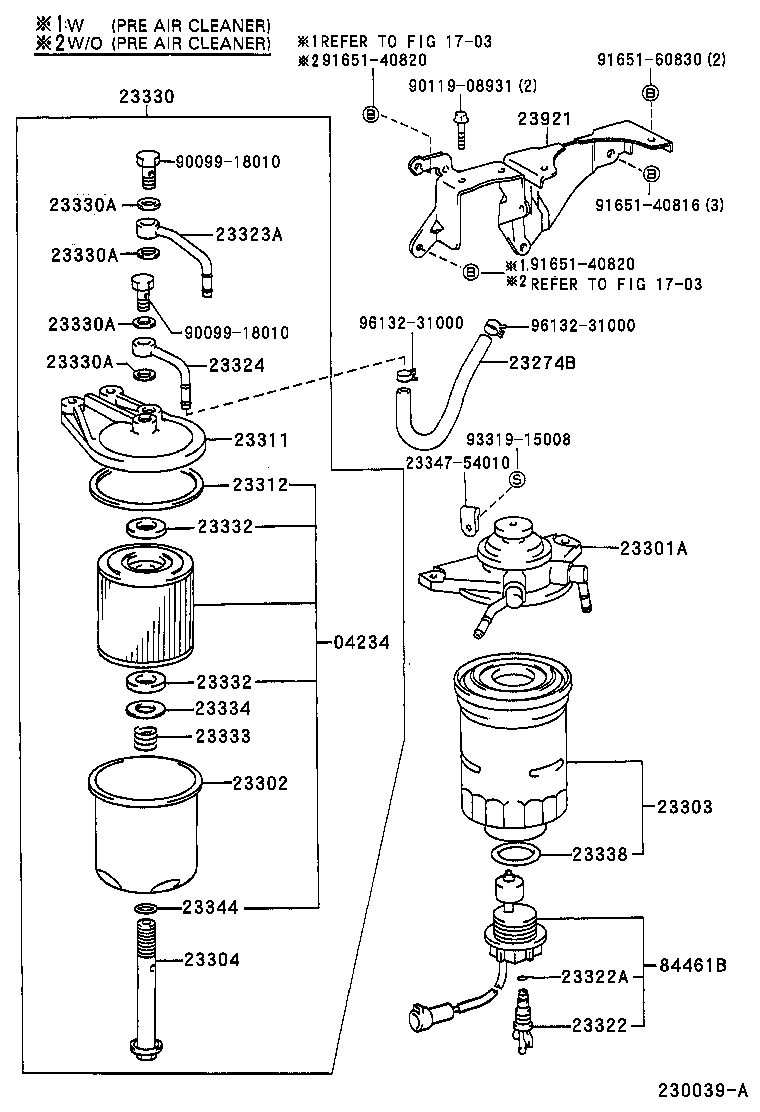

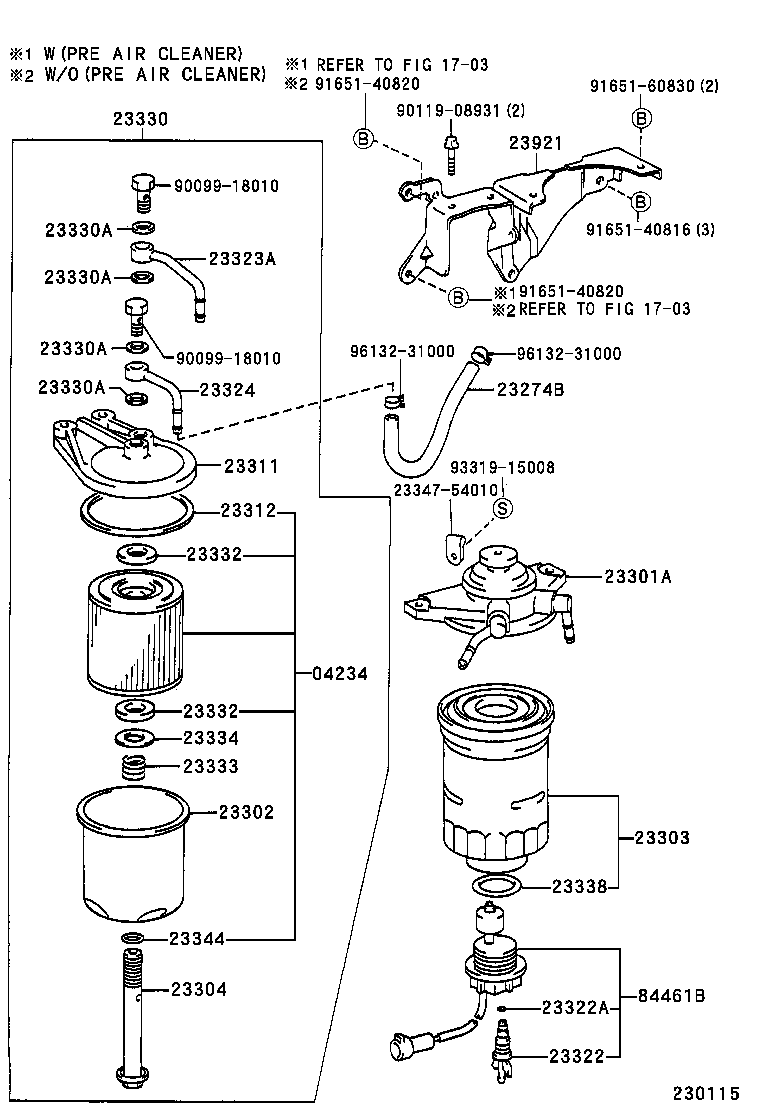

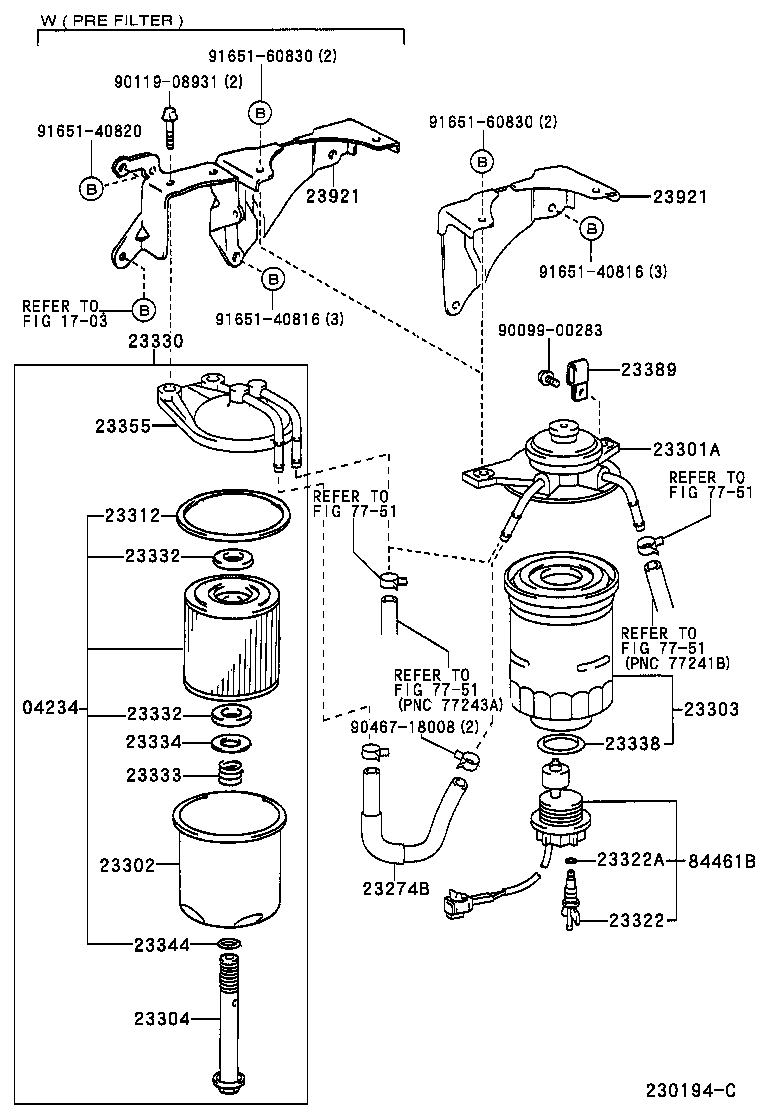

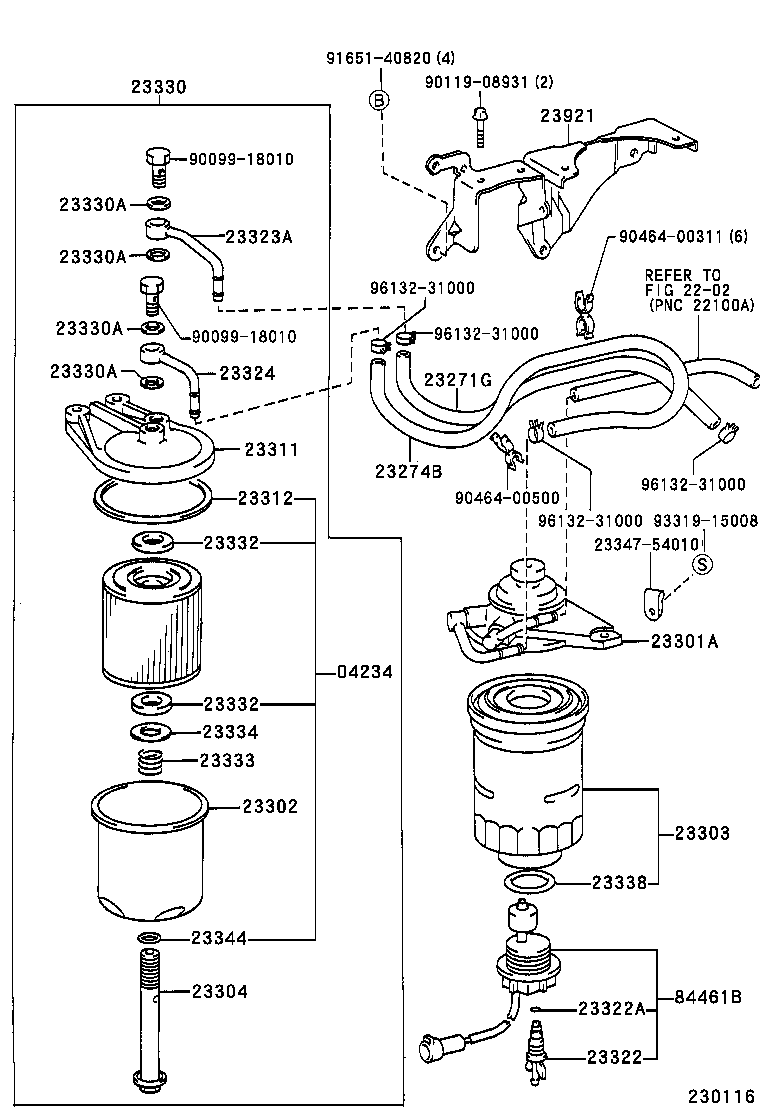

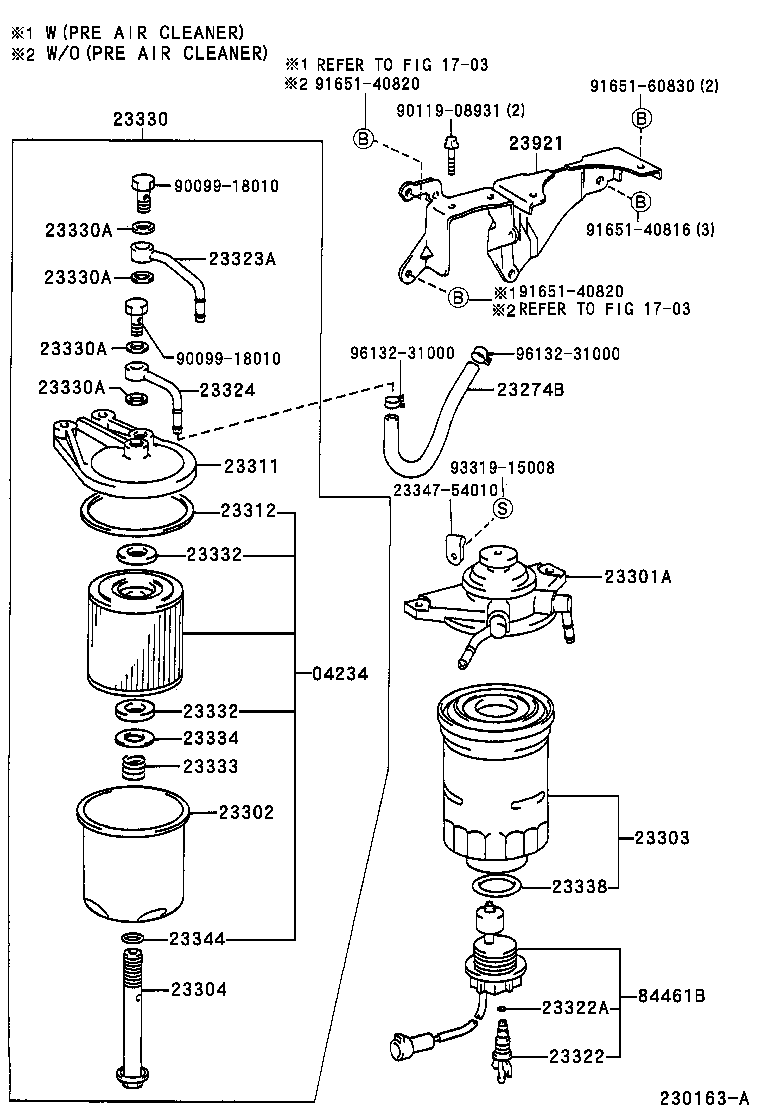

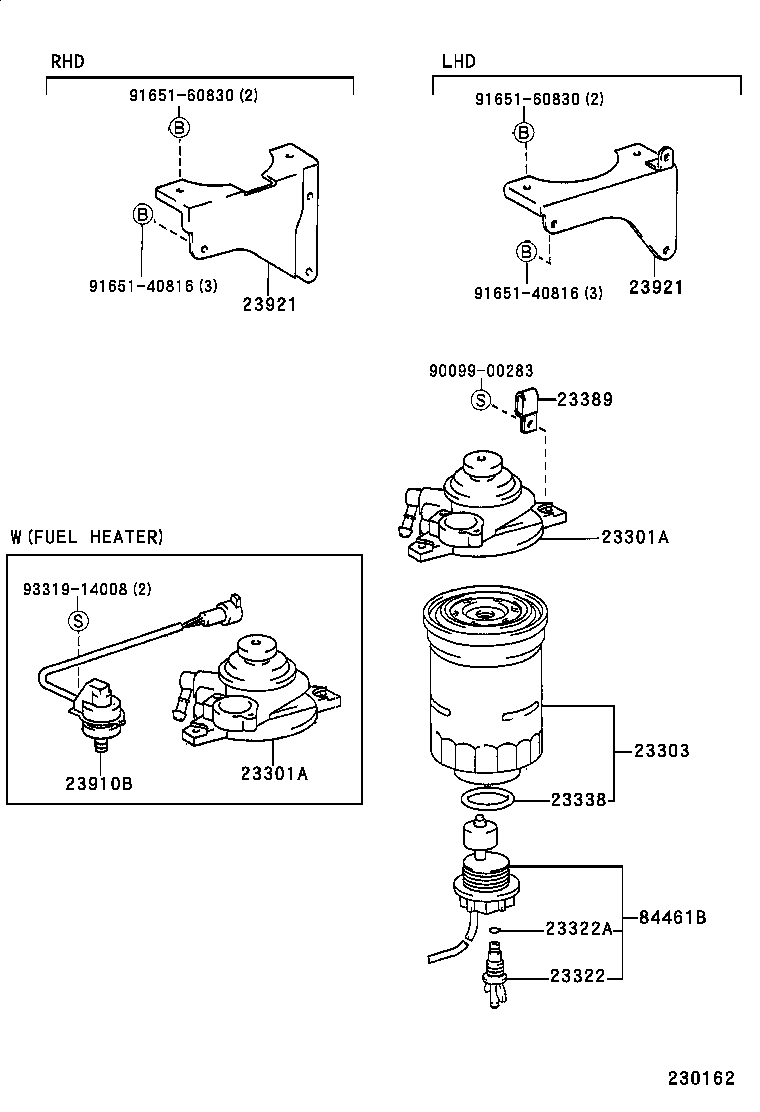

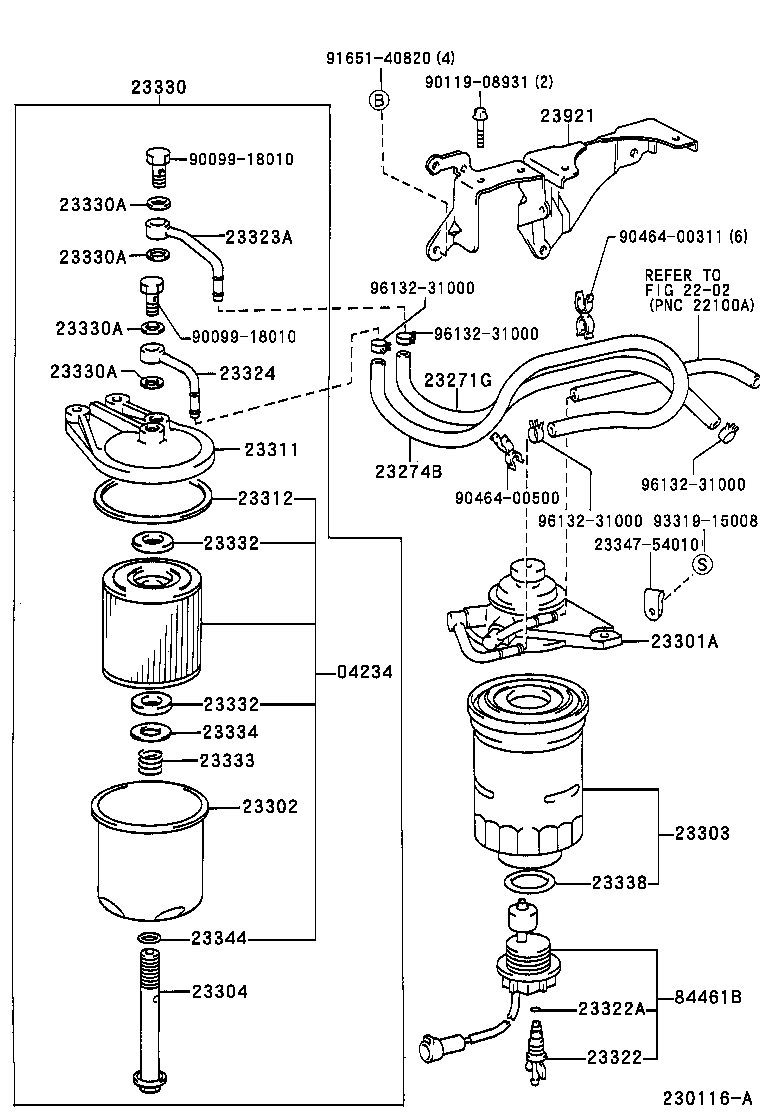

Figure 230181 230181 1990-01 → 1992-08 Figure 230046 230046 1992-01 → — Figure 230113 230113 1990-01 → 1991-08 Figure 230114 230114 1990-01 → 2000-07 Figure 230116A 230116A 1990-01 → 1992-08 Figure 230163A 230163A 1990-01 → 1992-08 Figure 230163A 230163A 1992-08 → 2000-07 Figure 230162 230162 1999-08 → 2007-01 Figure 230203D 230203D 1999-08 → 2007-01 Figure 230194C 230194C 2001-08 → 2007-01 Figure 230045A 230045A 1993-05 → 1996-04 Figure 230142 230142 1990-01 → 1993-05 Figure 230142 230142 1990-04 → 1996-04 Figure 230115 230115 1990-01 → 1992-08 Figure 230115 230115 1992-08 → 1994-01 Figure 230039A 230039A 1994-01 → — Figure 230135 230135 1990-01 → 1994-01 Figure 230116 230116 1990-01 → 1992-08 Figure 230034 230034 1990-01 → —

Part groups

PNCDescription
04234 Element Kit, Fuel Filter
23271G Hose, Fuel
23274B Hose, Fuel, NO.3
23300 Filter Assy, Fuel
23301A Cap Assy, Fuel Filter
23302 Body Sub-assy, Fuel Filter, Lower
23303 Element Sub-assy, Fuel Filter
23304 Bail Sub-assy, Filter Bowl
23311 Body, Fuel Filter Upper
23312 Gasket, Filter Bowl
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23323A Union
23324 Nipple Union(FOR FUEL FILTER)
23330 Prefilter Assy, Fuel
23330A Gasket
23332 Gasket, Element(FOR FUEL FILTER)
23333 Spring, Filter Element Set
23334 Plate, Spring(FOR FILTER ELEMENT)
23338 Gasket(FOR WARNING SWITCH)
23344 Gasket, Clamping Nut(FOR FUEL FILTER)
23351 Plug, Air Vent
23353 Ring, O(FOR AIR VENT PLUG)
23355 Element, Prefilter
23389 Clamp, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
23930 Sedimenter Assy, Fuel
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
