Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 6 illustrations

Illustrations

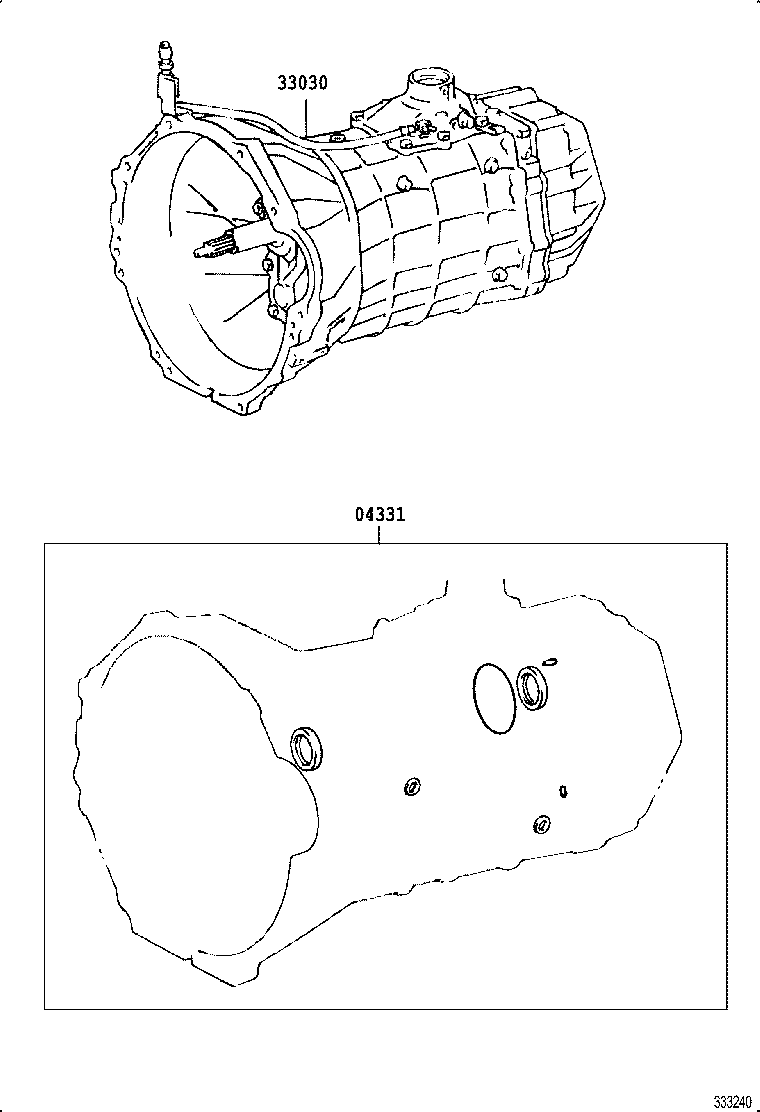

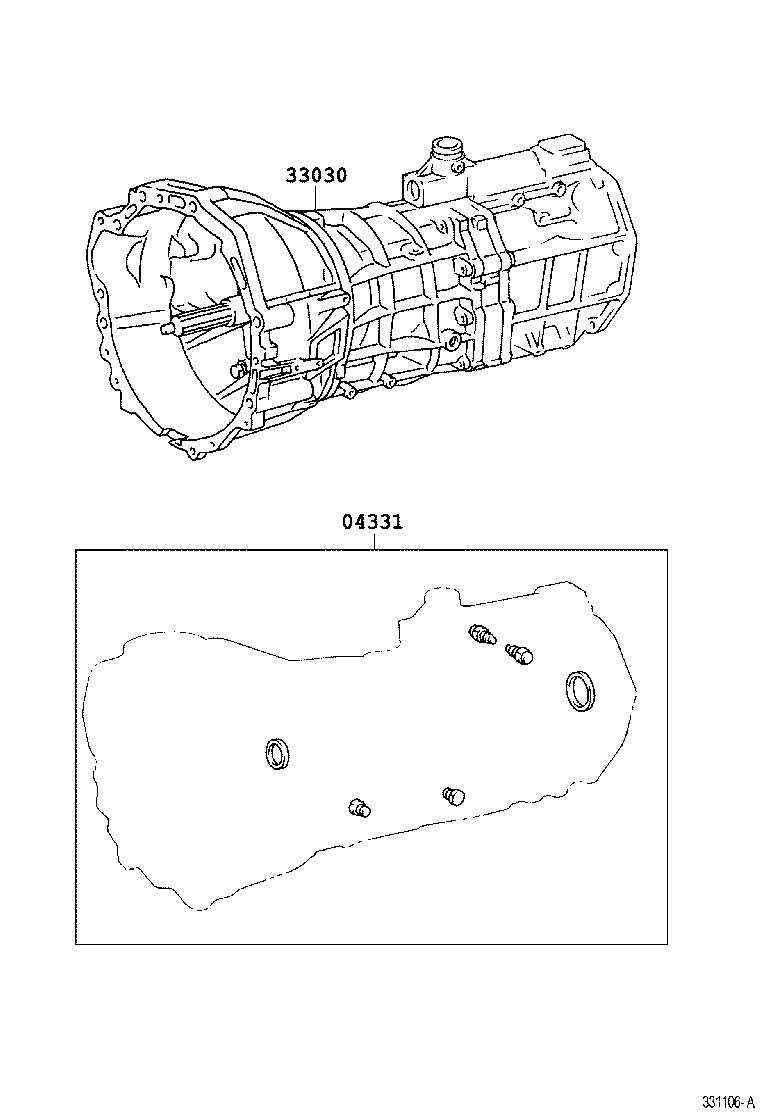

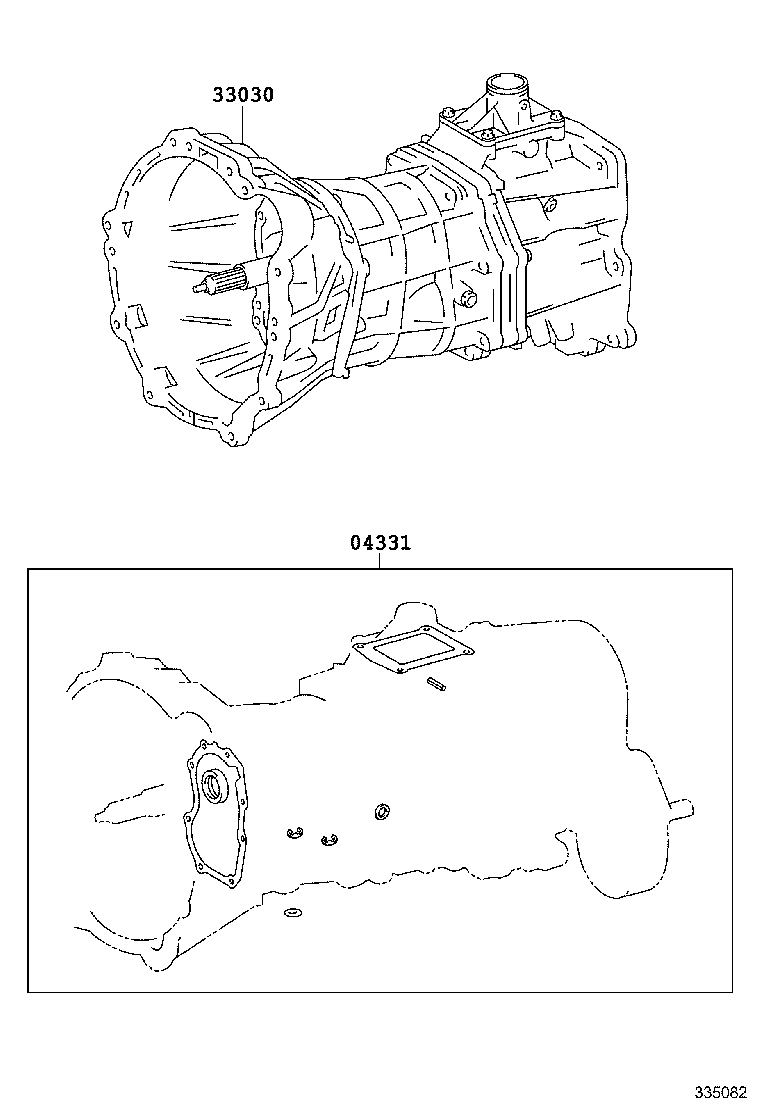

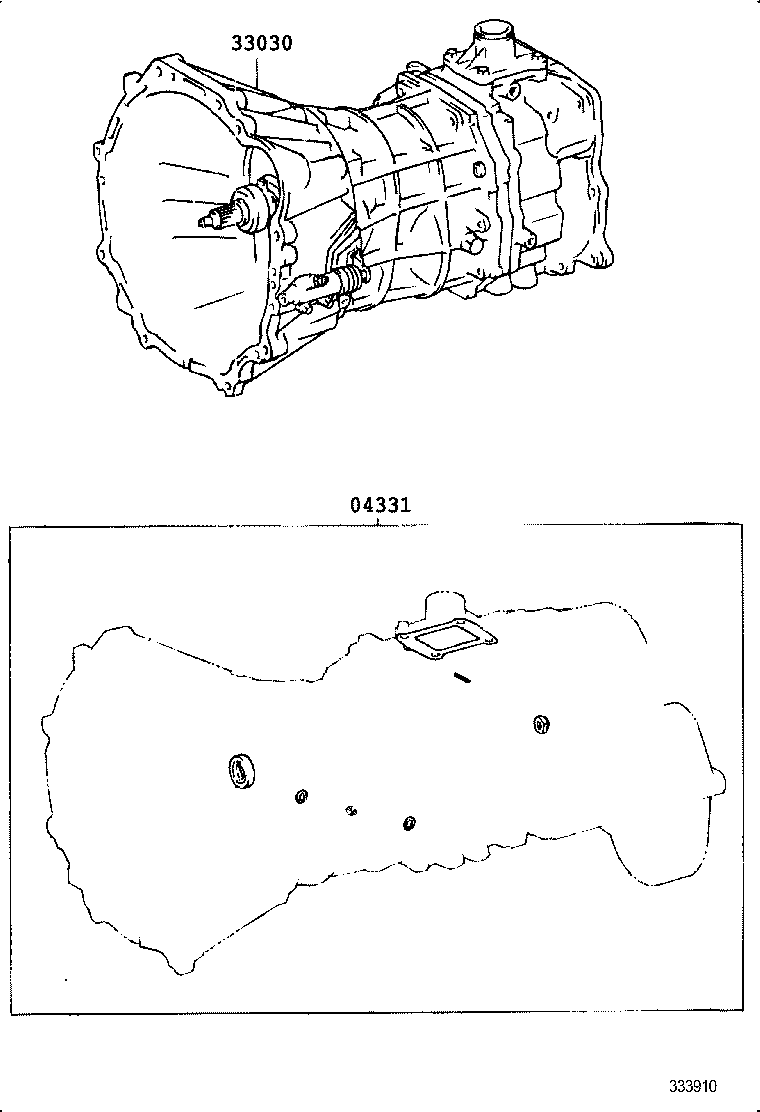

Figure 330908 330908 1990-01 → 1992-08 Figure 330908 330908 1990-01 → 2007-01 Figure 333910 333910 1990-01 → 1996-04 Figure 335082 335082 1990-01 → 1996-04 Figure 333240 333240 1992-01 → — Figure 331106A 331106A 1999-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
