Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Gear

57 part groups · 8 illustrations

Illustrations

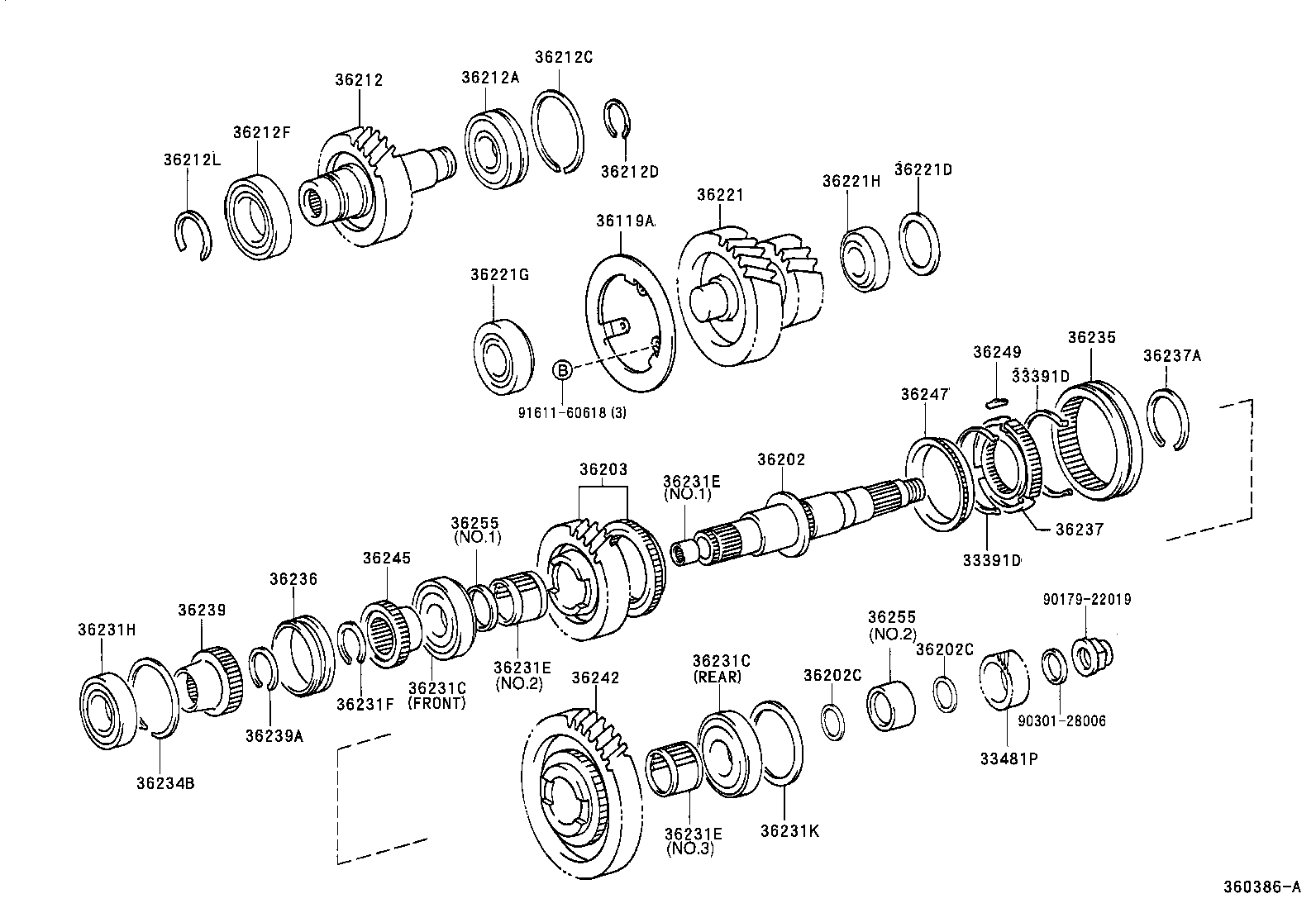

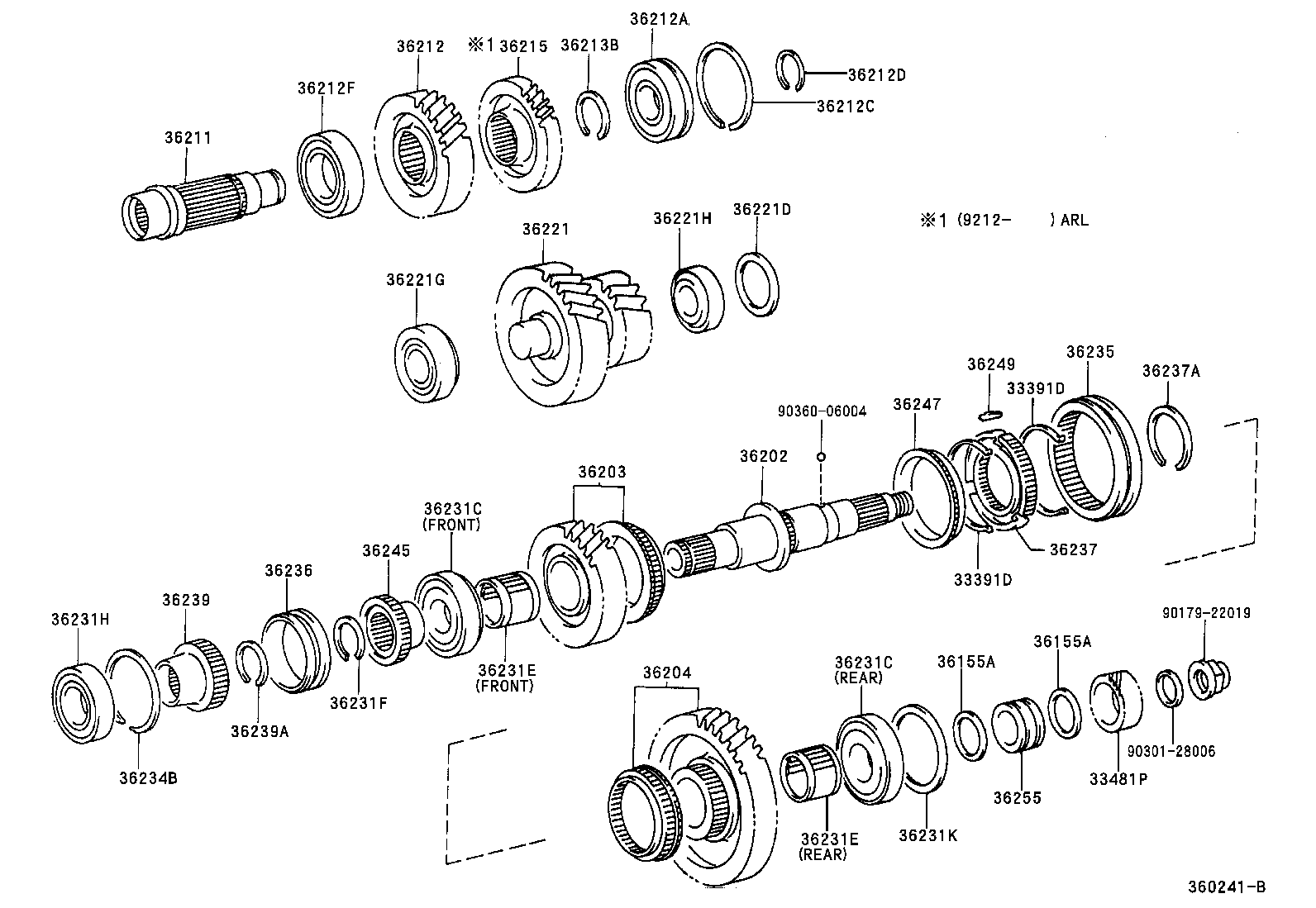

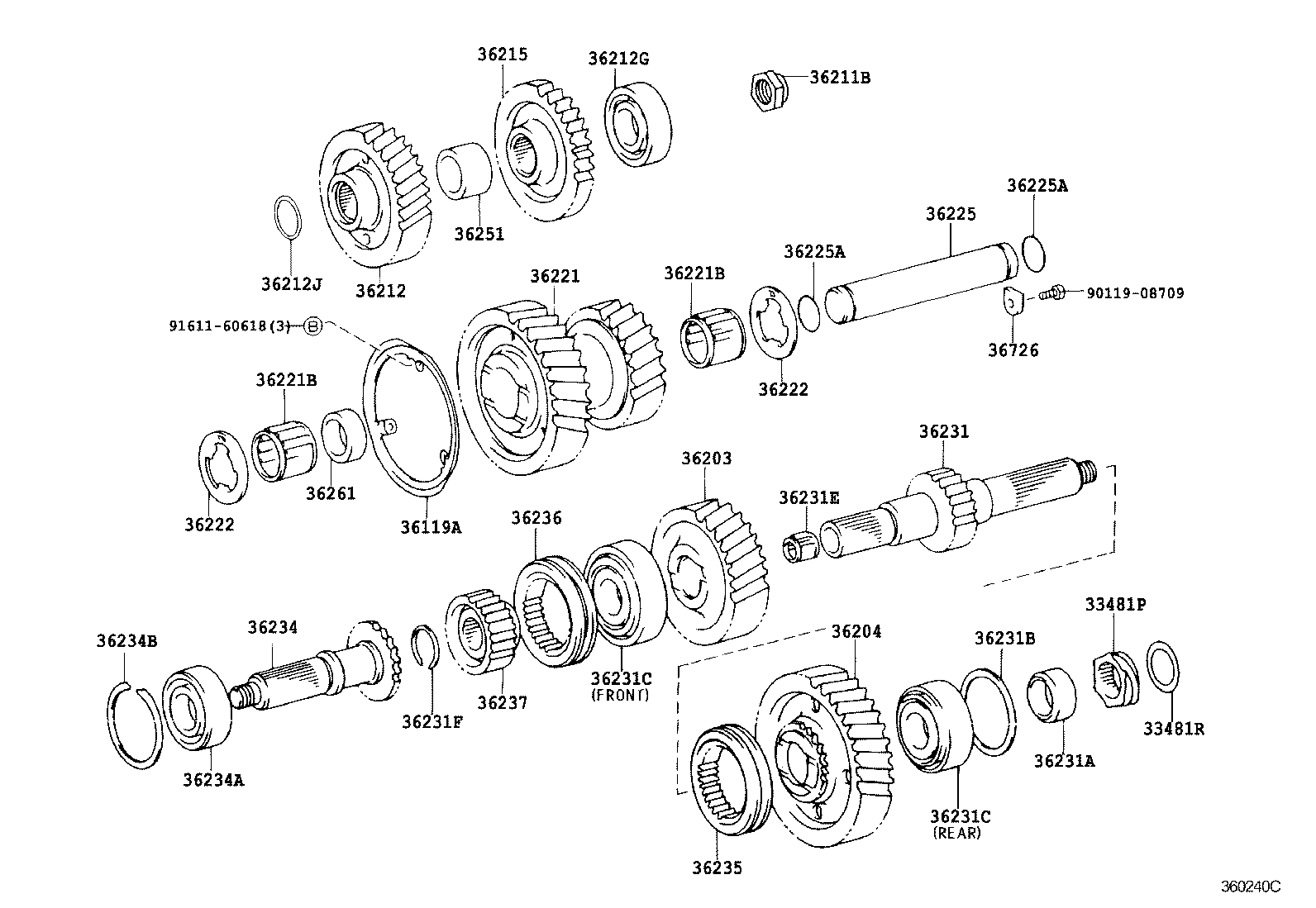

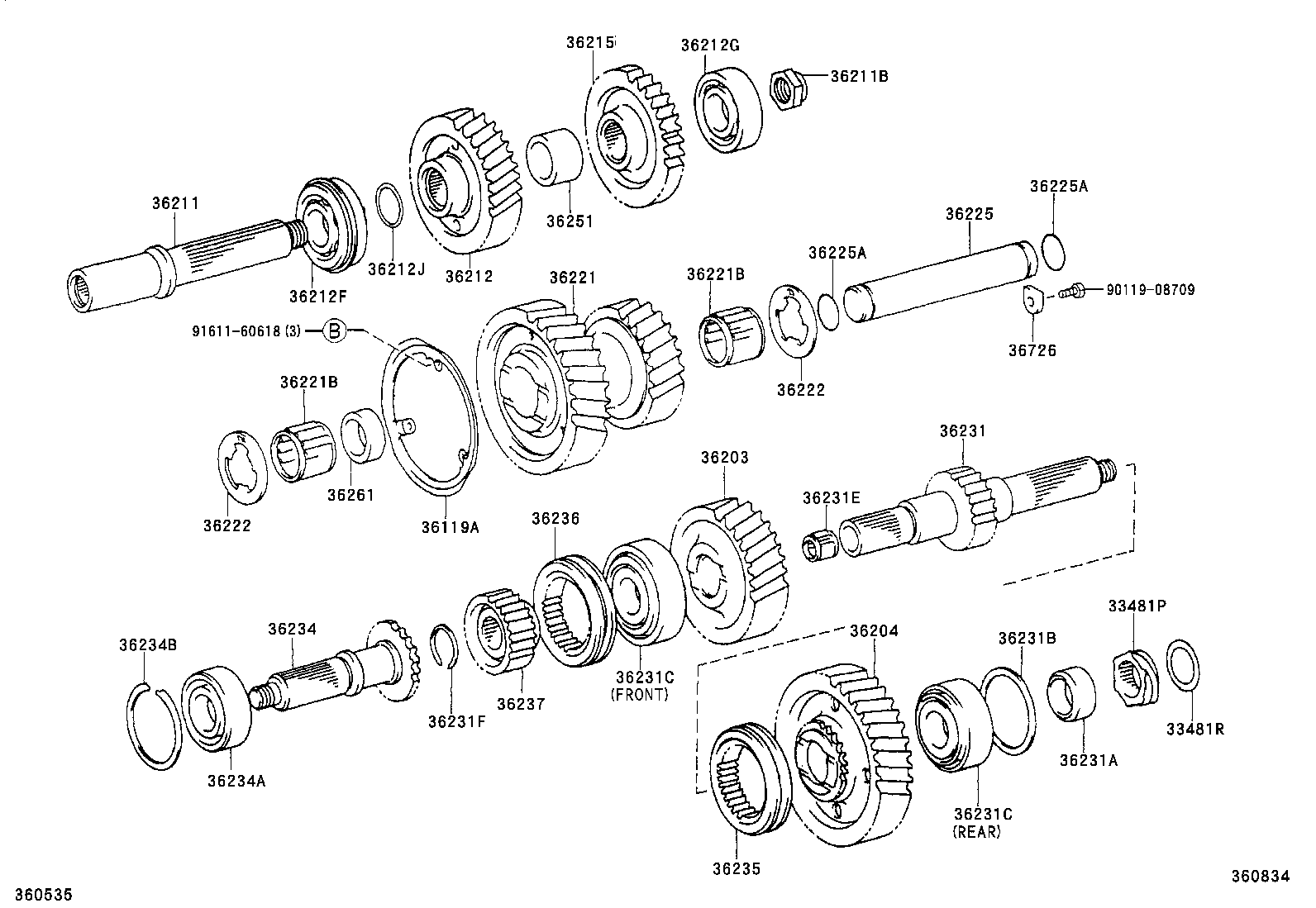

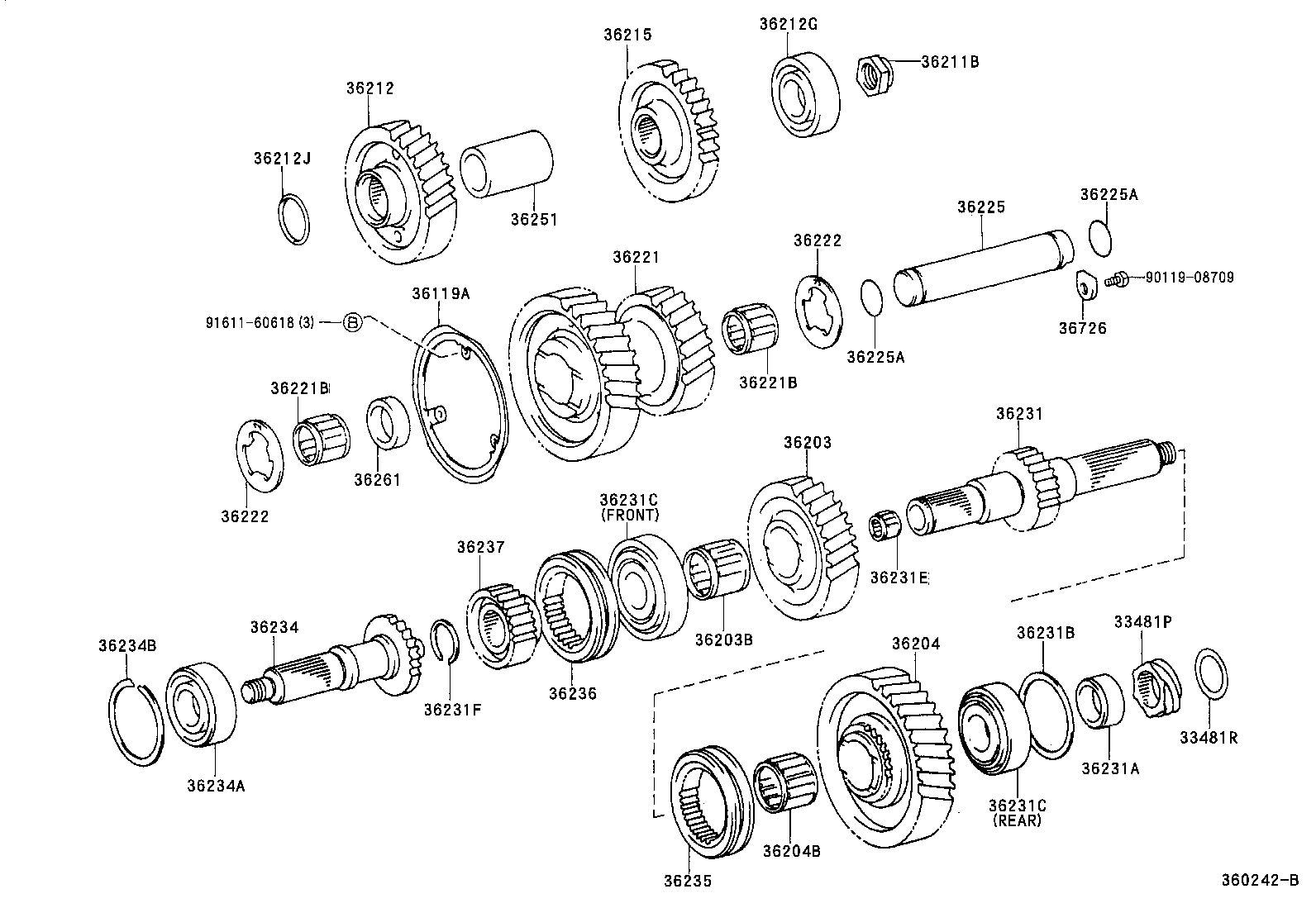

Figure 360535 360535 1990-01 → 1996-04 Figure 360535 360535 1999-08 → 2003-09 Figure 360834 360834 2003-09 → — Figure 360240C 360240C 1990-01 → 2004-05 Figure 360241B 360241B 1992-01 → 1998-01 Figure 360241B 360241B 1998-01 → 2007-01 Figure 360386A 360386A 1998-01 → — Figure 360242B 360242B 1990-01 → 1992-01

Part groups

PNCDescription
33391D Spring, Synchromesh Shifting Key, NO.2(FOR TRANSFER)
33481P Gear, Speedometer Drive (FOR TRANSFER)
33481R Washer, Plate (FOR SPEEDOMETER DRIVE GEAR)
36119A Receiver, Transfer Oil (FOR TRANSFER IDLER GEAR)
36155A Ring, Transfer Oil Seal
36202 Shaft Sub-assy, Transfer Output, Rear
36202C Washer, Plate(FOR TRANSFER OUTPUT REAR SHAFT)
36203 Gear Sub-assy, Transfer High Speed Output
36203B Bearing (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204 Gear Sub-assy, Transfer Low Speed Output
36204B Bearing (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36211 Shaft, Transfer Input
36211A Yoke, Transmission Sleeve
36211B Nut (FOR TRANSFER INPUT SHAFT)
36212 Gear, Transfer Input
36212A Bearing, Radial Ball (FOR TRANSFER INPUT GEAR)
36212C Ring, Shaft Snap (FOR TRANSFER INPUT GEAR)
36212D Ring, Shaft Snap (FOR TRANSFER INPUT BEARING)
36212F Bearing, Radial Ball (FOR TRANSFER INPUT SHAFT FRONT)
36212G Bearing, Radial Ball (FOR TRANSFER INPUT SHAFT REAR)
36212J Ring, O (FOR TRANSFER INPUT GEAR)
36212L Ring, Shaft Snap
36213B Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER)
36215 Gear, Power Take-off Drive
36221 Gear, Transfer Idler
36221B Bearing (FOR TRANSFER IDLER GEAR)
36221D Washer, Plate(FOR TRANSFER IDLER GEAR)
36221G Bearing (FOR TRANSFER ILDER GEAR), Front
36221H Bearing (FOR TRANSFER ILDER GEAR), Rear
36222 Washer, Transfer Idler Gear Side Thrust
36225 Shaft, Transfer Idler Gear
36225A Ring, O (FOR TRANSFER IDLER SHAFT)
36231 Shaft, Transfer Output, Rear
36231A Spacer (FOR TRANSFER OUTPUT SHAFT)
36231B Shim (FOR TRANSFER OUTPUT SHAFT)
36231C Bearing, Taper Roller (FOR TRANSFER OUTPUT SHAFT)
36231E Bearing, Needle Roller (FOR TRANSFER OUTPUT SHAFT FRONT)
36231F Ring, Shaft Snap (FOR TRANSFER OUTPUT SHAFT)
36231H Bearing, Radial Ball (FOR TRANSFER OUTPUT SHAFT FRONT)
36231K Washer, Plate(FOR TRANSFER OUTPUT REAR CASE)
36234 Shaft, Transfer Output, Front
36234A Bearing (FOR TRANSFER OUTPUT FRONT SHAFT)
36234B Ring, Snap (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235 Sleeve, Transfer High & Low Clutch
36236 Sleeve, Front Drive Clutch
36237 Hub, Transfer Clutch
36237A Ring, Shaft Snap (FOR TRANSFER CLUTCH HUB)
36239 Hub, Transfer Drive Clutch
36239A Ring, Shaft Snap(FOR TRANSFER DRIVE CLUTCH HUB)
36242 Gear, Transfer Low
36245 Piece, Transfer Front Drive Gear
36247 Ring, Transfer Synchronizer
36249 Key, Synchromesh Shifting, Transfer Drive, NO.2
36251 Spacer, Transfer Input Shaft
36255 Spacer, Transfer Output Shaft, NO.1
36261 Spacer, Transfer Idler Gear
36726 Plate, Lock (FOR TRANSFER GEAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
