Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

55 part groups · 9 illustrations

Illustrations

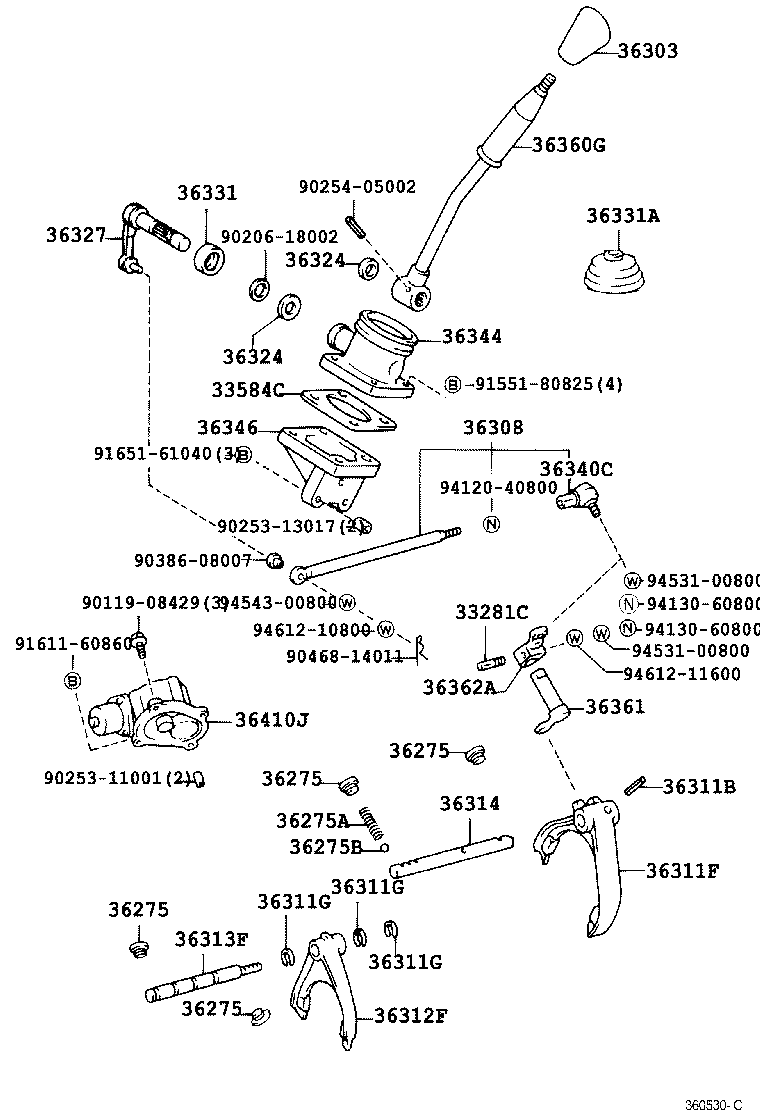

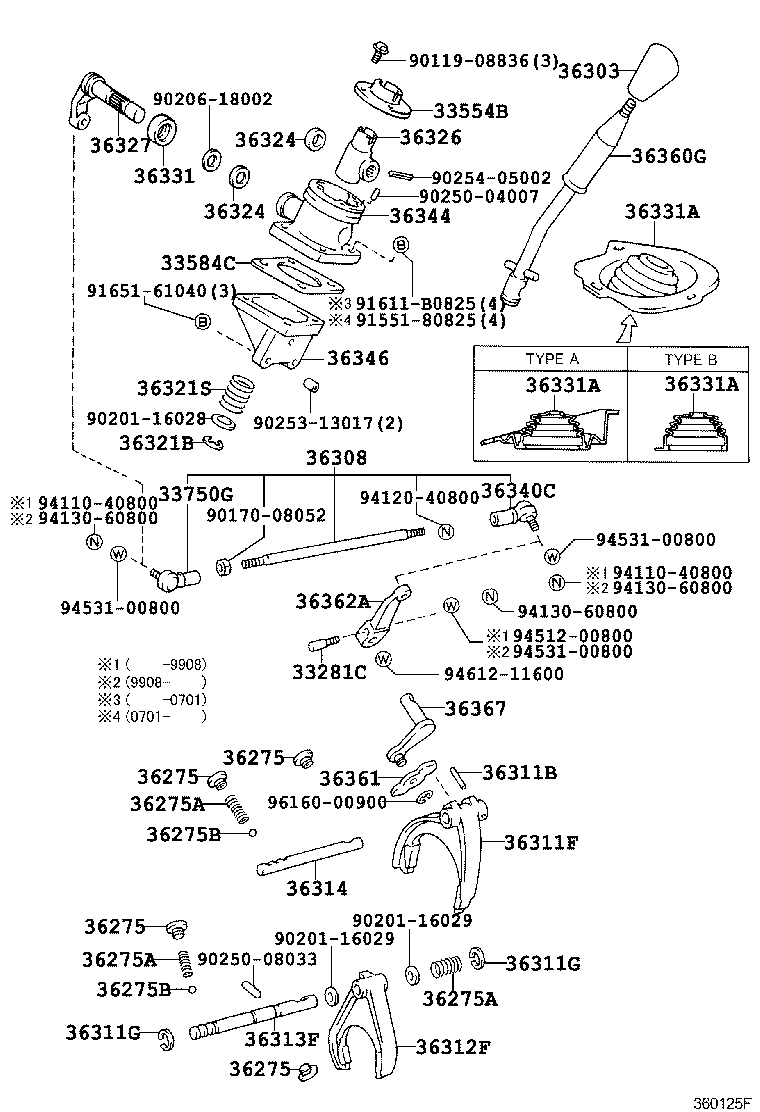

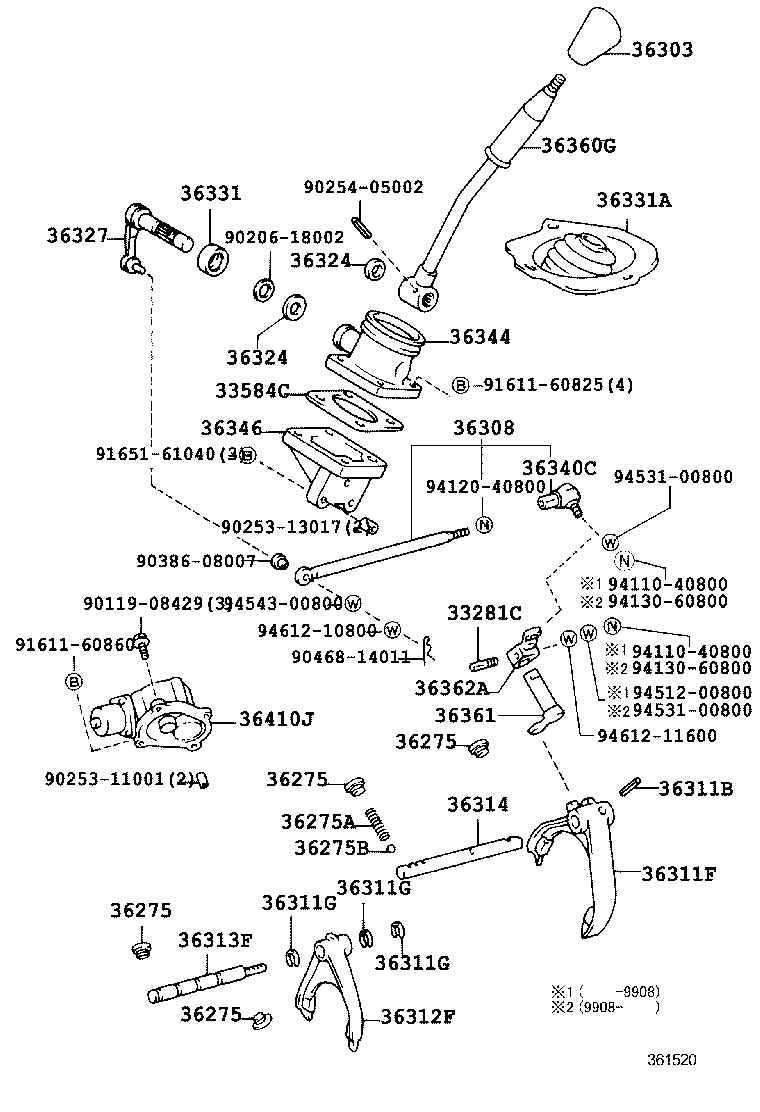

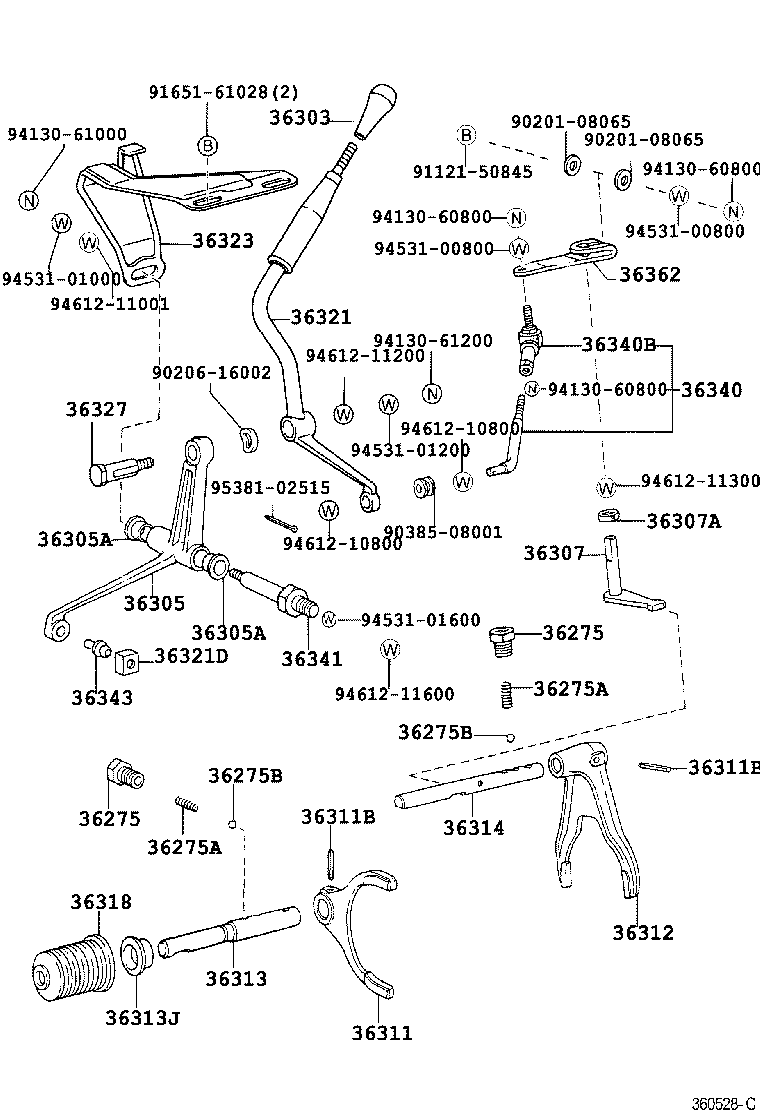

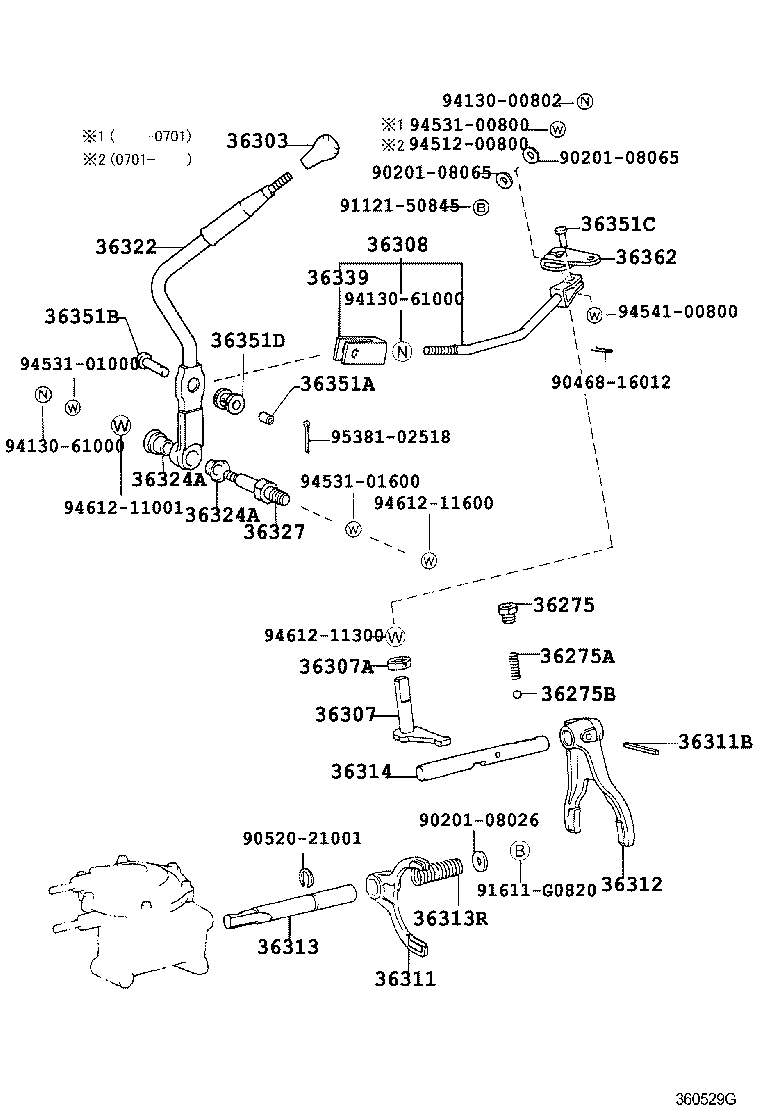

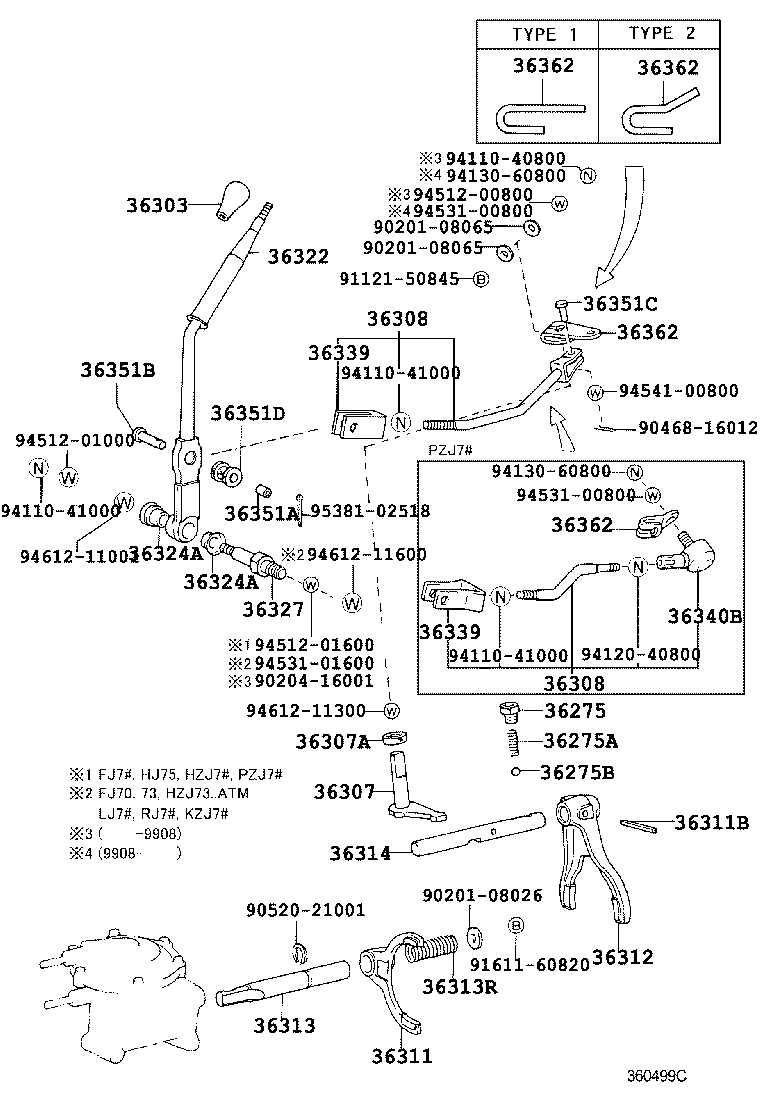

Figure 361519 361519 1990-01 → 2000-07 Figure 360528C 360528C 1999-08 → — Figure 360499C 360499C 1990-01 → 2000-07 Figure 360529G 360529G 1999-08 → — Figure 360125F 360125F 1992-01 → — Figure 361520 361520 1992-01 → 1999-08 Figure 361520 361520 1992-01 → 1999-11 Figure 361520 361520 1992-01 → 2001-06 Figure 360530C 360530C 1999-08 → —

Part groups

PNCDescription
33281C Pin, Lever Lock
33554B Cap, Transfer Shift Lever
33584C Gasket,Transfer Control Shift Lever Retainer
33750G End Assy, Connecting Rod, NO.2 (FOR TRANSFER SHIFT ROD)
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36303 Knob Sub-assy, Shift Lever
36305 Lever Sub-assy, Front Drive Shift Link
36305A Bush (FOR FRONT DRIVE SHIFT LINK LEVER)
36307 Lever Sub-assy, High & Low Shift Inner
36307A Seal, Oil (FOR HIGH & LOW SHIFT INNER LEVER)
36308 Rod Sub-assy, High & Low Shift
36311 Fork, Transfer Gear Shift, NO.1
36311B Pin, Slotted Spring (FOR TRANSFER SHIFT FORK)
36311F Fork, Transfer Gear Shift, NO.1
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312F Fork, Transfer Gear Shift, NO.2
36313 Shaft, Transfer Front Drive Shift
36313F Shaft, Transfer Front Drive Shift Fork
36313J Seal, Oil (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36313R Spring, Compression (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36314 Shaft, Transfer High And Low Shift Fork
36318 Boot, Transfer Front Drive Shift
36321 Lever, Transfer Front Drive Shift
36321B Ring, Hole Snap (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36321D Bush (FOR TRANSFER SHIFT LEVER)
36321S Spring, Compression (FOR TRANSFER SHIFT LEVER)
36322 Lever, Transfer High & Low Shift
36323 Guide, Transfer Shift Lever
36324 Bush, Transfer Shift Lever
36324A Bush, Transfer Shift Lever
36326 Support, Transfer Shift Lever
36327 Shaft, Transfer Shift Lever
36331 Boot, Transfer Shift Lever
36331A Boot, Transfer Shift Lever, NO.2
36339 Clevis, Transfer Shift Rod
36340 Rod Assy, High And Low Shift, NO.2
36340B End Assy (FOR HIGH & LOW SHIFT ROD)
36340C End Assy, High & Low Connecting Rod
36341 Shaft, Front Drive Shift Link Support
36343 Shoe, Front Drive Shift Link Lever (FOR DIRECT TYPE)
36344 Retainer, Transfer Control Shift Lever
36346 Bracket, Transfer Control Shift Lever Retainer
36351A Spacer (FOR HIGH & LOW SHIFT ROD)
36351B Pin (FOR HIGH & LOW SHIFT ROD)
36351C Pin (FOR HIGH & LOW SHIFT ROD)
36351D Grommet (FOR HIGH & LOW SHIFT ROD)
36360G Lever Assy, Transfer High & Low Shift
36361 Lever, Transfer Shift, Inner
36362 Lever, Transfer High And Low Shift Outer
36362A Lever, Transfer Shift, Outer
36367 Shaft, Transfer Shift Inner Lever
36410J Actuator Assy, Transfer Shift
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
