Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

10 part groups · 2 illustrations

Illustrations

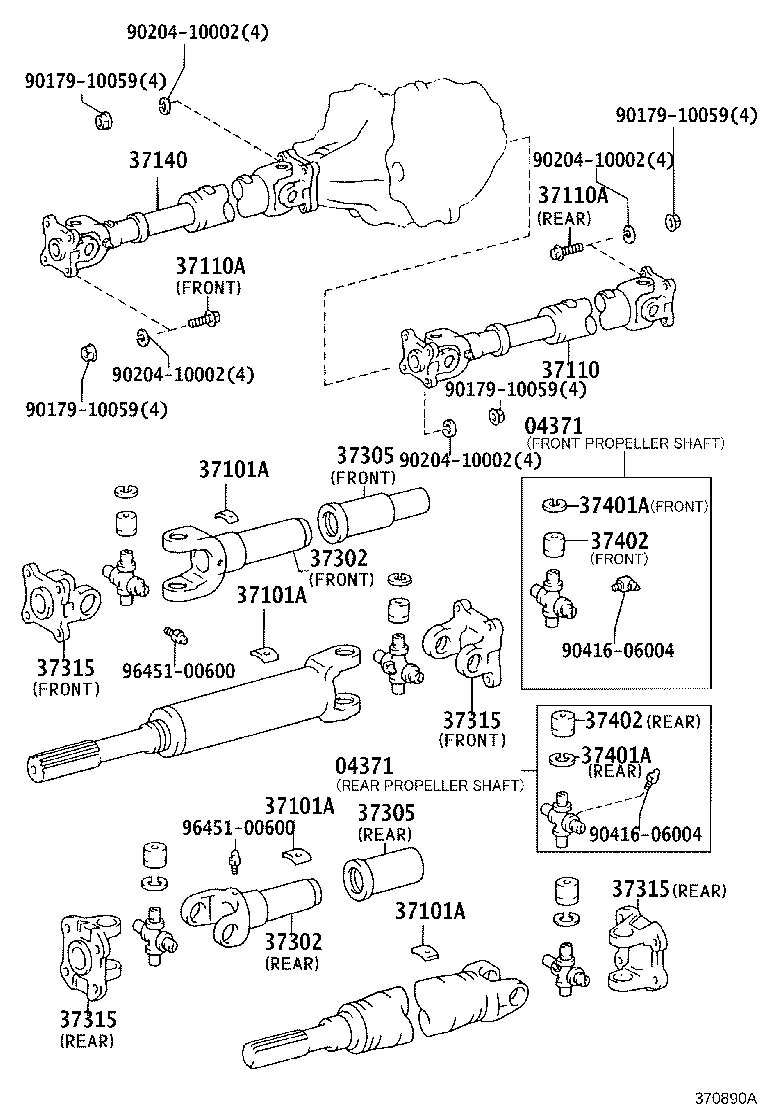

Figure 370017K 370017K 1990-01 → — Figure 370890A 370890A 1990-01 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37140 Shaft Assy, Propeller, Front
37302 Yoke Sub-assy, Universal Joint Sleeve
37305 Cover Sub-assy, Sliding Shaft Dust
37315 Yoke, Universal Joint Flange
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
