Winch
120 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28123A | Core, Pole |
| 28199B | Protector, Dust Winch Motor |

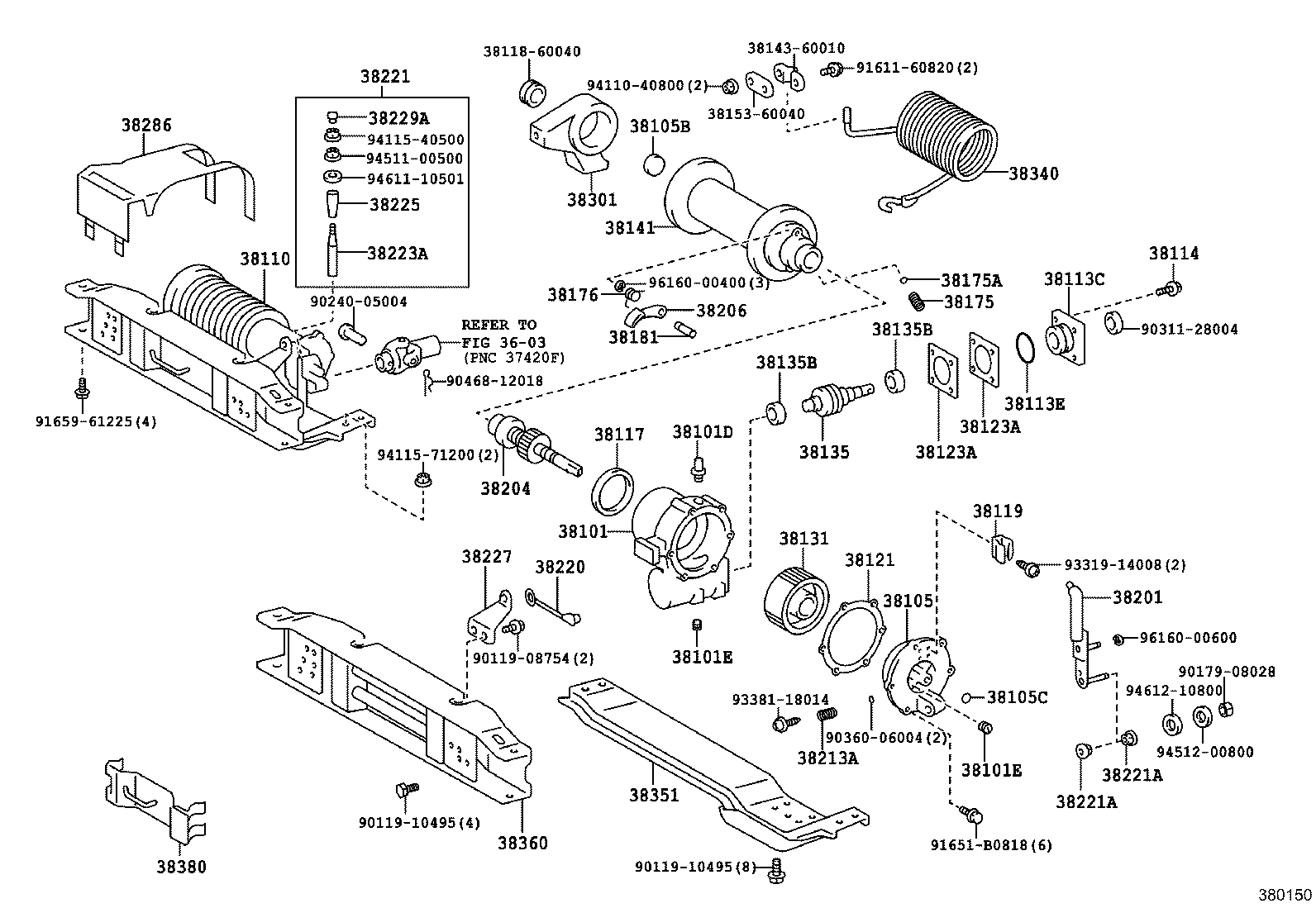

| 38101 | Case Sub-assy, Winch Gear |
| 38101D | Plug, Breather (FOR WINCH GEAR CASE) |
| 38101E | Plug (FOR WINCH GEAR CASE) |
| 38103 | Drum Sub-assy, Winch |
| 38104 | Shaft, Winch Output |
| 38105 | Cover Sub-assy, Winch Gear Case |
| 38105B | Plug, Tight (FOR WINCH GEAR CASE COVER) |
| 38105C | Ring, O (FOR WINCH GEAR CASE COVER) |
| 38106A | Case, Winch Brake |

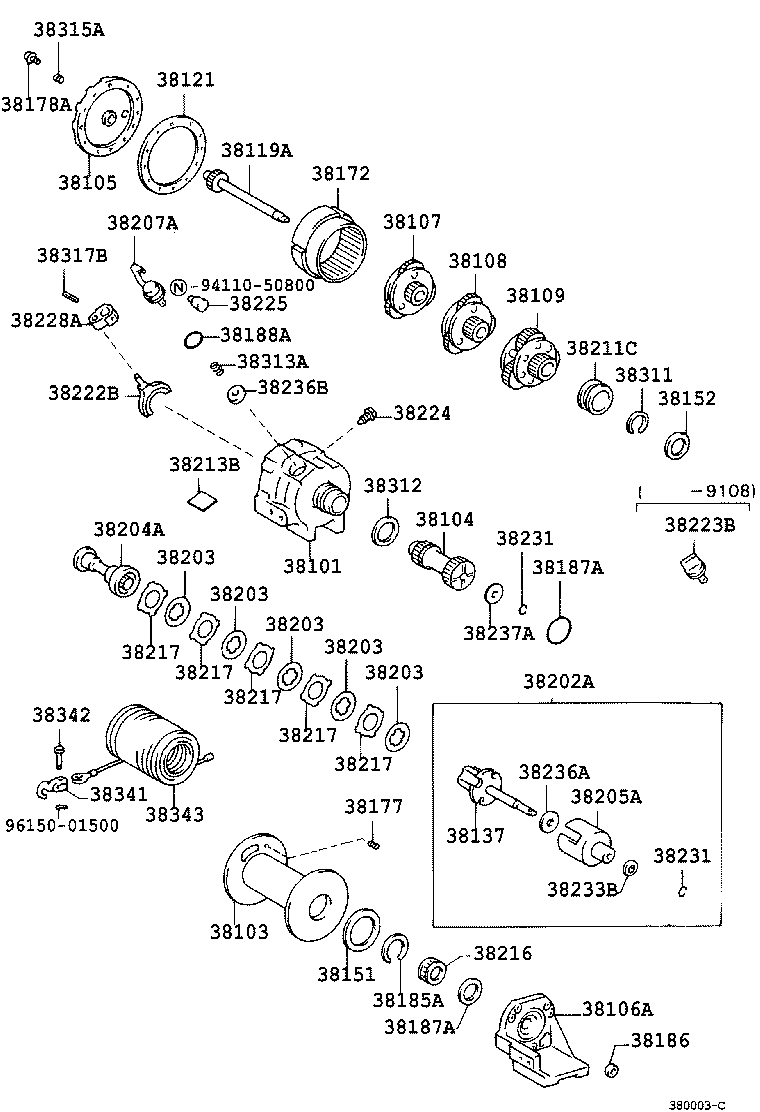

| 38107 | Gear Sub-assy, Winch Planetary, NO.1 |
| 38108 | Gear Sub-assy, Winch Planetary, NO.2 |
| 38109 | Gear Sub-assy, Winch Planetary, NO.3 |

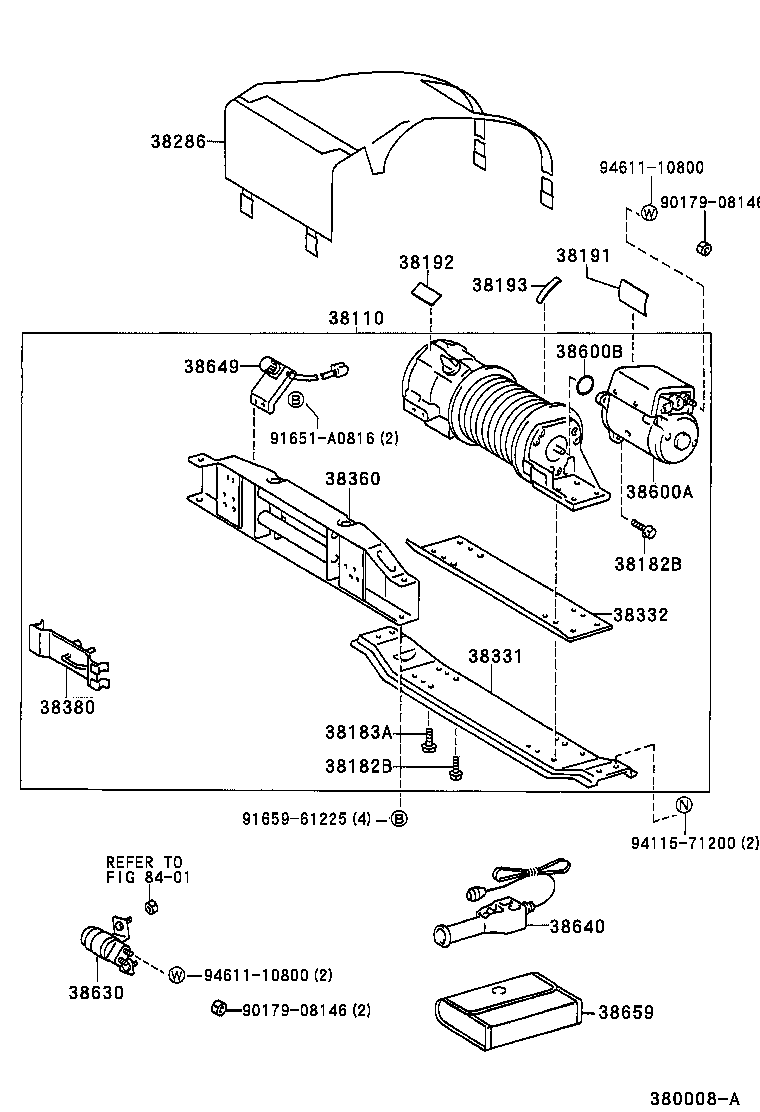

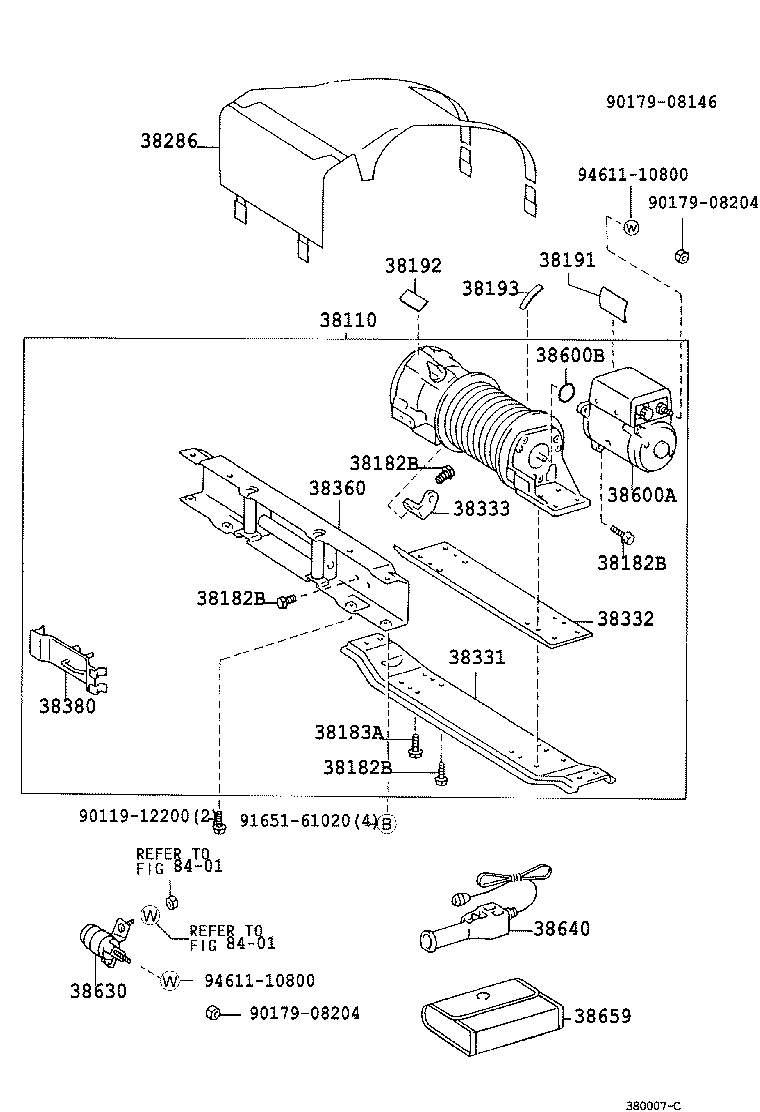

| 38110 | Winch Assy |
| 38113C | Retainer, Worm Bearing, NO.1 |
| 38113E | Ring, O (FOR WINCH WORM BEARING RETAINER NO.1) |
| 38114 | Bolt, Winch Worm Bearing Retainer |
| 38117 | Seal, Winch Gear Case Cover |
| 38119 | Clip, Winch Gear Case Cover |
| 38119A | Shaft, Winch Drive |
| 38121 | Gasket, Winch Gear Case Cover |
| 38123A | Shim, Winch Worm Adjust, NO.1 |
| 38131 | Gear, Worm |
| 38135 | Worm, Winch |
| 38135B | Bearing (FOR WINCH WORM) |
| 38137 | Shaft, Winch Input |
| 38141 | Drum, Winch |
| 38151 | Spacer, Winch Drum, NO.1 |
| 38152 | Spacer, Winch Drum, NO.2 |
| 38172 | Gear, Winch Ring |
| 38175 | Spring, Winch Brake, NO.1 |
| 38175A | Ball (FOR WINCH BRAKE SPRING NO.1) |
| 38176 | Spring, Winch Brake, NO.1 |
| 38177 | Bolt, Winch Set |
| 38178A | Bolt, Winch Gear Case Cover |
| 38181 | Pin, Winch Brake |
| 38182B | Bolt, Winch, NO.1 |
| 38183A | Bolt, Winch, NO.2 |
| 38185A | Ring, Winch 1 Way Clutch Snap |
| 38186 | Seal, Gear Case Cover Oil |
| 38187A | Ring, Winch |
| 38188A | Ring, Winch Clutch Shift Handle |
| 38191 | Plate, Winch Caution, NO.1 |
| 38192 | Plate, Winch Caution, NO.2 |
| 38193 | Plate, Winch Caution, NO.3 |
| 38201 | Lever Sub-assy, Winch Clutch |
| 38202A | Clutch Sub-assy, Winch, Outer |
| 38203 | Disc Sub-assy, Winch Clutch, Inner |
| 38204 | Shaft Assy, Winch Clutch Hub |
| 38204A | Clutch Sub-assy, Winch Inner |
| 38205A | Case Sub-assy, Winch Clutch, Outer |
| 38206 | Brake Assy, Winch |
| 38207A | Lever Sub-assy, Winch Clutch Shift |
| 38211C | Sleeve, Winch Clutch |
| 38213A | Spring, Winch Clutch Hub Shift |
| 38213B | Plate, Winch Caution, NO.5 |
| 38216 | Clutch, Winch 1 Way |
| 38217 | Disc, Winch Clutch, Outer |
| 38220 | Cap Assy, Winch Clutch Lever |
| 38221 | Lever, Clutch Hub Shift |
| 38221A | Bush (FOR CLUTCH HUB SHIFT LEVER) |
| 38222B | Fork, Winch Clutch Shift |
| 38223A | Lever, Winch Clutch |
| 38223B | Handle, Winch Clutch Shift |
| 38224 | Bolt, Winch Clutch Shift Handle |
| 38225 | Knob, Winch Clutch Lever |
| 38227 | Plate, Winch Clutch Lever Shift Lock |
| 38228A | Adapter, Winch Clutch Shift |
| 38229A | Cover, Winch Clutch |
| 38231 | Shoe, Brake |
| 38233B | Washer, Winch Clutch Input Shaft Thrust |
| 38235 | Chain, Winch Clutch Lever |
| 38236A | Washer, Winch Clutch Thrust, NO.1 |
| 38236B | Washwe, Winch Clutch Thrust |
| 38237A | Washer, Winch Clutch Thrust, NO.2 |
| 38286 | Cover, Winch |
| 38301 | Bracket Sub-assy, Winch End |
| 38311 | Ring, Winch Output Shaft Snap |
| 38312 | Spacer, Winch Output Shaft, NO.2 |
| 38313A | Spring, Winch Clutch Shift Handle |
| 38315A | Plug, Winch Filler |
| 38317B | Pin, Winch Clutch Shift Handle Spring |
| 38331 | Base, Winch, NO.1 |
| 38332 | Base, Winch, NO.2 |
| 38333 | Spacer, Member, NO.1 |
| 38340 | Wire Assy, Winch Chain |
| 38341 | Hook, Winch Wire |
| 38342 | Pin, Winch Wire Hook |
| 38343 | Winch Wire |
| 38344 | Guide, Winch Wire |
| 38351 | Base, Winch |
| 38360 | Bracket Assy, Winch Roller |
| 38380 | Holder Assy, Winch Hook |

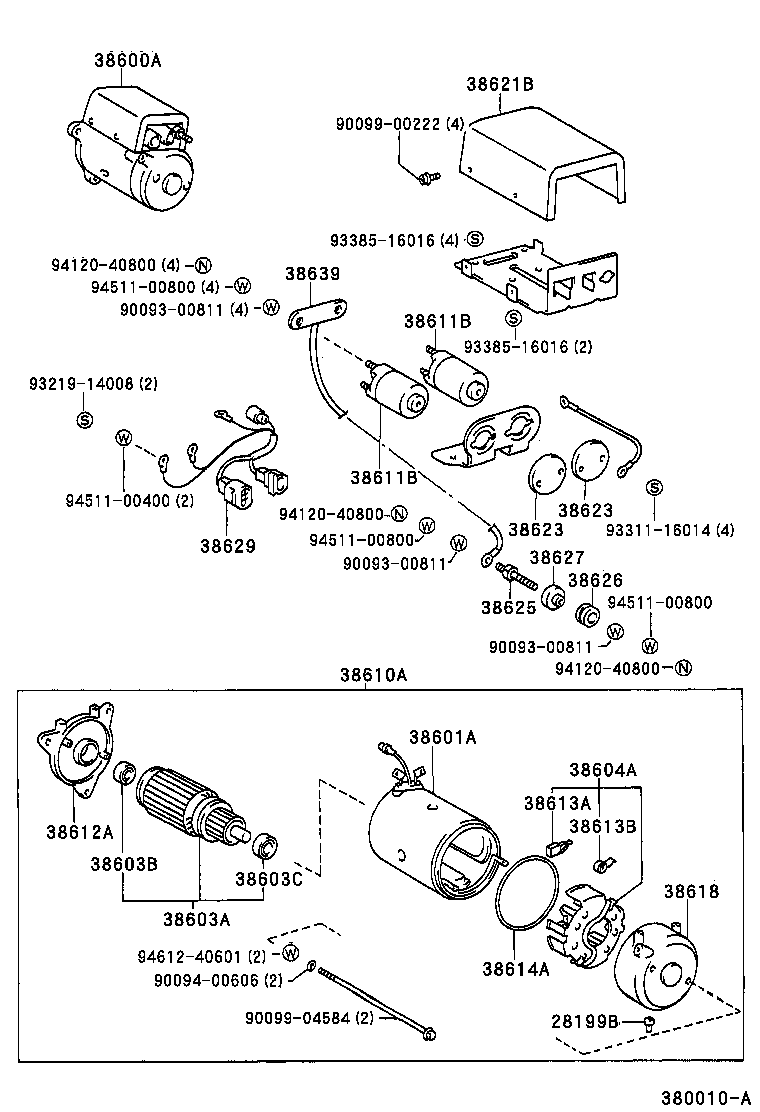

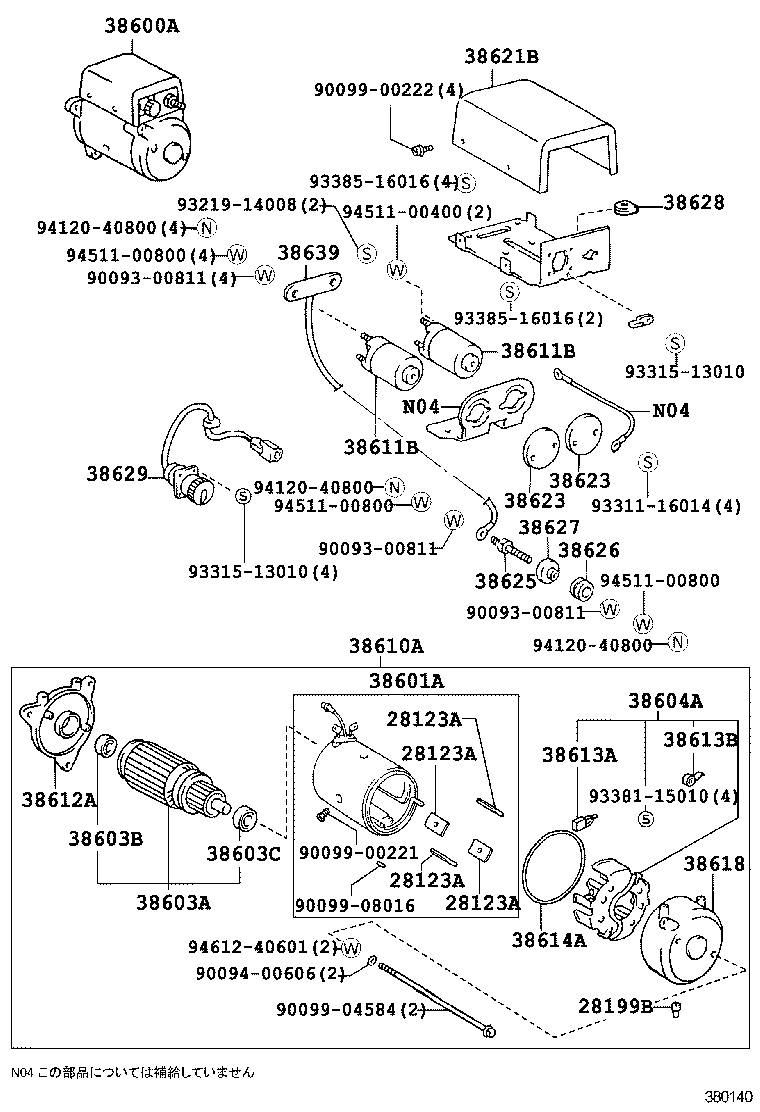

| 38600A | Motor Assy, W/Magnet Switch, Winch |
| 38600B | Ring, O (FOR WINCH MOTOR) |
| 38601A | Yoke Sub-assy, Winch Motor |
| 38603A | Armature Sub-assy, Winch Motor |
| 38603B | Bearing, NO.1 (FOR WINCH MOTOR ARMATURE) |
| 38603C | Bearing, NO.2 (FOR WINCH MOTOR ARMATURE) |
| 38604A | Holder Assy, Winch Motor Brush |
| 38610A | Motor Assy, Winch |
| 38611B | Switch, Magnet, NO.2 (FOR WINCH MOTOR) |
| 38612A | Frame, Winch Motor End |
| 38613A | Brush, Winch Motor |
| 38613B | Spring, Winch Motor Brush |
| 38614A | Ring, O(FOR WINCH MOTOR) |
| 38618 | Frame, Winch Motor Commutator End |
| 38621B | Cover, Magnet Switch Winch |
| 38623 | Stopper, Winch Motor |
| 38625 | Bolt, Stud Winch Motor |
| 38626 | Bushing, Stepped Female Winch Motor |
| 38627 | Bushing, Stepped Male Winch Motor |
| 38628 | Gromet, Winch |
| 38629 | Wire, Winch Motor |
| 38630 | Switch Assy, Magnet, NO.1 |
| 38639 | Wire (FOR WINCH MOTOR) |
| 38640 | Switch Assy, Winch Control |
| 38649 | Wire, Winch Control |
| 38659 | Cover, Winch Control Switch |
