Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

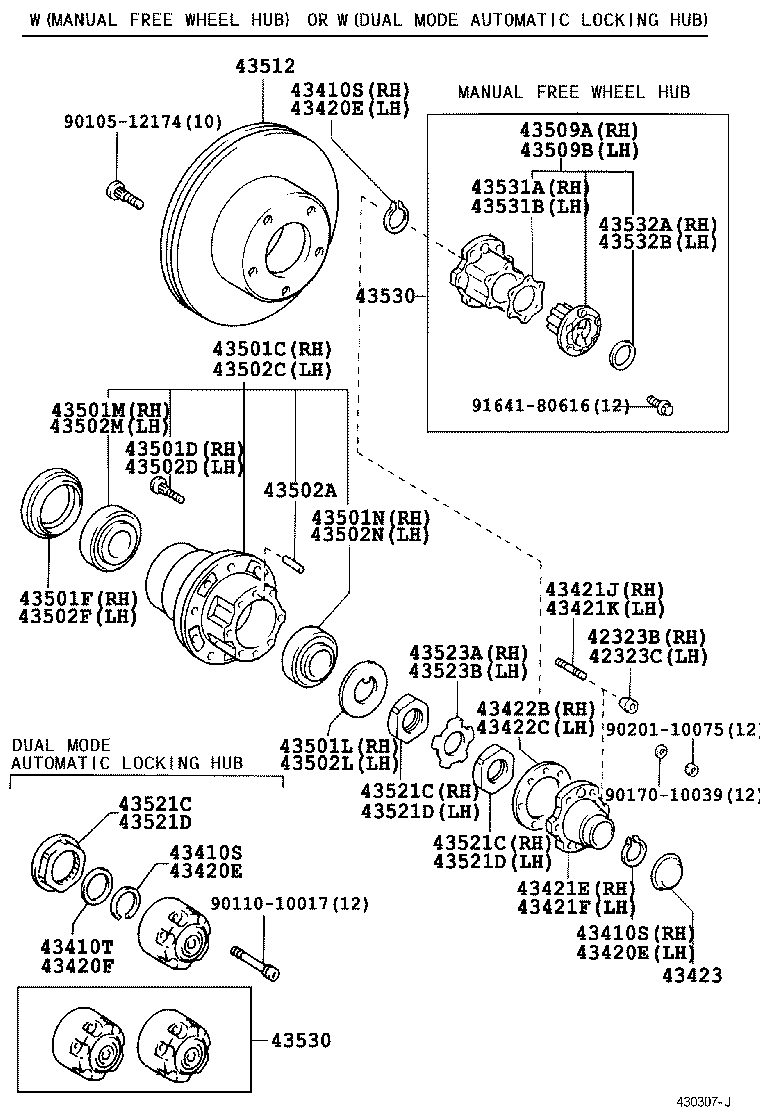

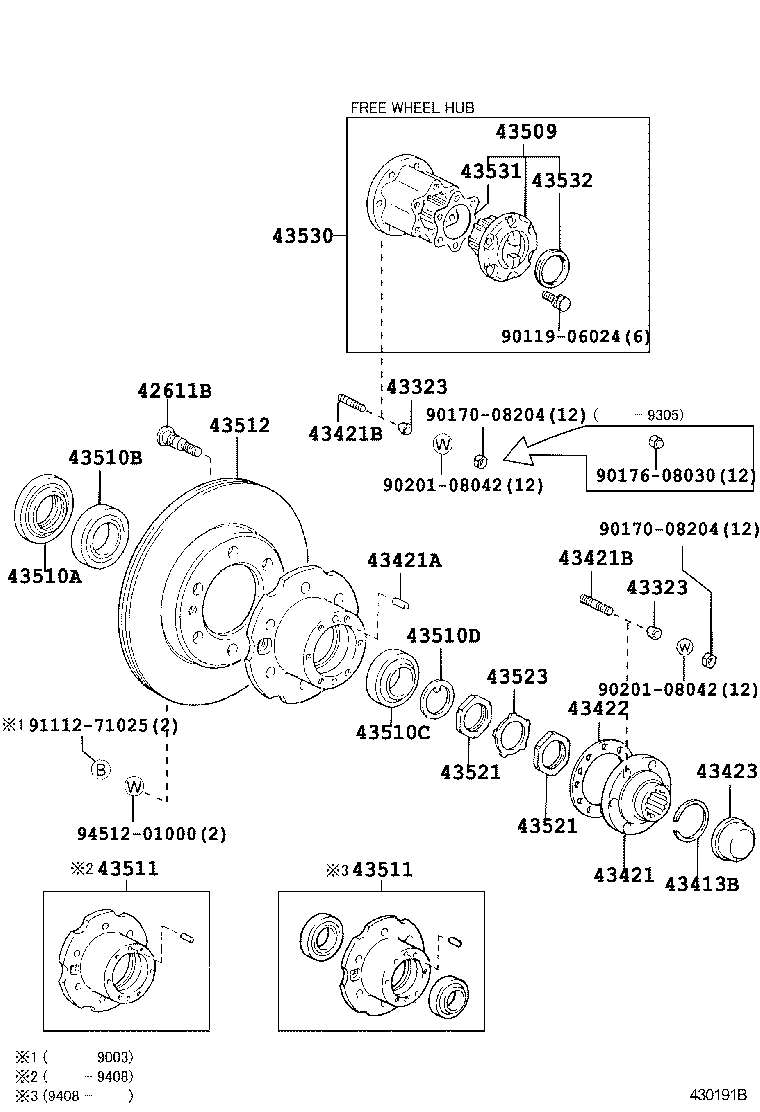

Front Axle Hub
60 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42323B | Washer, Cone (FOR FRONT AXLE SHAFT RH) |
| 42323C | Washer, Cone (FOR FRONT AXLE SHAFT LH) |
| 42611B | Bolt, Hub (FOR FRONT AXLE) |
| 43323 | Washer, Cone (FOR FRONT AXLE SHAFT) |
| 43410S | Ring, Snap (FOR FRONT DRIVE SHAFT RH) |
| 43410T | Spacer (FOR FRONT DRIVE SHAFT RH) |
| 43413B | Ring, Drive Shaft Snap |
| 43420E | Ring, Snap (FOR FRONT DRIVE SHAFT LH) |
| 43420F | Spacer (FOR FRONT DRIVE SHAFT LH) |
| 43421 | Flange, Front Axle Outer Shaft |
| 43421A | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43421B | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43421E | Flange, Front Axle Outer Shaft, RH |
| 43421F | Flange, Front Axle Outer Shaft, LH |
| 43421J | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE RH) |
| 43421K | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE LH) |
| 43422 | Gasket, Front Axle Outer Shaft Flange |
| 43422B | Gasket, Front Axle Outer Shaft Flange, RH |
| 43422C | Gasket, Front Axle Outer Shaft Flange, LH |
| 43423 | Cap, Front Axle Outer Shaft Flange |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501B | Bolt, Set (FOR FRONT BRAKE DRUM SETTING) |
| 43501C | Hub Sub-assy, Front Axle, RH |
| 43501D | Bolt, Hub (FOR FRONT AXLE RH) |
| 43501F | Seal, Oil (FOR FRONT AXLE HUB RH) |
| 43501L | Washer, Claw (FOR FRONT AXLE HUB RH) |
| 43501M | Bearing (FOR FRONT AXLE HUB INNER RH) |
| 43501N | Bearing (FOR FRONT AXLE HUB OUTER RH) |
| 43502A | Pin, Straight (FOR FRONT AXLE HUB) |
| 43502C | Hub Sub-assy, Front Axle, LH |
| 43502D | Bolt, Hub (FOR FRONT AXLE LH) |
| 43502F | Seal, Oil (FOR FRONT AXLE HUB LH) |
| 43502L | Washer, Claw (FOR FRONT AXLE HUB LH) |
| 43502M | Bearing (FOR FRONT AXLE HUB INNER LH) |
| 43502N | Bearing (FOR FRONT AXLE HUB OUTER LH) |
| 43509 | Cover Sub-assy, Free Wheel Hub |
| 43509A | Cover Sub-assy, Free Wheel Hub, RH |
| 43509B | Cover Sub-assy, Free Wheel Hub, LH |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43511 | Hub, Front Axle |
| 43512 | Disc, Front |
| 43512B | Drum, Brake |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43521 | Nut, Front Wheel Adjusting |
| 43521C | Nut, Front Wheel Adjusting, RH |
| 43521D | Nut, Front Wheel Adjusting, LH |
| 43523 | Washer, Front Wheel Adjusting Lock |
| 43523A | Washer, Front Wheel Adjusting Lock, RH |
| 43523B | Washer, Front Wheel Adjusting Lock, LH |
| 43530 | Hub Assy, Free Wheel |
| 43531 | Gasket, Free Wheel Hub |
| 43531A | Gasket, Free Wheel Hub, RH |
| 43531B | Gasket, Free Wheel Hub, LH |
| 43532 | Ring, Free Wheel Hub |
| 43532A | Ring, Free Wheel Hub, RH |
| 43532B | Ring, Free Wheel Hub, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
