Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

17 part groups · 15 illustrations

Illustrations

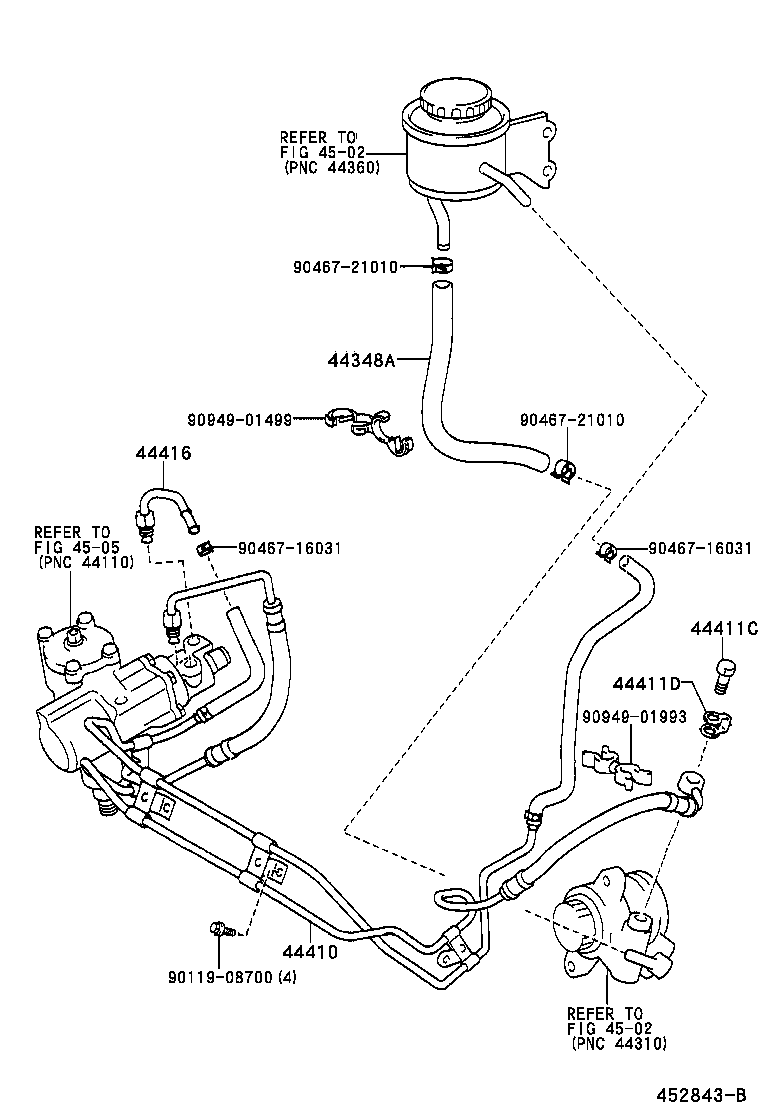

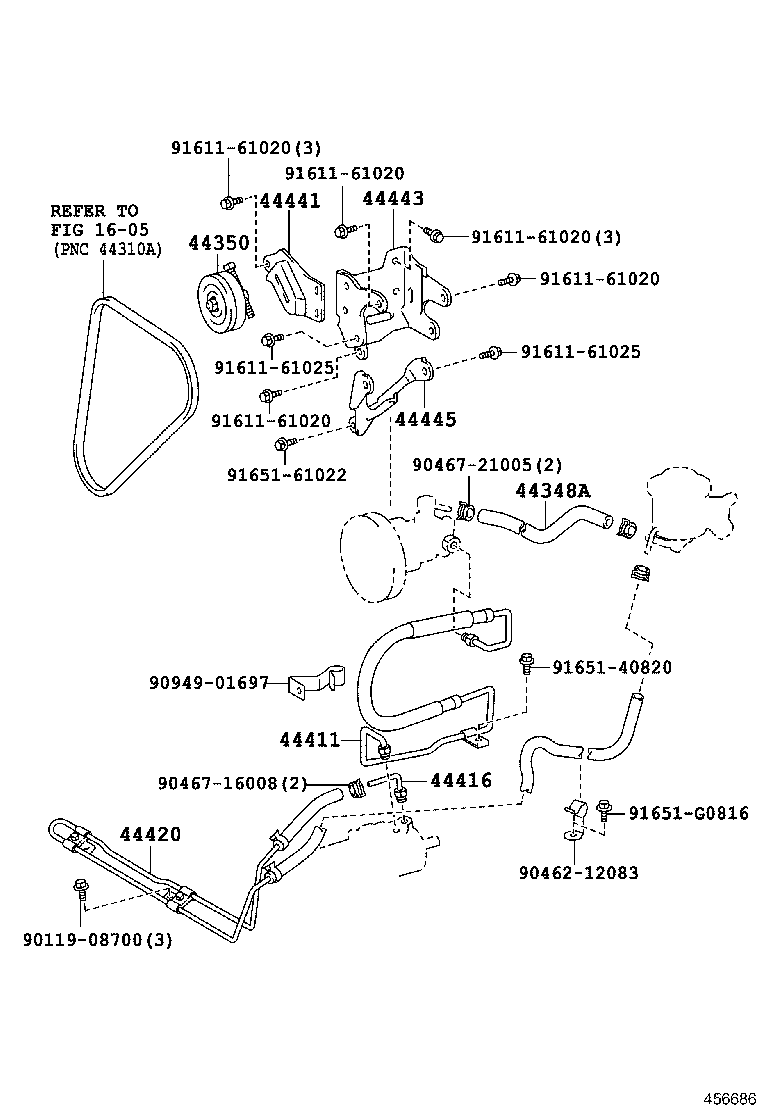

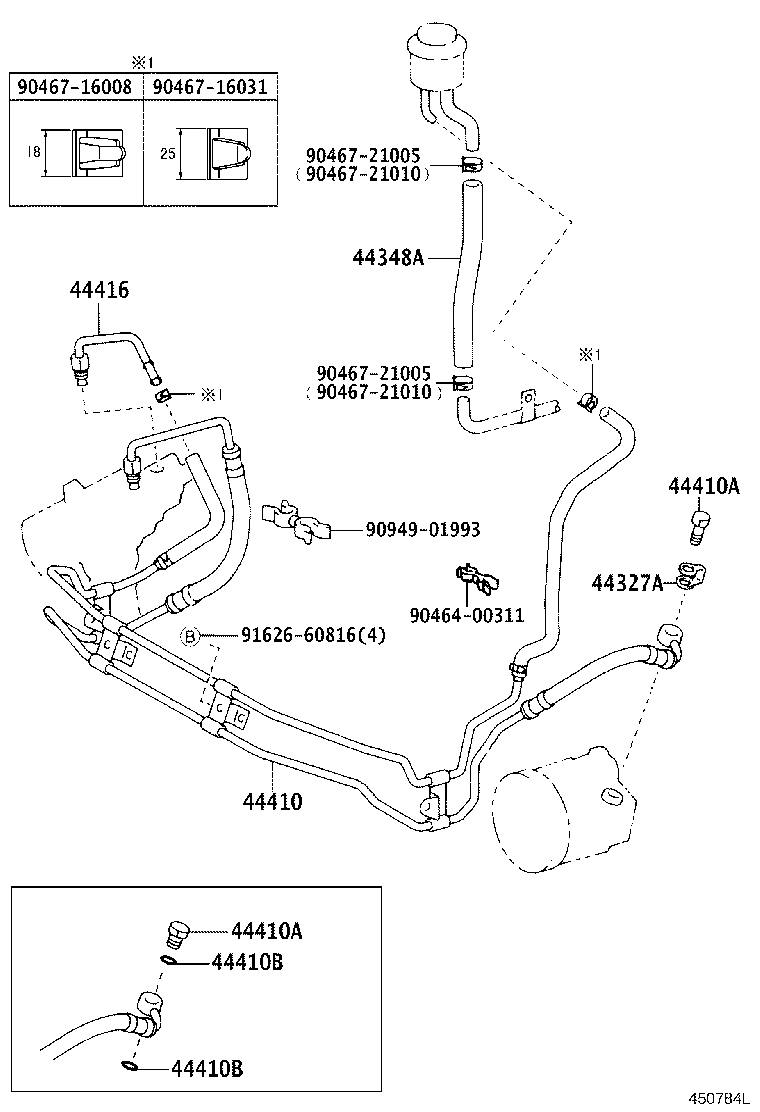

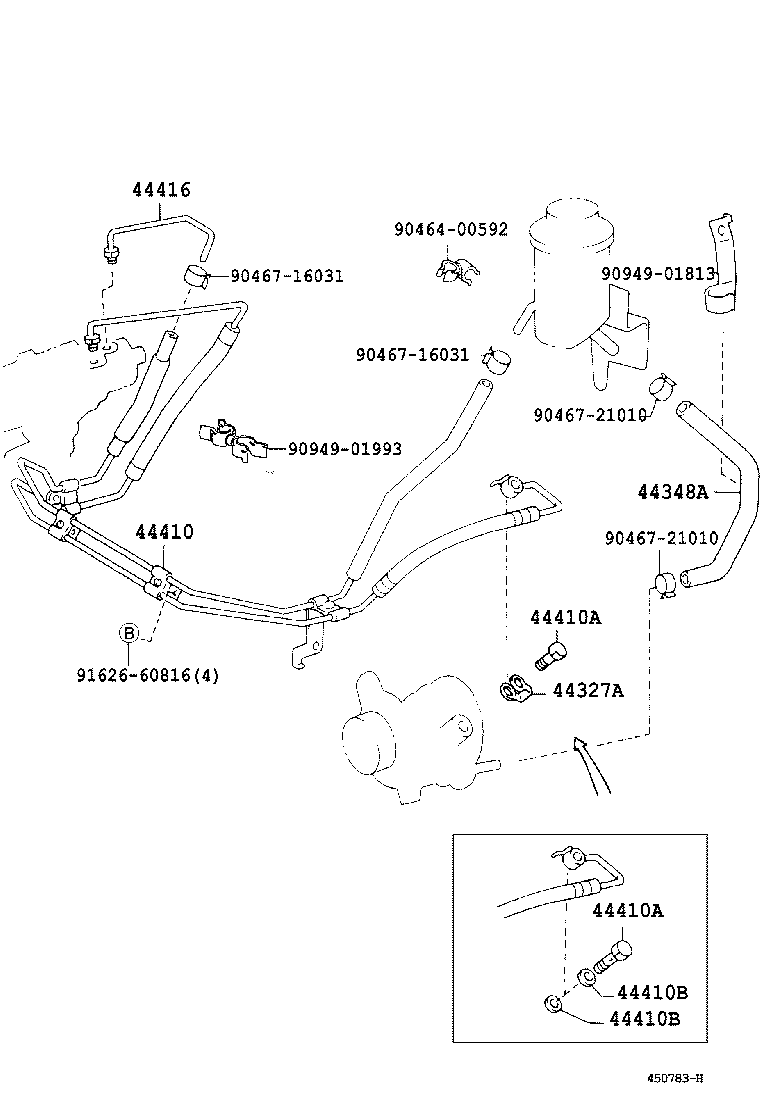

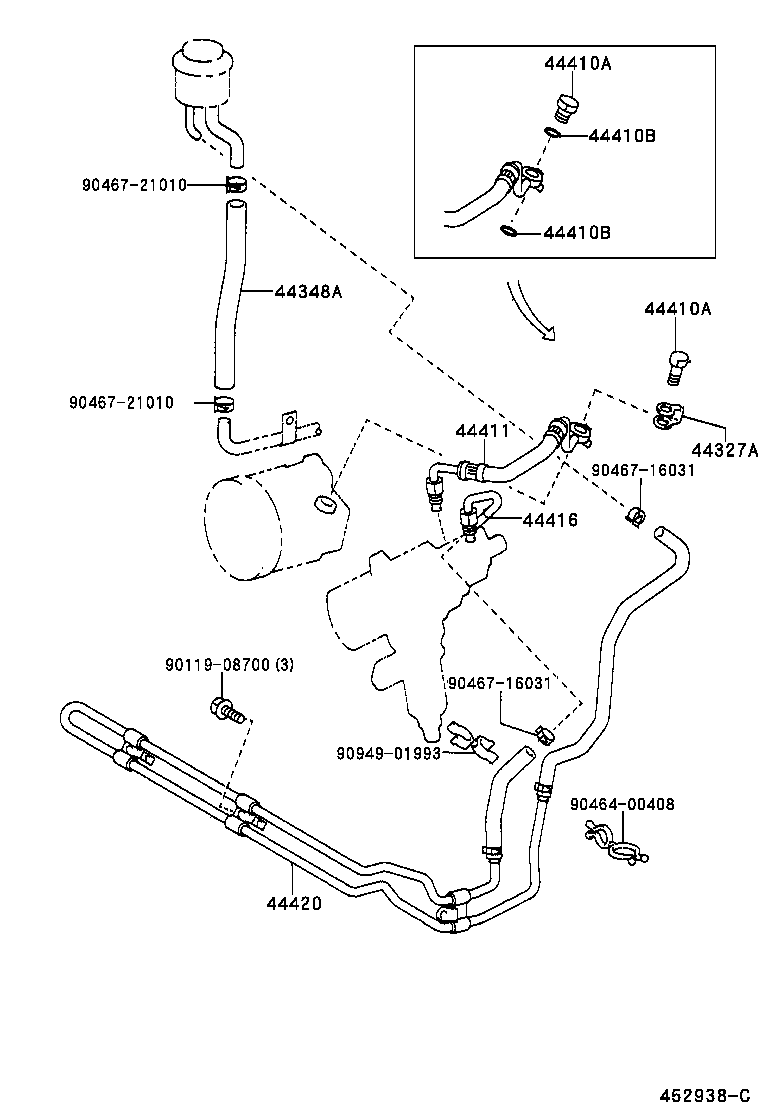

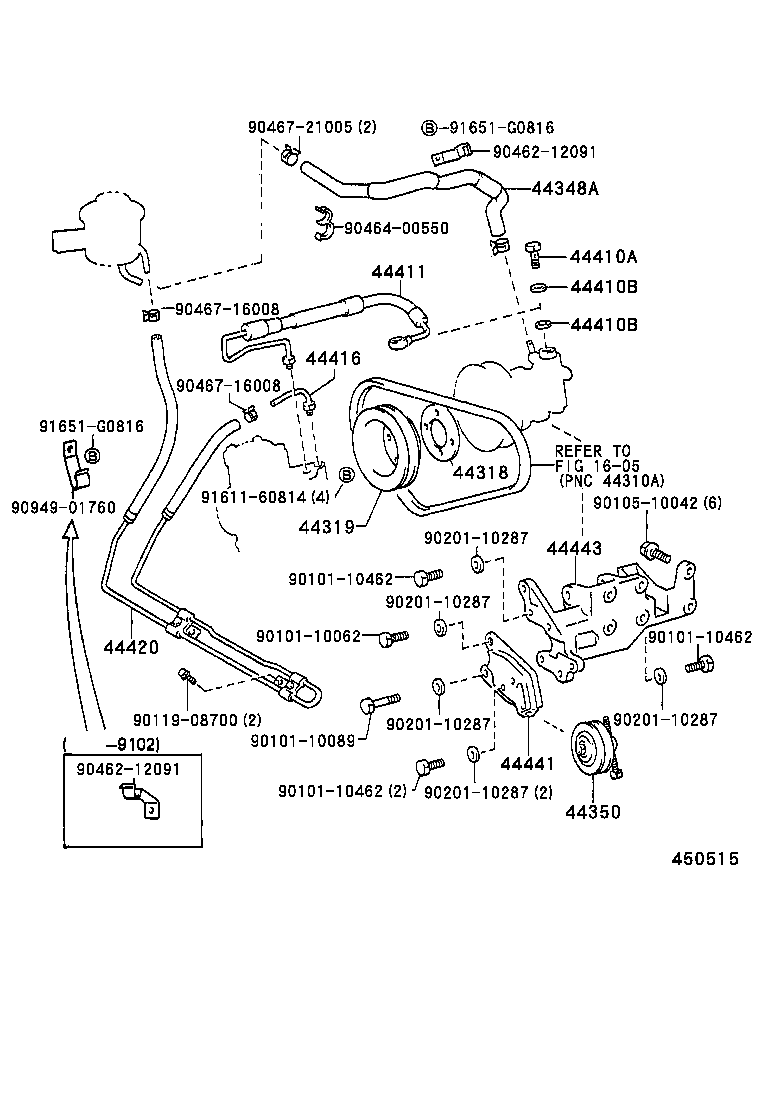

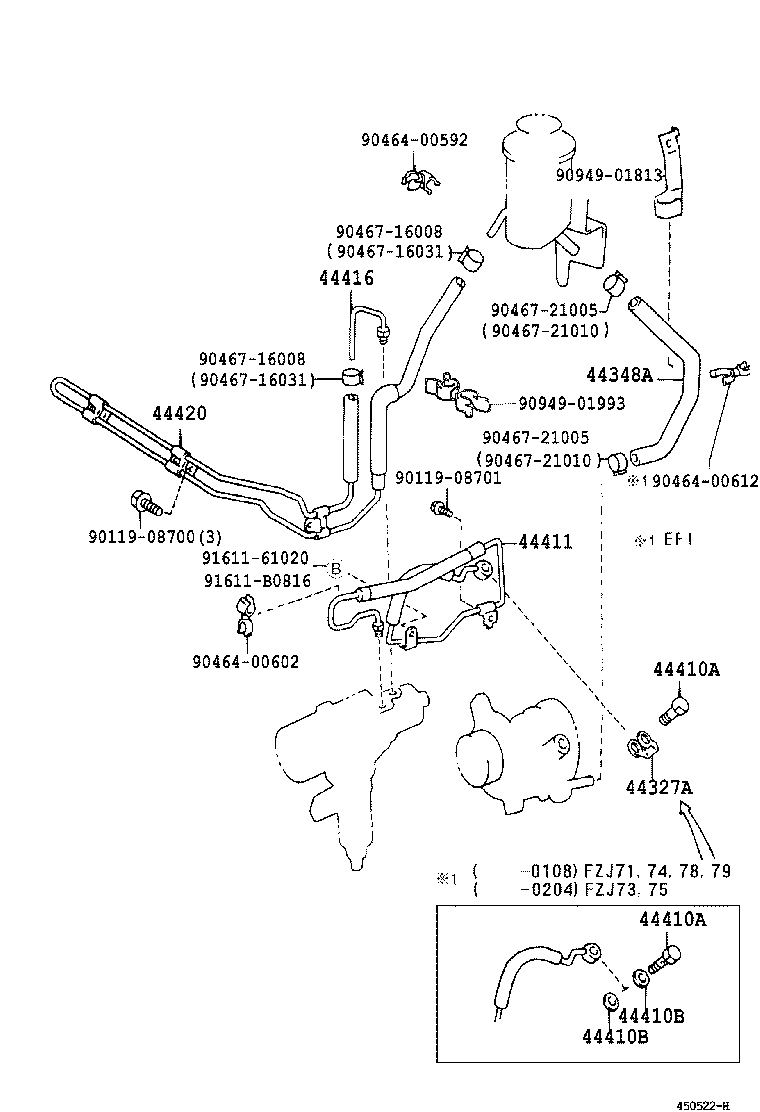

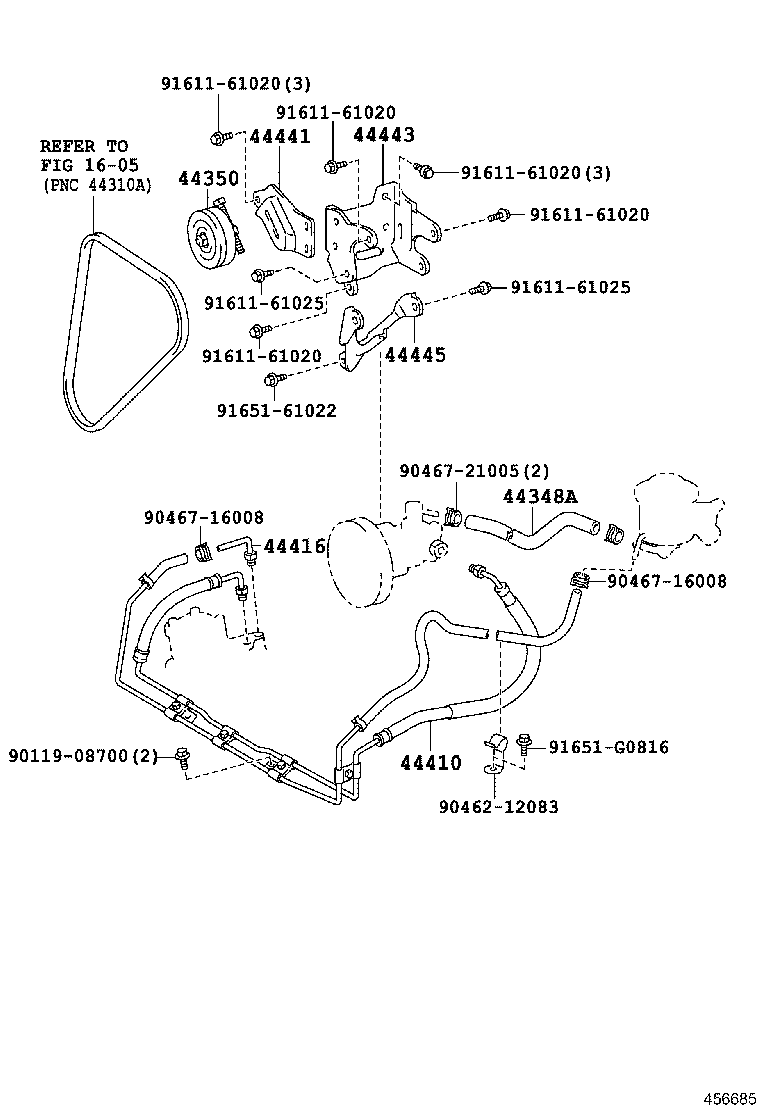

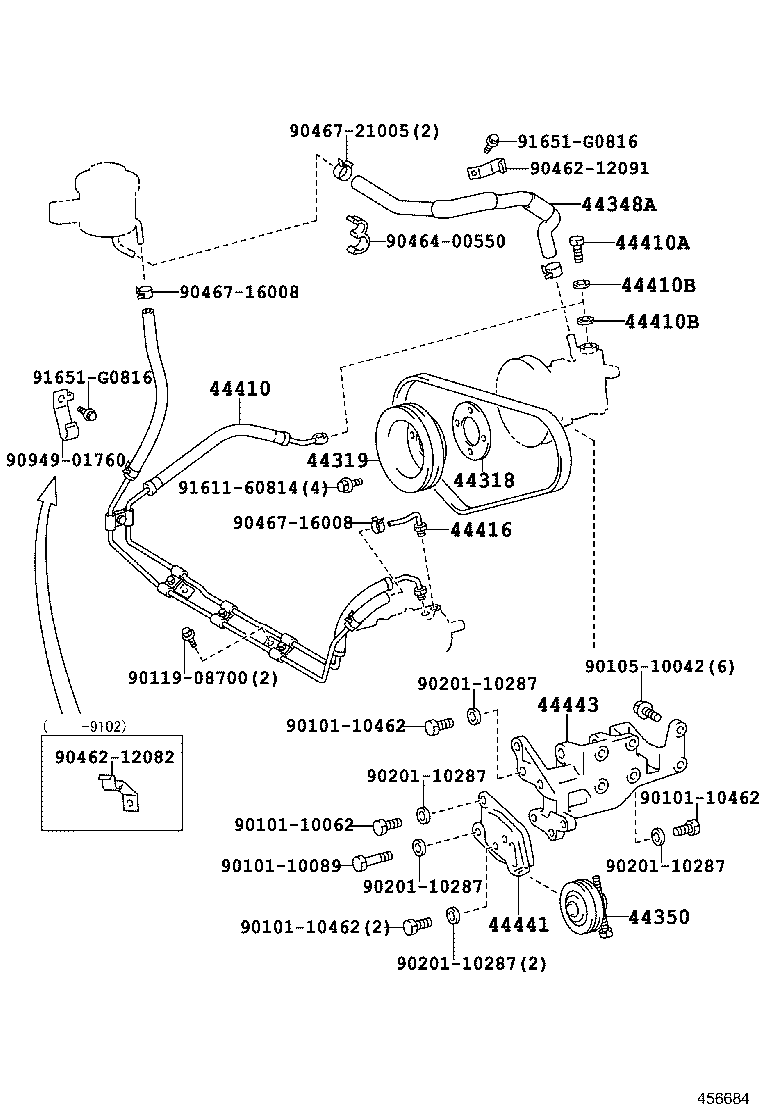

Figure 450782 450782 1990-01 → 1992-08 Figure 450516A 450516A 1990-01 → 1992-08 Figure 450783H 450783H 1992-01 → — Figure 450522H 450522H 1992-01 → — Figure 450784L 450784L 1990-01 → 1995-01 Figure 450784L 450784L 1995-01 → 2007-01 Figure 452938C 452938C 1990-01 → 1994-01 Figure 452938C 452938C 1994-01 → 2007-01 Figure 452843B 452843B 2001-08 → 2007-01 Figure 450515 450515 1990-01 → 1996-04 Figure 456684 456684 1990-01 → 1996-04 Figure 456685 456685 1990-01 → 1996-04 Figure 456686 456686 1990-01 → 1996-04 Figure 456687 456687 1993-05 → 1996-04 Figure 456688 456688 1993-05 → 1996-04

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420 Cooler Assy, Oil
44441 Bracket, Pump, Front
44443 Bracket, Pump
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
