Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

23 part groups · 17 illustrations

Illustrations

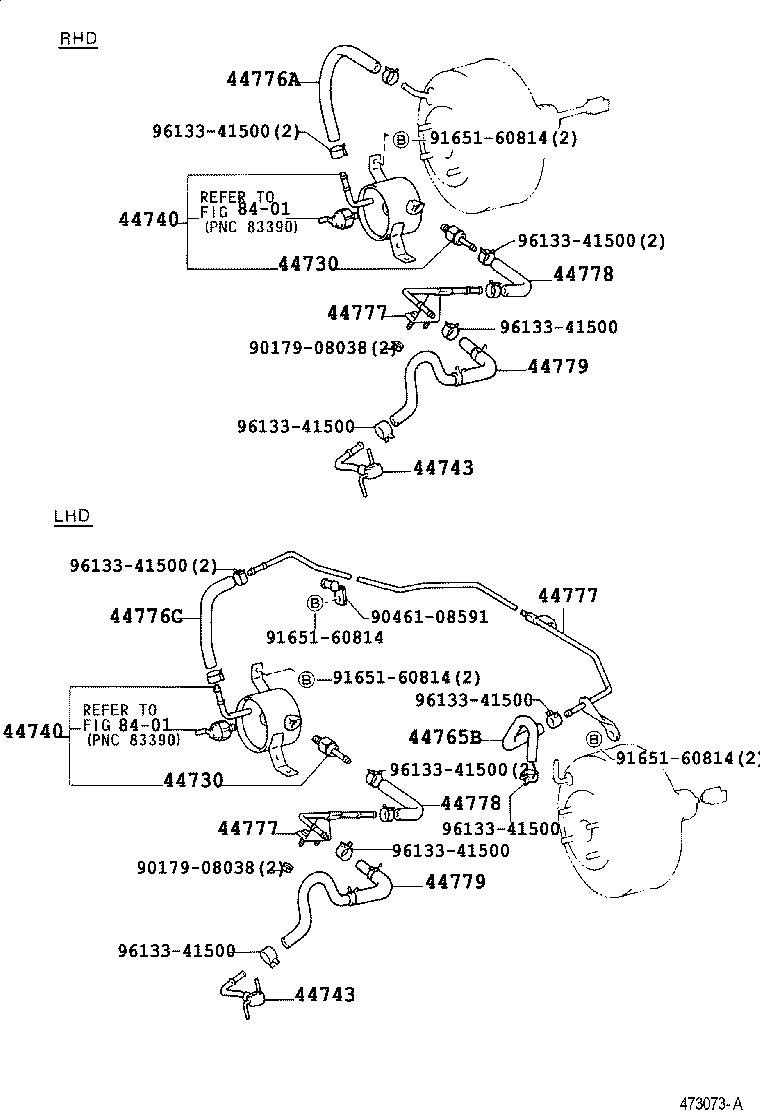

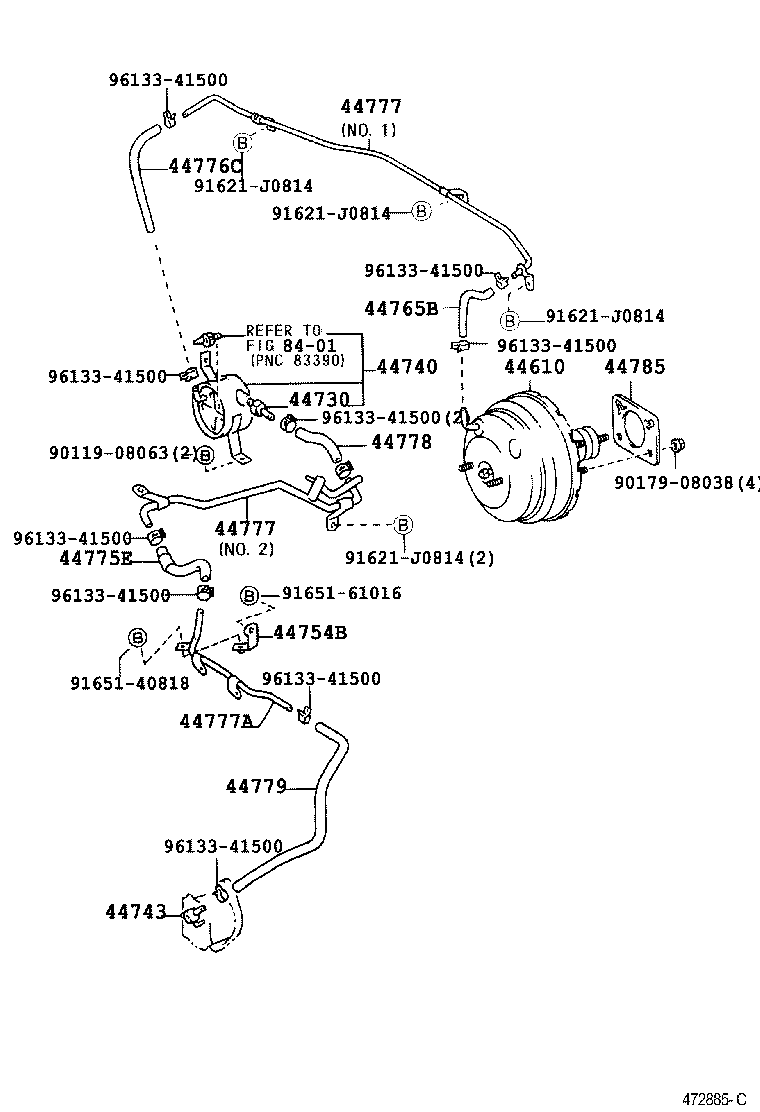

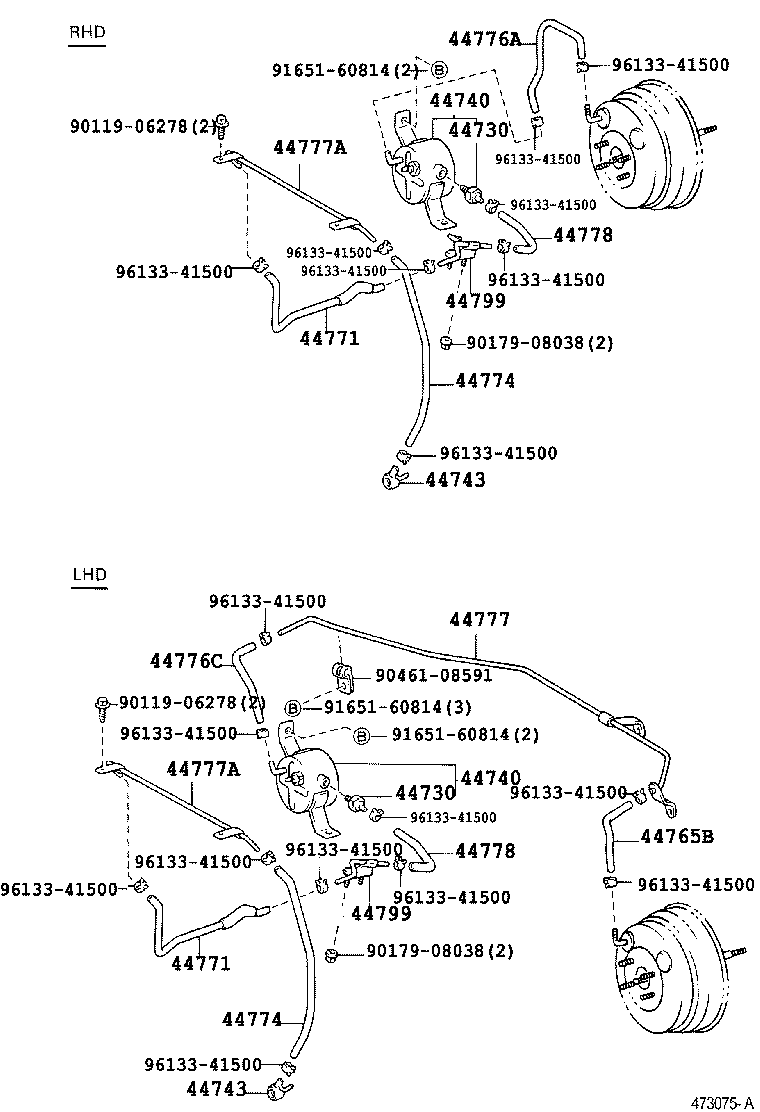

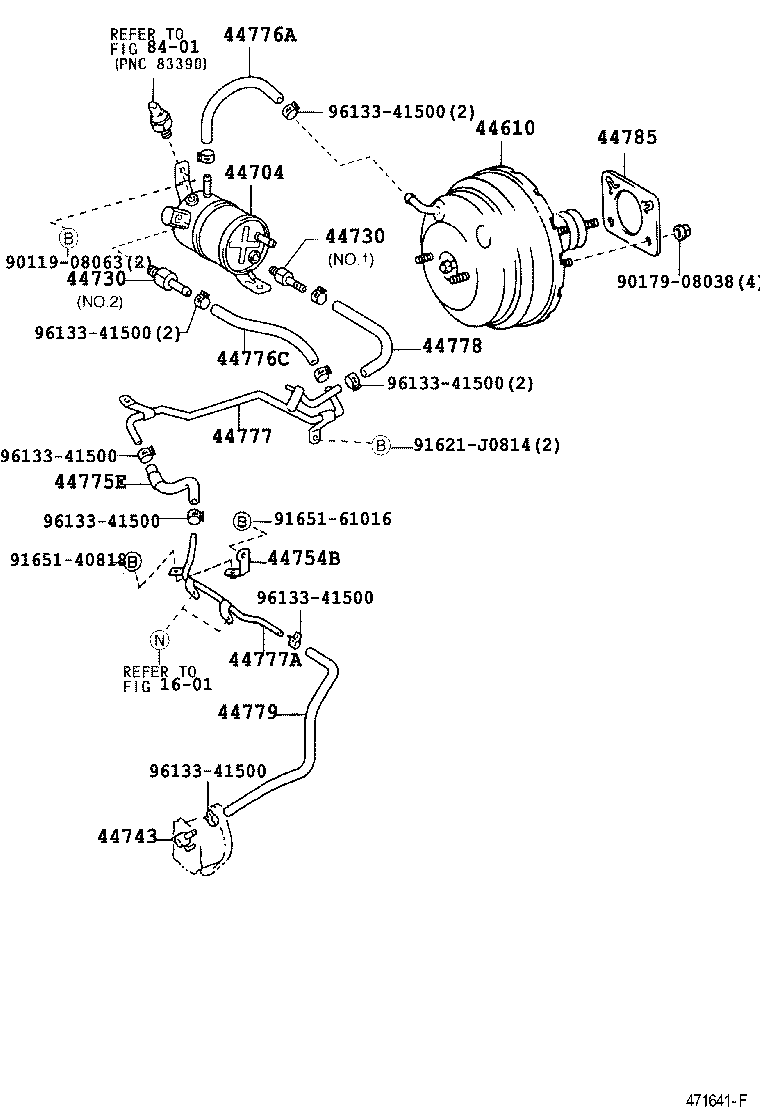

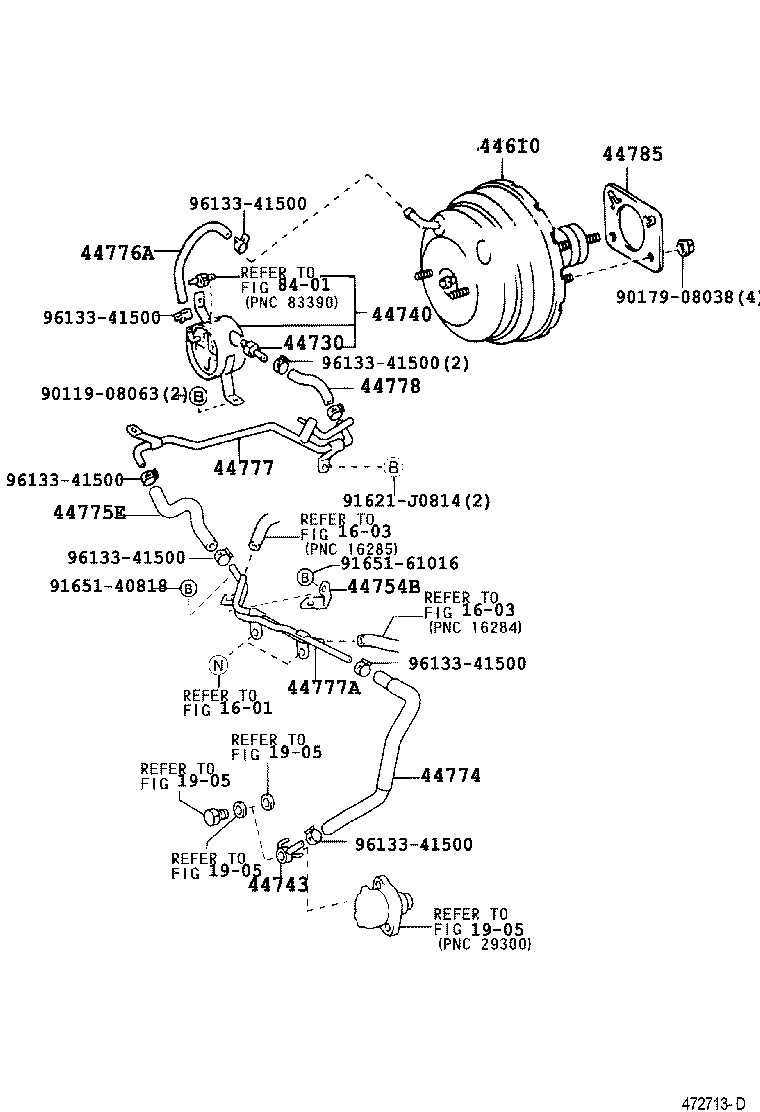

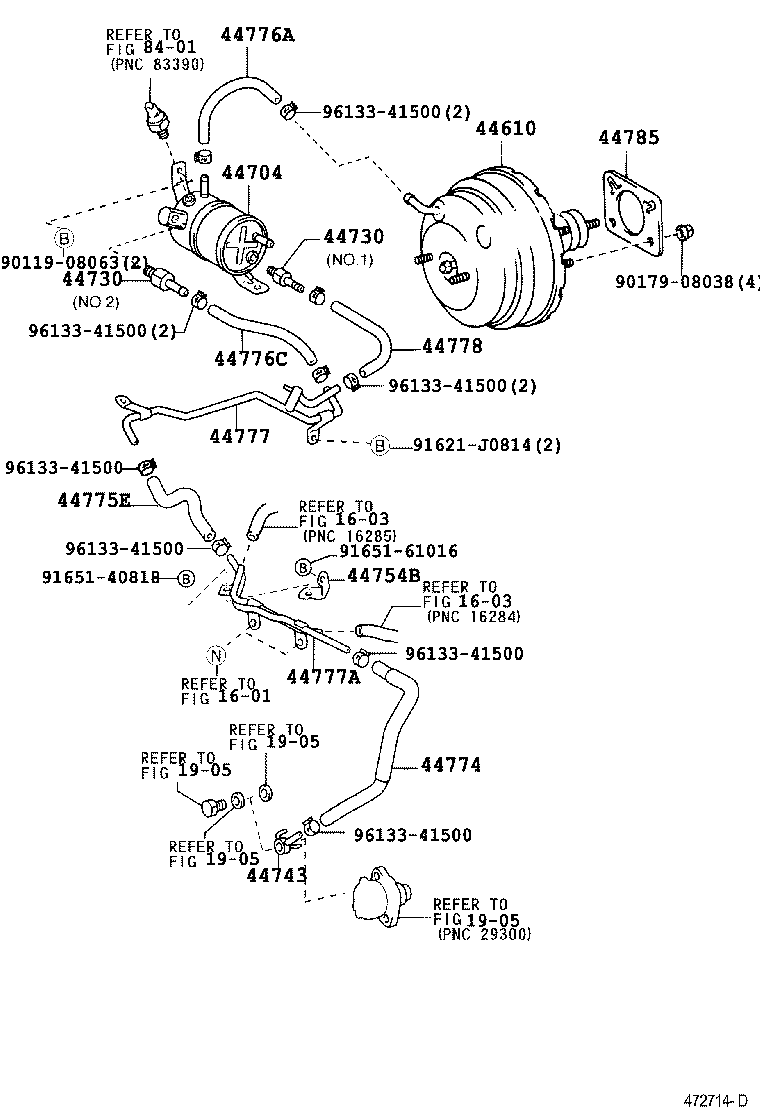

Figure 476973 476973 1990-01 → — Figure 473071A 473071A 1990-01 → 1992-08 Figure 473072A 473072A 1990-01 → 1991-08 Figure 471639D 471639D 1990-01 → 2004-05 Figure 471711C 471711C 1990-01 → 2004-05 Figure 473073A 473073A 1990-01 → 1996-04 Figure 473074A 473074A 1990-01 → 1996-04 Figure 471685B 471685B 1992-01 → 2004-05 Figure 473075A 473075A 1993-05 → 1996-04 Figure 470685B 470685B 1997-09 → 2004-05 Figure 471683D 471683D 1999-08 → — Figure 471686E 471686E 1999-08 → — Figure 472885C 472885C 1999-08 → 2007-01 Figure 471640F 471640F 1999-08 → 2007-01 Figure 471641F 471641F 1999-08 → 2007-01 Figure 472713D 472713D 2001-08 → 2007-01 Figure 472714D 472714D 2001-08 → 2007-01

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44740 Reservoir Assy, Vacuum
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44765B Hose, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44775E Hose, Way TO Connector
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44777 Connector, Vacuum Hose, NO.1
44777A Connector, Vacuum Hose, NO.2
44778 Hose, Connector TO Check Valve
44779 Hose, Union TO Connector
44785 Gasket, Brake Booster
44799 Way, Brake Vacuum Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
