Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

31 part groups · 6 illustrations

Illustrations

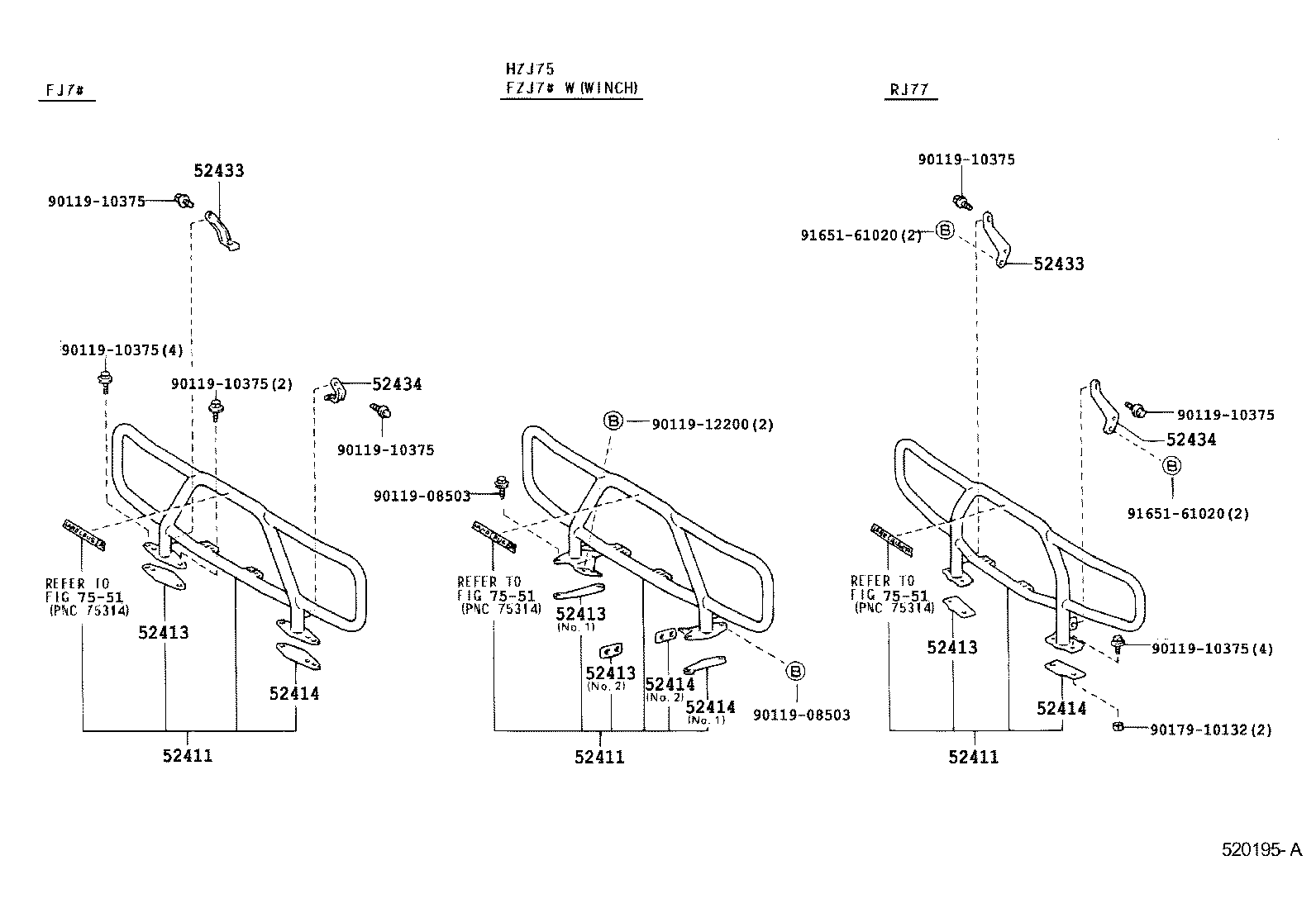

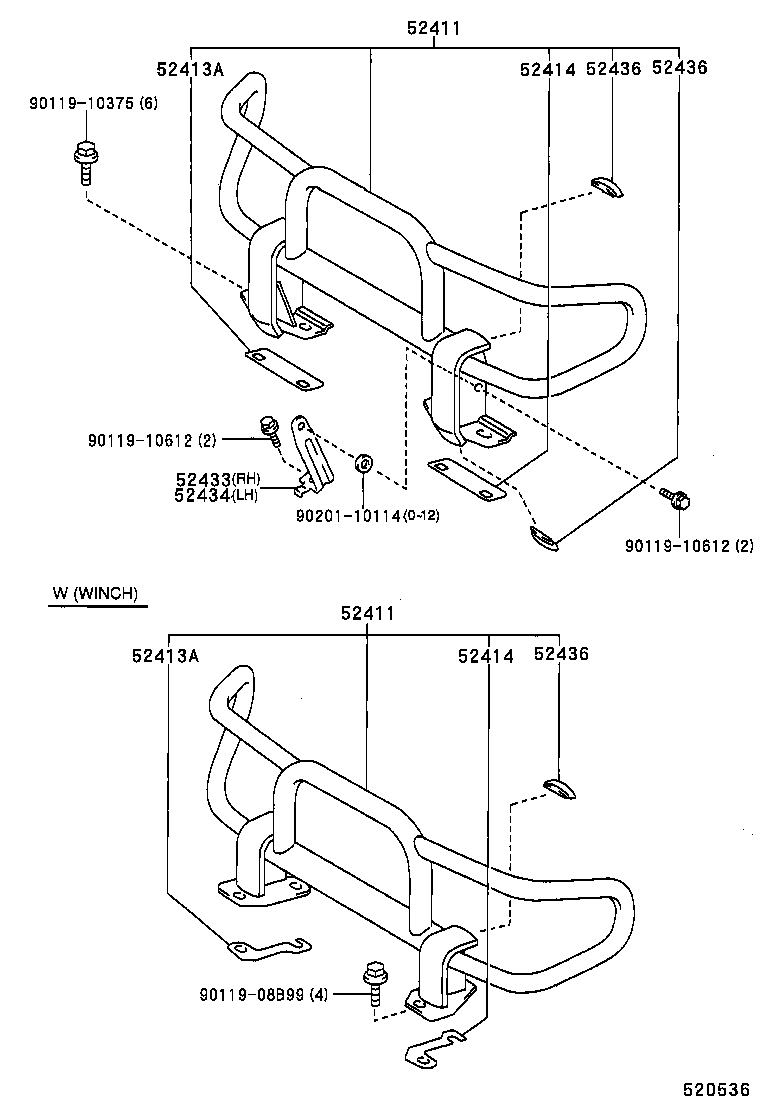

Figure 520193E 520193E 1990-01 → — Figure 520194B 520194B 1992-01 → 1999-08 Figure 520194B 520194B 1999-08 → — Figure 521317A 521317A 1993-05 → 1999-08 Figure 520195A 520195A 1992-01 → 1999-08 Figure 520536 520536 1999-08 → —

Part groups

PNCDescription
52111C Bolt, Round Head Square Neck(FOR FRONT BUMPER)
52111E Bar, Front Bumper
52112D Extension, Front Bumper, RH
52112E Plug, Hole(FOR FRONT BUMPER EXTENSION)
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116E Gusset, Front Bumper, Upper RH
52117E Gusset, Front Bumper, Upper LH
52130 Bracket Assy, Front Bumper Side Mounting, RH
52131 Retainer, Front Bumper Side, RH
52132 Retainer, Front Bumper Side, LH
52137B Plate, Front Bumper Bracket, NO.1
52140 Bracket Assy, Front Bumper Side Mounting, LH
52149 Bracket, Front Bumper, Inner
52330 Step Assy, Front Bumper Side, RH
52333 Bracket, Front Bumper Step Mounting, RH
52334A Bracket, Front Bumper Step Mounting, LH
52339 Seal, Front Bumper Step
52340 Step Assy, Front Bumper Side, LH
52343 Step, Front Bumper, Center
52349 Retainer, Front Bumper Step Seal
52411 Guard, Front Bumper
52413 Pad, Front Bumper Guard
52413A Pad, Front Bumper Guard, RH
52414 Pad, Front Bumper Guard, LH
52433 Support, Front Bumper Guard, RH
52434 Support, Front Bumper Guard, LH
52436 Protector, Front Bumper Guard
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
