Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05

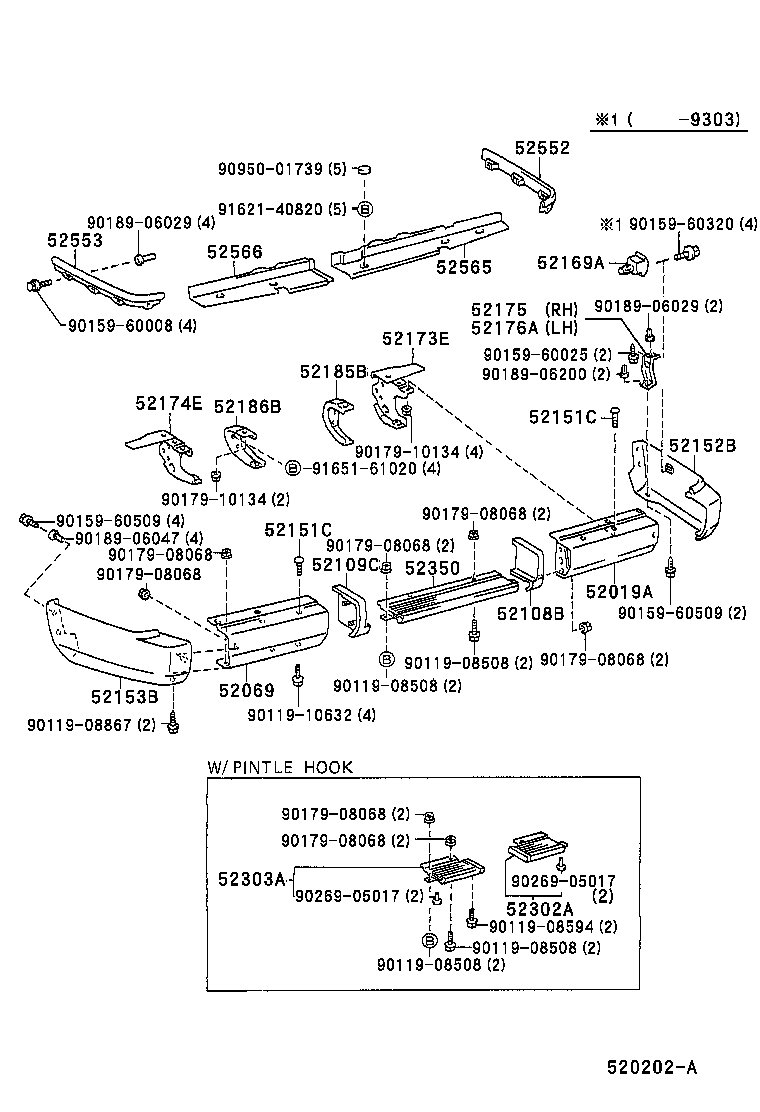

Rear Bumper & Bumper Stay

40 part groups · 6 illustrations

PNC	Description
52019A	Bar Sub-assy, Rear Bumper, RH
52069	Bar Sub-assy, Rear Bumper, LH
52087	Stay Sub-assy, Rear Bumper Side, RH
52088	Stay Sub-assy, Rear Bumper Side, LH
52106B	Bumper Sub-assy, Rear RH
52107B	Bumper Sub-assy, Rear LH
52108A	Bumper Sub-assy, Rear Side, RH
52108B	Extension Sub-assy, Rear Bumper Side, RH
52109A	Bumper Sub-assy, Rear Side, LH
52109C	Extension Sub-assy, Rear Bumper Side, LH
52151	Bumper Assy, Rear
52151C	Bolt, Round Head Square Neck(FOR REAR BUMPER)
52151E	Bar, Rear Bumper
52152B	Extension, Rear Bumper, RH
52153B	Extension, Rear Bumper, LH
52155A	Support, Rear Bumper Side, RH
52159B	Plate, Rear Bumper
52162B	Plate, Rear Bumper, NO.1
52163A	Plate, Rear Bumper, RH
52164A	Plate, Rear Bumper, LH
52168B	Bracket, Rear Bumper Extension Mounting, LH
52169A	Support, Rear Bumper Side, NO.3
52173E	Bracket, Rear Bumper Bar, RH
52174E	Bracket, Rear Bumper Bar, LH
52175	Bracket, Rear Bumper Arm Mounting
52176A	Bracket, Rear Bumper Arm Mounting, LH
52181	Arm, Rear Bumper, RH
52185A	Bracket, Rear Bumper Side, RH
52185B	Bracket, Rear Bumper Side Mounting, RH
52186B	Bracket, Rear Bumper Side Mounting, LH
52302A	Step Sub-assy, Rear Bumper
52303A	Step Sub-assy, Rear Bumper, LH
52350	Step Assy, Rear Bumper
52462	Pad, Rear Bumper, RH
52463	Pad, Rear Bumper, LH
52552	Filler, Rear Bumper, RH
52553	Filler, Rear Bumper, LH
52565	Filler, Rear Bumper Extension, RH
52566	Filler, Rear Bumper Extension, LH
52581A	Protector, Rear Bumper Filler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
