Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 4 illustrations

Illustrations

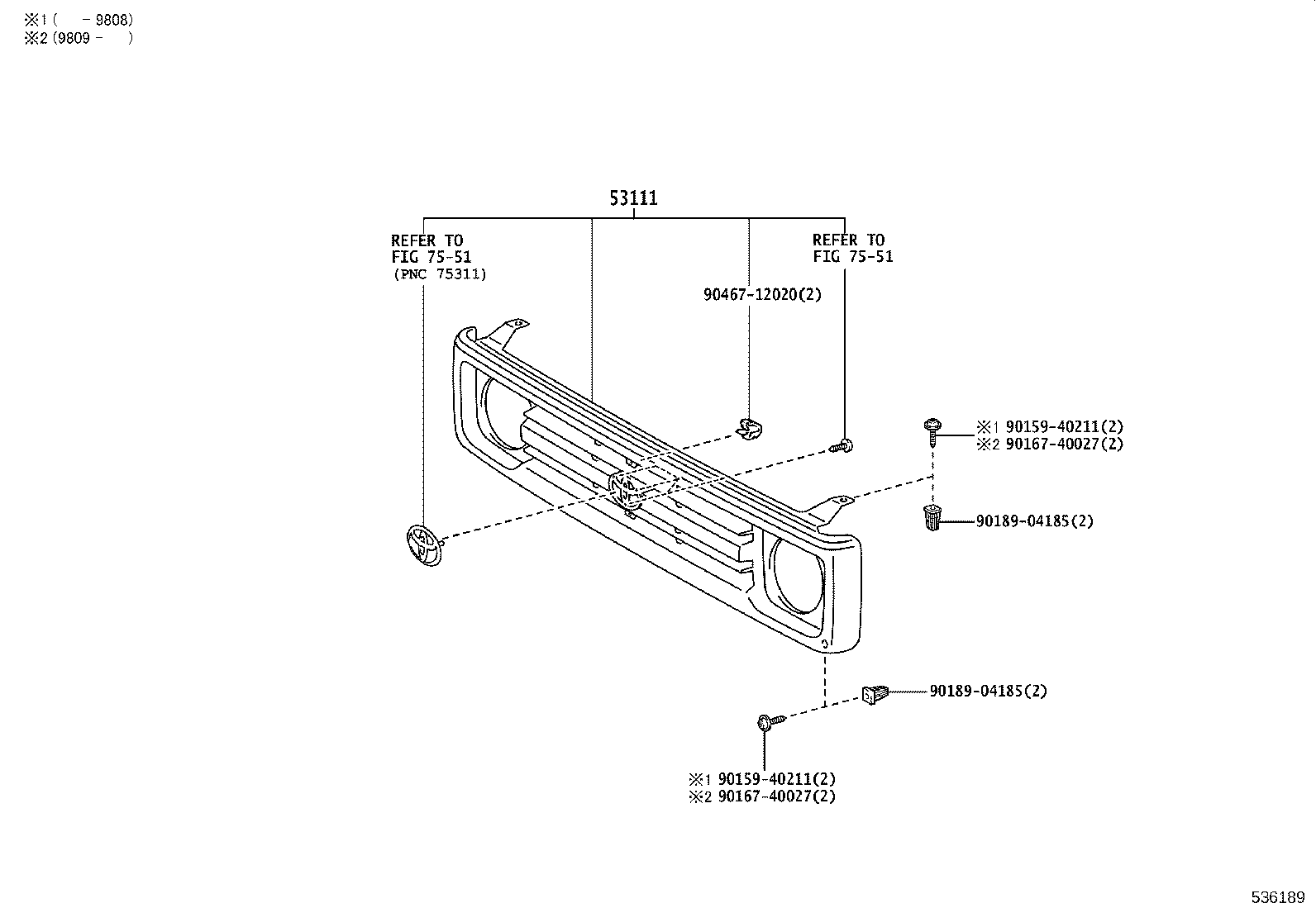

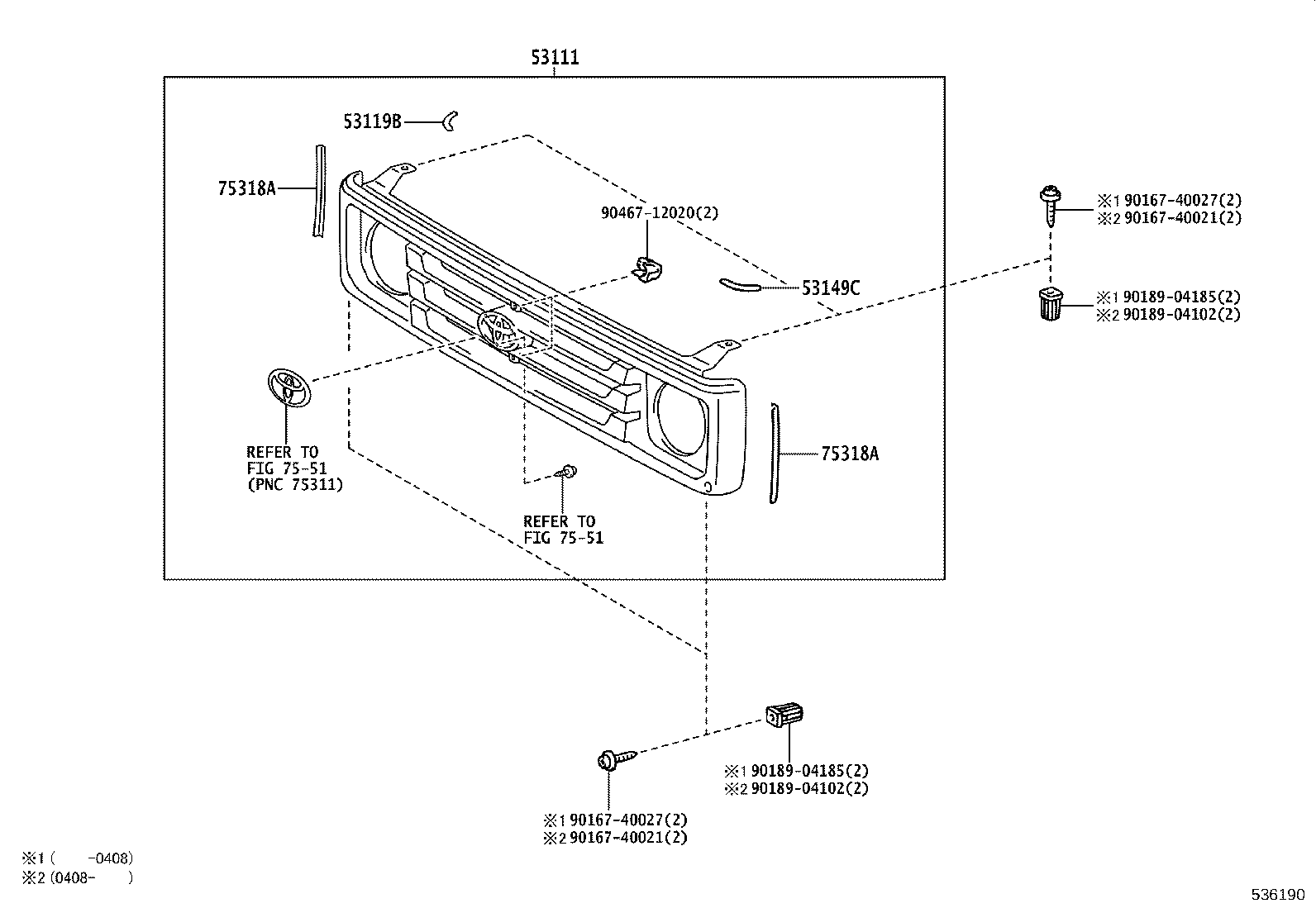

Figure 536187 536187 1990-01 → 1995-01 Figure 533061A 533061A 1990-01 → 1996-04 Figure 536189 536189 1995-01 → 2004-05 Figure 536190 536190 1999-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53119B Protector, Radiator Grille
53149C Protector, Radiator Grille, NO.2
75318A Pad, Radiator Grille Ornament, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
