Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

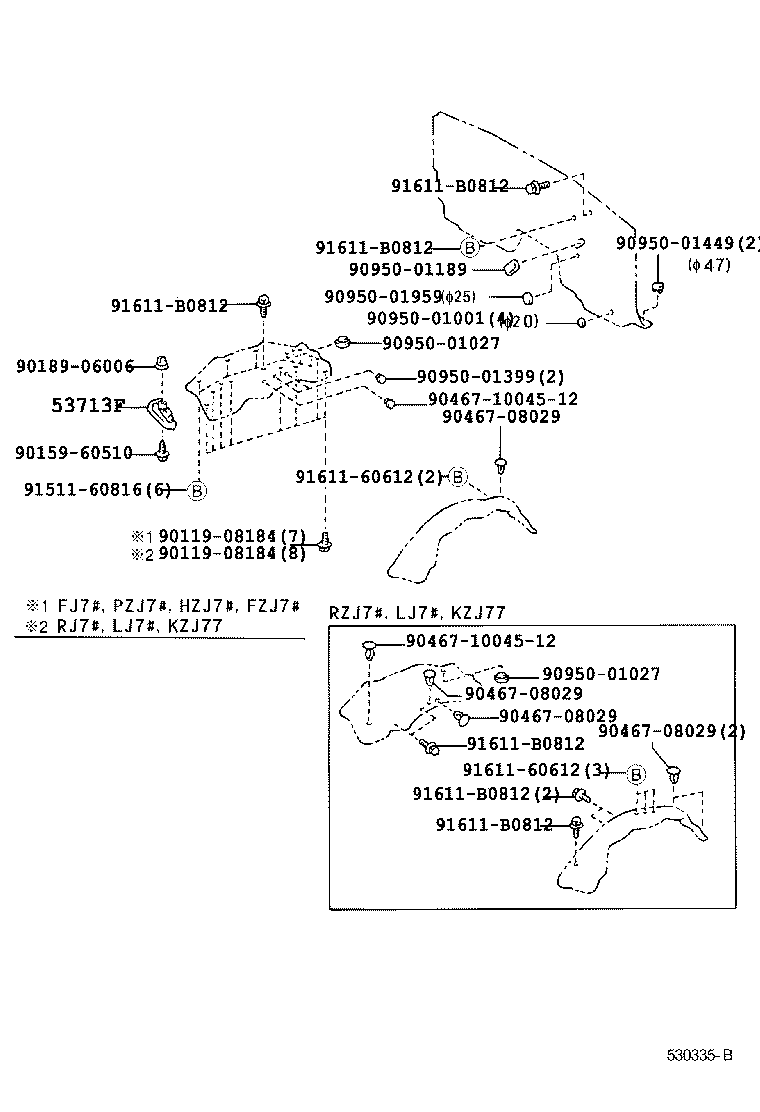

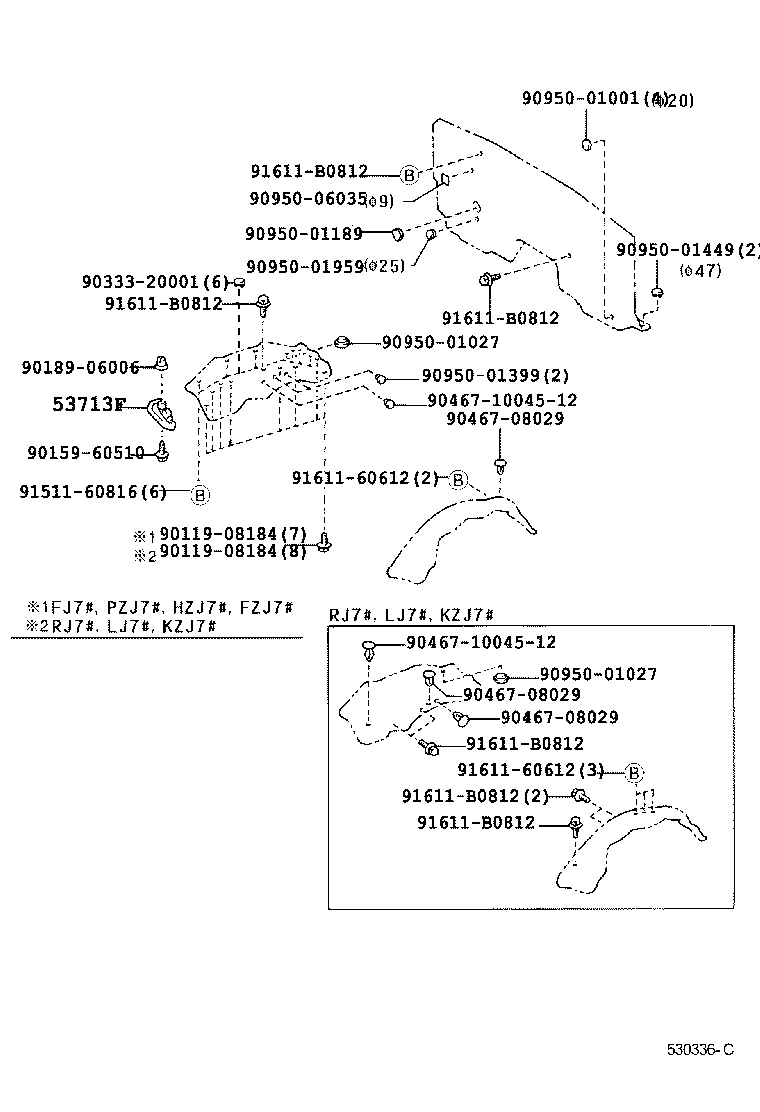

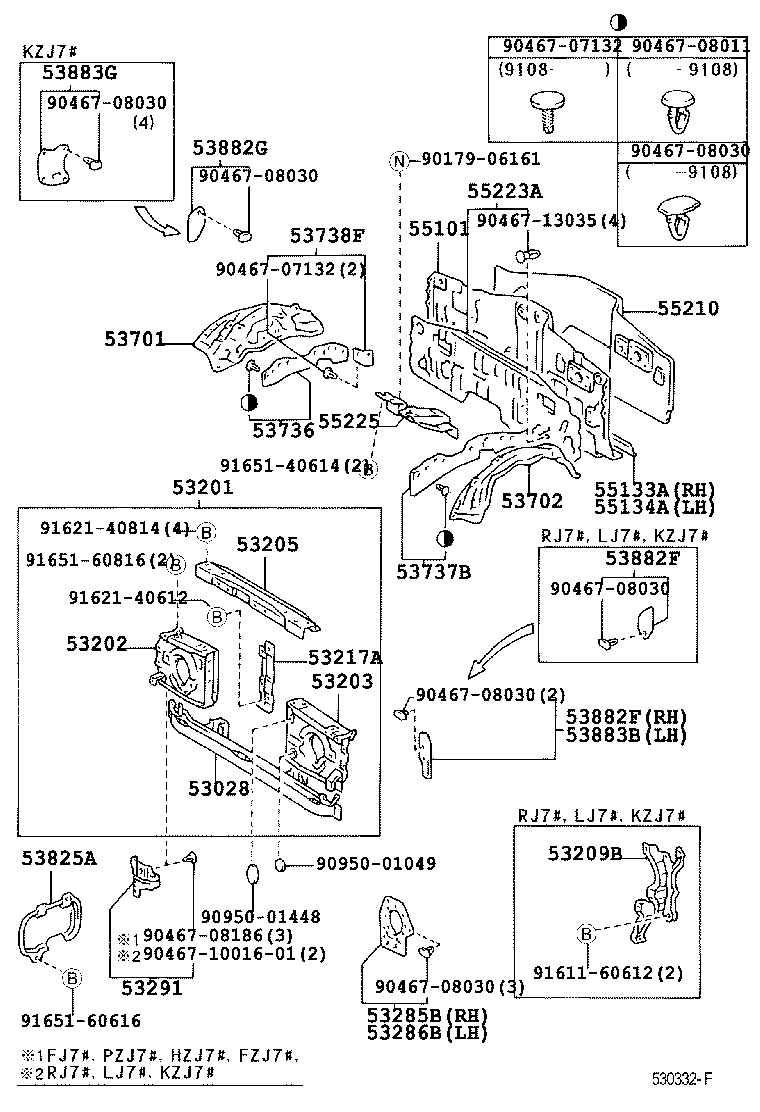

Front Fender Apron & Dash Panel
32 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 53028 | Support Sub-assy, Radiator, Lower |
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53209B | Brace Sub-assy, Hood Lock Support |
| 53217A | Brace, Hood Lock Support |
| 53275 | Bracket, Headlamp Door Mounting, NO.1 RH |
| 53276 | Bracket, Headlamp Door Mounting, NO.1 LH |
| 53277A | Bracket, Headlamp Door Mounting, NO.2 RH |
| 53278A | Bracket, Headlamp Door Mounting, NO.2 LH |
| 53285B | Seal, Radiator Side Air, NO.1 |
| 53286B | Seal, Radiator Side Air, NO.2 |
| 53291 | Seal, Radiator Support TO Frame, RH |
| 53292 | Seal, Radiator Support TO Frame, LH |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53713F | Plate, Fender Apron Splash, RH |
| 53736 | Seal, Front Fender Apron, RH |
| 53737B | Seal, Front Fender Apron, LH |
| 53738F | Seal, Front Fender Apron |
| 53825A | Protector, Front Fender, Upper RH |
| 53882F | Seal, Front Fender |
| 53882G | Seal, Front Fender |
| 53883B | Seal, Front Fender, LH |
| 53883G | Seal, Front Fender, Front |
| 55101 | Panel Sub-assy, Dash |
| 55133A | Reinforcement, Dash TO Floor, RH |
| 55134A | Reinforcement, Dash TO Floor, LH |
| 55210 | Insulator Assy, Dash Panel |
| 55223A | Insulator, Dash Panel, Outer |
| 55225 | Insulator, Dash Panel Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
