Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

47 part groups · 9 illustrations

Illustrations

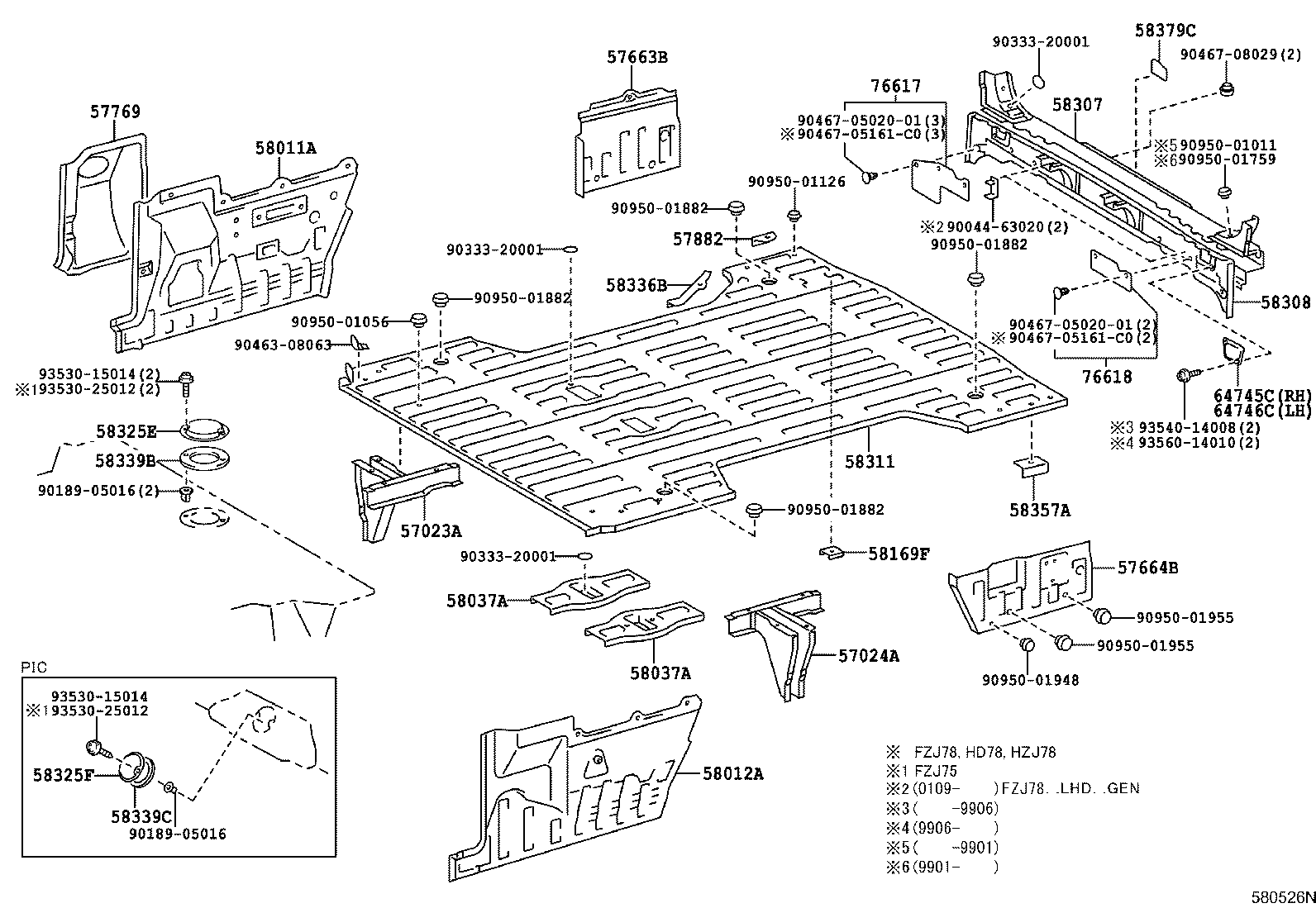

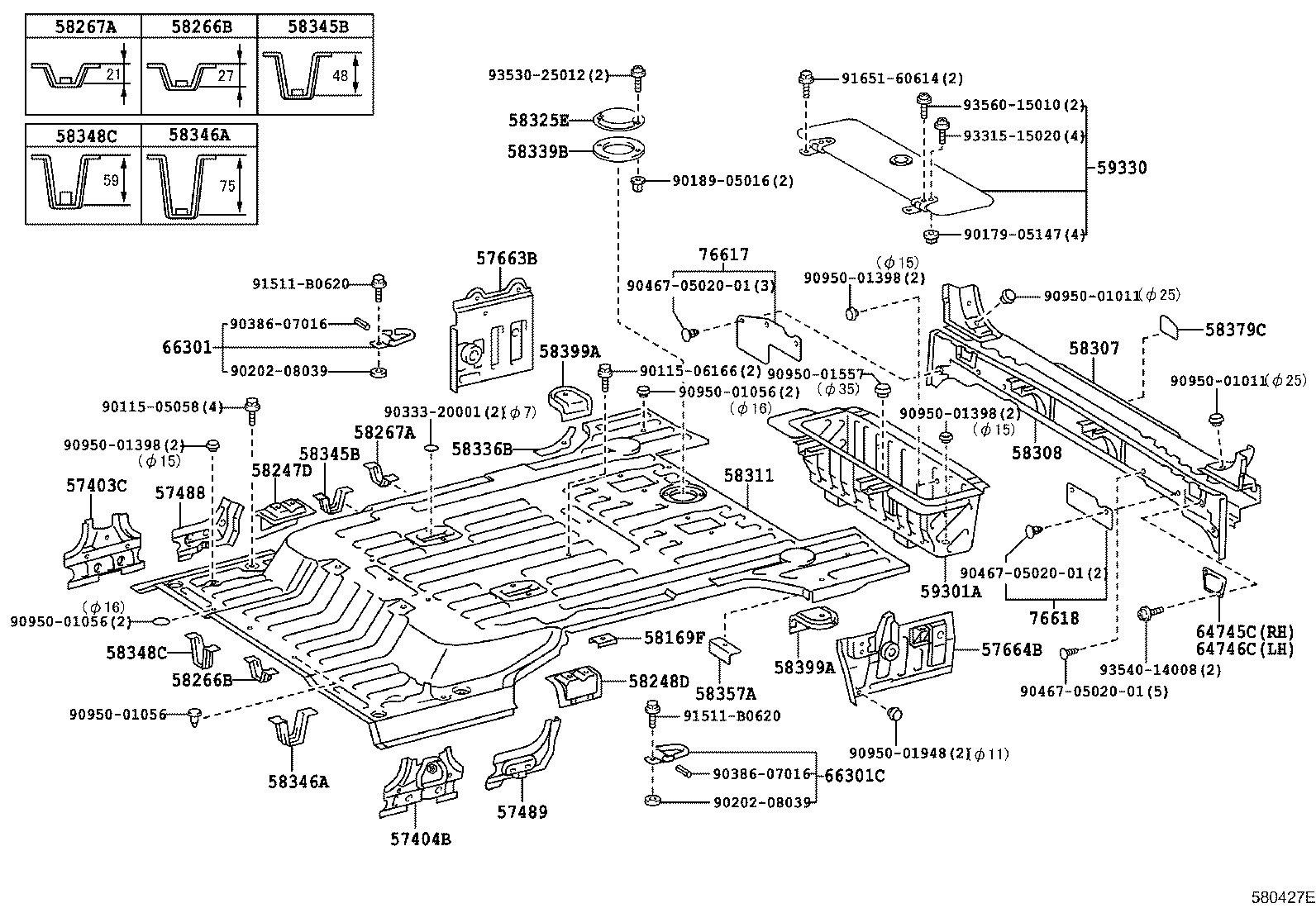

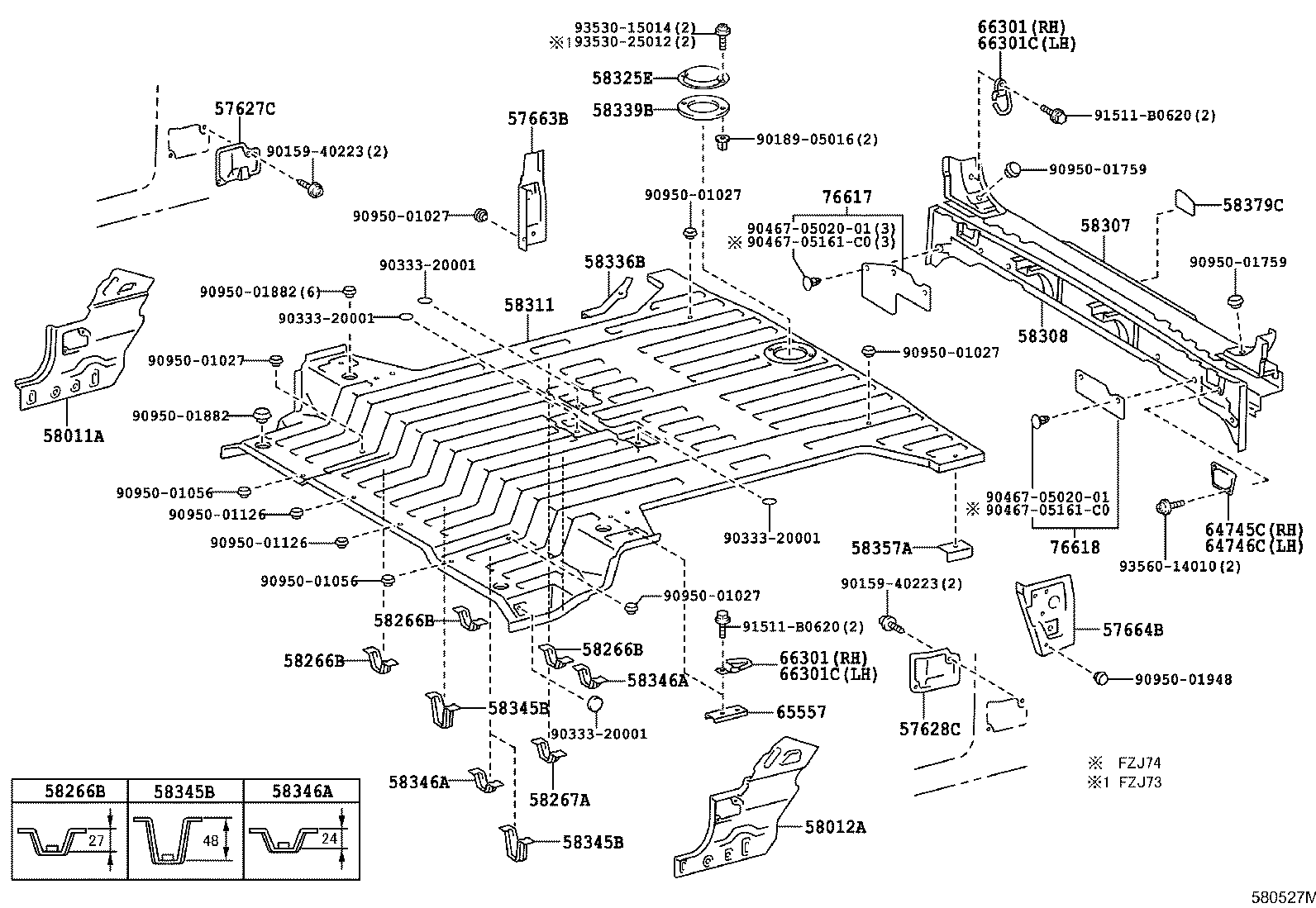

Figure 580425O 580425O 1990-01 → 1999-08 Figure 580425O 580425O 1999-08 → 2007-01 Figure 580425O 580425O 1999-08 → 2008-08 Figure 580527M 580527M 1990-01 → 1999-08 Figure 580527M 580527M 1999-08 → 2007-01 Figure 580526N 580526N 1990-01 → 1999-08 Figure 580526N 580526N 1999-08 → 2007-01 Figure 580526N 580526N 1999-08 → 2008-08 Figure 580427E 580427E 1990-04 → 1996-04

Part groups

PNCDescription
57023A Member Sub-assy, Rear Side, RH
57024A Member Sub-assy, Rear Side, LH
57403C Reinforce Sub-assy, Floor Side, Inner RH
57404B Reinforce Sub-assy, Floor Side, Inner LH
57488 Reinforcement, Floor Side Member, NO.2 RH
57489 Reinforcement, Floor Side Member, NO.2 LH
57627C Cover, Rear Floor Side Member, RH
57628C Cover, Rear Floor Side Member, LH
57663B Panel, Rear Floor Side, Rear RH
57664B Panel, Rear Floor Side, Rear LH
57769 Gusset, Fuel Inlet Separator
57882 Reinforcement, Belt Anchor, NO.4
58011A Panel Sub-assy, Floor Panel Side, RH
58012A Panel Sub-assy, Floor Panel Side, LH
58037A Retainer Sub-assy, Rear Floor Seat Lock
58169F Retainer, Rear Heater Mounting
58247C Reinforcement, Rear Seat Cushion Hinge, RH
58247D Bracket, Rear Seat Hinge, Outer RH
58248C Reinforcement, Rear Seat Cushion Hinge, LH
58248D Bracket, Rear Seat Hinge, Outer LH
58266B Bracket, Fuel Tube Clamp
58267A Bracket, Fuel Tube Clamp, NO.2
58307 Panel Sub-assy, Body Lower Back
58308 Panel Sub-assy, Body Lower Back, Inner
58311 Pan, Rear Floor
58325E Cover, Rear Floor Service Hole
58325F Cover, Rear Floor Service Hole
58336B Reinforcement, Rear Floor Pan
58339B Packing, Rear Floor Service Hole
58339C Packing, Rear Floor Service Hole
58345B Bracket, Rear Floor Heat Insulator, NO.1
58346A Bracket, Rear Floor Heat Insulator, NO.2
58348C Bracket, Rear Floor Heat Insulator, NO.3
58351B Reinforcement, Rear Floor Panel, RH
58352B Reinforcement, Rear Floor Panel, LH
58357A Reinforcement, Jack Carrier
58379C Protector, Body Lower Back
58399A Retainer, NO.3 Seat Belt Anchor TO Floor
59301A Panel Sub-assy, Rear Floor Box
59330 Cover Assy, Rear Floor Box
64745C Cover, Lower Back Service Hole, RH
64746C Cover, Lower Back Service Hole, LH
65557 Retainer, Rope Hook
66301 Hook Sub-assy, Rope
66301C Hook Sub-assy, Rope, LH
76617 Mudguard, Lower Back Panel, Front RH
76618 Mudguard, Lower Back Panel, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
