Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

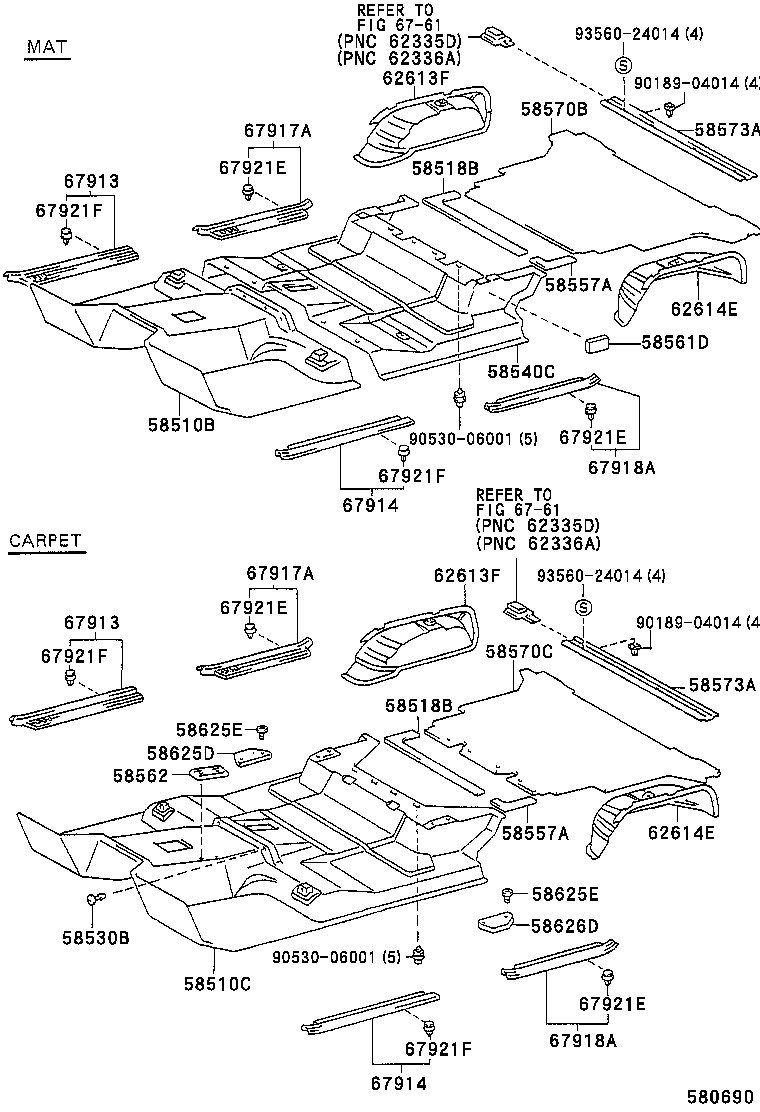

Floor Mat & Silencer Pad
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58518B | Mat, Rear Floor, NO.2 |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58540C | Mat Assy, Floor, Rear |
| 58557A | Mat, Rear |
| 58561D | Pad, Roof Silencer, NO.1 |
| 58562 | Mat, Floor, Front LH |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58573A | Plate, Rear Floor Mat Support |
| 58625D | Plate, Rear Floor Mat, NO.1 |
| 58625E | Clip(FOR REAR FLOOR MAT PLATE) |
| 58626D | Plate, Rear Floor Mat, NO.2 |
| 62613F | Cover, Quarter Wheel House, RH |
| 62614E | Cover, Quarter Wheel House, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
