Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

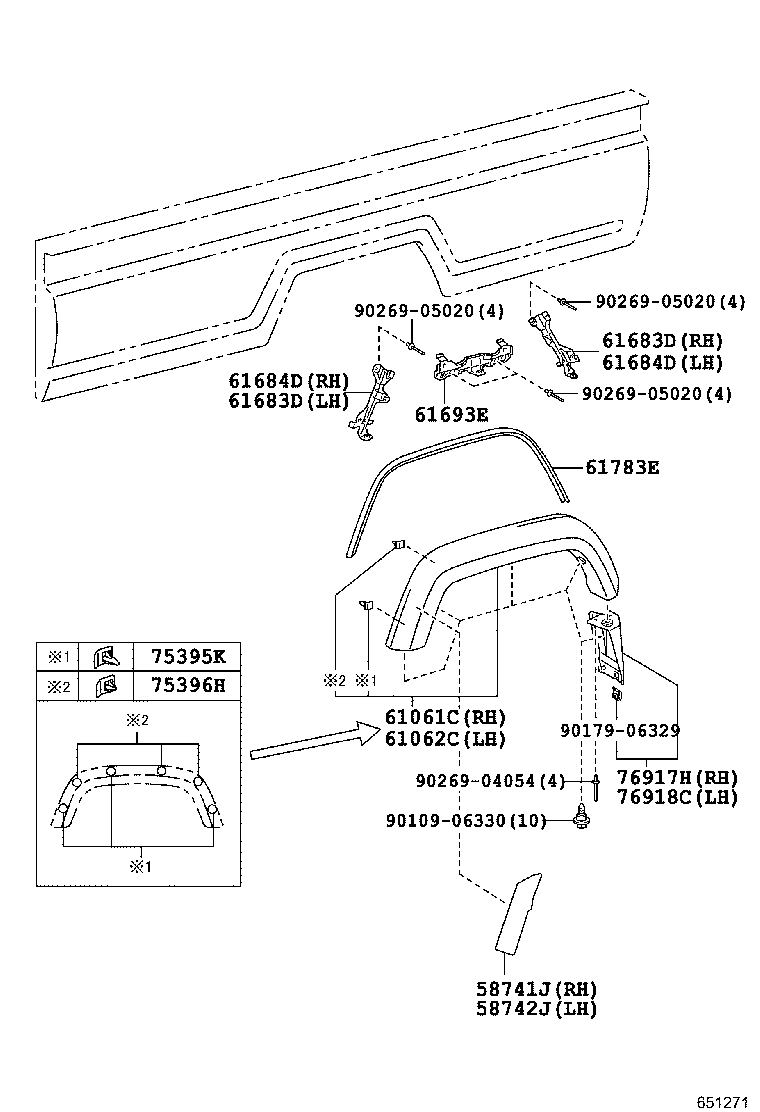

Rear Body Side Panel
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741J | Protector, Rear Wheel Extension, RH |
| 58742J | Protector, Rear Wheel Extension, LH |
| 61061C | Extension Sub-assy, Rear Wheel Opening, NO.1 RH |
| 61062C | Extension Sub-assy, Rear Wheel Opening, NO.1 LH |
| 61683D | Bracket, Rear Wheel Opening, NO.1 RH |
| 61684D | Bracket, Rear Wheel Opening, NO.1 LH |
| 61693E | Bracket, Rear Wheel Opening, NO.1 |
| 61783E | Pad, Rear Wheel Opening Extension, NO.1 |
| 65313 | Panel, Floor Front Corner, RH |
| 65314 | Panel, Floor Front Corner, LH |
| 65315 | Panel, Floor Rear Corner, RH |
| 65316 | Panel, Floor Rear Corner, LH |
| 65501A | Panel Sub-assy, Rear Body Side, RH |
| 65577 | Retainer, Tail Gate Latch Female |
| 65577A | Retainer, Tail Gate Female |
| 65601A | Panel Sub-assy, Rear Body Side, LH |
| 65651 | Panel, Wheel House |
| 65651C | Panel, Wheel House |
| 65812A | Bow, Top, NO.2 |
| 65830 | Panel Assy, Rear Body Side, Upper RH |
| 65840 | Panel Assy, Rear Body Side, Upper LH |
| 65847 | Support, Side Upper Panel |
| 66052 | Stake Sub-assy, Side, RH |
| 66053 | Stake Sub-assy, Side, LH |
| 66153A | Latch, Tail Gate Female, RH |
| 66154A | Latch, Tail Gate Female, LH |
| 66225A | Support, Baffle Rubber |
| 75395K | Clip, Outside Moulding, NO.1 |
| 75396H | Clip, Outside Moulding, NO.2 |
| 76917H | Mudguard, Side, Rear RH |
| 76918C | Mudguard, Side, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
