Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05
Front Door Panel & Glass
51 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 62367C | Clip, Door Window Glass |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67041 | Frame Sub-assy, Front Door Window, RH |
| 67042 | Frame Sub-assy, Front Door Window, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67118B | Retainer, Outer Rear View Mirror, RH |
| 67119 | Retainer, Outer Rear View Mirror, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |

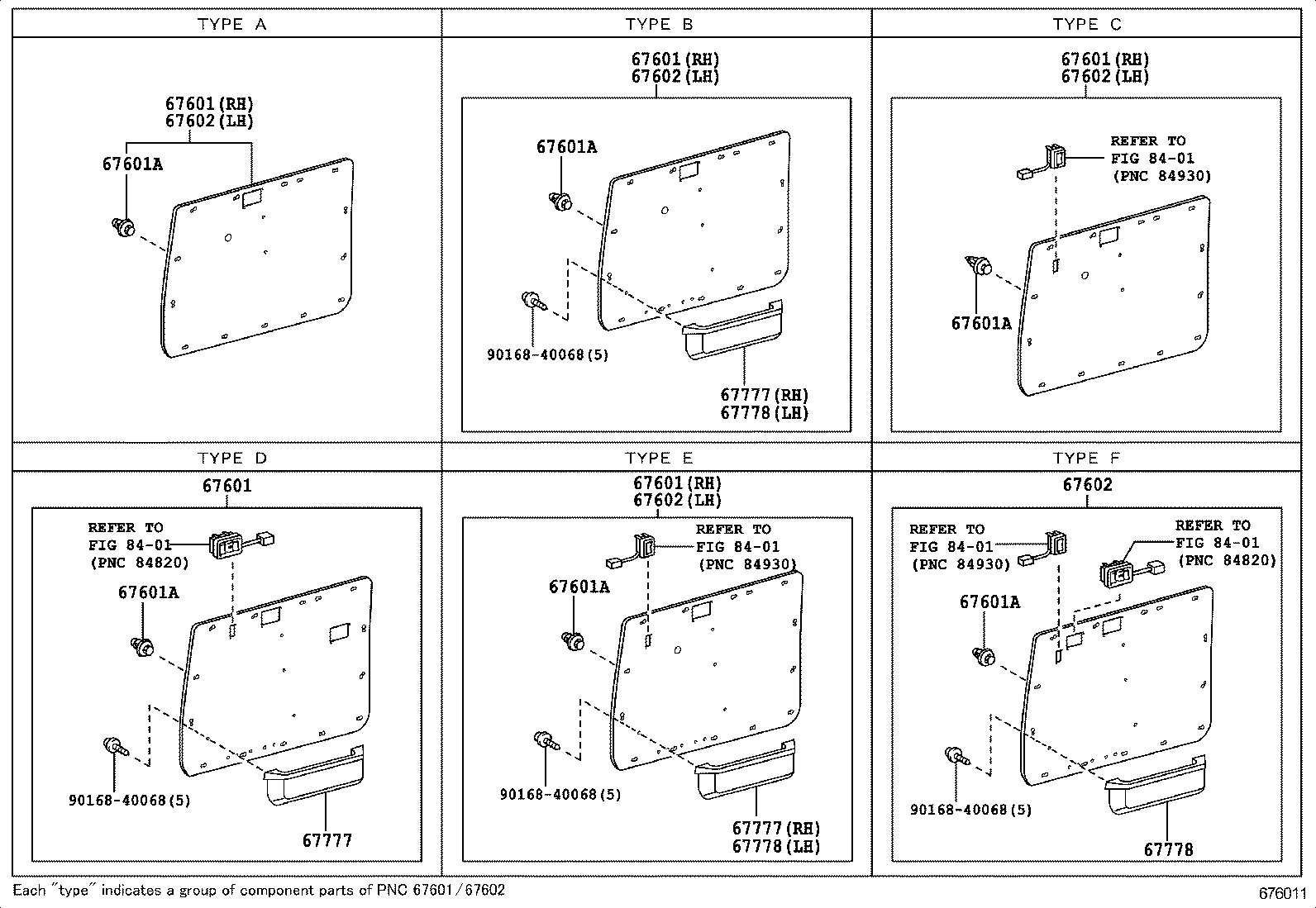

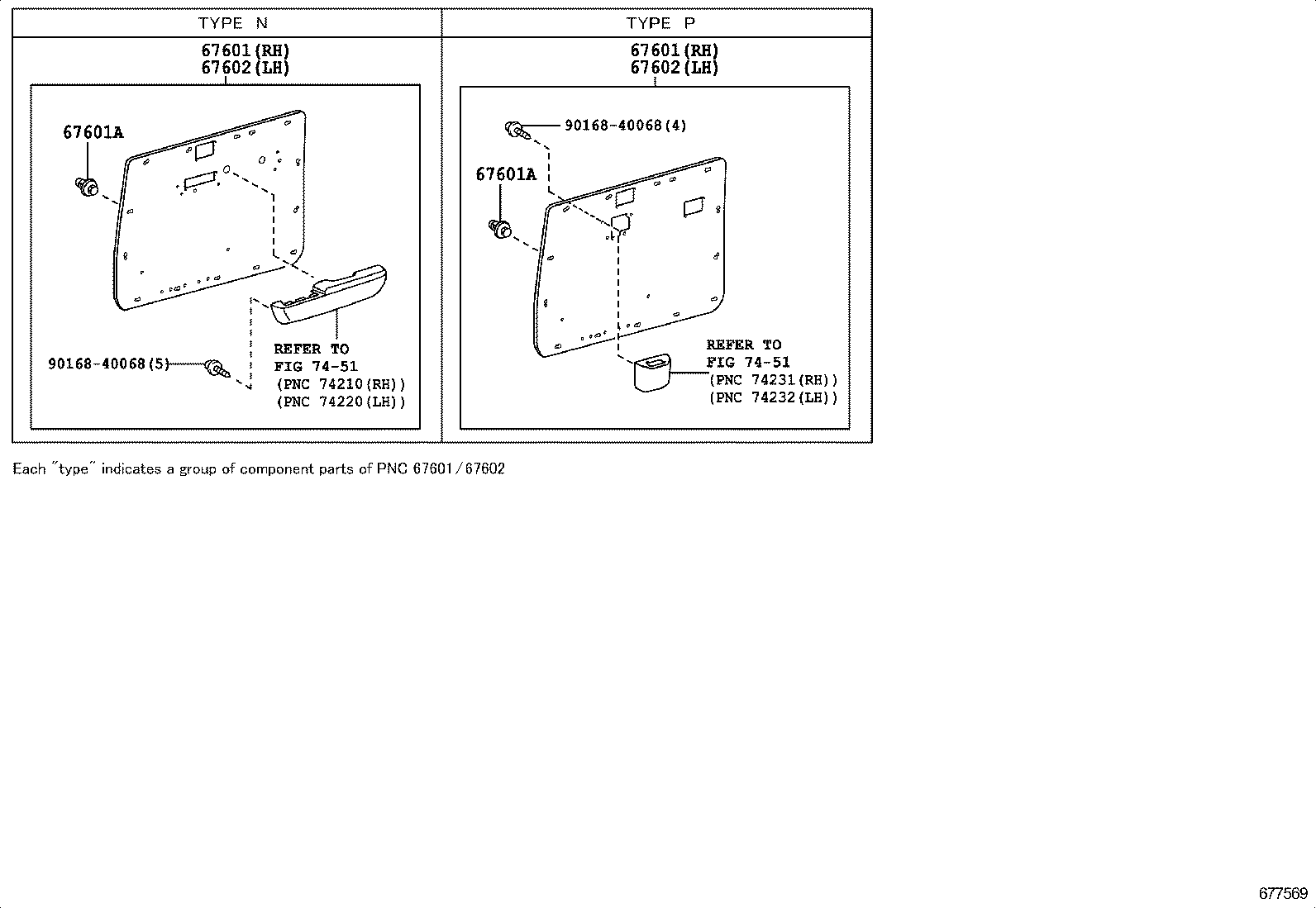

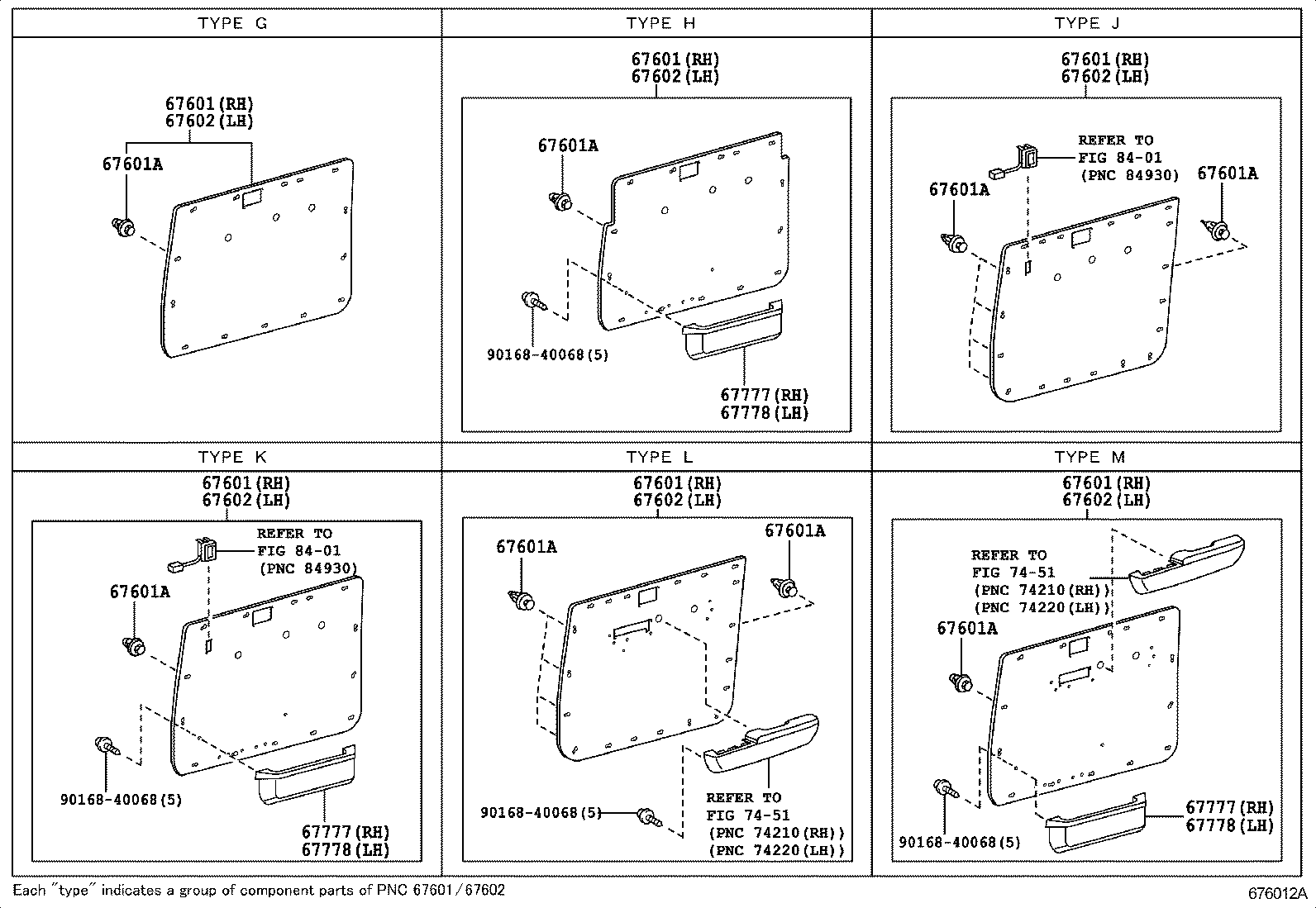

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67701 | Cover Sub-assy, Front Door Trim, RH |
| 67702 | Cover Sub-assy, Front Door Trim, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863B | Weatherstrip, Front Door, NO.2 RH |
| 67864B | Weatherstrip, Front Door, NO.2 LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68142A | Run, Front Door Glass Side |
| 68143A | Run, Front Door Glass, NO.2 |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68161A | Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) |
| 68170A | Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) |
| 68170F | Weatherstrip Assy, Front Door Glass, Inner RH |
| 68192C | Seal, Front Door Belt, Front RH |
| 68193C | Seal, Front Door Belt, Front LH |
| 68194B | Seal, Front Door Belt, Rear RH |
| 68195B | Seal, Front Door Belt, Rear LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68220A | Weatherstrip Assy, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
| 68621 | Seal, Door Check |
| 68649 | Bag, Door Window Frame Hole Cover |
| 68696 | Pad, Back Door Window Frame, B |
| 69751E | Holder, Front Door Lock Control Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
