Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

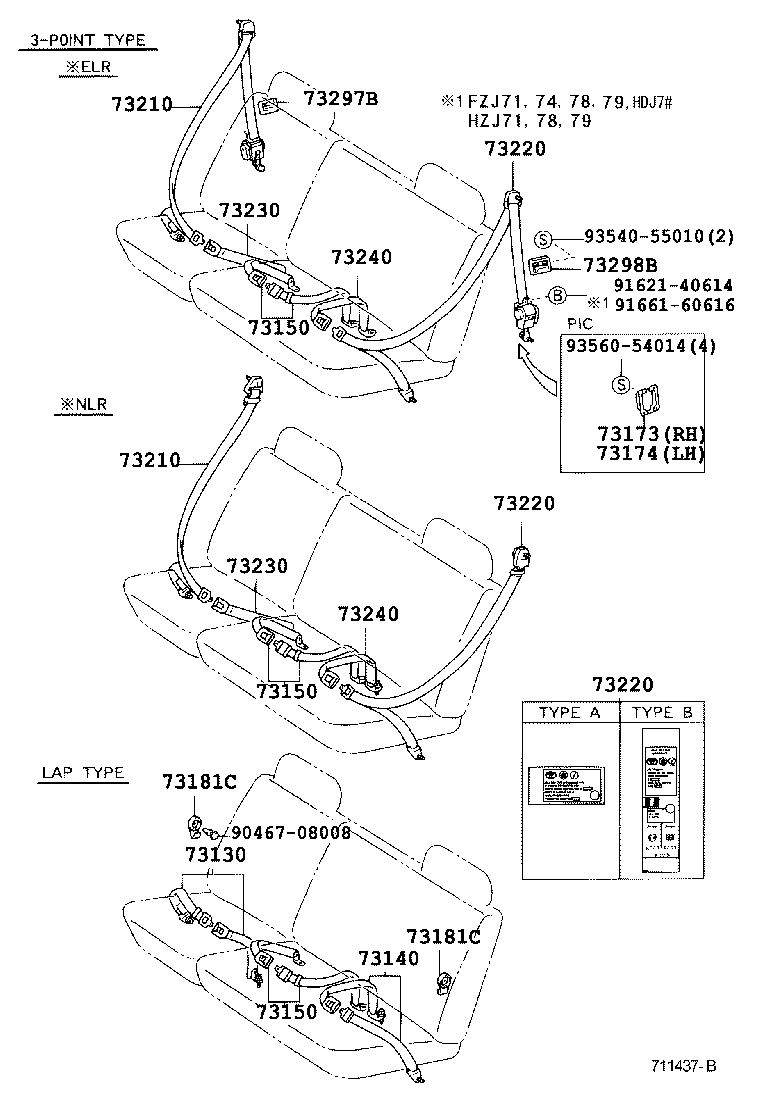

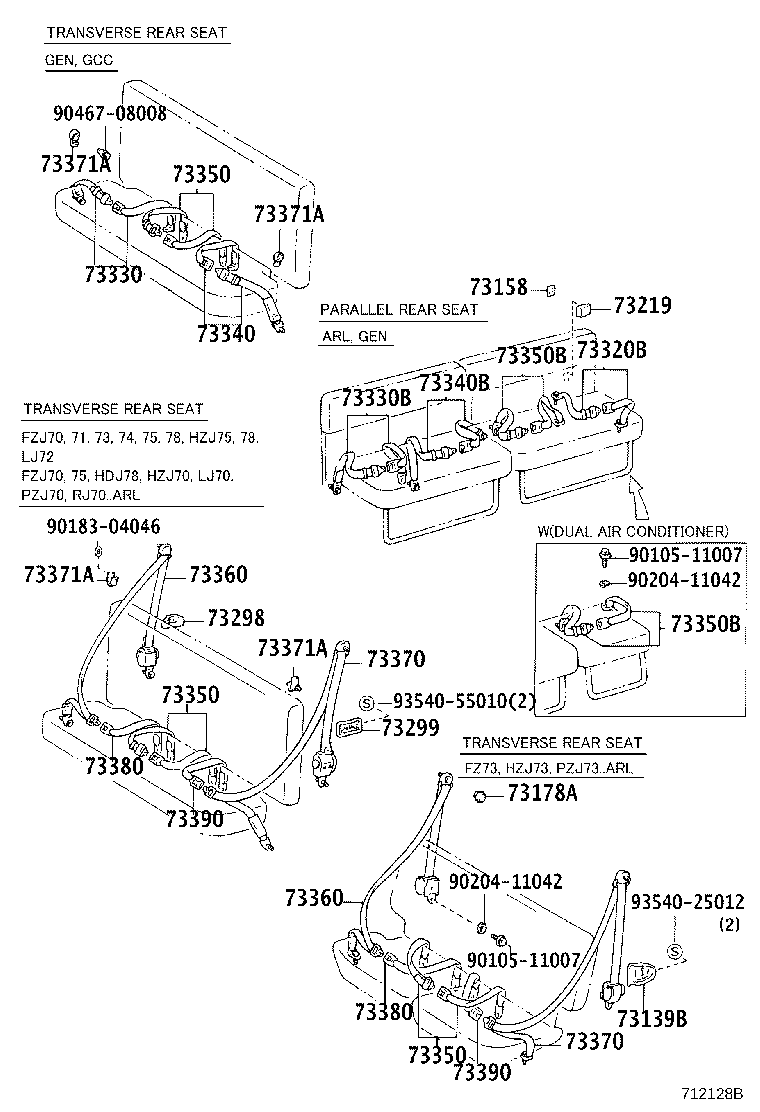

Seat Belt
30 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 73130 | Belt Assy, Front Seat Lap Type, RH |
| 73139B | Cover, Seat Belt Anchor |
| 73140 | Belt Assy, Front Seat Lap Type, LH |
| 73150 | Belt Assy, Front Seat Lap Type, Center |
| 73158 | Bracket, Seat Belt Guide Set |
| 73173 | Cover, Front Seat Belt Hole, RH |
| 73174 | Cover, Front Seat Belt Hole, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73181C | Hanger, Front Seat Lap Belt |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73297B | Cover, Quarter Trim Belt Hole, RH |
| 73298 | Cover, Quarter Trim Belt Hole, NO.2 RH |
| 73298B | Cover, Quarter Trim Belt Hole, LH |
| 73299 | Cover, Quarter Trim Belt Hole, NO.2 LH |
| 73320B | Belt Assy, Rear Seat Lap Type, NO.2 |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73330B | Belt Assy, Seat Lap Type, NO.1 |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73340B | Belt Assy, Seat Lap Type, NO.2 |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73350B | Belt Assy, Seat Lap Type, NO.3 |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
