Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

6 part groups · 3 illustrations

Illustrations

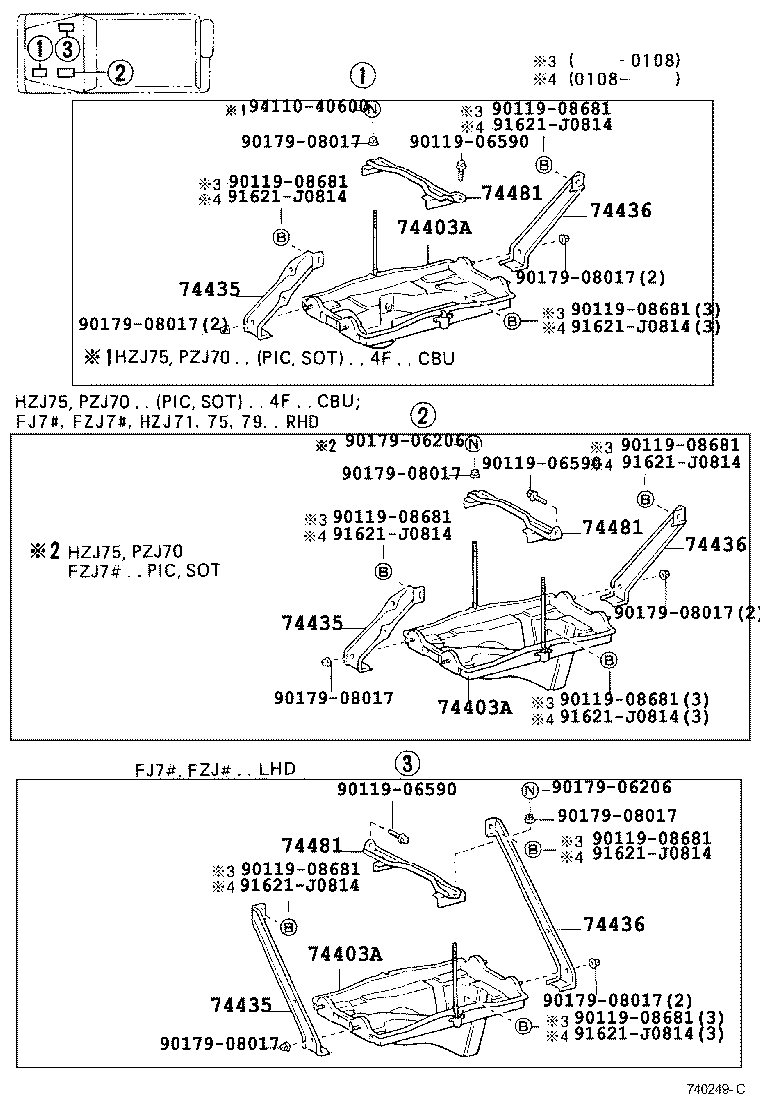

Figure 740248 740248 1990-01 → — Figure 740249C 740249C 1990-01 → — Figure 740982A 740982A 2001-08 → 2007-01

Part groups

PNCDescription
74403A Carrier Sub-assy, Battery
74433B Support, Battery Tray, NO.1
74434B Support, Battery Tray, NO.2
74435 Support, Battery Tray, NO.3
74436 Support, Battery Tray, NO.4
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
