Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

28 part groups · 25 illustrations

Illustrations

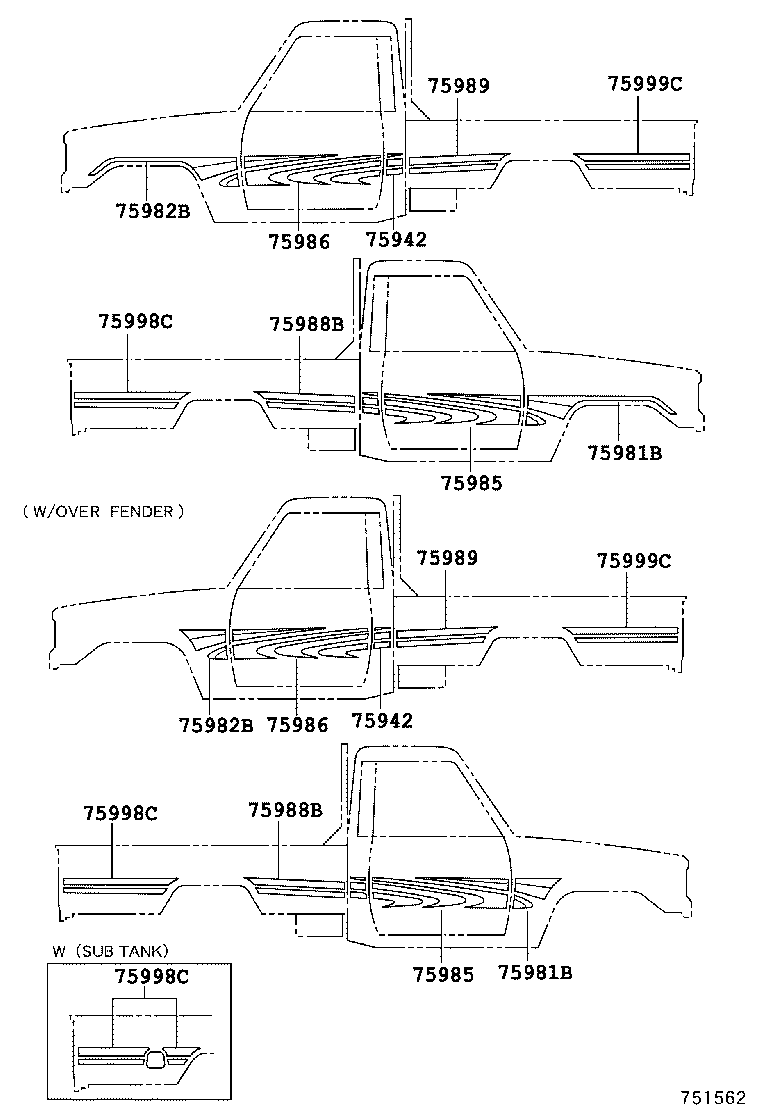

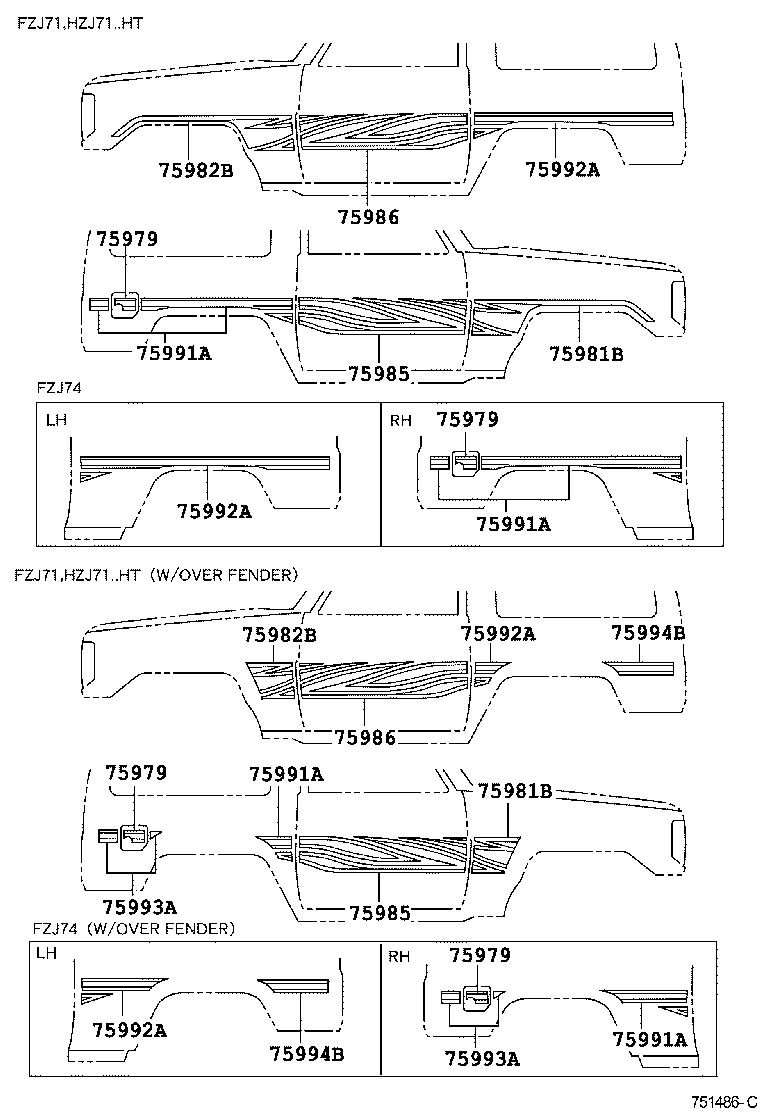

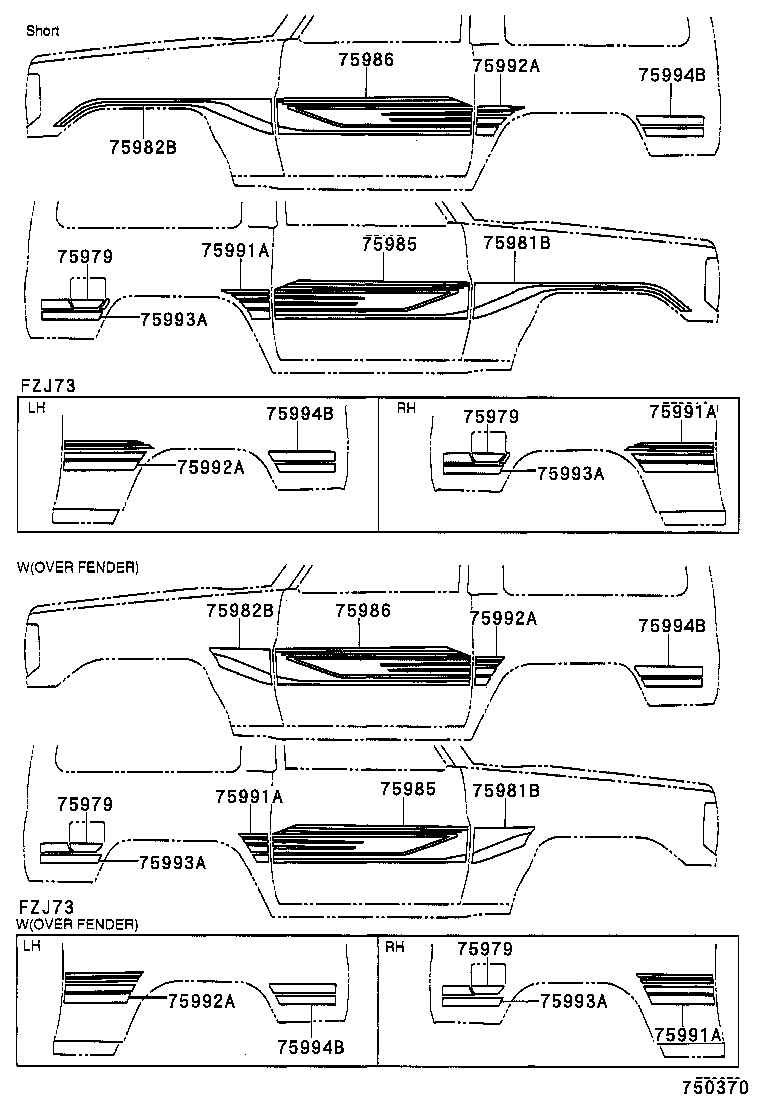

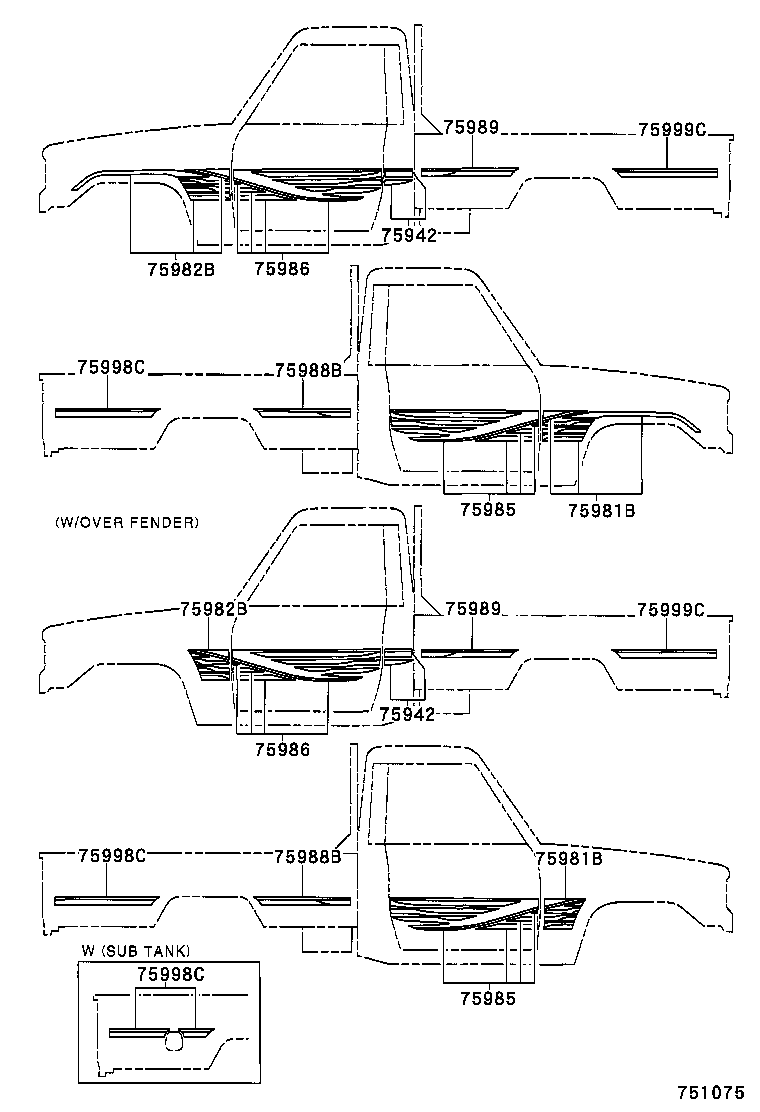

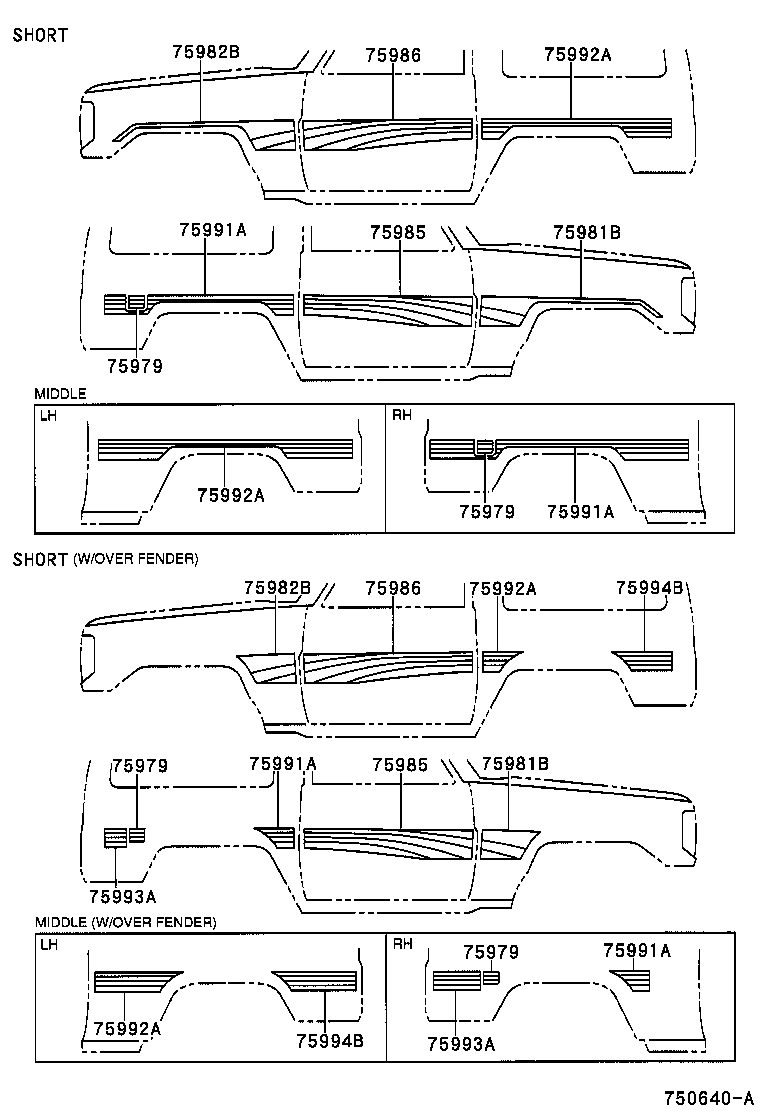

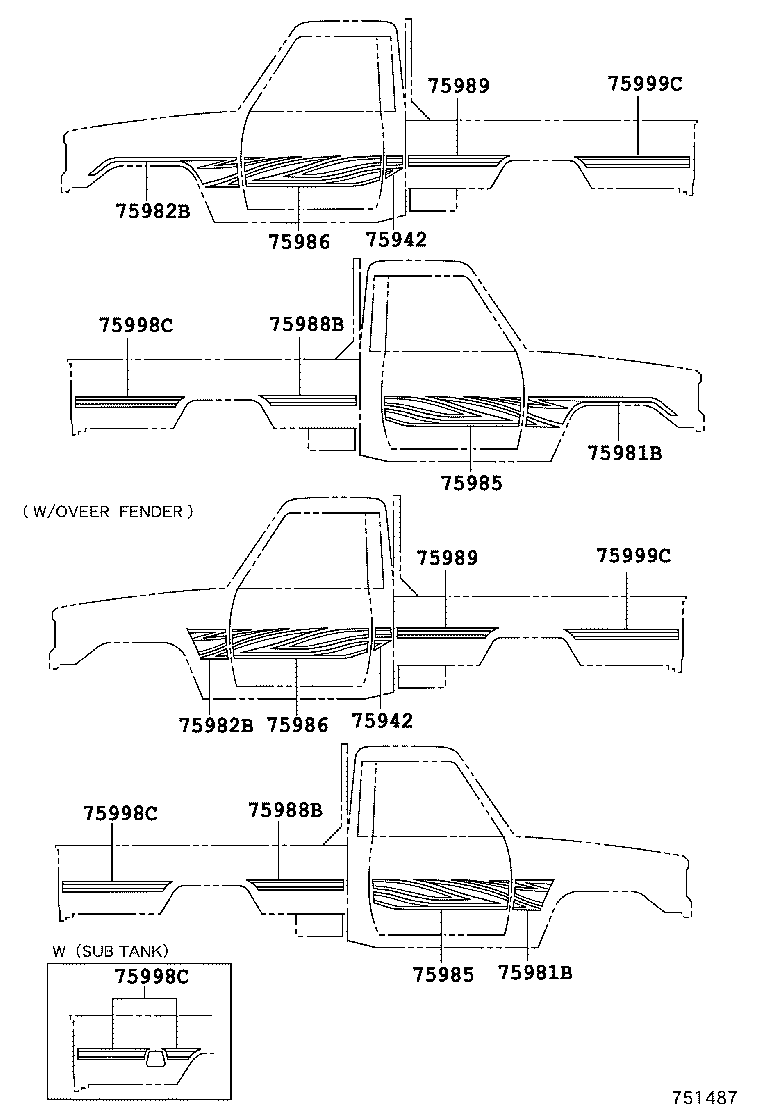

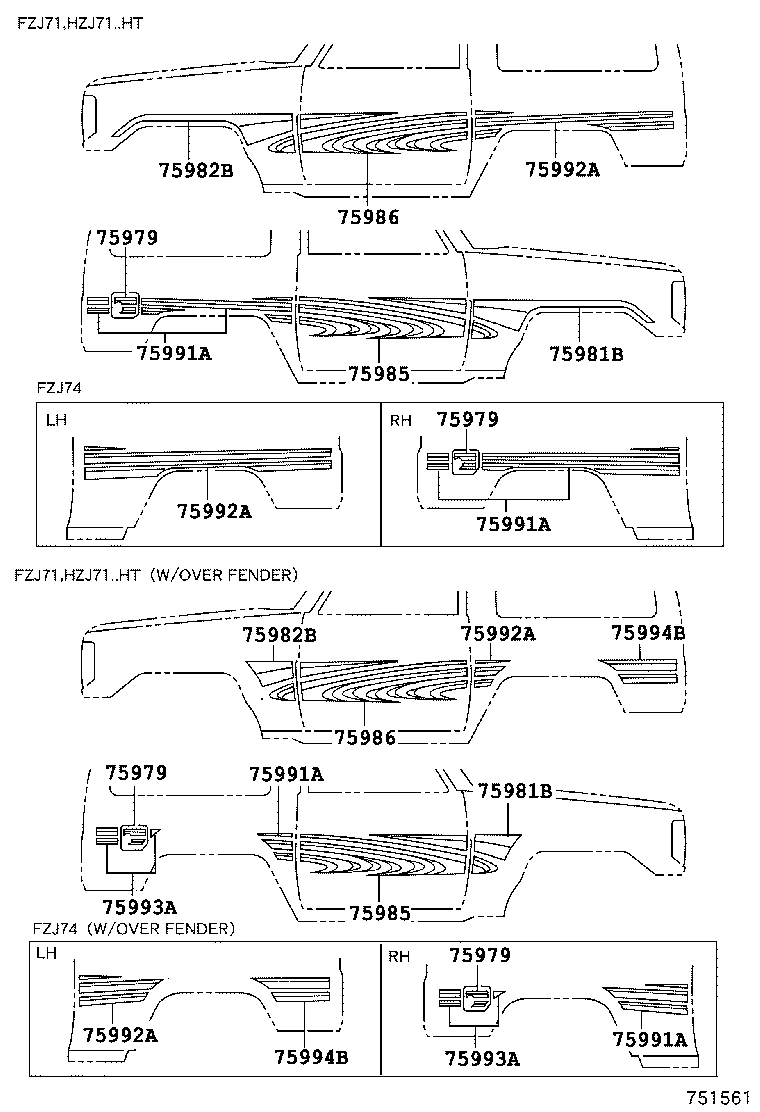

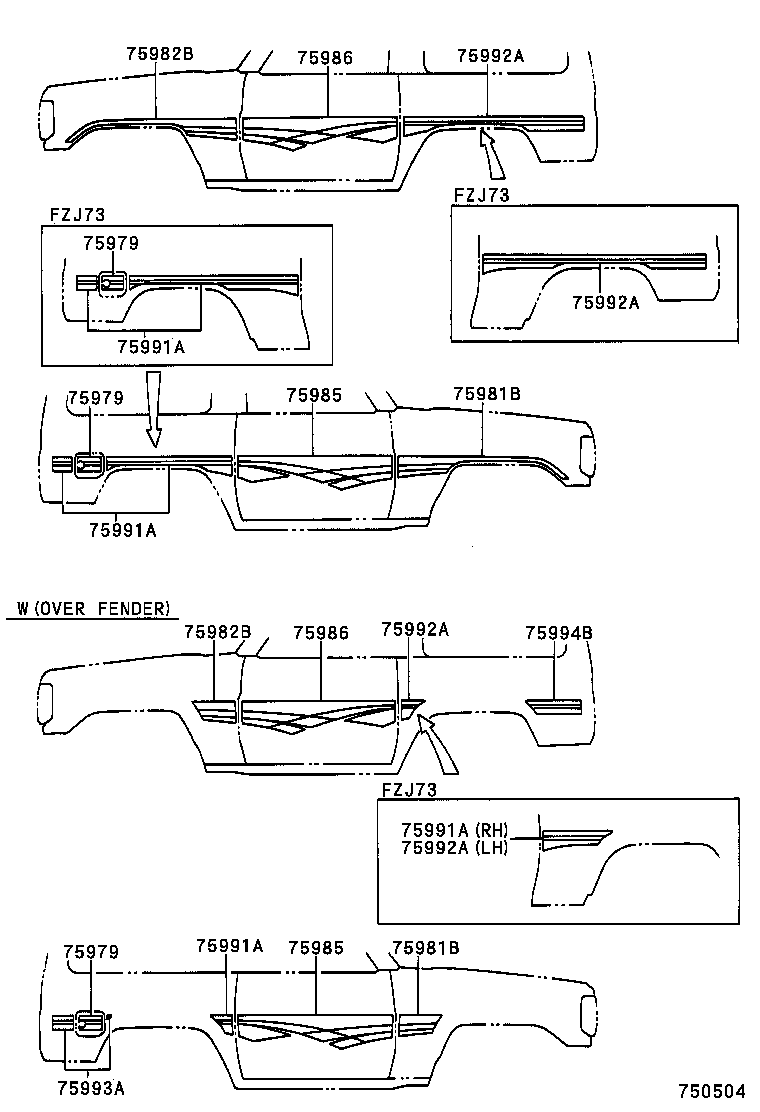

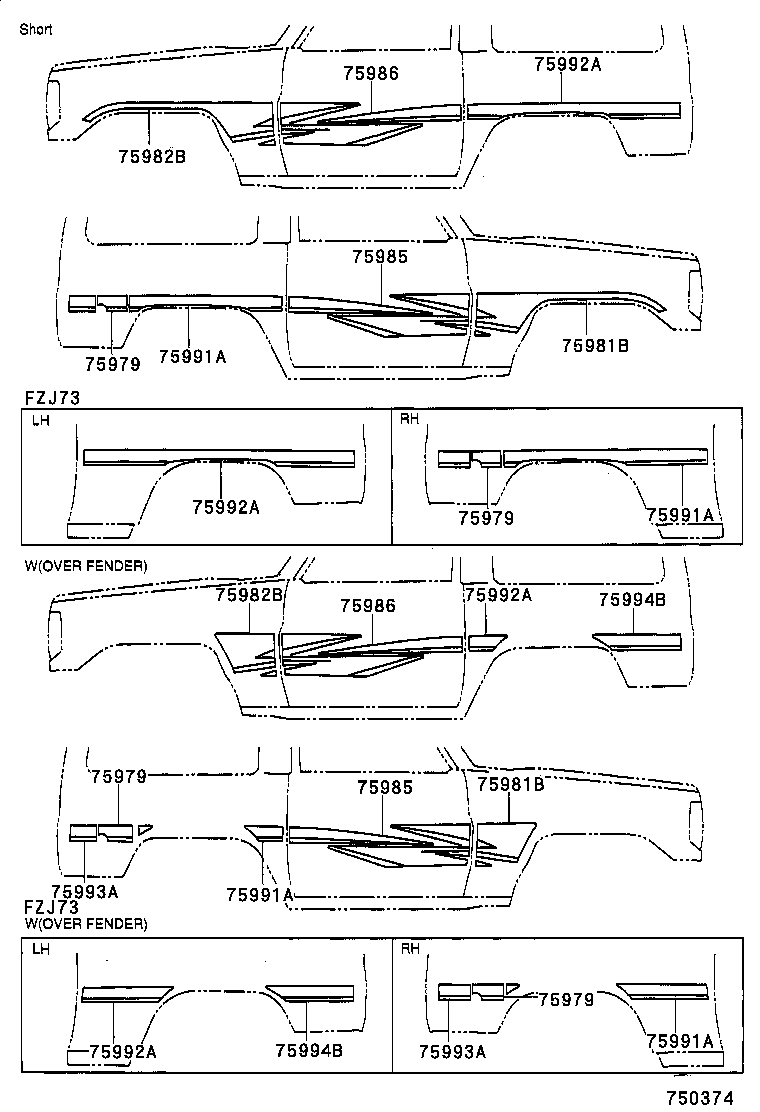

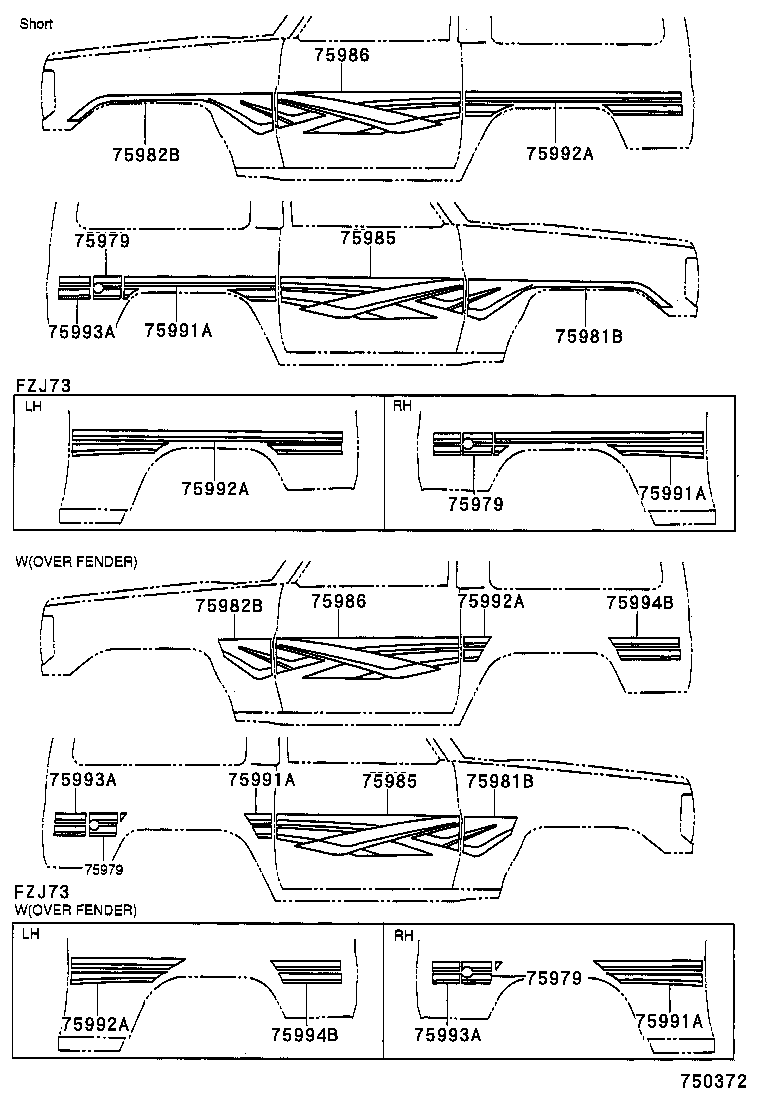

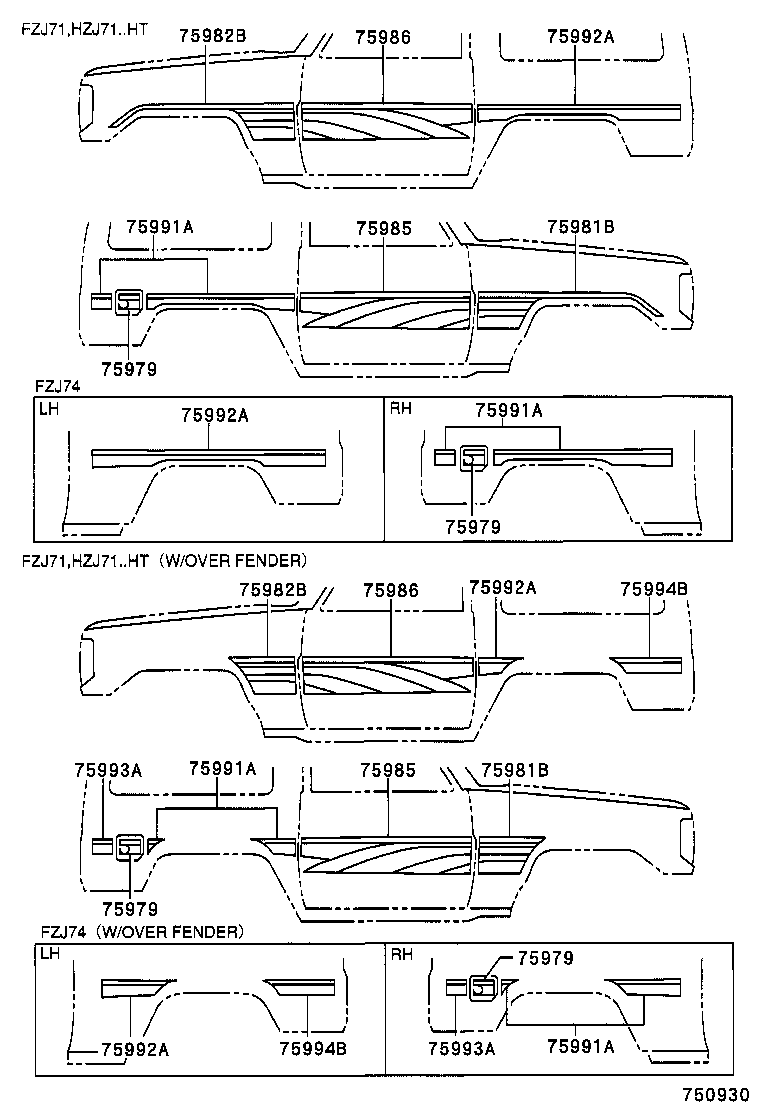

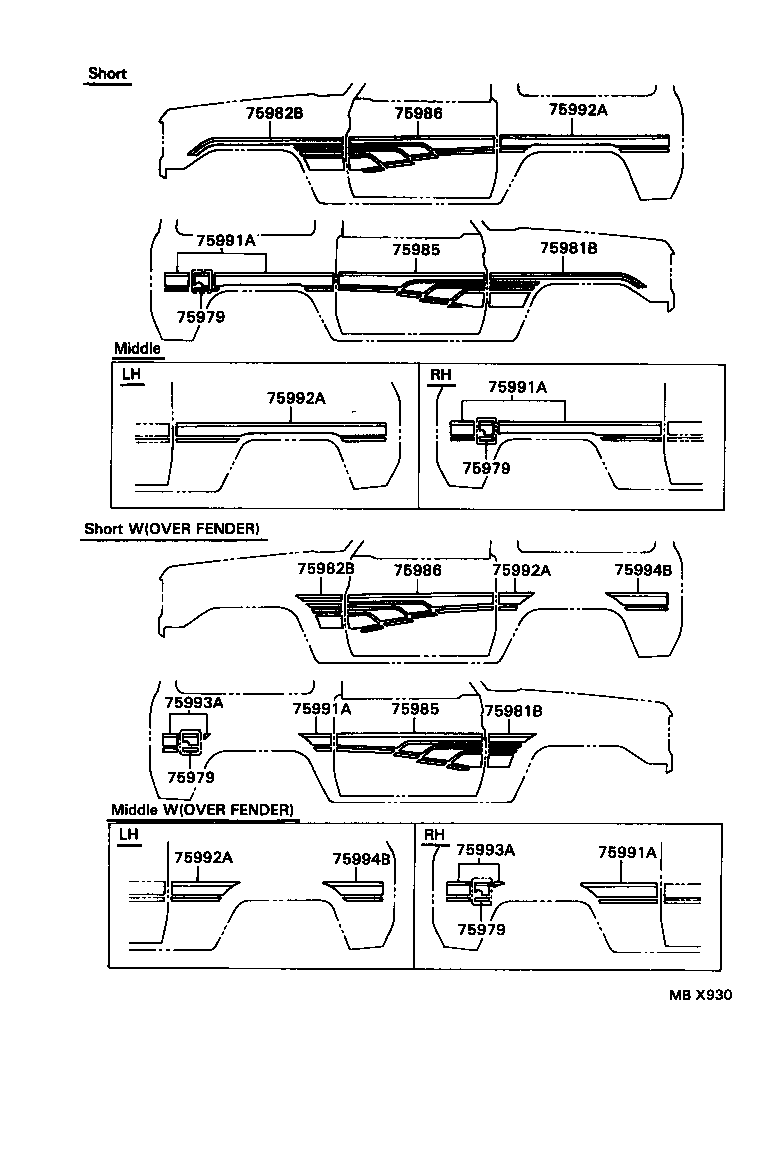

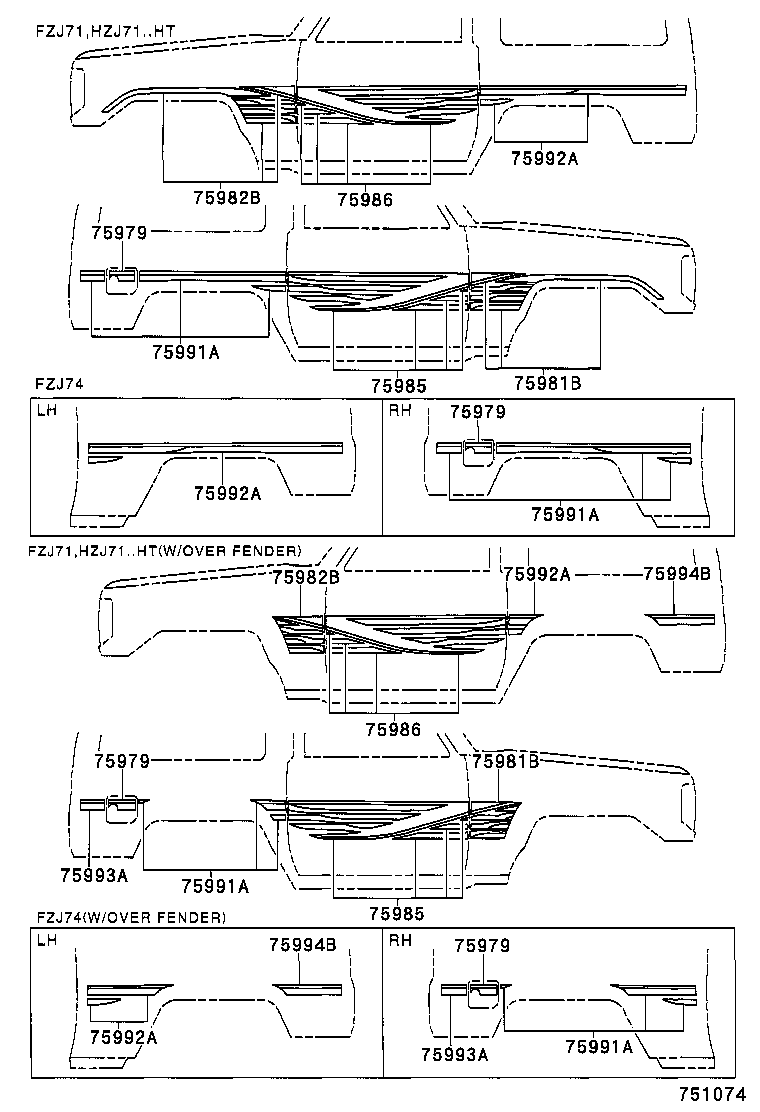

Figure MBU252B MBU252B 1990-01 → 1999-08 Figure MBU256A MBU256A 1990-01 → 1999-08 Figure MBU673B MBU673B 1990-04 → 1999-08 Figure MBX930 MBX930 1993-08 → 1999-08 Figure MBX931 MBX931 1993-08 → 1999-08 Figure 750374 750374 1995-01 → 1996-08 Figure 750375 750375 1995-01 → 1996-08 Figure 750372 750372 1996-08 → 1997-08 Figure 750373 750373 1996-08 → 1997-08 Figure 750370 750370 1997-08 → 1998-07 Figure 750371 750371 1997-08 → 1998-07 Figure 750504 750504 1998-07 → 1999-08 Figure 750505 750505 1998-07 → 1999-08 Figure 750641 750641 1999-08 → 2001-08 Figure 750640A 750640A 1999-08 → 2001-08 Figure 750640A 750640A 2000-02 → 2001-08 Figure 750925 750925 2001-01 → 2001-06 Figure 750930 750930 2001-08 → 2002-07 Figure 750931 750931 2001-08 → 2002-07 Figure 751074 751074 2002-07 → 2004-08 Figure 751075 751075 2002-07 → 2004-08 Figure 751486C 751486C 2004-08 → 2005-07 Figure 751487 751487 2004-08 → 2005-07 Figure 751561 751561 2005-07 → 2007-01 Figure 751562 751562 2005-07 → 2007-01

Part groups

PNCDescription
75379C Mark, Side Panel
75941 Stripe, Center Pillar, RH
75942 Stripe, Center Pillar, NO.2
75965A Stripe, Front Door Outside, Rear RH
75966A Stripe, Front Door Outside, Rear LH
75973C Stripe, Side, RH NO.2 (FOR LOWER)
75974C Stripe, Side, LH NO.2(FOR LOWER)
75975C Stripe, Side, RH NO.3 (FOR LOWER)
75976C Stripe, Side, LH NO.3 (FOR LOWER)
75979 Stripe, Fuel Filler Opening Lid
75981B Stripe, Fender, RH
75982B Stripe, Fender, LH
75983B Stripe, Front Fender, Rear RH
75985 Stripe, Front Door, RH
75986 Stripe, Front Door, LH
75987D Stripe, Rear Door, Outside, RH
75988B Stripe, Rear Deck, Front RH
75988C Stripe, Rear Door, Outside LH
75988D Stripe, Rear Door Outside, LH
75989 Stripe, Rear Deck, Front LH
75991A Stripe, Quarter, RH
75992A Stripe, Quarter, LH
75993A Stripe, Quarter, Rear RH
75994B Strip, Quarter, Rear LH
75996C Stripe, Rear Body, RH
75997C Stripe, Rear Body, LH
75998C Stripe, Rear Deck, Rear RH
75999C Stripe, Rear Deck, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
