Toyota Land Cruiser
1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States
Discontinued model
Data version 2014-05

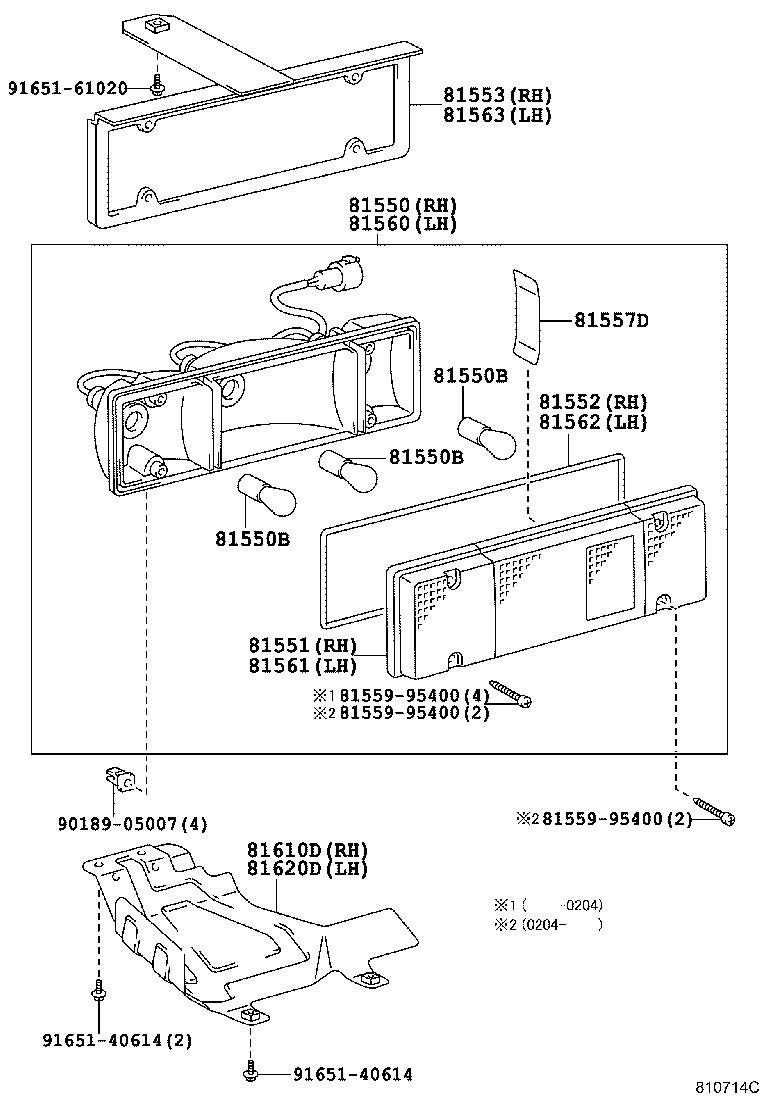

Rear Combination Lamp
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550B | Bulb(FOR REAR COMBINATION LAMP) |
| 81550C | Lamp Assy, Rear Combination, RH |
| 81550D | Bulb(FOR REAR COMBINATION LAMP) |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81551A | Lens, Rear Combination Lamp, RH |
| 81552 | Gasket, Rear Combination Lamp Lens, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81553 | Bracket, Rear Combination Lamp, NO.1 RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81556 | Rim, Rear Combination Lamp, RH |
| 81557B | Protector, Rear Combination Lamp, RH |
| 81557D | Reflector, Rear Combination Lamp |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81560A | Lamp Assy, Rear Combination, LH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81561A | Lens, Rear Combination Lamp, LH |
| 81562 | Gasket, Rear Combination Lamp Lens, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81563 | Bracket, Rear Combination Lamp, NO.1 LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81566 | Rim, Rear Combination Lamp, LH |
| 81567B | Protector, Rear Combination Lamp, LH |
| 81610D | Cover, Rear Combination Lamp, RH |
| 81620D | Cover, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
