Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

9 part groups · 3 illustrations

Illustrations

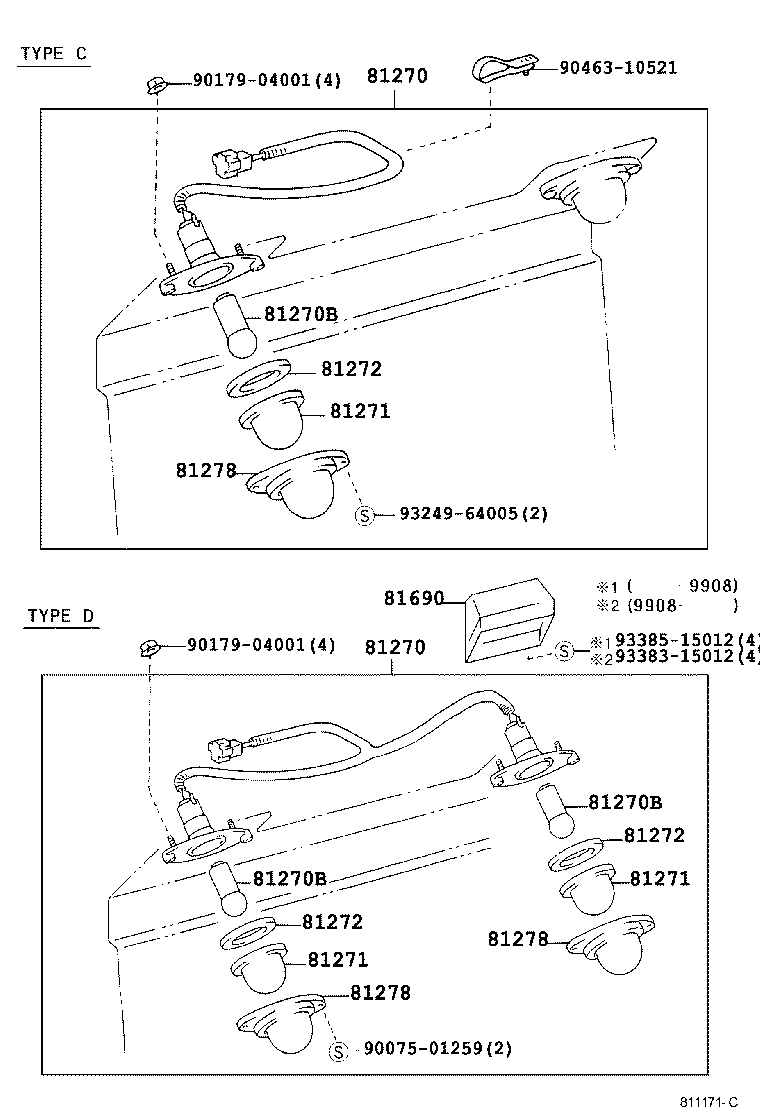

Figure 810465F 810465F 1990-01 → — Figure 810781B 810781B 1990-01 → — Figure 811171C 811171C 1990-01 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81276B Cover, License Plate Lamp
81278 Cover, License Plate Lamp
81278D Spacer, License Plate Lamp
81690 Cover Sub-assy, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
