Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

8 part groups · 7 illustrations

Illustrations

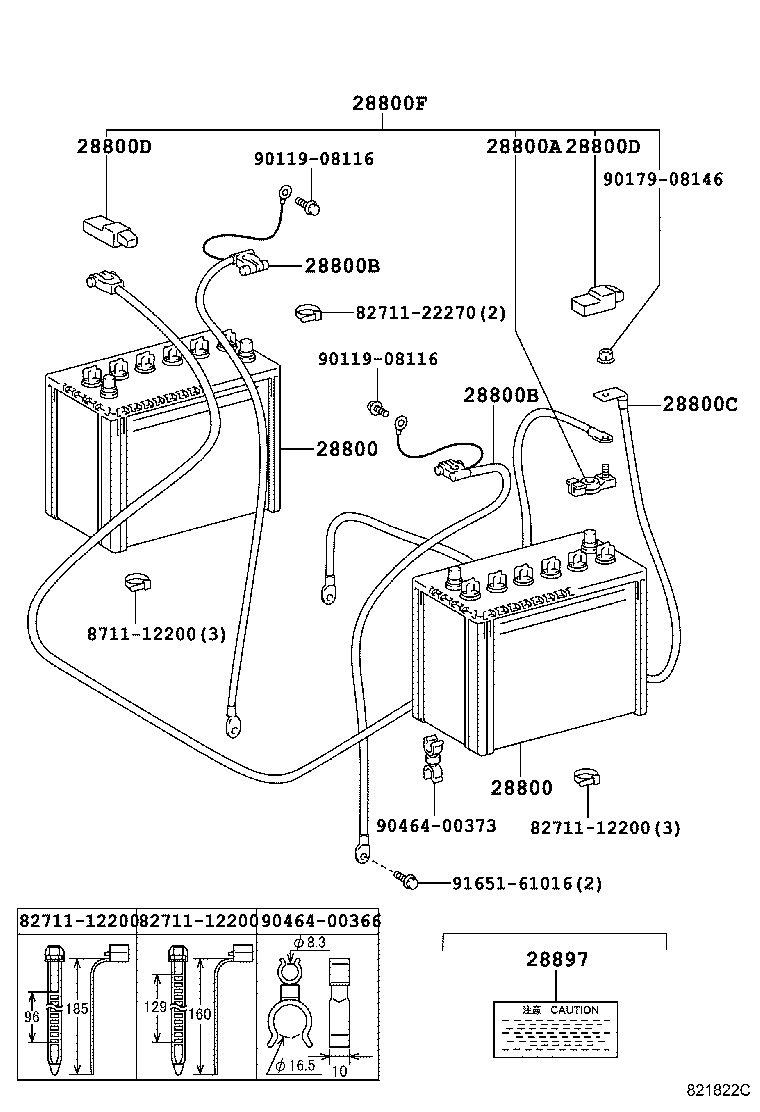

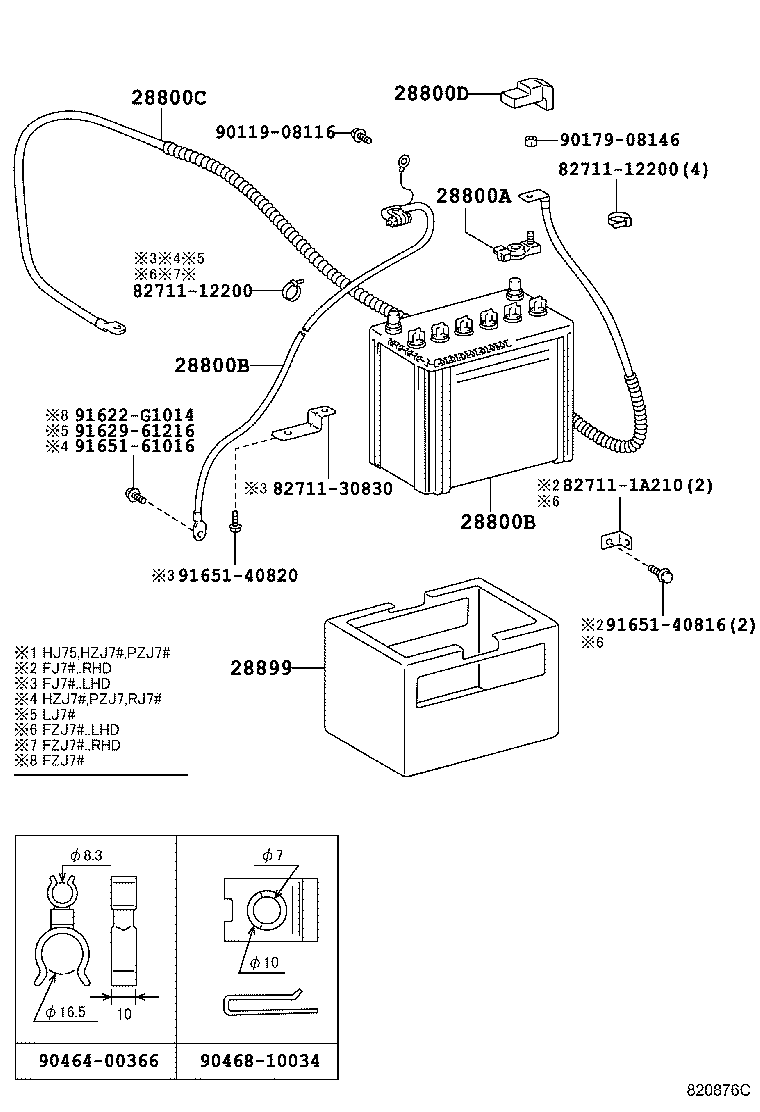

Figure 822769A 822769A 1990-01 → 1996-08 Figure 821822C 821822C 1996-08 → — Figure 820876C 820876C 1990-01 → — Figure 821296A 821296A 1997-06 → 1997-11 Figure 821296A 821296A 1998-09 → 1998-11 Figure 821296A 821296A 2006-09 → 2006-11 Figure 822768A 822768A 2001-08 → 2007-01

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800B Cable, Battery TO Ground
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28897 Plate, Battery Caution
28899 Insulator, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
