Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

46 part groups · 24 illustrations

Illustrations

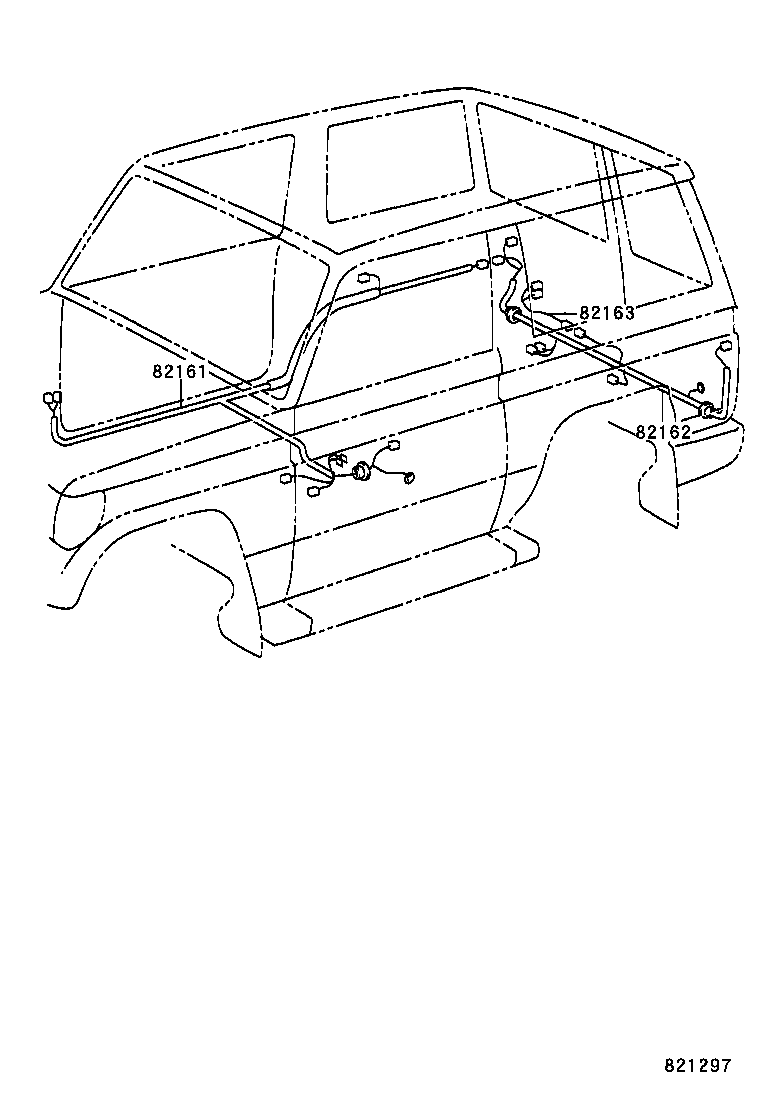

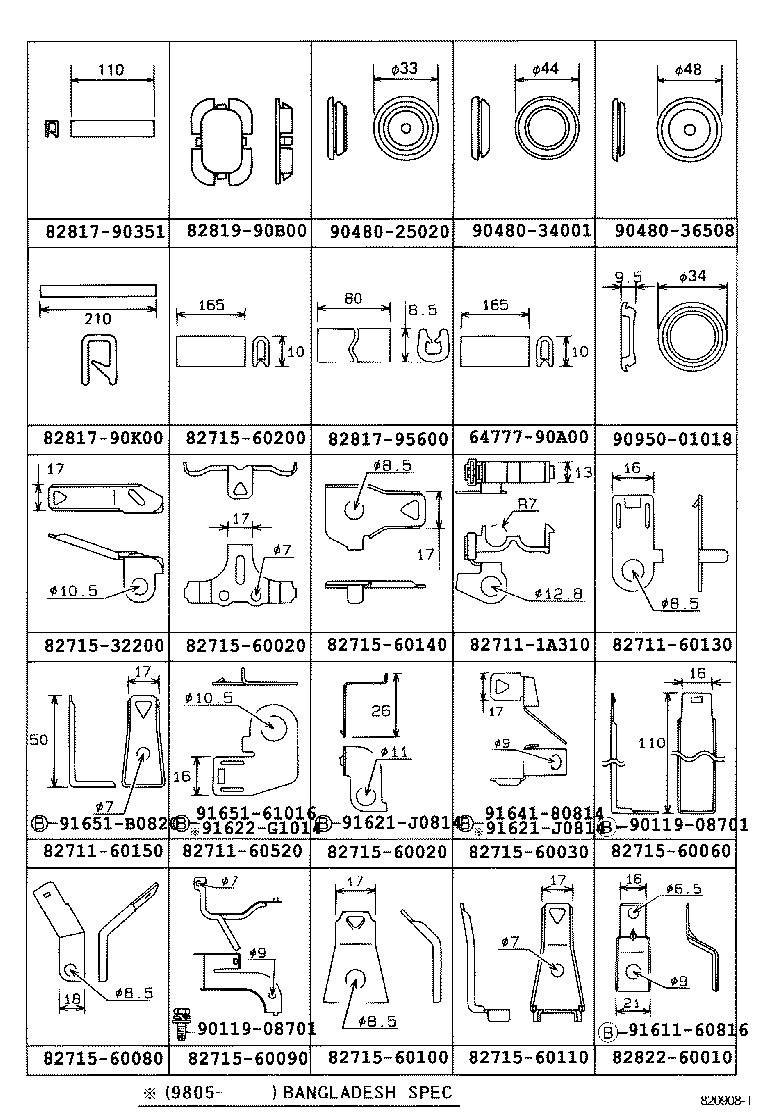

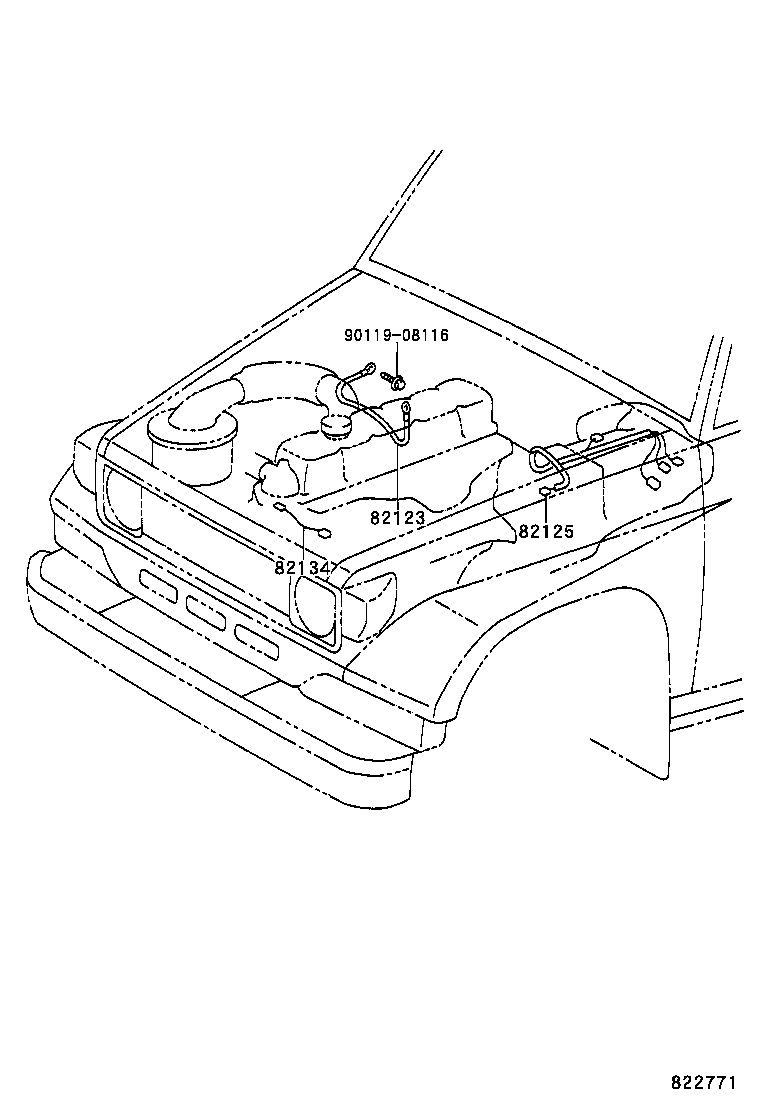

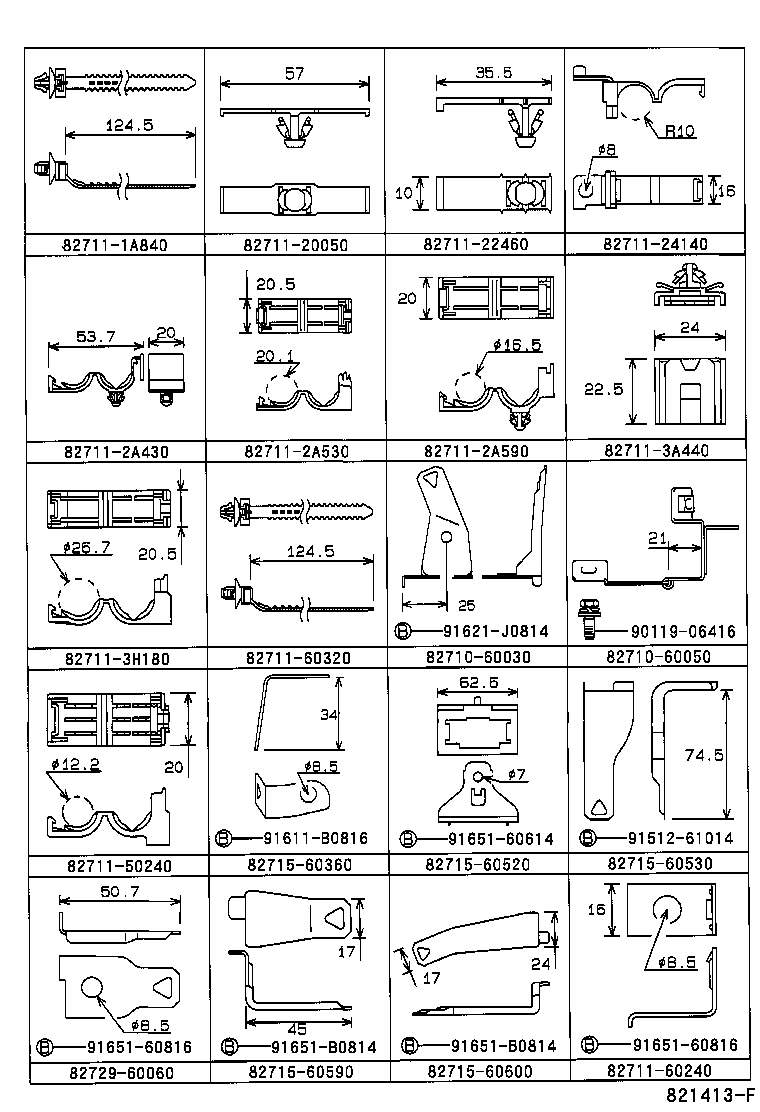

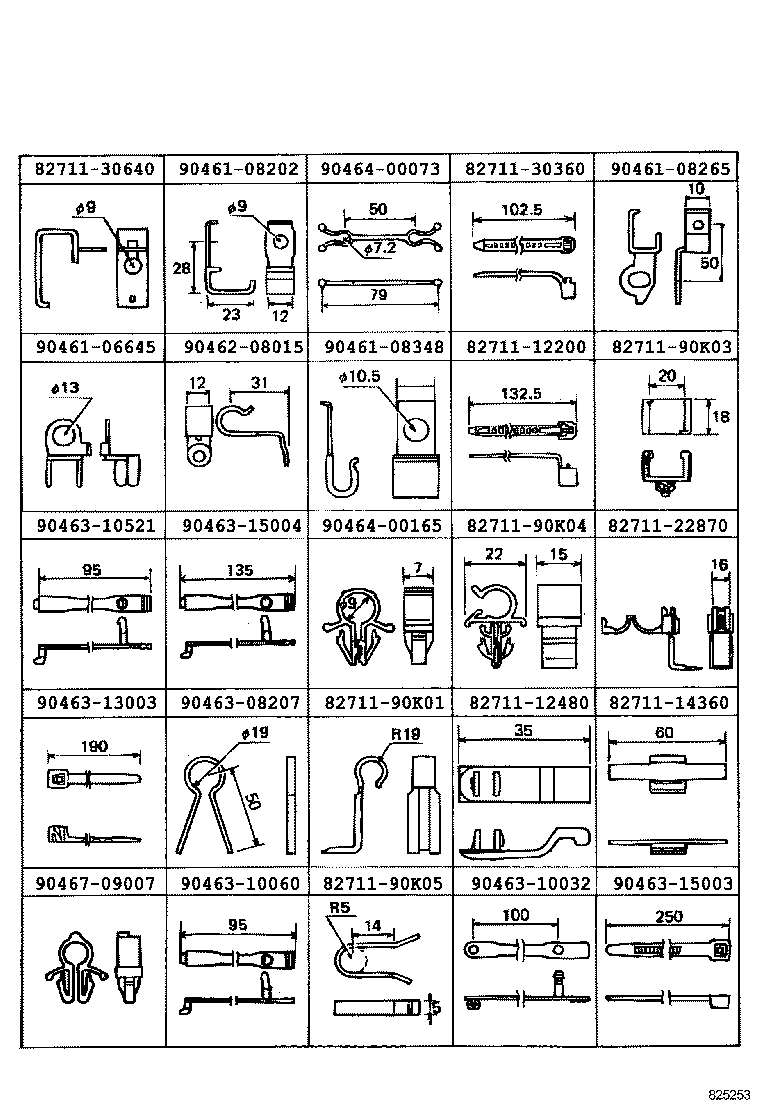

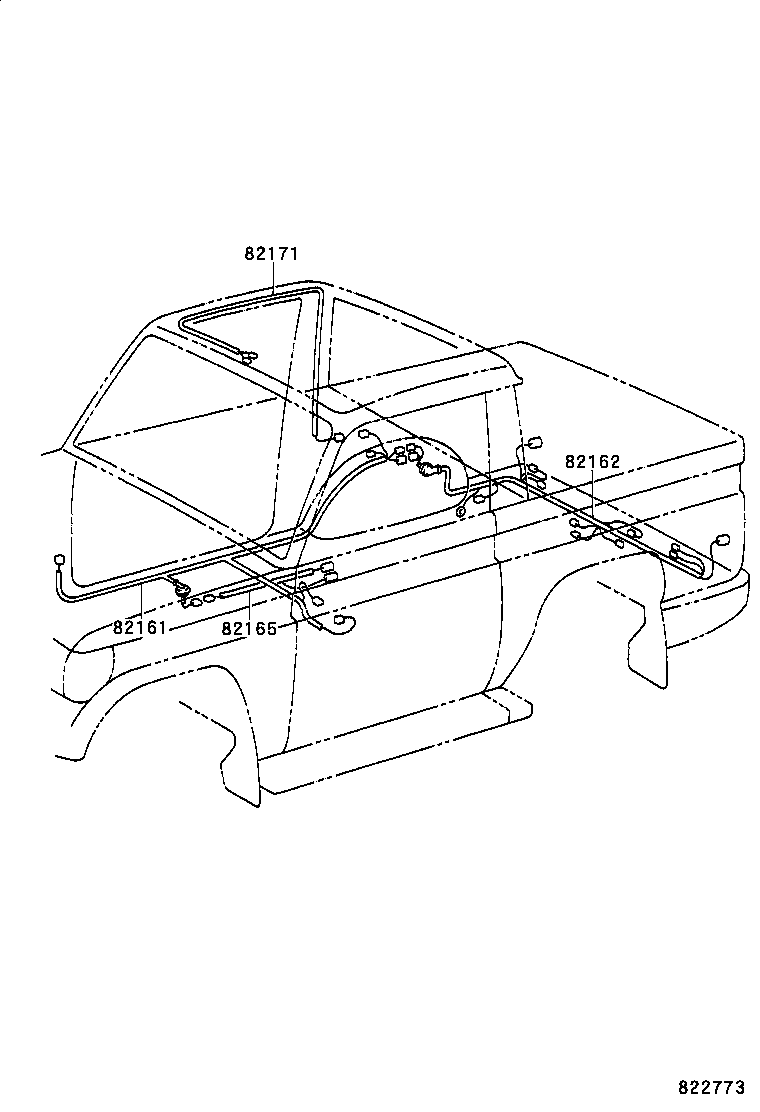

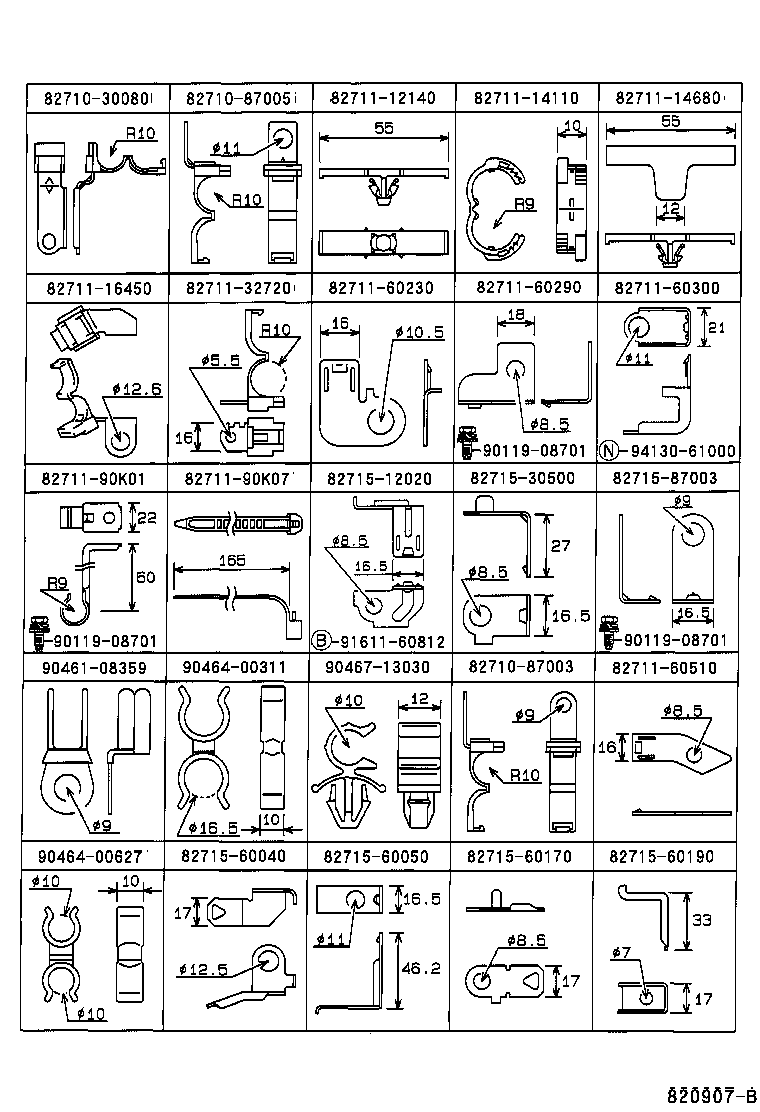

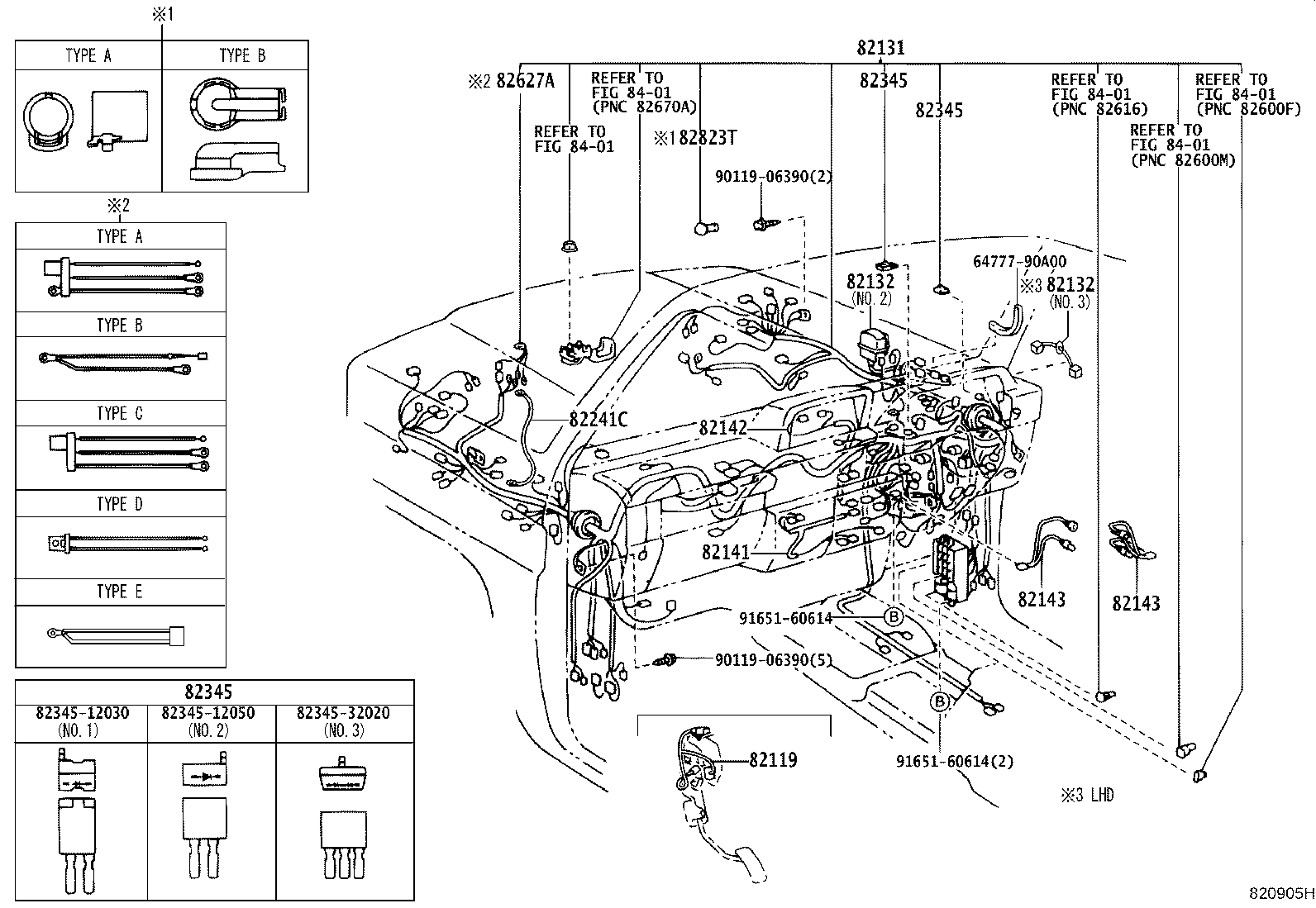

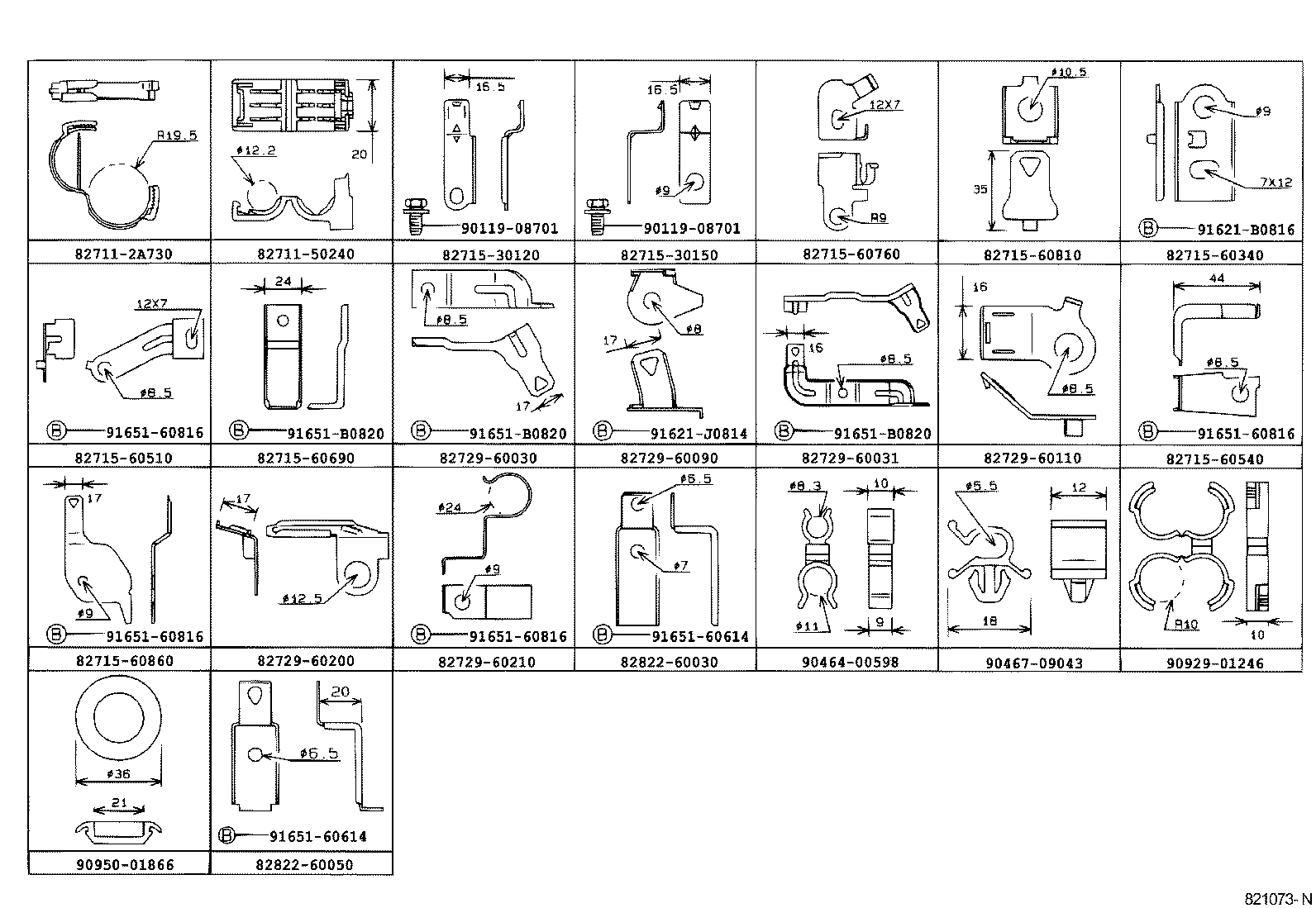

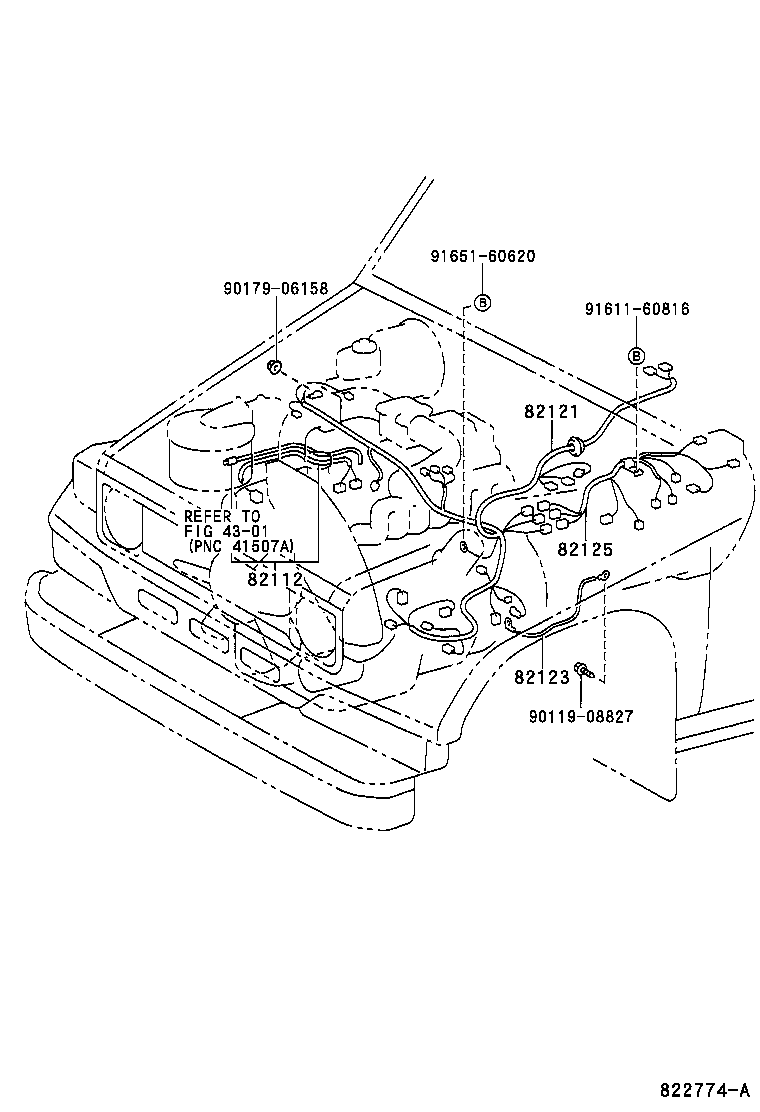

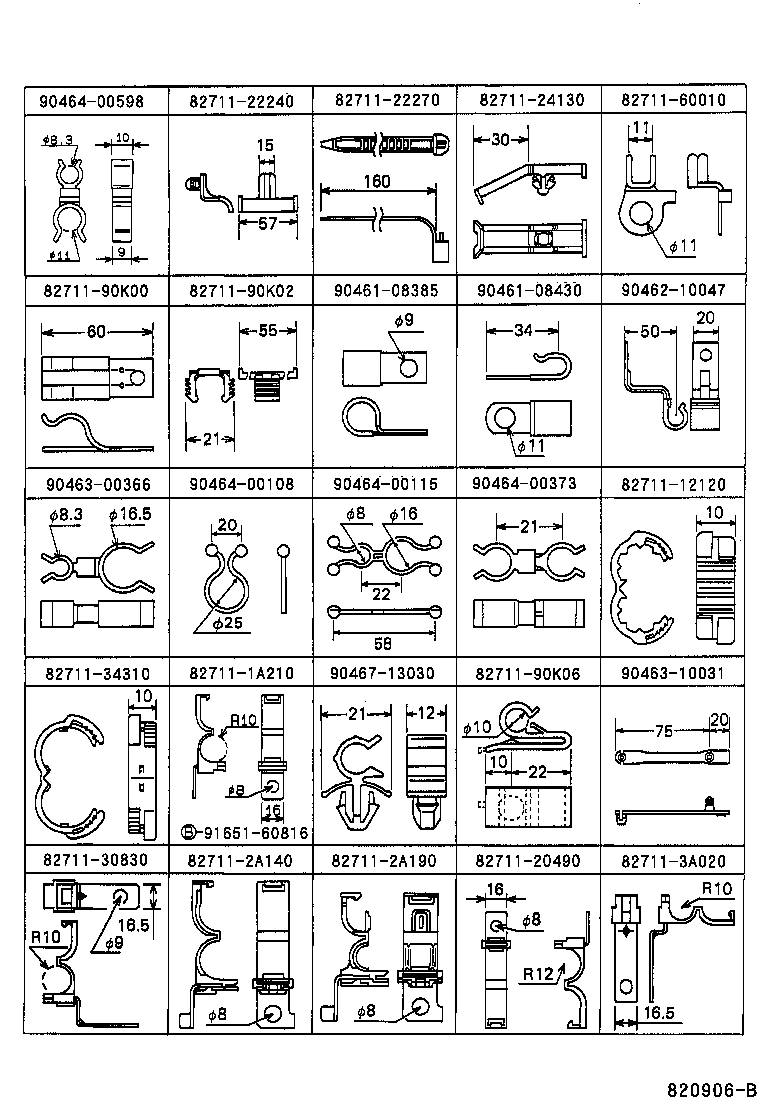

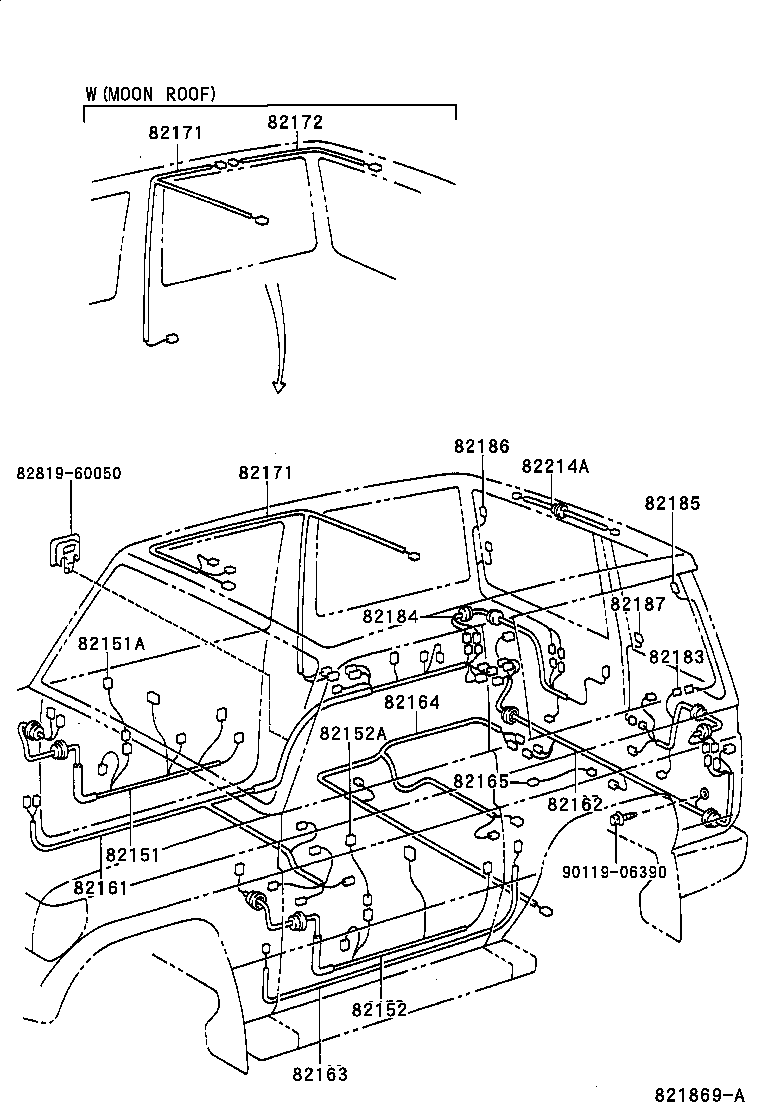

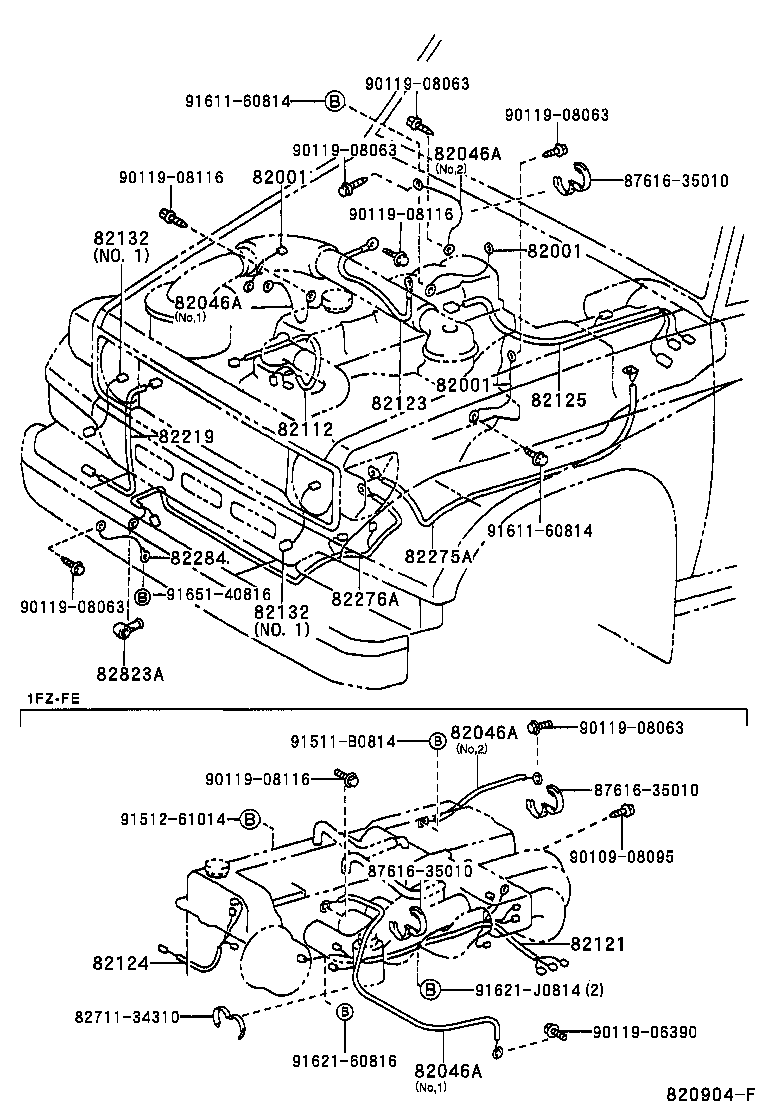

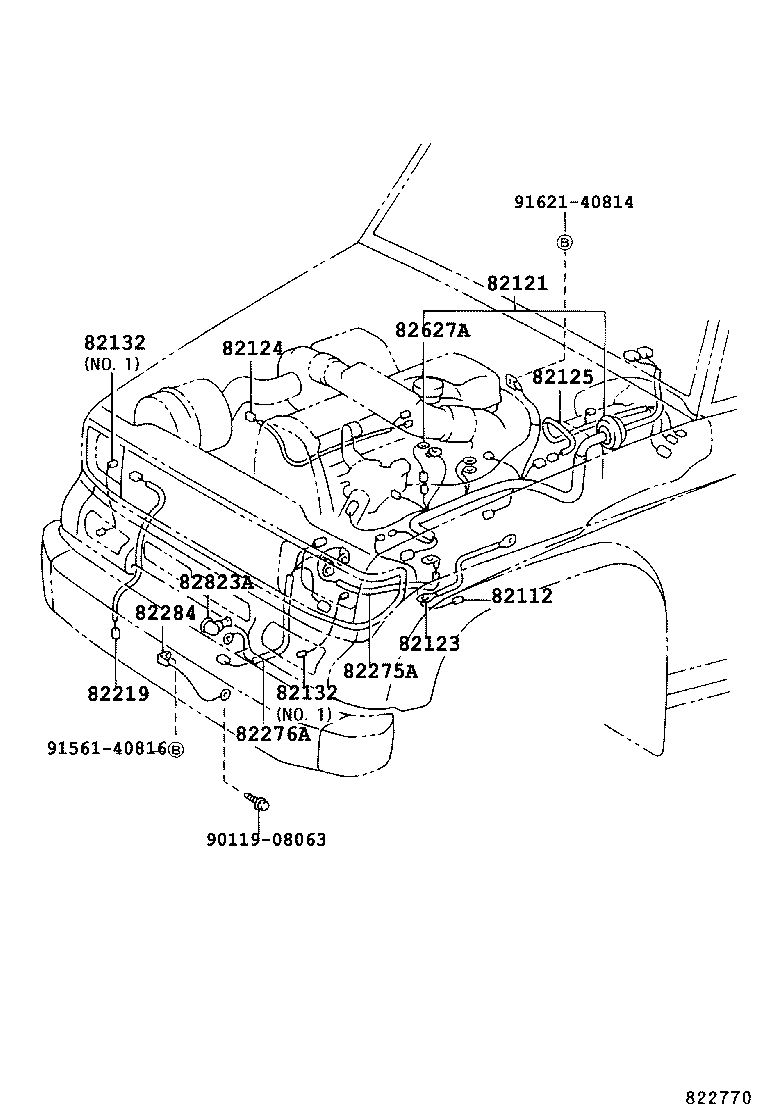

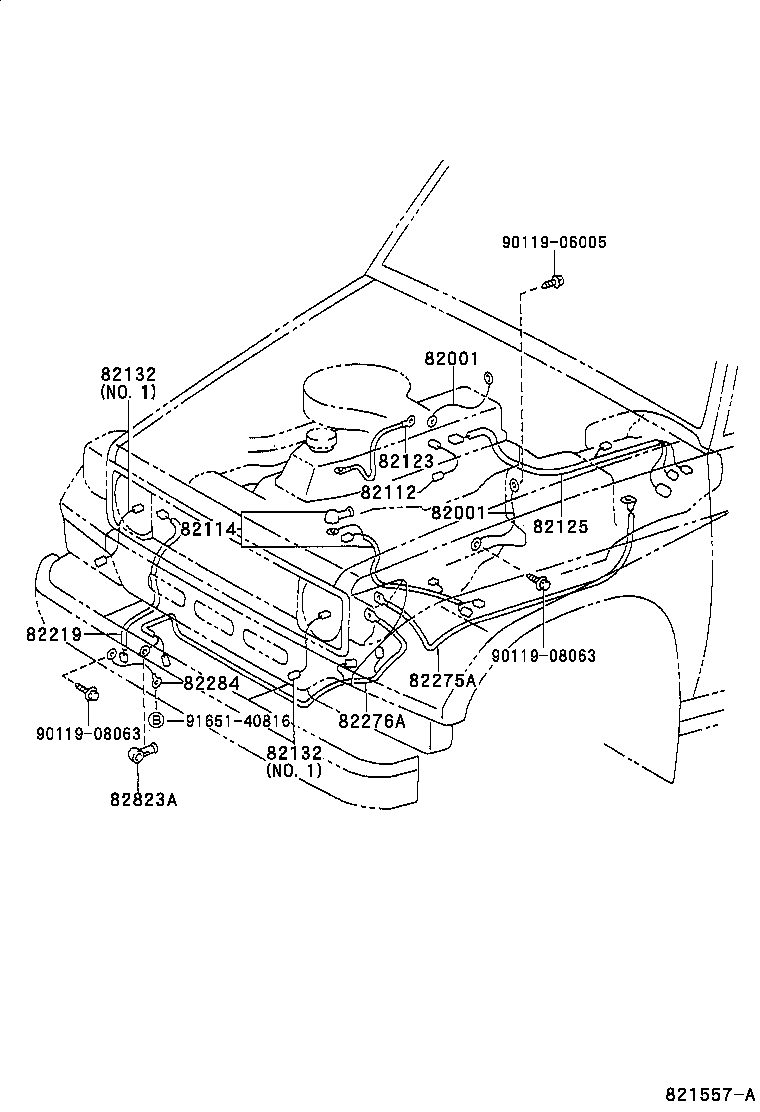

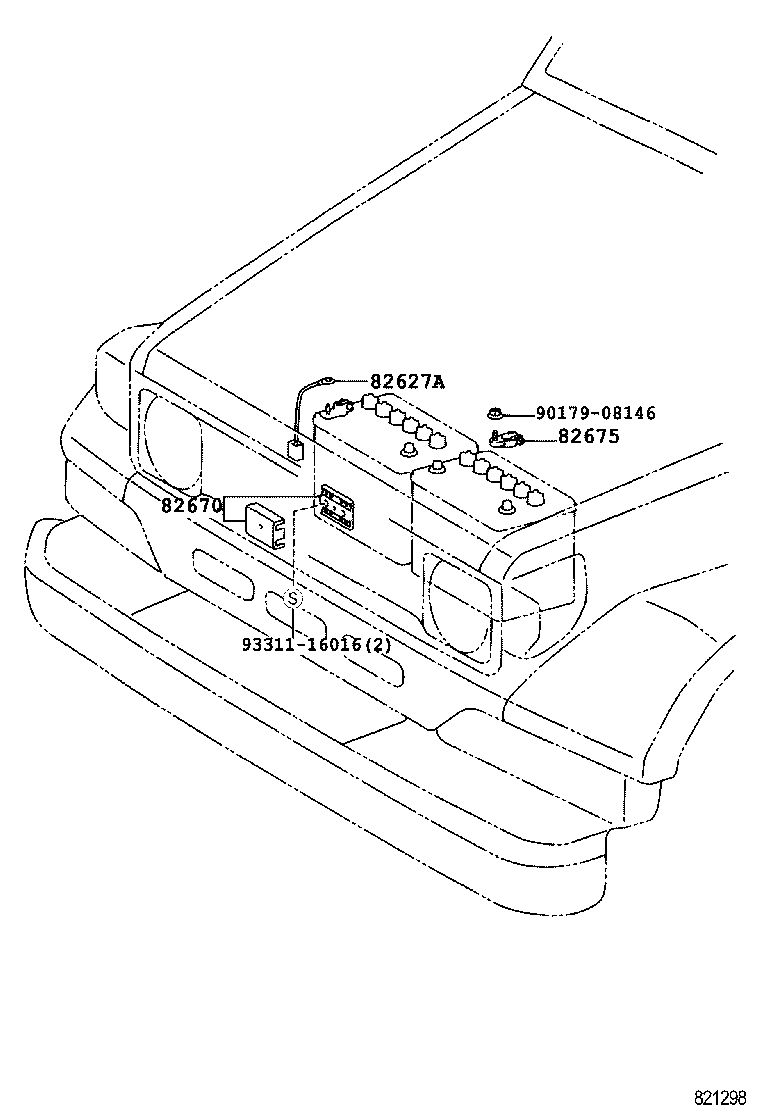

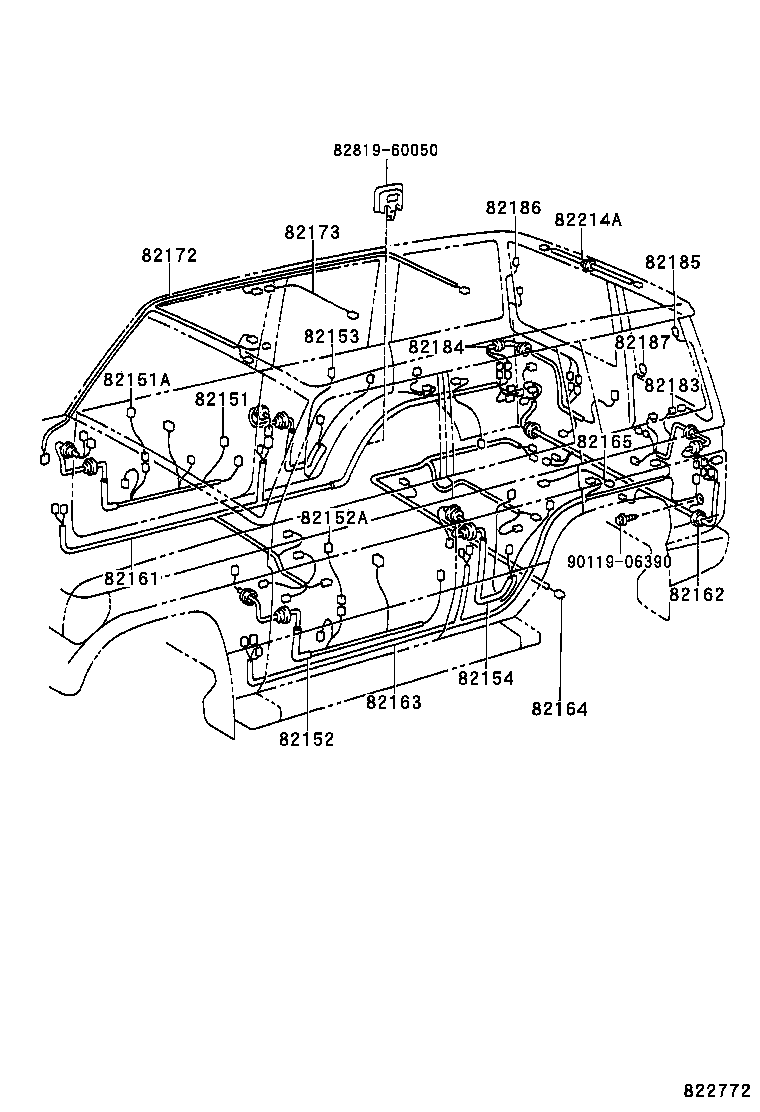

Figure 821432C 821432C 1990-01 → — Figure 820904F 820904F 1990-01 → — Figure 821557A 821557A 1990-01 → 1996-04 Figure 822770B 822770B 1990-01 → 1996-04 Figure 822771 822771 1990-01 → 1991-08 Figure 822774A 822774A 2001-08 → 2007-01 Figure 820905H 820905H 1990-01 → 2007-01 Figure 821869A 821869A 1990-01 → — Figure 821869A 821869A 1993-05 → — Figure 822772 822772 1990-01 → — Figure 822772 822772 1993-05 → — Figure 822773 822773 1990-01 → — Figure 821298A 821298A 1997-06 → 1997-11 Figure 821298A 821298A 1998-09 → 1998-11 Figure 821298A 821298A 2006-09 → 2006-11 Figure 821297 821297 1997-06 → 1997-11 Figure 821297 821297 1998-09 → 1998-11 Figure 821297 821297 2006-09 → 2006-11 Figure 825253 825253 1990-01 → — Figure 820906B 820906B 1990-01 → — Figure 821413F 821413F 1990-01 → — Figure 820907B 820907B 1990-01 → — Figure 820908I 820908I 1990-01 → — Figure 821073N 821073N 1990-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82134 Wire, Cowl, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82214A Wire, Lamp
82219 Wire, Thermo Sensor
82241C Wire, Relay
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82284 Wire, Earth
82345 Diode
82627A Wire, Fusible Link
82670 Block Assy, Junction, NO.1
82675 Terminal, Junction
82823A Cap, Terminal, NO.2
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
