Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 3 illustrations

Illustrations

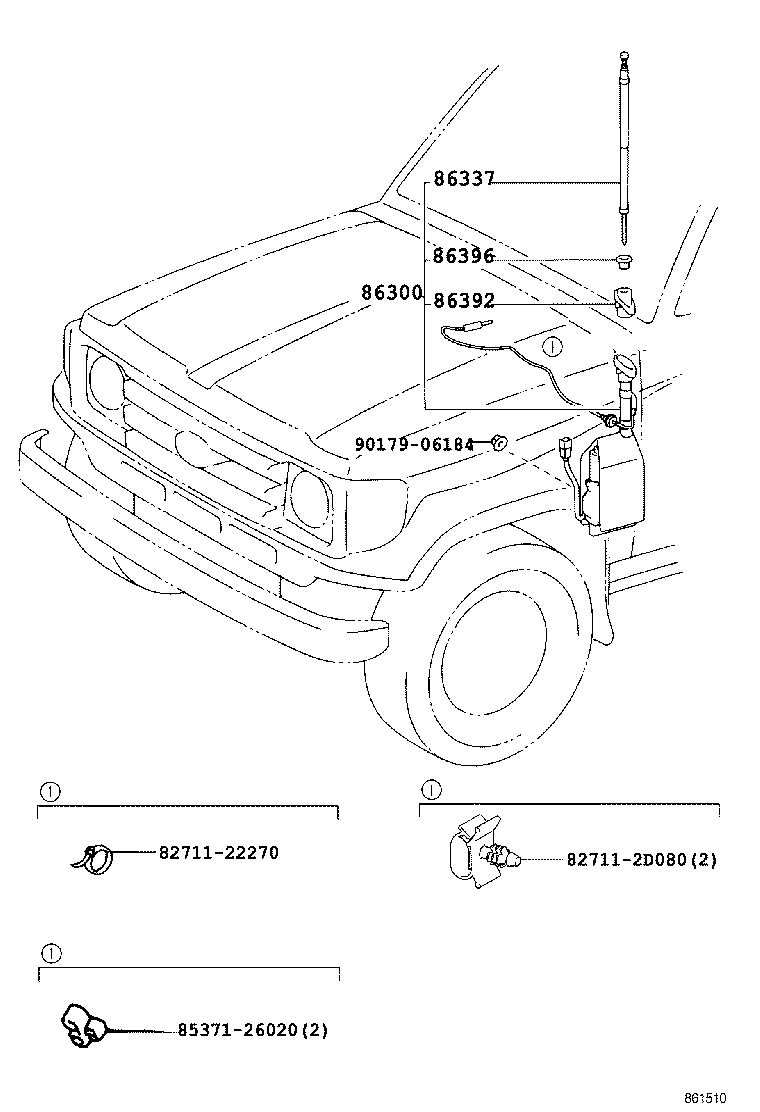

Figure 861509A 861509A 1990-01 → 2009-07 Figure 861509A 861509A 2001-08 → 2009-07 Figure 861510B 861510B 2001-08 → 2007-01

Part groups

PNCDescription
86300 Antenna Assy, W/Holder
86309B Pole Sub-assy, Pull Top Antenna
86337 Rod & Pipe, Sealed W/Cable
86392 Ornament, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
