Toyota Land Cruiser

1990-01 → 2008-08 · chassis FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# · catalogue 781330 · United States

Discontinued model Data version 2014-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

22 part groups · 5 illustrations

Illustrations

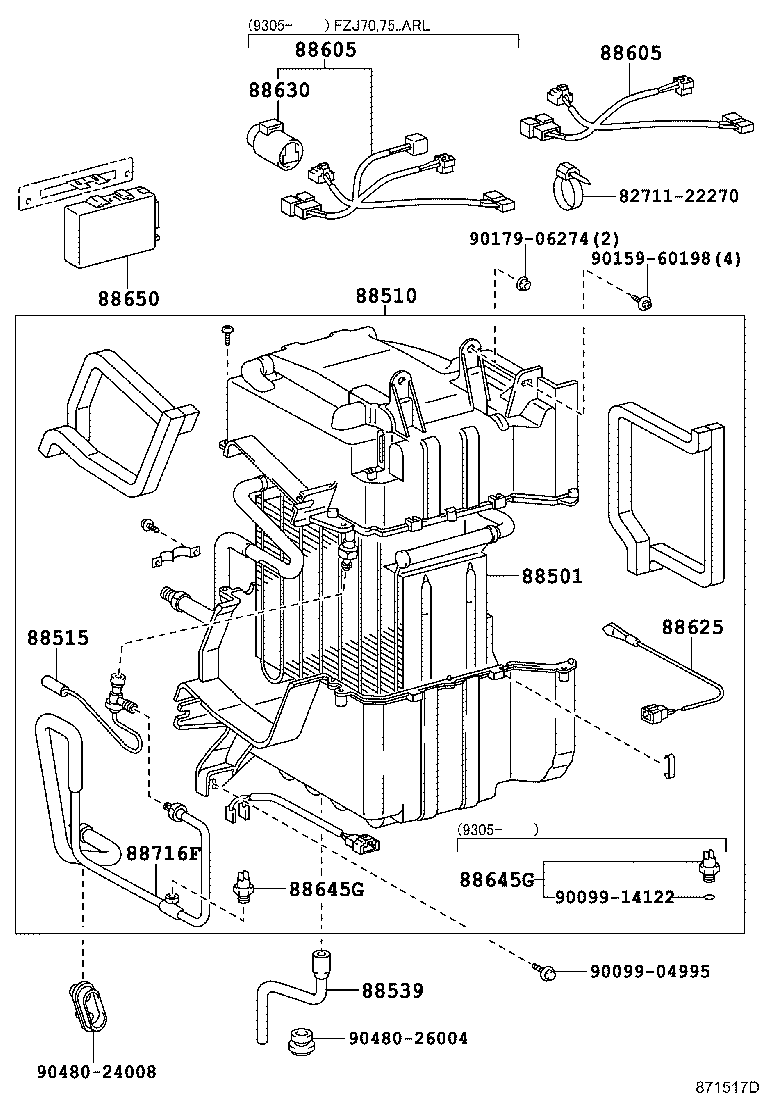

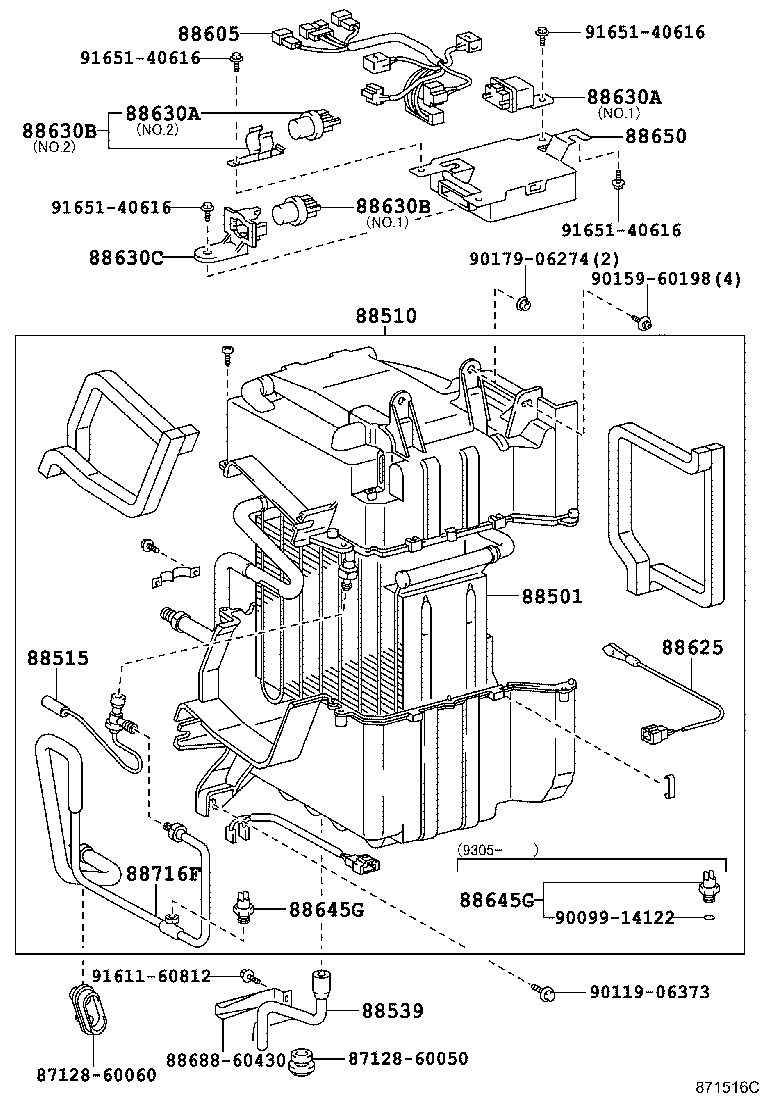

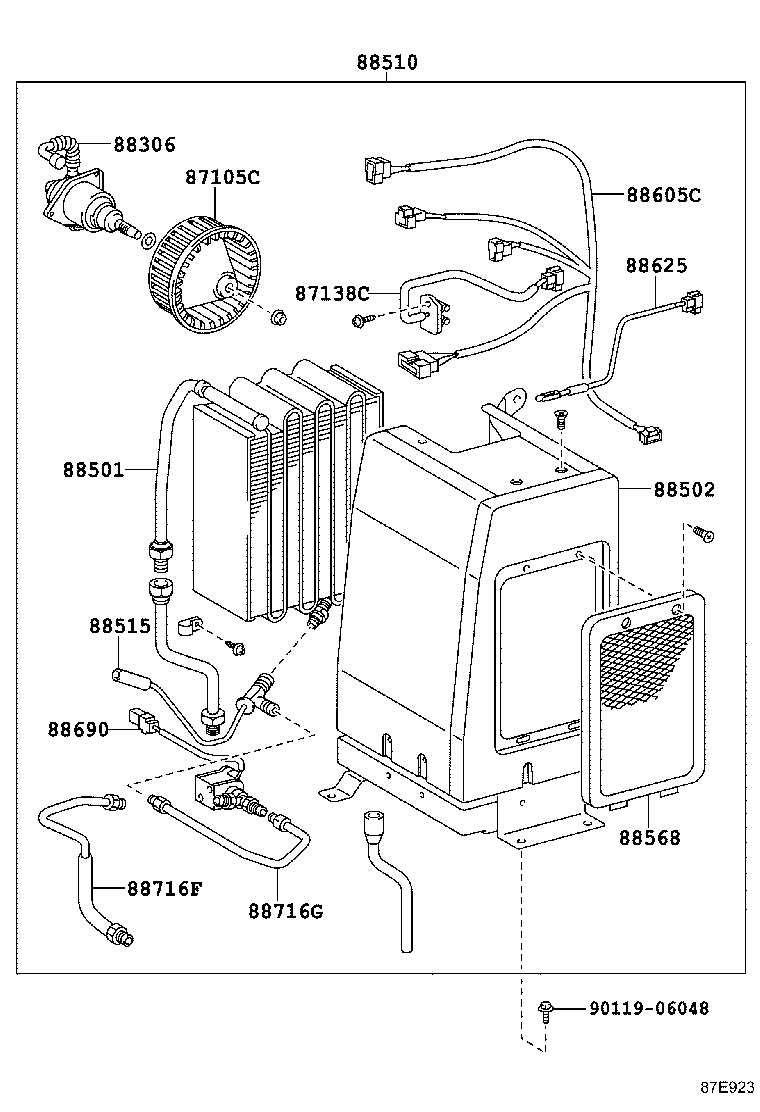

Figure 871515G 871515G 1990-01 → — Figure 871516C 871516C 1990-01 → 1992-01 Figure 871517D 871517D 1990-01 → — Figure 87E923 87E923 1990-01 → 1992-01 Figure 87E924 87E924 1990-01 → —

Part groups

PNCDescription
87105C Fan Sub-assy, Blower, Rear
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88568 Filter, Cooler Unit Cover
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88645G Switch, Pressure
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88690 Valve Assy, Cooler Magnet
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
